WHEN NEEDING TO
CHANGE A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check
that it has not fused before changing
the bulb. For the location of the fuses,
refer to “If a fuse blows” in this chap-
ter;
❒Before replacing a bulb that does not
work, check that the contacts are not
oxidised;
❒Burnt bulbs must be replaced by oth-
ers of the same type and power;
❒Always check the height of the head-
light beam after changing a bulb. For versions with alloy rims
❒Make sure that hub contact surfaces
are clean;
❒Refit the standard wheel fitting it on
the pins, refit the fastening bolts and
tighten them using the wrench pro-
vided;
❒Lower the car and remove the jack;
❒Using the wrench provided, tighten
the bolts in the sequence shown pre-
viously for the space-saver spare
wheel fig. 16;
❒Refit the snap-fitted wheel hub cap.
When you have finished
❒Stow the spare wheel C-fig. 11in the
space provided in the boot;
❒Insert the jack partially open in its con-
tainer B-fig. 11forcing it lightly to
prevent it from vibrating when trav-
elling;
❒Put the tools back into their places in
the container;
❒Stow the container complete with
tools on the spare wheel and secure
everything with the clamping device
A-fig. 11;
❒Correctly re-position the stiff cover.
Modifications or repairs to
the electrical system carried
out incorrectly and without bearing
the features of the system in mind can
cause malfunctions with the risk of
fire.
WARNING
Halogen bulbs contain pres-
surised gas which, if broken,
may cause small fragments of glass to
be projected outwards.
WARNING
Only touch the metal part
when handling halogen bulbs.
If the transparent bulb is
touched it reduces the intesi-
ty of the light emitted and can also re-
duce the life of the bulb. If you touch
the bulb accidentally, rub it with a
cloth moistened with alcohol and leave
it to dry.
IMPORTANT The headlight inner surface
may be lightly misted over: this is not a
fault but a natural fact due to low tem-
perature and the level of air humidity. It
will disappear as soon the headlights are
turned on. The presence of drops inside
the headlights means water infiltration,
therefore contact Fiat Dealership.
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 144

145
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TYPES OF BULBS fig. 17
Various types of bulbs are fitted to your
car:
fig. 17F0H0178m
AGlass bulbs: clipped into position.
Pull to remove.
BBayonet type bulbs: press the
bulb, turn counterclockwise to re-
move this type of bulb from its hold-
er.
CTubular bulbs: free them from
their contacts to remove.
D-EHalogen bulbs: to remove the
bulb, release the clip holding the
bulb in place.
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 145

146
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
Bulb Ref. Figure Type Power
Main beam headlightsEH1 55W
Dipped beam headlights DH7 55W
Front side lights AW5W 5W
Front fog lights (where provided)EH1 55W
Front direction indicators BPY21W 21W
Side direction indicators AWY5W 5W
Rear direction indicators BPY21W 21W
Taillights BP21/5W 21W/5W
Brake lights BP21/5W 21W/5W
Third brake light (additional brake lights) AW5W 5W
Reversing light BP21W 21W
Rear fog lights BP21W 21W
Number plate lights CC5W 5W
Front ceiling lightAW5W 10W
Rear ceiling lightAW5W 10W
Rear ceiling lights (with sunroof)AW5W 5W
Boot light AW5W 5W
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 146

147
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT LIGHT UNITS
The front light units contain the sidelights,
the dipped beam, main beam, direction in-
dicator and fog light bulbs.
To change the bulbs of the sidelights, low
beams, direction indicators and fog lights
it is necessary to remove the cover A-
fig. 18releasing the catch B.
fig. 18F0H0179mfig. 19F0H0180m
The bulbs are arranged inside the light unit
fig. 19 as follows:
G: direction indicators
F: main beam headlights
E: sidelights
D: fog lights
C: dipped beam headlights
After replacement, refit the covers cor-
rectly checking that they are properly se-
cured.MAIN BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒turn the cap A-fig. 20anticlockwise
and remove it;
❒disconnect the electrical connector B-
fig. 21;
❒release the bulb catch C-fig. 21;
❒remove the bulb D-fig. 21and change
it;
❒refit the catch C-fig. 21, connect the
electrical connector Band fit the cap
A-fig. 20turning it clockwise. Put the
cap ventilation outlet H-fig. 20from
the top downwards.
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 147

148
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
fig. 20F0H0181mfig. 21
C
B
D
F0H0214m
fig. 22F0H0182m
DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover releasing
the relevant catch;
❒disconnect the electrical connector F-
fig. 22;
❒release the bulb catch E;
❒remove the bulb Gand change it;
fig. 23F0H0183m
DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒remove the protective cover releasing
the relevant catch;
❒turn the bulb holder A-fig. 23counter-
clockwise and remove it;
❒remove the bulb lightly pushing it and
turning it counter-clockwise (“bayo-
net”);
❒replace the bulb;
❒refit the bulb holder turning it clock-
wise, checking that it is secured cor-
rectly.
❒refit the protective cover correctly
❒fit a new bulb making the tabs of the
metallic part coincide with the grooves
on the reflector, then hook the bulb
holder catch Eand re-connect the
electrical connector F;
❒refit the protective cover correctly.
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 148

149
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
Side
To change the bulb, proceed as follows:
❒lever in the point shown by the arrow
to compress the catch and remove the
unit C-fig. 24;
❒turn the bulb holder Dcounter-clock-
wise, remove the snap-fitted bulb and
change it;
❒refit the bulb holder Din the trans-
parent cover, then position the unit
making sure the catch clicks into place.
fig. 24F0H0184m
FRONT SIDELIGHTS
To change the bulb, proceed as follows:
❒remove the protective cover releasing
the relevant catch;
❒remove the snap-fitted bulb holder A-
fig. 25, extract the bulb Band change
it;
❒refit the bulb holder A;
❒refit the protective cover correctly.FRONT FOG LIGHTS
(where provided)
To change the bulb, proceed as follows:
❒disconnect the electrical connector C-
fig. 26;
❒release the bulb catch D;
❒remove the bulb Eand change it;
❒fit the new bulb, hook the bulb catch
Dand re-connect the electrical con-
nector C.
fig. 25F0H0185mfig. 26F0H0186m
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 149

150
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
fig. 27F0H0187mfig. 28F0H0188m

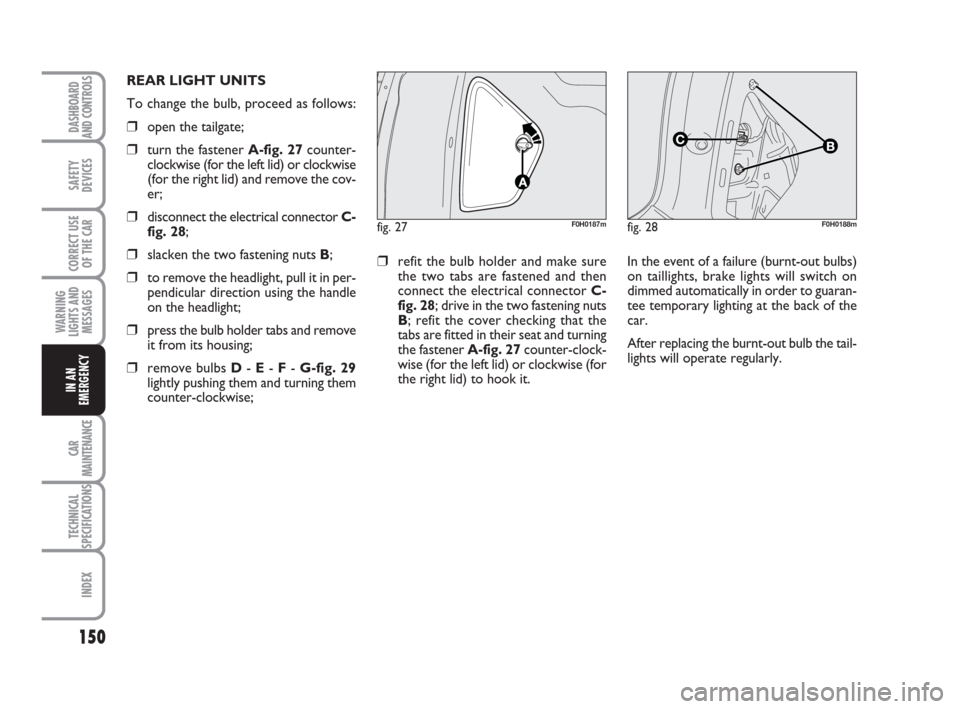

REAR LIGHT UNITS
To change the bulb, proceed as follows:
❒open the tailgate;
❒turn the fastener A-fig. 27counter-
clockwise (for the left lid) or clockwise
(for the right lid) and remove the cov-
er;
❒disconnect the electrical connector C-
fig. 28;
❒slacken the two fastening nuts B;
❒to remove the headlight, pull it in per-
pendicular direction using the handle
on the headlight;
❒press the bulb holder tabs and remove
it from its housing;
❒remove bulbs D- E- F- G-fig. 29
lightly pushing them and turning them
counter-clockwise;
❒refit the bulb holder and make sure
the two tabs are fastened and then
connect the electrical connector C-
fig. 28; drive in the two fastening nuts
B; refit the cover checking that the
tabs are fitted in their seat and turning
the fastener A-fig. 27counter-clock-
wise (for the left lid) or clockwise (for
the right lid) to hook it. In the event of a failure (burnt-out bulbs)
on taillights, brake lights will switch on
dimmed automatically in order to guaran-
tee temporary lighting at the back of the
car.
After replacing the burnt-out bulb the tail-
lights will operate regularly.
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 150

151
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

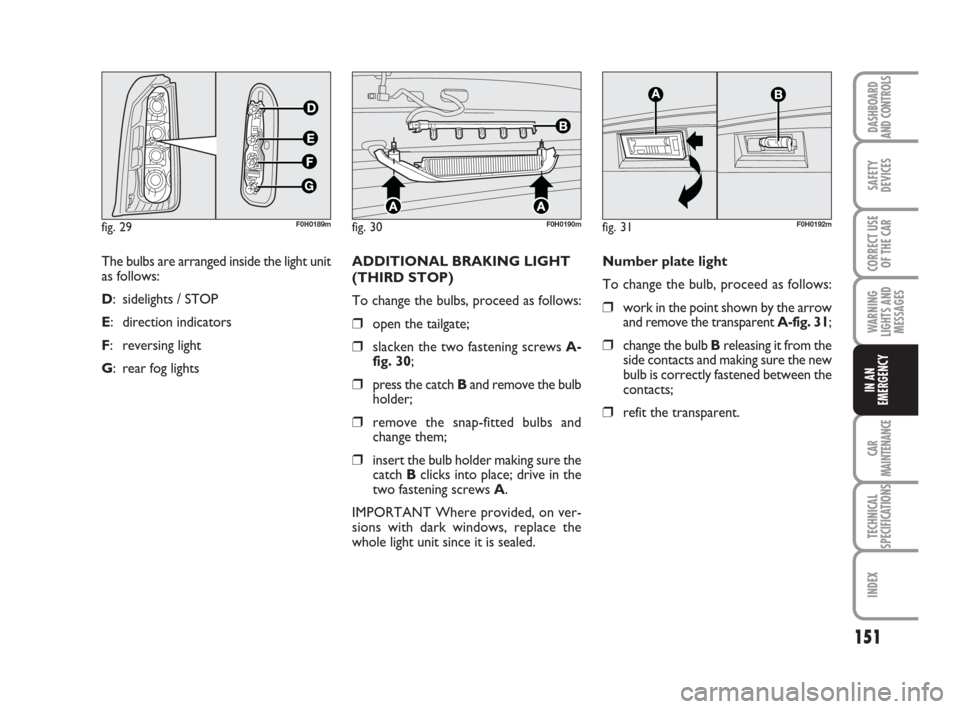

The bulbs are arranged inside the light unit
as follows:
D: sidelights / STOP
E: direction indicators
F: reversing light
G: rear fog lights
fig. 29F0H0189mfig. 30F0H0190m
ADDITIONAL BRAKING LIGHT
(THIRD STOP)
To change the bulbs, proceed as follows:
❒open the tailgate;
❒slacken the two fastening screws A-
fig. 30;
❒press the catch Band remove the bulb
holder;
❒remove the snap-fitted bulbs and
change them;
❒insert the bulb holder making sure the
catch Bclicks into place; drive in the
two fastening screws A.
IMPORTANT Where provided, on ver-
sions with dark windows, replace the
whole light unit since it is sealed.Number plate light
To change the bulb, proceed as follows:
❒work in the point shown by the arrow
and remove the transparent A-fig. 31;
❒change the bulb Breleasing it from the
side contacts and making sure the new
bulb is correctly fastened between the
contacts;
❒refit the transparent.
fig. 31F0H0192m
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 151

152
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

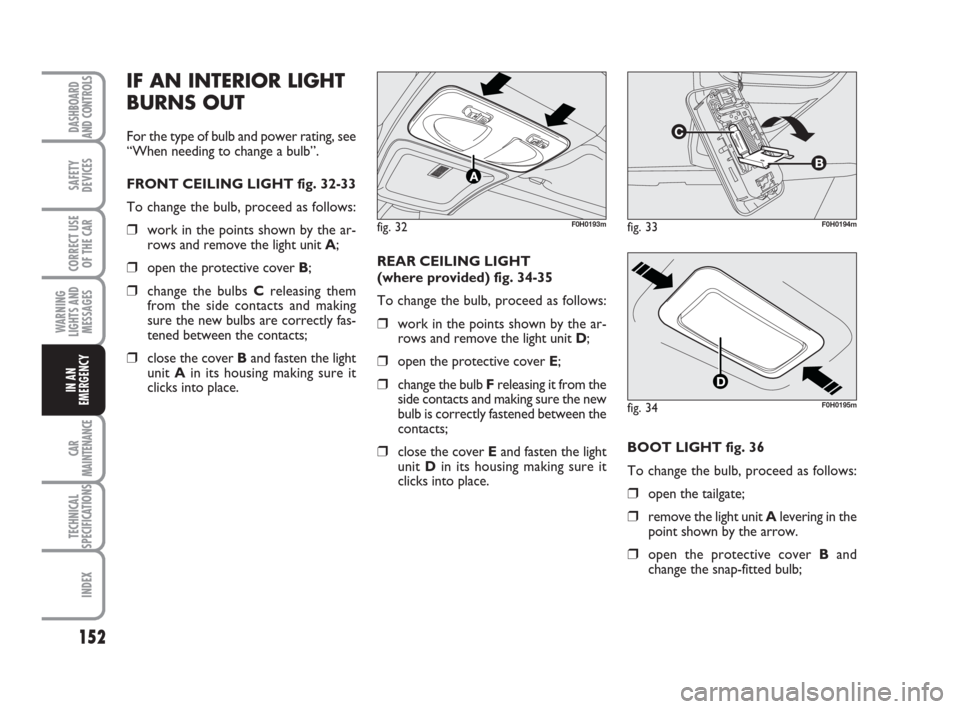

IF AN INTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT CEILING LIGHT fig. 32-33
To change the bulb, proceed as follows:
❒work in the points shown by the ar-
rows and remove the light unit A;
❒open the protective cover B;
❒change the bulbs Creleasing them
from the side contacts and making
sure the new bulbs are correctly fas-
tened between the contacts;
❒close the cover Band fasten the light
unit Ain its housing making sure it
clicks into place. REAR CEILING LIGHT
(where provided) fig. 34-35
To change the bulb, proceed as follows:
❒work in the points shown by the ar-
rows and remove the light unit D;
❒open the protective cover E;
❒change the bulb Freleasing it from the
side contacts and making sure the new
bulb is correctly fastened between the
contacts;
❒close the cover Eand fasten the light
unit Din its housing making sure it
clicks into place.
fig. 32F0H0193mfig. 33F0H0194m
fig. 34F0H0195m
BOOT LIGHT fig. 36
To change the bulb, proceed as follows:
❒open the tailgate;
❒remove the light unit Alevering in the
point shown by the arrow.
❒open the protective cover Band
change the snap-fitted bulb;
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 152

153
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY

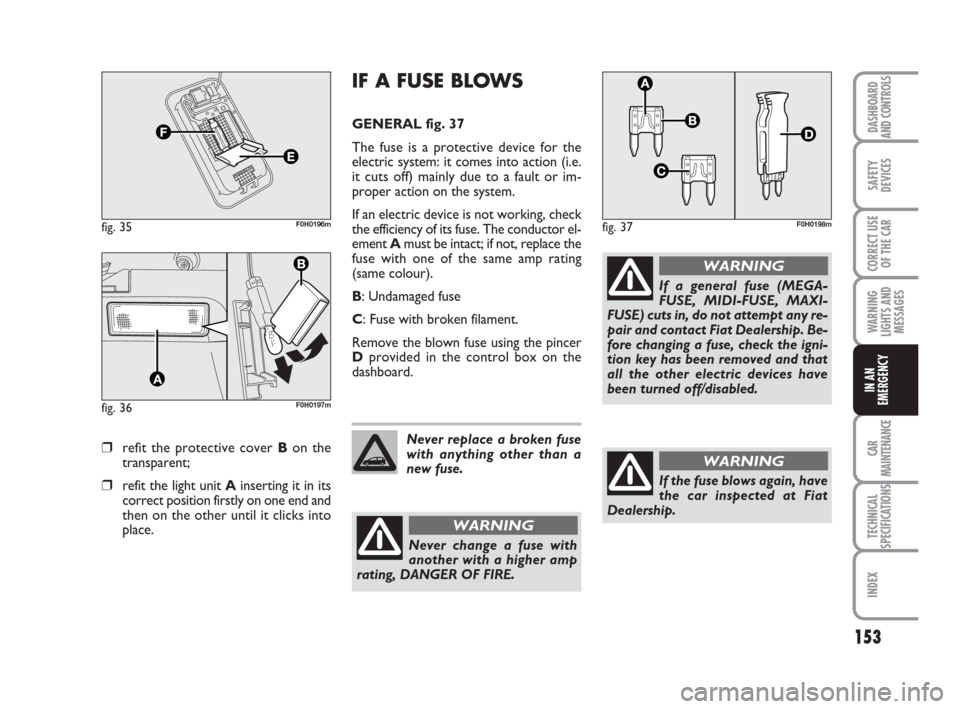

❒refit the protective cover Bon the
transparent;
❒refit the light unit Ainserting it in its
correct position firstly on one end and
then on the other until it clicks into
place.
fig. 35F0H0196m
fig. 36F0H0197m
IF A FUSE BLOWS
GENERAL fig. 37
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
If an electric device is not working, check
the efficiency of its fuse. The conductor el-
ement Amust be intact; if not, replace the
fuse with one of the same amp rating
(same colour).
B: Undamaged fuse
C: Fuse with broken filament.
Remove the blown fuse using the pincer
Dprovided in the control box on the
dashboard.
fig. 37F0H0198m
Never replace a broken fuse
with anything other than a
new fuse.
Never change a fuse with
another with a higher amp
rating, DANGER OF FIRE.
WARNING
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership. Be-
fore changing a fuse, check the igni-
tion key has been removed and that
all the other electric devices have
been turned off/disabled.
WARNING
If the fuse blows again, have
the car inspected at Fiat
Dealership.
WARNING
133-160 idea GB 1 ed 10-07-2008 8:30 Pagina 153
