Calling a contact in your
phonebook
It is a requirement that you create a pair-
ing relationship and download your mo-
bile phone phonebook to the hands-free
phone system to use this dialing feature.
?
To call a contact in your phonebook
using manual interaction, proceed as
follows:
Press
ß/MAINto open the Main
Menu.
Select PHONEBOOKand then
press SRC/OKor
ß/MAIN.
Press
NorOto select the alpha-
betical grouping which your con-
tact’s name belongs to, press
SRC/OKor
ß/MAINand then se-
lect the required contact.
If the contact has just one phone
number, press SRC/OKor
ß/MAINto start the call.
If the contact has multiple phone
numbers, press SRC/OKor
ß/MAINto view the different
phone numbers and then select the
required one by
NorOand press
SRC/OKor
ß/MAINto start the
call.
To end the phone call, press
ß/MAINfor longer than 1 second.
}
Or, using voice interaction:
Assume you would like to call the
contact “John” in your mobile
phone phonebook.
Press
‘and pronounce “Call
John” or “Call John (on/at) Mo-
bile“ (in the previous statement, the
keyword “Mobile” represents the
type of phone number you would
like to call. The phone number type
can either be “(at) Home”, “(at)
Work”, or “(on/at) Other”).
If the name is recognized, the sys-
tem will display the recognized con-
tact’s information (John, in the ex-
ample) on the display screen.
If John has just one phone number,
the system will ask if you would like
to call John. To start the call say
“Yes”, otherwise say “No”.
If John has several phone numbers,
the system will ask which phone
number you would like to call (e.g.:
“Call John (at) Work or (at)
Home?”). Answer with the type of
required phone number (e.g.: “(at)
Home”). If John has several phone numbers
but the “location” (i.e.: the type of
phone number like work, home,
etc.) is missing, the system will dis-
play the selected contact and a list
of related phone numbers.
To call the displayed phone number,
pronounce “Call”.
If the contact is correct but the
phone number is wrong, you can
surf the phone number list manual-
ly by pressing
NorO. When you
find the required number, press
ß/MAINor SRC/OKto start the
call.
To end the phone call, press
ß/MAINfor longer than 1 second.
Practical hint
When you call a contact with multiple
phone numbers, use the “at location” por-
tion of the voice command (e.g.: “(at)
Home”, “(at) Work”, “(on/at) Mo-
bile”). This will shorten the amount of
steps required to make the phone call.
20
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 20

Dialling a phone number using
voice commands
}
To dial a phone number using voice
interaction, proceed as follows:
Press
‘and pronounce “Dial”.
The system will respond with
“Number, please”.
Pronounce the phone number as a
sequence of single digits (e.g.: “0”,
“1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”,
“9”, “+” (plus), “#” (pound) or “*”
(star).
For example, 0113290103 has to be
pronounced as: “zero, one, one,
three, two, nine, zero, one, zero,
three”.
The system will repeat the complete
phone number and display it.
If the number is complete, pro-
nounce “Dial”. If you have not fin-
ished speaking the phone number,
then pronounce the remaining dig-
its and then pronounce “Dial”.The system will start the call to the
displayed phone number.
To end the phone call, press
ß/MAINfor longer than 1 second.
You can pronounce the sequence of
phone number digits in “digit
groups” which allows you to verify
the recognized number in several
small portions. Digit groups are cre-
ated by the pauses you use while
pronouncing the sequence of digits.
If you pause after pronouncing sev-
eral digits, a digit group is created.
The system will repeat the recog-
nized digits.
If the spoken digits are correct, you
can continue pronouncing the phone
number. If the spoken digits are in-
correct, you can delete the digit
group by pronouncing “Delete”.
The system will delete the last group
of numbers and display the partially-
dialled phone number. Then, you can
re-pronounce the digit group and al-
so the remaining phone number dig-
its.
To cancel the phone call, pronounce
“Cancel”.To cancel the phone call and start
dialling again, pronounce “Start
over”.
To ask the system to repeat the rec-
ognized phone number, pronounce
“Repeat”. If no phone number was
dialled, the system says “No num-
ber available”.
If the repeated phone number is
correct, pronounce “Dial” to start
the call.
Note
When dialling a phone number by voice
commands, it is essential to minimize
background noise in the car and to ask the
other passengers to keep silent while you
are speaking digits. Since the system is of
the speaker independent type it can rec-
ognize also other voices; there is there-
fore the risk that some numbers are ac-
cidentally recognized, added to correct
numbers or not recognized.
21
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 21

Dialling a phone number using
the mobile phone keypad
?
Alternatively, you can dial a phone
number using your mobile phone
keypad and then continue your con-
versation using the hands-free
phone system.
It is a requirement that you create
a pairing relationship and that the
mobile phone is within range of the
hands-free phone system of your
car.
To dial a phone number using your
mobile phone keypad, proceed as
follows:
❒Dial the phone number on your
mobile phone keypad and con-
nect the phone call following the
procedure required by your mo-
bile phone.
❒Conduct the conversation using
the hands-free phone system.
❒To end the phone call, press
ß/MAINfor longer than 1 sec-
ond, or end the phone call from
your mobile phone keypad. Calling a phone number using
call history (last calls)
LAST CALLSoption is a list of the re-
cent calls made or received. It can con-
sist of up to ten incoming calls, up to ten
outgoing calls and up to five missed calls.
?
To dial a phone number using
manual interaction, proceed as fol-
lows:
❒Press ß/MAINto open the Main
Menu.
❒Select LAST CALLSand then
press SRC/OKor
ß/MAIN.
❒The system will present a list of
phone numbers. Use NorOto
select the required phone num-
ber. Then press SRC/OKor
ß/MAINto start the call.
❒To end the phone call, press
ß/MAINfor longer than 1 sec-
ond.
}
Or, using voice interaction:
To call back the last incoming phone
number, press
‘and pronounce
“Callback”.The system will display information
about the last caller and ask if you
would like to call back this contact.
To respond with “yes”, pronounce
“Yes”, otherwise say “No”.
To redial the last phone number you
called, pronounce “Redial”. The
system will display information
about the last contact you called and
will ask if you would like to redial
this phone number. To redial the
last phone number called, say
“Yes”, otherwise say “No”.
22
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 22

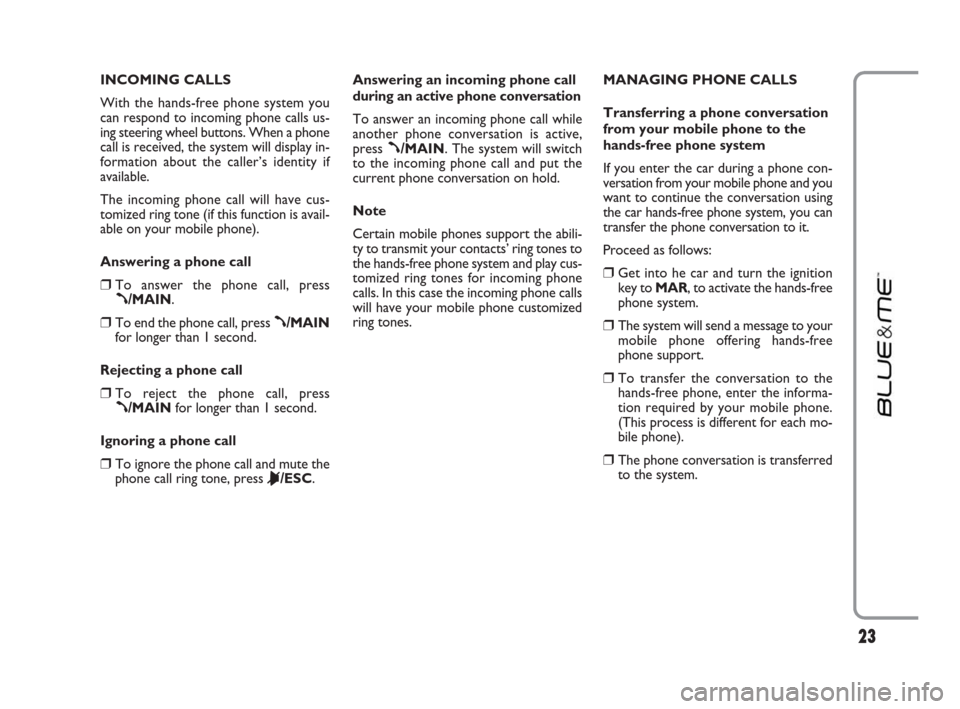

INCOMING CALLS
With the hands-free phone system you
can respond to incoming phone calls us-
ing steering wheel buttons. When a phone
call is received, the system will display in-
formation about the caller’s identity if
available.
The incoming phone call will have cus-
tomized ring tone (if this function is avail-
able on your mobile phone).
Answering a phone call
❒To answer the phone call, press
ß/MAIN.
❒To end the phone call, press ß/MAIN
for longer than 1 second.
Rejecting a phone call
❒To reject the phone call, press
ß/MAINfor longer than 1 second.
Ignoring a phone call
❒To ignore the phone call and mute the
phone call ring tone, press
&/ESC.Answering an incoming phone call
during an active phone conversation
To answer an incoming phone call while
another phone conversation is active,
press
ß/MAIN. The system will switch
to the incoming phone call and put the
current phone conversation on hold.
Note
Certain mobile phones support the abili-
ty to transmit your contacts’ ring tones to
the hands-free phone system and play cus-
tomized ring tones for incoming phone
calls. In this case the incoming phone calls
will have your mobile phone customized
ring tones.MANAGING PHONE CALLS
Transferring a phone conversation
from your mobile phone to the
hands-free phone system
If you enter the car during a phone con-
versation from your mobile phone and you
want to continue the conversation using
the car hands-free phone system, you can
transfer the phone conversation to it.
Proceed as follows:
❒Get into he car and turn the ignition
key to MAR, to activate the hands-free
phone system.
❒The system will send a message to your
mobile phone offering hands-free
phone support.
❒To transfer the conversation to the
hands-free phone, enter the informa-
tion required by your mobile phone.
(This process is different for each mo-
bile phone).
❒The phone conversation is transferred
to the system.
23
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 23

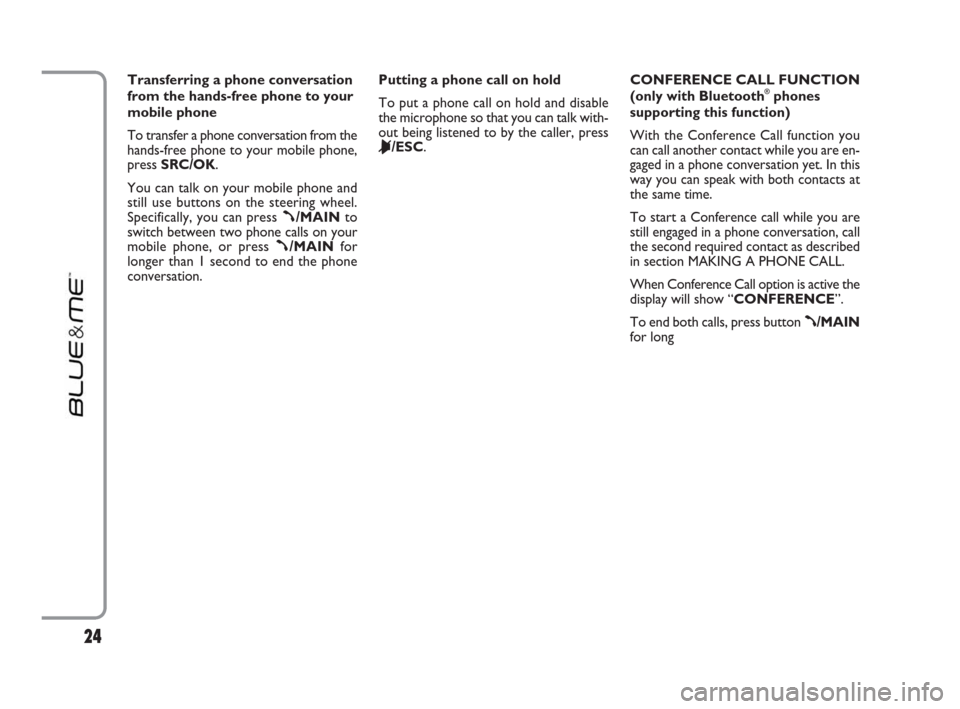

Transferring a phone conversation
from the hands-free phone to your
mobile phone
To transfer a phone conversation from the
hands-free phone to your mobile phone,
press SRC/OK.
You can talk on your mobile phone and
still use buttons on the steering wheel.
Specifically, you can press
ß/MAINto
switch between two phone calls on your
mobile phone, or press
ß/MAINfor
longer than 1 second to end the phone
conversation. Putting a phone call on hold
To put a phone call on hold and disable
the microphone so that you can talk with-
out being listened to by the caller, press
&/ESC. CONFERENCE CALL FUNCTION
(only with Bluetooth
®phones
supporting this function)
With the Conference Call function you
can call another contact while you are en-
gaged in a phone conversation yet. In this
way you can speak with both contacts at
the same time.
To start a Conference call while you are
still engaged in a phone conversation, call
the second required contact as described
in section MAKING A PHONE CALL.
When Conference Call option is active the
display will show “CONFERENCE”.
To end both calls, press button
ß/MAIN
for long
24
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 24

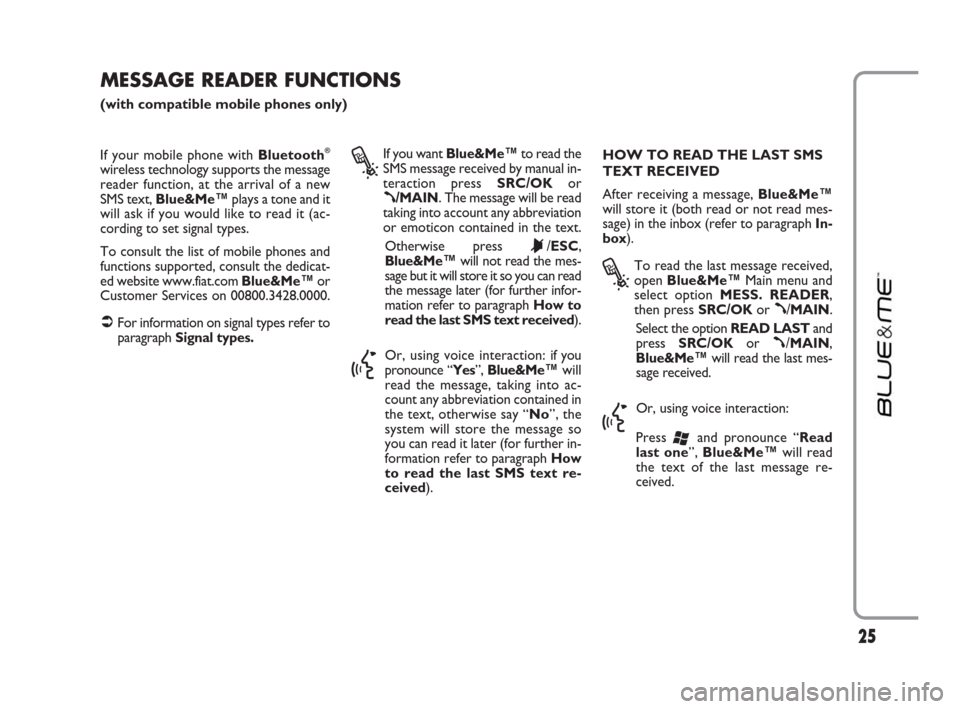

If your mobile phone with Bluetooth®
wireless technology supports the message
reader function, at the arrival of a new
SMS text, Blue&Me™plays a tone and it
will ask if you would like to read it (ac-
cording to set signal types.
To consult the list of mobile phones and
functions supported, consult the dedicat-
ed website www.fiat.com Blue&Me™or
Customer Services on 00800.3428.0000.

For information on signal types refer to
paragraph Signal types.
?
If you want Blue&Me™to read the
SMS message received by manual in-
teraction press SRC/OKor
ß/MAIN. The message will be read
taking into account any abbreviation
or emoticon contained in the text.
Otherwise press
&/ESC,
Blue&Me™will not read the mes-
sage but it will store it so you can read
the message later (for further infor-
mation refer to paragraph How to
read the last SMS text received).
}
Or, using voice interaction: if you
pronounce “Yes”, Blue&Me™will
read the message, taking into ac-
count any abbreviation contained in
the text, otherwise say “No”, the
system will store the message so
you can read it later (for further in-
formation refer to paragraph How
to read the last SMS text re-
ceived).HOW TO READ THE LAST SMS
TEXT RECEIVED
After receiving a message, Blue&Me™
will store it (both read or not read mes-
sage) in the inbox (refer to paragraphIn-
box).
?
To read the last message received,
open Blue&Me™ Main menu and
select option MESS. READER,
then press SRC/OKor
ß/MAIN.
Select the option READ LASTand
press SRC/OKor
ß/MAIN,
Blue&Me™will read the last mes-
sage received.
}
Or, using voice interaction:
Press
‘and pronounce “Read
last one”, Blue&Me™will read
the text of the last message re-
ceived.
MESSAGE READER FUNCTIONS
(with compatible mobile phones only)
25
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 25

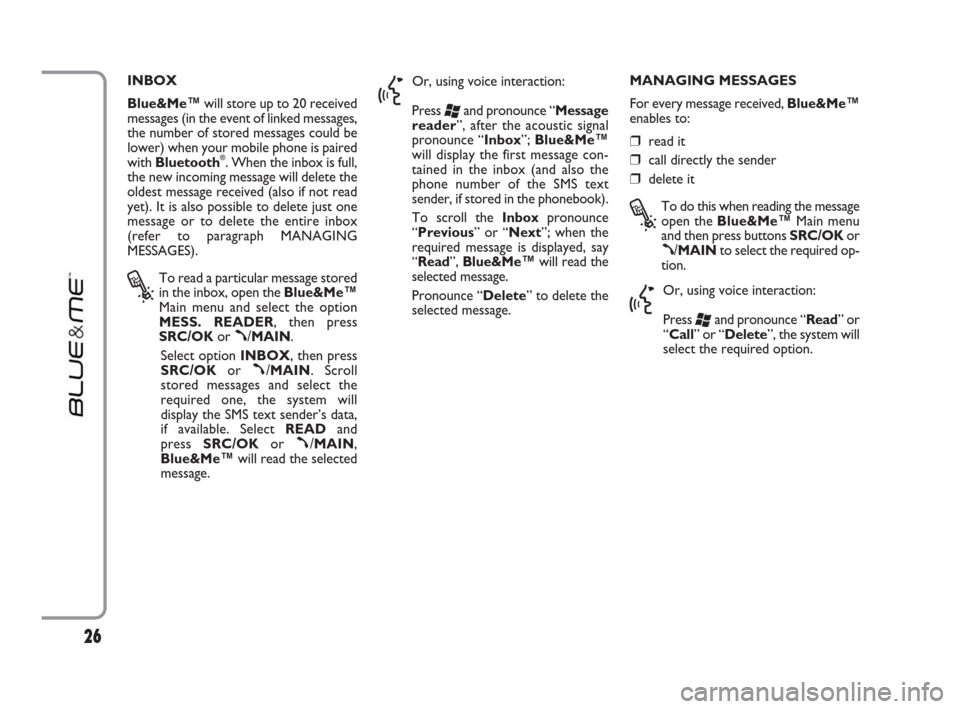

INBOX
Blue&Me™will store up to 20 received
messages (in the event of linked messages,
the number of stored messages could be
lower) when your mobile phone is paired
with Bluetooth
®. When the inbox is full,
the new incoming message will delete the
oldest message received (also if not read
yet). It is also possible to delete just one
message or to delete the entire inbox
(refer to paragraph MANAGING
MESSAGES).
?
To read a particular message stored
in the inbox, open the Blue&Me™
Main menu and select the option
MESS. READER, then press
SRC/OKor
ß/MAIN.
Select option INBOX, then press
SRC/OKor
ß/MAIN. Scroll
stored messages and select the
required one, the system will
display the SMS text sender’s data,
if available. Select READand
press SRC/OKor
ß/MAIN,
Blue&Me™will read the selected
message.
}
Or, using voice interaction:
Press
‘and pronounce “Message
reader”, after the acoustic signal
pronounce “Inbox”; Blue&Me™
will display the first message con-
tained in the inbox (and also the
phone number of the SMS text
sender, if stored in the phonebook).
To scroll the Inboxpronounce
“Previous” or “Next”; when the
required message is displayed, say
“Read”, Blue&Me™will read the
selected message.
Pronounce “Delete” to delete the
selected message.MANAGING MESSAGES
For every message received, Blue&Me™
enables to:
❒ read it
❒ call directly the sender
❒ delete it
?
To do this when reading the message
open the Blue&Me™Main menu
and then press buttons SRC/OKor
ß/MAINto select the required op-
tion.
}
Or, using voice interaction:
Press
‘and pronounce “Read” or
“Call” or “Delete”, the system will
select the required option.
26
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 26

DELETING ALL MESSAGES
Blue&Me™can store max 20 messages,
a new incoming message will delete the
oldest one received from the inbox. All
messages stored by Blue&Me™can be
deleted by one single command.
?
To delete all messages, open the
Blue&Me™Main menu and select
DELETE ALL, then press
SRC/OKor
ß/MAIN, the system
will ask DEL. MESS.?, press
SRC/OKor
ß/MAINto delete all
messages, otherwise press
&/ESC.
}
Or, using voice interaction:
Press
‘and pronounce “Message
reader”.
After the acoustic signal say
“Delete all”; Blue&Me™ will ask
“Delete all messages from the
vehicle now ?”, say “Yes” to
delete all messages, otherwise say
“No”.SIGNAL TYPES
With the Blue&Me™message reader it
is possible to set three notification signals
for the arrival of a new SMS text:
❒ VIS.+ACOUST.:
Blue&Me™will warn you of a new
incoming message through a visual sig-
nal on the instrument panel display and
through an acoustic signal.
Blue&Me™will also ask if you would
like to read the message.
❒VIS. SIGNAL:
Blue&Me™will warn you of a new
incoming message through a visual sig-
nal on the instrument panel display.
The message received can also be read
later (see paragraphs HOW TO READ
THE LAST SMS TEXT RECEIVED and
INBOX).
❒ READER OFF:
Blue&Me™deactivates the Message
reader; a new incoming message will
not be signalled and will not be trans-
mitted to the system.
?
Open the Blue&Me™Main menu,
select the option MESS. READER,
and then press SRC/ OKor
ß/MAIN. Select the optionSIG-
NAL TYPEand scroll the three
available options using buttons
NorO, select the required option and
then press SRC/OKor ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Message
reader”, after the acoustic
signal say “Signal type”;
Blue&Me™will list the available
options and then you can select the
required one by pronouncing
“Reader off” or “Visual and
acoustic signal”or “Visual signal
only”.
27
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 27

28

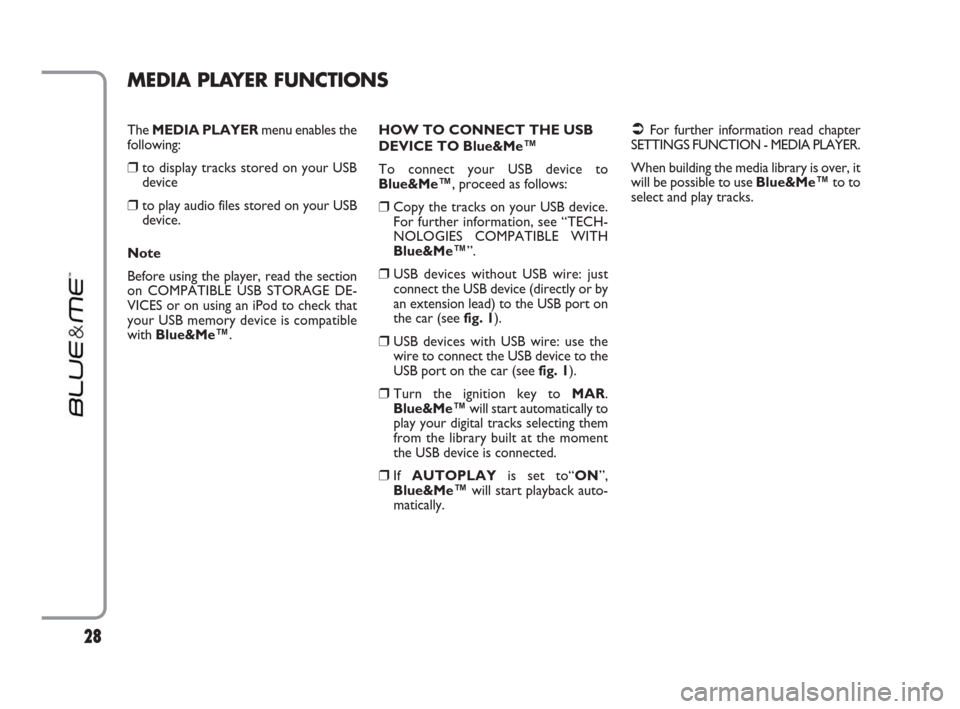

The MEDIA PLAYERmenu enables the
following:
❒to display tracks stored on your USB
device
❒to play audio files stored on your USB
device.
Note
Before using the player, read the section
on COMPATIBLE USB STORAGE DE-
VICES or on using an iPod to check that
your USB memory device is compatible
with Blue&Me™.
MEDIA PLAYER FUNCTIONS
HOW TO CONNECT THE USB
DEVICE TO Blue&Me™
To connect your USB device to
Blue&Me™, proceed as follows:
❒Copy the tracks on your USB device.
For further information, see “TECH-
NOLOGIES COMPATIBLE WITH
Blue&Me™”.
❒USB devices without USB wire: just
connect the USB device (directly or by
an extension lead) to the USB port on
the car (see fig. 1).
❒USB devices with USB wire: use the
wire to connect the USB device to the
USB port on the car (see fig. 1).
❒Turn the ignition key to MAR.
Blue&Me™will start automatically to
play your digital tracks selecting them
from the library built at the moment
the USB device is connected.
❒If AUTOPLAYis set to“ON”,
Blue&Me™will start playback auto-
matically.

For further information read chapter
SETTINGS FUNCTION - MEDIA PLAYER.
When building the media library is over, it
will be possible to use Blue&Me™to to
select and play tracks.
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 28

29

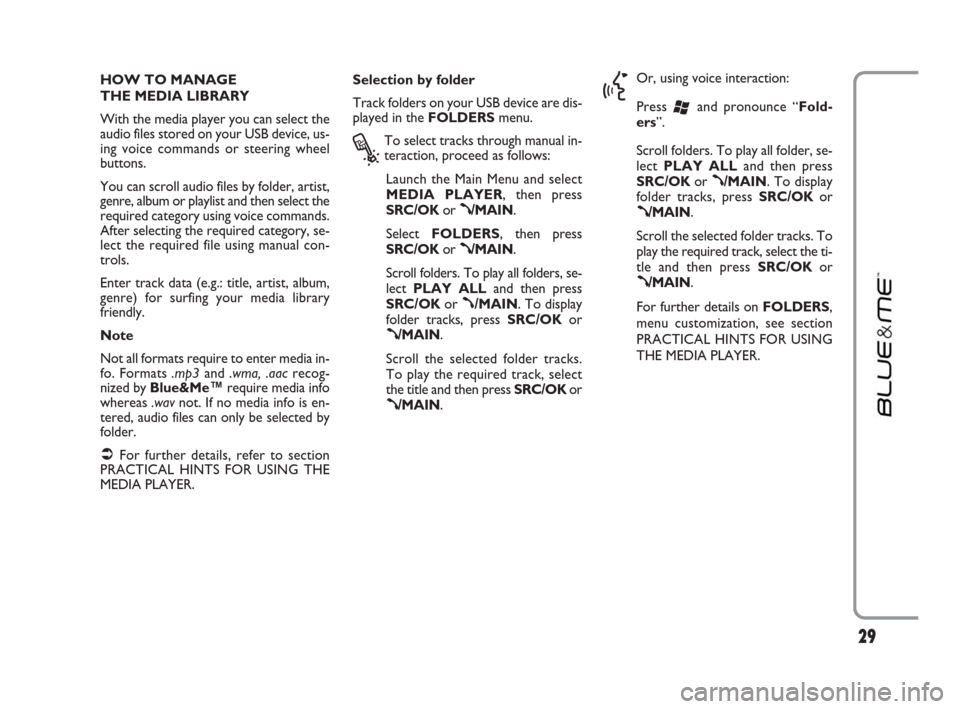

HOW TO MANAGE
THE MEDIA LIBRARY
With the media player you can select the
audio files stored on your USB device, us-
ing voice commands or steering wheel
buttons.
You can scroll audio files by folder, artist,
genre, album or playlist and then select the
required category using voice commands.
After selecting the required category, se-
lect the required file using manual con-
trols.
Enter track data (e.g.: title, artist, album,
genre) for surfing your media library
friendly.
Note
Not all formats require to enter media in-
fo. Formats .mp3and .wma, .aacrecog-
nized by Blue&Me™require media info
whereas .wavnot. If no media info is en-
tered, audio files can only be selected by
folder.

For further details, refer to section
PRACTICAL HINTS FOR USING THE
MEDIA PLAYER.Selection by folder
Track folders on your USB device are dis-
played in the FOLDERSmenu.
?
To select tracks through manual in-
teraction, proceed as follows:
Launch the Main Menu and select
MEDIA PLAYER, then press
SRC/OKor
ß/MAIN.
Select FOLDERS, then press
SRC/OKor
ß/MAIN.
Scroll folders. To play all folders, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks.
To play the required track, select
the title and then press SRC/OKor
ß/MAIN.
}
Or, using voice interaction:
Press
‘and pronounce “Fold-
ers”.
Scroll folders. To play all folder, se-
lect PLAY ALLand then press
SRC/OKor
ß/MAIN. To display
folder tracks, press SRC/OKor
ß/MAIN.
Scroll the selected folder tracks. To
play the required track, select the ti-
tle and then press SRC/OKor
ß/MAIN.
For further details on FOLDERS,
menu customization, see section
PRACTICAL HINTS FOR USING
THE MEDIA PLAYER.
603_97_203 LINEA BLUE GB 1ed 8-06-2009 11:23 Pagina 29
