115
To change a wheel proceed as
follows:
stop the car in a position so that it is
not a danger for on-coming traffic and
where you can replace the wheel safe-
ly. The ground must be flat and com-
pact;
stop the engine off and pull up the hand-
brake;
engage first gear or reverse;
wear the reflecting safety jacket (com-
pulsory by law in certain countries) be-
fore getting out of the car;

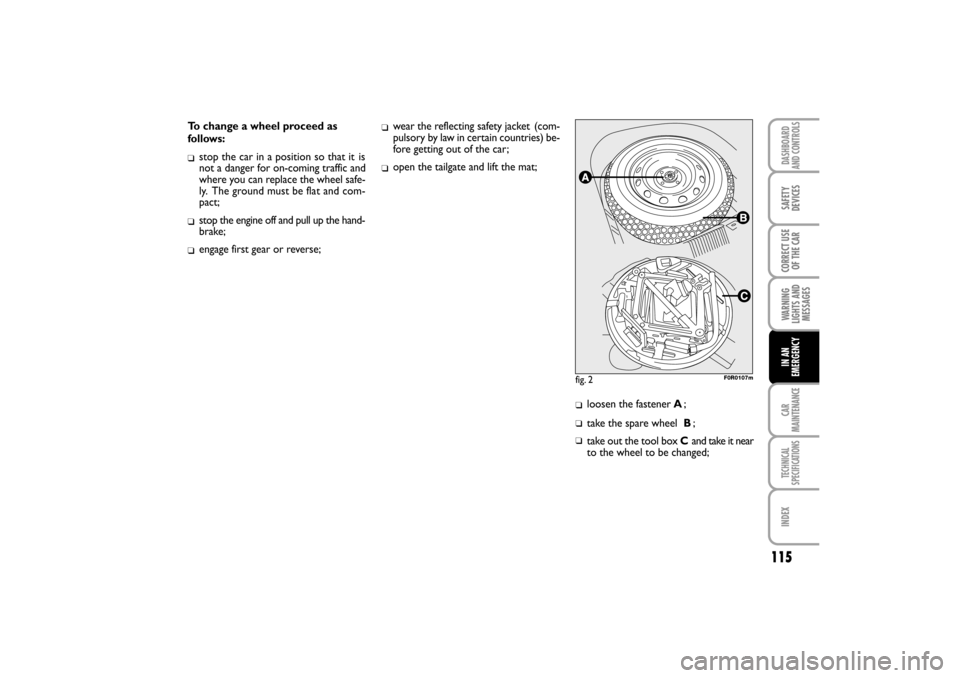

open the tailgate and lift the mat;
loosen the fastener A;

take out the tool box Cand take it near
to the wheel to be changed;

take the spare wheel B;
fig. 2F0R0107m
CORRECT USE
OF THE CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
LINEA Owner HAND BOOK RHD.pdf 115LINEA Owner HAND BOOK RHD.pdf 1158/21/09 2:16:16 PM8/21/09 2:16:16 PM

116

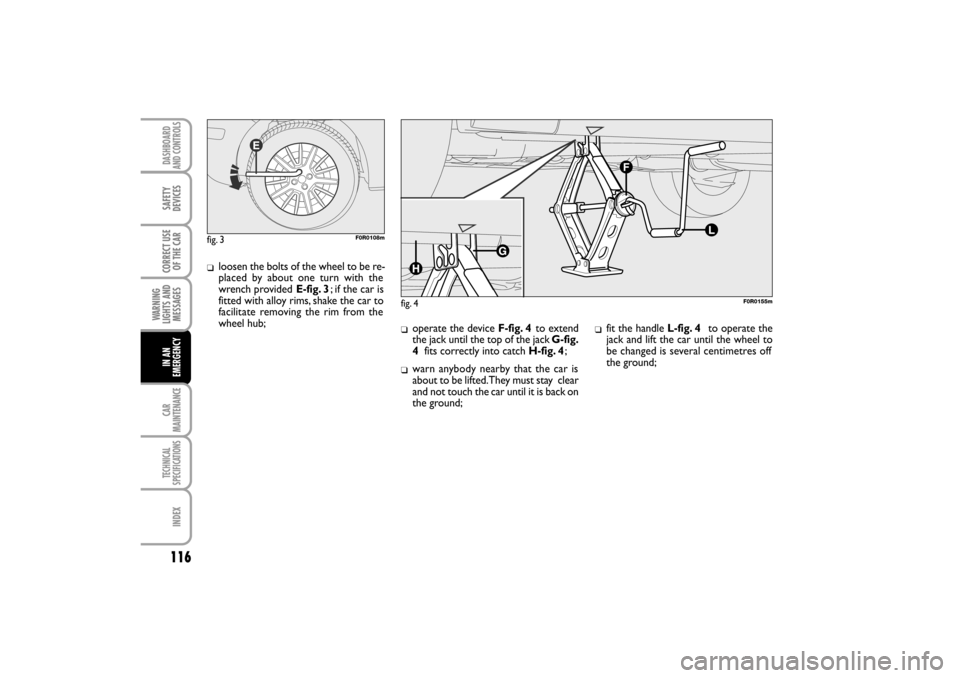

loosen the bolts of the wheel to be re-
placed by about one turn with the
wrench provided E-fig. 3; if the car is
fitted with alloy rims, shake the car to
facilitate removing the rim from the
wheel hub;

operate the device F-fig. 4to extend
the jack until the top of the jack G-fig.
4fits correctly into catch H-fig. 4;
warn anybody nearby that the car is
about to be lifted. They must stay
clear
and not touch the car until it is back on
the ground;
fit the handle L-fig. 4to operate the
jack and lift the car until the wheel to
be changed is several centimetres off
the ground;
fig. 3F0R0108m
fig. 4F0R0155m
CORRECT USE
OF THE CAR
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
LINEA Owner HAND BOOK RHD.pdf 116LINEA Owner HAND BOOK RHD.pdf 1168/21/09 2:16:18 PM8/21/09 2:16:18 PM

117

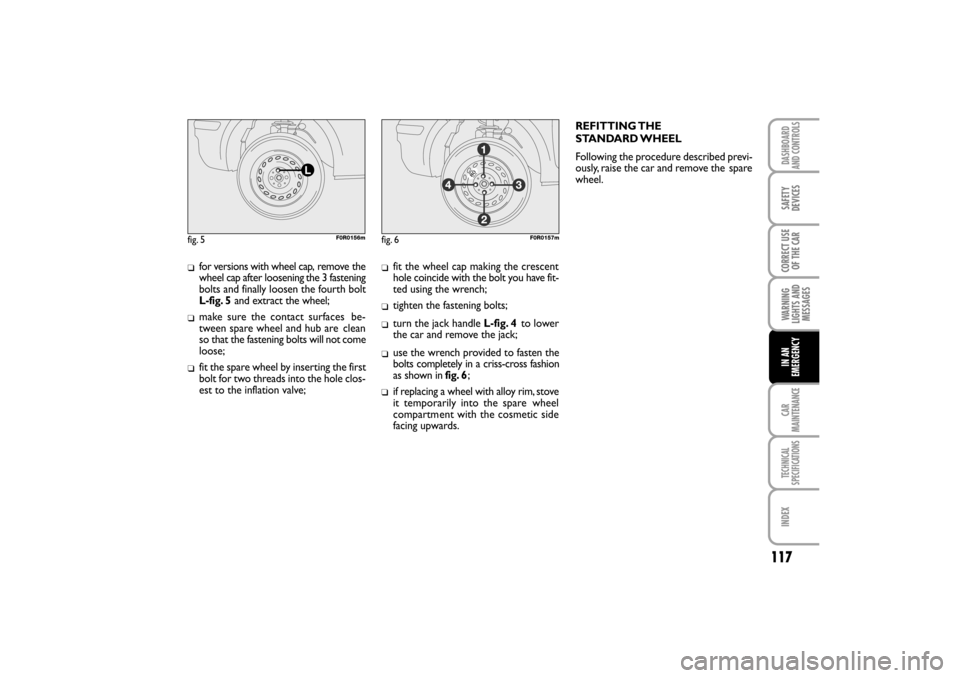

for versions with wheel cap, remove the
wheel cap after loosening the 3 fastening
bolts and finally loosen the fourth bolt
L-fig. 5and extract the wheel;
make sure the contact surfaces be-
tween spare wheel and hub are clean
so that the fastening bolts will not come
loose;
fit the spare wheel by inserting the first
bolt for two threads into the hole clos-
est to the inflation valve;
fit the wheel cap making the crescent
hole coincide with the bolt you have fit-
ted using the wrench;
tighten the fastening bolts;
turn the jack handle L-fig. 4to lower
the car and remove the jack;

use the wrench provided to fasten the
bolts completely in a criss-cross fashion
as shown in fig. 6;
if replacing a wheel with alloy rim, stove
it temporarily into the spare
wheel
compartment with the cosmetic side
facing upwards.REFITTING THE
STANDARD WHEEL
Following the procedure described previ-
ously, raise the car and remove the
spare
wheel.
fig. 5F0R0156mfig. 6F0R0157m
CORRECT USE
OF THE CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
LINEA Owner HAND BOOK RHD.pdf 117LINEA Owner HAND BOOK RHD.pdf 1178/21/09 2:16:18 PM8/21/09 2:16:18 PM

118
Versions with steel rims
Proceed as follows:
make sure the contact surfaces be-
tween spare wheel and hub are clean
so
that the fastening bolts will not come
loose;
fit the standard wheel by inserting the
first bolt for two threads into the hole
closest to the inflation valve;
fit the wheel cap making the lunette
hole coincide with the bolt you have fit-
ted then, fit the other 3 bolts;
using the wrench provided, tighten the
fastening bolts;
lower the car and remove the jack;
using the wrench provided, fully tight-
en the bolts in the sequence shown
previously in the figure.Versions with alloy rims
Proceed as follows:
insert the wheel on the hub and using
the wrench provided tighten the bolts;
lower the car and remove the jack;
using the wrench provided, fully tight-
en the bolts in the sequence shown in
the figure.When you have finished
fit the jack partia lly open in its box C-
fig.2 forcing it lightly to prevent it from
vibrating when traelling;
put the tools back into their places
in the container;
stow the container C-fig.2 complete
with tools;
stow the spare wheel in the space pro-
vided in the boot;

tight the fastener A-fig.2;
reposition the mat in the boot.CORRECT USE
OF THE CAR
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
LINEA Owner HAND BOOK RHD.pdf 118LINEA Owner HAND BOOK RHD.pdf 1188/21/09 2:16:19 PM8/21/09 2:16:19 PM

WHEN NEEDING TO
CHANGE A BULB
GENERAL INSTRUCTIONS
When a bulb is not working, check that
the corresponding fuse is intact before
replacing it: refer to the “If a fuse
blows” paragraph in this chapter for
fuse location.
before changing a bulb check the con-
tacts for oxidation;
burnt bulbs must be replaced by others
of the same type and power;
always check the height of the headlight
beam after changing a bulb, for reasons
of safety.
IMPORTANT A
slight misting may appear
on the internal surface of the headlight:
this does not indicate a fault and is caused
by low temperature and the degree of hu-
midity in the air. Misting will rapidly dis-
appear when the headlights are switched
on.
The presence of drop inside the head-
lights indicates infiltration of water. Go to
a Fiat Dealership.

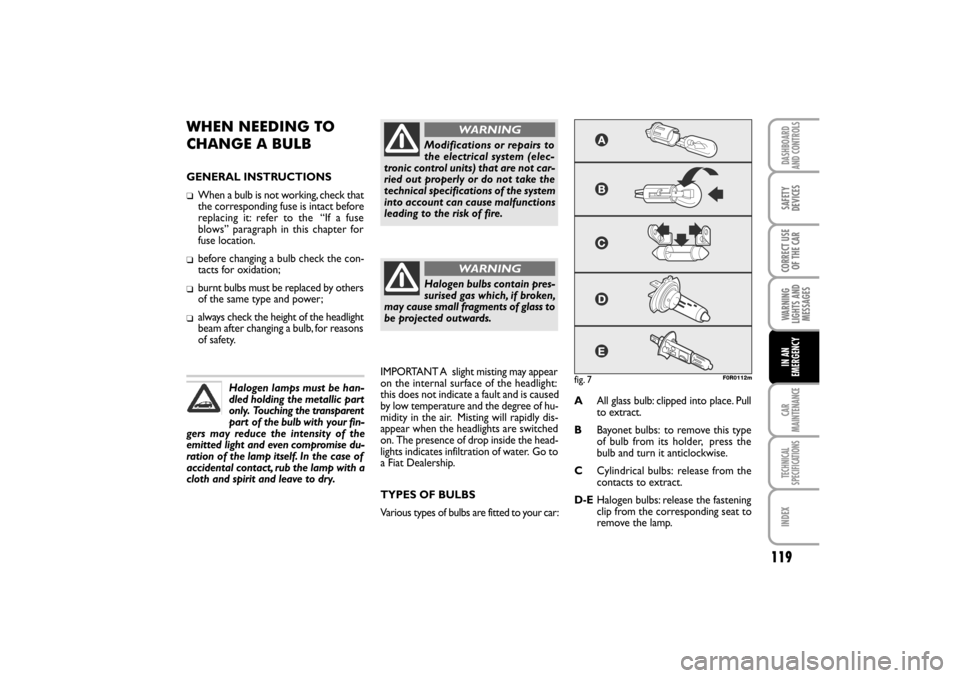

TYPES OF BULBS
Various types of bulbs are fitted
to your car:AAll glass bulb: clipped into place. Pull
to extract.
BBayonet bulbs:
to remove this type
of bulb from its holder, press the
bulb and turn it anticlockwise.
CCylindrical bulbs:
release from the
contacts to extract.
D-EHalogen bulbs: release the fastening
clip from the corresponding seat to
remove the lamp. Halogen lamps must be han-
dled
holding the metallic part
only. Touching the transparent
part of the
bulb with your fin-
gers may reduce the intensity of the
emitted light and even
compromise du-
ration of the lamp itself. In the case of
accidental contact, rub the lamp with a
cloth and spirit and leave to dry.
Modifications or repairs to
the electrical system (elec-
tronic control units) that are not car-
ried out properly or do not take the
technical specifications of the system
into account can cause malfunctions
leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which, if broken,
may cause small fragments of glass to
be projected outwards.
WARNING
fig. 7F0R0112m
119
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 119LINEA Owner HAND BOOK RHD.pdf 1198/21/09 2:16:19 PM8/21/09 2:16:19 PM

Bulb Ref. figure Type Power
Main beam headlights
Dipped beam headlights
Front sidelights
Front fog lights (where provided)
Front direction indicators
Side direction indicators
Rear direction indicators
Side/taillights (Parking lights)
Brake lights
Third brake light (additional brake light)
Reversing light
Rear fog lights
Number plate light
Front ceiling light with spot lights
Rear ceiling light with movable lens
Boot light H1U55W
H755W
W5W
H1U55W
PY21W
WY5W
PY21W
R5W
P21W
W5W
P21W
P21W
W5W
10W x 2
10W
W5W D
D
A
–
B
A
B
B
B
B
–
–
A
C
C
A55W
55W
5W
55W
21W
5W
21W
5W
21W
5W
21W
21W
5W
10W
10W
5W
120
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 120LINEA Owner HAND BOOK RHD.pdf 1208/21/09 2:16:19 PM8/21/09 2:16:19 PM

IF AN EXTERIOR LIGHT
BURNS OUT
For the type of bulb and power rating, see
“When needing to change a bulb”.
FRONT LIGHT CLUSTERS
fig. 8
The front light clusters contain sidelights,
dipped beam, main beam and direction in-
dicator bulbs.
The
bulbs are arranged inside the light unit
as follows:
Amain beam
Bside lights (Parking lights)
Cdipped beam (two lights)
Ddirection indicators. SIDELIGHTS (Parking lights) fig. 9
To change the bulb, proceed as follows:
remove the clipped-on cover;
press tabs Band remove the bulb
holder;
remove the bulb Cand replace it;
refit the bulb holder and refit the cap
and check that it is locked properly.
fig. 8
CBD
A
F0R0220mfig. 9F0R0221m
121
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 121LINEA Owner HAND BOOK RHD.pdf 1218/21/09 2:16:19 PM8/21/09 2:16:19 PM

DIPPED BEAM HEADLIGHTS
fig. 10
To change the bulb, proceed as follows:
remove the clipped-on cover;
disconnect the central electric connec-
tor and release the bulb holder catch;
remove the bulb Band replace it;
fit the new bulb, making the outlines of
the metallic part coincide with the
grooves on the reflector;
refit the bulb holder catch and reconnect
the electrical connector;
refit the protection and check that it
is correctly locked.MAIN BEAM HEADLIGHTS
fig. 11
To change the bulb, proceed as follows:
remove the clipped-on cover;
disconnect the central electric connec-
tor and release the bulb holder catch;
remove the bulb Band replace it;
refit the new bulb;
refit the bulb holder catch and reconnect
the electrical connector;
refit the protection and check that it
is correctly locked.DIRECTION INDICATORS
Front fig. 11/a
To change the bulb, proceed as follows:
steer the right/left wheel outwards as
shown in the figure;
turn the catch as shown by the arrow,
then use the lid;
remove the bulb holder cover by turn-
ing it anticlockwise;
fig. 10F0R0222mfig. 11/aF0R0224mfig. 11F0R0223m
122
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 122LINEA Owner HAND BOOK RHD.pdf 1228/21/09 2:16:19 PM8/21/09 2:16:19 PM

extract the bulb Dby pressing it slight-
ly and turning it anticlockwise (bayonet
locking) then replace it;
refit the cover/bulb holder Cby turning
it clockwise and locking it properly;
close the lid and turn the fastening de-
vice.
Side fig. 12
To change the bulb, proceed as follows:
work on the lens Ato compress the in-
ternal catch B, then pull the unit out-
wards;
turn the bulb holder Canticlockwise,
extract the clipped-on bulb Dand re-
place it;
refit the bulb holder Cin the lens and
turn it clockwise;
refit the unit making sure that the in-
ternal catch Bclips into position.FRONT FOG LIGHTS
(where provided)
Contact Fiat Dealership to have front
fog lights A-fig. 13replaced.REAR LIGHT CLUSTERS
fig. 14-15
Rear light cluster contain taillights, brake
light, direction indicators and rear fog light
bulbs.
The bulbs are arranged inside the
light unit as follows:
Abrake lights (two lights)
Btaillights
Crear fog lights
Ddirection indicators
Ereversing light.
fig. 12F0R0226mfig. 14
D
ABC
E
F0R0227mfig. 13F0R0114m
123
CORRECT USE
OF THE CAR
TECHNICAL
INDEX
DASHBOARD
SAFETY
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
DEVICES
LINEA Owner HAND BOOK RHD.pdf 123LINEA Owner HAND BOOK RHD.pdf 1238/21/09 2:16:19 PM8/21/09 2:16:19 PM

fig. 15/aF0R0228m
fig. 16F0R0230m
To change the bulb proceed as follows:

open the tailgate and loosen the two fastening screws
disconnect the central electric connector and pull the lens unit out-
wards;
release the clips Fand extract the bulb holders;
remove the bulb to replace A, B, Cor D pushing it slightly and
turning it anticlockwise (bayonet-type bulb) and replace it;

refit the bulb holder and refasten the clips F;
to replace the rear fog light, release the clips H-fig. 16, remove
the protection and replace the bayonet bulb.
reconnect the electrical connector, reposition the cluster correct-
ly on the body and then tighten the fastening screws G.
fig. 15/bF0R0229m
124
CORRECT USE
OF THE CAR
AND CONTROLS
DEVICES
MAINTENANCE
SPECIFICATIONS
INDEX
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
DASHBOARD
SAFETY
CAR
TECHNICAL
LINEA Owner HAND BOOK RHD.pdf 124LINEA Owner HAND BOOK RHD.pdf 1248/21/09 2:16:20 PM8/21/09 2:16:20 PM
