FIAT LINEA RHD 2010 1.G Owners Manual

Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat Linea.
We have written this handbook to help you get to know all the features of your car and use it in the best possible way.
You should read it right through before taking the road for the first time.
You will find information, tips and important warnings regarding the driving of your car to help you derive the maximum from the
technological features of your Fiat.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the car’s wellbeing;
environmental protection.
Best regards and happy motoring!
This Owner Handbook describes all Fiat Linea versions.
As a consequence, you should consider only the information which is related to the engine and
bodywork version of the car you purchased.
1
LINEA Owner HAND BOOK RHD.pdf 1LINEA Owner HAND BOOK RHD.pdf 18/21/09 2:15:56 PM8/21/09 2:15:56 PM

Z
MUST BE READ!
REFUELLING
petrol engines: only refuel with unleaded petrol with octane rating (RON) minimum.91
Diesel engines: only refuel with normal diesel (avoid premium diesel) conforming with cetane number 51
minimum.
The use of other products or mixtures may damage the engine beyond repair and consequently cause lapse of
warranty in relation to the damage caused.
ENGINE STARTING
petrol engines: make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch
without pressing the accelerator, then turn the ignition key to AV Vand release it as soon as the engine has started.
Diesel engines: make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch
without pressing the accelerator, then turn the ignition key to MARand wait for the warning lights and to
go off; turn the ignition key to AV Vand release it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperature during operation. Do not park on grass, dry leaves, pine needles
or other flammable material: fire risk .
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous diagnosis of the components correlated with emissions to
ensure better respect for the environment.
2
LINEA Owner HAND BOOK RHD.pdf 2LINEA Owner HAND BOOK RHD.pdf 28/21/09 2:15:58 PM8/21/09 2:15:58 PM

ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical accessories (with the risk of gradually draining the battery),
visit a Fiat Dealership. They can calculate the overall electrical requirement and check that the car’s electric
system can support the required load.
CODE card
Keep it in a safe place, not in the car. Make sure you have the electronic code with you at all times.
SCHEDULED SERVICING
Correct maintenance of the car is essential for ensuring it stays in tip-top condition and safeguards its safety
features, its environmental friendliness and low running costs for a long time to come.
THE OWNER’S MANUAL CONTAINS…
... important information, advise and warnings for correct use, driving safety and maintenance of your car in time.
Pay special attention to the symbols (personal safety) (environmental protection) (the car’s wellbeing).
(
3
LINEA Owner HAND BOOK RHD.pdf 3LINEA Owner HAND BOOK RHD.pdf 38/21/09 2:15:58 PM8/21/09 2:15:58 PM

4
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ........................................................................ 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM .................................................. 6
THE KEYS .............................................................................. 8
IGNITION DEVICE .............................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS ..................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTION DISPLAY ............................................ 21
TRIP COMPUTER ................................................................ 30
FRONT SEATS ..................................................................... 32
REAR SEATS .......................................................................... 33
HEAD RESTRAINTS............................................................. 33
STEERING WHEEL .............................................................. 35
REARVIEW MIRRORS ......................................................... 36
HEATING AND VENTILATION ...................................... 37
MANUAL CLIMATE CONTROL SYSTEM .................... 38
AUTOMATIC CLIMATE CONTROL SYSTEM ............ 44
EXTERNAL LIGHTS ............................................................ 51
WINDSCREEN WASHING .............................................. 53CEILING LIGHTS .................................................................. 54
CONTROLS ........................................................................... 57
FUEL CUT-OFF SWITCH .................................................. 59
INTERIOR FITTINGS........................................................... 60
DOORS .................................................................................. 64
POWER WINDOWS ........................................................... 65
BOOT....................................................................................... 67
BONNET................................................................................. 68
HEADLIGHTS ........................................................................ 70
ABS SYSTEM ......................................................................... 71
SOUND SYSTEM .................................................................. 73
ACCESSORIES PURCHASED BY THE OWNER ..........
74
AT THE FILLING STATION .............................................
75
PROTECTING THE ENVIRONMENT................................
76
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
LINEA Owner HAND BOOK RHD.pdf 4LINEA Owner HAND BOOK RHD.pdf 48/21/09 2:15:58 PM8/21/09 2:15:58 PM

5
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.

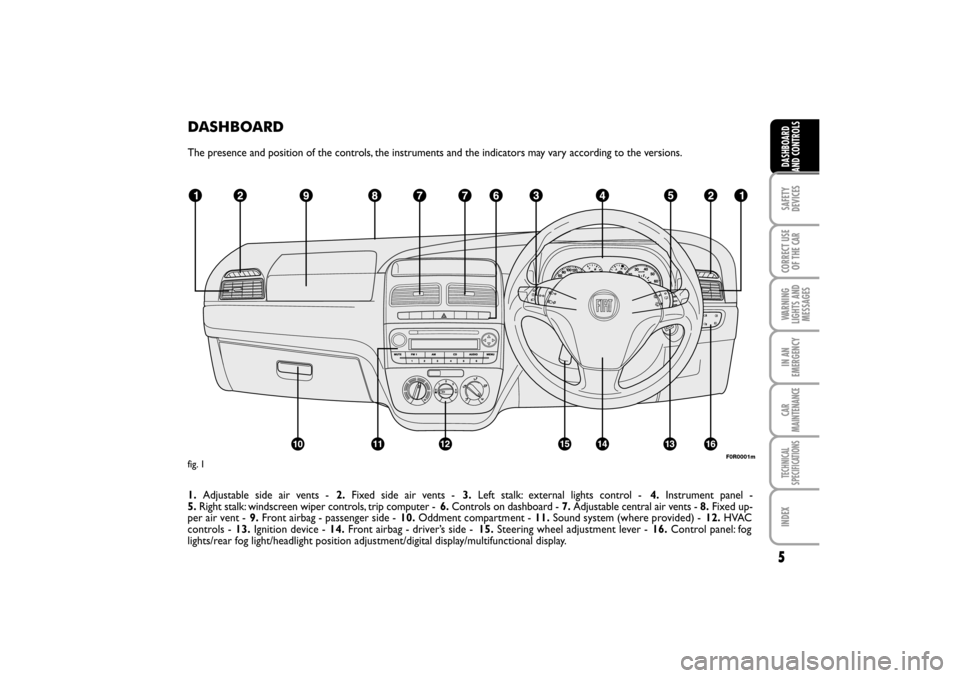

1.Adjustable side air vents - 2.Fixed side air vents - 3.Left stalk: external lights control - 4.Instrument panel -
5.Right stalk: windscreen wiper controls, trip computer - 6.Controls on dashboard - 7.Adjustable central air vents - 8.Fixed up-
per air vent - 9.Front airbag - passenger side - 10.Oddment compartment - 11.Sound system (where provided) - 12.HVAC
controls - 13.Ignition device - 14.Front airbag - driver’s side - 15. Steering wheel adjustment lever - 16.Control panel: fog
lights/rear fog light/headlight position adjustment/digital display/multifunctional display.
F0R0001mfig. 1
LINEA Owner HAND BOOK RHD.pdf 5LINEA Owner HAND BOOK RHD.pdf 58/21/09 2:15:58 PM8/21/09 2:15:58 PM

6
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your car. These labels bear sym-
bols that remind you of the precautions
to be taken as regards that particular com-
ponent.

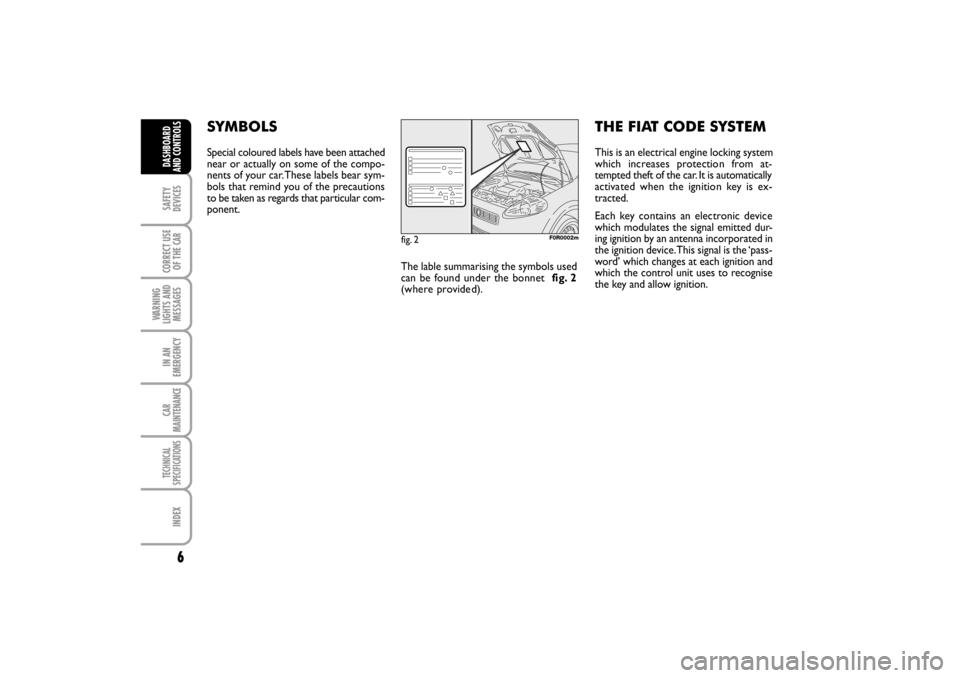

The lable summarising the symbols used
can be found under the bonnet
(where provide d).fig. 2
THE FIAT CODE SYSTEM
This is an electrical engine locking system
which increases protectio n from at-
tempted theft of the car. It is automatically
activa ted when the ignitio n key is ex-
tracted.
Each key contains an electronic device
which modulates the signal emitted dur-
ing ignition by an antenna incorporated in
the ignition device. This signal is the ‘pass-
word’ which changes at each ignition and
which the control unit uses to recognise
the key and allow ignition.
fig. 2
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0R0002m
LINEA Owner HAND BOOK RHD.pdf 6LINEA Owner HAND BOOK RHD.pdf 68/21/09 2:15:59 PM8/21/09 2:15:59 PM

7
In this case, turn the key to STOPand
then back to MAR; try with the other
keys provided if the problem persists .
Contact a Fiat Dealership if you still
can’t start the engine.
IMPORTANT Each key has its own code
which must be stored by the system ECU.
Conta ct a Fiat Dealersh ip to have
new keys (up to eight) stored. Warning light
coming on when driving
If the warning light turns on, this
means that the system is running a self-
test (for example for a voltage drop).
If the warning light stays on, con-
tact a Fiat Dealership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.OPERATION
Each time the car is started turning the ig-
nition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignitio n key is turned to
STOP, the Fiat CODE system deactivates
the functions of the engine electronic con-
trol unit.
If the code has not been recognised cor-
rectly, the warning light turns on ac-
companied by the related message on the
display (see section “Warning lights and
messages”).
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

LINEA Owner HAND BOOK RHD.pdf 7LINEA Owner HAND BOOK RHD.pdf 78/21/09 2:15:59 PM8/21/09 2:15:59 PM

8
KEY WITH REMOTE CONTROL
fig. 4
The metal insert Ais retractable and it op-
erates:
the ignition switch;
the door locks;
the fuel filler lock (where provided);
the tailgate lock.
To extract the metal insert, press button
B.
THE KEYS

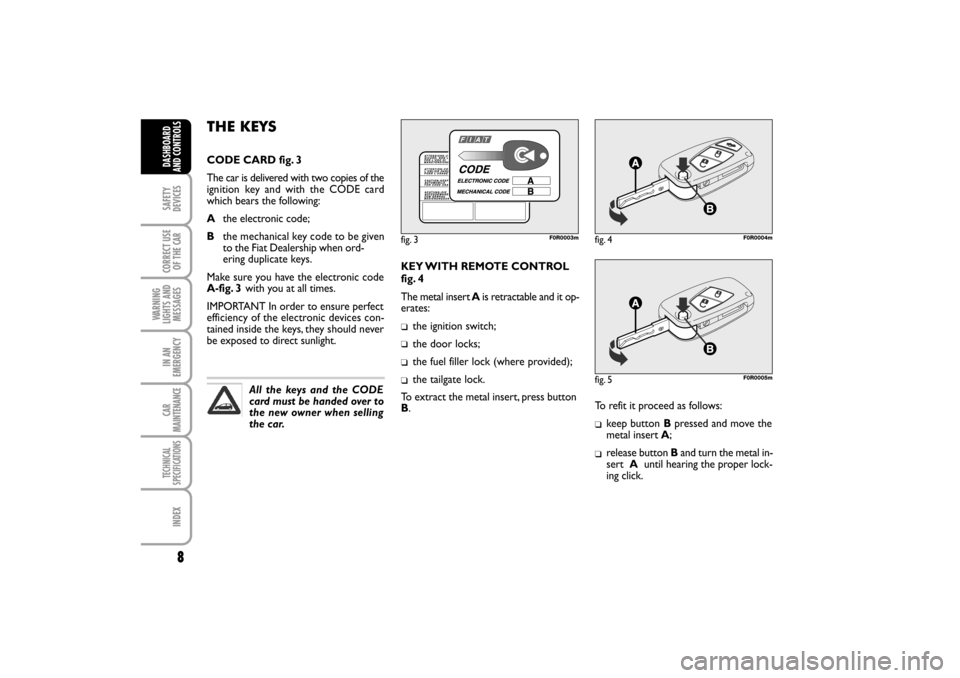

CODE CARD fig. 3
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
Athe electronic code;
Bthe mechanical key code to be given
to the Fiat Dealership when ord-
ering duplicate keys.
Make sure you have the electronic code
A-fig. 3with you at all times.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 3F0R0003mfig. 4F0R0004m
fig. 5F0R0005m
To refit it proceed as follows:
keep button Bpressed and move the
metal insert A;
release button Band turn the metal in-
sert Auntil hearing the proper lock-
ing click.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS





LINEA Owner HAND BOOK RHD.pdf 8LINEA Owner HAND BOOK RHD.pdf 88/21/09 2:15:59 PM8/21/09 2:15:59 PM

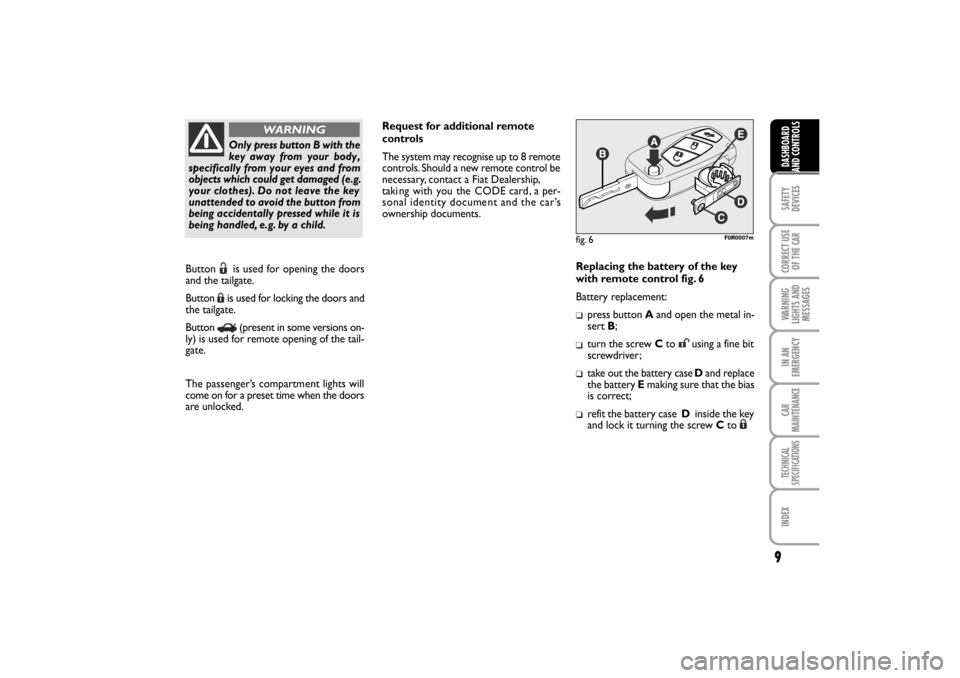

Replacing the battery of the key
with remote control fig. 6
Battery replacement:
press button Aand open the metal in-
sert B;
turn the screw Cto using a fine bit
screwdriver ;
take out the battery case Dand replace
the battery Emaking sure that the bias
is correct;
refit the battery case Dinside the key
and lock it turning the screw Cto
fig. 6F0R0007m
Request for additional remote
controls
The system may recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership,
taki ng with you the CODE card , a per-
sonal identity document and the car’s
ownership documents.




Button is used for opening the doors
and the tailgate.
Button is used for locking the doors and
the tailgate.
Button
(present in some versions on-
ly) is used for remote opening of the tail-
gate.
The passenger’s compartment lights will
come on for a preset time when the doors
are unlocked.
Only press button B with the
key away from your body ,
specifically from your eyes and from
objects which could get damaged (e.g.
your clothes). Do not leave the key
unattended to avoid the button from
being accidentally pressed while it is
being handled, e.g. by a child.
WARNING
9
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 9LINEA Owner HAND BOOK RHD.pdf 98/21/09 2:15:59 PM8/21/09 2:15:59 PM
