DASHBOARD
AND CONTROLSDASHBOARD ........................................................................ 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM .................................................. 6
THE KEYS .............................................................................. 8
IGNITION DEVICE .............................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS ..................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTION DISPLAY ............................................ 21
TRIP COMPUTER ................................................................ 30
FRONT SEATS ..................................................................... 32
REAR SEATS .......................................................................... 33
HEAD RESTRAINTS............................................................. 33
STEERING WHEEL .............................................................. 35
REARVIEW MIRRORS ......................................................... 36
HEATING AND VENTILATION ...................................... 37
MANUAL CLIMATE CONTROL SYSTEM .................... 38
AUTOMATIC CLIMATE CONTROL SYSTEM ............ 44
EXTERNAL LIGHTS ............................................................ 51
WINDSCREEN WASHING .............................................. 53CEILING LIGHTS .................................................................. 54
CONTROLS ........................................................................... 57
FUEL CUT-OFF SWITCH .................................................. 59
INTERIOR FITTINGS........................................................... 60
DOORS .................................................................................. 64
POWER WINDOWS ........................................................... 65
BOOT....................................................................................... 67
BONNET................................................................................. 68
HEADLIGHTS ........................................................................ 70
ABS SYSTEM ......................................................................... 71
SOUND SYSTEM .................................................................. 73
ACCESSORIES PURCHASED BY THE OWNER ..........
74
AT THE FILLING STATION .............................................
75
PROTECTING THE ENVIRONMENT................................
76
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
LINEA Owner HAND BOOK RHD.pdf 4LINEA Owner HAND BOOK RHD.pdf 48/21/09 2:15:58 PM8/21/09 2:15:58 PM

5
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1.Adjustable side air vents - 2.Fixed side air vents - 3.Left stalk: external lights control - 4.Instrument panel -
5.Right stalk: windscreen wiper controls, trip computer - 6.Controls on dashboard - 7.Adjustable central air vents - 8.Fixed up-
per air vent - 9.Front airbag - passenger side - 10.Oddment compartment - 11.Sound system (where provided) - 12.HVAC
controls - 13.Ignition device - 14.Front airbag - driver’s side - 15. Steering wheel adjustment lever - 16.Control panel: fog
lights/rear fog light/headlight position adjustment/digital display/multifunctional display.
F0R0001mfig. 1
LINEA Owner HAND BOOK RHD.pdf 5LINEA Owner HAND BOOK RHD.pdf 58/21/09 2:15:58 PM8/21/09 2:15:58 PM

6
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your car. These labels bear sym-
bols that remind you of the precautions
to be taken as regards that particular com-
ponent.
The lable summarising the symbols used
can be found under the bonnet
(where provide d).fig. 2
THE FIAT CODE SYSTEM
This is an electrical engine locking system
which increases protectio n from at-
tempted theft of the car. It is automatically
activa ted when the ignitio n key is ex-
tracted.
Each key contains an electronic device
which modulates the signal emitted dur-
ing ignition by an antenna incorporated in
the ignition device. This signal is the ‘pass-
word’ which changes at each ignition and
which the control unit uses to recognise
the key and allow ignition.
fig. 2
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0R0002m
LINEA Owner HAND BOOK RHD.pdf 6LINEA Owner HAND BOOK RHD.pdf 68/21/09 2:15:59 PM8/21/09 2:15:59 PM

7
In this case, turn the key to STOPand
then back to MAR; try with the other
keys provided if the problem persists .
Contact a Fiat Dealership if you still
can’t start the engine.
IMPORTANT Each key has its own code
which must be stored by the system ECU.
Conta ct a Fiat Dealersh ip to have
new keys (up to eight) stored. Warning light
coming on when driving
If the warning light turns on, this
means that the system is running a self-
test (for example for a voltage drop).
If the warning light stays on, con-
tact a Fiat Dealership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.OPERATION
Each time the car is started turning the ig-
nition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignitio n key is turned to
STOP, the Fiat CODE system deactivates
the functions of the engine electronic con-
trol unit.
If the code has not been recognised cor-
rectly, the warning light turns on ac-
companied by the related message on the
display (see section “Warning lights and
messages”).
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

LINEA Owner HAND BOOK RHD.pdf 7LINEA Owner HAND BOOK RHD.pdf 78/21/09 2:15:59 PM8/21/09 2:15:59 PM

8
KEY WITH REMOTE CONTROL
fig. 4
The metal insert Ais retractable and it op-
erates:
the ignition switch;
the door locks;
the fuel filler lock (where provided);
the tailgate lock.
To extract the metal insert, press button
B.
THE KEYS
CODE CARD fig. 3
The car is delivered with two copies of the
ignition key and with the CODE card
which bears the following:
Athe electronic code;
Bthe mechanical key code to be given
to the Fiat Dealership when ord-
ering duplicate keys.
Make sure you have the electronic code
A-fig. 3with you at all times.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 3F0R0003mfig. 4F0R0004m
fig. 5F0R0005m
To refit it proceed as follows:
keep button Bpressed and move the
metal insert A;
release button Band turn the metal in-
sert Auntil hearing the proper lock-
ing click.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS





LINEA Owner HAND BOOK RHD.pdf 8LINEA Owner HAND BOOK RHD.pdf 88/21/09 2:15:59 PM8/21/09 2:15:59 PM

Replacing the battery of the key
with remote control fig. 6
Battery replacement:
press button Aand open the metal in-
sert B;
turn the screw Cto using a fine bit
screwdriver ;
take out the battery case Dand replace
the battery Emaking sure that the bias
is correct;
refit the battery case Dinside the key
and lock it turning the screw Cto
fig. 6F0R0007m
Request for additional remote
controls
The system may recognise up to 8 remote
controls. Should a new remote control be
necessary, contact a Fiat Dealership,
taki ng with you the CODE card , a per-
sonal identity document and the car’s
ownership documents.




Button is used for opening the doors
and the tailgate.
Button is used for locking the doors and
the tailgate.
Button
(present in some versions on-
ly) is used for remote opening of the tail-
gate.
The passenger’s compartment lights will
come on for a preset time when the doors
are unlocked.
Only press button B with the
key away from your body ,
specifically from your eyes and from
objects which could get damaged (e.g.
your clothes). Do not leave the key
unattended to avoid the button from
being accidentally pressed while it is
being handled, e.g. by a child.
WARNING
9
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 9LINEA Owner HAND BOOK RHD.pdf 98/21/09 2:15:59 PM8/21/09 2:15:59 PM

KEY WITHOUT REMOTE
CONTROLfig. 7
The metal insert of the key Ais fixed.
The key operates:
the ignition switch;
the door locks;
the fuel filler lock (where provided)
the tailgate lock.
fig. 7F0R0008m




Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat
Dealership, which will deal with their
disposal.
10
DEVICES CORRECT USE
OF THE
CAR
MESSAGES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
AND CONTROLS
SAFETY LIGHTS AND
CAR
DASHBOARD
IN AN
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 10LINEA Owner HAND BOOK RHD.pdf 108/21/09 2:15:59 PM8/21/09 2:15:59 PM

Ty p e
Key without remote control
Key with remote control
Direction indicators
flashing (only with key
with remote control)
The main functions that can be activated with the keys (with or without remote control) are the following:
Unlocking
the doors
Turn key anticlockwise
(driver’s side)
Turn key anticlockwise
(driver’s side)
Briefly press
blinks twiceLocking the doors
from the outside
Turn key clockwise
(driver’s side)
Turn key clockwise
(driver’s side)
Briefly press
blinks onceUnlocking the
tailgate
–
–
Briefly press
blinks twice
11
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 11LINEA Owner HAND BOOK RHD.pdf 118/21/09 2:16:00 PM8/21/09 2:16:00 PM

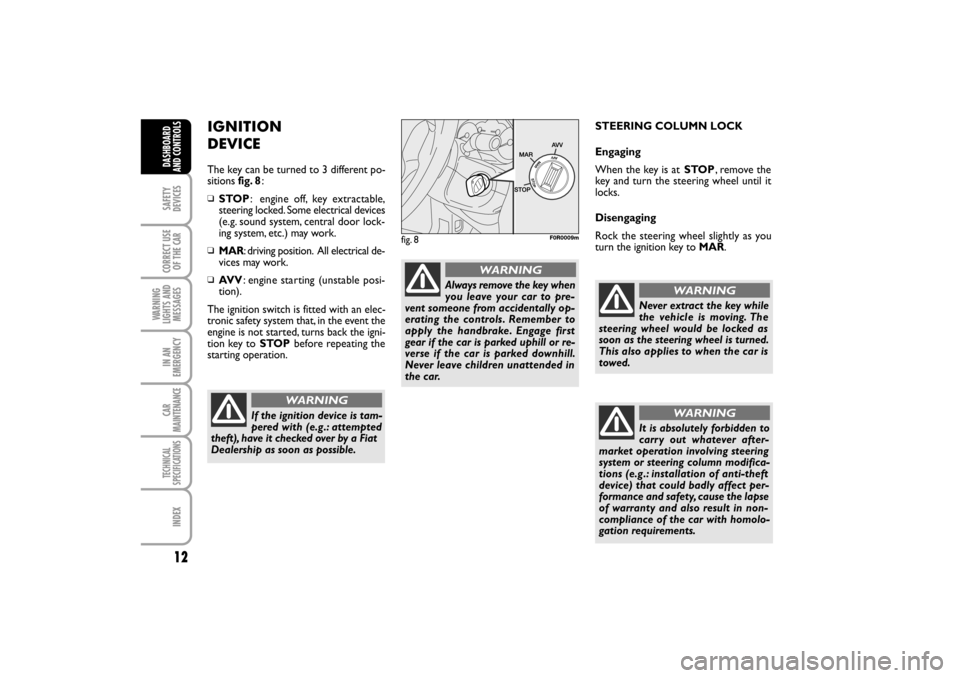

IGNITION
DEVICE
The key can be turned to 3 different po-
sitions fig. 8:
STOP: engine off, key extractable,
steering locked. Some electrical devices
(e.g. sound system, central door lock-
ing system, etc.) may work.
MAR: driving position. All electrical de-
vices may work.
AV V: engine starting (unstable posi-
tion).
The ignition switch is fitted with an elec-
tronic safety system that, in the event the
engine is not started, turns back the igni-
tion key to STOPbefore repeating the
starting operation.STEERING COLUMN LOCK
Engaging
When the key is at STOP, remove the
key and turn the steering wheel until it
locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls . Remember to
apply the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 8
Never extract the key while
the vehicl e is moving. The
steering wheel would be locked as
soon as the steering wheel is turned.
This also applies to when the car is
towed.
WARNING
It is absolutely forbidden to
carr y out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g .: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING



F0R0009m
12
DEVICES CORRECT USE
OF THE
CAR
MESSAGES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
AND CONTROLS
SAFETY LIGHTS AND
CAR
DASHBOARD
IN AN
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 12LINEA Owner HAND BOOK RHD.pdf 128/21/09 2:16:00 PM8/21/09 2:16:00 PM

INSTRUMENT PANEL
Versions with digital display fig. 9
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EDigital display
Versions with multifunction display
fig. 10
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
F0R0010mfig. 9
F0R0011mfig. 10
13
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 13LINEA Owner HAND BOOK RHD.pdf 138/21/09 2:16:00 PM8/21/09 2:16:00 PM
