Electrical system
Radio System
Marea- Marea Weekend
2000 range ©
55.

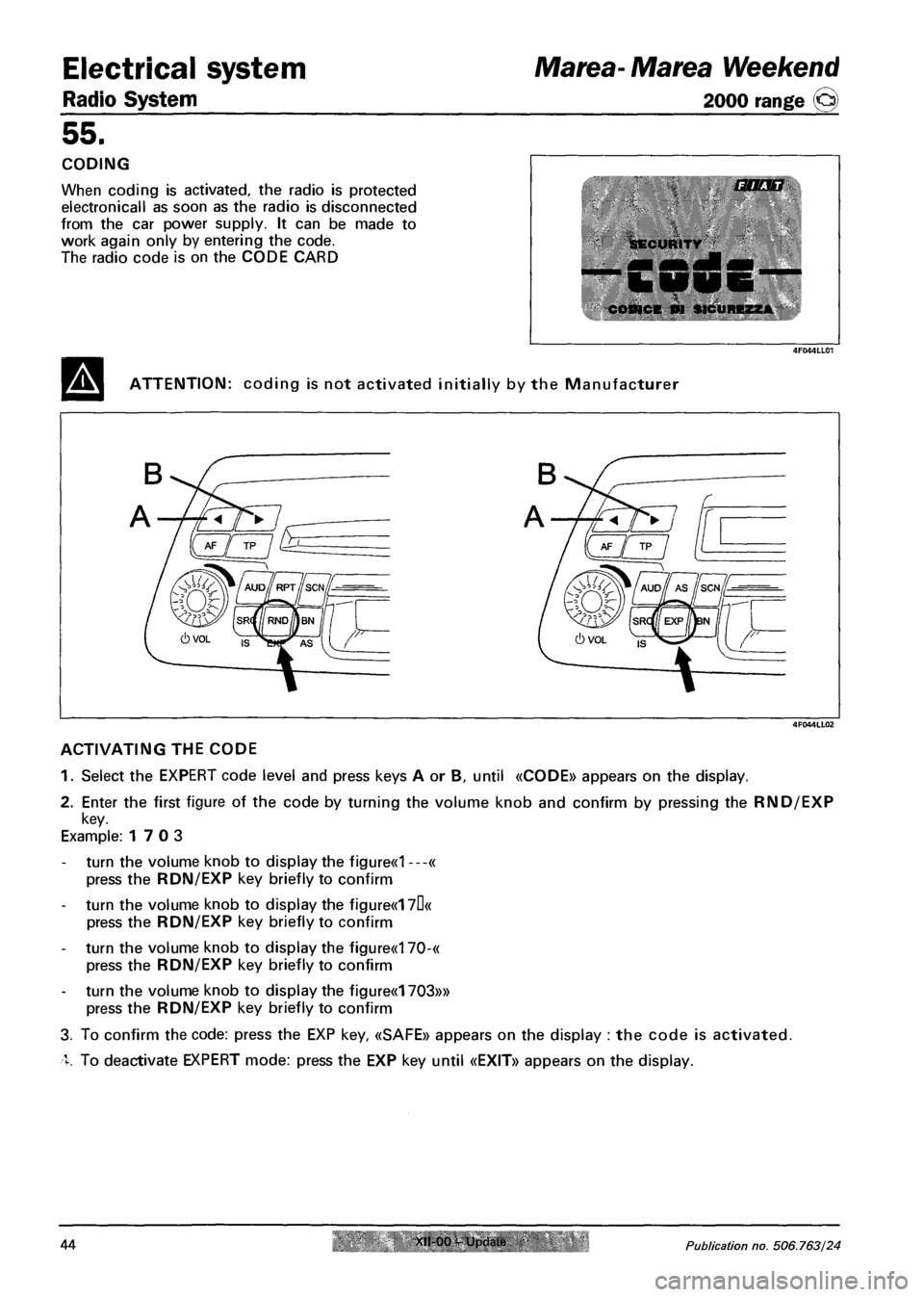

CODING
When coding is activated, the radio is protected
electronicall as soon as the radio is disconnected
from the car power supply. It can be made to
work again only by entering the code.
The radio code is on the CODE CARD mm
^™ fC SP VP fil ™
CODICE DI SICUREZZA
ATTENTION: coding is not activated initially by the Manufacturer
ACTIVATING THE CODE
1. Select the EXPERT code level and press keys A or B, until «CODE» appears on the display.
2. Enter the first figure of the code by turning the volume knob and confirm by pressing the RND/EXP
key.
Example: 17 0 3
- turn the volume knob to display the figure«1 ---«
press the RDN/EXP key briefly to confirm
- turn the volume knob to display the figure«17D«
press the RDN/EXP key briefly to confirm
- turn the volume knob to display the figure«170-«
press the RDN/EXP key briefly to confirm
- turn the volume knob to display the figure«1703»»
press the RDN/EXP key briefly to confirm
3. To confirm the code: press the EXP key, «SAFE» appears on the display : the code is activated.
>. To deactivate EXPERT mode: press the EXP key until «EXIT» appears on the display.
44 Xii-00 - Update Publication no. 506.763/24

Marea-Marea Weekend Electrical system
2000 range @ Radio System
55.

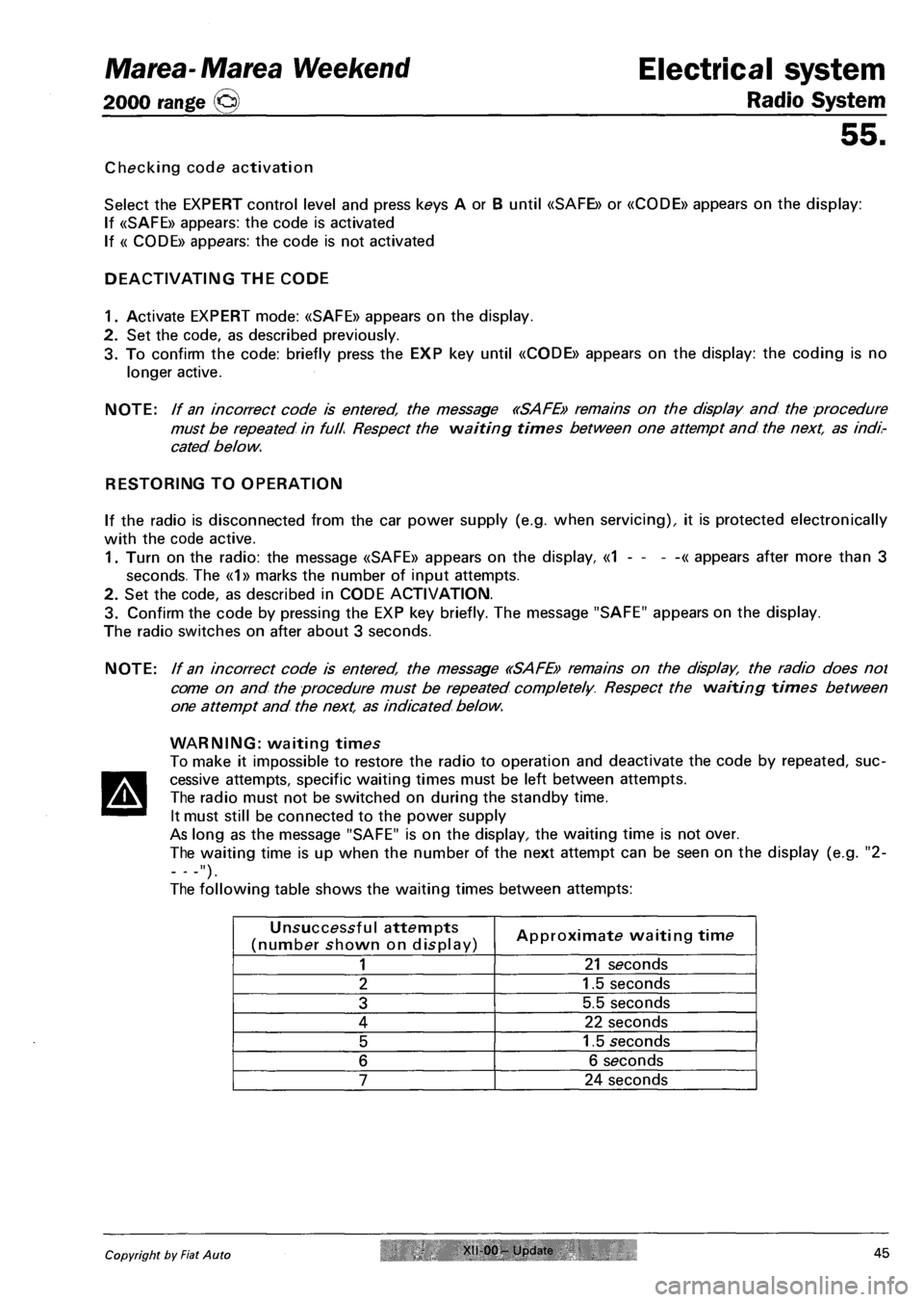

Checking code activation
Select the EXPERT control level and press keys A or B until «SAFE» or «C0DE» appears on the display:
If «SAFE» appears: the code is activated
If « C0DE» appears: the code is not activated
DEACTIVATING THE CODE
1. Activate EXPERT mode: «SAFE» appears on the display.
2. Set the code, as described previously.
3. To confirm the code: briefly press the EXP key until «CODE» appears on the display: the coding is no
longer active.
NOTE: If an incorrect code is entered, the message «SAFE» remains on the display and the procedure
must be repeated in full. Respect the waiting times between one attempt and the next, as indi­
cated below.
RESTORING TO OPERATION
If the radio is disconnected from the car power supply (e.g. when servicing), it is protected electronically
with the code active.
1. Turn on the radio: the message «SAFE» appears on the display, «1 - - - -« appears after more than 3
seconds. The «1» marks the number of input attempts.
2. Set the code, as described in CODE ACTIVATION.
3. Confirm the code by pressing the EXP key briefly. The message "SAFE" appears on the display.
The radio switches on after about 3 seconds.
NOTE: If an incorrect code is entered, the message «SAFE» remains on the display, the radio does not
come on and the procedure must be repeated completely. Respect the waiting times between
one attempt and the next, as indicated below.
WARNING: waiting times
To make it impossible to restore the radio to operation and deactivate the code by repeated, suc-

A

cessive attempts, specific waiting times must be left between attempts.
The radio must not be switched on during the standby time.
It must still be connected to the power supply
As long as the message "SAFE" is on the display, the waiting time is not over.
The waiting time is up when the number of the next attempt can be seen on the display (e.g. "2-
---")•
The following table shows the waiting times between attempts:
Unsuccessful attempts
(number shown on display) Approximate waiting time
1 21 seconds
2 1.5 seconds
3 5.5 seconds
4 22 seconds
5 1.5 seconds
6 6 seconds
7 24 seconds
Copyright by Fiat Auto XII-00- Update 45

Electrical system Marea-Marea Weekend
Radio System 2000 range @
55.
COMPACT DISC PLAYER - only for H4 version
Activating CD operation
Place a CD in the slot and press slightly, the player will draw in the CD automatically.
If a CD is already present in the slot, press the SRC key until the message «DISC» appears on the display;
the CD begins to play automatically.
SRC = Source ; the sources are: RADIO, DISC, CDC (CD Changer)
4F046LL01
Choosing a track
Keep tapping key A to choose a track in increasing order; similarly, keep tapping key B to choose a track
in decreasing order.
Fast forward to a track
Hold keys A or B down continuously to fast forward or retur to the track being played.
Repeating a track
Press the RPT key to repeat the track being played currently; the wording «RPT ON» appears on the dis­
play for a few seconds.
The current track will be repeated until the function is deactivated by pressing the RPT key again; the
wording «RPT 0FF» appears on the display for a few seconds.
RANDOM track selection
Tracks to be played are selected automatically after pressing the RND key; the message «RND ON» ap­
pears on the display for a few seconds.
The function is interrupted by pressing RND again; the message «RND 0FF» appears on the display for a
few seconds.
Automatic track scan
Press the SCN key to play all tracks on the CD for about 10 seconds each. The message «SCN ON» ap­
pears on the display for a few seconds
The function is suspended by pressing SCN again; the message «SCNOFF» appears on the display for a
few seconds.
Concluding operation and removing the CD
Simply press the C EJECT key to remove the CD from the player.
The wording «EJECT» appears for a few seconds on the display.
Alternatively press the SRC key, the source changes from DISC to CDC (if CD Changer present) or RA­
DIO. Source selection is sequential: RADIO, DISC, CDC.
NOTE: Status of RPT, RND, SCN functions are not stored when the radio set is turned off.
46 XII-00 Update Publication no. 506.763/24

Marea- Marea Weekend Electrical system
2000 range (§) Radio System
55.
TAPE PLAYER; - version H3
Activating tape operation
Place a tape in the slot. «TAPE A» or«TAPE B» appears on the display.
/T the slot already contains a tape, press the SRC repeatedly until «TAPE» appears on the display.
SRC = Source; the sources are: RADIO, TAPE, CDC.
4F047LL01
Changing tape side
Press the D REVERSE key briefly.
When the end of the tape is reached the side changes automatically.
The meanings of the symbols on the display are as follows:
«TAPE A» : top side of tape
«TAPE B» : bottom side of tape.
MSS function
MSS = Music-Search-System
This function can be used to forward/rewind to the beginning of the track to obtain the "skip track" or
"repeat track" function.
Pauses of at least 3 seconds are left between tracks for the MSS function (without an announcement
text). Musical pieces with very low passages (e.g. classical music) are not suitable because these are
treated as pauses.
Activating MSS
The MSS function can be turned on or off from the EXPERT menu; the standard condition is MSS ON
In this configuration, press key B to make the radio skip a number of tracks corresponding to the number
of presses on the key; «+ --« appears on the display.
Example: 3 short presses on the key: skip three tracks;; «+3» appears on the display.
When keys A or B are pressed for longer than 2 seconds, the CD player is made to forward/rewind fully
to the end of the tape.
If the MSS function is deactivated ( from EXPERT) a short press on key A or B allows fast forward or
fast rewind of the tape.
Copyright by Fiat Auto Xfl-00 - Update 47

Radio System
Electrical system Marea- Marea Weekend
2000 range O
55.
Finish MSS before time
Press key A or B until «0» appears on the display. The player stops in its current forward/rewind position
and starts to play the track from that point.
Concluding tape operation
Press the C EJECT key: the tape is ejected. «EJECT» appears briefly on the display
Alternatively press the key SRC, the source changes from TAPE to MCD (if CD CHANGER is present) or
RADIO, source selection is sequential: RADIO, TAPE, MCD.
NOTE: The source is switched immediately if the fast rewind or fast forward function is active but the
tape player completes its current function.
TAPE PLAYER - version M2
Changing the tape side
Press keys A and B half way down.
When the end of the tape is reached the side changes automatically.
The meanings of the symbols on the display are as follows:
"TAPE A" : top side of tape
"TAPE B" : bottom side of tape.
Fast forward/rewind
Fully depress keys A and B
Suspending operation
To suspend operation, briefly press the key opposite to the active key.
The tape begins to play automatically
Concluding tape operation
Fully depress the fast forward and rewind keys simultaneously. The tape will be ejected.
A B
4FO48LL01
48 XH-00 - Update Publication no. 506.763/24

Electrical system Marea- Marea Weekend
Radio System 2000 range @
55.

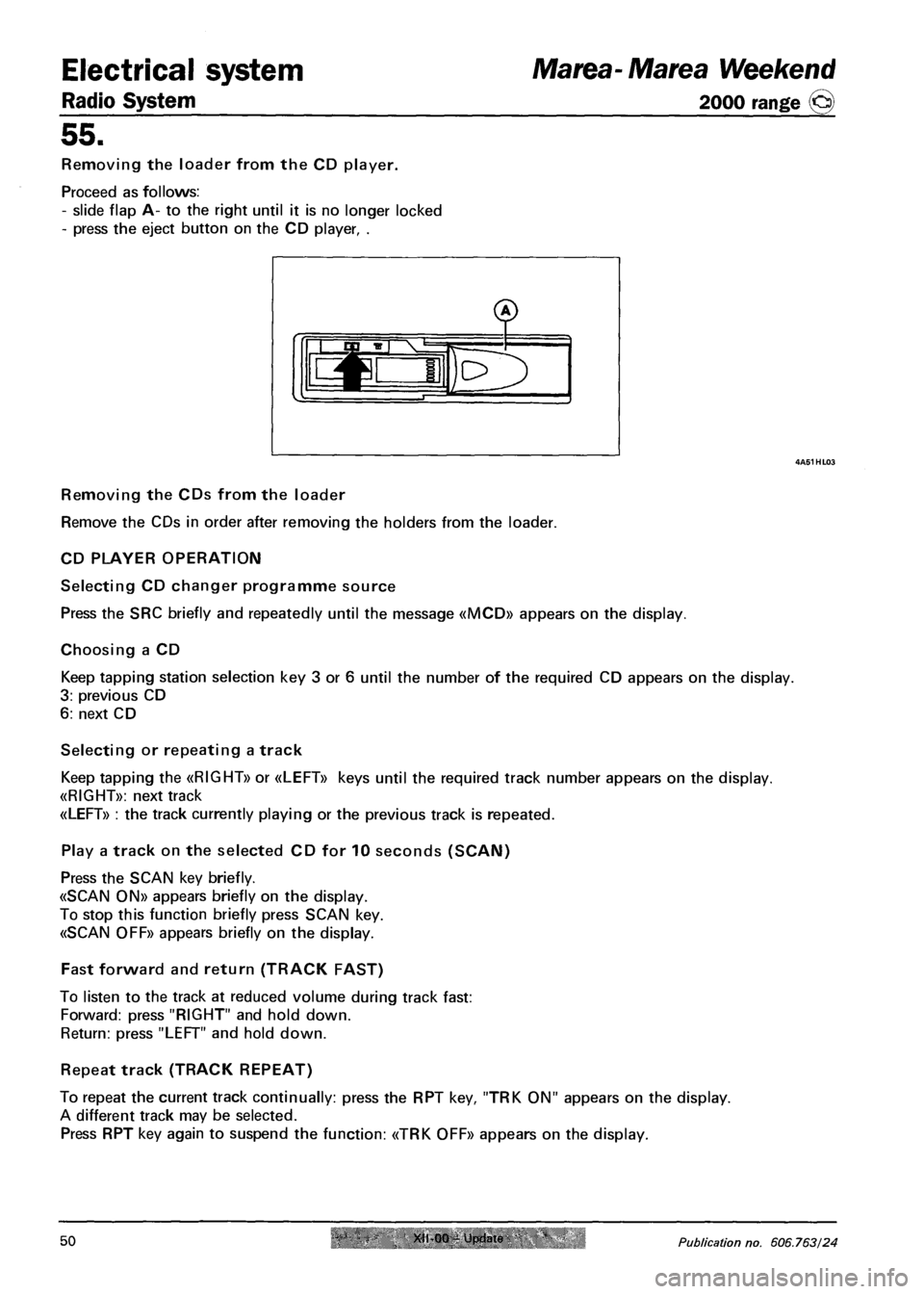

Removing the loader from the CD player.
Proceed as follows:
- slide flap A- to the right until it is no longer locked
- press the eject button on the CD player, .
f
s-
VV
Removing the CDs from the loader
Remove the CDs in order after removing the holders from the loader.
CD PLAYER OPERATION
Selecting CD changer programme source
Press the SRC briefly and repeatedly until the message «MCD» appears on the display.
Choosing a CD
Keep tapping station selection key 3 or 6 until the number of the required CD appears on the display.
3: previous CD
6: next CD
Selecting or repeating a track
Keep tapping the «RIGHT» or «LEFT» keys until the required track number appears on the display.
«RIGHT»: next track
«LEFT» : the track currently playing or the previous track is repeated.
Play a track on the selected CD for 10 seconds (SCAN)
Press the SCAN key briefly.
«SCAN ON» appears briefly on the display.
To stop this function briefly press SCAN key.
«SCAN OFF» appears briefly on the display.
Fast forward and return (TRACK FAST)
To listen to the track at reduced volume during track fast:
Forward: press "RIGHT" and hold down.
Return: press "LEFT" and hold down.
Repeat track (TRACK REPEAT)
To repeat the current track continually: press the RPT key, "TRK ON" appears on the display.
A different track may be selected.
Press RPT key again to suspend the function: «TRK OFF» appears on the display.
50 XII-00 - Update Publication no. 606.763/24

Marea-Marea Weekend Electrical system
2000 range (§) Radio System
55.
Repetition of a CD (REPEAT)
To repeat the current CD continously: press the RPT key for longer than 2 seconds: "RPT CD" appears on
the display.
A different CD may be selected. To suspend the function, press the RPT key again for longer than 2 sec­
onds: «RPT MAG» appears on the display.
Selecting tracks in a random sequence (TRACK RANDOM)
To start the random track search:
press the RND key: "RND ON" appears on the display. The selected CD tracks are played in a random se­
quence.
Press the RND key again to end the random track search: "RND OFF" appears on the display.
NOTE: The TRACK RANDOM function cannot be combined with the TRACK REPEAT and CD REPEAT
functions.
Concluding CD operation
Press the EJECT key
Alternatively, press the SRC to listen to the radio again
ADVICE AND PRECAUTIONS
RECEPTION CONDITIONS
The reception conditions will vary greatly while driving.
Reception can be affected by mountains, buildings or bridges especialy when far away from the transmit­
ter of the station you are listening to.
Note: when listening to traffic information (TA), the volume may rise considerably compared to normal
levels.
MAINTENANCE
The radio is built for long-term use without any special maintenance requirements.
If necessary, clean the panel with a soft, antistatic cloth. Cleaning and polishing products could damage
the surface.
TAPES
For optimal playing conditions:
- do not use poor quality tapes, with deformations or peeling labels;
- do not leave the tape inside the radio when not in use;
- do not introduce any objects into the cassette slot;
- do not expose the tapes to sunlight, excessive temperature or high moisture levels;
- replace the tapes in their cases after use;
- dirt on the playing heads caused by tapes could eventually lead to a reduction in high tones during
playing. It is therefore advisable to clean the playing heads at intervals using a special non-abrasive
head cleaning tape;
- it is preferable to C60 tapes or in the worst case C90 tapes to ensure optimum playing quality at all
times. The very fine tape contained in very long cassettes could also break very easily;
- avoid inserting cassettes with loose tapes, particularly if C90, because the tape could emerge and block
the mechanism. If the radio detects a loose tape or similar problems, the cassette is in any case auto­
matically ejected;
- do not lubricate the tape mechanism;
- do not touch the playing heads with magnetic or hard items.
Copyright by Fiat Auto XII 00 - Update 51

Marea-Marea Weekend
2000 range ©
Electrical equipment

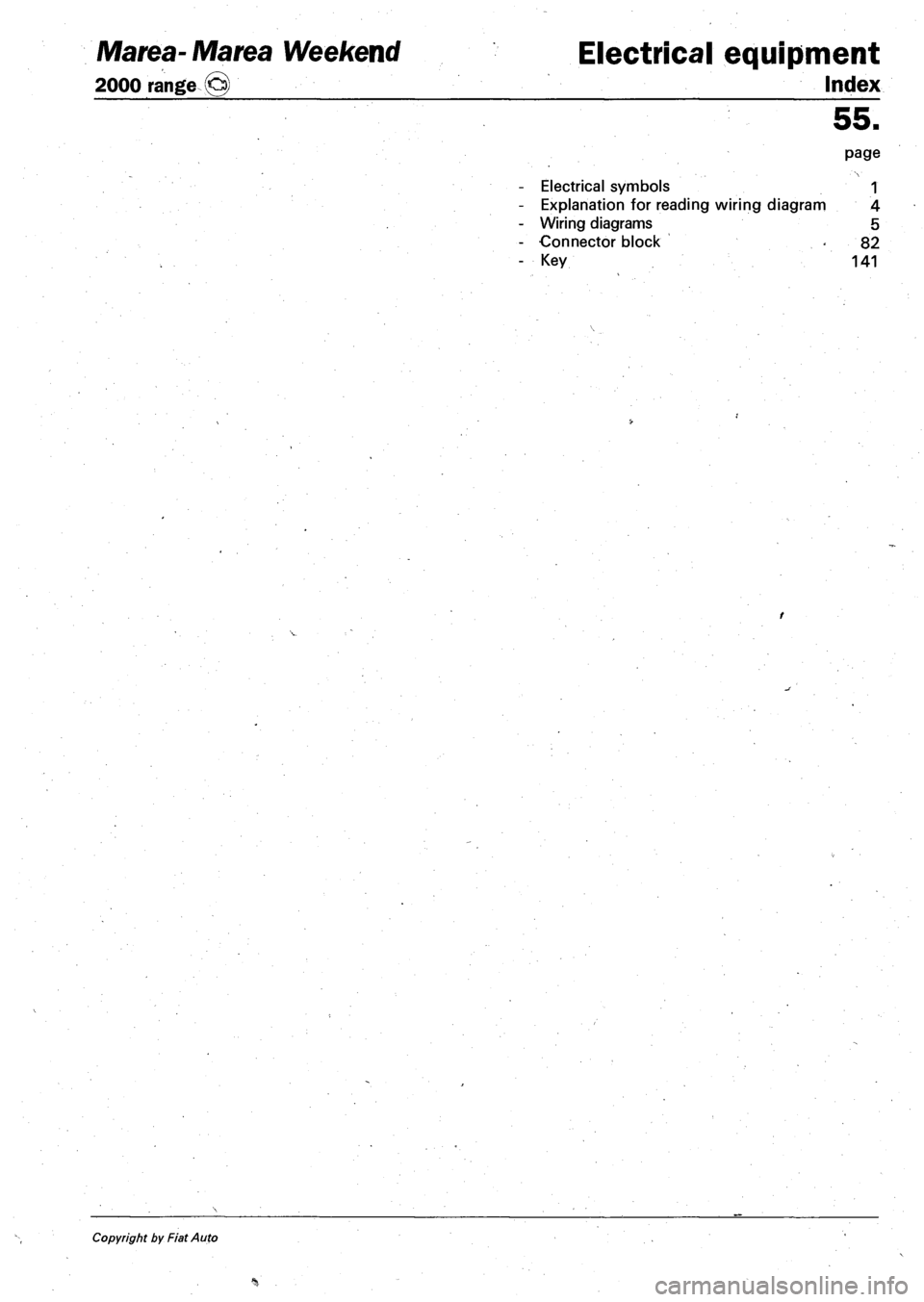

Index
Electrical symbols
Explanation for reading wiring diagram
Wiring diagrams
Connector block
Key
55.
page
1
4
5
82
141
Copyright by Fiat Auto

Electrical equipment
Wiring diagrams
Marea- Marea Weekend
2000 range ©
55.
EXPLANATION FOR READING WIRING DIAGRAM
2610/f=T
1 2 3 "
nnoi t
m IC01H ^ HSU
8515
^— PC7
-BB27 -8615 1 W-B06C-
8600A
1-8615—1
H
ni3u
L13U m
BFOO
V
B
R13U
FT
2615
BBOO
PSFO 23 27
5 4 3 2 1 TO
A
m m
II IC01P m m IC01S
lUsi.1V
(BWIC01B,
N.O.
p"3 N.D.
• PC? •
PC3 T^lFTi£5 PCI •
N10U
« ii
EN
N.D. |
D
— BB7 —'T
MN5A2B3A132B5B1
i
B6U
4, , 11 TT^l ITT B3B2B1M/V
N.D.
LO to 1
G8U
11
<£0 iO ID
£2 £1 B 3
V2620 U2610
(0)
MP23
0004
Key to references
A Component code
B Connector code
C Colour code
D Connection number of ways
E Connection number of ways
F Ultrasound welding taped in cable loom
4 Print n° 506.763/23

4F006ML01
SIDE LIGHTS AND WARNING LIGHT - DIPPED HEADLAMPS - MAIN BEAM HEADLAMPS AND WARNING LIGHT -NUMBER PLATE LIQHTS (POLYELHPTICAL HEADLAMPS) r »
Component key
1 Left front light cluster
2 Right front light cluster
3 Power fusebox
4 Junction unit:
5 Dipped headlamps relay
6 Instrument panel
7 Stalk unit
8 Left front earth
9 Right front earth
10 Engine battery earth
11 Battery
12 Ignition switch
13 Connection between right/left front cables
14 Left number plate light bulb
15 Right number plate light bulb
16 Left rear light cluster
17 Right rear light cluster
18 Left rear earth
19 Right rear earth
2 Left facia earth
42 Right facia earth
236 Connection between rear cables and tail­
gate
310 Connection bridge
Electrical equipment
Component location
Marea-Marea Weekend
2000 range (§)
55.
Left front light cluster
B
'GL70
N8'
1 3 Connection between right/left front cables
•H2A
NZ44
* GV n.d.
70 Connection between dashborad/front cables
A1
— RN 4C
— VG 127
B1 M29
^1 VB 55 | 1242
A3
— V328
11 AG6A
VB 195A | 1581 |B4 GN D
^1 HL 26A 11 AV 4D * I 1581
?! AB 4D"
11 LR 4C f
1581
1242
1Z_ AN4C| 1581
RN 120
VG 120
^1 VB6B
£1 HL120
B1 M n.d.
11 V28A
11 AG 41
11 LB n.d.
21
C2_
21
21
C5
B5 GL"
21 GL n.d.
2L GV13*
11 GV*
!T_ AN 120
B8
C6 GL •
2Z_ GV*J
21 P4F808NO4
236 Connection betwen rear lead and tail-gate
CB 28B
CB 26
* HL 4E
RG 4G
Marea Weekend
(*) The cables involved in the wiring diagram are marked with an asterisk.
6 Print n° 506.763/23
