Automatic FIAT MAREA 2000 1.G Service Manual

Marea-Marea Weekend
2000 range ©
Electrical equipment
Wiring diagrams
55.

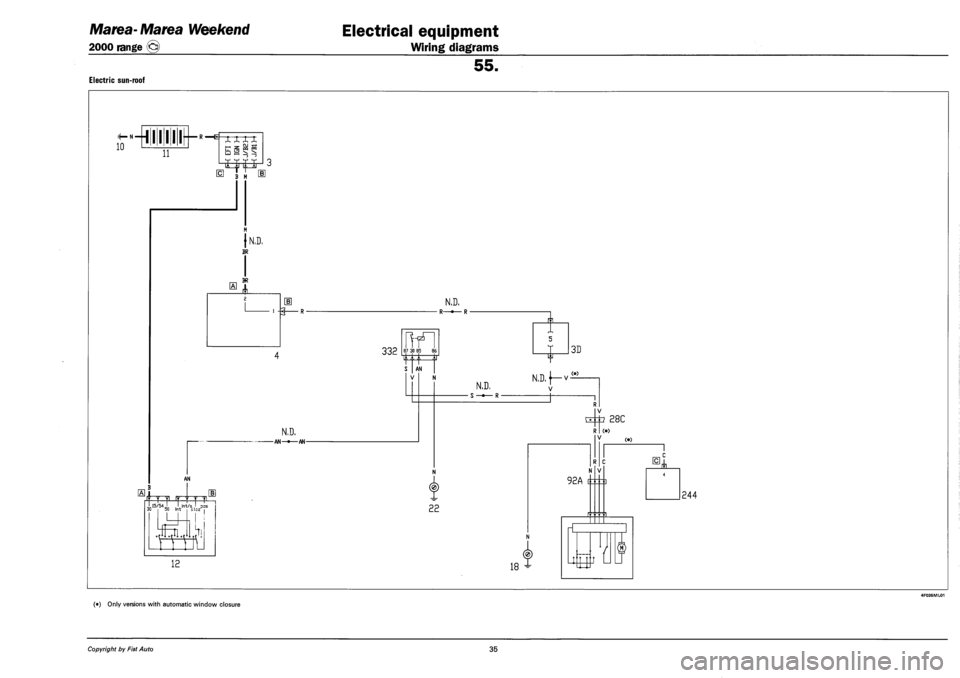

ELECTRIC SUN-ROOF
r-Hiini
10 L
•R—E
11
XX XX „ _. W -J
it ^ ^ t
N.D,
AN—•—AN-
332
(•) Only versions with automatic window closure
Copyright by Fiat Auto 35

Marea-Marea Weekend
2000 range ©
Electrical equipment
Wiring diagrams
55.

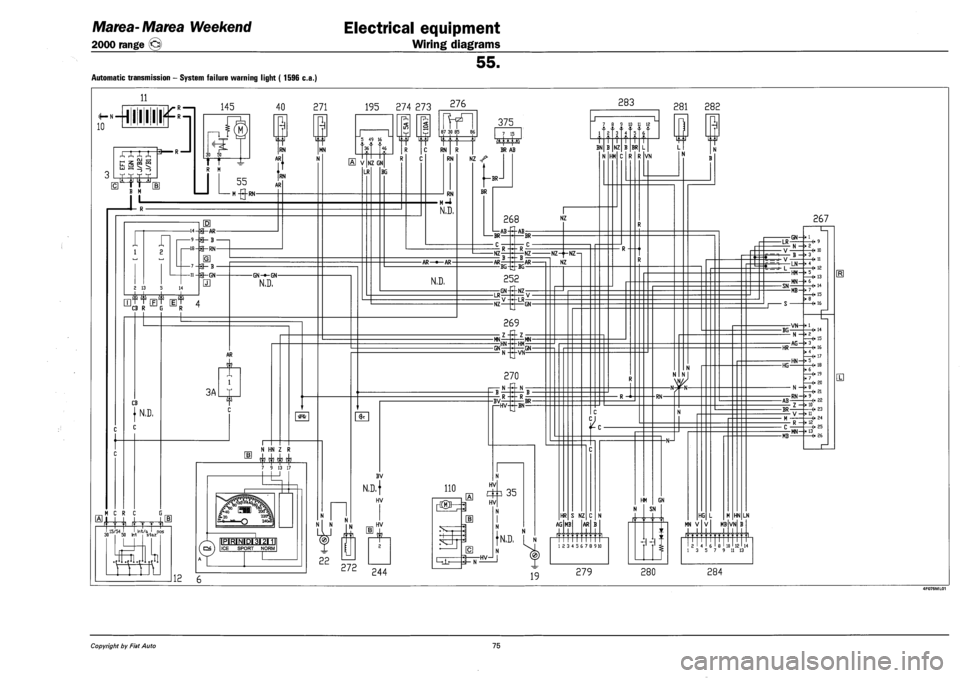

Automatic transmission - System failure warning light ( 1596 c.a.)
11
:t-»4WIII^
276 283
Copyright by Fiat Auto 75

Electrical equipment
Component location
Marea-Marea Weekend
2000 range ©
Automatic transmission - System failure warning light ( 1596 c.a.)
Component key
3 Power fusebox
4 Junction unit
6 Instrument panel
8 Left front earth
10 Engine battery earth
11 Battery
12 Ignition switch
19 Right rear earth
22 Left facia earth
35 Connection between dashboard/left front
door cables
40 Brake lights control switch
55 Connection between front/engine cables
110 Left front door lock
145 Starter motor
195 Ignition/injection control unit (1596)
244 Integrated services control system
267 Automatic transmission control unit
268 Connection between automatic transmis­
sion/front cables
269 Connection between automatic transmis­
sion/dashboard cables
270 Connection between automatic transmis­
sion/rear cables
271 Kick-down switch
272 Ignition switch solenoid
273 Automatic transmission system protective
fuse
274 Automatic transmission system protective
fuse
276 Starting enablement relay
279 Automatic transmission gear selector
280 ICE/SPORT selector for automatic
transmission
281 Shift Lock solenoid
282 Additional PARK cut out for automatic
transmission
283 Safety control unit for automatic trans­
mission
284 Automatic transmission connection on
gearbox
375 Standardized diagnostic socket
55.
267L Automatic transmission control unit
*RNn.d , . Nn.d.' HN 284 * *Z269 'V284
AG 279 *
N n.d.'
OS
VN 284*
* MB 284
* C n.d.
M284
• BR 286
BG 268'
HR 279 *
* AB 268 HG 284 *
267R Automatic transmission control unit
* LN 284
' HM 280
* MN 269
' MB 279
* S 279.
GN 252'
* SN 280.
L284 / \ V284*
LR 252 *
V252*
268 Connection between automatic transmission/front cables
B 279 *
AR 279 *
*B4D NZ 276 *
• AR n.d
' BG 279 AB 279 * BG 195'
269 Connection between automatic transmission/dashboard cables
' MN 267R
The cables involved in the wiring diagram are marked with an asterisk.
76 Print n° 506.763/23

Electrical equipment
Component location
Marea-Matea Weekend
2000 range ©
STANDARDIZED DIAGNOSTIC SOCKET CONNECTIONS
COMPONENT KEY
3
4
8
10
11
70
100
114
117
120A
181
190
193
195
253
267
268
333
375
Power fusebox
Junction unit
Left front earth
Engine battery earth
Battery
Connection between dashborad/front
cables
lock brakes A.B.S.
Alarm electronic control unit
Air bag electronic contol unit
Airbag/facia lead connections
Connection for air conditioning unit ca­
bles
A.B.S. electro-hydraulic control unit
Injection/ignition electronic control
(1998)
I.E. control unti earth
Injection/ignition electronic control
(1596)
Climate control system control unit
Automatic transmission control unit
Connection between automatic trans­
mission/front cables
I.E. control unit (JTD)
Standardized diagnostic socket
unit
unit
55.
70 Connection between dashborad/front cables
A1
A2 RN4C B1 C1 — M29 — AN4C B2 C2 — HR100B C3 AG n.d.* — HN 100B B4 C4 — LN100B — HG100B B5 C5 — CB100A — BN375* — HV 100B A6 B6 C7 — S100B — B375* — GV335 A7 B8 C8 — V100A — MNn.d. — RB 307 A8 C8 — N 8 — GN 195A
— VG 127 — V 328 A3 B3 — H100B — A4 — HL6A A5
A1 — RN120 A2 — VG120 A3 — H6B A4 — HL120 A5 — CB28A A6 — Rn.d. A7 — A34A A8 — N312
B1 C1 — M 310C — AN 120 B2 — V28A B3 — AG4I* B4 — AB4I B5 — BN120" B6 — B117* B7 — AN 120 B8 — RN315
C2 — HR28B C3 — HN28B C4 — HG28B C5 — HV28B C7 I — GV6B | JTD C8 — RB 312 TAXI C8 —I — GN6BQ
9B Connection between front cables/anti-lock brakes A.B.S.
* LN 375
BN n.d
CA3A
*CN 181
117 Connection between Air Bag/dashboard cables
Rn.d.
375 Standardized diagnostic socket
*BV100A
* BN 70
'LN95
The cables involved in the wiring diagram are marked with an asterisk.
78 Print n° 506.763/23

Electrical system
Connector blocks
Marea-Marea Weekend
2000 range ©
55.

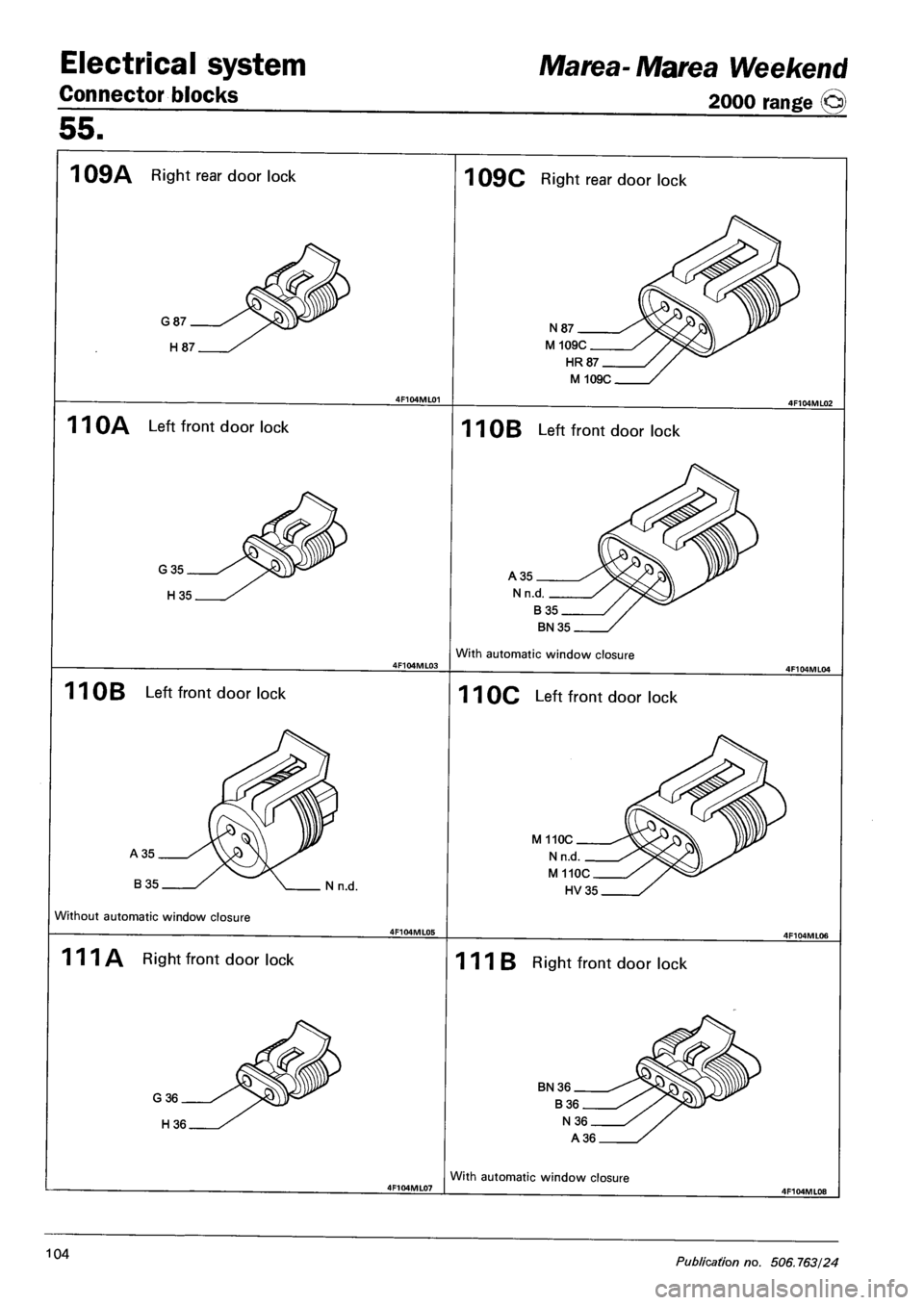

1 09A Right rear door lock
G87
H87
11 OA Left front door lock
G35
H35
1 09C Right rear door lock
N87
M 109C
HR87
M 109C
11 OB Left front door lock
A 35
Nn.d.
B35
BN 35
With automatic window closure
11 OB Left front door lock 11 OC Left front door lock
Nn.d.
Without automatic window closure
M 110C
Nn.d
M 110C
HV35
111 A Right front door lock 111 B Right front door lock
G36
H36
BN36
B36
N36
A 36
With automatic window closure
104 Publication no. 506.763/24

Marea- Marea Weekend
2000 range ©
Electrical equipment
Connector blocks
55.
111 B Right front central locking
A 36
Without automatic window closure
111 C Right front central locking
N36
M 111C
HG 36
M 111C
114 Air bag electronic contol unit
LN231
L231
GN 115
G 115
M240
MN240
_?_ B117
JP_ V239
Without Side Bag
IL VN239
13. C117
H N354
R117
15
15
J°_ N n.d. (.) FT;—*=E=
•••••••••••
30/ 17
(•)With passenger Air Bag fitted
114 Air bag electronic contol unit
1 LN 231 15 R117
2 L231 16 HB352
3 GN 115 17 HL352
4 G115 18 HG353
6 N240 19 HL353
7 MN240 22 ZB355
9 B 117 25 V355
10 V239 33 C 117
11 VN239 34 Nn.d.
40 Nn.d.
cn • cx: • • nnn • co • cn era • • • • • DODDDDODODDOODODDDDDDOD
Without Side Bag
115 Passenger Air Bag
G114
GN 114
116 Driver's Air Bag
4F105ML06
Copyright by Fiat Auto 105

Marea- Marea Weekend
2000 range ®
Electrical equipment
Connector blocks
55.

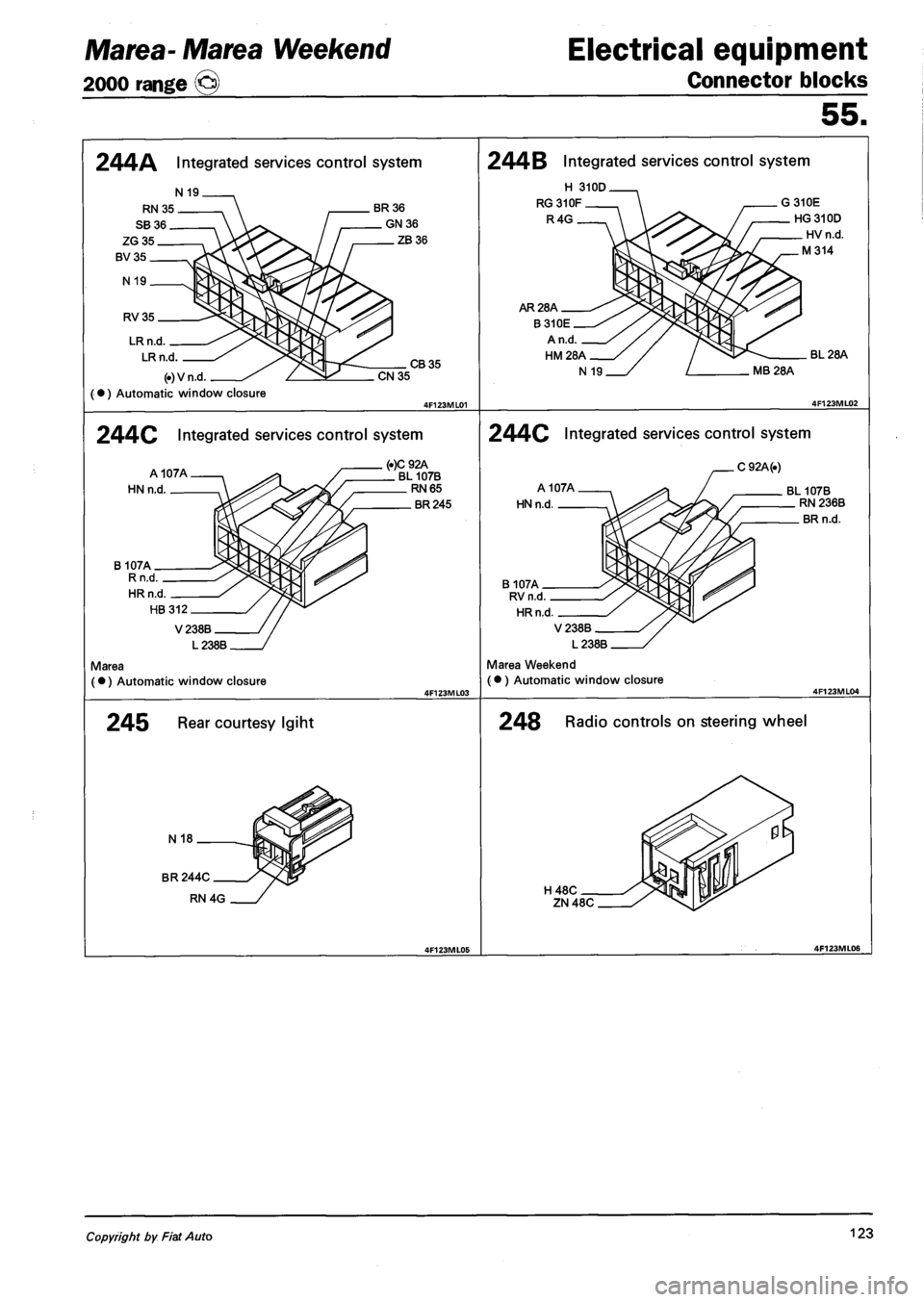

244A Integrated services control system
N 19
RV35
LR n.d.
LR n.d. CB 35 (.)Vn.d
(•) Automatic window closure
CN35
244B Integrated services control system
H 310D
RG310F
R4G
G310E
HG310D
HV n.d.
M314
AR28A
BL 28A
MB28A
244C Integrated services control system 244C Integrated services control system
A107A
HN n.d,
(.)C 92A BL 107B RN65 BR 245
C 92A(.)
A107A
HN n.d
V238B
L238B
Marea (•) Automatic window closure
BL 107B RN 236B
BR n.d.
HRn.d
V238B
L238B
Marea Weekend
(•) Automatic window closure
245 Rear courtesy Igiht 248 Radio controls on steering wheel
N18
BR244C
RN4G H48C ZN 48C
Copyright by Fiat Auto 123

Electrical equipment
Connector blocks
Marea-Marea Weekend
2000 range ©
55.
pep Connection between automatic trans¬
mission and engine cables
NZ 195A
V 195A
LR 195A
GN 195A
253B Air conditioner control unit
S 120B H254
NZ n.d.
N255A
G256
L256
[§]VG 120B
Rn.d
HN 256
Z211i§]
B 120B
RG 255A
CB 120B M209
AR209
253A Air conditioner control unit
CB n.d
VG n.d. Zn.d.
Rn.d.
BL n.d.
254 Climate control system controls with
passenger compartment temperature
B n.d..
H 253B.
HN n.d.
N n.d. .
Rn.d.
gZn.d
L253A
_ BN n.d.
RN n.d.
255 Electronic speed governor for climate control fan
N253B
AN n.d.
B
N206
Hn.d.
RG 253B
256 Mixture air control actuator
HN 253B
N n.d.
L253B
BL n.d.
G 253B i§]
124 Print n° 506.763/23

Electrical equipment
Connector blocks
Marea-Marea Weekend
2000 range ©
55.

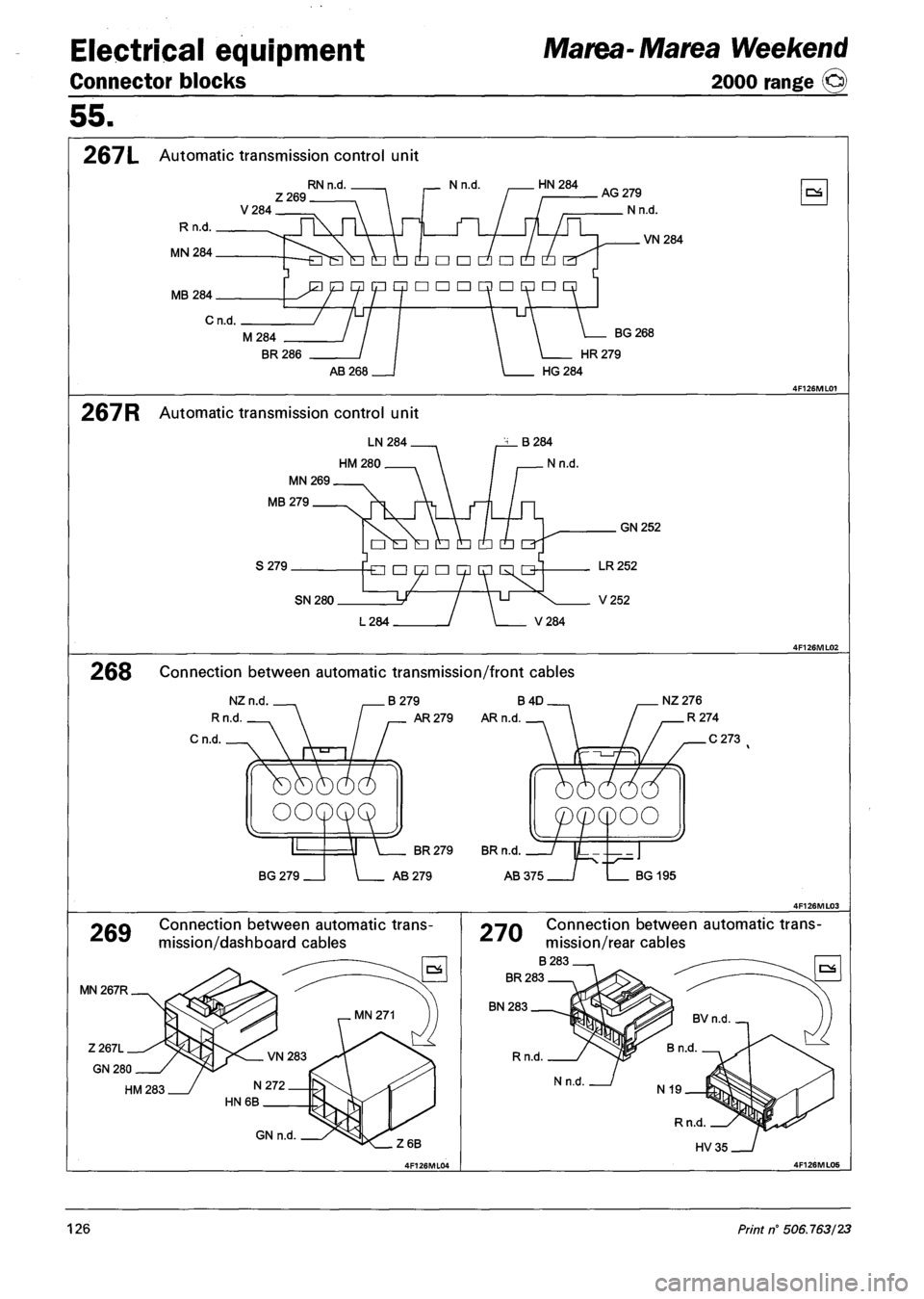

267L Automatic transmission control unit
RNn.d , Nn.d. HN284
V284 Z269 AG 279
Nn.d.
VN284
MB 284
Cn.d.
M284
BR 286
BG 268
HR279
HG284
267R Automatic transmission control unit
LN 284
HM280
MN269
MB 279
S279
GN 252
SN 280
268 Connection between automatic transmission/front cables
B 279 B 4D
AR 279 AR n.d
NZ276
R274
BG 279
C273
BG195
269
MN 267R
Connection between automatic trans­
mission/dashboard cables
GN n.d.
270 Connection between automatic trans­
mission/rear cables
B283.
BR 283.
BN 283
Rn.d
126 Print n° 506.763/23

Marea- Marea Weekend
2000 range ©
Electrical equipment
Connector blocks
55.
271 Kick-down switch
N22
MN269
272 Ignition switch solenoid
N269.
N22
273 Automatic transmission system protec­
tive fuse 274 Automatic transmission system protec­
tive fuse
C268
Cn.d.
US
R268
Rn.d
C6
276 Starter enablement relay 279 Automatic transmission gear selector
MB 267R , , HR 267L
RN55
RN n.d.
S 267R.
N n.d.
OS
R12A NZ n.d.
AG 267L
NZ n.d.
AR268
B268. .Cn.d.
280 ICE/SPORT selector for automatic
transmission 281 Shift Lock solenoid
Nn.d C6
HM 267R
Nn.d.
L283
Copyright by Fiat Auto 127
