display FIAT MAREA 2000 1.G Workshop Manual

Electrical equipment
Instrument panel
Marea- Marea Weekend
2000 range ©
55.
Rear side (the connector sockets are shown)
Connector A (on front lead) Connector B (on facia lead)
Pin no. Cable colour Circuit involved
1 BV EBD system failure
2 BN Brake fluid level
3 BR Brake pad wear
4 CL Heater plugs (JTD)
5 MN FIAT CODE
6 LN Injection system failure (JTD)
7 HN Battery recharging
8 HG Engine oil minimum pressure
9 LN EOBD (petrol only)
10 RV ABS fault
11 GN Reserve signal (petrol only)
12 VB Speedometer signal
13 AG +30 battery
14 CN Speedometer generator power sup­ply
15 HB engine coolant temperature
16 HL Outdoor temperature signal
17S HM Speedometer signal
18 L Rev counter signal
(*) not connected in this version
Pin no. Cable colour Circuit involved
1 RG Left brake light failure
2 RV Brake light switch
3 RV Brake light switch
4 C Air Bag system fault
5 GV Water in diesel filter (JTD)
6 M Seat belt
7 -N.C.
8 A Left turn signal
9 AN Right turn signal
10 -N.C.
11 GN Side lights
12 LB Main beam headlamps
13 BN Handbrake on
14 RN Right brake light failure
15 H Doors open
16 CN Boot open
17S -N.C.
18 GR Instrument panel light
19 N Lighting earth
20 HG Fuel level
21 GL Outdoor temperature display
22 R +15 from ignition
23 N electronic earth
24 -speedometer signal (*)
25 VN Speedometer signal
26 -speedometer signal (*)
16 Print n° 506.763/23

Marea- Marea Weekend Electrical system
2000 range @ Radio System
55.

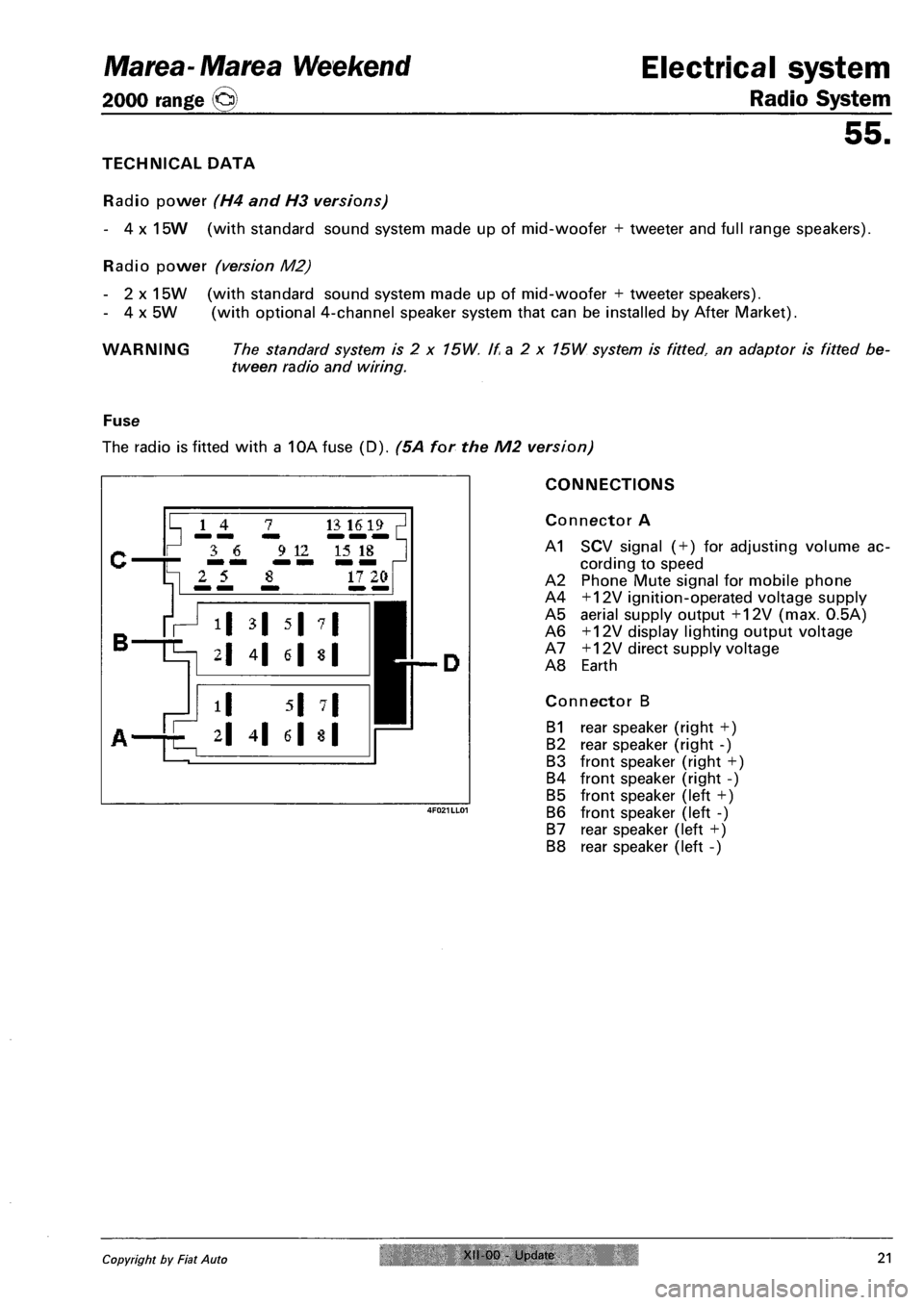

TECHNICAL DATA
Radio power (H4 and H3 versions)
- 4 x 15W (with standard sound system made up of mid-woofer + tweeter and full range speakers).
Radio power (version M2)
- 2x15W (with standard sound system made up of mid-woofer + tweeter speakers).
- 4 x 5W (with optional 4-channel speaker system that can be installed by After Market).
WARNING The standard system is 2 x 15W, If a 2 x 15W system is fitted, an adaptor is fitted be­
tween radio and wiring.
Fuse
The radio is fitted with a 10A fuse (D). (5A for the M2 version)
.Li.
3 6
2 5
B I M 5i I
T^l A 4| 6| |
I I I
2| 4| | |
CONNECTIONS
Connector A
A1 SCV signal ( + ) for adjusting volume ac­
cording to speed
A2 Phone Mute signal for mobile phone
A4 +12V ignition-operated voltage supply
A5 aerial supply output +12V (max. 0.5A)
A6 +12V display lighting output voltage
A7 +12V direct supply voltage
A8 Earth
Connector B
B1 rear speaker (right +)
B2 rear speaker (right -)
B3 front speaker (right +)
B4 front speaker (right -)
B5 front speaker (left +)
B6 front speaker (left -)
B7 rear speaker (left +)
B8 rear speaker (left -)
Copyright by Fiat Auto XII 00 Update 21

Marea-Marea Weekend
2000 range ©
Electrical system
Radio System
55.
A

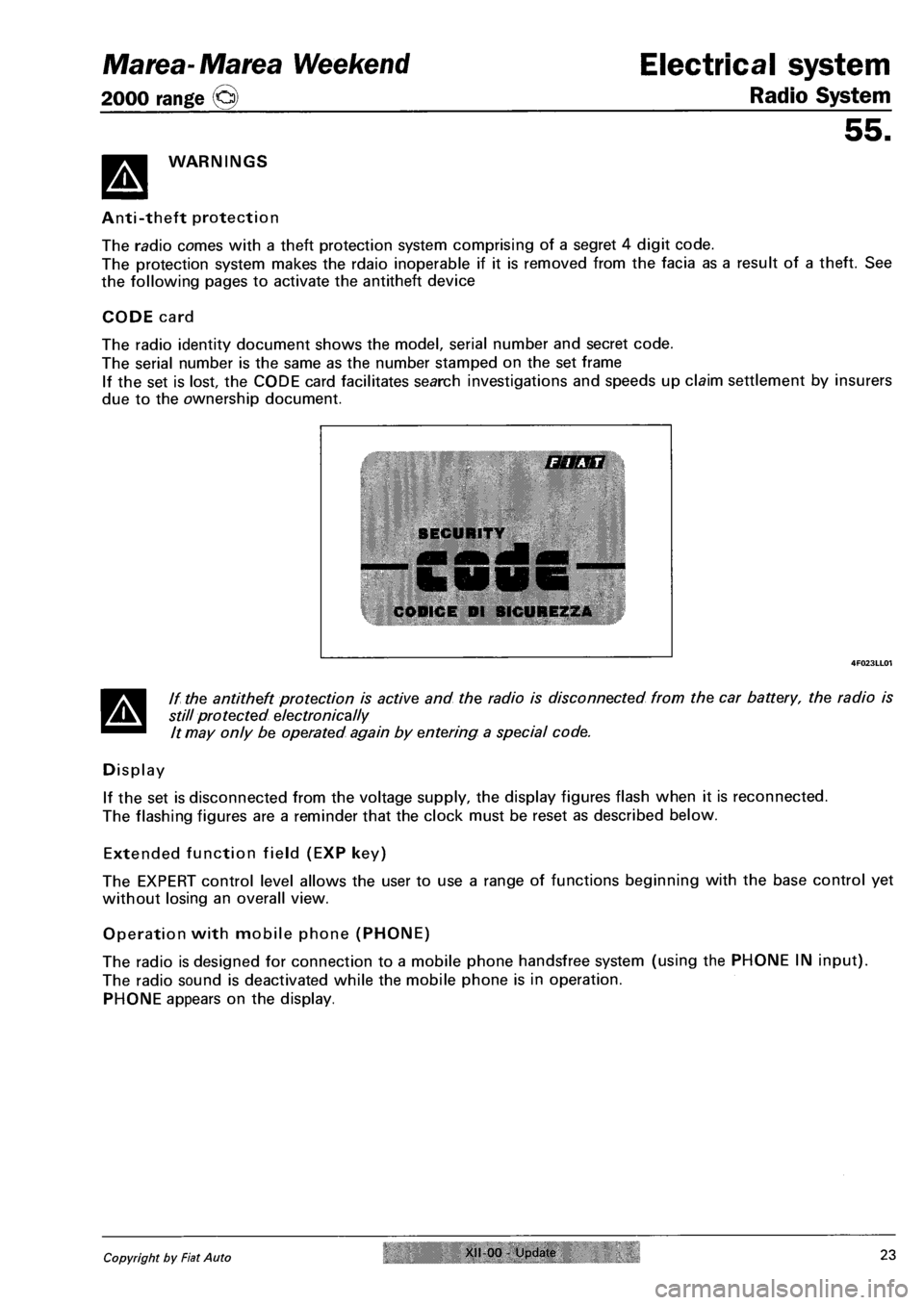

WARNINGS
Anti-theft protection
The radio comes with a theft protection system comprising of a segret 4 digit code.
The protection system makes the rdaio inoperable if it is removed from the facia as a result of a theft. See
the following pages to activate the antitheft device
CODE card
The radio identity document shows the model, serial number and secret code.
The serial number is the same as the number stamped on the set frame
If the set is lost, the CODE card facilitates search investigations and speeds up claim settlement by insurers
due to the ownership document.
r i A T
SECURITY
CODICE Dl SICUREZZA

A

If the antitheft protection is active and the radio is disconnected from the car battery, the radio is
still protected electronically
It may only be operated again by entering a special code.
Display
If the set is disconnected from the voltage supply, the display figures flash when it is reconnected.
The flashing figures are a reminder that the clock must be reset as described below.
Extended function field (EXP key)
The EXPERT control level allows the user to use a range of functions beginning with the base control yet
without losing an overall view.
Operation with mobile phone (PHONE)
The radio is designed for connection to a mobile phone handsfree system (using the PHONE IN input).
The radio sound is deactivated while the mobile phone is in operation.
PHONE appears on the display.
Copyright by Fiat Auto XII-00 - Updatfi 23

Marea- Marea Weekend
2000 range @
Electrical system
Radio System
55.
OPERATION
ON/OFF
The set can be turned on and off in two ways.
1. Press knob A (VOL).
2. Turn on/off by means of car ignition switch. This function may be set in the EXPERT control level.
Manual activation and deactivation are possible at all times in this case.
Note: // the EXPERT "IGN" function is not active, the radio goes off automatically 20 minutes after the
engine is turned off.
ADJUSTING VOLUME AND SOUND
Volume
Adjust to required volume by means of knob A (VOL),
the display shows: «VOL 00» D «V0L 31».
Adjusitng sound
For each of the settings BASS, TREBLE, FADER, BALANCE, LOUDNESS:
1. Select functions by pressing the AUD key once or more.
2. Select the required sound setting by means of key A or select the basic setting: press the AUD key for
longer than 2 seconds until the display shows «CENTER» Or «- -«.
3. Finish adjustment: press the AUD key several times until the display shows «V0L ...».
NOTE: the radio comes with a sound reproduction condition memory specific to each source type.. This
makes it possible to set different sound geometries (FADER, BALANCE) and frequency responses
(BASS, TREBLE, LOUDNESS) for radio, cassette and phone sources (Automatic Sound Memory
function)..After about 5 seconds, the control level with the current settings is automatically aban­
doned.
Copyright by Fiat Auto XII 00 - Update 33
4F033L01

Radio system
Electrical system Marea-Marea Weekend
2000 range @
55.

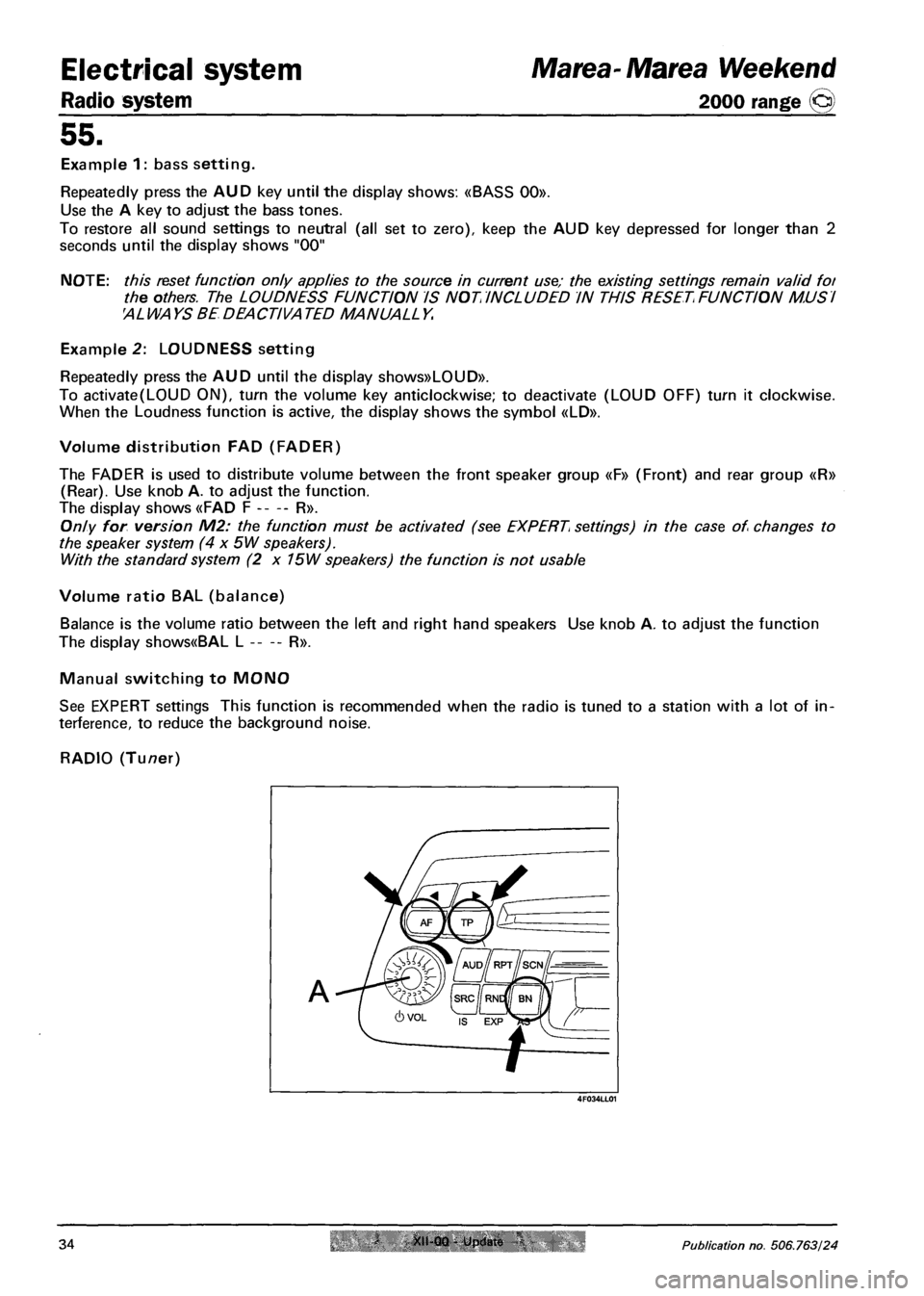

Example 1: bass setting.
Repeatedly press the AUD key until the display shows: «BASS 00».
Use the A key to adjust the bass tones.
To restore all sound settings to neutral (all set to zero), keep the AUD key depressed for longer than 2
seconds until the display shows "00"
NOTE: this reset function only applies to the source in current use; the existing settings remain valid foi
the others. The LOUDNESS FUNCTION IS NOT INCLUDED IN THIS RESET FUNCTION MUSI
AL WA YS BE DEACTIVA TED MANUALL Y.
Example 2: LOUDNESS setting
Repeatedly press the AUD until the display shows»LOUD».
To activate(L0UD ON), turn the volume key anticlockwise; to deactivate (LOUD OFF) turn it clockwise.
When the Loudness function is active, the display shows the symbol «LD».
Volume distribution FAD (FADER)
The FADER is used to distribute volume between the front speaker group «F» (Front) and rear group «R»
(Rear). Use knob A. to adjust the function.
The display shows «FAD F R».
Only for version M2: the function must be activated (see EXPERT settings) in the case of changes to
the speaker system (4 x 5W speakers).
With the standard system (2 x 75W speakers) the function is not usable
Volume ratio BAL (balance)
Balance is the volume ratio between the left and right hand speakers Use knob A. to adjust the function
The display shows«BAL L R».
Manual switching to MONO
See EXPERT settings This function is recommended when the radio is tuned to a station with a lot of in­
terference, to reduce the background noise.
RADIO (Tuner)
A
4F034LL01
34 XII-00 - Update I Publication no. 506.763/24

Marea-Marea Weekend
2000 range (§)
Electrical system
Radio System
55.
Range selection
FM range: press the BN key repeatedly until the display shows the required range «FM 1», «FM 2» or «FM
3».
AM Range: press the BN key repeatedly until the display shows «MW» (medium wave) or «LW» (long
wave).
Last station memory
Once the selection has been made, the last programme tuned on this range can be played (Last Station
Memory) While in Last Station Memory mode, the set stores the settings present before it is turned off:
selected station, CD or TAPE, and plays them when the set is turned on again.
Stereo reception - FM
When a stereo station is received, the display shows the corresponding symbol.
Traffic information reception (TP)
TP (Traffic Program): RDS station able to transmit traffic broadcasts.
TP function activation
Give the TP key a short press This enables the traffic broadcast reception function: the display shows the
message "TP"
When traffic information is received with the TP function active and another sound source is playing (e.g.
CD or tape), the source is interrupted to listen to the radio information and the display shows the message
"TA INFO" for 10 seconds.
At the end of the traffic information, the soruce is automatically switched to the source selected originally.
NOTE: if the station tuned in is not an RDS station able to broadcast traffic information, a search is
automatically started for an RDS station when the TP function is selected.
Interrupting traffic information
Give the TP key a short press. The function still remains active to receive future traffic information.
Because the radio offers the EON service, another station belonging to the same network may tune in
while listening to a radio station to provide traffic information (only with TP function enabled); it will re­
turn to the original station automatically at the nd of the news.
NOTE: traffic information is provided at minimum volume. This volume may be adjusted by means of the
EXPERT control menu.
// only traffic information is to be played, activate the function by means of the TP key and set
the volume to zero using knob A
Alternative frequency (AF)
During reception of an RDS programme that is broadcast by several stations at different frequencies, the
radio will automatically switch to the frequency with the best local reception.
NOTE: in a very poor reception area, the user may become aware of attempts to switch between sound
frequencies due to frequent pauses. In this case, it is advisable to deactivate the AF function
RDS-EON
temporarily.
Copyright by Fiat Auto XII-00 - Updatp. 35

Electrical system
Radio system
Marea- Marea Weekend
2000 range ©
55.
Deactivating AF function
NOTE: tihs function can be deactivated only when receiving stations with alternative frequencies.
To deactivate the AF, simply give the AF key a short press. When a short message 0FF>;
will appear on the display.
Do the same to reactivate.
NOTE: the AF OFF reception condition should be considered a local, temporary solution because it in­
volves manual compensation of a broadcasting service.
For this reason, tuning will automatically be switched to AF ON upon each manual or automatic tuning
control or selection of another stored station.
The AF OFF condition can be stored, together with the station, when it is activated before storage.
If an attempt is made to deactivate AF for a station that is not broadcasting using an RDS protocol, the
message "NO AF" will appear on the display.
RDS OFF
With some stations (e.g. MF103.3-ISORADIO in Italy), it is advisable t store the station in RDS OFF
mode to receive optimum reception.
To activate RDS OFF mode, simply press the AF key for more than 2 seconds.
RDS OFF mode, as with AF OFF mode, is absolutely temporary. The RDS OFF condition can be stored,
together with the station, whenever it is activated before storage.
Storing RDS stations/programmes
Press the selection key for stations 1 to 6 for more than 2 seconds until the station can be heard
again.
NOTE: theAF ON I OFF and RDS ON I OFF modes are stored together with the station.
36 XII-00 Update Publication no. 506.763/24

Marea-Marea Weekend
2000 range (§)
Electrical system
Radio System
55.
TUNING
Tuning RDS stations/programmes with automatic search for stations
1. Use the BN key to select the range: FM1, FM2, FM3, MW or LW.
The automatic search within FM ranges operates with two degrees of sensitivity. During the first search
through the reception range, the search is carried out for stations with high field intensity (local sta­
tions). The second search seeks stations with low field intensity (distant reception). The message "DX"
appears on the display during the search.
The DX function may be deactivated (see chapter on EXPERT control level)
2. An automatic search in the required direction may be started by giving a short press to one of the keys
A or B. The display shows the relevant frequency: when a station with an identification code is found,
this is shown on the display. Otherwise the frequency indication remains.
If the RDS station/programme tunes within the selected range, it is stored on a selection key for sta­
tions 1 to 6. The relevant number appears on the display, e.g. "3" for memory position 3.
3. If the tuned station is to be stored on a selection key, proceed as described in the paragraph on station
selection keys.
Recalling stored RDS station/programme
Use the BN key to select the range: FM1, FM2, FM3, MW or LW.
Give a short press to the selection key for stations 1 to 6.
Even if the radio power supply is disconnected, the memory contents of the station selection keys are
maintained.
Manual frequency tuning
1. Use key BN to select the range:: FM1, FM2, FM3, MW or LW.
2. Pres one of the keys A or B for 2 seconds until "MAN" appears on the display and the frequency tun­
ing is not visible. Continual switching takes place during fast forward when one of the keys is held
down.
3. Use keys A or B to tune in the required direction: the frequency will be increased or reduced by 50 Hz
while in FM or 1 kHz in AM.
4. If the tuned station is to be stored on one of the station selection keys, proceed as described in the
paragraph on "Station selection keys".
5. Conclusion of manual frequency tuning: give a short press to one of the station selection keys from 1
to 6.
NOTE: If no key is pressed for 60 seconds, manual frequency tuning is automatically concluded.
Automatic station storage: AUTOSTORE
Automatically store the most powerful stations in the selected local reception range on station keys 1 to 6.
Range selection: FM I, FM 2, FM 3, MW or LW.
Press the BN key for more than 2 seconds until the message "AS" appears on the display and the fre­
quency indication changes.
The station with the best reception can be heard at the end of the search.
Copyright by Fiat Auto XII-00 - Update 37

Electrical system Marea- Marea Weekend
Radio System 2000 range @
55.
Tuning RDS programmes (IS LEARN) function (see EXP)
The IS LEARN function (which can be run only after activating the EXPERT function) can be used to
store up to 30 programmes in the IS memory (virtual memory area that does not correspond to storage
keys).
Stored programmes can be called up one by one as described in the EXP section.
The IS memory is useful when the station selection keys are restored or when the tuning stops on a new
reception field and you do not wish to deleted stored stations from preset keys.
Starting the automatic IS LEARN function
Use the BN key to select the range «FM 1», «FM 2» or «FM 3».
Press the SRC key for longer than 2 seconds. «IS ...» will appear on the display, the receiver starts the
search.
If an attempt is made to start the IS LEARN search without the IS mode being active (see EXPERT), the
display will show the message "EXPERT".
NOTE: Always wait for the end of the automatic intelligent search (IS).
If no reception is possible, the automatic intelligent research may stay on, e.g. in an underground garage
or if the aerial is defective. In this case, the automatic search can be interrupted by pressing one of the
station selection keys from 1 to 6.
The automatic intelligent search IS ensures up to 30 stations can be stored with optimum reception.
During automatic intelligent search IS, RDS programmes are stored first ordered by programme code, fol­
lowed by FM stations.
Calling up the contents of the IS memory
Stations can be called up from the memory in the required direction by giving a short press to one of the
keys A or B. «IS-SCAN» appears on the display during station selection.
Programme types (PTY)
Many radio programmes offer the programme type service (PTY) in the FM range (FM1, FM 2, FM3) The
message «NEWS» is displayed during a news programme, for example.
The PTY function activates a search filter that allows the radio to tune only to stations that broadcast pro­
grammes with a preset PTY code.
Programme types
The types of programme offered by a radio station vary according to the type of programme transmitted.
NEWS News and topical matters
AFFAIRS Politics and events
INFO Special information programmes
SPORT Sports broadcasts
EDUCATE Education and training
DRAMA Radio plays and readings
CULTURE Culture, church and religion
SCIENCE Science
VARIED Various
POP Pop music (hits and chart music)
ROCK M Rock music
EASY M Easy listening
LIGHT M Light classical music
CLASSICS Classical music
OTHER M Unclassified music programmes
(*) differs from phone-in function, activated only
WEATHER Weather forecasts
FINANCE Financial news
CHILDREN Children's programmes
SOCIAL A Social information
RELIGION Religious and philosophical
broadcasts
PHONE IN Listeners' phone-ins (*)
TRAVEL Tourist information
LEISURE Leisure, hobbies and pastimes
JAZZ Jazz music
COUNTRY Country music
NATIONAL National broadcasts
OLDIES Golden Oldies
FOLK M Folk music
DOCU Special documentaries
NO PTY No identification code
the handsfree connection for mobile phone
38 XII-00 - Update Publication no. 506.763/24

Marea- Marea Weekend Electrical system
2000 range (§) Radio System
55.
Automatic PTY search
When selecting a programme type, an automatic search may be activated in two ways.
4F039LL01
1. Six programme types are allocated to the 6 programme keys (station selection keys). The preset al­
location may be altered as required.
2. A programme type may be selected from the stored list and an automatic search may then be started.
The procedure is described below:
1. Reactivate PTY function
Press the TP for longer than 2 seconds until the message «PTY 0N» appears on the display. Then the last
type of programme selected will appear on the display (e.g. «POP»).
2. setting programme type
Give a short press to a key from 1 to 6. An automatic PTY search is started for the next station offering
the selected programme type and the programme type is briefly displayed (e.g. "POP"), followed by the
station code and the message "PTY".
Alternatively, press one of the keys A or B repeatedly until the required programme type appears on the
display.
Press one of the keys A or B for more than 2 seconds until the automatic PTY search starts. The auto­
matic PTY search stops automatically on the next station offering the preselected programme type, and
shows the programme type (e.g. «POP») and the message «PTY».
NOTE: If no station offers the selected programme type, the last station tuned is played and the PTY
function is abandoned.
3. deactivating the PTY function
This occurs automatically after about 10 seconds.
Storing PTY programme keys: station selection keys
The standard setting is defined in the table:
1 2 3 4 5 6
NEWS SPORT POP ROCK M CLASSICS EDUCATE
Each station selection key may be occupied by any programme type as required:
1. Activating the PTY function:
Press the TP key for longer than 2 seconds until the display shows »PTY ON» and select the set pro­
gramme type (e.g. «NEWS»).
2. Press one of the keys A or B repeatedly until the required programme type appears on the display.
3. Press one of the station selection keys for longer than 2 seconds.
Copyright by Fiat Auto X1I-00- Update 39
