door lock FIAT MULTIPLA 2006 1.G Owners Manual

9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE CONTROL
Key (A) (delivered in one copy only) is the one to be used normally for:
❒starting up
❒locking/unlocking the doors
❒locking/unlocking the fuel cap
❒deactivating the passenger’s airbag.
Key (B), with built-in remote control, performs the same functions as key
(A) for cars fitted with door remote control and/or electronic alarm.
KEY WITH REMOTE CONTROL
The remote control built into the ignition key has a button (C) and a led
(D) (where required); the button activates the remote control and the
led flashes to show that the transmitter is sending the code to the
receiver. The remote control operates at radio-frequency.
Ministerial homologation
In accordance with the regulations in force in each country as concerns
radio-frequency, the following shall be pointed out: the specific
homologation numbers for each country are indicated in the last pages of
this handbook and for markets requiring transmitter code marking, the
homologation number is printed directly on the key grip.
F0E0600m
F0E0004m

11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ELECTRONIC ALARM
The electronic alarm has the following functions:
❒central door locking/unlocking remote control;
❒perimetral surveillance, which picks up opened doors, bonnet and
tailgate;
❒volumetric surveillance, which picks up the movement of any intruders
inside the passenger compartment.
OPERATION
The electronic alarm of Fiat Multipla is controlled by the receiver located
in the dashboard under the front right panelling. It is activated by the
radio-frequency remote control built into the ignition key.
It will only work when the ignition key is removed from position STOP
or PARK.
The electronic alarm control unit also includes the self-powered alarm
siren; the siren may be deactivated.
To switch the electronic alarm on: press briefly the remote control
button (C). You should hear a “beep” and the direction indicators switch
on for about 3 seconds (in countries where legislation permits it). The
warning led (F) inside the car will flash as long as the car alarm is on.
To switch the electronic alarm off: press the remote control button
again. You will hear two “beeps” and the direction indicators will flash
twice (in countries where legislation permits it).
F0E0601m
F0E0724m

13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WHEN THE ALARM IS TRIGGERED
When the system is on, the electronic alarm comes
into action in the following cases:
❒One of the doors, the bonnet or the tailgate are
opened.
❒The battery is disconnected or the electronic alarm
power supply cables are cut.
❒Something moves in the passenger compartment
(volumetric surveillance).
❒The key is turned to MAR.
When the alarm is triggered, the siren sounds for
about 26 seconds (for a maximum of 3 cycles at 6
second intervals if the cause of the alarm persists) and
the direction indicators will flash for about 5 minutes
(only in countries where legislation permits it).
Once the alarm situation has been resolved, the alarm
system continues its surveillance. To cut off the alarm
before this, press the remote control button.
HOW TO DEACTIVATE THE ALARM
To switch the alarm off, press the remote control
button on the key.
In countries where admitted by law regulations, the
system is preset for an emergency procedure to be
carried out when the alarm does not turn off (due to
flat remote control battery or system fault):❒open the door after unlocking the lock with the key,
❒fit the key into the ignition switch,
❒turn the key to MAR.
To reactivate the alarm after the emergency
procedure, turn the key to STOP and remove it. Then,
press twice the remote control button: first press will
re-align the system (this because the last operation for
excluding the alarm was performed using the key and
not the remote control), the second press will
reactivate the alarm.
When using the key, if the remote control battery is
flat the key led will flash once.
Flat battery condition is also indicated by the
dashboard led glowing steadily for 2 minutes each time
the alarm is deactivated.
In this event the key battery should be replaced by a
new one of the equivalent type on sale c/o normal
retailers.
If it is not possible to switch on the alarm with a new
remote control battery, contact Fiat Dealership to
have the system checked.
IMPORTANT If the car is to remain inactive for a
prolonged length of time (over three weeks) and
security conditions permitting, it is advisable to
operate central locking turning the key in the door
lock to avoid engaging the alarm and draining the
battery.

15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IGNITION SWITCH
The key can be turned to 4 different positions:
❒STOP: engine off, key can be removed, steering column locked.
Certain electrical devices (e.g.: sound system, central door locking,
electronic alarm, etc.) can work.
❒MAR: driving position. All electrical devices are powered.
❒AVV: engine starting.
❒PARK: engine off, parking lights on, key can be extracted, steering
locked. To turn the key to PARK, press button (A).
F0E0010m
WARNINGWhen getting out of the car, always remove the key to prevent any occupants
from accidentally activating the controls. Remember to engage the handbrake and
if the car is parked on uphill slope to engage the first gear. If the car is facing
downhill, engage the reverse gear. Never leave unsupervised children in the car.
If the ignition device is tampered with (e.g.: attempted theft), have it checked over
by a Fiat Dealership.WARNING

21
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
TIME
For operation and instructions on how to set the time, see the “Time”
paragraph in this section.
KILOMETRE COUNTER
You can display the kilometre counter or the trip meter.
Turn the ignition key to MAR. The total kilometre counter will appear on
the display.
The kilometre counter or the trip meter will appear for 10 seconds on
the display when a door is either opened or closed and the key is
removed. After this time the indication will disappear and the clock will
be shown again.
Press the TRIP button (TRIP 1 mode, for less than one second) to switch
to the trip meter.
Press the TRIP button (TRIP 2 mode, for longer than 2 seconds) to reset
the trip meter.
Press either the TRIP button (TRIP 1 mode, for less than one second) or
the MODE button (MODE 1 mode) to return to the kilometre counter.
F0E0443g
F0E0446g

63
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

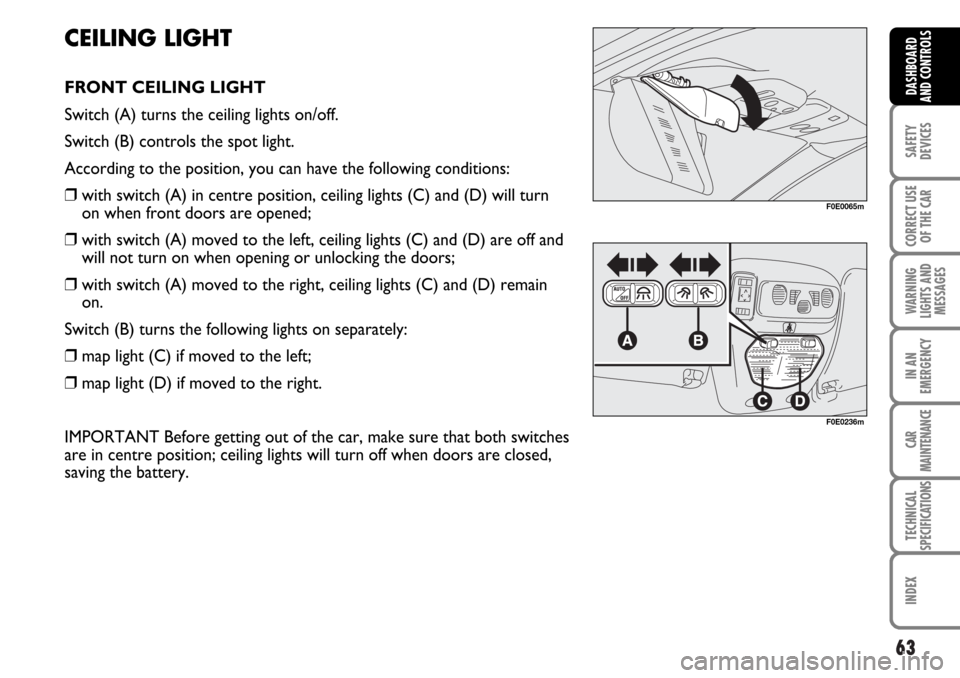

CEILING LIGHT
FRONT CEILING LIGHT
Switch (A) turns the ceiling lights on/off.
Switch (B) controls the spot light.
According to the position, you can have the following conditions:
❒with switch (A) in centre position, ceiling lights (C) and (D) will turn
on when front doors are opened;
❒with switch (A) moved to the left, ceiling lights (C) and (D) are off and
will not turn on when opening or unlocking the doors;
❒with switch (A) moved to the right, ceiling lights (C) and (D) remain
on.
Switch (B) turns the following lights on separately:
❒map light (C) if moved to the left;
❒map light (D) if moved to the right.
IMPORTANT Before getting out of the car, make sure that both switches
are in centre position; ceiling lights will turn off when doors are closed,
saving the battery.
F0E0065m
F0E0236m

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

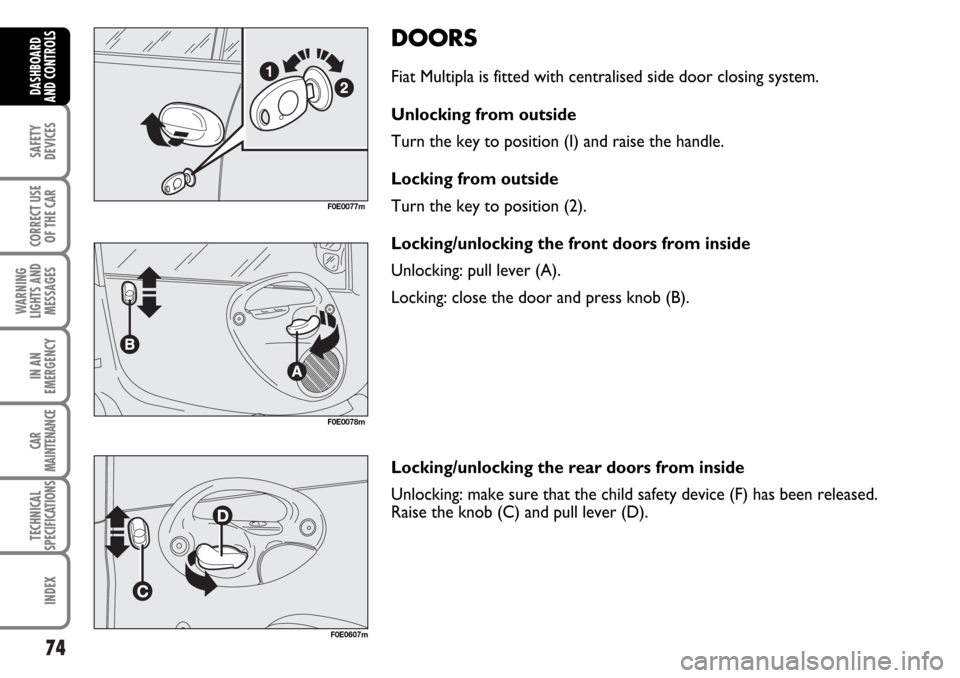

DOORS
Fiat Multipla is fitted with centralised side door closing system.
Unlocking from outside
Turn the key to position (I) and raise the handle.
Locking from outside
Turn the key to position (2).
Locking/unlocking the front doors from inside
Unlocking: pull lever (A).
Locking: close the door and press knob (B).
Locking/unlocking the rear doors from inside
Unlocking: make sure that the child safety device (F) has been released.
Raise the knob (C) and pull lever (D).
F0E0077m
F0E0078m
F0E0607m

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT If one of the doors is not perfectly closed, or there is a
system fault, the central locking device will not work and after 8 or 9
attempts in rapid succession the device will cut out for about 30 seconds.
During these 30 seconds the doors can be locked or unlocked manually,
without involving the electric system. After 30 seconds the central
system is ready to receive commands again. If the reason for the
malfunction has been removed, the device will start to work properly
again. If not it will cut out once more.
IMPORTANT If one or both rear doors are open and the remote
control (or the key in the door lock) is operated, the central door
locking system will lock all the doors lowering the door sill buttons.
When closing the open doors they will lock.
CHILD SAFETY DEVICE
This prevents the rear doors from being opened from the inside.
Insert the tip of the ignition key into (F) and turn it:
Position 1 - device off.
Position 2 - device on.
F0E0608m
WARNINGWhen children are present in the car this device should always be used.

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
REAR SEATS
Both internal handles are fitted with the switches (D) for controlling the
relevant windows.
To prevent the buttons on the rear doors being used to open/close the
rear windows, press the lock button (E) (led on), on the instrument
panel.
On versions with optional ESP, the rear window lock button is located
on the panel under the heater controls (F).
F0E0610m
F0E0611m
F0E0609m

78
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
BOOT
OPENING/CLOSING THE TAILGATE
The tailgate is fitted with an electric lock. To open: unlock front doors
with the key and press lever (A) set under the handle. With doors
locked, the tailgate cannot be opened. Tailgate opening is made easier by
the gas-filled struts on each side.
To close the tailgate, use the handle on the inner trim.
F0E0658m
F0E0659m
Do not travel with the tailgate open: exhaust fumes could enter the passenger’s
compartment. Be careful not to knock objects on the roof rack when opening the
boot tailgate.WARNING
