stop start FIAT MULTIPLA 2006 1.G Owners Manual

6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SYMBOLS
Special coloured labels have been attached near or actually on some of
the components of your Fiat Multipla. These labels bear symbols that
remind you of the precautions to be taken as regards that particular
component.
The plate summarising the symbols used (A) can be found under the
bonnet.
THE FIAT CODE SYSTEM
To further protect your car from attempted theft, it has been fitted with
an electronic engine immobiliser (Fiat CODE) which is automatically
activated when the ignition key is removed.
An electronic device, in fact, is fitted in each ignition key grip. The device
transmits a radio-frequency signal when the engine is started through a
special aerial built into the ignition switch. The modulated signal, which
changes each time the engine is started, is the password by means of
which the control unit recognises the key and enables to start the engine.
OPERATION
Each time the ignition key is removed from STOP, or PARK, the
protection system will immobilise the engine.
When the key is turned to MAR at engine startup:
❒If the code is acknowledged warning light (A)
¢on the instrument
panel will flash briefly; the code system has acknowledged the key code
and deactivates the engine immobiliser. When the key is turned to
AVV, the engine starts up.
F0E0657m
F0E0379m

The electronic components inside the key may be damaged if the key is submitted to sharp knocks.
7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
❒If warning light ¢remains lit (together with
warning light
Uon petrol engine versions only) the
code is not acknowledged. Bring the key back to
STOP then onto MAR again. If it still remains
immobilised, try with another key.
If it is still not possible to start the engine, you will
have to use the emergency procedure (see section “In
an emergency”) and contact Fiat Dealership.
Starting up with ignition key at MAR:
❒If warning light
¢comes on, it means that the
system is making a self-test (e.g. for a voltage drop).
The first time you stop you can test the system:
switch off the engine turning the key to STOP; then
turn to MAR again: warning light
¢comes on and
should go out after about one second. If it remains
alight, repeat the operations described above,
leaving the key at STOP for more than 30 seconds. If the problem persists, go to a Fiat Dealership.
❒If warning light
¢flashes it means that the car is
not protected by the immobiliser. Contact a Fiat
Dealership immediately and get them to store the
codes of all the keys in the memory.
IMPORTANT The electronic components inside the
key may be damaged if the key is submitted to sharp
knocks.
IMPORTANT Each key handed over with the car has
its own code, different from all the others, which must
be stored in the memory of the system’s control unit.
To have new keys memorised (maximum seven) go to
a Fiat Dealership taking with you all the keys in your
possession, the CODE card, personal identification
and car documents.

15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IGNITION SWITCH
The key can be turned to 4 different positions:
❒STOP: engine off, key can be removed, steering column locked.
Certain electrical devices (e.g.: sound system, central door locking,
electronic alarm, etc.) can work.
❒MAR: driving position. All electrical devices are powered.
❒AVV: engine starting.
❒PARK: engine off, parking lights on, key can be extracted, steering
locked. To turn the key to PARK, press button (A).
F0E0010m
WARNINGWhen getting out of the car, always remove the key to prevent any occupants
from accidentally activating the controls. Remember to engage the handbrake and
if the car is parked on uphill slope to engage the first gear. If the car is facing
downhill, engage the reverse gear. Never leave unsupervised children in the car.
If the ignition device is tampered with (e.g.: attempted theft), have it checked over
by a Fiat Dealership.WARNING

61
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Never use the window wiper to remove ice or snow from the windscreen. In these conditions, the
wiper is submitted to excessive effort that results in motor protection cutting in and wiper
operation inhibition for few seconds as a consequence. If operation is not restored contact Fiat
Dealership.
WINDOW CLEANING
WINDSCREEN WIPER/WASHER
This device can only work when the ignition key is at MAR.
A - Windscreen wiper off.
B - Flick wipe.
C - Slow continuous wipe.
D - Fast continuous wipe.
E - Temporary fast continuous wipe (unstable position): when the stalk is
released, it returns to position (A) automatically stopping the wiper.
When the stalk is pulled towards the steering wheel, the windscreen and
headlight washer jets starts operating (where fitted) providing the dipped
beam headlights are switched on.
F0E0056m
F0E0057m

66
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL CUT-OFF SWITCH
It is located under the dashboard on driver’s side and comes into
operation in the event of a crash.
It is a safety switch (A) that comes into operation in the event of a crash,
cutting off the fuel supply thus stopping the engine.
Carefully inspect the car to find fuel leaks, e.g. in the engine
compartment, under the car or near the tank.
If no fuel leaks are found and the car can be started again, press button
(A) to reset the fuel system and the lights.
After a crash, remember to turn the ignition key to STOP to prevent
battery run-down.
F0E0061m
If, after a crash, you smell fuel or see leaks from the fuel system, do not reset the
switch to avoid fire risk.WARNING

86
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

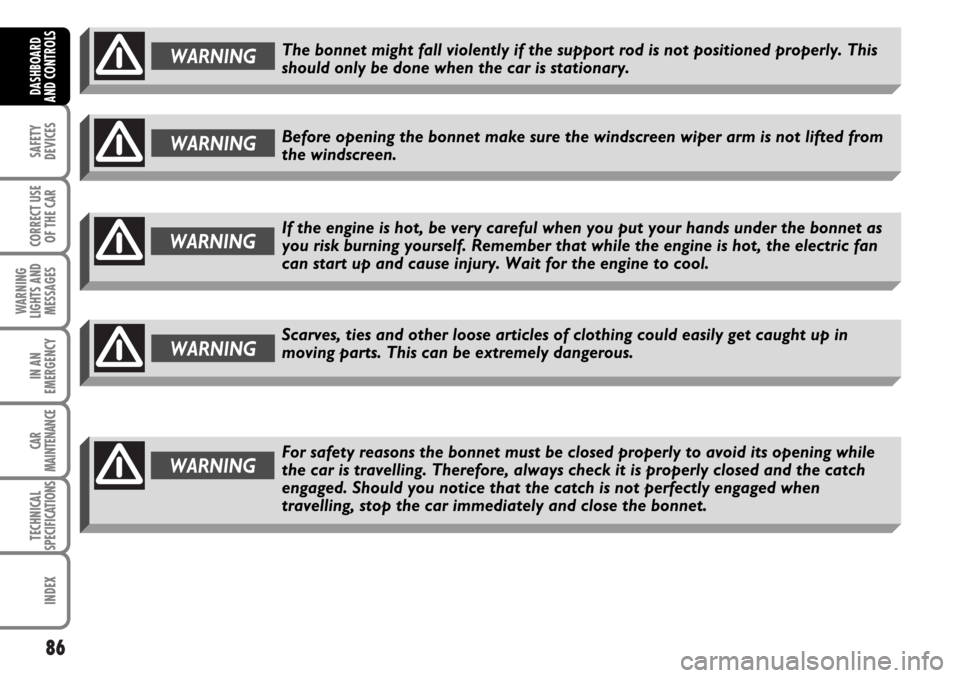

WARNINGThe bonnet might fall violently if the support rod is not positioned properly. This
should only be done when the car is stationary.
WARNINGBefore opening the bonnet make sure the windscreen wiper arm is not lifted from
the windscreen.
If the engine is hot, be very careful when you put your hands under the bonnet as
you risk burning yourself. Remember that while the engine is hot, the electric fan
can start up and cause injury. Wait for the engine to cool.WARNING
Scarves, ties and other loose articles of clothing could easily get caught up in
moving parts. This can be extremely dangerous.WARNING
WARNINGFor safety reasons the bonnet must be closed properly to avoid its opening while
the car is travelling. Therefore, always check it is properly closed and the catch
engaged. Should you notice that the catch is not perfectly engaged when
travelling, stop the car immediately and close the bonnet.

137
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
ENGINE STARTING
The car is fitted with an electronic engine lock device.
If the engine fails to start, see paragraph “Fiat CODE
system” in section “Dashboard and controls”.
During the initial seconds after the engine has been
started, above all after the vehicle has not been driven
for a while, the engine may be slightly noisier than
usual.
This characteristic feature of the hydraulic tappet
system does not compromise functionality or
reliability. The system devised for Fiat Multipla was
designed to limit servicing.STARTING PROCEDURE FOR PETROL
VERSIONS
IMPORTANT Do not press the accelerator before the
engine is started.
❒Ensure that the handbrake is up.
❒Put the gear lever into neutral.
❒Press the clutch pedal down to the floor without
touching the accelerator.
❒Turn the ignition key to AVV and let it go the
moment the engine starts.
If the engine does not start at the first attempt, return
the ignition key to STOP before repeating starting.
WARNINGRunning the engine in confined areas is extremely dangerous. The engine consumes
oxygen and produces carbon monoxide which is a highly toxic and lethal gas.
We recommend that during the initial period you do not drive to full vehicle performance (e.g.:
excessive acceleration, long journeys at top speed, sharp braking, etc.).
When the engine is switched off never leave the ignition key in the MAR position to prevent
pointless current absorption from draining the battery.

138
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
If, when the ignition key is at MAR, warning light ¢
remains lit together with warning light U, turn the
key to STOP and then back to MAR; if the warning
light remains on, try with the other keys provided with
the car.
If you are still unable to start the engine, perform the
emergency start-up procedure (see “Emergency start-
up” in section “In an emergency”) and contact Fiat
Dealership.
IMPORTANT Never leave the ignition key at MAR
when the engine is off.STARTING PROCEDURE FOR DIESEL
VERSIONS
IMPORTANT When starting up, the accelerator pedal
must be completely released.
❒Ensure that the handbrake is up.
❒Put the gear lever into neutral.
❒Turn the ignition key to MAR. The warning lights
mand ¢will light up on the instrument panel.
❒Wait for the warning lights
mand ¢to go out.
The hotter the engine is, the quicker this will
happen.
❒Press the clutch pedal down to the floor.
❒Turn the ignition key to AVV as soon as warning
light
mgoes out. If you wait too long you will lose
the benefit of the work done by the glow plugs.
Release the key as soon as the engine starts.
The warning light mwill flash for 60 seconds at start-up or during prolonged cranking to signal a
fault in the glow plug heating system. You can use the car as usual if the engine starts but you
should contact a Fiat Dealership as soon as possible.

139
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
If the engine does not start at the first attempt, return
the ignition key to STOP before trying to start the
engine again.
If, when the ignition key is at MAR, warning light
¢
remains lit, turn the key to STOP and then back to
MAR; if the warning light remains on, try with the
other keys provided with the car.
If you still cannot start the engine, contact Fiat
Dealership.
IMPORTANT When the outside temperature is very
low, the use of a fluid oil facilitates cold starting.
During winter it is therefore recommended to
observe the specifications contained in section
“Technical specifications” at paragraph “Fluids and
lubricants”.
IMPORTANT Never leave the ignition key at MAR
when the engine is off.
HOW TO WARM UP THE ENGINE
AFTER IT HAS JUST STARTED
(petrol and diesel versions)
Proceed as follows:
❒drive off slowly, letting the engine turn at medium
revs. Do not accelerate abruptly.
❒do not drive at full performance for the initial
kilometres.
EMERGENCY START-UP
If the Fiat CODE system fails to recognise the code
transmitted by the ignition key (warning light
¢on
instrument panel lit with fixed light) you can start the
engine by following the emergency procedure using
the code written on the CODE card.
See section “In an emergency”.
Never bump start the engine by pushing, towing or coasting downhill as this could cause fuel to
flow into the catalytic exhaust system and damage it beyond repair.
Remember that the servobrake and power steering are not operational until the
engine has been started, therefore much effort than usual is required on the brake
pedal and steering wheel.WARNING

156
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
Warning Messagelight on panel on display
DOORS OPEN (red)
The warning light on the dial turns on together with the message when a door or the tailgate are
not properly shut.
FRONT BRAKES PADS WEAR (red)
The warning light on the dial turns on together with the message when pressing the brake pedal if
front brake pads are worn; in this case have them changed as soon as possible.
IMPORTANT Since the car is fitted with wear sensors for the front brake pads, when changing
them, check also the rear brake pads.
LOW ENGINE OIL PRESSURE (red)
Turning the key to MAR the warning light on the dial turns on, but it should go out as soon as
the engine is started.
d
´
v
WARNINGIf vwarning light stays on glowing steadily together with the message, stop the
engine immediately and contact a Fiat Dealership.
