118

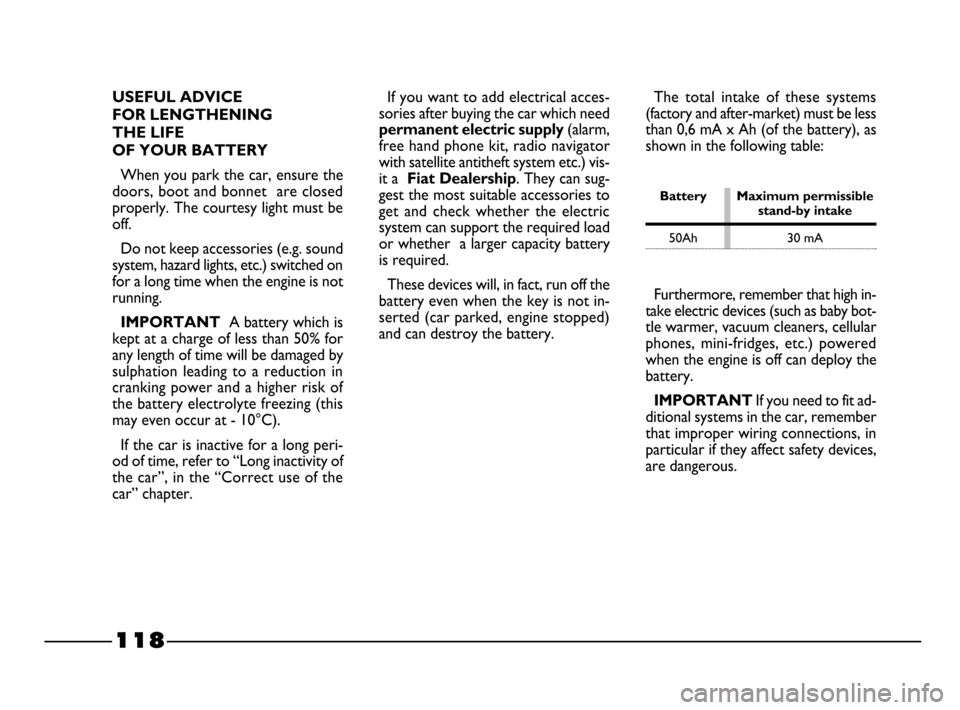

The total intake of these systems
(factory and after-market) must be less
than 0,6 mA x Ah (of the battery), as
shown in the following table:
Battery Maximum permissiblestand-by intake
50Ah 30 mA
Furthermore, remember that high in-
take electric devices (such as baby bot-
tle warmer, vacuum cleaners, cellular
phones, mini-fridges, etc.) powered
when the engine is off can deploy the
battery.
IMPORTANTIf you need to fit ad-
ditional systems in the car, remember
that improper wiring connections, in
particular if they affect safety devices,
are dangerous.
USEFUL ADVICE
FOR LENGTHENING
THE LIFE
OF YOUR BATTERY
When you park the car, ensure the
doors, boot and bonnet are closed
properly. The courtesy light must be
off.
Do not keep accessories (e.g. sound
system, hazard lights, etc.) switched on
for a long time when the engine is not
running.
IMPORTANTA battery which is
kept at a charge of less than 50% for
any length of time will be damaged by
sulphation leading to a reduction in
cranking power and a higher risk of
the battery electrolyte freezing (this
may even occur at - 10°C).
If the car is inactive for a long peri-
od of time, refer to “Long inactivity of
the car”, in the “Correct use of the
car” chapter.If you want to add electrical acces-
sories after buying the car which need
permanent electric supply(alarm,
free hand phone kit, radio navigator
with satellite antitheft system etc.) vis-
it a
Fiat Dealership. They can sug-
gest the most suitable accessories to
get and check whether the electric
system can support the required load
or whether a larger capacity battery
is required.
These devices will, in fact, run off the
battery even when the key is not in-
serted (car parked, engine stopped)
and can destroy the battery.
104-127 03/03/2003 06:53 PM Page 118

136
Max speed index
Q
= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Load index (capacity)
60
= 250 kg
61 = 257 kg
62= 265 kg
63= 272 kg
64= 280 kg
65= 290 kg
66= 300 kg
67= 307 kg
68= 315 kg
69= 325 kg
70 = 335 kg
71= 345 kg
72= 355 kg
73= 365 kg
74= 375 kg
75= 387 kg
76= 400 kg
77= 412 kg
78= 425 kg
79= 437 kg
80= 450 kg
81= 462 kg
82= 475 kg
83= 487 kg
84= 500 kg
85= 515 kg
86= 530 kg
87= 545 kg
88= 560 kg
89= 580 kg
90= 600 kg
91= 615 kg
92= 630 kg
93= 650 kg
94= 670 kg
95= 690 kg
96 = 710 kg
97= 730 kg
98= 750 kg
99= 775 kg
100= 800 kg
101= 825 kg
102= 850 kg
103= 875 kg
104= 900 kg
1CORRECT READING
OF THE RIM fig. 6
The indications, necessary to know
the meaning of the identification ini-
tials printed on the rim, are listed be-
low.
CORRECT READING
OF THE TYRE fig. 6
The indications, necessary to know
the meaning of the identification ini-
tials printed on the tyre, are listed be-
low.
175= Nominal (S, distance in mm
between the sides).
65= height/width ratio (H/S) in per-
centage.
R= Radial tyre.
14= Diameter of the rim in inches
(Ø).
82= Load index (capacity).
T= Max speed index. Example
175/65 R 14 82 S
IMPORTANTThe light alloy
wheels are fixed with specific bolt in-
compatible with any printed steel
wheels, excluding the specific spare
wheel.
SNOW TYRES
Use reduced dimension winter tyres,
see “Snow Chains” chapter.
WHEEL GEOMETRY
Convergence of the front wheel mea-
sured between the rims: –1±1(Power
Steering), +1mm (Mechnical Steering).
The values refer to a car after running in.
WHEELS AND
TYRES
Pressed steel or alloy (as provided)
wheel rims; specific fixing bolts (di-
mensionally different and respective-
ly incompatible) for each of the two
types of rim.
IMPORTANTIn the event of dis-
crepancies between the information in
the Owner Handbook and the Log
Book, consider the specifications giv-
en in the Log Book only.
To ensure safety of the vehicle in
movement, it must be fitted with tyres
of specified size and of the same make
and type on all wheels.
Versions Rim Tyre
1.2 EL-ELX-SPORT5.00Bx13 165/80 R13
1.6 16V GTX51/2 Jx14C(*) 175/65 R14
1.9 D EL-ELX5.00Bx13 165/80 R13
(*) Alloy rims
128-143 03/03/2003 07:39 PM Page 136

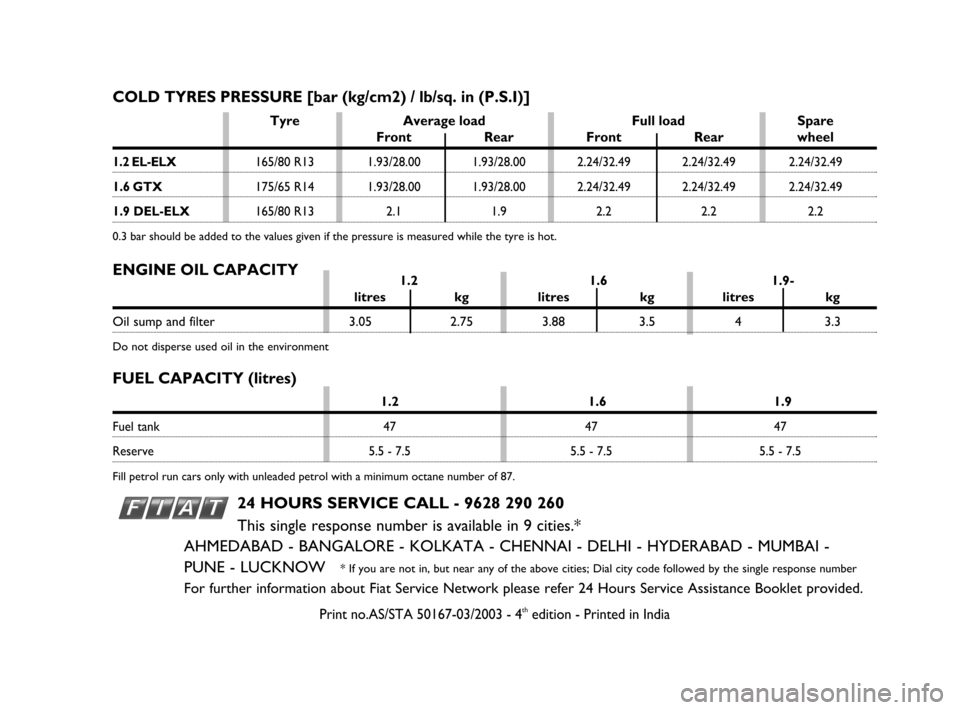

FUEL CAPACITY (litres)
COLD TYRES PRESSURE [bar (kg/cm2) / lb/sq. in (P.S.I)]
ENGINE OIL CAPACITY
Print no.AS/STA 50167-03/2003 - 4thedition - Printed in India
Coordinamento Editoriale Satiz - Torino
24 HOURS SERVICE CALL - 9628 290 260
This single response number is available in 9 cities.*
AHMEDABAD - BANGALORE - KOLKATA - CHENNAI - DELHI - HYDERABAD - MUMBAI -
PUNE - LUCKNOW
* If you are not in, but near any of the above cities; Dial city code followed by the single response number
For further information about Fiat Service Network please refer 24 Hours Service AssistanceBooklet provided.
1.21.6 1.9-
litres kg litres kg litres kg
Oil sump and filter 3.05 2.75 3.88 3.5 4 3.3
Do not disperse used oil in the environment
1.21.6 1.9
Fuel tank 47 47 47
Reserve 5.5 - 7.5 5.5 - 7.5 5.5 - 7.5
Fill petrol run cars only with unleaded petrol with a minimum octane number of 87.
Tyre Average load Full load Spare
Front Rear Front Rear wheel
1.2EL-ELX165/80 R13 1.93/28.00 1.93/28.00 2.24/32.49 2.24/32.49 2.24/32.49
1.6 GTX175/65 R14 1.93/28.00 1.93/28.00 2.24/32.49 2.24/32.49 2.24/32.49
1.9 DEL-ELX165/80 R13 2.1 1.9 2.2 2.2 2.2
0.3 bar should be added to the values given if the pressure is measured while the tyre is hot.
