Page 21 of 26
20
FIAT PANDA 4 x 4
1.2
30
4.5
–
–
4.6
2.5
2.8
–
–
2.7
0.9
0.55
4.51.3 Multijet
–
–
30
4.5
6.5
–
–
2.85
3.0
2.7
0.9
0.55
4.5Specified fuels
and recommended products
Unleaded premium petrol with no
less than 95 R.O.N
(EN 228 Specification)
Diesel fuel for motor vehicles
(EN 590 Specification)
Mixture of 50% water and 50%
PARAFLU UP
SELENIA 20K(*)
SELENIA WR
TUTELA CAR TECHNYX (**)
TUTELA W90/M-DA(***)
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC 35

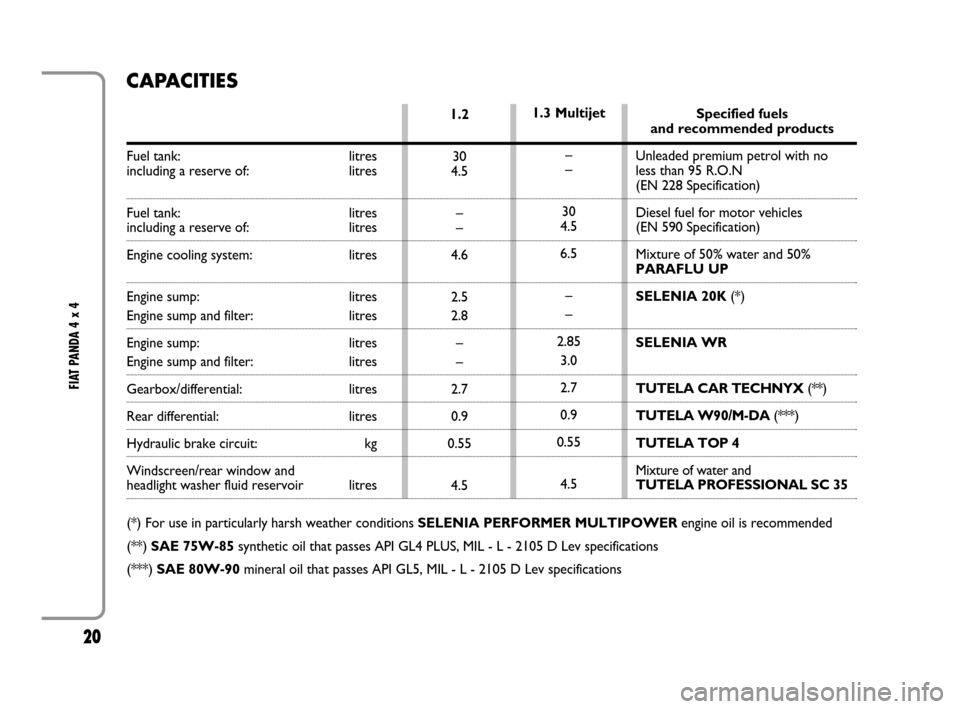

CAPACITIES
Fuel tank: litres
including a reserve of: litres
Fuel tank: litresincluding a reserve of: litres
Engine cooling system: litres
Engine sump: litres
Engine sump and filter: litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential: litres
Rear differential: litres
Hydraulic brake circuit: kg
Windscreen/rear window and
headlight washer fluid reservoir litres
(*) For use in particularly harsh weather conditions SELENIA PERFORMER MULTIPOWERengine oil is recommended
(**) SAE 75W-85synthetic oil that passes API GL4 PLUS, MIL - L - 2105 D Lev specifications
(***) SAE 80W-90mineral oil that passes API GL5, MIL - L - 2105 D Lev specifications
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 20
Page 22 of 26
21
FIAT PANDA 4 x 4
Fiat Panda 4 x 4Fiat Panda 4 x 4
ClimbingFiat Panda 4 x 4
CROSS
WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver
spare wheel, tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof (***):
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the payload as specified
in the max. admitted loads.
(**)Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the
roof so that they comply with these limits.
(***) Lineaccessori Fiat roof rack, max. capacity: 50 kg.petrol Multijet
965 1060
445 445
750 825
735 735
1410 1505
800 900
400 400
50 50
60 60petrol Multijet
980 1075
445 445
750 825
735 735
1425 1520
800 900
400 400
50 50
60 60Multijet
1090
445
830
735
1535
900
400
50
60
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 21
Page 23 of 26
22
FIAT PANDA 4 x 4

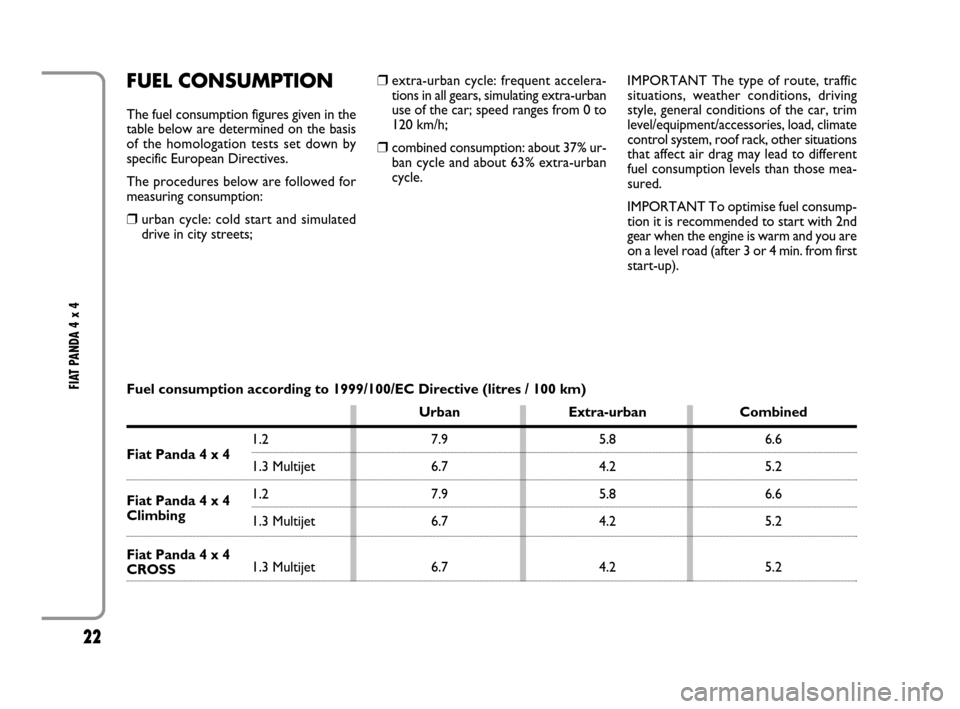

FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒urban cycle: cold start and simulated
drive in city streets;
❒extra-urban cycle: frequent accelera-
tions in all gears, simulating extra-urban
use of the car; speed ranges from 0 to
120 km/h;
❒combined consumption: about 37% ur-
ban cycle and about 63% extra-urban
cycle.IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured.
IMPORTANT To optimise fuel consump-
tion it is recommended to start with 2nd
gear when the engine is warm and you are
on a level road (after 3 or 4 min. from first
start-up).
Fiat Panda 4 x 4
Fiat Panda 4 x 4
Climbing
Fiat Panda 4 x 4
CROSS
Fuel consumption according to 1999/100/EC Directive (litres / 100 km)
Urban Extra-urban Combined
1.2 7.9 5.8 6.6
1.3 Multijet 6.7 4.2 5.2
1.2 7.9 5.8 6.6
1.3 Multijet 6.7 4.2 5.2
1.3 Multijet 6.7 4.2 5.2
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 22
Page 24 of 26
23
FIAT PANDA 4 x 4
Fiat Panda 4 x 4
Fiat Panda 4 x 4
Climbing
Fiat Panda 4 x 4
CROSS

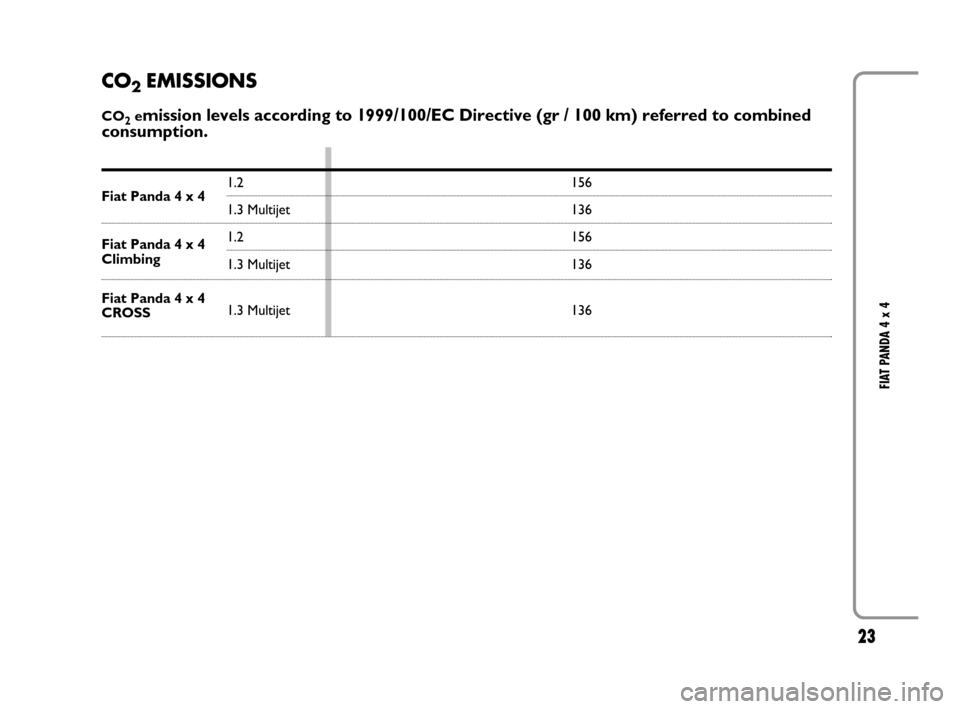

CO2 EMISSIONS
CO2emission levels according to 1999/100/EC Directive (gr / 100 km) referred to combined
consumption.
1.2 156
1.3 Multijet 136
1.2 156
1.3 Multijet 136
1.3 Multijet 136
603.83.460 PANDA 4X4 GB 26-06-2007 11:19 Pagina 23
Page 25 of 26

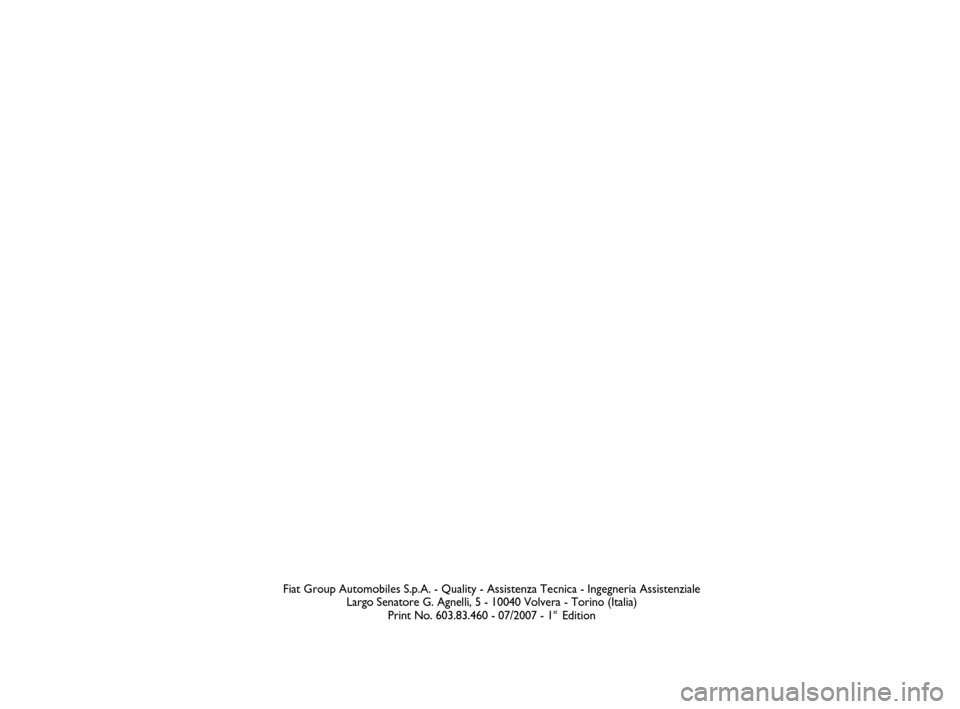

Fiat Group Automobiles S.p.A. - Quality - Assistenza Tecnica - Ingegneria Assistenziale
Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print No. 603.83.460 - 07/2007 - 1
st Edition
