FIAT PANDA 2007 169 / 2.G Dualogic Transmission Manual

19
OPERATION NOT ALLOWED (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) when the system refuses the
request to change gear since certain indispensable
conditions are lacking.è
Warning light
on dial Message on reconfigurable
multifunction display
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 19

20
PUSH BRAKE PEDAL -
REPEAT OPERATION (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and in certain cases with the buzzer) when trying to
engage first gear, second gear or reverse, with car
stopped and engine on, without pressing the brake
pedal.è
Message on reconfigurable
multifunction display Warning light
on dial
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 20 2

21
Message on reconfigurable
multifunction displayWarning light
on dial
SET TO NEUTRAL (N) (amber)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) to warn the driver that neutral shall
be engaged.
Engage neutral (N), displayed message and warning
light shall go offè
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 21

22
TOWING THE CAR
Make sure that the gearbox is in neutral (N) (checking
that the car moves if pushed) and tow as for a car with
traditional mechanical gearbox (see Owner
Handbook).
Should it be impossible to set to neutral, do not tow
the car and contact Fiat Dealership.
IF A FUSE BLOWS
FUSE AMPERE
Dualogic gearbox fuse box F84 15
Dualogic gearbox oil pump F83 30
Dualogic gearbox fuse box
power supply (+ key) F16 7.5
For fuse location see pictures in paragraph “If a fuse blows” in
section “In an emergency” in the Owner Handbook.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 22

SERVICE SCHEDULE
Check Dualogic gearbox oil level every 20,000 km.
CHECKING OIL LEVEL
DUALOGIC GEARBOX HYDRAULIC
SYSTEM OIL
To have the oil level checked contact Fiat Dealership
only.
23
AIR CLEANER
1.28VVERSIONS
Refer to Owner Handbook to replace the air cleaner.
Used gearbox oil contains dangerous substances for the environment. For changing the oil we advise
contacting Fiat Dealerships who are equipped for disposing of used oil respecting nature and the
law.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 23

24

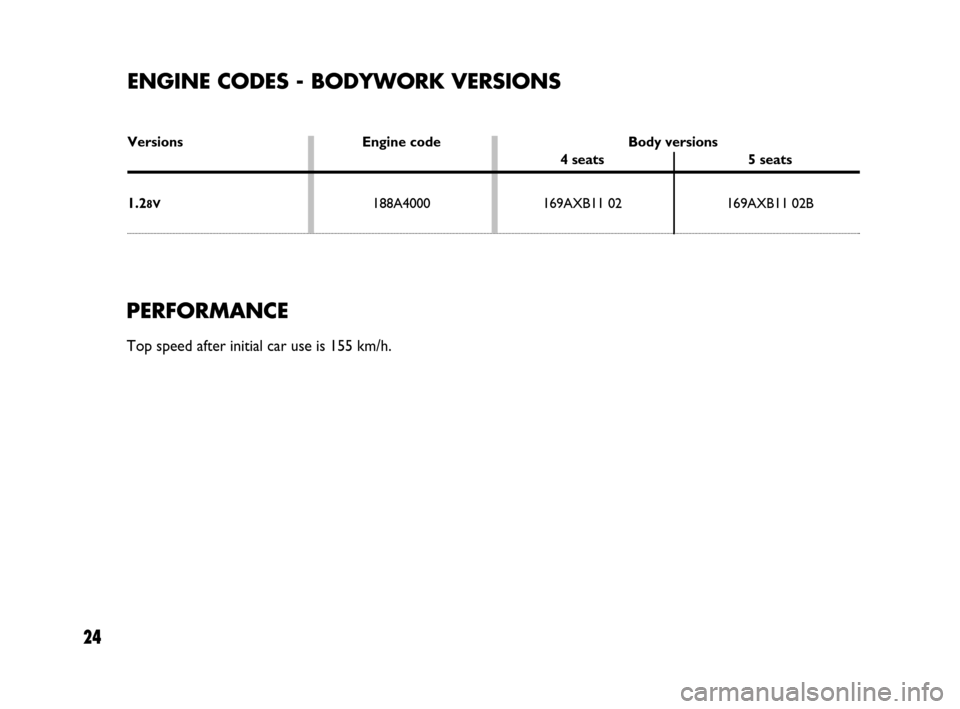

ENGINE CODES - BODYWORK VERSIONS
Versions Engine code Body versions
4 seats 5 seats
1.2
8V188A4000 169AXB11 02 169AXB11 02B
PERFORMANCE
Top speed after initial car use is 155 km/h.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 24

25
TRANSMISSION
1.2 8V
Gearbox Five forward gears and reverse,
electrohydraulic system with electronic control
Clutch Electric-hydraulic device with electronic control
DriveFront
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 25

26
WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accordance with the
maximum
permissible loads.1.2
8V
865
445
730
660
1310
800
400
50
60
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 26

27
CAPACITIES
Dualogic gearbox hydraulic system
Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with
“ATF DEXRON III” additive 1.28V
kg
0.59 litres
0.70
CO2emissions according to 1999/100/EC Directive (gr x 100 km)
CO
2emission value referred to combined consumption is 127 (gr x 100 km).
CO2EMISSIONS
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 27

28
FUEL CONSUMPTION
Fuel consumption according to 1999/100/EC Directive(litres x 100 km) Urban Extra-urban Combined
1.28V6.8 4.6 5.4
Consumption in AUTO–ECO logic.
