fuel FIAT PANDA 2007 169 / 2.G Dualogic Transmission Manual

1
USING THE DUALOGIC GEARBOX .......................... 2
WARNING LIGHTS AND MESSAGES .......................... 12
TOWING THE CAR .......................................................... 22
IF A FUSE BLOWS .............................................................. 22
SERVICE SCHEDULE ........................................................... 23
CHECKING OIL LEVEL ..................................................... 23
AIR CLEANER ...................................................................... 23
ENGINE CODES - BODYWORK VERSIONS .............. 24
PERFORMANCE ................................................................... 24
TRANSMISSION .................................................................. 25
WEIGHTS ............................................................................... 26
CAPACITIES........................................................................... 27
CO
2EMISSIONS .................................................................. 27
FUEL CONSUMPTION ....................................................... 28
This Supplement describes the main instructions for
using the Dualogic mechanical gearbox with electronic
control fitted on Fiat Panda.
Read this entire Supplement to make sure you know
how to use the gearbox correctly. This will help you
to perform the correct operations right from the
start.
For all other information not contained herein, refer
to the Owner Handbook this Supplement is attached
to.CONTENTS
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 1

7
Automatic operation (AUTO - ECO)
The ECO function can be activated only with automatic mode active.
To activate the ECO function press button (E) set on the mask near the
gearshift lever. After activating this function, the reconfigurable
multifunction display shows the gear engaged and words AUTO and E
(see figure).
With ECO function active the system will select the most suitable gear
(according to car speed, engine rpm and how the accelerator pedal is
pressed) to save as much fuel as possible.
If necessary (e.g.: overtaking) the system will change gears in order to
provide suitable torque and power for acceleration (this will take place in
automatic mode regardless of ECO function condition, ON or OFF).
In this way engine rpm will suddenly increase, excluding temporarily the
ECO function that will be automatically resumed when returning to the
previously set conditions.
F0G1184g
F0G0512m
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 7

26
WEIGHTS
Weights (kg)
Kerb weight
(including fuel, space-saver spare wheel,
tools and accessories):
Payload (*)
including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch:
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases
thus reducing the specified payload.
(**) Loads not to be exceeded. It is the driver’s responsibility to place goods in the boot and/or on the loading surface in accordance with the
maximum
permissible loads.1.2
8V
865
445
730
660
1310
800
400
50
60
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 26

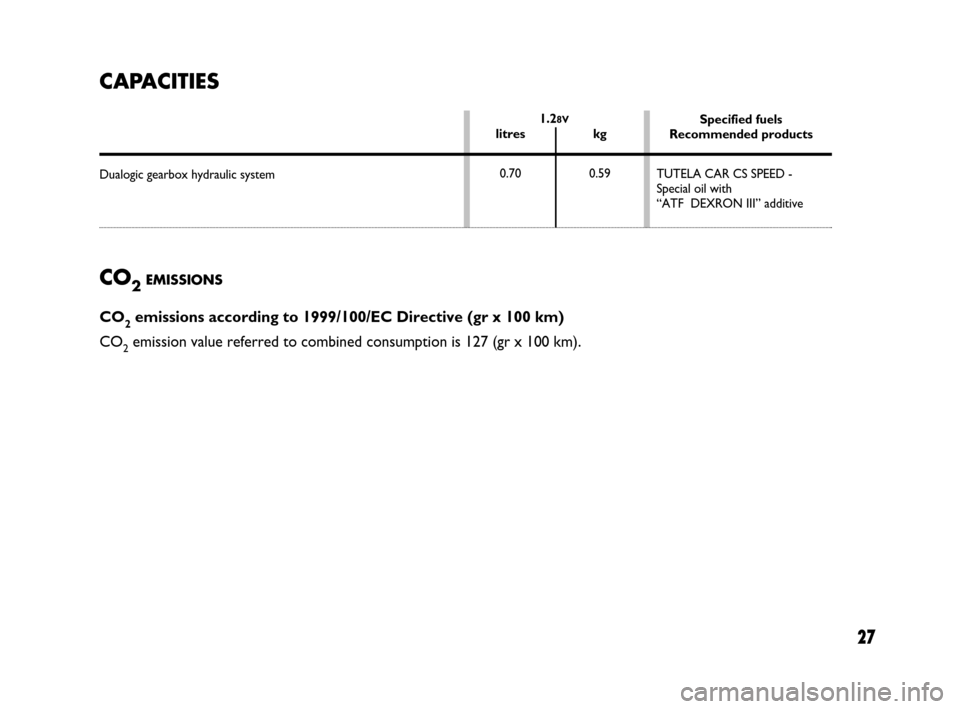

27
CAPACITIES
Dualogic gearbox hydraulic system
Specified fuels
Recommended products
TUTELA CAR CS SPEED -
Special oil with
“ATF DEXRON III” additive 1.28V
kg
0.59 litres
0.70
CO2emissions according to 1999/100/EC Directive (gr x 100 km)
CO
2emission value referred to combined consumption is 127 (gr x 100 km).
CO2EMISSIONS
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 27

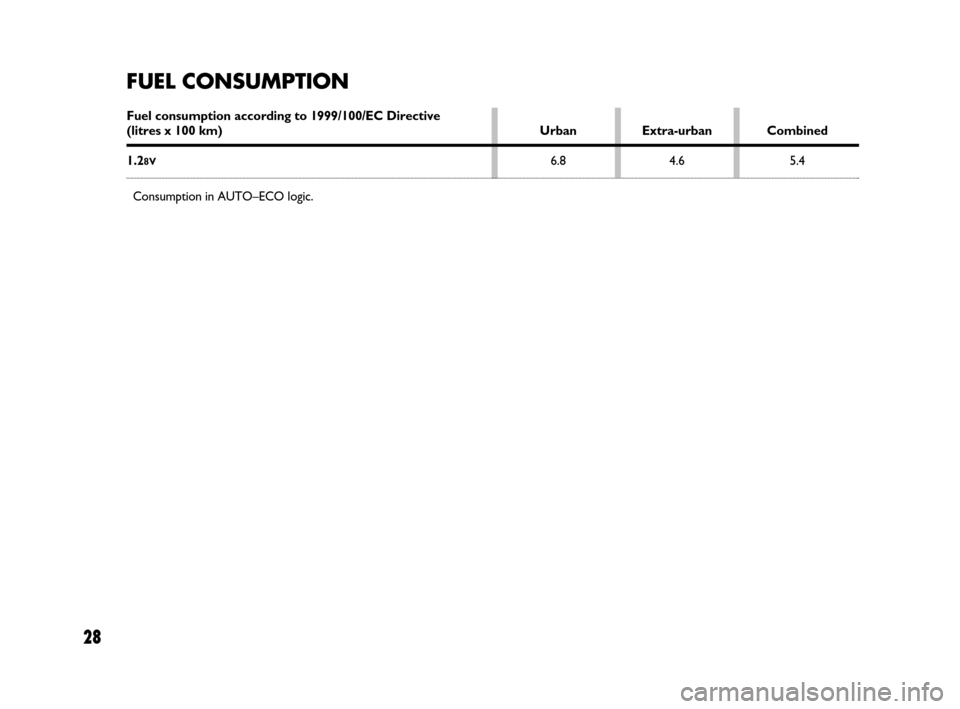

28
FUEL CONSUMPTION
Fuel consumption according to 1999/100/EC Directive(litres x 100 km) Urban Extra-urban Combined
1.28V6.8 4.6 5.4
Consumption in AUTO–ECO logic.
603.83.448 PANDA DUAL GB 26-06-2007 11:11 Pagina 28
