Opening the doors
and the tailgate
Briefly press button Ë: for remote un-
locking of doors and tailgate, timed switch-
ing of ceiling lights and double flashing of
direction indicators (for versions/markets
where provided).
Doors will be unlocked automatically if the
fuel inertial cut-off switch comes into op-
eration.Locking the doors and the tailgate
Briefly press button Á: for remote locking
of doors and tailgate, switching off of the
internal ceiling light and single flashing of
direction indicators (where provided).
If one of the doors remains open, all doors
will be closed and immediately re-opened;
in this case make sure all doors are locked
correctly and repeat the door lock pro-
cedure.
If 20 km/h speed is exceeded, the doors
will be locked automatically provided the
special function is set (only with recon-
figurable multifunction display on versions
where provided). Opening the tailgate
by the remote control
Press and keep button Rpressed for
over 1 second to open the tailgate by re-
mote control.
Tailgate opening is accompanied by the di-
rection indicators flashing twice.
IMPORTANT If the remote control does
not work properly, it is still possible to
carry out the above mentioned operations
by using the metal insert of the key.
001-031 Panda New GB 21-06-2007 13:47 Pagina 10

IGNITION SWITCH fig. 9
The key can be turned to 3 different po-
sitions:
❒STOP: engine off, key can be removed,
steering column locked. Certain elec-
trical devices (e.g. sound system, cen-
tral door locking, etc.) can work
❒MAR: driving position. All electrical de-
vices are powered
❒AVV: engine starting.
The ignition switch is fitted with a safety
mechanism that, in the event the engine is
not started, turns back the ignition key to
STOPbefore repeating the starting oper-
ation. REQUEST FOR ADDITIONAL
REMOTE CONTROLS
The system can recognise up to 8 keys
with incorporated remote control. Should
a new key with remote control be nec-
essary, contact directly a Fiat Dealership,
taking with you the CODE card, a per-
sonal identity document and the car’s
ownership documents.
REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL
Battery replacement:
❒open the snap-fitted lid A-fig. 7as
shown by the arrow
❒remove the exhaust battery and replace
it making sure that the bias is correct
(positive pole + up)
fig. 7F0G0683mfig. 8F0G0684mfig. 9F0G0026m
11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
❒new battery shall be fitted under catch
C-fig. 8; then refit the lid and press it
down until hearing the locking click.
001-031 Panda New GB 21-06-2007 13:47 Pagina 11

STEERING COLUMN LOCK
fig. 10
Engaging
When the key is at STOPremove the key
and turn the steering wheel until it locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
fig. 10F0G0026m
12
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If the ignition device is tam-
pered with (e.g. attempted
theft), have it checked over by a Fiat
Dealership.
WARNING
When getting out of the car,
always remove the key to
prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake. If
the car is parked on uphill slope, en-
gage the first gear; if the car is fac-
ing downhill, engage the reverse gear.
Never leave unsupervised children in
the car.
WARNING
Never remove the ignition
key while the car is moving.
The steering wheel would automati-
cally lock as soon as you try to turn
it. This also applies when the car is
being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
001-031 Panda New GB 21-06-2007 13:47 Pagina 12

INSTRUMENT PANEL
13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0G0250m
F0G0251m
Actual-Active VERSIONS
AFuel level gauge with reserve warning
light
BSpeedometer (speed indicator)
CEngine coolant temperature gauge and
excessive temperature warning light
DDigital display
Warning lights mand care only pro-
vided on Diesel versions.
fig. 11 - Left-hand drive versions
fig. 12 - Right-hand drive versions
001-031 Panda New GB 21-06-2007 13:47 Pagina 13

14
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0G0252m
F0G0253m

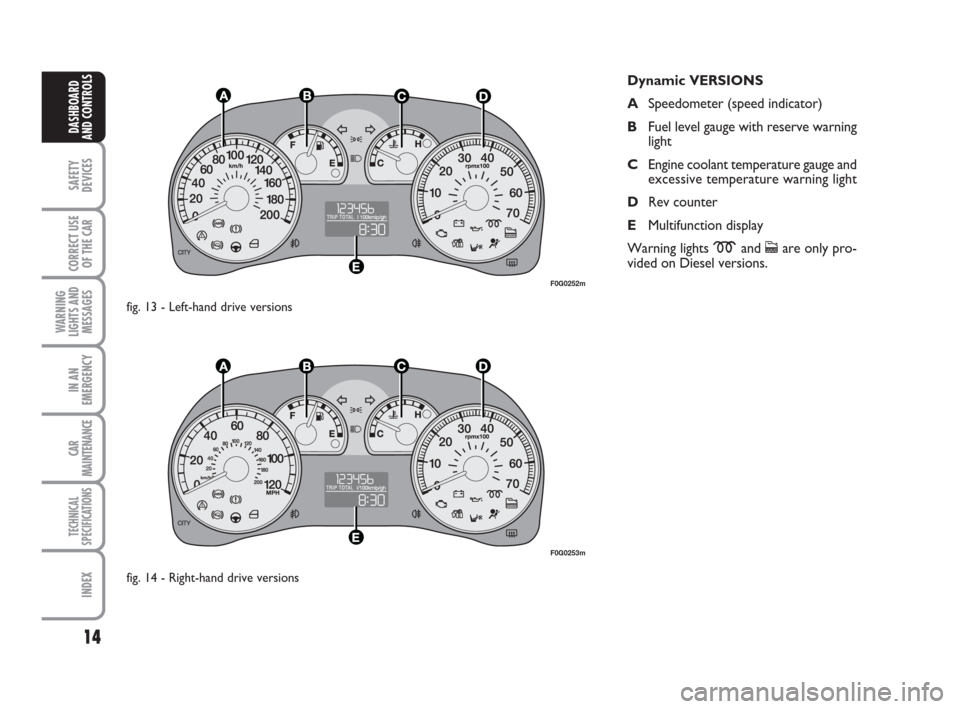

Dynamic VERSIONS
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunction display
Warning lights mand care only pro-
vided on Diesel versions.
fig. 13 - Left-hand drive versions
fig. 14 - Right-hand drive versions
001-031 Panda New GB 21-06-2007 13:47 Pagina 14

15
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

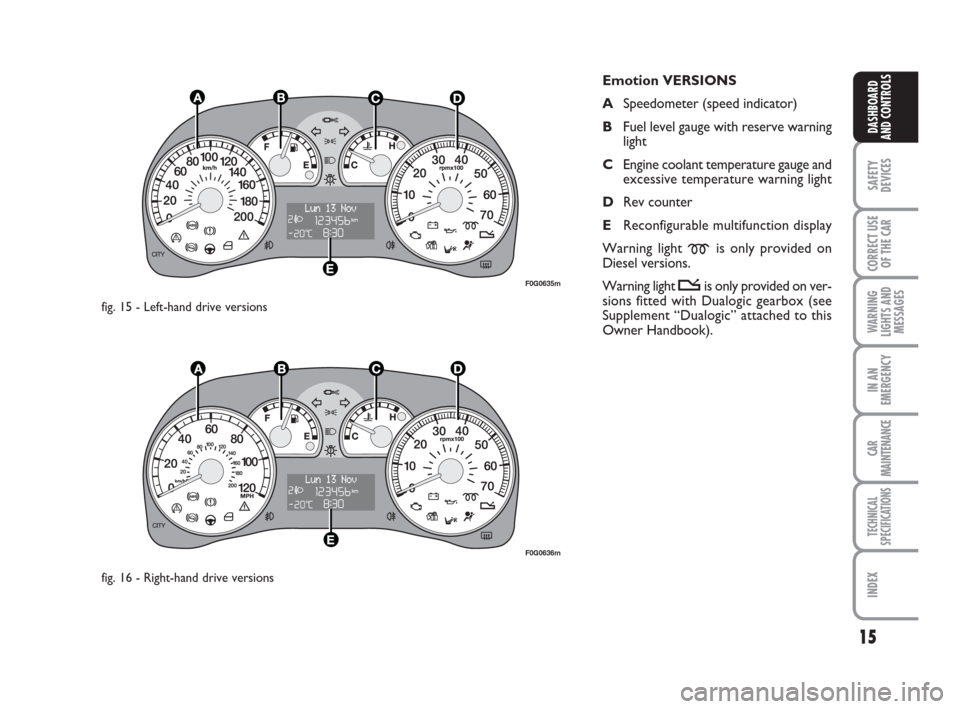

Emotion VERSIONS
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunction display
Warning light
mis only provided on
Diesel versions.
Warning light tis only provided on ver-
sions fitted with Dualogic gearbox (see
Supplement “Dualogic” attached to this
Owner Handbook).
fig. 15 - Left-hand drive versions
fig. 16 - Right-hand drive versions
F0G0635m
F0G0636m
001-031 Panda New GB 21-06-2007 13:47 Pagina 15

REV COUNTER fig. 18
The indicator Bshows the engine rev
number.
IMPORTANT The electronic injection
control system gradually shuts off the flow
of fuel when the engine is “over-revving”
resulting in a gradual loss of engine pow-
er.
When the engine is idling, the rev counter
may indicate a gradual or sudden higher-
ing of the speed.
This is normal as it takes place during nor-
mal operation, for example when activat-
ing the climate control system or the fan.
In particular a slow change in the speed
preserves the battery charge.
INSTRUMENTS
Instrument background color and type
may vary according to the version.
fig. 17F0G0146mfig. 18F0G0256m
16
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

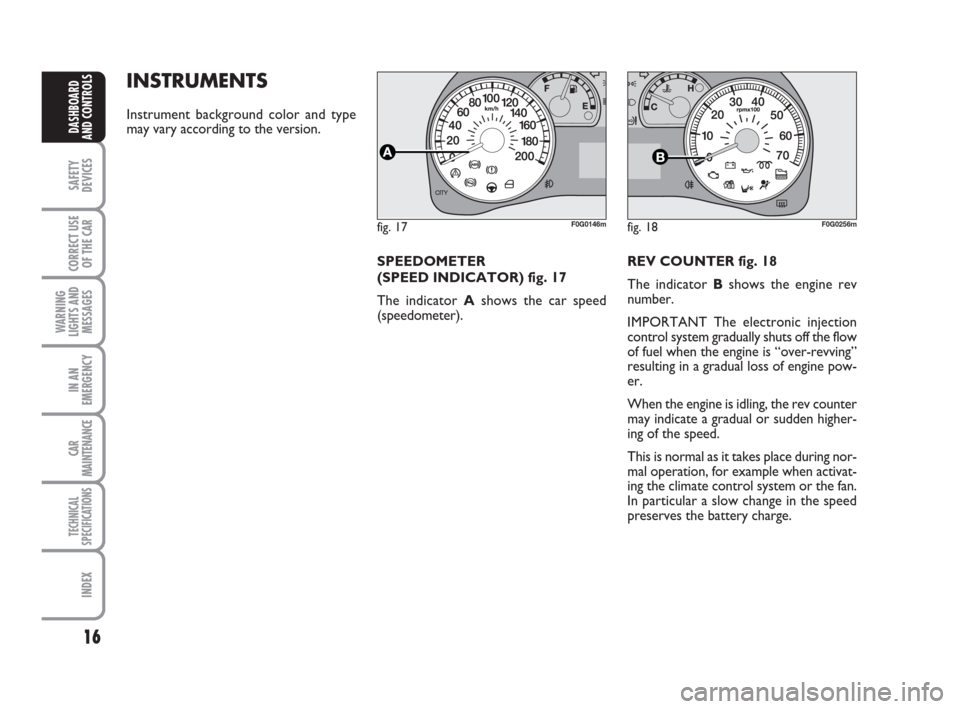

SPEEDOMETER
(SPEED INDICATOR) fig. 17
The indicator Ashows the car speed
(speedometer).
001-031 Panda New GB 21-06-2007 13:47 Pagina 16

ENGINE COOLANT
TEMPERATURE GAUGE fig. 19
This shows the temperature of the engine
coolant fluid and begins working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions.
CLow engine coolant temperature.
HHigh engine coolant temperature.
The turning on of the warning light B(on
certain versions with a message on the re-
configurable multifunction display) indi-
cates that the coolant fluid temperature is
too high; in this case, stop the engine and
contact a Fiat Dealership.
17
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL LEVEL GAUGE fig. 19
This shows the amount of fuel left in the
fuel tank.
Etank empty.
Ffull tank (see the indications given in
paragraph “At the filling station").
The reserve warning light Aturns on to
indicate that approximately 5 litres of fu-
el are left in the tank.
Do not travel with the fuel tank almost
empty: the gaps in fuel delivery could dam-
age the catalyst.
IMPORTANT The needle sets to Ewith
warning light Aflashing to indicate that the
system is failing. In this event contact Fiat
Dealership to have the system checked.
fig. 19F0G0148m
If the needle reaches the red
area, stop the engine imme-
diately and contact a Fiat
Dealership.
001-031 Panda New GB 21-06-2007 13:47 Pagina 17

18
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 20F0G0015m

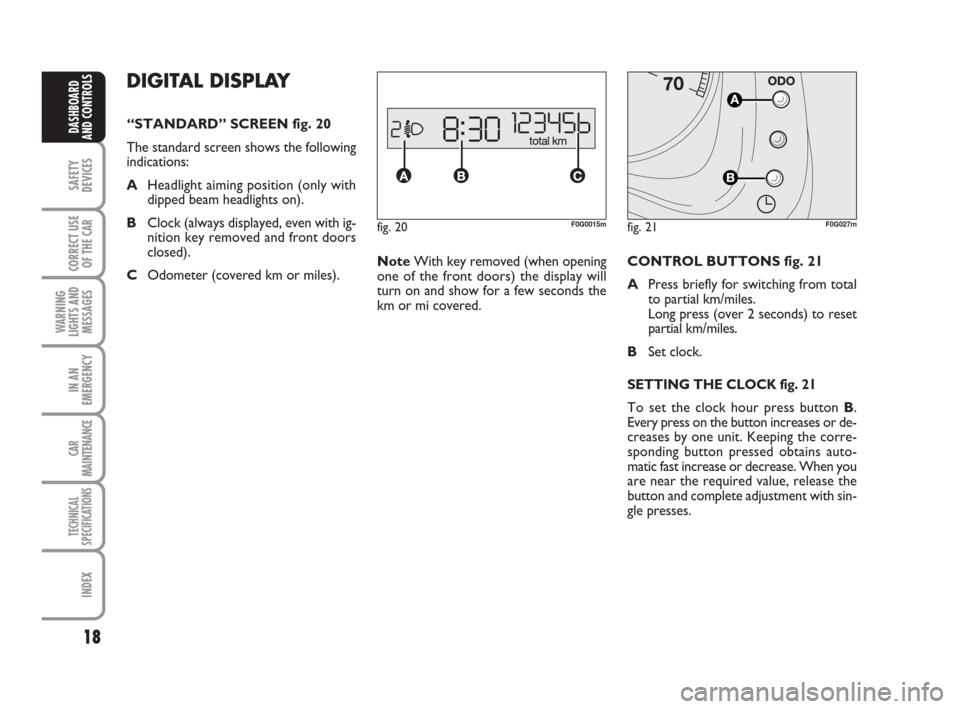

DIGITAL DISPLAY
“STANDARD” SCREEN fig. 20
The standard screen shows the following
indications:
AHeadlight aiming position (only with
dipped beam headlights on).
BClock (always displayed, even with ig-
nition key removed and front doors
closed).
COdometer (covered km or miles).CONTROL BUTTONS fig. 21
APress briefly for switching from total
to partial km/miles.
Long press (over 2 seconds) to reset
partial km/miles.
BSet clock.
SETTING THE CLOCK fig. 21
To set the clock hour press button B.
Every press on the button increases or de-
creases by one unit. Keeping the corre-
sponding button pressed obtains auto-
matic fast increase or decrease. When you
are near the required value, release the
button and complete adjustment with sin-
gle presses.
fig. 21F0G027m
NoteWith key removed (when opening
one of the front doors) the display will
turn on and show for a few seconds the
km or mi covered.
001-031 Panda New GB 21-06-2007 13:47 Pagina 18

19
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
MULTIFUNCTION
DISPLAY

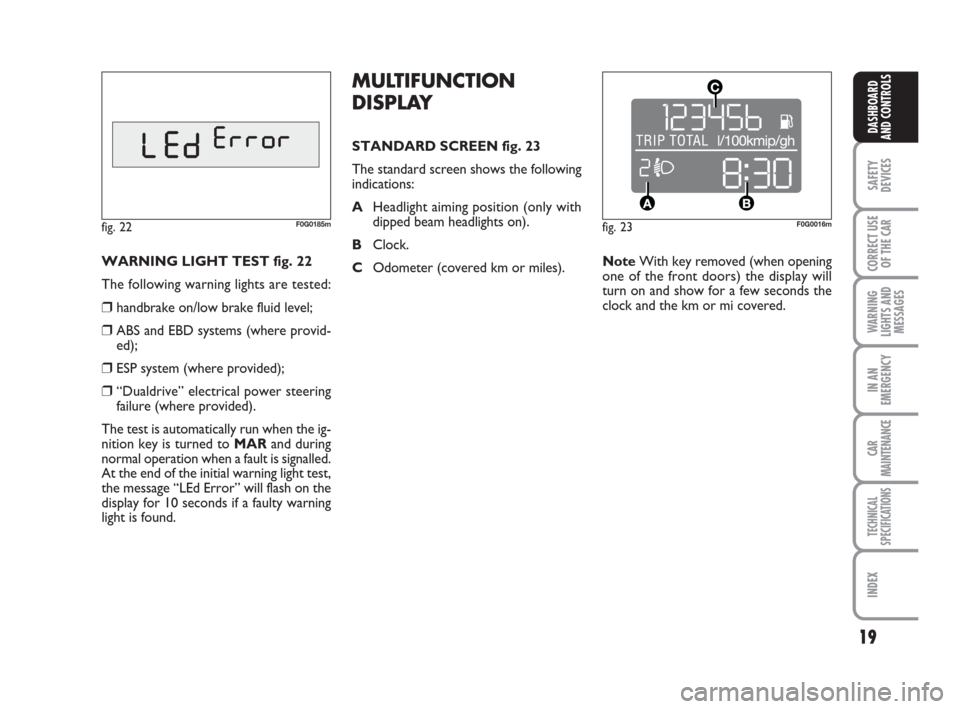

STANDARD SCREEN fig. 23
The standard screen shows the following
indications:
AHeadlight aiming position (only with
dipped beam headlights on).
BClock.
COdometer (covered km or miles). WARNING LIGHT TEST fig. 22
The following warning lights are tested:
❒handbrake on/low brake fluid level;
❒ABS and EBD systems (where provid-
ed);
❒ESP system (where provided);
❒“Dualdrive” electrical power steering
failure (where provided).
The test is automatically run when the ig-
nition key is turned to MARand during
normal operation when a fault is signalled.
At the end of the initial warning light test,
the message “LEd Error” will flash on the
display for 10 seconds if a faulty warning
light is found.
fig. 22F0G0185mfig. 23F0G0016m
NoteWith key removed (when opening
one of the front doors) the display will
turn on and show for a few seconds the
clock and the km or mi covered.
001-031 Panda New GB 21-06-2007 13:47 Pagina 19
