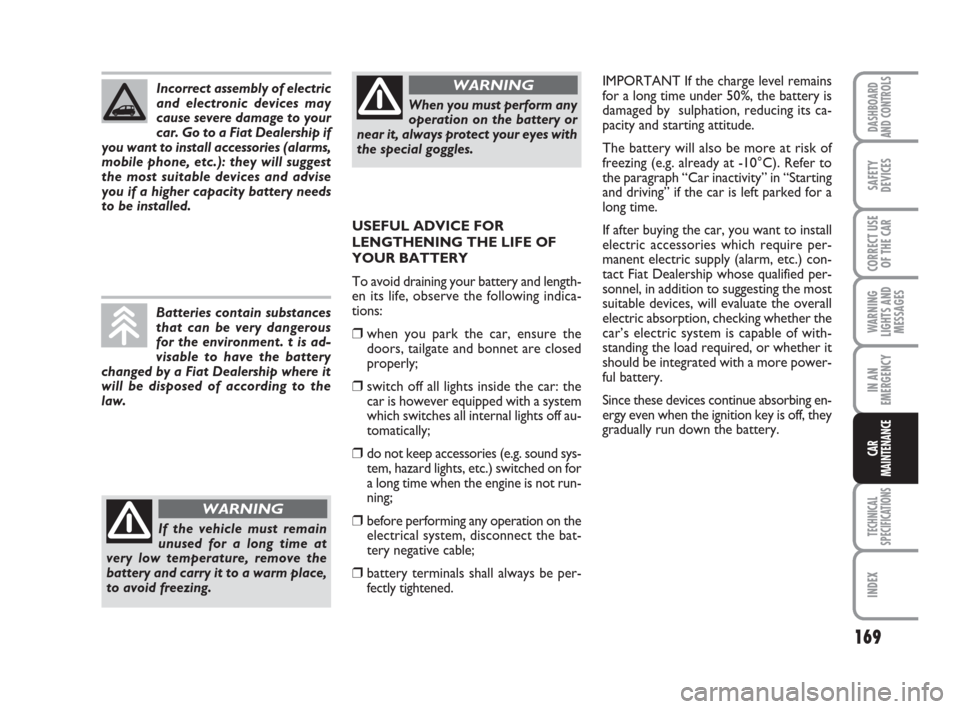

IMPORTANT If the charge level remains
for a long time under 50%, the battery is
damaged by sulphation, reducing its ca-
pacity and starting attitude.
The battery will also be more at risk of
freezing (e.g. already at -10°C). Refer to
the paragraph “Car inactivity” in “Starting
and driving” if the car is left parked for a
long time.
If after buying the car, you want to install
electric accessories which require per-
manent electric supply (alarm, etc.) con-
tact Fiat Dealership whose qualified per-
sonnel, in addition to suggesting the most
suitable devices, will evaluate the overall
electric absorption, checking whether the
car’s electric system is capable of with-
standing the load required, or whether it
should be integrated with a more power-
ful battery.
Since these devices continue absorbing en-
ergy even when the ignition key is off, they
gradually run down the battery. USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and length-
en its life, observe the following indica-
tions:
❒when you park the car, ensure the
doors, tailgate and bonnet are closed
properly;
❒switch off all lights inside the car: the
car is however equipped with a system
which switches all internal lights off au-
tomatically;
❒do not keep accessories (e.g. sound sys-
tem, hazard lights, etc.) switched on for
a long time when the engine is not run-
ning;
❒before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒battery terminals shall always be per-
fectly tightened. Incorrect assembly of electric
and electronic devices may
cause severe damage to your
car. Go to a Fiat Dealership if
you want to install accessories (alarms,
mobile phone, etc.): they will suggest
the most suitable devices and advise
you if a higher capacity battery needs
to be installed.
Batteries contain substances
that can be very dangerous
for the environment. t is ad-
visable to have the battery
changed by a Fiat Dealership where it
will be disposed of according to the
law.
If the vehicle must remain
unused for a long time at
very low temperature, remove the
battery and carry it to a warm place,
to avoid freezing.
WARNING
When you must perform any
operation on the battery or
near it, always protect your eyes with
the special goggles.
WARNING
155-176 Panda New GB 21-06-2007 13:52 Pagina 169

173
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:
❒ atmospheric pollution;
❒ salty air and humidity (coastal areas, or
hot humid climates);
❒ seasonal environment conditions.
Not to be underestimated is also the abra-
sive action of wind-borne atmospheric
dust and sand and mud and gravel raised
by other vehicles.
On your Fiat Panda, Fiat implemented the
best manufacturing technologies to effec-
tively protect the bodywork against cor-
rosion.
These include:
❒ Painting products and systems which
give the car particular resistance to cor-
rosion and abrasion;
❒ Use of galvanised (or pretreated) steel
sheets, with high resistance to corro-
sion;
❒ Spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective
wax products; SPRAY NOZZLES
Windscreen wiper fig. 18
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
The windscreen jets are directed by ad-
justing the angle of the nozzles.
Fluid jets shall be directed at about
1/3height from the window upper edge.Rear window wiper fig. 19
Rear window washer jets are fixed.
The nozzle holder is on the rear window.
fig. 18F0G0116mfig. 19F0G0117m
155-176 Panda New GB 21-06-2007 13:52 Pagina 173

175
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

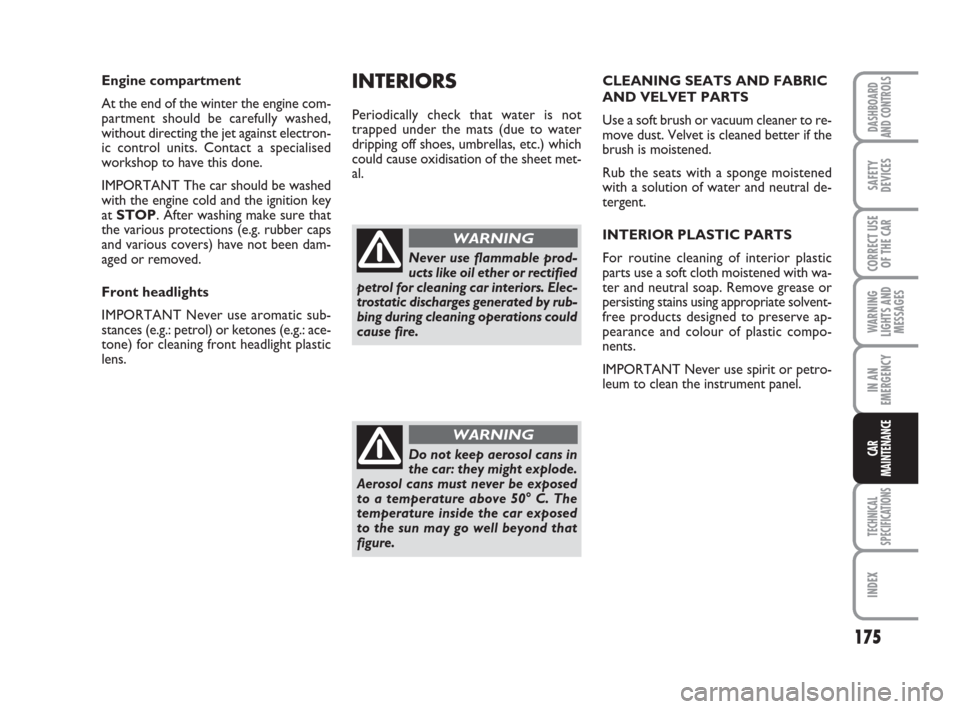

CLEANING SEATS AND FABRIC
AND VELVET PARTS
Use a soft brush or vacuum cleaner to re-
move dust. Velvet is cleaned better if the
brush is moistened.
Rub the seats with a sponge moistened
with a solution of water and neutral de-
tergent.
INTERIOR PLASTIC PARTS
For routine cleaning of interior plastic
parts use a soft cloth moistened with wa-
ter and neutral soap. Remove grease or
persisting stains using appropriate solvent-
free products designed to preserve ap-
pearance and colour of plastic compo-
nents.
IMPORTANT Never use spirit or petro-
leum to clean the instrument panel.INTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.) which
could cause oxidisation of the sheet met-
al. Engine compartment
At the end of the winter the engine com-
partment should be carefully washed,
without directing the jet against electron-
ic control units. Contact a specialised
workshop to have this done.
IMPORTANT The car should be washed
with the engine cold and the ignition key
at STOP. After washing make sure that
the various protections (e.g. rubber caps
and various covers) have not been dam-
aged or removed.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g.: petrol) or ketones (e.g.: ace-
tone) for cleaning front headlight plastic
lens.
Never use flammable prod-
ucts like oil ether or rectified
petrol for cleaning car interiors. Elec-
trostatic discharges generated by rub-
bing during cleaning operations could
cause fire.
WARNING
Do not keep aerosol cans in
the car: they might explode.
Aerosol cans must never be exposed
to a temperature above 50° C. The
temperature inside the car exposed
to the sun may go well beyond that
figure.
WARNING
155-176 Panda New GB 21-06-2007 13:52 Pagina 175

Bonnet .................................................. 63
Boot ........................................................ 60
– extension......................................... 62
– opening/closing .........................60-61
– removing the rear parcel shelf .. 62
Boot light .............................................. 51
– bulb replacement........................... 145
Brakes..................................................... 183
– fluid level ........................................ 165
– technical data ................................ 183
Bulb (replacement) ............................. 136
– general instructions ..................... 136
– types of bulbs ................................ 137
Capacities ............................................ 190
Car inactivity ....................................... 112
Car maintenance ................................. 155
– additional checks .......................... 159
– Annual Inspection Schedule ....... 159
– climate control system ............ 43-47
– scheduled service ......................... 156
– Service Schedule ........................... 157
Carrying children safely ..................... 87
Ceiling lights ......................................... 50
– boot light ........................................ 51
– front ................................................ 50
Central door locking system ............ 57Chassis (marking) ............................... 179
Child lock.............................................. 58
Child restraint systems
– "Isofix type" .................................. 91
– Passenger’s seat compliance ..... 89
Cigar lighter.......................................... 53
Clutch..................................................... 182
CO
2emissions ..................................... 194
Code Card ........................................... 8
Consumption ....................................... 193
– engine oil ........................................ 163
– fuel ................................................... 293
Containing running costs .................. 106
Controls................................................ 52
Control buttons .................................. 52
Correct use of the car ...................... 101
Dashboard........................................... 5
Demisting the windows...........40-42-46
Digital clock ..............................18-20-25
Digital display ....................................... 18
Dimensions .......................................... 187
Dipped beam headlights .................... 48
– bulb replacement........................... 140
– control ............................................ 48
Direction indicators ........................... 48
– control ............................................ 48
ABS ...................................................... 67
Accessories purchased
by the owner .................................... 77
Air bag .................................................. 93
– front air bag driver’s side ........... 94
– front air bag passenger’s side ..... 95
– Side bags and
Window bags.................................. 96
Air filter ................................................ 166
Air recirculation .......................39-41-45
Air vents ............................................... 38
Ashtray................................................... 53
At the filling station ............................ 190
Automatic climate control system .. 44
Battery.................................................. 168
– checking the charge ..................... 168
– important notes ............................ 160
– jump starting .................................. 125
– recharging ...................................... 152
– replacing ......................................... 168
– useful advice.................................... 169
Bodywork.............................................. 173
– maintenance .................................. 174
– protection....................................... 173
– version codes ................................ 180
– warranty ......................................... 174
197
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
II I
N N
D D
E E
X X
197-204 Panda New GB 21-06-2007 13:54 Pagina 197

Fiat CODE (system) ......................... 7
Fix & Go (tyre repair kit) ................. 132
Flashing the headlights ....................... 48
Fluid levels ............................................ 161
– checks ............................................. 161
Fluids and lubricants ........................... 191
Follow me home (device) ................. 49
Front ceiling lights .............................. 50
– bulb replacement........................... 144
– control ............................................ 50
Front fog lights .................................... 52
– bulb replacement .......................... 141
– control button .............................. 52
Fuel ........................................................ 190
– consumption................................... 193
– cut-off switch.................................. 52
– level gauge ....................................... 17
– refuelling......................................78-190
– tank capacity................................... 190
Fuel feed/ignition ................................ 182
Fuel filler cap ....................................... 78
Fuel lid ................................................... 78
Fuel level gauge ................................... 17
Fuses (replacement) ........................... 146
Gearbox .............................................. 105
– technical data ................................ 182
– using manual gearbox .................. 105
Glass holder ......................................... 54Glove box/oddment compartment .. 54
Handbrake .......................................... 104
Hazard lights ........................................ 52
Head restraints..................................... 34
Headlight washer................................. 49
– control ............................................ 49
– fluid level ........................................ 164
Headlights.............................................. 65
– adjustment abroad......................... 67
– beam adjustment .......................... 66
– front fog light adjustment ........... 66
– headlight slant adjusting device . 66
Heated rear window .......................... 52
Heating and ventilation system ........ 38
Hill Holder system.............................. 70
Identification data .............................. 178
Ignition switch ..................................... 11
In an emergency .................................. 123
Instrument panel ................................. 13
– light adjustment.............................. 21
Instruments .......................................... 16
Interior fittings .................................... 53
Interiors ................................................ 175
Isofix Type (child restraint system) 91
Jack ........................................................ 127
Jacking the car ..................................... 153
Key with remote control ................ 9 – front bulb replacement ............... 139
– rear bulb replacement ................. 142
– side bulb replacement ................. 140
Door lock ............................................. 57
Door unlocking ................................... 57
Doors..................................................... 57
Dualdrive (Electrical
power steering) ................................ 72
– activation/deactivation ................. 52
EDB system......................................... 68
Electrical power steering
“Dualdrive” ....................................... 72
– activation/deactivation ................. 52
Electrical socket .................................. 55
Engine
– identification code ........................ 180
– marking ........................................... 179
– technical data ................................ 181
Engine compartment (washing)........ 175
Engine coolant fluid level ..................164
Engine coolant temperature gauge . 17
Engine oil .............................................. 163
– consumption .................................. 163
– level check....................................... 163
– specifications ................................. 191
EOBD (system) ................................... 72
ESP system............................................ 69
External lights ...................................... 48
198
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
197-204 Panda New GB 21-06-2007 13:54 Pagina 198
