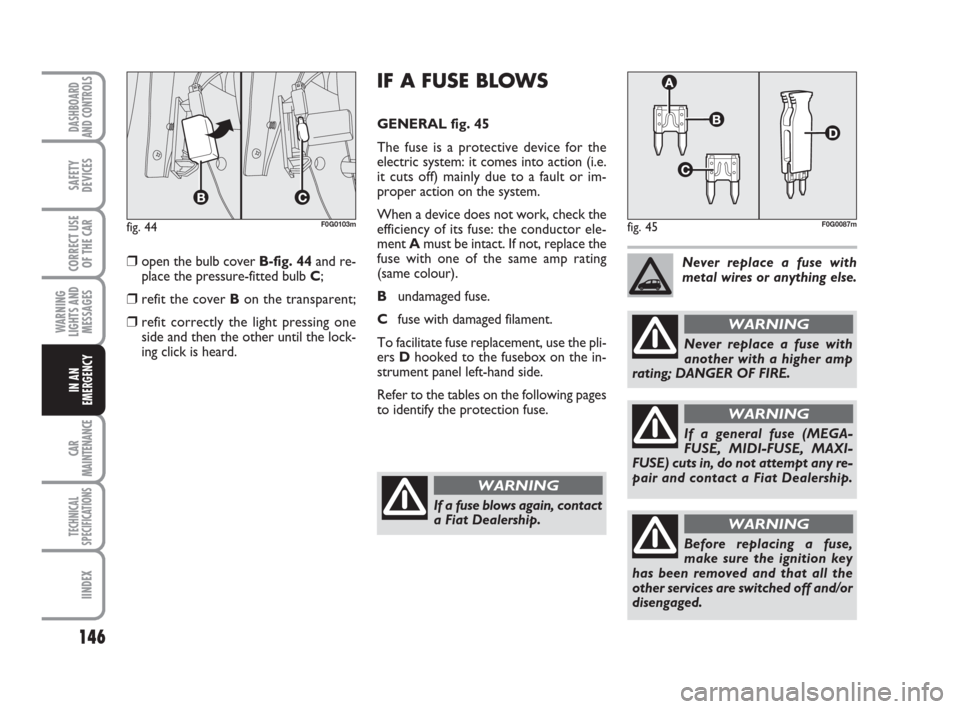

IF A FUSE BLOWS
GENERAL fig. 45
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment Amust be intact. If not, replace the
fuse with one of the same amp rating
(same colour).
Bundamaged fuse.
Cfuse with damaged filament.
To facilitate fuse replacement, use the pli-
ers Dhooked to the fusebox on the in-
strument panel left-hand side.
Refer to the tables on the following pages
to identify the protection fuse.
❒open the bulb cover B-fig. 44and re-
place the pressure-fitted bulb C;
❒refit the cover Bon the transparent;
❒refit correctly the light pressing one
side and then the other until the lock-
ing click is heard.
fig. 44F0G0103mfig. 45F0G0087m
Never replace a fuse with
metal wires or anything else.
Never replace a fuse with
another with a higher amp
rating; DANGER OF FIRE.
WARNING
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact a Fiat Dealership.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
Before replacing a fuse,
make sure the ignition key
has been removed and that all the
other services are switched off and/or
disengaged.
WARNING
123-154 Panda New GB 21-06-2007 13:51 Pagina 146

147
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY

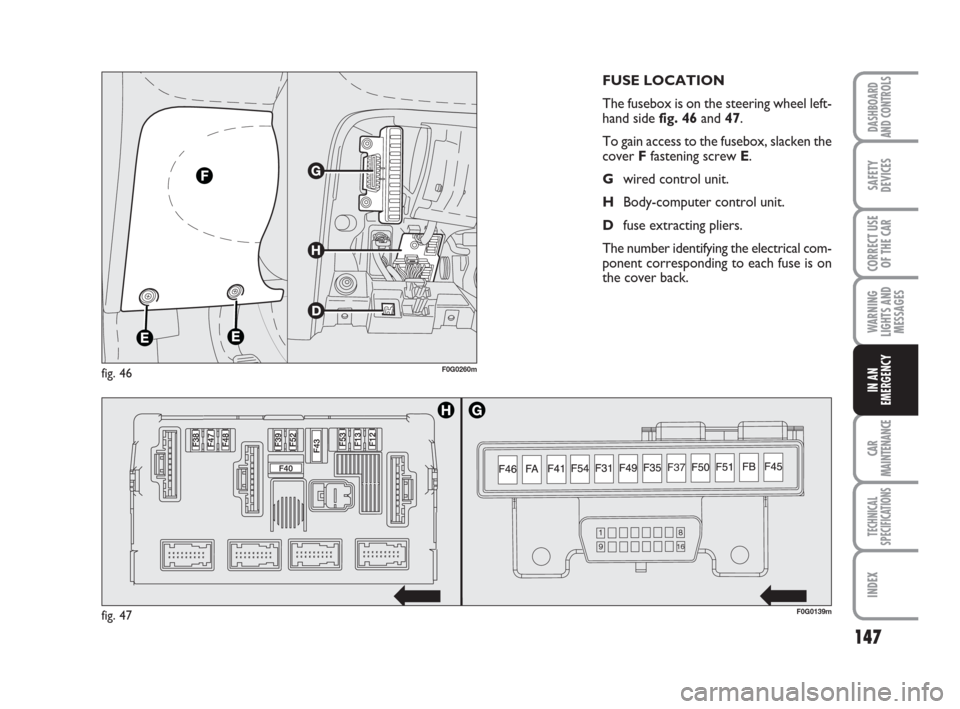

FUSE LOCATION
The fusebox is on the steering wheel left-
hand sidefig. 46and 47.
To gain access to the fusebox, slacken the
cover Ffastening screw E.
Gwired control unit.
HBody-computer control unit.
Dfuse extracting pliers.
The number identifying the electrical com-
ponent corresponding to each fuse is on
the cover back.
fig. 47 fig. 46
F37
18
916
F0G0139m
F0G0260m
123-154 Panda New GB 21-06-2007 13:51 Pagina 147

149
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
5
7.5
7.5
10
7.5
15
15
7.5
7.5
7.5
7.5
5
5
15
–
–
7.5
7.5
7.5
20
10
10
10
10 F31
F35
F35
F37
F41
F45
F46
F49
F49
F49
F50
F51
F51
F54
FA
FB
F12
F13
F13
F38
F39
F39
F39
F39

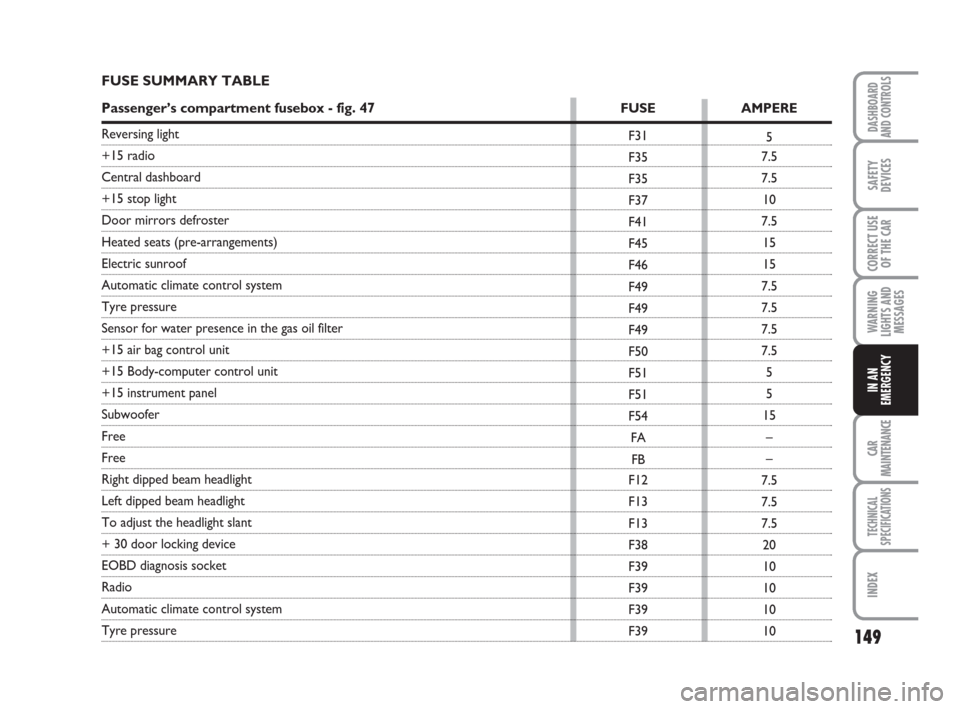

FUSE SUMMARY TABLE
Passenger’s compartment fusebox - fig. 47FUSE AMPERE
Reversing light
+15 radio
Central dashboard
+15 stop light
Door mirrors defroster
Heated seats (pre-arrangements)
Electric sunroof
Automatic climate control system
Tyre pressure
Sensor for water presence in the gas oil filter
+15 air bag control unit
+15 Body-computer control unit
+15 instrument panel
Subwoofer
Free
Free
Right dipped beam headlight
Left dipped beam headlight
To adjust the headlight slant
+ 30 door locking device
EOBD diagnosis socket
Radio
Automatic climate control system
Tyre pressure
123-154 Panda New GB 21-06-2007 13:51 Pagina 149

150
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
10
10
30
30
15
20
20
15F39
F39
F40
F43
F53
F47
F48
F52
Passenger’s compartment fusebox - fig. 47FUSE AMPERE
Telephone
Body-computer control unit
Heated rear window
Windscreen wiper/washer
Windscreen/rear window washer pump
Front left power window
Front right power window
Rear window wiper
30
20
15
15
15
15
7.5
10
7.5
F8
F9
F10
F11
F14
F15
F16
F17
F18
Engine compartment fusebox - fig. 49FUSE AMPERE
Ai conditioner electric fan
Headlight washer
Horn
Secondary services and tachymeter generator
Upper beam
Trailer unit
Electronic injection system and Dualogic transmission unit supply
Electronic injection primary services
Engine control node
123-154 Panda New GB 21-06-2007 13:51 Pagina 150

151
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
7.5
–
15
20
20
10
15
15
20
7.5F19
F20
F21
F22
F23
F24
F30
F84
F85
F87

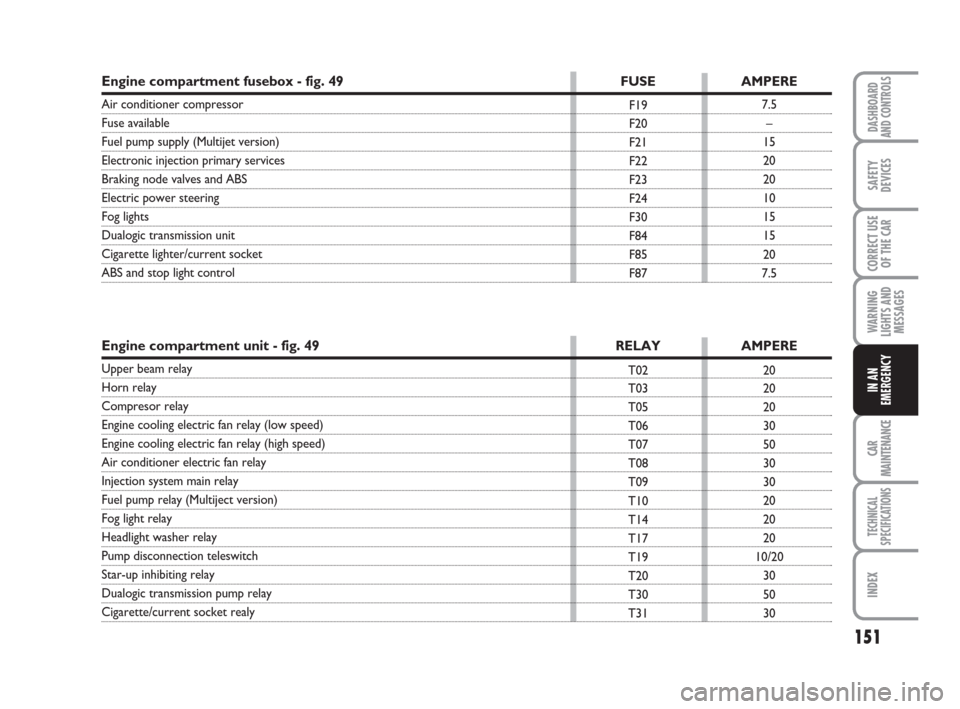

Engine compartment fusebox - fig. 49FUSE AMPERE
Air conditioner compressor
Fuse available
Fuel pump supply (Multijet version)
Electronic injection primary services
Braking node valves and ABS
Electric power steering
Fog lights
Dualogic transmission unit
Cigarette lighter/current socket
ABS and stop light control
20
20
20
30
50
30
30
20
20
20
10/20
30
50
30
T02
T03
T05
T06
T07
T08
T09
T10
T14
T17
T19
T20
T30
T31
Engine compartment unit - fig. 49RELAY AMPERE
Upper beam relay
Horn relay
Compresor relay
Engine cooling electric fan relay (low speed)
Engine cooling electric fan relay (high speed)
Air conditioner electric fan relay
Injection system main relay
Fuel pump relay (Multiject version)
Fog light relay
Headlight washer relay
Pump disconnection teleswitch
Star-up inhibiting relay
Dualogic transmission pump relay
Cigarette/current socket realy
123-154 Panda New GB 21-06-2007 13:51 Pagina 151
