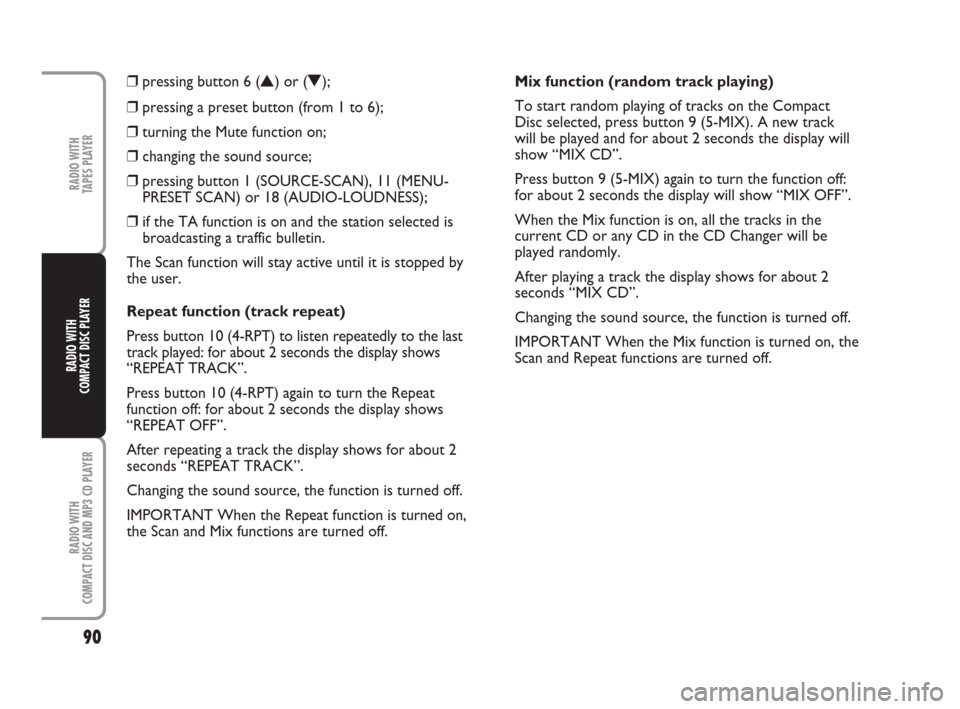

❒pressing button 6 (N) or (O);
❒pressing a preset button (from 1 to 6);
❒turning the Mute function on;
❒changing the sound source;
❒pressing button 1 (SOURCE-SCAN), 11 (MENU-
PRESET SCAN) or 18 (AUDIO-LOUDNESS);
❒if the TA function is on and the station selected is
broadcasting a traffic bulletin.
The Scan function will stay active until it is stopped by
the user.
Repeat function (track repeat)
Press button 10 (4-RPT) to listen repeatedly to the last
track played: for about 2 seconds the display shows
“REPEAT TRACK”.
Press button 10 (4-RPT) again to turn the Repeat
function off: for about 2 seconds the display shows
“REPEAT OFF”.
After repeating a track the display shows for about 2
seconds “REPEAT TRACK”.
Changing the sound source, the function is turned off.
IMPORTANT When the Repeat function is turned on,
the Scan and Mix functions are turned off.Mix function (random track playing)
To start random playing of tracks on the Compact
Disc selected, press button 9 (5-MIX). A new track
will be played and for about 2 seconds the display will
show “MIX CD”.
Press button 9 (5-MIX) again to turn the function off:
for about 2 seconds the display will show “MIX OFF”.
When the Mix function is on, all the tracks in the
current CD or any CD in the CD Changer will be
played randomly.
After playing a track the display shows for about 2
seconds “MIX CD”.
Changing the sound source, the function is turned off.
IMPORTANT When the Mix function is turned on, the
Scan and Repeat functions are turned off.
051-098 ING 21-06-2007 15:49 Pagina 90

91
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER

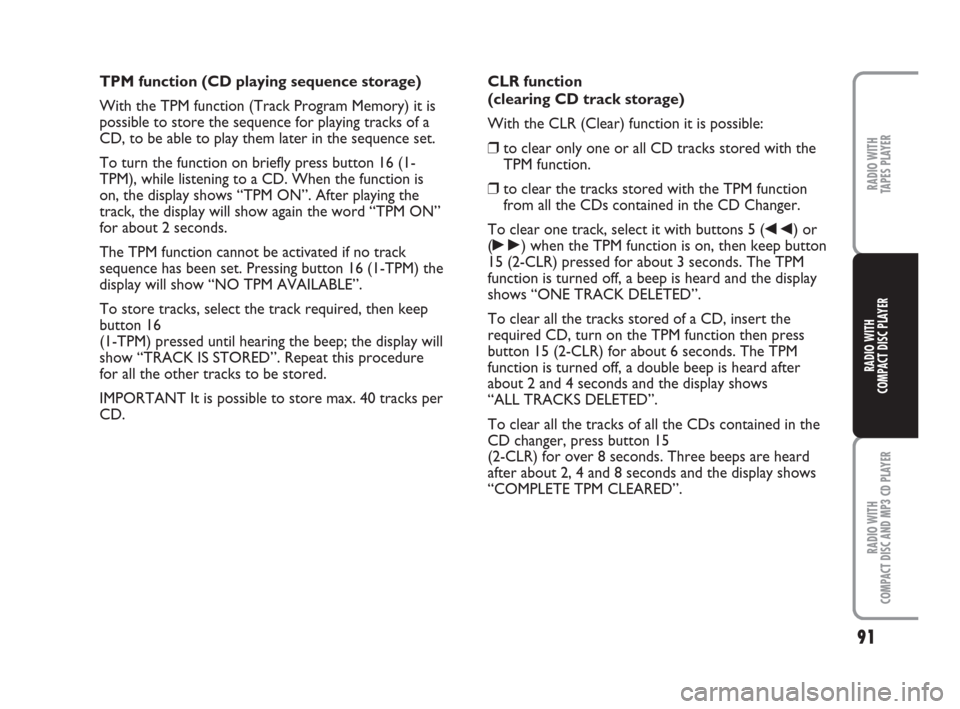

TPM function (CD playing sequence storage)
With the TPM function (Track Program Memory) it is
possible to store the sequence for playing tracks of a
CD, to be able to play them later in the sequence set.
To turn the function on briefly press button 16 (1-
TPM), while listening to a CD. When the function is
on, the display shows “TPM ON”. After playing the
track, the display will show again the word “TPM ON”
for about 2 seconds.
The TPM function cannot be activated if no track
sequence has been set. Pressing button 16 (1-TPM) the
display will show “NO TPM AVAILABLE”.
To store tracks, select the track required, then keep
button 16
(1-TPM) pressed until hearing the beep; the display will
show “TRACK IS STORED”. Repeat this procedure
for all the other tracks to be stored.
IMPORTANT It is possible to store max. 40 tracks per
CD.CLR function
(clearing CD track storage)
With the CLR (Clear) function it is possible:
❒to clear only one or all CD tracks stored with the
TPM function.
❒to clear the tracks stored with the TPM function
from all the CDs contained in the CD Changer.
To clear one track, select it with buttons 5 (
÷) or
(
˜) when the TPM function is on, then keep button
15 (2-CLR) pressed for about 3 seconds. The TPM
function is turned off, a beep is heard and the display
shows “ONE TRACK DELETED”.
To clear all the tracks stored of a CD, insert the
required CD, turn on the TPM function then press
button 15 (2-CLR) for about 6 seconds. The TPM
function is turned off, a double beep is heard after
about 2 and 4 seconds and the display shows
“ALL TRACKS DELETED”.
To clear all the tracks of all the CDs contained in the
CD changer, press button 15
(2-CLR) for over 8 seconds. Three beeps are heard
after about 2, 4 and 8 seconds and the display shows
“COMPLETE TPM CLEARED”.
051-098 ING 21-06-2007 15:49 Pagina 91

92
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER

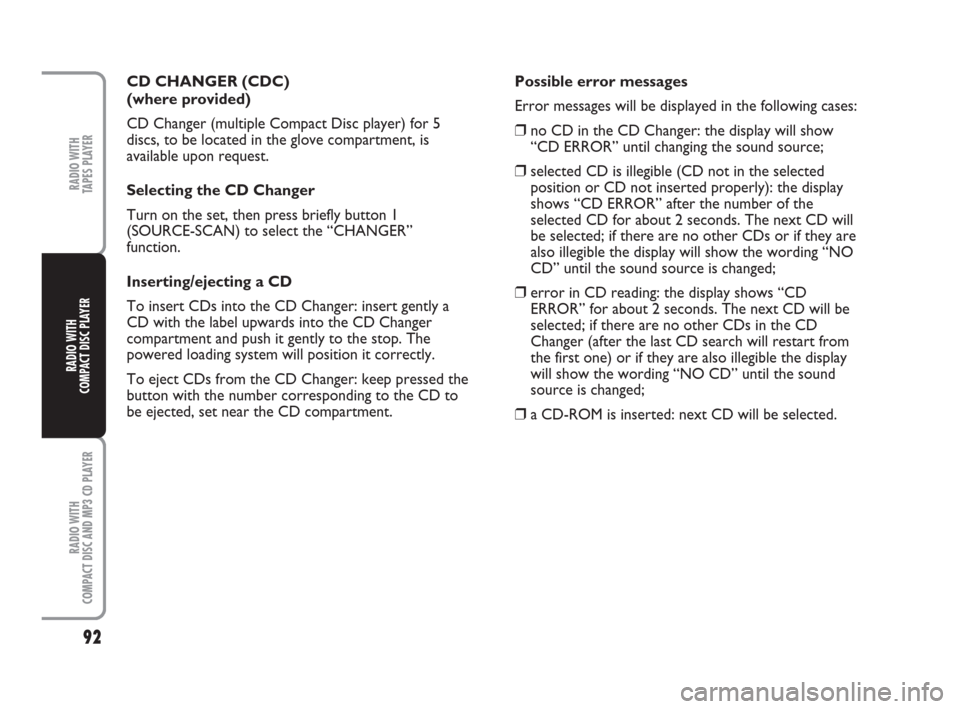

CD CHANGER (CDC)
(where provided)
CD Changer (multiple Compact Disc player) for 5
discs, to be located in the glove compartment, is
available upon request.
Selecting the CD Changer
Turn on the set, then press briefly button 1
(SOURCE-SCAN) to select the “CHANGER”
function.
Inserting/ejecting a CD
To insert CDs into the CD Changer: insert gently a
CD with the label upwards into the CD Changer
compartment and push it gently to the stop. The
powered loading system will position it correctly.
To eject CDs from the CD Changer: keep pressed the
button with the number corresponding to the CD to
be ejected, set near the CD compartment.Possible error messages
Error messages will be displayed in the following cases:
❒no CD in the CD Changer: the display will show
“CD ERROR” until changing the sound source;
❒selected CD is illegible (CD not in the selected
position or CD not inserted properly): the display
shows “CD ERROR” after the number of the
selected CD for about 2 seconds. The next CD will
be selected; if there are no other CDs or if they are
also illegible the display will show the wording “NO
CD” until the sound source is changed;
❒error in CD reading: the display shows “CD
ERROR” for about 2 seconds. The next CD will be
selected; if there are no other CDs in the CD
Changer (after the last CD search will restart from
the first one) or if they are also illegible the display
will show the wording “NO CD” until the sound
source is changed;
❒a CD-ROM is inserted: next CD will be selected.
051-098 ING 21-06-2007 15:49 Pagina 92

93
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Display information
When the CD Changer is working, the display shows
the following information which means:
❒“T05”: shows the number of the track on the CD;
❒“03:42”: shows the time elapsed since the start of
the track (if the corresponding Menu function is on);
❒“CD 04”: the number of the CD in the loader.
❒“XXXXXXX”: shows the name allocated to the
CD.
Choosing the CD
Press button 6 (
N) to select the next CD and button
6 (
O) to select the previous CD. If in the menu the
CD time display function was selected, this will be
replaced for about 2 seconds by the CD number.
If the loader does not contain a disc in the position
selected, the display briefly shows the wording “NO
CD”, and the next CD is played automatically.Select track (forward/backward)
Briefly press button 5 (
÷) to play the previous track
of the CD chosen and button 5 (
˜) to play the next
one. Tracks are played in sequence: after the last
track, the first one will be played and vice versa.
To select tracks continuously, keep the button
pressed.
If playing the track started more than 3 seconds ago,
pressing briefly button 5 (÷) the track is played again
from the start. In this case if wanting to play the
previous track, press the button twice consecutively.
Fast forward/backward
Keep button 5 (
÷) pressed to move the track
selected backward at high speed and keep button 5
(
˜) pressed to move it quickly forward. Fast
forward/backward is stopped once the button is
released.
If the CD number or CD name display function was
selected in the menu, this will be replaced for about 2
seconds by the CD time display function.
051-098 ING 21-06-2007 15:49 Pagina 93

94
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER

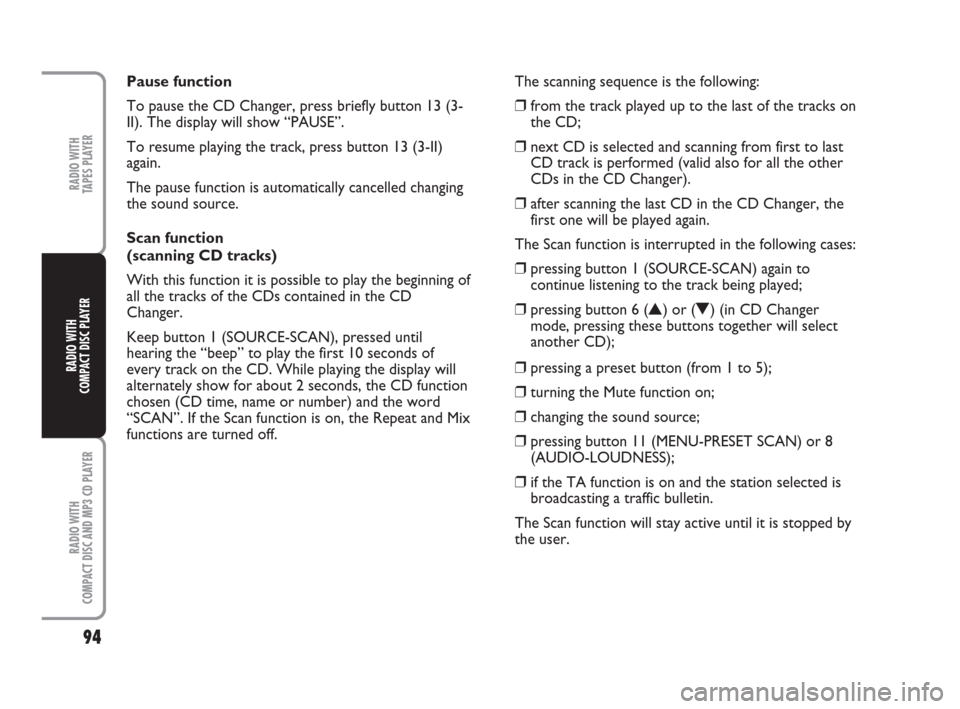

The scanning sequence is the following:
❒from the track played up to the last of the tracks on
the CD;
❒next CD is selected and scanning from first to last
CD track is performed (valid also for all the other
CDs in the CD Changer).
❒after scanning the last CD in the CD Changer, the
first one will be played again.
The Scan function is interrupted in the following cases:
❒pressing button 1 (SOURCE-SCAN) again to
continue listening to the track being played;
❒pressing button 6 (
N) or (O) (in CD Changer
mode, pressing these buttons together will select
another CD);
❒pressing a preset button (from 1 to 5);
❒turning the Mute function on;
❒changing the sound source;
❒pressing button 11 (MENU-PRESET SCAN) or 8
(AUDIO-LOUDNESS);
❒if the TA function is on and the station selected is
broadcasting a traffic bulletin.
The Scan function will stay active until it is stopped by
the user. Pause function
To pause the CD Changer, press briefly button 13 (3-
II). The display will show “PAUSE”.
To resume playing the track, press button 13 (3-II)
again.
The pause function is automatically cancelled changing
the sound source.
Scan function
(scanning CD tracks)
With this function it is possible to play the beginning of
all the tracks of the CDs contained in the CD
Changer.
Keep button 1 (SOURCE-SCAN), pressed until
hearing the “beep” to play the first 10 seconds of
every track on the CD. While playing the display will
alternately show for about 2 seconds, the CD function
chosen (CD time, name or number) and the word
“SCAN”. If the Scan function is on, the Repeat and Mix
functions are turned off.
051-098 ING 21-06-2007 15:49 Pagina 94

95
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Mix function (random track playing)
To start random playing of tracks on the Compact
Disc selected, press button 9 (5-MIX). A new track
will be played and for about 2 seconds the display will
show “MIX CD”.
Press button 9 (5-MIX) again to start random playing
of a CD in the CD Changer: for about 2 seconds the
display will show “MIX MAGAZINE”.
Press button 9 (5-MIX) again to turn the function off:
for about 2 seconds the display will show “MIX OFF”.
When the Mix function is on, all the tracks in the
current CD or any CD in the CD Changer will be
played randomly.
After playing a track the display shows for about 2
seconds “MIX CD” or “MIX MAGAZINE”.
Changing the sound source, the function is turned off.
IMPORTANT When the Mix function is turned on, the
Scan and Repeat functions are turned off. Repeat function (track repeat)
Press button 10 (4-RPT) to listen repeatedly to the last
track played: for about 2 seconds the display shows
“REPEAT TRACK”.
Press button 10 (4-RPT) again to listen repeatedly to
the selected CD: for about 2 seconds the display
shows “REPEAT CD”.
Press button 10 (4-RPT) again to turn the Repeat
function off: for about 2 seconds the display shows
“REPEAT OFF”.
After repeating a track the display shows for about 2
seconds “REPEAT TRACK” or “REPEAT CD”.
Changing the sound source, the function is turned off.
IMPORTANT When the Repeat function is turned on,
the Scan and Mix functions are turned off.
051-098 ING 21-06-2007 15:49 Pagina 95

96
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER

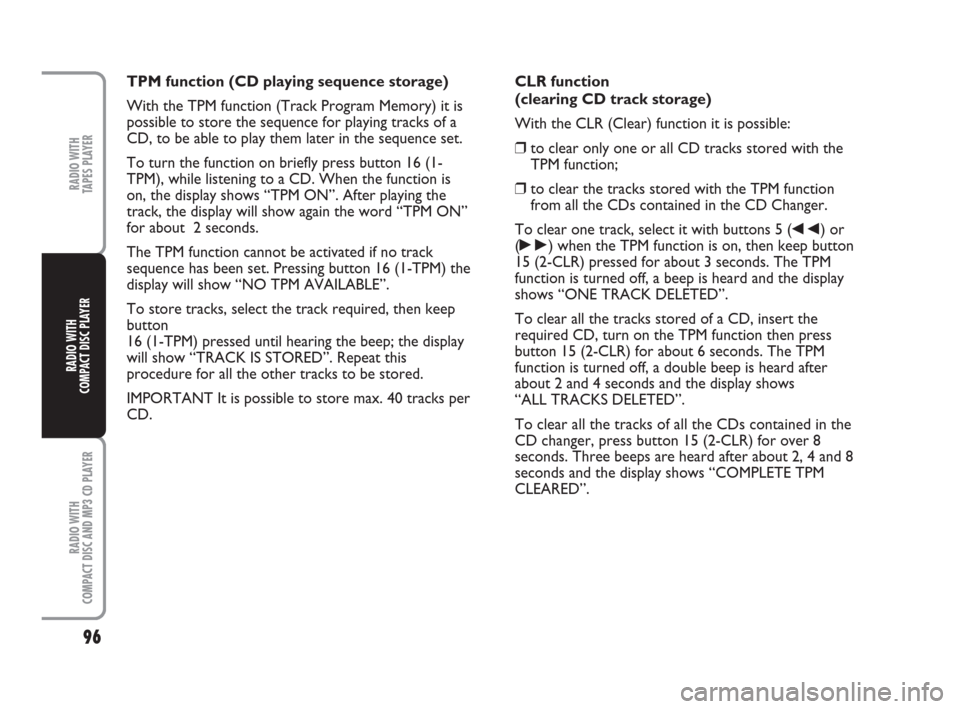

TPM function (CD playing sequence storage)
With the TPM function (Track Program Memory) it is
possible to store the sequence for playing tracks of a
CD, to be able to play them later in the sequence set.
To turn the function on briefly press button 16 (1-
TPM), while listening to a CD. When the function is
on, the display shows “TPM ON”. After playing the
track, the display will show again the word “TPM ON”
for about 2 seconds.
The TPM function cannot be activated if no track
sequence has been set. Pressing button 16 (1-TPM) the
display will show “NO TPM AVAILABLE”.
To store tracks, select the track required, then keep
button
16 (1-TPM) pressed until hearing the beep; the display
will show “TRACK IS STORED”. Repeat this
procedure for all the other tracks to be stored.
IMPORTANT It is possible to store max. 40 tracks per
CD.CLR function
(clearing CD track storage)
With the CLR (Clear) function it is possible:
❒to clear only one or all CD tracks stored with the
TPM function;
❒to clear the tracks stored with the TPM function
from all the CDs contained in the CD Changer.
To clear one track, select it with buttons 5 (
÷) or
(
˜) when the TPM function is on, then keep button
15 (2-CLR) pressed for about 3 seconds. The TPM
function is turned off, a beep is heard and the display
shows “ONE TRACK DELETED”.
To clear all the tracks stored of a CD, insert the
required CD, turn on the TPM function then press
button 15 (2-CLR) for about 6 seconds. The TPM
function is turned off, a double beep is heard after
about 2 and 4 seconds and the display shows
“ALL TRACKS DELETED”.
To clear all the tracks of all the CDs contained in the
CD changer, press button 15 (2-CLR) for over 8
seconds. Three beeps are heard after about 2, 4 and 8
seconds and the display shows “COMPLETE TPM
CLEARED”.
051-098 ING 21-06-2007 15:49 Pagina 96

97
97Nero603 46 348 Autoradio Fiat
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
ARADIO WITH
COMPACT DISC PLAYER
B
F0G0509m

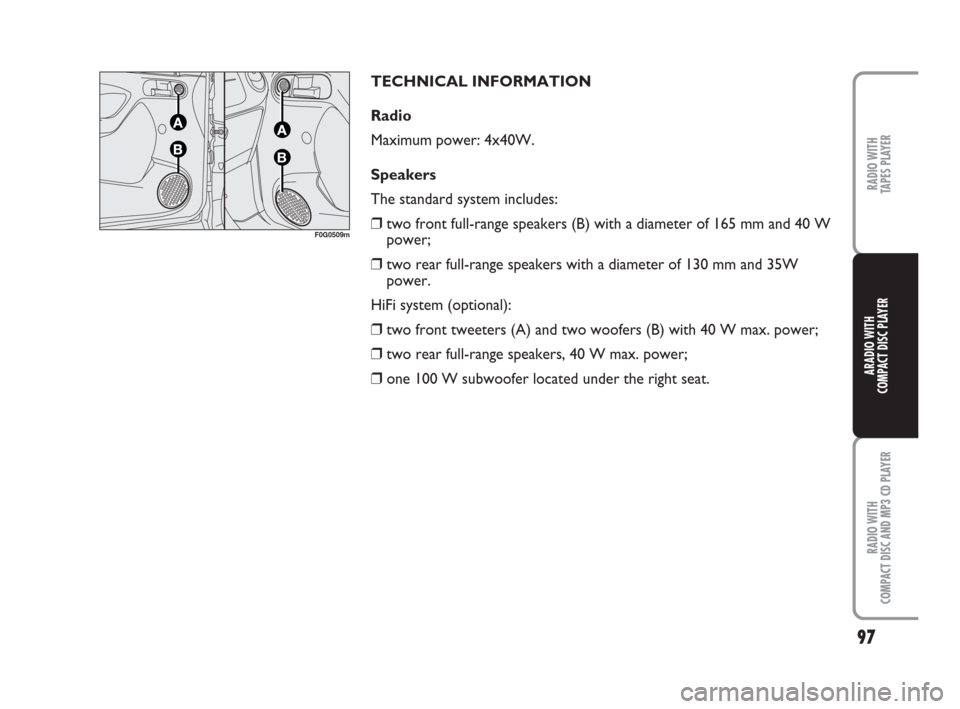

TECHNICAL INFORMATION
Radio
Maximum power: 4x40W.
Speakers
The standard system includes:
❒two front full-range speakers (B) with a diameter of 165 mm and 40 W
power;
❒two rear full-range speakers with a diameter of 130 mm and 35W
power.
HiFi system (optional):
❒two front tweeters (A) and two woofers (B) with 40 W max. power;
❒two rear full-range speakers, 40 W max. power;
❒one 100 W subwoofer located under the right seat.
051-098 ING 21-06-2007 15:49 Pagina 97

98
98Nero603 46 348 Autoradio Fiat
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be fitted with a CD Changer for 5 CDs, set in the glove
compartment.
Aerial
The aerial is located on the car roof.
Protection fuse
The radio has a 10A fuse (A).
F0G0508m
F0G0507m
051-098 ING 21-06-2007 15:49 Pagina 98

99
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RR R
A A
D D
I I
O O
W W
I I
T T
H H
C C
O O
M M
P P
A A
C C
T T
D D
I I
S S
C C
A A
N N N
D D
M M
P P
3 3
C C
D D
P P
L L
A A
Y Y
E E
R R
CONTROL DESCRIPTION
F0G0501m
099-120 ING 21-06-2007 15:51 Pagina 99
