FIAT PANDA 2007 169 / 2.G Radio CD Tape Manual

RADIO WITH
COMPACT DISC PLAYER
50
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

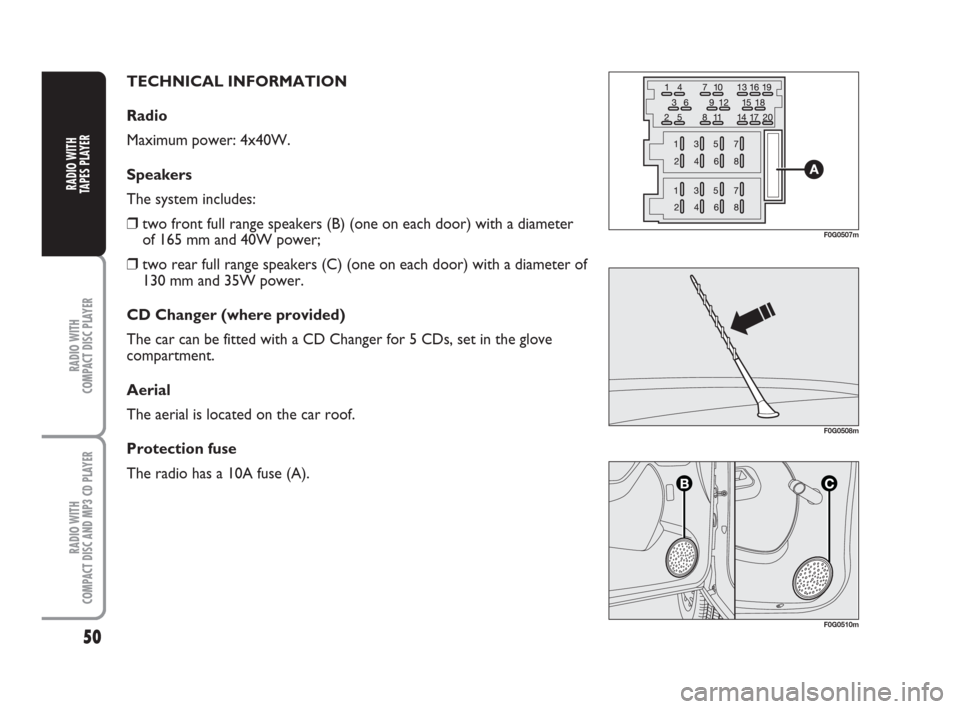

TECHNICAL INFORMATION
Radio
Maximum power: 4x40W.
Speakers
The system includes:
❒two front full range speakers (B) (one on each door) with a diameter
of 165 mm and 40W power;
❒two rear full range speakers (C) (one on each door) with a diameter of
130 mm and 35W power.
CD Changer (where provided)
The car can be fitted with a CD Changer for 5 CDs, set in the glove
compartment.
Aerial
The aerial is located on the car roof.
Protection fuse
The radio has a 10A fuse (A).
F0G0507m
F0G0508m
F0G0510m
001-050 ING 21-06-2007 15:48 Pagina 50

51
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
RR R
A A
D D
I I
O O
W W
I I
T T
H H
C C
O O
M M
P P
A A
C C
T T
D D
I I
S S
C C
P P
L L L
A A
Y Y
E E
R R

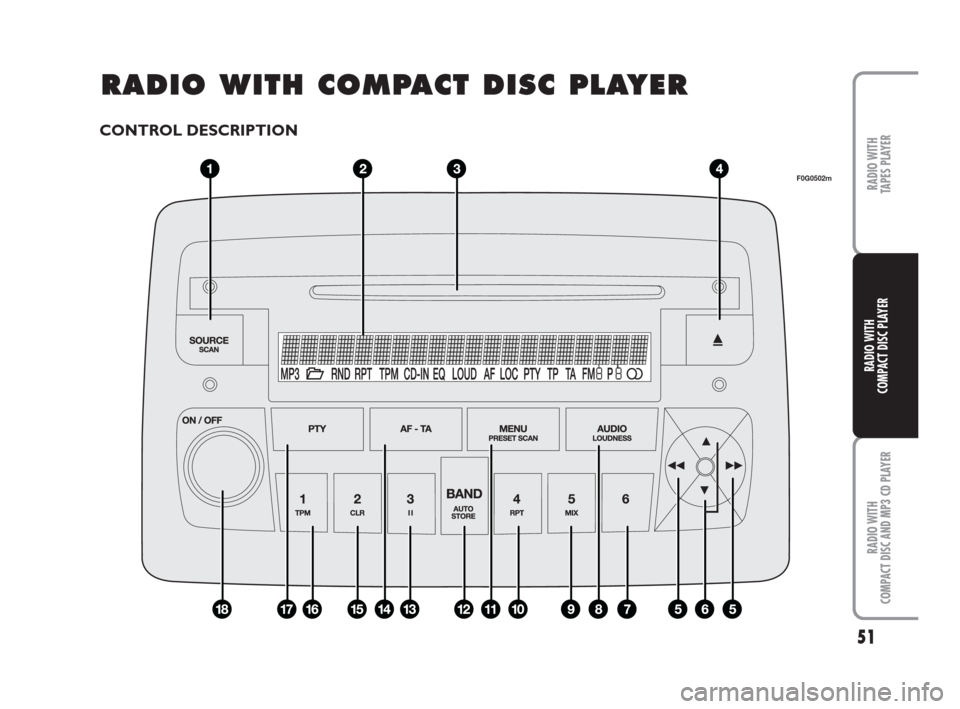

CONTROL DESCRIPTION
F0G0502m
051-098 ING 21-06-2007 15:49 Pagina 51

52
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
1
2
3
4
5
6
7
8
9
SOURCE-SCAN
Display
Slot for CD
˚
÷
˜
N
O
6
AUDIO-LOUDNESS
5-MIXSelect audio source/Scan function
Eject CD
Manual station tuning
Automatic station tuning
Preset station 6
Audio settings/Loudness
Preset station 5/MIX functionSelect CD, CD Changer
(if installed) or Radio
Eject CD
Manual station tuning
TP: seek -
PTY: seek -
AF: seek -
Manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Automatic station tuning
TP: seek +
PTY: seek +
AF: seek +
Automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
FM/AM: call preset
station 6
Bass (B)
Treble (T)
Fader (F)
Balance (B)
FM/AM: call preset
station 5FM/AM station scan
Fast manual station tuning
TP: seek -
PTY: seek -
AF: seek -
Fast manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast automatic station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
FM/AM: store preset
station 6
Loudness on/off
FM/AM: store preset
station 5
Button Buttons and front panel
Letters or symbol FunctionRADIO mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
051-098 ING 21-06-2007 15:49 Pagina 52

53
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Select CD, CD Changer (if installed) or Radio
Eject CD
Backward to track start/select
previous track
Select next track
Bass (B)
Treble (T)
Fader (F)
Balance (B)
MIX function on/off
Scan CD tracks
Fast backward
Fast forward
Loudness
on/offSelect CD, CD Changer (if installed)
or Radio
Eject CD
Backward to track start/select
previous track
Select next track
Select next CD
Select previous CD
Bass (B)
Treble (T)
Fader (F)
Balance (B)
MIX function on/offScan CD Changer CDs
Fast backward
Fast forward
Select next CD
(continuous)
Select previous CD
(continuous)
Loudness on/off
CD mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)CD Changer mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
051-098 ING 21-06-2007 15:49 Pagina 53

54
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
10
11
12
13
14
15
16
17
18
4-RPT
MENU- PRESET SCAN
BAND-AUTOSTORE
3-II
AF-TA
2-CLR
1-TPM
PTY
ON/OFF VOLUMEPreset station
4/REPEAT function
Menu function/Scan function
Frequency band selection
Preset station 3/
Playing pause
Alternative frequency (AF) /Traffic infor-
mation (TA)
Preset station 2/CLR function (CD track
storage clearing)
Preset station 1/TPM function (CD track
sequence storing)
Programme Type
Radio on/off/
Volume adjustmentFM/AM: call preset
station 4
Menu on/off
FM1, FM2, FMT, MW, LW
FM/AM: call preset
station 3
TA ON/OFF
FM/AM: call preset
station 2
FM/AM: call preset
station 1
PTY ON/OFF
With radio on: Audio Mute on/off
With radio off: radio on
Volume adjustment:
turn leftwards: to decrease
turn rightwards: to increaseFM/AM: store preset
station 4
Scan preset stations
Store automatically in FMT station
range
FM/AM: store preset
station 3
AF ON/OFF
FM/AM: store preset
station 2
FM/AM: store preset
station 1
PTY: displays selected programme type
With radio on: radio off
With radio off: radio on
Button Buttons and front panel
Letters or symbol FunctionRADIO mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
051-098 ING 21-06-2007 15:49 Pagina 54

55
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
REPEAT function on/off
Menu on/off
CD playing pause on/off
TA ON/OFF
TPM function on/off
PTY ON/OFF
Store automatically in
FMT station range
AF ON/OFF
Clear selected CD track
storage
Store required trackREPEAT function on/off
Menu on/off
CD playing pause on/off
TA ON/OFF
PTY ON/OFFStore automatically in
FMT station range
AF ON/OFF
CD mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)CD Changer mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
051-098 ING 21-06-2007 15:49 Pagina 55

56
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
GENERAL
The set possesses the following functions:
RADIO SECTION
❒PLL tuning with FM/AM/MW/LW frequency bands;
❒RDS (Radio Data System) with TA (traffic
information) - PTY (Program Type) - EON
(Enhanced Other Network) - REG (Regional
programmes);
❒AF: alternative frequency search selection in RDS
mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒manual storage of 36 stations: 18 in the FM band (6
in FM1, 6 in FM2, 6 in FMT), 6 in the MW band and
6 in the LW band and 6 PTY (only in FM);❒automatic storage (AUTOSTORE function) of 6
stations in FM band;
❒DX function (Distant: maximum sensitivity in
searching radio stations) and LO (Local) manual;
❒Scan function (scanning stored stations);
❒SVC function: automatic volume adjustment with
car speed;
❒automatic Stereo/Mono switching.
On multimedia CDs in addition to sound tracks also data tracks are recorded.
Playing one of these CDs may cause rustling and such a volume as to compromise road safety, as
well as causing damage to the final stages and speakers.
For installation and connection of the CD Changer apply only to Fiat Dealership.
051-098 ING 21-06-2007 15:49 Pagina 56

57
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
COMPACT DISC SECTION
❒Disc select (disc no.);
❒Track select (forward/backward);
❒Fast forward/backward;
❒Mix function (random playing of tracks);
❒Repeat function (repetition of last track);
❒Scan function (scanning the tracks on the Compact
Disc);
❒TPM function (CD playing sequence storage);
❒CLR function (clearing CD track storage ).
AUDIO SECTION
❒Mute/Pause function;
❒Loudness function;
❒7 band graphic equalizer;
❒Separate bass/treble adjustment;
❒Right/left channel balancing.ANTITHEFT PROTECTION
The radio is fitted with an antitheft protection system
based on the exchange of information between the
radio and the electronic control unit (Body Computer)
installed on the car.
This system warrants the highest level of security and
prevents entry of the secret code every time the radio
supply is disconnected.
If the result of the check is positive, the radio will start
working whereas, if the comparison codes are not the
same or if the electronic control unit (Body
Computer) is replaced, the device will inform the user
of the need to enter the secret code according to the
procedure described in the following paragraph.
051-098 ING 21-06-2007 15:49 Pagina 57

58
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
Entering the secret code
Turning the sound system on, if code is requested the
display will show“CODE” for about 2 seconds,
followed by four dashes “----”.
The secret code comprises four figures from 1 to 6,
each corresponding to one of the dashes.
To enter the first digit of the code, press the
corresponding key of the preset stations (from 1 to
6). Enter the other code digits in the same way.
If the four figures are not entered within 20 seconds,
the display shows the word “CODE” for 2 seconds
and then four dashes “----”. This is not to be
considered as an incorrect code entry.
After entering the fourth digit (within 20 seconds), the
radio starts working.If a wrong code is entered, the radio sounds a “beep”,
the display shows the word “CODE” for 2 seconds
and then four dashes “----” to warn the user that it is
necessary to enter the correct code.
Every time the user enters a wrong code, the waiting
time increases gradually (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1h, 2h, 4h, 8h, 16h, 24h) until reaching a
maximum of 24 hours.
The waiting time will be shown on the display with the
word “WAIT”. When this goes off it is possible to
start the new code entry procedure.
CODE Card
This the document that certifies possession of the
radio. The Code Card contains the radio model, serial
number and secret code.
IMPORTANT Keep the Code Card carefully to be
able to give the related data to the competent
authorities in the event of theft.
051-098 ING 21-06-2007 15:49 Pagina 58

59
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
RADIO WITH
COMPACT DISC PLAYER
GLOSSARY
AF (Alternative Frequency)
Function that allows the radio to stay tuned on the FM
station selected also passing through areas served by
transmitters with different frequencies.
The RDS system actually keeps the intensity and
quality of the signal received under control,
automatically switching tuning on the frequency of the
transmitter that is sending the strongest signal.
AutoSTore
Function with which it is possible to store
automatically radio stations.
Balance (Channel balancing)
Function with which it is possible to suitably adjust the
sound from the right or left speakers.
Bass (Bass tones)
This function adjusts the bass tones.
CD Changer
Multiple Compact Disc player.CLR (Clear)
Function with which it is possible to clear one or all
the tracks of the CD stored with the TPM function.
Distant/Local (Sens Dx/Lo)
These are two levels of reception sensitivity.
1) Distant (maximum sensitivity), which makes it
possible to tune all the stations that can be
received.
2) Local (minimum sensitivity), which makes it possible
to tune only those stations with sufficiently strong
signals, such as for example local stations.
EON (Enhanced Other Network)
Function that allows the radio to tune automatically on
a different station than the one being listened to which
broadcasts traffic information.
051-098 ING 21-06-2007 15:49 Pagina 59
