FIAT PANDA 2007 169 / 2.G Radio CD Tape Manual

10
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER
13
14
15
16
17
18
19
20
21
226
5-MIX
4-RPT
3-II
2-
M
1
AUD-LD
VOLUME –
ON/
z
VOLUME +Preset station 6
Preset station 5/MIX function
Preset station 4/REPEAT
function
Preset station 3/Playing pause
Preset station 2/DOLBY
Preset station 1
Audio settings/Loudness
Volume adjustment
Radio on/off
Volume adjustmentFM/AM: call preset
station 6
FM/AM: call preset
station 5
FM/AM: call preset
station 4
FM/AM: call preset
station 3
FM/AM: call preset
station 2
FM/AM: call preset
station 1
Bass (B)
Treble (T)
Fader (F)
Balance (B)
Volume adjustment: to decrease
With radio on:
Audio Mute on/off
With radio off:
radio on
Volume adjustment: to increaseFM/AM: store preset
station 6
FM/AM: store preset
station 5
FM/AM: store preset
station 4
FM/AM: store preset
station 3
FM/AM: store preset
station 2
FM/AM: store preset
station 1
Loudness on/off
With radio on: off
With radio off: radio on

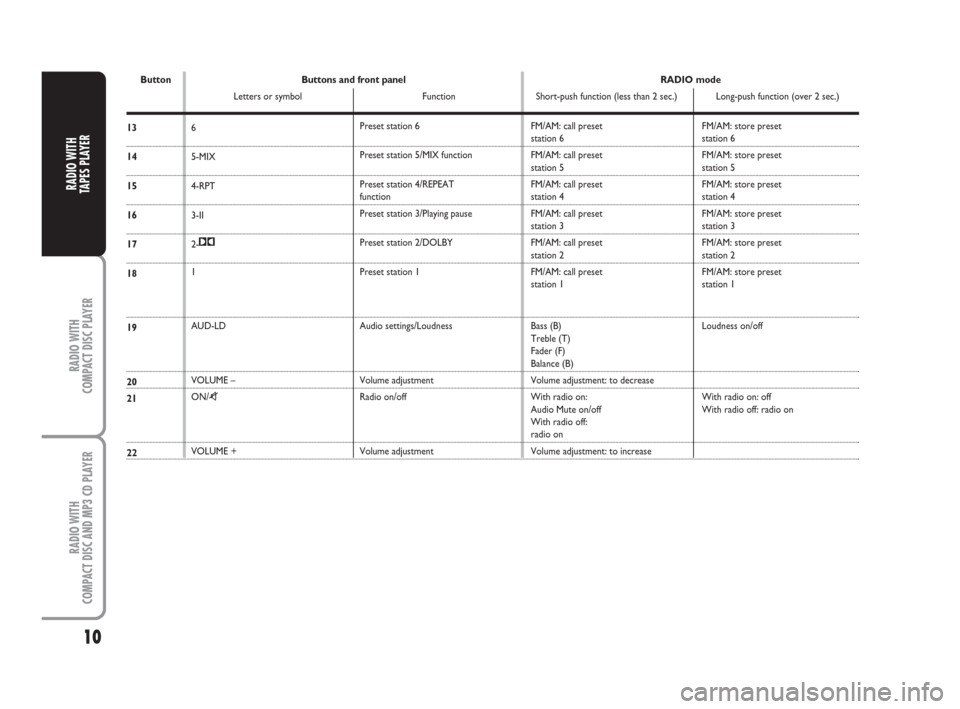

Button Buttons and front panel
Letters or symbol FunctionRADIO mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
001-050 ING 21-06-2007 15:48 Pagina 10

11
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
Tape playing pause on/off
DOLBY B NR on/off
Bass (B)
Treble (T)
Fader (F)
Balance (B)
Volume adjustment: to decrease
Volume adjustment: to increaseDOLBY B NR on/off
Loudness on/offMIX function on/off
REPEAT function on/off
CD playing pause
on/off
DOLBY B NR on/off
Bass (B)
Treble (T)
Fader (F)
Balance (B)
Volume adjustment: to decrease
Volume adjustment: to increaseDOLBY B NR on/off
Loudness on/off

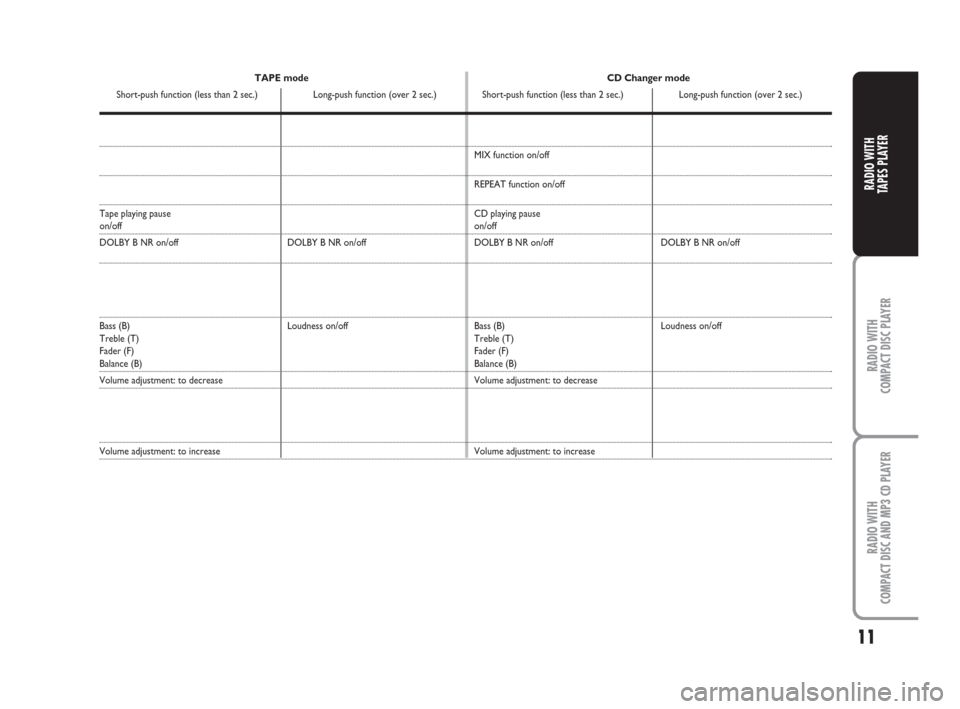

TAPE mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)CD Changer mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
001-050 ING 21-06-2007 15:48 Pagina 11

12
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

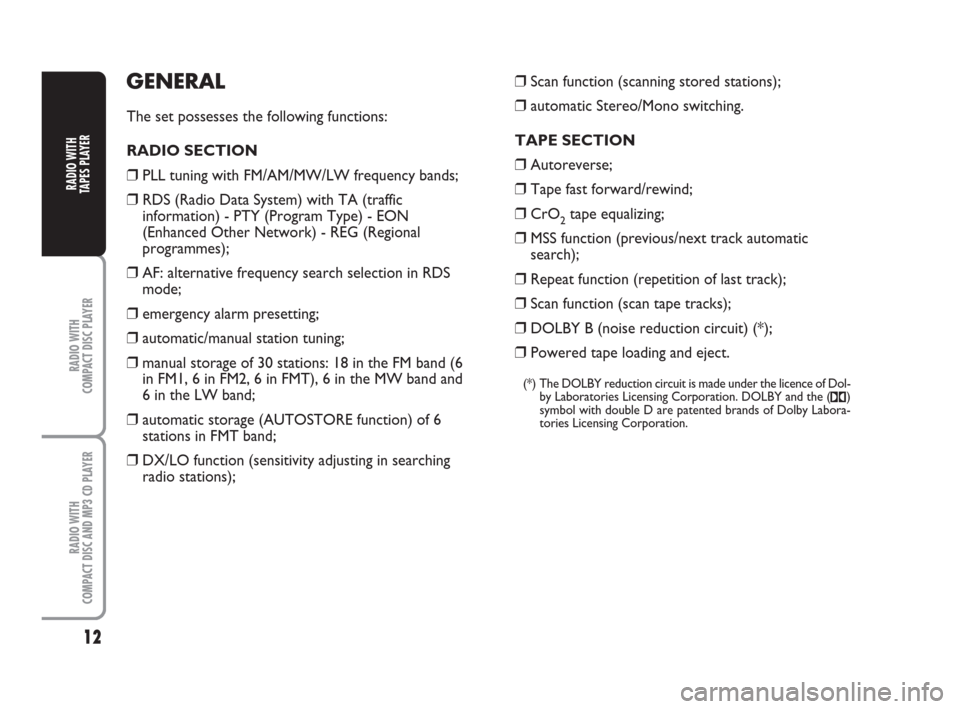

GENERAL
The set possesses the following functions:
RADIO SECTION
❒PLL tuning with FM/AM/MW/LW frequency bands;
❒RDS (Radio Data System) with TA (traffic
information) - PTY (Program Type) - EON
(Enhanced Other Network) - REG (Regional
programmes);
❒AF: alternative frequency search selection in RDS
mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;
❒manual storage of 30 stations: 18 in the FM band (6
in FM1, 6 in FM2, 6 in FMT), 6 in the MW band and
6 in the LW band;
❒automatic storage (AUTOSTORE function) of 6
stations in FMT band;
❒DX/LO function (sensitivity adjusting in searching
radio stations);❒Scan function (scanning stored stations);
❒automatic Stereo/Mono switching.
TAPE SECTION
❒Autoreverse;
❒Tape fast forward/rewind;
❒CrO
2tape equalizing;
❒MSS function (previous/next track automatic
search);
❒Repeat function (repetition of last track);
❒Scan function (scan tape tracks);
❒DOLBY B (noise reduction circuit) (*);
❒Powered tape loading and eject.
(*) The DOLBY reduction circuit is made under the licence of Dol-
by Laboratories Licensing Corporation. DOLBY and the (M)
symbol with double D are patented brands of Dolby Labora-
tories Licensing Corporation.
001-050 ING 21-06-2007 15:48 Pagina 12

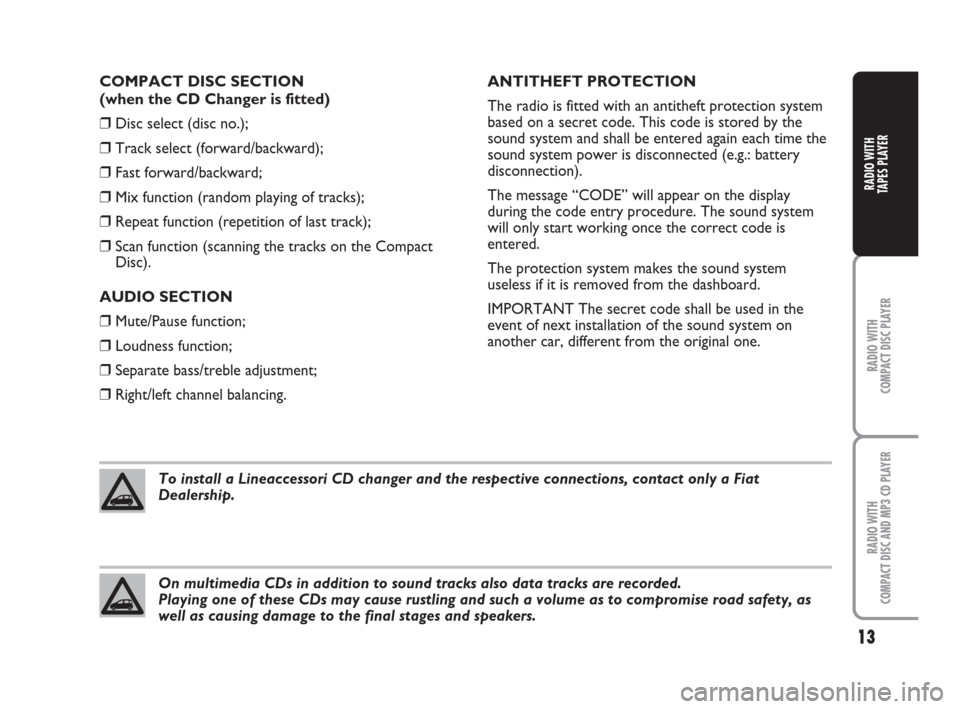

COMPACT DISC SECTION
(when the CD Changer is fitted)
❒Disc select (disc no.);
❒Track select (forward/backward);
❒Fast forward/backward;
❒Mix function (random playing of tracks);
❒Repeat function (repetition of last track);
❒Scan function (scanning the tracks on the Compact
Disc).
AUDIO SECTION
❒Mute/Pause function;
❒Loudness function;
❒Separate bass/treble adjustment;
❒Right/left channel balancing.ANTITHEFT PROTECTION
The radio is fitted with an antitheft protection system
based on a secret code. This code is stored by the
sound system and shall be entered again each time the
sound system power is disconnected (e.g.: battery
disconnection).
The message “CODE” will appear on the display
during the code entry procedure. The sound system
will only start working once the correct code is
entered.
The protection system makes the sound system
useless if it is removed from the dashboard.
IMPORTANT The secret code shall be used in the
event of next installation of the sound system on
another car, different from the original one.
13
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
To install a Lineaccessori CD changer and the respective connections, contact only a Fiat
Dealership.
On multimedia CDs in addition to sound tracks also data tracks are recorded.
Playing one of these CDs may cause rustling and such a volume as to compromise road safety, as
well as causing damage to the final stages and speakers.
001-050 ING 21-06-2007 15:48 Pagina 13

14
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

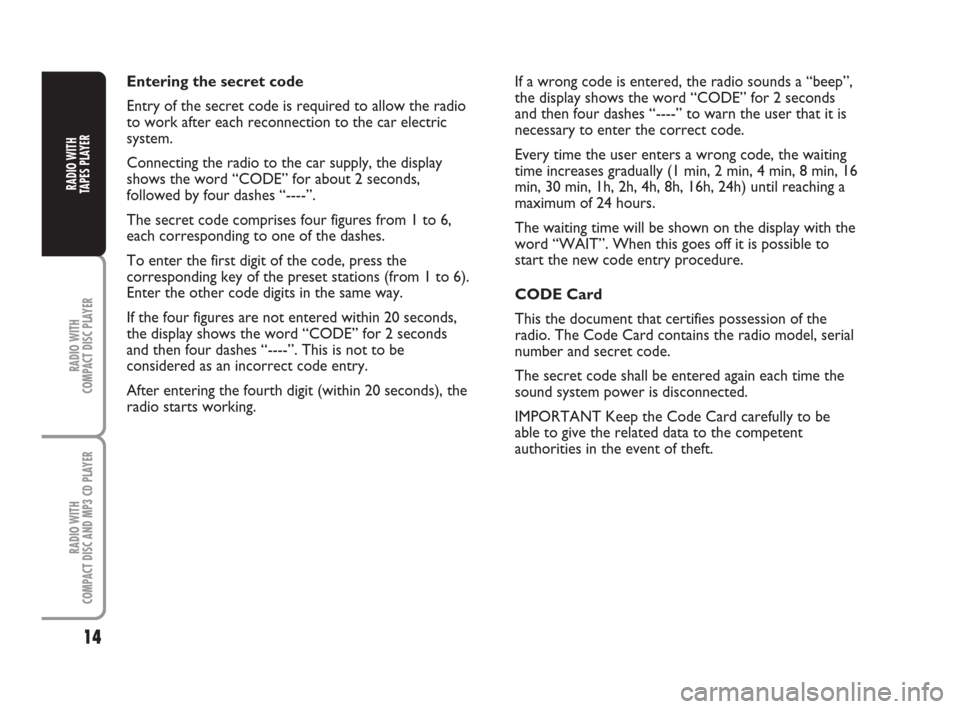

Entering the secret code
Entry of the secret code is required to allow the radio
to work after each reconnection to the car electric
system.
Connecting the radio to the car supply, the display
shows the word “CODE” for about 2 seconds,
followed by four dashes “----”.
The secret code comprises four figures from 1 to 6,
each corresponding to one of the dashes.
To enter the first digit of the code, press the
corresponding key of the preset stations (from 1 to 6).
Enter the other code digits in the same way.
If the four figures are not entered within 20 seconds,
the display shows the word “CODE” for 2 seconds
and then four dashes “----”. This is not to be
considered as an incorrect code entry.
After entering the fourth digit (within 20 seconds), the
radio starts working.If a wrong code is entered, the radio sounds a “beep”,
the display shows the word “CODE” for 2 seconds
and then four dashes “----” to warn the user that it is
necessary to enter the correct code.
Every time the user enters a wrong code, the waiting
time increases gradually (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1h, 2h, 4h, 8h, 16h, 24h) until reaching a
maximum of 24 hours.
The waiting time will be shown on the display with the
word “WAIT”. When this goes off it is possible to
start the new code entry procedure.
CODE Card
This the document that certifies possession of the
radio. The Code Card contains the radio model, serial
number and secret code.
The secret code shall be entered again each time the
sound system power is disconnected.
IMPORTANT Keep the Code Card carefully to be
able to give the related data to the competent
authorities in the event of theft.
001-050 ING 21-06-2007 15:48 Pagina 14

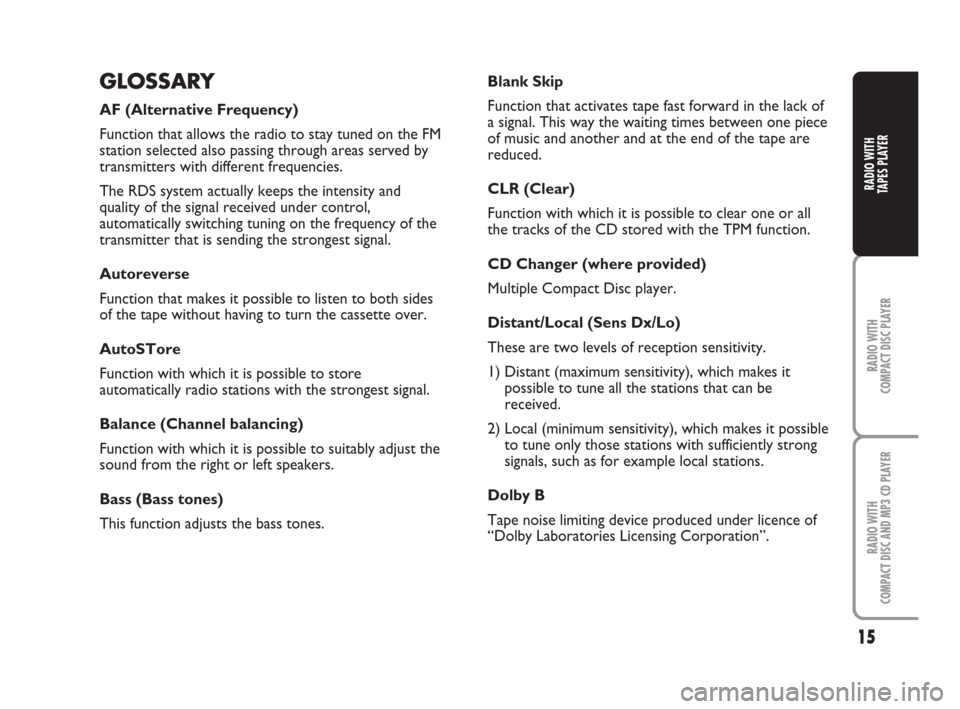

GLOSSARY
AF (Alternative Frequency)
Function that allows the radio to stay tuned on the FM
station selected also passing through areas served by
transmitters with different frequencies.
The RDS system actually keeps the intensity and
quality of the signal received under control,
automatically switching tuning on the frequency of the
transmitter that is sending the strongest signal.
Autoreverse
Function that makes it possible to listen to both sides
of the tape without having to turn the cassette over.
AutoSTore
Function with which it is possible to store
automatically radio stations with the strongest signal.
Balance (Channel balancing)
Function with which it is possible to suitably adjust the
sound from the right or left speakers.
Bass (Bass tones)
This function adjusts the bass tones.Blank Skip
Function that activates tape fast forward in the lack of
a signal. This way the waiting times between one piece
of music and another and at the end of the tape are
reduced.
CLR (Clear)
Function with which it is possible to clear one or all
the tracks of the CD stored with the TPM function.
CD Changer (where provided)
Multiple Compact Disc player.
Distant/Local (Sens Dx/Lo)
These are two levels of reception sensitivity.
1) Distant (maximum sensitivity), which makes it
possible to tune all the stations that can be
received.
2) Local (minimum sensitivity), which makes it possible
to tune only those stations with sufficiently strong
signals, such as for example local stations.
Dolby B
Tape noise limiting device produced under licence of
“Dolby Laboratories Licensing Corporation”.
15
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 15

16
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

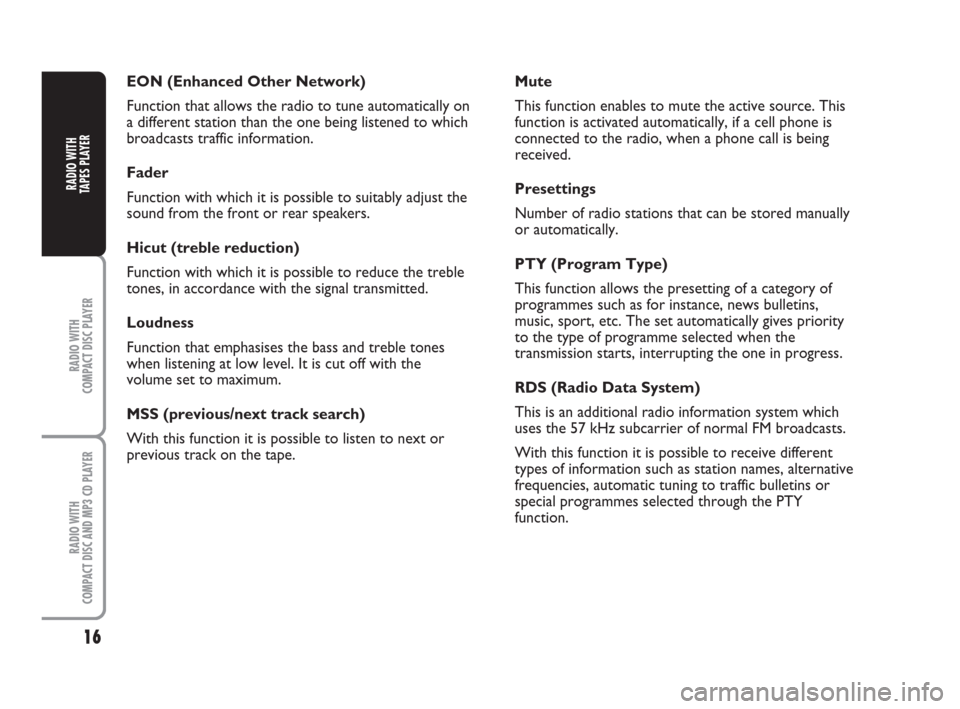

EON (Enhanced Other Network)
Function that allows the radio to tune automatically on
a different station than the one being listened to which
broadcasts traffic information.
Fader
Function with which it is possible to suitably adjust the
sound from the front or rear speakers.
Hicut (treble reduction)
Function with which it is possible to reduce the treble
tones, in accordance with the signal transmitted.
Loudness
Function that emphasises the bass and treble tones
when listening at low level. It is cut off with the
volume set to maximum.
MSS (previous/next track search)
With this function it is possible to listen to next or
previous track on the tape.Mute
This function enables to mute the active source. This
function is activated automatically, if a cell phone is
connected to the radio, when a phone call is being
received.
Presettings
Number of radio stations that can be stored manually
or automatically.
PTY (Program Type)
This function allows the presetting of a category of
programmes such as for instance, news bulletins,
music, sport, etc. The set automatically gives priority
to the type of programme selected when the
transmission starts, interrupting the one in progress.
RDS (Radio Data System)
This is an additional radio information system which
uses the 57 kHz subcarrier of normal FM broadcasts.
With this function it is possible to receive different
types of information such as station names, alternative
frequencies, automatic tuning to traffic bulletins or
special programmes selected through the PTY
function.
001-050 ING 21-06-2007 15:48 Pagina 16

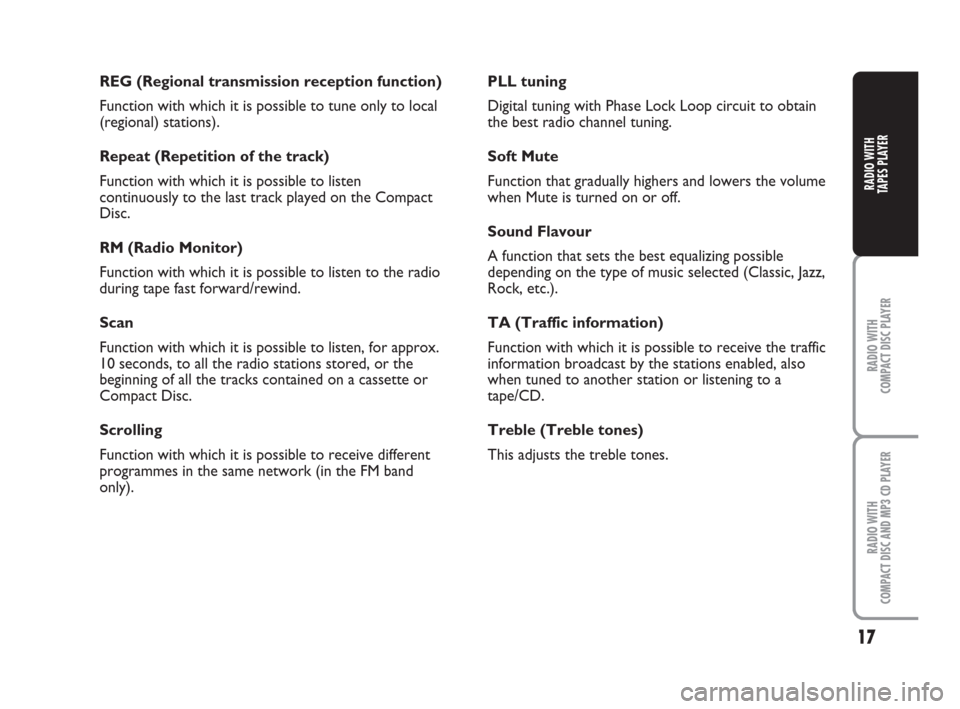

REG (Regional transmission reception function)
Function with which it is possible to tune only to local
(regional) stations).
Repeat (Repetition of the track)
Function with which it is possible to listen
continuously to the last track played on the Compact
Disc.
RM (Radio Monitor)
Function with which it is possible to listen to the radio
during tape fast forward/rewind.
Scan
Function with which it is possible to listen, for approx.
10 seconds, to all the radio stations stored, or the
beginning of all the tracks contained on a cassette or
Compact Disc.
Scrolling
Function with which it is possible to receive different
programmes in the same network (in the FM band
only).PLL tuning
Digital tuning with Phase Lock Loop circuit to obtain
the best radio channel tuning.
Soft Mute
Function that gradually highers and lowers the volume
when Mute is turned on or off.
Sound Flavour
A function that sets the best equalizing possible
depending on the type of music selected (Classic, Jazz,
Rock, etc.).
TA (Traffic information)
Function with which it is possible to receive the traffic
information broadcast by the stations enabled, also
when tuned to another station or listening to a
tape/CD.
Treble (Treble tones)
This adjusts the treble tones.
17
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER
001-050 ING 21-06-2007 15:48 Pagina 17

18
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
TAPES PLAYER

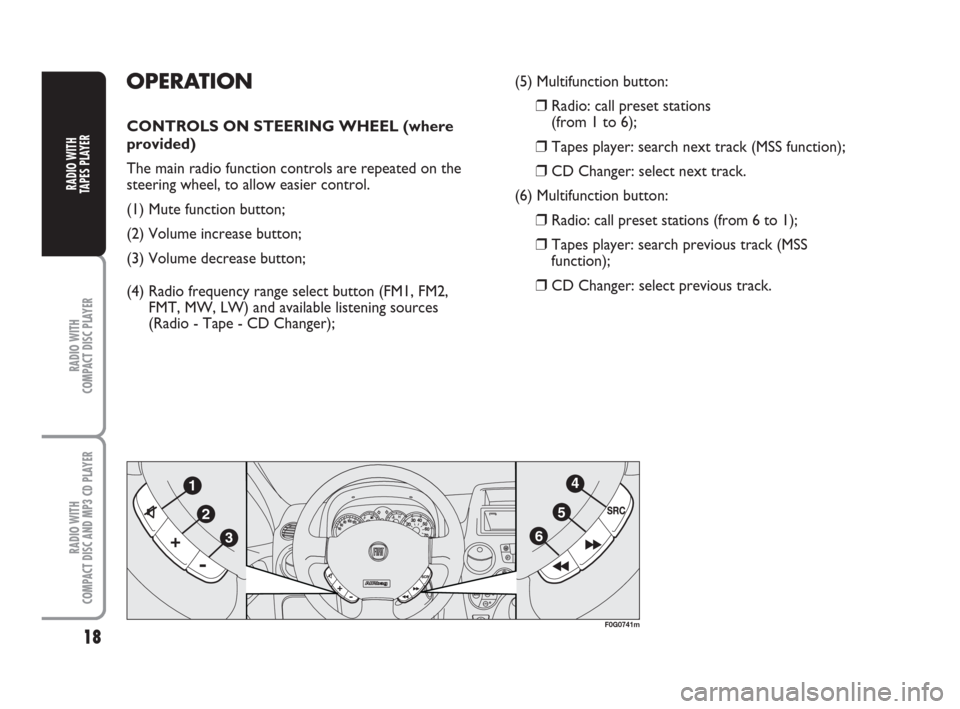

OPERATION
CONTROLS ON STEERING WHEEL (where
provided)
The main radio function controls are repeated on the
steering wheel, to allow easier control.
(1) Mute function button;
(2) Volume increase button;
(3) Volume decrease button;
(4) Radio frequency range select button (FM1, FM2,
FMT, MW, LW) and available listening sources
(Radio - Tape - CD Changer);(5) Multifunction button:
❒Radio: call preset stations
(from 1 to 6);
❒Tapes player: search next track (MSS function);
❒CD Changer: select next track.
(6) Multifunction button:
❒Radio: call preset stations (from 6 to 1);
❒Tapes player: search previous track (MSS
function);
❒CD Changer: select previous track.
CHF
E
1
2
3
4
5
6
F0G0741m
001-050 ING 21-06-2007 15:48 Pagina 18

Multifunction buttons (5) and (6)
The multifunction buttons (5) and (6) call the preset
radio stations, seek the next/previous piece when
listening to a tape (MSS function) or select the
next/previous piece when listening to a Compact Disc.
Press button (5) to choose stations from 1 to 6 or to
listen to the next track on a tape or CD.
Press button (6) to choose stations from 6 to 1 or to
listen to the previous track on a tape or CD.
19
RADIO WITH
COMPACT DISC AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
RADIO WITH
TAPES PLAYER

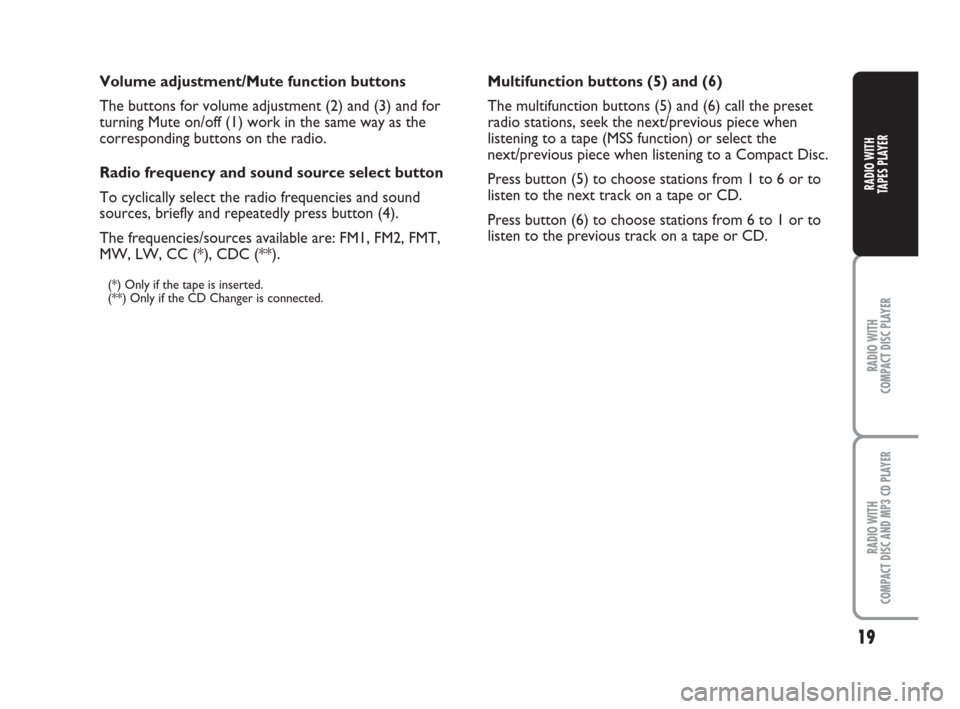

Volume adjustment/Mute function buttons
The buttons for volume adjustment (2) and (3) and for
turning Mute on/off (1) work in the same way as the
corresponding buttons on the radio.
Radio frequency and sound source select button
To cyclically select the radio frequencies and sound
sources, briefly and repeatedly press button (4).
The frequencies/sources available are: FM1, FM2, FMT,
MW, LW, CC (*), CDC (**).
(*) Only if the tape is inserted.
(**) Only if the CD Changer is connected.
001-050 ING 21-06-2007 15:48 Pagina 19
