FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 1
FIAT PANDA 4 x 4
This Supplement describes the main fea-
tures of Fiat Panda 4 x 4 versions togeth-
er with a few instructions for use. For all
the other information not contained here-
in, refer to

Page 3 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 2

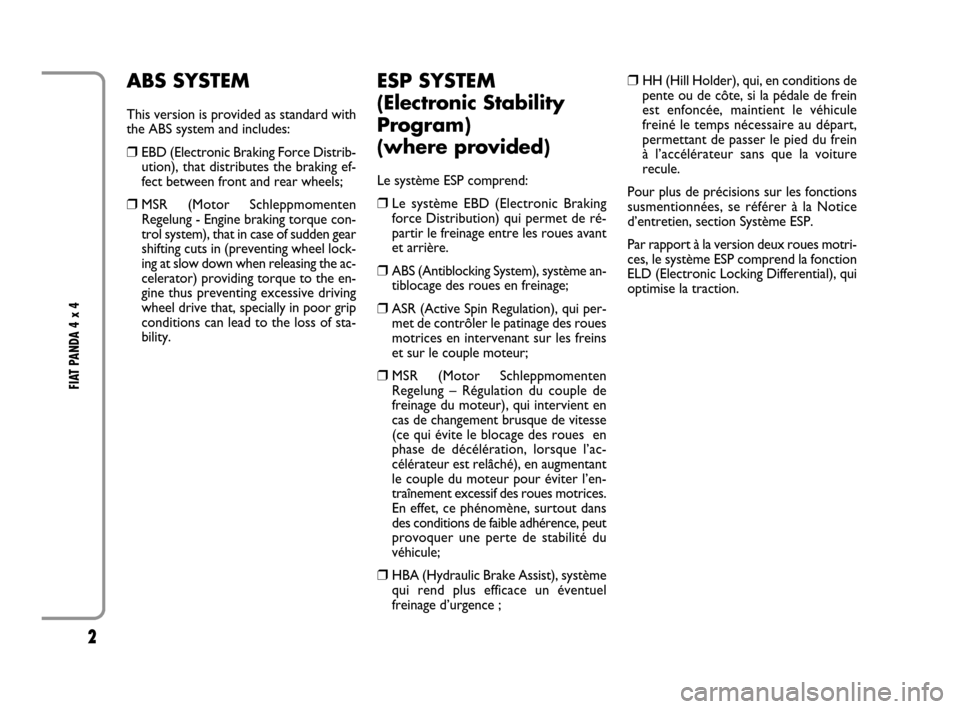

FIAT PANDA 4 x 4
ESP SYSTEM
(Electronic Stability
Program)
(where provided)
Le système ESP comprend:
❒Le système EBD (Electronic Braking
force Distribution) qui permet de ré-
partir le frein

Page 4 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 3

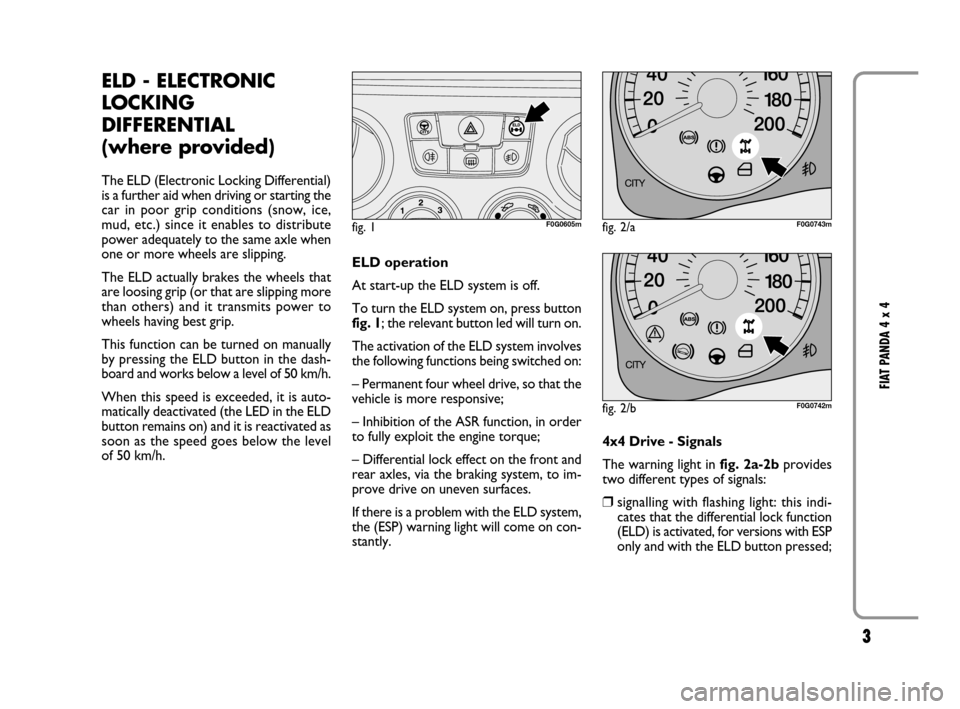

FIAT PANDA 4 x 4
ELD - ELECTRONIC
LOCKING
DIFFERENTIAL
(where provided)
The ELD (Electronic Locking Differential)
is a further aid when driving or starting the
car in poor grip conditions (snow, ice

Page 5 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 4

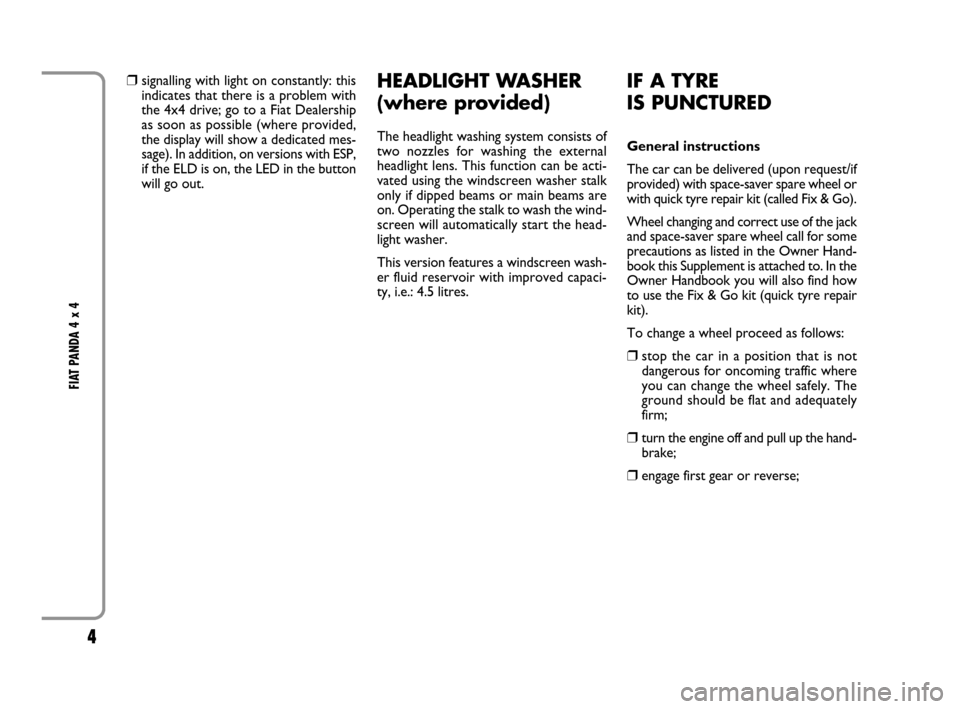

FIAT PANDA 4 x 4
❒signalling with light on constantly: this
indicates that there is a problem with
the 4x4 drive; go to a Fiat Dealership
as soon as possible (where provided,
the display will sho

Page 6 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 5

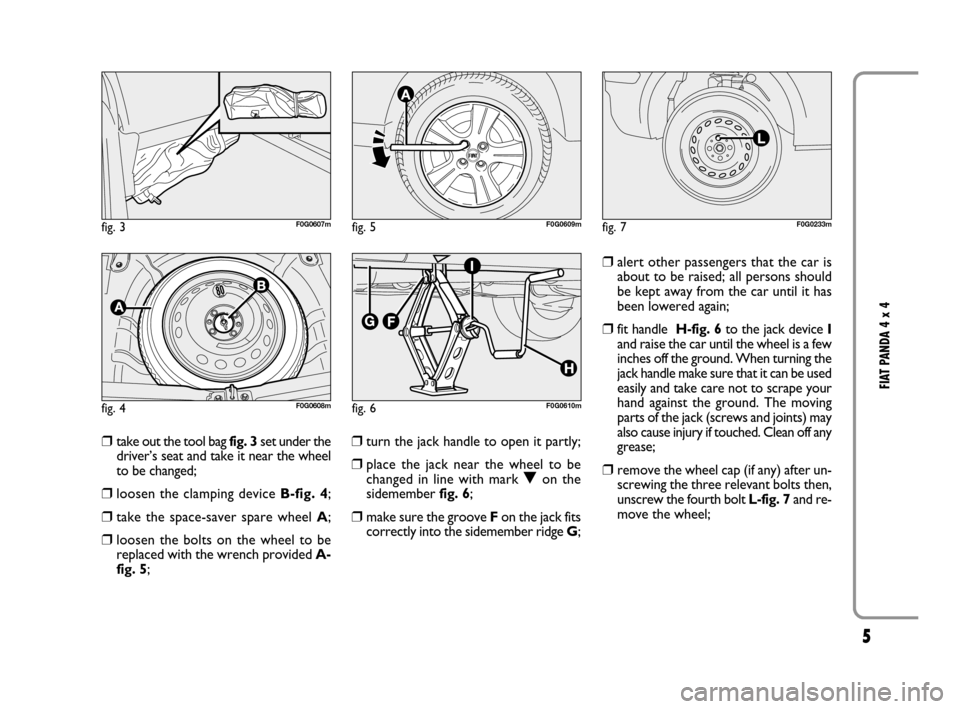

FIAT PANDA 4 x 4
❒take out the tool bag fig. 3set under the
driver’s seat and take it near the wheel
to be changed;
❒loosen the clamping device B-fig. 4;
❒take the space-saver spare wheel A;

Page 7 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 6

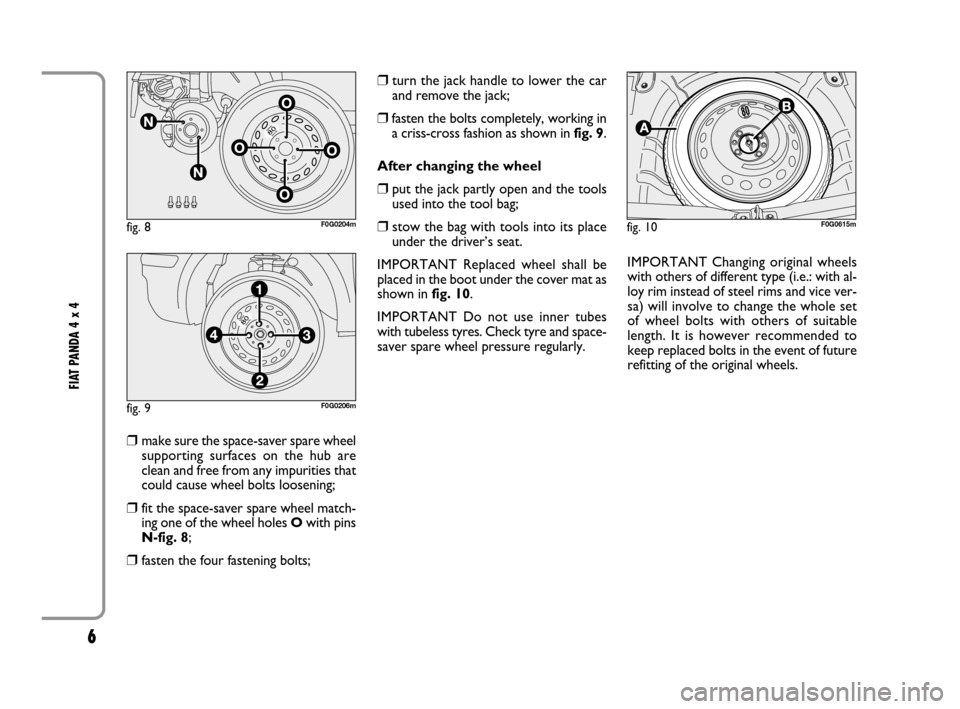

FIAT PANDA 4 x 4
❒make sure the space-saver spare wheel
supporting surfaces on the hub are
clean and free from any impurities that
could cause wheel bolts loosening;
❒fit the space-saver spare

Page 8 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 7

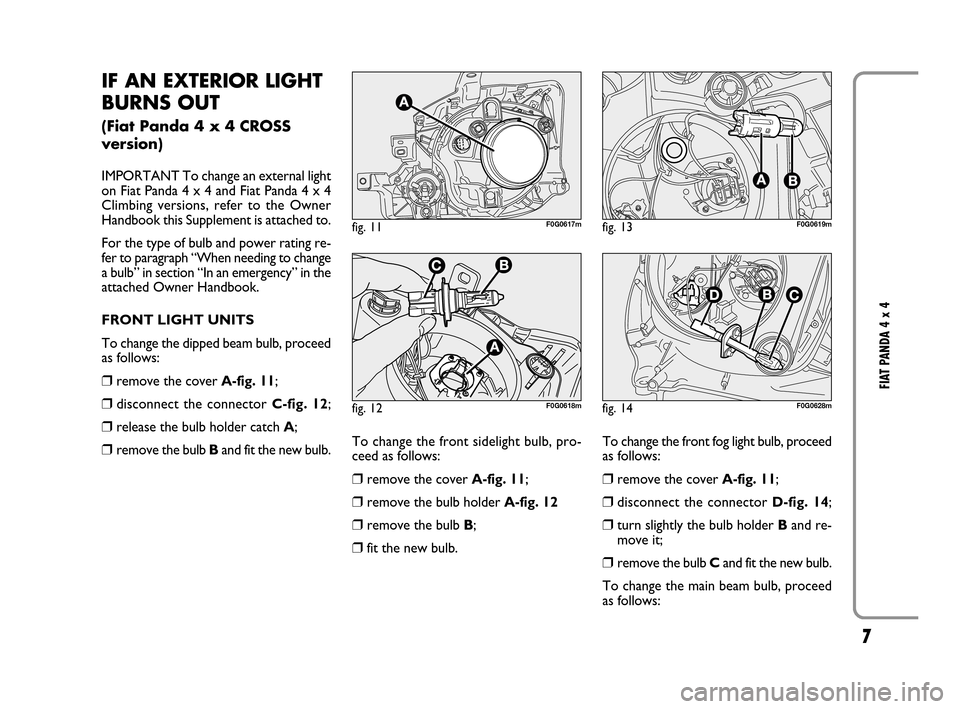

FIAT PANDA 4 x 4
IF AN EXTERIOR LIGHT
BURNS OUT
(Fiat Panda 4 x 4 CROSS
version)
IMPORTANT To change an external light
on Fiat Panda 4 x 4 and Fiat Panda 4 x 4
Climbing versions, refer to the Owner

Page 9 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 8

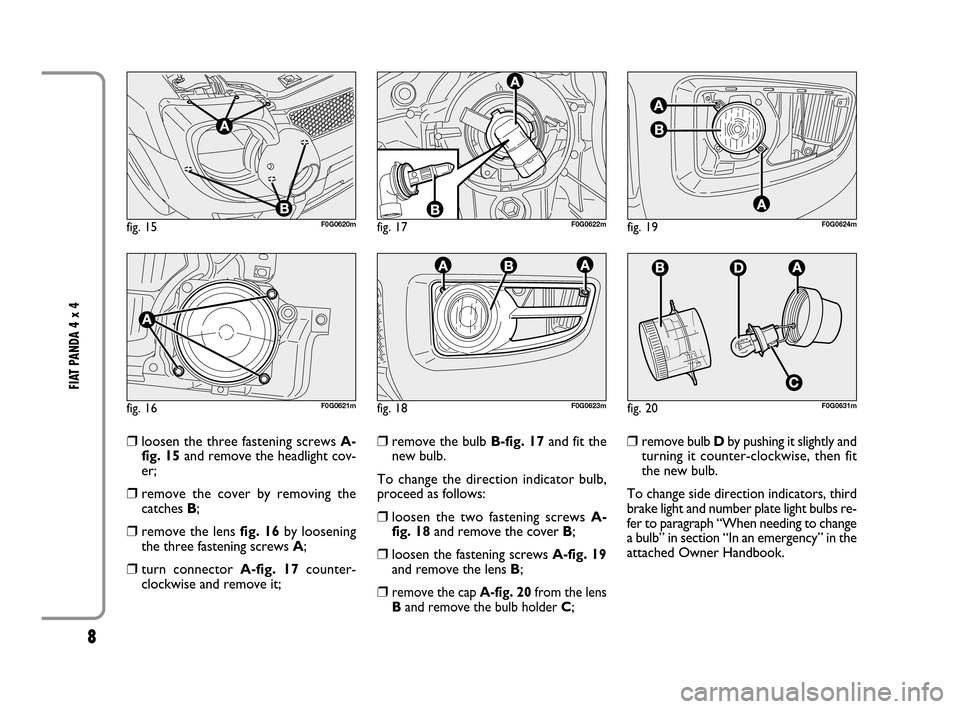

FIAT PANDA 4 x 4
❒loosen the three fastening screws A-
fig. 15and remove the headlight cov-
er;
❒remove the cover by removing the
catches B;
❒remove the lens fig. 16by loosening
the three fas

Page 10 of 26

FIAT PANDA 2008 169 / 2.G 4x4 Supplement Manual 9

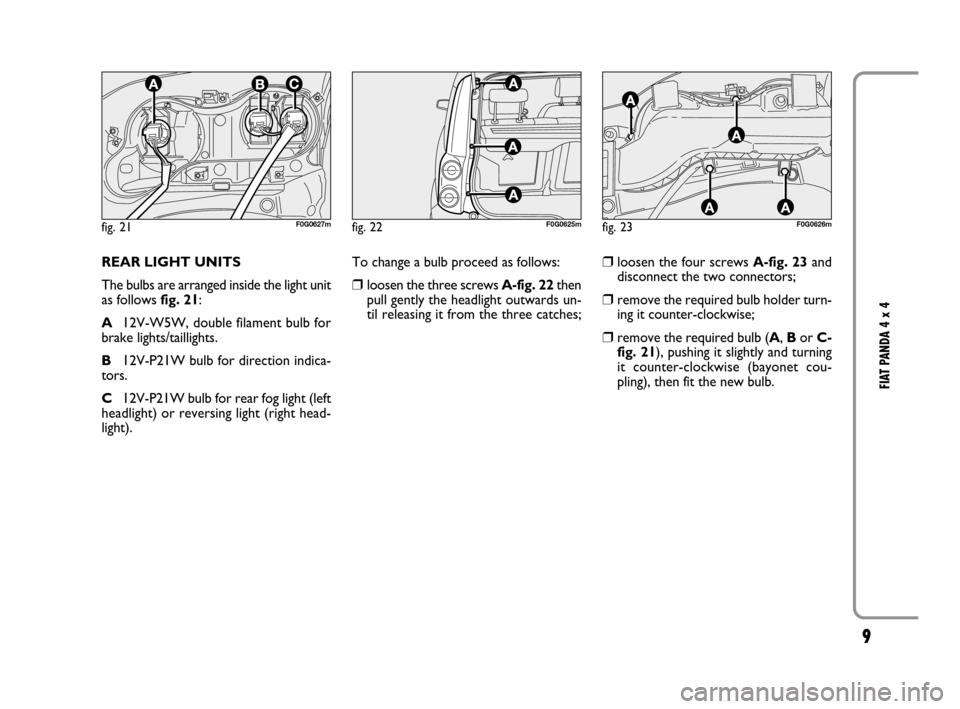

FIAT PANDA 4 x 4
REAR LIGHT UNITS
The bulbs are arranged inside the light unit
as follows fig. 21:
A12V-W5W, double filament bulb for
brake lights/taillights.
B12V-P21W bulb for direction indica-
to
