display FIAT PANDA 2009 169 / 2.G Owners Manual

REFUELLING
Petrol engines: only refuel with unleaded petrol with oc-
tane rating (RON) not less than 95 in compliance with
the European Standard EN 228.
Diesel engines: only refuel with diesel fuel for motor
vehicles in compliance with the European Standard
EN 590. The use of other products or mixtures may
damage the engine beyond repair and consequently
invalidate the warranty, due to the damage caused.
STARTING THE ENGINE
Petrol engines: make sure that the handbrake is engaged;
set the gearshift lever to neutral; fully depress the clutch
pedal without pressing the accelerator, then turn the ig-
nition key to AVV and release it as soon as the engine has
started.
Diesel engines: turn the ignition key to MAR and wait for
the warning lights Y(or symbol on the display) and m
to go off. Then, turn the ignition key to AVV and release
it as soon as the engine has started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures
during operation. Do not park the car on grass, dry
leaves, pine needles or other flammable material: fire
hazard.
RESPECTING THE ENVIRONMENT
The car is fitted with a system that allows continuous
diagnosis of the components correlated with emissions
to ensure better respect for the environment.K
ELECTRICAL ACCESSORIES
If, after buying the car, you decide to add electrical ac-
cessories (with the risk of gradually draining the bat-
tery), contact a Fiat Dealership. They can calculate the
overall electrical requirement and check that the ve-
hicle electric system can support the required load.
CODE card
Keep the card in a safe place, not in the car. Make sure
you have the electronic code written on the CODE
card with you at all times.
SCHEDULED SERVICING
Correct car servicing is essential for ensuring it stays in
tip-top condition and safeguards its safety features, its
environmental friendliness and low running costs for
a long time to come.
THE OWNER HANDBOOK CONTAINS…
... important information, tips and warnings for correct
use, driving safety and maintenance of your car over
time. Pay special attention to the symbols
"
(person-
al safety)
#
(environmental protection)
!
(the car’s
wellbeing).
READ THIS CAREFULLY!

001-030 PANDA EN 7-10-2009 13:39 Pagina 2

8
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0682m
fig. 7
When a speed of over 20 km/h is reached, the doors will
be automatically locked if this specific function was set (on-
ly on versions with multifunction reconfigurable display).
Opening the tailgate by the remote control
Press and keep button
R
pressed for over one second
to open (unlock) the tailgate by remote control.
The tailgate opening is indicated by double flashing of
direction indicators.
IMPORTANT If the remote control does not work prop-
erly, it is still possible to carry out the above mentioned
operations by using the metal insert of the key.
REQUEST FOR ADDITIONAL
REMOTE
CONTROLS
The system can recognise up to 8 keys with incorporat-
ed remote control. Should a new key with remote con-
trol be necessary, contact a Fiat Dealership, taking with
you the CODE card, a personal identity document and the
car’s ownership documents. Unlocking the doors and the tailgate
Briefly press button
Ë: for unlocking of doors and tail-
gate, timed switching-on of internal lights and double flash-
ing of direction indicators (for versions/markets where
provided).
Doors will be unlocked automatically if the fuel inertia
cut-off switch comes into operation.
Locking the doors and the tailgate
Briefly press button Á: for remote locking of doors and
tailgate, switching-off of the internal ceiling lights and sin-
gle flashing of direction indicators (for versions/markets
where provided).
If one of the doors remains open, all doors will be closed
and immediately re-opened and the command is reject-
ed, signalled by the direction indicators flashing; in this case
check that all of the doors are properly locked and repeat
the locking operation.
001-030 PANDA EN 7-10-2009 13:39 Pagina 8

11KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
INSTRUMENT PANEL
F0Z0250mF0Z0251m
Actual-Active VERSIONS
A Fuel gauge with reserve warning
light
B Speedometer (speed indicator)
C Engine coolant temperature gauge
with excess temperature warning
light
D Digital display.
Warning lights
m
and
c
are only
provided on Diesel versions.
fig. 11 – Left-hand drive versions
fig. 12 – Right-hand drive versions
001-030 PANDA EN 7-10-2009 13:39 Pagina 11

12
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0252mF0Z0253m

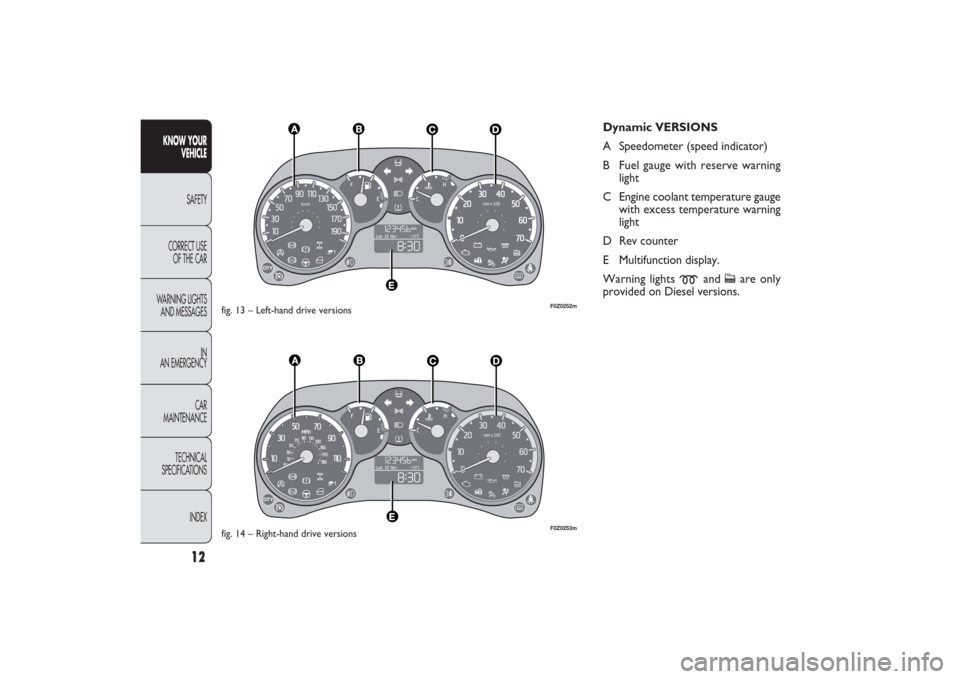

Dynamic VERSIONS
A Speedometer (speed indicator)
B Fuel gauge with reserve warning
light
C Engine coolant temperature gauge
with excess temperature warning
light
D Rev counter
E Multifunction display.
Warning lights
m
and
c
are only
provided on Diesel versions.
fig. 13 – Left-hand drive versions
fig. 14 – Right-hand drive versions
001-030 PANDA EN 7-10-2009 13:39 Pagina 12

13KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0635mF0Z0636m

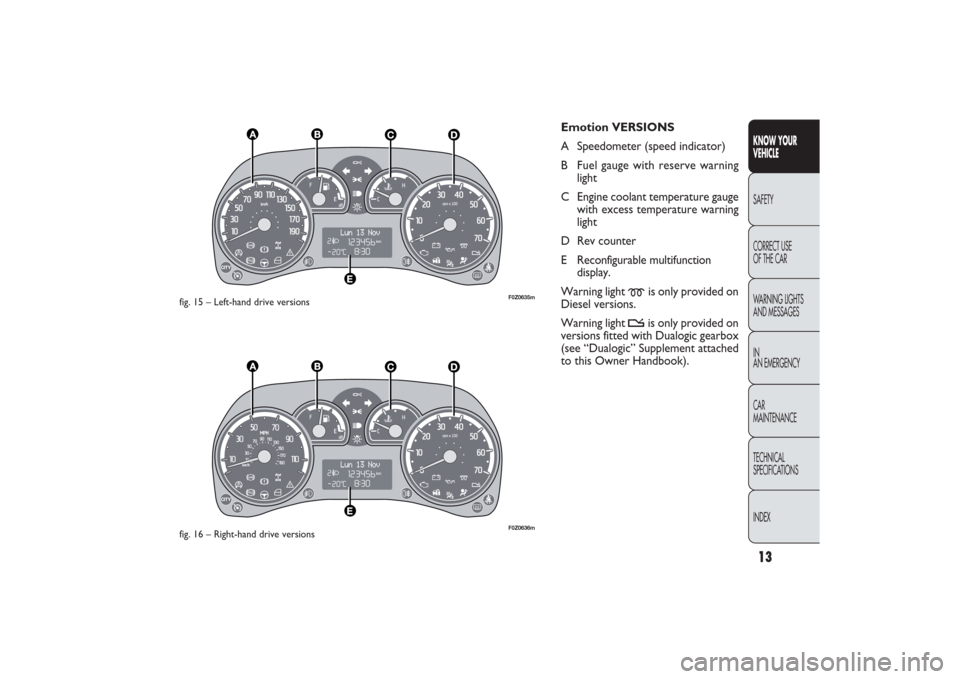

Emotion VERSIONS
A Speedometer (speed indicator)
B Fuel gauge with reserve warning
light
C Engine coolant temperature gauge
with excess temperature warning
light
D Rev counter
E Reconfigurable multifunction
display.
Warning light
m
is only provided on
Diesel versions.
Warning light
t
is only provided on
versions fitted with Dualogic gearbox
(see “Dualogic” Supplement attached
to this Owner Handbook).
fig. 15 – Left-hand drive versions
fig. 16 – Right-hand drive versions
001-030 PANDA EN 7-10-2009 13:39 Pagina 13

15KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0148m
fig. 19

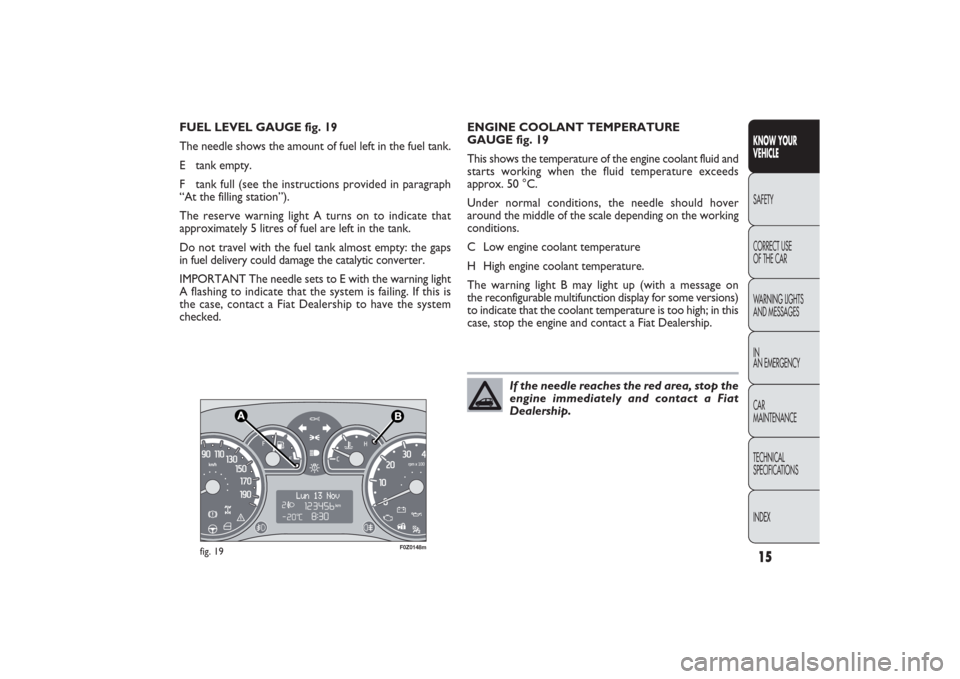

ENGINE COOLANT TEMPERATURE
GAUGE fig. 19
This shows the temperature of the engine coolant fluid and
starts working when the fluid temperature exceeds
approx. 50 °C.
Under normal conditions, the needle should hover
around the middle of the scale depending on the working
conditions.
C Low engine coolant temperature
H High engine coolant temperature.
The warning light B may light up (with a message on
the reconfigurable multifunction display for some versions)
to indicate that the coolant temperature is too high; in this
case, stop the engine and contact a Fiat Dealership. FUEL LEVEL GAUGE fig. 19
The needle shows the amount of fuel left in the fuel tank.
E tank empty.
F tank full (see the instructions provided in paragraph
“At the filling station”).
The reserve warning light A turns on to indicate that
approximately 5 litres of fuel are left in the tank.
Do not travel with the fuel tank almost empty: the gaps
in fuel delivery could damage the catalytic converter.
IMPORTANT The needle sets to E with the warning light
A flashing to indicate that the system is failing. If this is
the case, contact a Fiat Dealership to have the system
checked.
If the needle reaches the red area, stop the
engine immediately and contact a Fiat
Dealership.
001-030 PANDA EN 7-10-2009 13:39 Pagina 15

16
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0015m
fig. 20
F0Z0027m
fig. 21

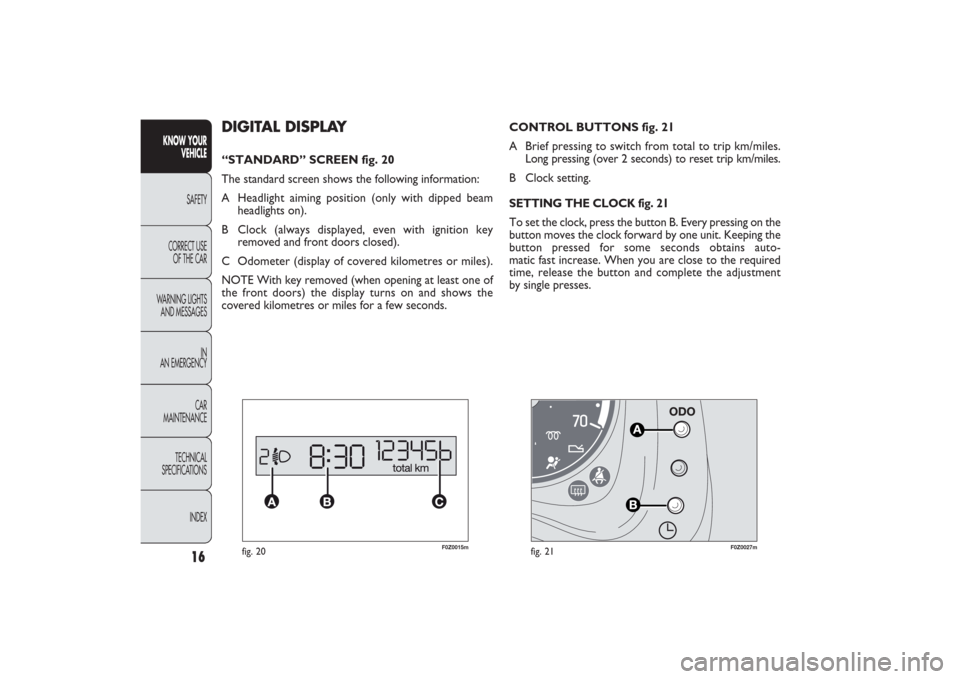

CONTROL BUTTONS fig. 21
A Brief pressing to switch from total to trip km/miles.
Long pressing (over 2 seconds) to reset trip km/miles.
B Clock setting.SETTING THE CLOCK fig. 21To set the clock, press the button B. Every pressing on the
button moves the clock forward by one unit. Keeping the
button pressed for some seconds obtains auto-
matic fast increase. When you are close to the required
time, release the button and complete the adjustment
by single presses.
DIGITAL DISPLAY“STANDARD” SCREEN fig. 20
The standard screen shows the following information:
A Headlight aiming position (only with dipped beam
headlights on).
B Clock (always displayed, even with ignition key
removed and front doors closed).
C Odometer (display of covered kilometres or miles).
NOTE With key removed (when opening at least one of
the front doors) the display turns on and shows the
covered kilometres or miles for a few seconds.
001-030 PANDA EN 7-10-2009 13:39 Pagina 16

17KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0185m
fig. 22
F0Z0016m
fig. 23

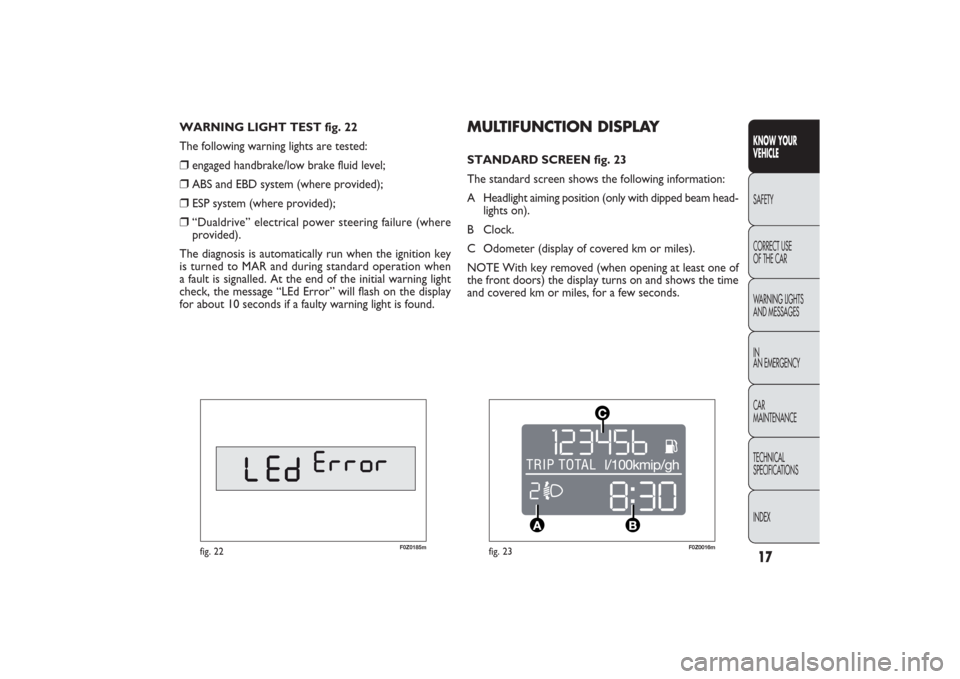

MULTIFUNCTION DISPLAY STANDARD SCREEN fig. 23
The standard screen shows the following information:
A Headlight aiming position (only with dipped beam head-
lights on).
B Clock.
C Odometer (display of covered km or miles).
NOTE With key removed (when opening at least one of
the front doors) the display turns on and shows the time
and covered km or miles, for a few seconds. WARNING LIGHT TEST fig. 22
The following warning lights are tested:
❒
engaged handbrake/low brake fluid level;
❒
ABS and EBD system (where provided);
❒
ESP system (where provided);
❒
“Dualdrive” electrical power steering failure (where
provided).
The diagnosis is automatically run when the ignition key
is turned to MAR and during standard operation when
a fault is signalled. At the end of the initial warning light
check, the message “LEd Error” will flash on the display
for about 10 seconds if a faulty warning light is found.
001-030 PANDA EN 7-10-2009 13:39 Pagina 17

18
KNOW YOUR
VEHICLE
SAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0I0142m
fig. 24
F0Z0152m
fig. 25

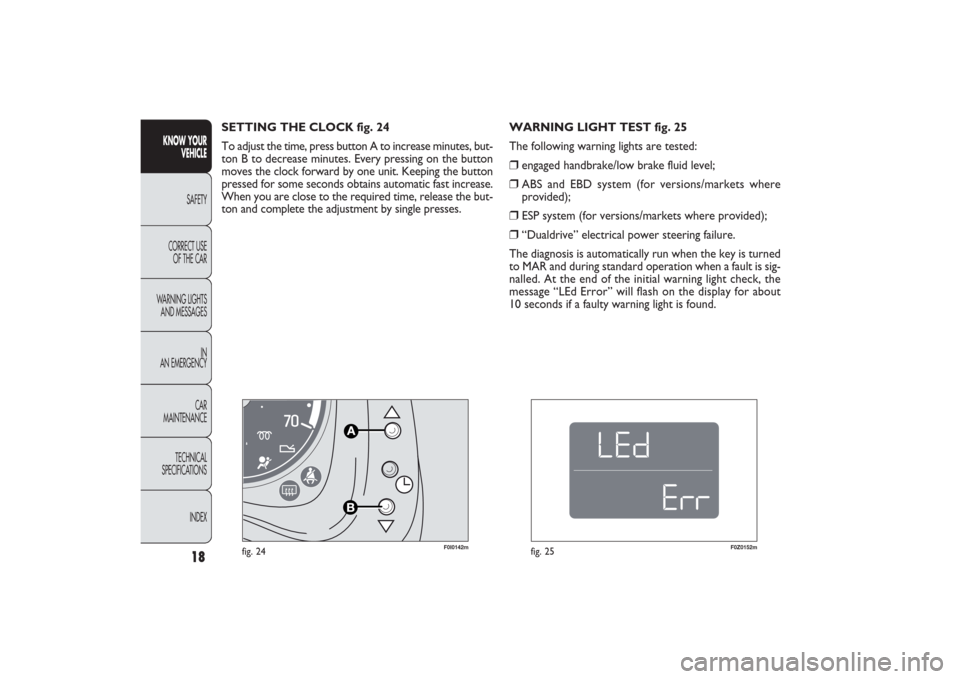

WARNING LIGHT TEST fig. 25
The following warning lights are tested:❒
engaged handbrake/low brake fluid level;
❒
ABS and EBD system (for versions/markets where
provided);
❒
ESP system (for versions/markets where provided);
❒
“Dualdrive” electrical power steering failure.
The diagnosis is automatically run when the key is turned
to MAR and during standard operation when a fault is sig-
nalled. At the end of the initial warning light check, the
message “LEd Error” will flash on the display for about
10 seconds if a faulty warning light is found. SETTING THE CLOCK fig. 24
To adjust the time, press button A to increase minutes, but-
ton B to decrease minutes. Every pressing on the button
moves the clock forward by one unit. Keeping the button
pressed for some seconds obtains automatic fast increase.
When you are close to the required time, release the but-
ton and complete the adjustment by single presses.
001-030 PANDA EN 7-10-2009 13:39 Pagina 18

19KNOW YOUR
VEHICLESAFETY
CORRECT USE
OF THE CAR
WARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0017m
fig. 26
F0Z0630m
fig. 27
NOTE When opening one of the front doors, the display
will turn on and show for a few seconds the clock and
the kilometres or miles covered.
CONTROL BUTTONS fig. 27+
To scroll the displayed menu and the related options
upwards or to increase the value displayed.
MODE
Press briefly to enter the menu and/or go to the
next screen or to confirm the required menu
option.
Hold pressed to go back to the standard screen.
–
To scroll the displayed menu and the related options
downwards or to decrease the value displayed.
NOTE Buttons + and − activate different functions ac-
cording to the following situations:

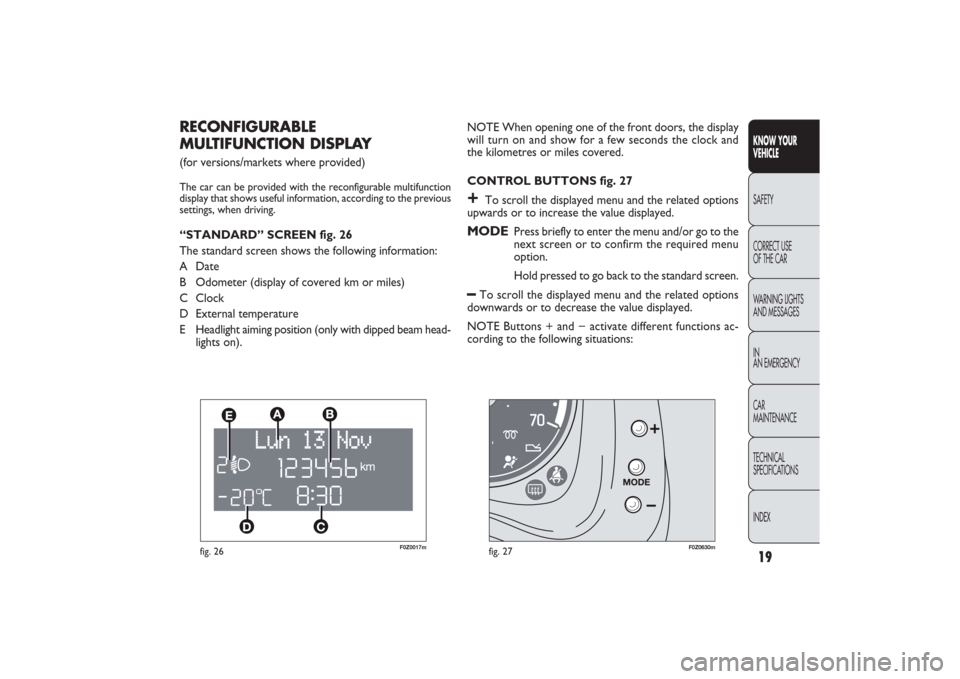

RECONFIGURABLE
MULTIFUNCTION DISPLAY (for versions/markets where provided)The car can be provided with the reconfigurable multifunction
display that shows useful information, according to the previous
settings, when driving.“STANDARD” SCREEN fig. 26
The standard screen shows the following information:
A Date
B Odometer (display of covered km or miles)
C Clock
D External temperature
E Headlight aiming position (only with dipped beam head-
lights on).
001-030 PANDA EN 7-10-2009 13:39 Pagina 19
