FIAT PANDA 2009 169 / 2.G Adventure Supplement Manual
Manufacturer: FIAT, Model Year: 2009, Model line: PANDA, Model: FIAT PANDA 2009 169 / 2.GPages: 20, PDF Size: 0.33 MB
Page 1 of 20
ADVENTURE
FIATPANDA
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 1
Page 2 of 20
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 2
Page 3 of 20
3
FIAT PANDA ADVENTURE

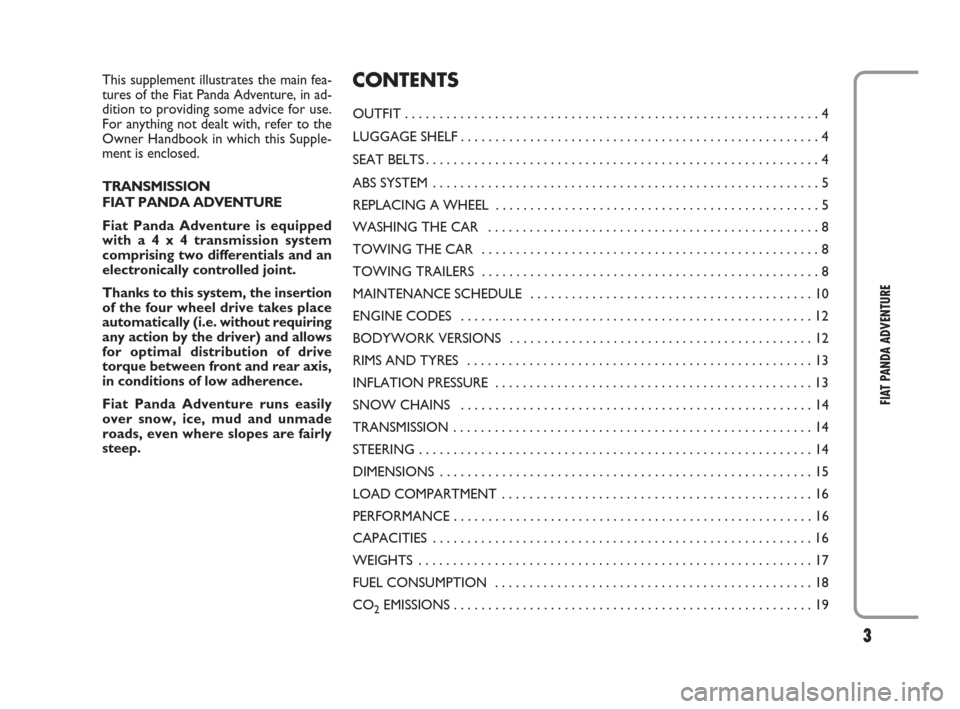

This supplement illustrates the main fea-
tures of the Fiat Panda Adventure, in ad-
dition to providing some advice for use.
For anything not dealt with, refer to the
Owner Handbook in which this Supple-
ment is enclosed.
TRANSMISSION
FIAT PANDA ADVENTURE
Fiat Panda Adventure is equipped
with a 4 x 4 transmission system
comprising two differentials and an
electronically controlled joint.
Thanks to this system, the insertion
of the four wheel drive takes place
automatically (i.e. without requiring
any action by the driver) and allows
for optimal distribution of drive
torque between front and rear axis,
in conditions of low adherence.
Fiat Panda Adventure runs easily
over snow, ice, mud and unmade
roads, even where slopes are fairly
steep.CONTENTS
OUTFIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LUGGAGE SHELF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SEAT BELTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ABS SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
REPLACING A WHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
WASHING THE CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TOWING THE CAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TOWING TRAILERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ENGINE CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
BODYWORK VERSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
RIMS AND TYRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
INFLATION PRESSURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SNOW CHAINS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TRANSMISSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STEERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LOAD COMPARTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FUEL CONSUMPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CO
2EMISSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 3
Page 4 of 20
4
FIAT PANDA ADVENTURE

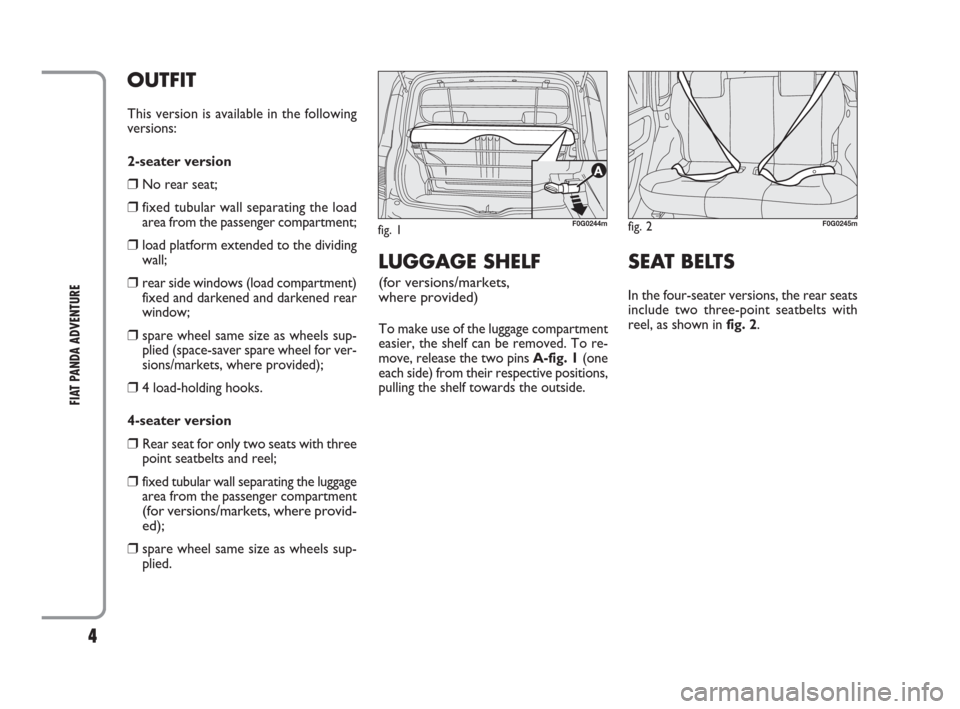

OUTFIT
This version is available in the following
versions:
2-seater version
❒No rear seat;
❒fixed tubular wall separating the load
area from the passenger compartment;
❒load platform extended to the dividing
wall;
❒rear side windows (load compartment)
fixed and darkened and darkened rear
window;
❒spare wheel same size as wheels sup-
plied (space-saver spare wheel for ver-
sions/markets, where provided);
❒4 load-holding hooks.
4-seater version
❒Rear seat for only two seats with three
point seatbelts and reel;
❒fixed tubular wall separating the luggage
area from the passenger compartment
(for versions/markets, where provid-
ed);
❒spare wheel same size as wheels sup-
plied.
SEAT BELTS
In the four-seater versions, the rear seats
include two three-point seatbelts with
reel, as shown in fig. 2.
fig. 1F0G0244mfig. 2F0G0245m
LUGGAGE SHELF
(for versions/markets,
where provided)
To make use of the luggage compartment
easier, the shelf can be removed. To re-
move, release the two pins A-fig. 1(one
each side) from their respective positions,
pulling the shelf towards the outside.
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 4
Page 5 of 20
5
FIAT PANDA ADVENTURE

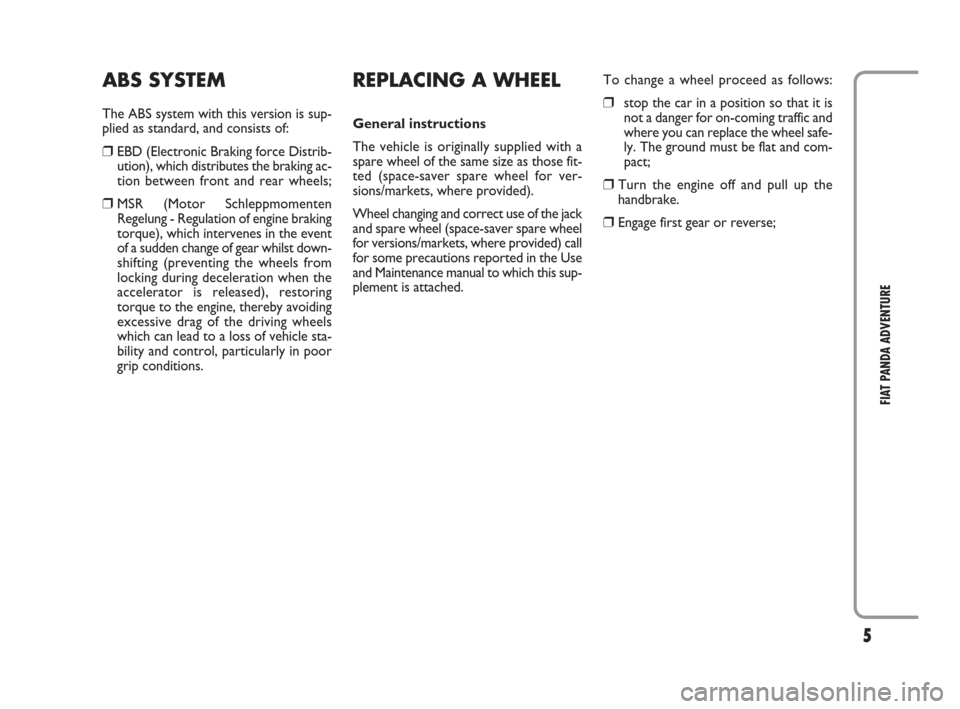

ABS SYSTEM
The ABS system with this version is sup-
plied as standard, and consists of:
❒EBD (Electronic Braking force Distrib-
ution), which distributes the braking ac-
tion between front and rear wheels;
❒MSR (Motor Schleppmomenten
Regelung - Regulation of engine braking
torque), which intervenes in the event
of a sudden change of gear whilst down-
shifting (preventing the wheels from
locking during deceleration when the
accelerator is released), restoring
torque to the engine, thereby avoiding
excessive drag of the driving wheels
which can lead to a loss of vehicle sta-
bility and control, particularly in poor
grip conditions.
REPLACING A WHEEL
General instructions
The vehicle is originally supplied with a
spare wheel of the same size as those fit-
ted (space-saver spare wheel for ver-
sions/markets, where provided).
Wheel changing and correct use of the jack
and spare wheel (space-saver spare wheel
for versions/markets, where provided) call
for some precautions reported in the Use
and Maintenance manual to which this sup-
plement is attached.To change a wheel proceed as follows:
❒stop the car in a position so that it is
not a danger for on-coming traffic and
where you can replace the wheel safe-
ly. The ground must be flat and com-
pact;
❒Turn the engine off and pull up the
handbrake.
❒Engage first gear or reverse;
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 5
Page 6 of 20
6
FIAT PANDA ADVENTURE

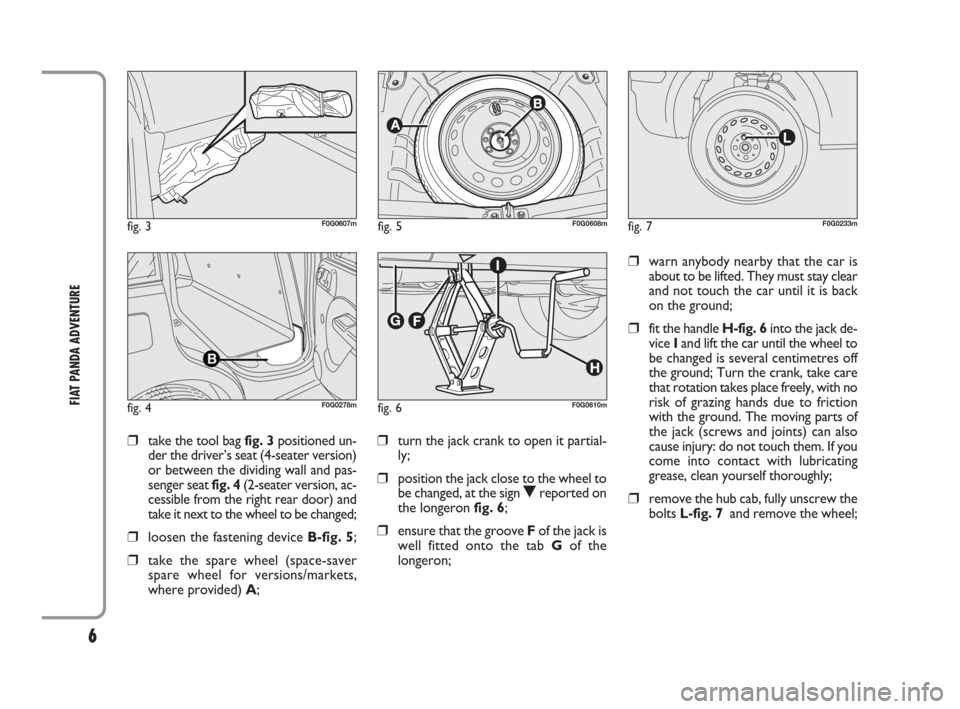

❒take the tool bag fig. 3positioned un-
der the driver’s seat (4-seater version)
or between the dividing wall and pas-
senger seat fig. 4(2-seater version, ac-
cessible from the right rear door) and
take it next to the wheel to be changed;
❒loosen the fastening device B-fig. 5;
❒take the spare wheel (space-saver
spare wheel for versions/markets,
where provided) A;
❒turn the jack crank to open it partial-
ly;
❒position the jack close to the wheel to
be changed, at the sign Oreported on
the longeron fig. 6;
❒ensure that the groove Fof the jack is
well fitted onto the tab Gof the
longeron;
fig. 3F0G0607m
fig. 4F0G0278m
fig. 5F0G0608m
❒warn anybody nearby that the car is
about to be lifted. They must stay clear
and not touch the car until it is back
on the ground;
❒fit the handle H-fig. 6 into the jack de-
vice Iand lift the car until the wheel to
be changed is several centimetres off
the ground; Turn the crank, take care
that rotation takes place freely, with no
risk of grazing hands due to friction
with the ground. The moving parts of
the jack (screws and joints) can also
cause injury: do not touch them. If you
come into contact with lubricating
grease, clean yourself thoroughly;
❒remove the hub cab, fully unscrew the
bolts L-fig. 7 and remove the wheel;
fig. 7F0G0233m
fig. 6F0G0610m
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 6
Page 7 of 20
7
FIAT PANDA ADVENTURE

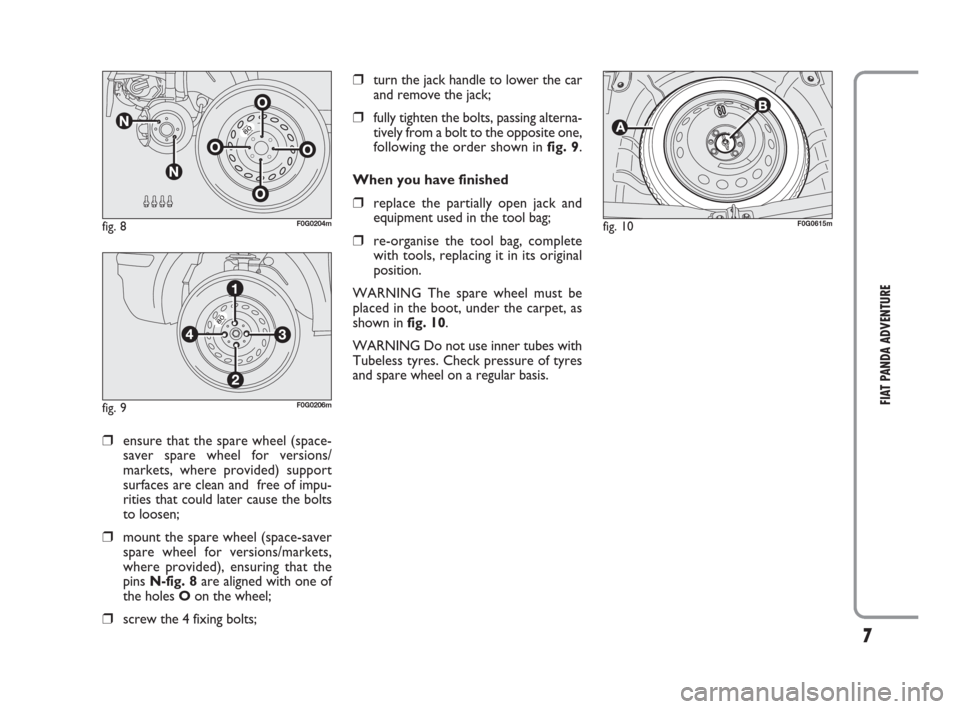

❒turn the jack handle to lower the car
and remove the jack;
❒fully tighten the bolts, passing alterna-
tively from a bolt to the opposite one,
following the order shown in fig. 9.
When you have finished
❒replace the partially open jack and
equipment used in the tool bag;
❒re-organise the tool bag, complete
with tools, replacing it in its original
position.
WARNING The spare wheel must be
placed in the boot, under the carpet, as
shown in fig. 10.
WARNING Do not use inner tubes with
Tubeless tyres. Check pressure of tyres
and spare wheel on a regular basis.
fig. 10F0G0615m
❒ensure that the spare wheel (space-
saver spare wheel for versions/
markets, where provided) support
surfaces are clean and free of impu-
rities that could later cause the bolts
to loosen;
❒mount the spare wheel (space-saver
spare wheel for versions/markets,
where provided), ensuring that the
pins N-fig. 8are aligned with one of
the holes Oon the wheel;
❒screw the 4 fixing bolts;
fig. 8F0G0204m
fig. 9F0G0206m
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 7
Page 8 of 20
8
FIAT PANDA ADVENTURE

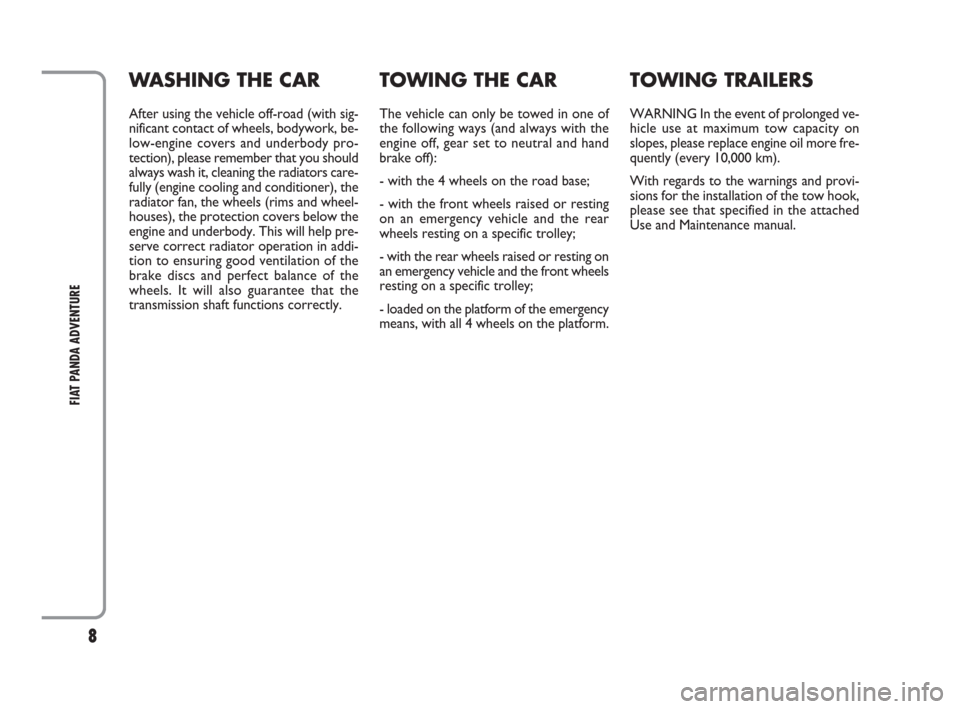

WASHING THE CAR
After using the vehicle off-road (with sig-
nificant contact of wheels, bodywork, be-
low-engine covers and underbody pro-
tection), please remember that you should
always wash it, cleaning the radiators care-
fully (engine cooling and conditioner), the
radiator fan, the wheels (rims and wheel-
houses), the protection covers below the
engine and underbody. This will help pre-
serve correct radiator operation in addi-
tion to ensuring good ventilation of the
brake discs and perfect balance of the
wheels. It will also guarantee that the
transmission shaft functions correctly.
TOWING THE CAR
The vehicle can only be towed in one of
the following ways (and always with the
engine off, gear set to neutral and hand
brake off):
- with the 4 wheels on the road base;
- with the front wheels raised or resting
on an emergency vehicle and the rear
wheels resting on a specific trolley;
- with the rear wheels raised or resting on
an emergency vehicle and the front wheels
resting on a specific trolley;
- loaded on the platform of the emergency
means, with all 4 wheels on the platform.
TOWING TRAILERS
WARNING In the event of prolonged ve-
hicle use at maximum tow capacity on
slopes, please replace engine oil more fre-
quently (every 10,000 km).
With regards to the warnings and provi-
sions for the installation of the tow hook,
please see that specified in the attached
Use and Maintenance manual.
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 8
Page 9 of 20
9
FIAT PANDA ADVENTURE

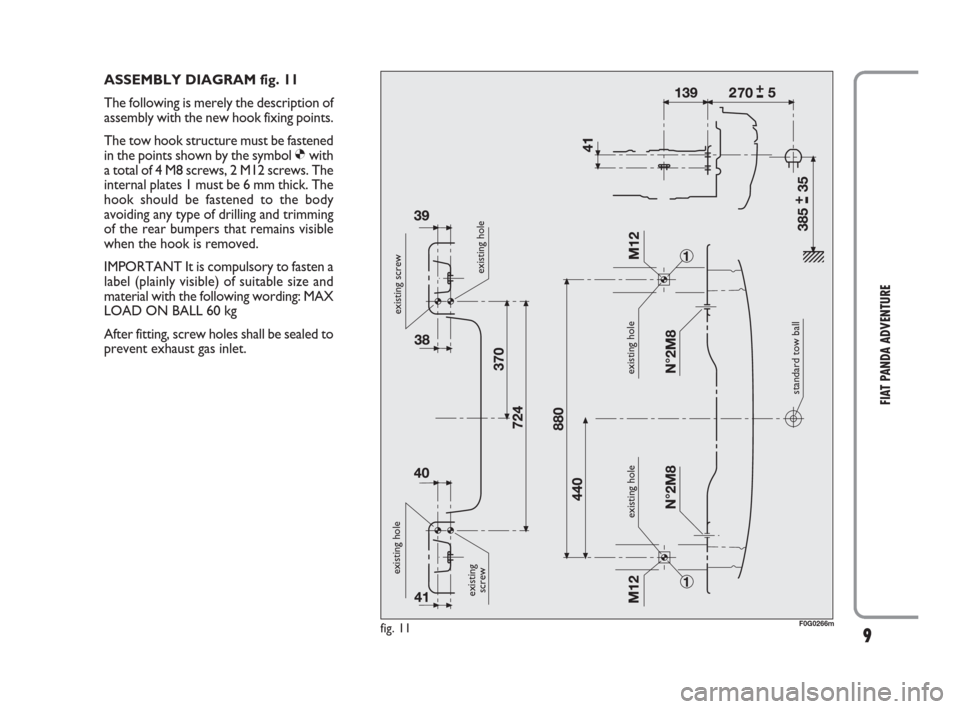

ASSEMBLY DIAGRAM fig. 11
The following is merely the description of
assembly with the new hook fixing points.
The tow hook structure must be fastened
in the points shown by the symbol Øwith
a total of 4 M8 screws, 2 M12 screws. The
internal plates 1 must be 6 mm thick. The
hook should be fastened to the body
avoiding any type of drilling and trimming
of the rear bumpers that remains visible
when the hook is removed.
IMPORTANT It is compulsory to fasten a
label (plainly visible) of suitable size and
material with the following wording: MAX
LOAD ON BALL 60 kg
After fitting, screw holes shall be sealed to
prevent exhaust gas inlet.
fig. 11F0G0266m
existing screw
existing hole
existing hole
standard tow ball existing hole
existing
screw
existing hole
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 9
Page 10 of 20
10
FIAT PANDA ADVENTURE
20 40 60 80 100 120 140 160 180
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●● ● ●
●●●●● ●●●●
●●●●● ●●●●
●
●● ● ●
●● ● ●
●● ● ●
●●

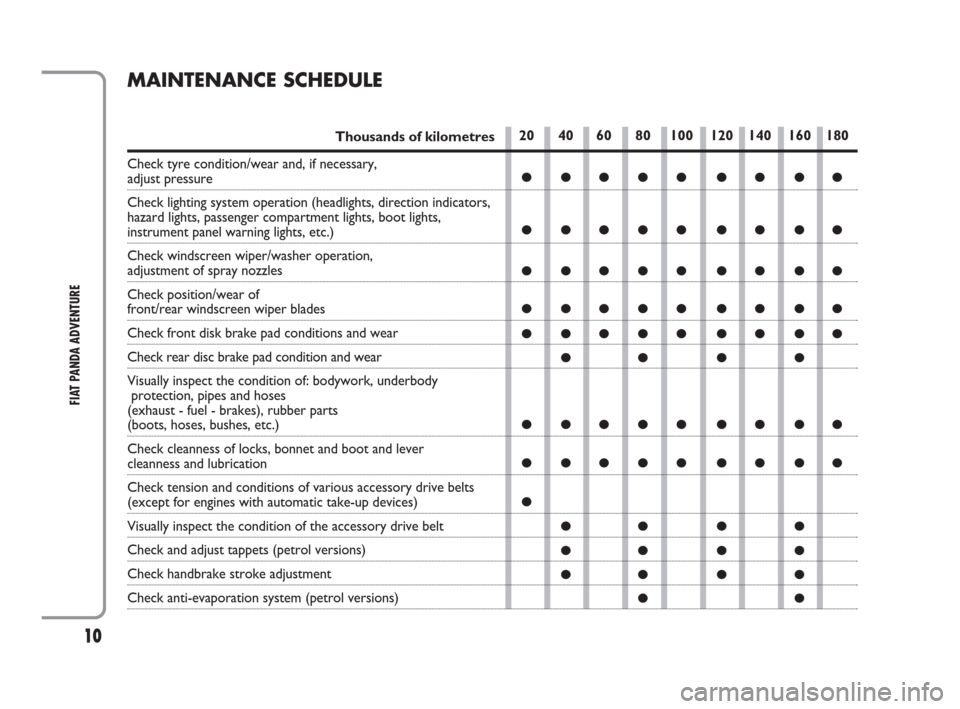

MAINTENANCE SCHEDULE
Thousands of kilometres
Check tyre condition/wear and, if necessary,
adjust pressure
Check lighting system operation (headlights, direction indicators,
hazard lights, passenger compartment lights, boot lights,
instrument panel warning lights, etc.)
Check windscreen wiper/washer operation,
adjustment of spray nozzles
Check position/wear of
front/rear windscreen wiper blades
Check front disk brake pad conditions and wear
Check rear disc brake pad condition and wear
Visually inspect the condition of: bodywork, underbody
protection, pipes and hoses
(exhaust - fuel - brakes), rubber parts
(boots, hoses, bushes, etc.)
Check cleanness of locks, bonnet and boot and lever
cleanness and lubrication
Check tension and conditions of various accessory drive belts
(except for engines with automatic take-up devices)
Visually inspect the condition of the accessory drive belt
Check and adjust tappets (petrol versions)
Check handbrake stroke adjustment
Check anti-evaporation system (petrol versions)
603_97_569 PANDA ADV Euro5 GB 9-12-2009 8:06 Pagina 10
