RIGHT HAND DRIVE VERSION
RIGHT HAND DRIVE VERSION
The presence and the position of the instruments and warning lights may \
vary according to the versions.

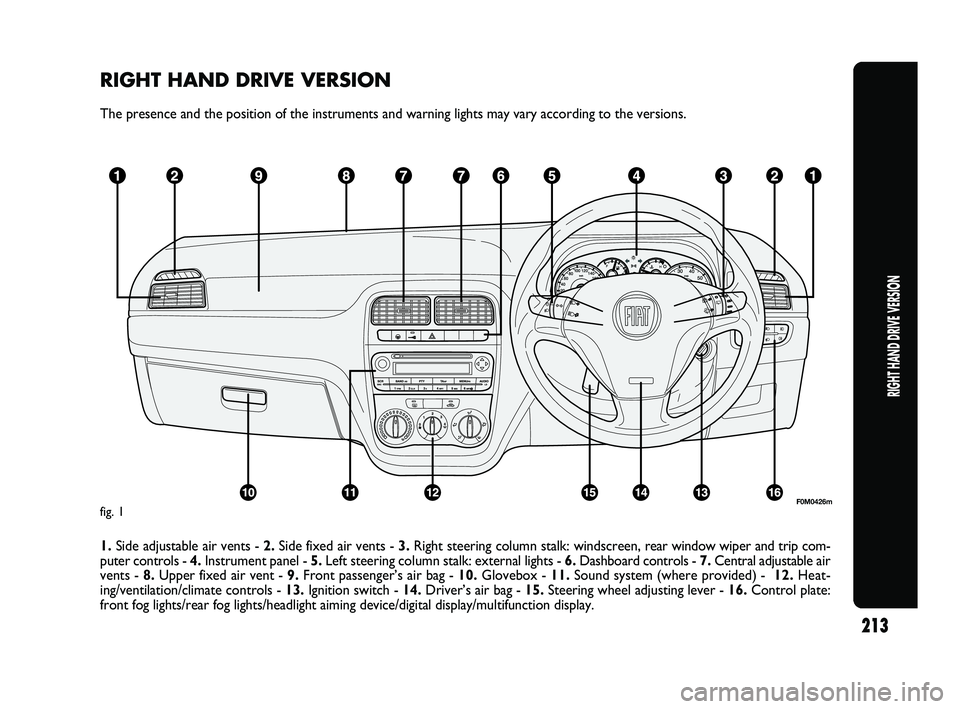

1. Side adjustable air vents - 2.Side fixed air vents - 3.Right steering column stalk: windscreen , rear window wiper and trip com-
puter controls - 4. Instrument panel - 5. Left steering column stalk: external lights - 6.Dashboard controls - 7. Central adjustable air
vents - 8. Upper fixed air vent - 9. Front passenger’s air bag - 10. Glovebox - 11.Sound system (where provided) - 12. Heat-
ing/ventilation/climate controls - 13.Ignition switch - 14. Driver’s air bag - 15. Steering wheel adjusting lever - 16.Control plate:
front fog lights/rear fog lights/headlight aiming device/digital display\
/multifunction display.
F0M0426mfig. 1
