INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
20
QUICK
GUIDE

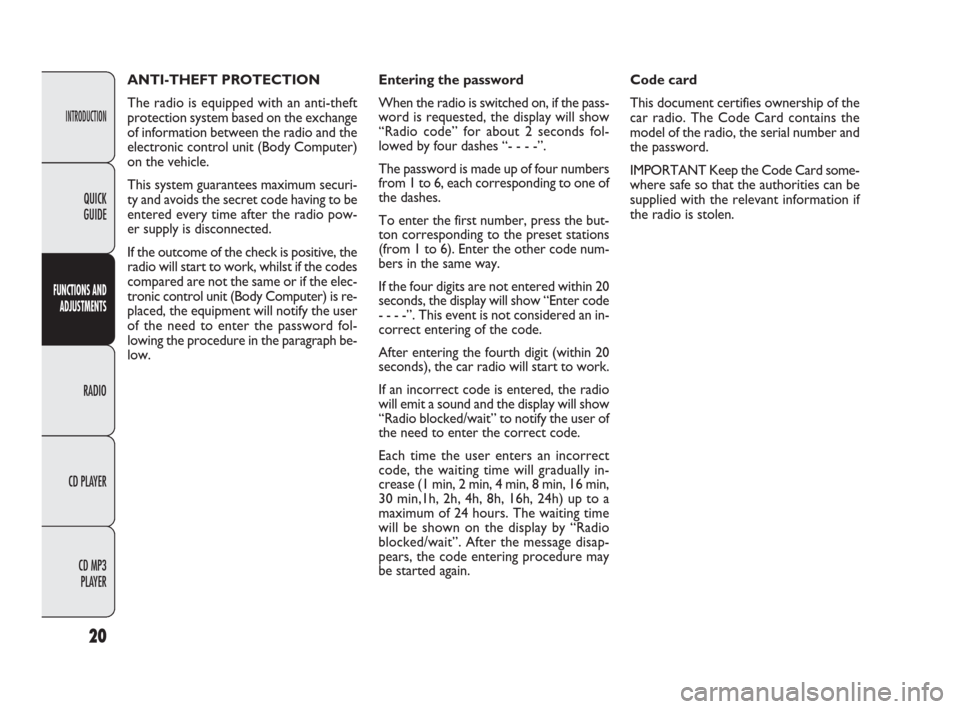

ANTI-THEFT PROTECTION
The radio is equipped with an anti-theft
protection system based on the exchange
of information between the radio and the
electronic control unit (Body Computer)
on the vehicle.
This system guarantees maximum securi-
ty and avoids the secret code having to be
entered every time after the radio pow-
er supply is disconnected.
If the outcome of the check is positive, the
radio will start to work, whilst if the codes
compared are not the same or if the elec-
tronic control unit (Body Computer) is re-
placed, the equipment will notify the user
of the need to enter the password fol-
lowing the procedure in the paragraph be-
low.Entering the password
When the radio is switched on, if the pass-
word is requested, the display will show
“Radio code” for about 2 seconds fol-
lowed by four dashes “- - - -”.
The password is made up of four numbers
from 1 to 6, each corresponding to one of
the dashes.
To enter the first number, press the but-
ton corresponding to the preset stations
(from 1 to 6). Enter the other code num-
bers in the same way.
If the four digits are not entered within 20
seconds, the display will show “Enter code
- - - -”. This event is not considered an in-
correct entering of the code.
After entering the fourth digit (within 20
seconds), the car radio will start to work.
If an incorrect code is entered, the radio
will emit a sound and the display will show
“Radio blocked/wait” to notify the user of
the need to enter the correct code.
Each time the user enters an incorrect
code, the waiting time will gradually in-
crease (1 min, 2 min, 4 min, 8 min, 16 min,
30 min,1h, 2h, 4h, 8h, 16h, 24h) up to a
maximum of 24 hours. The waiting time
will be shown on the display by “Radio
blocked/wait”. After the message disap-
pears, the code entering procedure may
be started again.Code card
This document certifies ownership of the
car radio. The Code Card contains the
model of the radio, the serial number and
the password.
IMPORTANT Keep the Code Card some-
where safe so that the authorities can be
supplied with the relevant information if
the radio is stolen.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 20
Page 22 of 34
21
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE

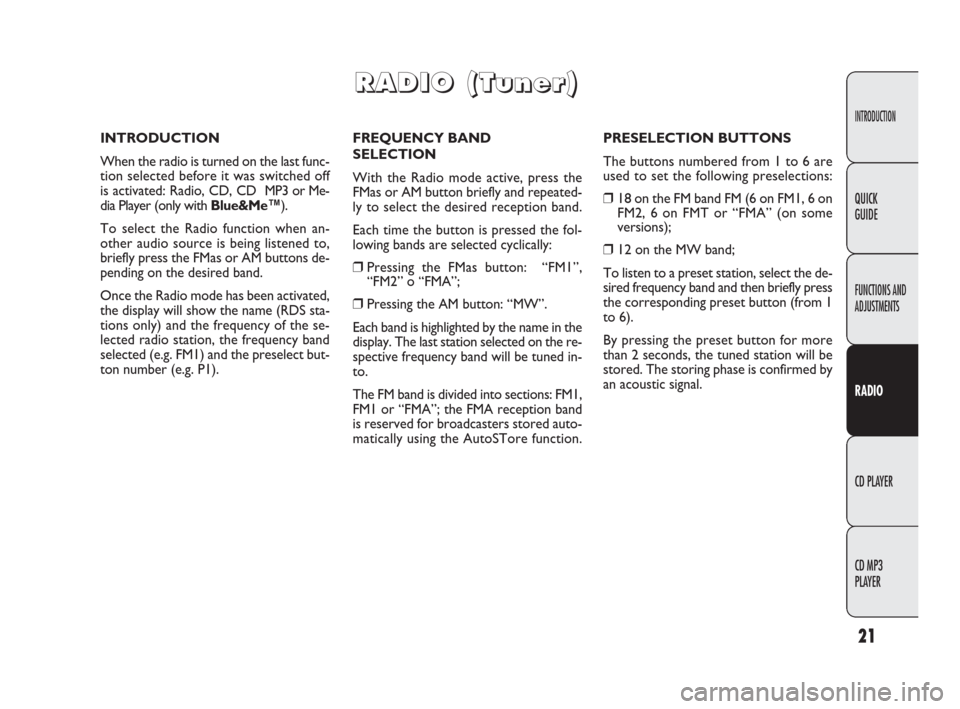

FREQUENCY BAND
SELECTION
With the Radio mode active, press the
FMas or AM button briefly and repeated-
ly to select the desired reception band.
Each time the button is pressed the fol-
lowing bands are selected cyclically:
❒Pressing the FMas button: “FM1”,
“FM2” o “FMA”;
❒Pressing the AM button: “MW”.
Each band is highlighted by the name in the
display. The last station selected on the re-
spective frequency band will be tuned in-
to.
The FM band is divided into sections: FM1,
FM1 or “FMA”; the FMA reception band
is reserved for broadcasters stored auto-
matically using the AutoSTore function.PRESELECTION BUTTONS
The buttons numbered from 1 to 6 are
used to set the following preselections:
❒18 on the FM band FM (6 on FM1, 6 on
FM2, 6 on FMT or “FMA” (on some
versions);
❒12 on the MW band;
To listen to a preset station, select the de-
sired frequency band and then briefly press
the corresponding preset button (from 1
to 6).
By pressing the preset button for more
than 2 seconds, the tuned station will be
stored. The storing phase is confirmed by
an acoustic signal. INTRODUCTION
When the radio is turned on the last func-
tion selected before it was switched off
is activated: Radio, CD, CD MP3 or Me-
dia Player (only with Blue&Me™).
To select the Radio function when an-
other audio source is being listened to,
briefly press the FMas or AM buttons de-
pending on the desired band.
Once the Radio mode has been activated,
the display will show the name (RDS sta-
tions only) and the frequency of the se-
lected radio station, the frequency band
selected (e.g. FM1) and the preselect but-
ton number (e.g. P1).
R R
A A
D D
I I
O O
( (
T T
u u
n n
e e
r r
) )
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 21
Page 23 of 34
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
22
QUICK
GUIDE
AUTOMATIC TUNING
Briefly press the ¯or ˙button to start
the automatic tuning search for the next
station that can be received in the select-
ed direction.
If the ¯or ˙button is pressed down
longer, the fast search starts. When the
button is released, the tuning will stop at
the next station that can be received.
If the TA function (traffic information) is
on, the tuner will only search for stations
that broadcast traffic updates.MANUAL TUNING
This allows the manual search for stations
on the preselected band.
Select the desired frequency band and
then press the ▲or ▼button briefly and
repeatedly to start to the search in the de-
sired direction. If the ▲or ▼button is
pressed longer, the fast search will start

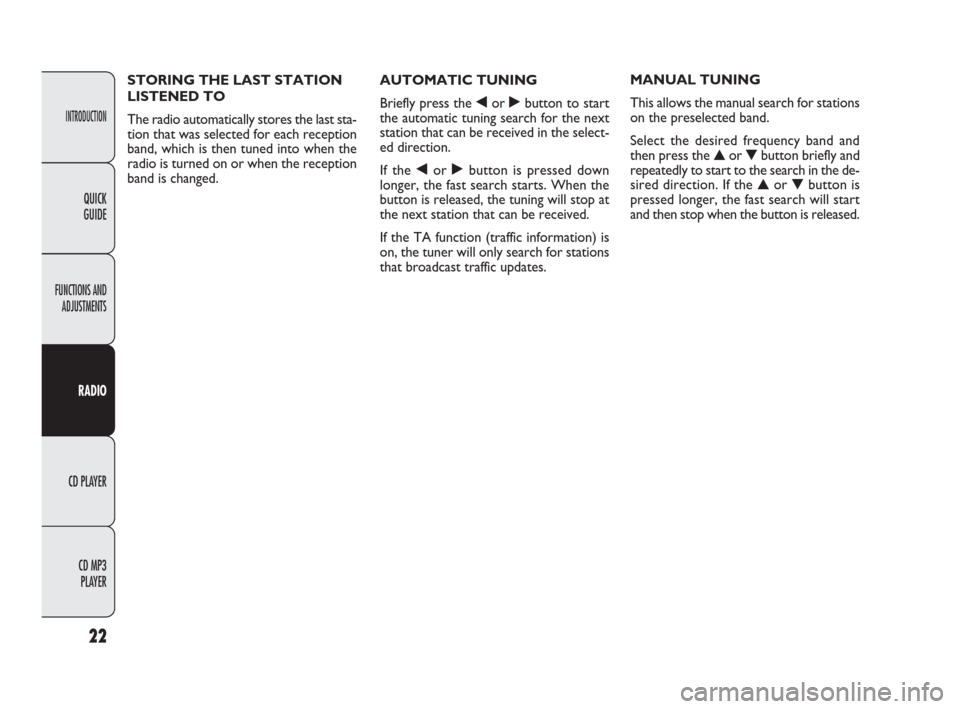

and then stop when the button is released. STORING THE LAST STATION
LISTENED TO
The radio automatically stores the last sta-
tion that was selected for each reception
band, which is then tuned into when the
radio is turned on or when the reception
band is changed.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 22
Page 24 of 34
23
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE

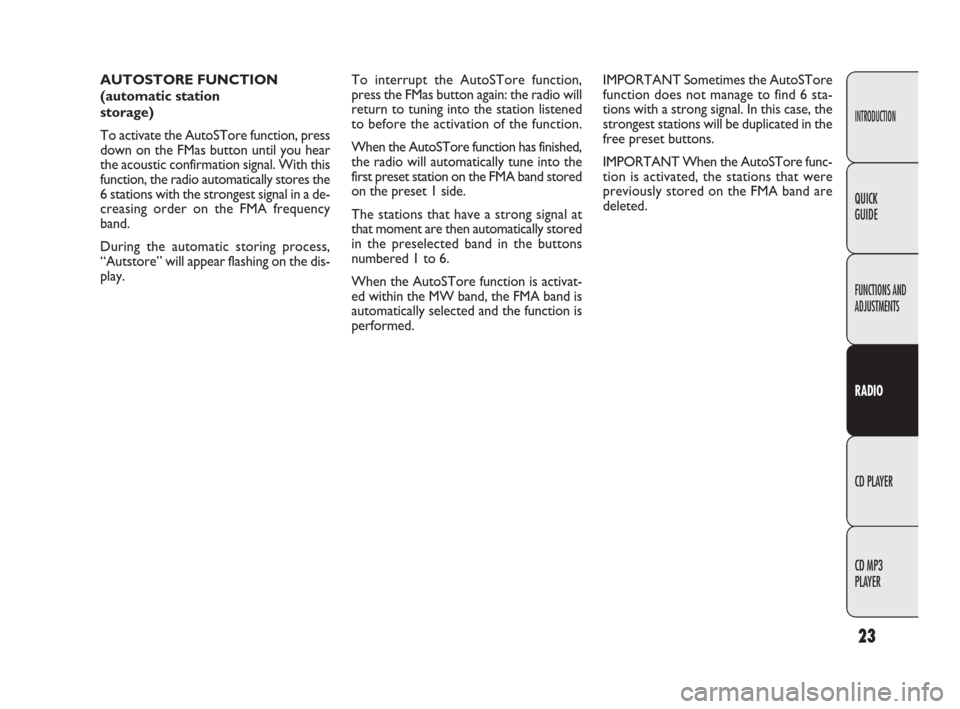

AUTOSTORE FUNCTION
(automatic station
storage)
To activate the AutoSTore function, press
down on the FMas button until you hear
the acoustic confirmation signal. With this
function, the radio automatically stores the
6 stations with the strongest signal in a de-
creasing order on the FMA frequency
band.
During the automatic storing process,
“Autstore” will appear flashing on the dis-
play.To interrupt the AutoSTore function,
press the FMas button again: the radio will
return to tuning into the station listened
to before the activation of the function.
When the AutoSTore function has finished,
the radio will automatically tune into the
first preset station on the FMA band stored
on the preset 1 side.
The stations that have a strong signal at
that moment are then automatically stored
in the preselected band in the buttons
numbered 1 to 6.
When the AutoSTore function is activat-
ed within the MW band, the FMA band is
automatically selected and the function is
performed.IMPORTANT Sometimes the AutoSTore
function does not manage to find 6 sta-
tions with a strong signal. In this case, the
strongest stations will be duplicated in the
free preset buttons.
IMPORTANT When the AutoSTore func-
tion is activated, the stations that were
previously stored on the FMA band are
deleted.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 23
Page 25 of 34
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
24
QUICK
GUIDE

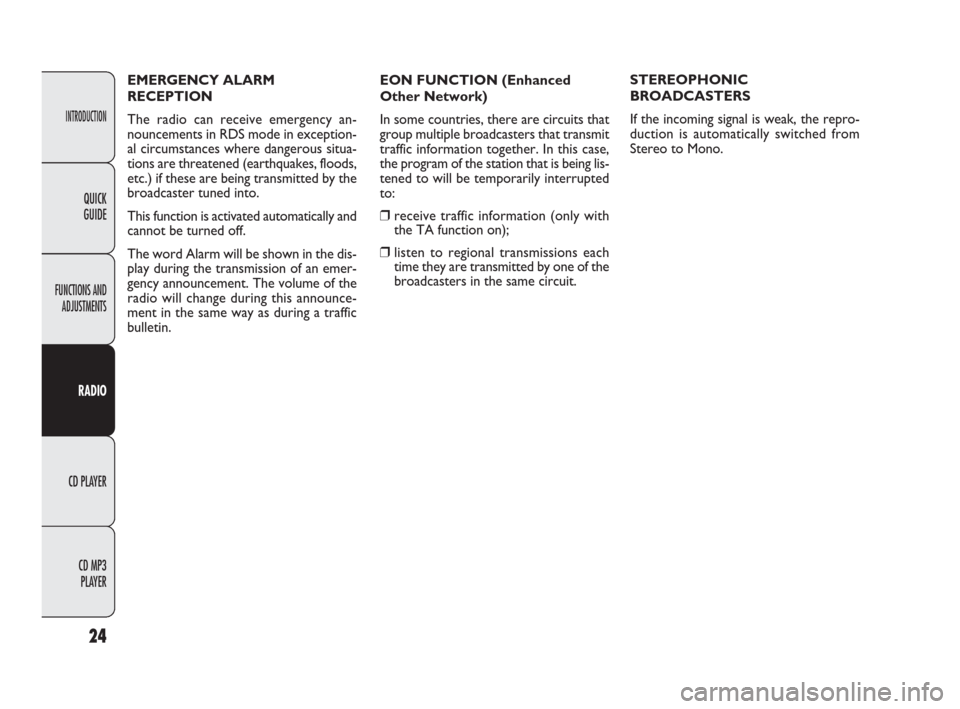

EON FUNCTION (Enhanced
Other Network)
In some countries, there are circuits that
group multiple broadcasters that transmit
traffic information together. In this case,
the program of the station that is being lis-
tened to will be temporarily interrupted
to:
❒receive traffic information (only with
the TA function on);
❒listen to regional transmissions each
time they are transmitted by one of the
broadcasters in the same circuit. EMERGENCY ALARM
RECEPTION
The radio can receive emergency an-
nouncements in RDS mode in exception-
al circumstances where dangerous situa-
tions are threatened (earthquakes, floods,
etc.) if these are being transmitted by the
broadcaster tuned into.
This function is activated automatically and
cannot be turned off.
The word Alarm will be shown in the dis-
play during the transmission of an emer-
gency announcement. The volume of the
radio will change during this announce-
ment in the same way as during a traffic
bulletin.STEREOPHONIC
BROADCASTERS
If the incoming signal is weak, the repro-
duction is automatically switched from
Stereo to Mono.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 24
Page 26 of 34
25
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
INTRODUCTION
This chapter describes the variants re-
garding the operation of the CD player: as
far as the operation of the radio is con-
cerned, refer to the description in the

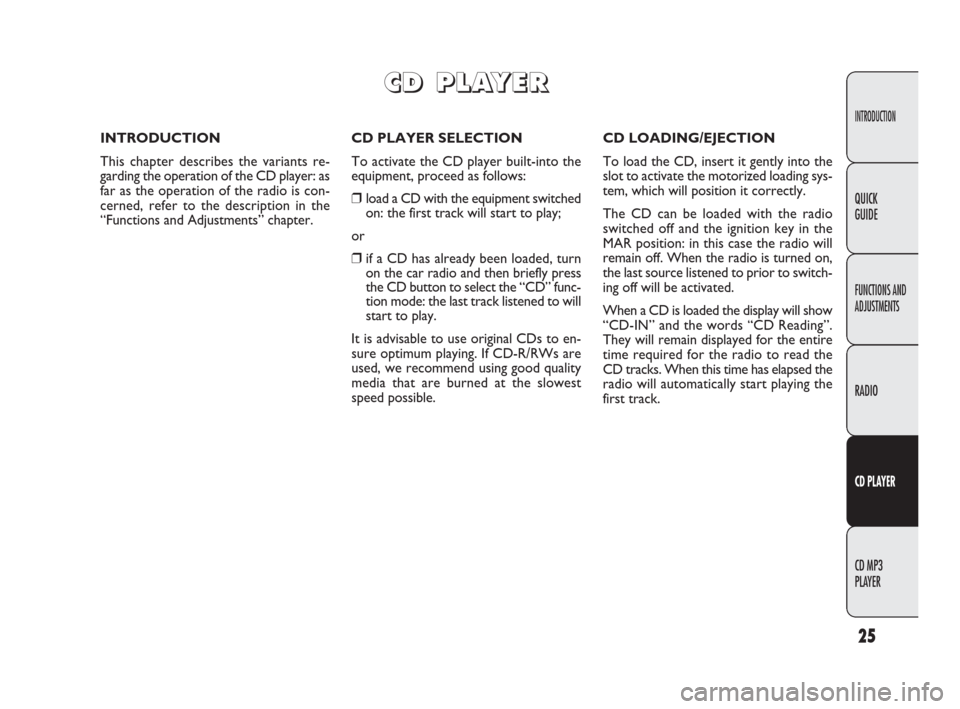

“Functions and Adjustments” chapter.CD PLAYER SELECTION
To activate the CD player built-into the
equipment, proceed as follows:
❒load a CD with the equipment switched
on: the first track will start to play;
or
❒if a CD has already been loaded, turn
on the car radio and then briefly press
the CD button to select the “CD” func-
tion mode: the last track listened to will
start to play.
It is advisable to use original CDs to en-
sure optimum playing. If CD-R/RWs are
used, we recommend using good quality
media that are burned at the slowest
speed possible.CD LOADING/EJECTION
To load the CD, insert it gently into the
slot to activate the motorized loading sys-
tem, which will position it correctly.
The CD can be loaded with the radio
switched off and the ignition key in the
MAR position: in this case the radio will
remain off. When the radio is turned on,
the last source listened to prior to switch-
ing off will be activated.
When a CD is loaded the display will show
“CD-IN” and the words “CD Reading”.
They will remain displayed for the entire
time required for the radio to read the
CD tracks. When this time has elapsed the
radio will automatically start playing the
first track.
C C
D D
P P
L L
A A
Y Y
E E
R R
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 25
Page 27 of 34
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
26
QUICK
GUIDE
Press the ˚button (EJECT) with the ra-
dio on to activate the motorized ejection
of the CD. After ejection, the last audio
source listened to before playing the CD
will be heard.
If the CD is not removed from the radio,
it will automatically be reloaded about 20
seconds later and the Tuner mode will be
tuned into (Radio).
The CD cannot be ejected if the radio is
off.
If the ejected CD is loaded without hav-
ing removed it completely from the slot,
the radio will not switch to the CD

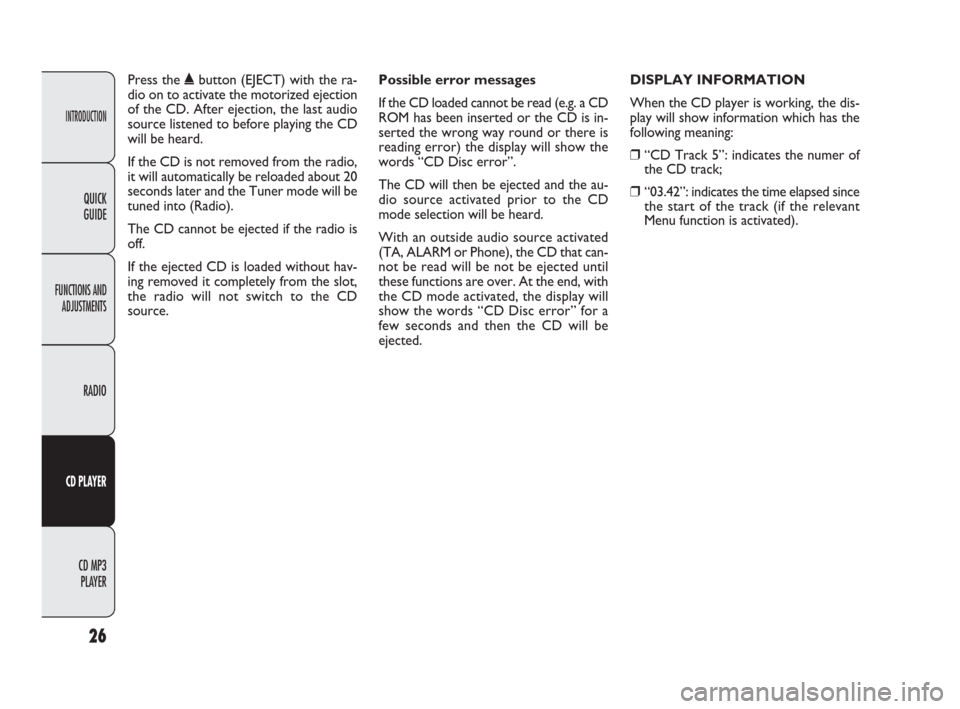

source.Possible error messages
If the CD loaded cannot be read (e.g. a CD
ROM has been inserted or the CD is in-
serted the wrong way round or there is
reading error) the display will show the
words “CD Disc error”.
The CD will then be ejected and the au-
dio source activated prior to the CD
mode selection will be heard.
With an outside audio source activated
(TA, ALARM or Phone), the CD that can-
not be read will be not be ejected until
these functions are over. At the end, with
the CD mode activated, the display will
show the words “CD Disc error” for a
few seconds and then the CD will be
ejected.DISPLAY INFORMATION
When the CD player is working, the dis-
play will show information which has the
following meaning:
❒“CD Track 5”: indicates the numer of
the CD track;
❒“03.42”: indicates the time elapsed since
the start of the track (if the relevant
Menu function is activated).
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 26
Page 28 of 34

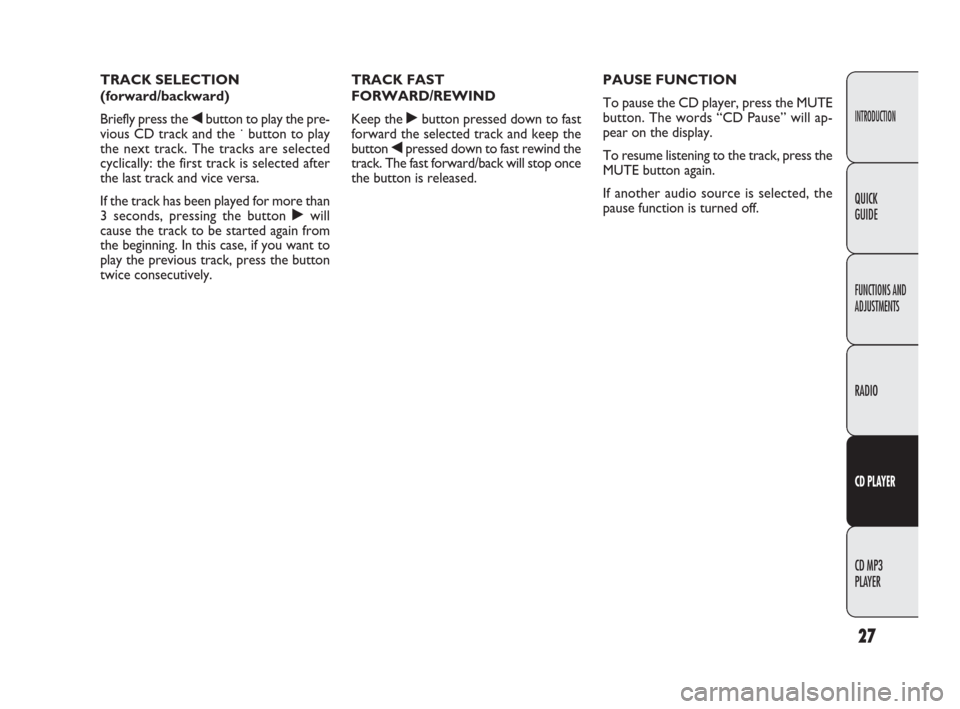

27
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER QUICK
GUIDE
TRACK SELECTION
(forward/backward)
Briefly press the ¯button to play the pre-
vious CD track and the ˙ button to play
the next track. The tracks are selected
cyclically: the first track is selected after
the last track and vice versa.
If the track has been played for more than
3 seconds, pressing the button ˙will
cause the track to be started again from
the beginning. In this case, if you want to
play the previous track, press the button
twice consecutively.TRACK FAST
FORWARD/REWIND
Keep the ˙button pressed down to fast
forward the selected track and keep the
button ¯pressed down to fast rewind the
track. The fast forward/back will stop once
the button is released.PAUSE FUNCTION
To pause the CD player, press the MUTE
button. The words “CD Pause” will ap-
pear on the display.
To resume listening to the track, press the
MUTE button again.
If another audio source is selected, the
pause function is turned off.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 27
Page 29 of 34

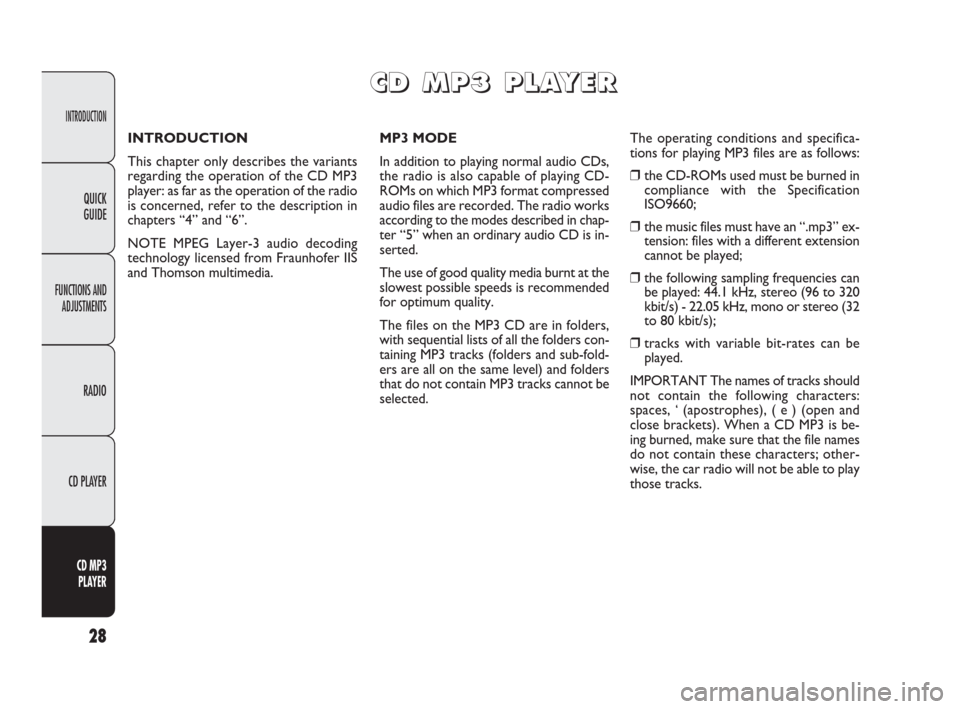

INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
28
QUICK
GUIDE
INTRODUCTION
This chapter only describes the variants
regarding the operation of the CD MP3
player: as far as the operation of the radio
is concerned, refer to the description in
chapters “4” and “6”.
NOTE MPEG Layer-3 audio decoding
technology licensed from Fraunhofer IIS
and Thomson multimedia.MP3 MODE
In addition to playing normal audio CDs,
the radio is also capable of playing CD-
ROMs on which MP3 format compressed
audio files are recorded. The radio works
according to the modes described in chap-
ter “5” when an ordinary audio CD is in-
serted.
The use of good quality media burnt at the
slowest possible speeds is recommended
for optimum quality.
The files on the MP3 CD are in folders,
with sequential lists of all the folders con-
taining MP3 tracks (folders and sub-fold-
ers are all on the same level) and folders
that do not contain MP3 tracks cannot be
selected.The operating conditions and specifica-
tions for playing MP3 files are as follows:
❒the CD-ROMs used must be burned in
compliance with the Specification
ISO9660;
❒the music files must have an “.mp3” ex-
tension: files with a different extension
cannot be played;
❒the following sampling frequencies can
be played: 44.1 kHz, stereo (96 to 320
kbit/s) - 22.05 kHz, mono or stereo (32
to 80 kbit/s);
❒tracks with variable bit-rates can be
played.
IMPORTANT The names of tracks should
not contain the following characters:
spaces, ‘ (apostrophes), ( e ) (open and
close brackets). When a CD MP3 is be-
ing burned, make sure that the file names
do not contain these characters; other-
wise, the car radio will not be able to play
those tracks.
C C
D D
M M
P P
3 3
P P
L L
A A
Y Y
E E
R R
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 28
Page 30 of 34

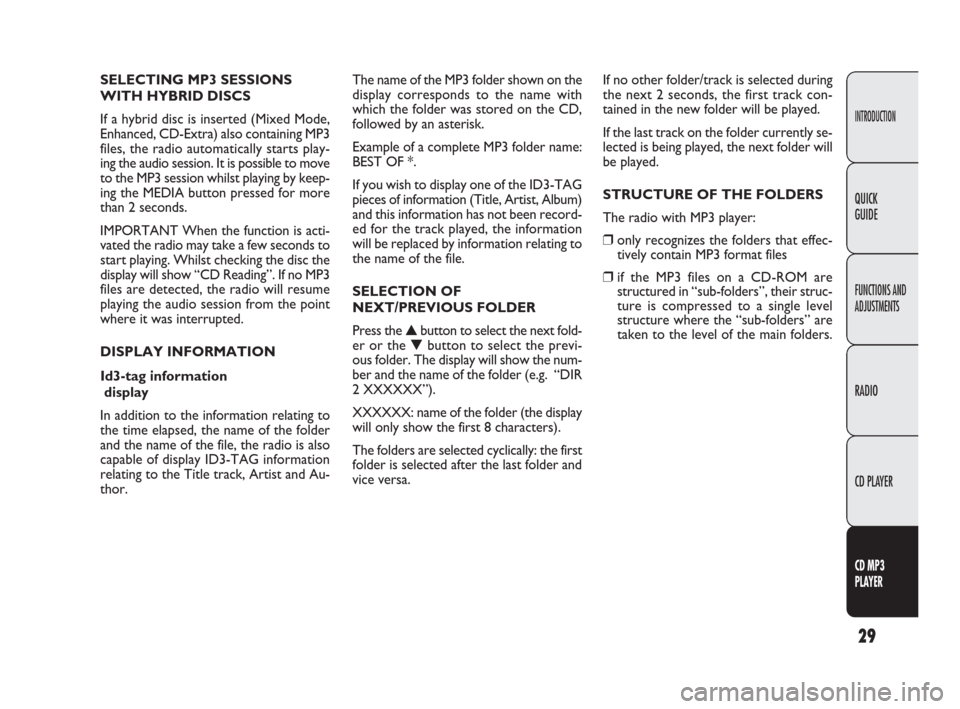

29
INTRODUCTION
FUNCTIONS AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
QUICK
GUIDE
SELECTING MP3 SESSIONS
WITH HYBRID DISCS
If a hybrid disc is inserted (Mixed Mode,
Enhanced, CD-Extra) also containing MP3
files, the radio automatically starts play-
ing the audio session. It is possible to move
to the MP3 session whilst playing by keep-
ing the MEDIA button pressed for more
than 2 seconds.
IMPORTANT When the function is acti-
vated the radio may take a few seconds to
start playing. Whilst checking the disc the
display will show “CD Reading”. If no MP3
files are detected, the radio will resume
playing the audio session from the point
where it was interrupted.
DISPLAY INFORMATION
Id3-tag information
display
In addition to the information relating to
the time elapsed, the name of the folder
and the name of the file, the radio is also
capable of display ID3-TAG information
relating to the Title track, Artist and Au-
thor.The name of the MP3 folder shown on the
display corresponds to the name with
which the folder was stored on the CD,
followed by an asterisk.
Example of a complete MP3 folder name:
BEST OF *.
If you wish to display one of the ID3-TAG
pieces of information (Title, Artist, Album)
and this information has not been record-
ed for the track played, the information
will be replaced by information relating to
the name of the file.
SELECTION OF
NEXT/PREVIOUS FOLDER
Press the ▲button to select the next fold-
er or the ▼button to select the previ-
ous folder. The display will show the num-
ber and the name of the folder (e.g. “DIR
2 XXXXXX”).
XXXXXX: name of the folder (the display
will only show the first 8 characters).
The folders are selected cyclically: the first
folder is selected after the last folder and
vice versa. If no other folder/track is selected during
the next 2 seconds, the first track con-
tained in the new folder will be played.
If the last track on the folder currently se-
lected is being played, the next folder will
be played.
STRUCTURE OF THE FOLDERS
The radio with MP3 player:
❒only recognizes the folders that effec-
tively contain MP3 format files
❒if the MP3 files on a CD-ROM are
structured in “sub-folders”, their struc-
ture is compressed to a single level
structure where the “sub-folders” are
taken to the level of the main folders.
603_97_285 Radio Punto FL GB 1ed 8-09-2009 9:55 Pagina 29
