Page 8 of 270
7
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0005mfig. 5F0U0006mfig. 6
Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the open
position;
❒turn the screw C to :using a fine screwdriver;
❒take out the battery case D and replace the battery E,
respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. Dashboard LED indications
When locking the doors, the LED A-fig. 5 in the button
switches on for about 3 seconds and then starts to flash
(as a deterrent).
Once doors are locked, if one or more doors or the boot
are not closed correctly, the LED and direction indicators
start flashing quickly.
001-036 PUNTO FL EN 4ed 18-01-2010 12:21 Pagina 7
Page 16 of 270
INSTRUMENTS
Instrument background colour and type may vary ac-
cording to the version.
SPEEDOMETER fig. 14
This shows the speed of the vehicle.
REV COUNTER fig. 15
The rev counter shows the number of engine revolutions
per minute.
IMPORTANT The electronic injection control system
gradually shuts off the flow of fuel when the engine is over-
revving, resulting in a gradual loss of engine power.
When the engine is idling, the rev counter may indicate a
gradual or sudden increase of the rate.
This is normal and does not indicate a fault. It may becaused, for example, by the operation of the climate con-
trol system or fan. In these cases, a slow change in revs is
used to protect the battery charge.
FUEL GAUGE fig. 16
This shows the amount of fuel left in the tank.
E tank empty.
F tank full.
The reserve warning light A comes on to indicate that
approximately 7 litres of fuel are left in the tank.
Do not travel with the fuel tank almost empty: the gaps
in fuel delivery could damage the catalyst.
See the description in the “Refuelling” paragraph.
IMPORTANT The needle will point to E and warning light
A will blink to indicate a fault in the system. If this is the
case, go to a Fiat Dealership to have the system checked.
fig. 15F0U0015mfig. 14F0U0014m
CONTENTS TECHNICAL
SPECIFICATIONS SERVICING
AND CARE IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR
VEHICLE
15
001-036 PUNTO FL EN 4ed 18-01-2010 12:21 Pagina 15
Page 61 of 270
Q
ZEAir flow distribution between front and rear vents,
centre/side dashboard vents, rear vent and wind-
screen and front side window demisting/defrosting
vents.
EAir flow distribution to centre/side dashboard vents
(passenger’s body).
QAir flow distribution between the footwell
Zvents and the windscreen and front side window
demisting/defrosting vents. This distribution setting
allows warms up the passenger compartment and
prevents the windows from misting up.
ZEAir flow distribution between footwell vents (hot-
ter air) and centre/side dashboard vents and rear
vent (cooler air).
EQAir flow distribution between centre/side dash-
board vents, rear vent and windscreen and front
side window demisting/defrosting vents. This dis-
tribution setting ventilates the passenger compart-
ment and prevents the windows from misting up.
IMPORTANT For the climate control system to function,
at least one of the following buttons must be on: Q/E/Z.
The system does not allow all the buttons Q/E/Zto be
switched off.
IMPORTANT Push the OFF button to turn the climate
control system back on: in this way, all previously saved
operating conditions are restored before switching off.
To restore automatic control of the air distribution after
a manual selection, press the AUTO button.ADDITIONAL HEATER
(for versions/markets where provided)
This device warms up the passenger compartment more
quickly when it is very cold and the engine coolant tem-
perature is low.
In these conditions, the device comes on automatically
when the engine is started and the fan is on.
The additional heater turns off automatically after reach-
ing the required comfort conditions.
IMPORTANT The heater will not turn on if the battery
voltage is too low.
SWITCHING OFF THE CLIMATE CONTROL
SYSTEM
Press the OFF button.
The following information is shown on the display:
❒ the word OFF;
❒outside temperature reading;
❒indication that air recirculation is switched on (LED on
button
Tis lit).
60
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 60
Page 69 of 270
F0U0048mfig. 53F0U0049mfig. 54

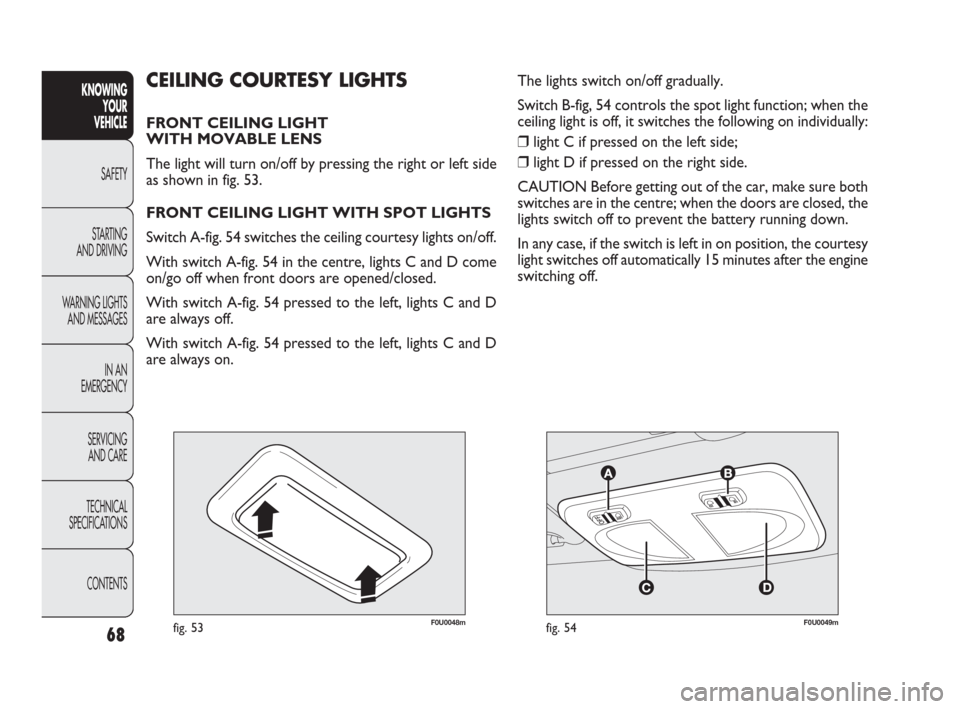

CEILING COURTESY LIGHTS
FRONT CEILING LIGHT
WITH MOVABLE LENS
The light will turn on/off by pressing the right or left side
as shown in fig. 53.
FRONT CEILING LIGHT WITH SPOT LIGHTS
Switch A-fig. 54 switches the ceiling courtesy lights on/off.
With switch A-fig. 54 in the centre, lights C and D come
on/go off when front doors are opened/closed.
With switch A-fig. 54 pressed to the left, lights C and D
are always off.
With switch A-fig. 54 pressed to the left, lights C and D
are always on.
68
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The lights switch on/off gradually.
Switch B-fig, 54 controls the spot light function; when the
ceiling light is off, it switches the following on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
CAUTION Before getting out of the car, make sure both
switches are in the centre; when the doors are closed, the
lights switch off to prevent the battery running down.
In any case, if the switch is left in on position, the courtesy
light switches off automatically 15 minutes after the engine
switching off.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 68
Page 74 of 270
73
F0U0005mfig. 63
DOOR LOCKING fig. 63
To lock all doors at the same time, press button A, located
on the centre console control panel, regardless of the po-
sition of the ignition key.
FUEL CUT-OFF SYSTEM
This system triggers after a collision and activates the fol-
lowing:
❒cut-off of fuel supply with consequent switching off of
the engine;
❒automatic door unlocking;
❒switching on of all interior lights.
The intervention of the system is indicated by a message
shown on the display. Carefully check the car for fuel leaks,
for instance in the engine compartment, under the car or
near the tank area. After a crash, turn the key to STOP
to avoid draining the battery.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
If, after a crash, you smell fuel or notice
leaks from the fuel system, do not reacti-
vate the system to avoid the risk of fire.
WARNING
Door unlocking in the event of an accident
If the fuel cut-off system activates following an accident,
the doors will be automatically unlocked to allow access
to the passenger compartment and the ceiling lights will
be switched on at the same time. The doors can always be
opened from the inside of the car by using the appropri-
ate controls. if no fuel leakage is found and the car is road-
worthy, ensure the correct operation of the vehicle by ad-
hering to the following instructions.
The following procedure should be carried out to restore
the correct operation of the vehicle:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the key to STOP.
037-081 PUNTO FL EN 4ed 18-01-2010 12:23 Pagina 73
Page 84 of 270
83
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
ANTI-PINCH SAFETY SYSTEM
The sunroof has an anti-pinch safety system capable of de-
tecting the presence of an obstacle whilst the roof is clos-
ing; when this happens, the system stops and the move-
ment of the glass is immediately reversed.
INITIALISATION PROCEDURE
The sunroof must be re-initialised after disconnecting the
battery or if the relevant protection fuse is blown.
Proceed as follows:
❒press button A-fig. 83 at close position;
❒hold the button down so that the sunroof closes in
stages;
❒after full closing, wait for sunroof’s electric motor
to stop.
When leaving the vehicle, always remove the key from the
ignition to avoid the risk of injury to those still inside the
car due to accidental operation of the sunroof. Improper
use of the roof can be dangerous. Before and during op-
eration, always check that no-one is exposed to the risk
of being injured by the moving sunroof or by objects get-
ting caught and dragged by it.
F0U0077mfig. 84
EMERGENCY OPERATION
If the switch does not work, the sunroof can be operat-
ed manually as follows:
❒remove the protection cap located between the two
shutters;
❒take the Allen key (provided as standard) from the tool-
box in the boot;
❒insert the key into hole A-fig. 84 and turn it:
– clockwise to open the roof;
– anticlockwise to close the roof.
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 83
Page 87 of 270
86
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT With central locking on, pulling the internal
handle of one of the front doors will unlock that door.
Individual doors can be unlocked by pulling the internal
handle of one of the rear doors.
If a power supply is not present (blown fuse, battery dis-
connected, etc.) it is, however, possible to lock the doors
manually.
After exceeding 20 km/h, all the doors will be locked au-
tomatically if the setup menu function has been selected
(see “Multifunction display” paragraph in this section).
DEAD LOCK
(for versions/markets where provided)
This safety device inhibits the operation of:
❒interior handles;
❒locking/unlocking button A-fig. 87;
thereby preventing the opening of the doors from inside
the passenger compartment if there has been a break-in
attempt (e.g. a window has been broken).
The dead lock device therefore offers the best possible
protection against break-in attempts. We recommend en-
gaging it whenever the vehicle is parked and left unat-
tended.
Once the dead lock system is engaged, it
is impossible to open the doors from inside
the vehicle. Before getting out of the car, please
therefore check that there is no-one left inside.
If the remote control battery is flat, the system
can be disengaged only by inserting the key in ei-
ther of the door locks as described previously: in
this case the device remains active only for the
rear doors.
WARNING
Device activation
The dead lock device is automatically activated on every
door when you double-tap button Áon the remote con-
trol fig. 85.
Device activation is indicated by 3 flashes of the direction
indicators and the flashing of the LED on button A-fig. 87
on the dashboard.
If one or more of the doors is not closed correctly, the
dead lock device will not activate, thus preventing a per-
son from getting stuck inside the passenger compartment
by entering the car through, and then closing, the open
door.
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 86
Page 92 of 270
91
F0U0085mfig. 93F0U0086mfig. 94

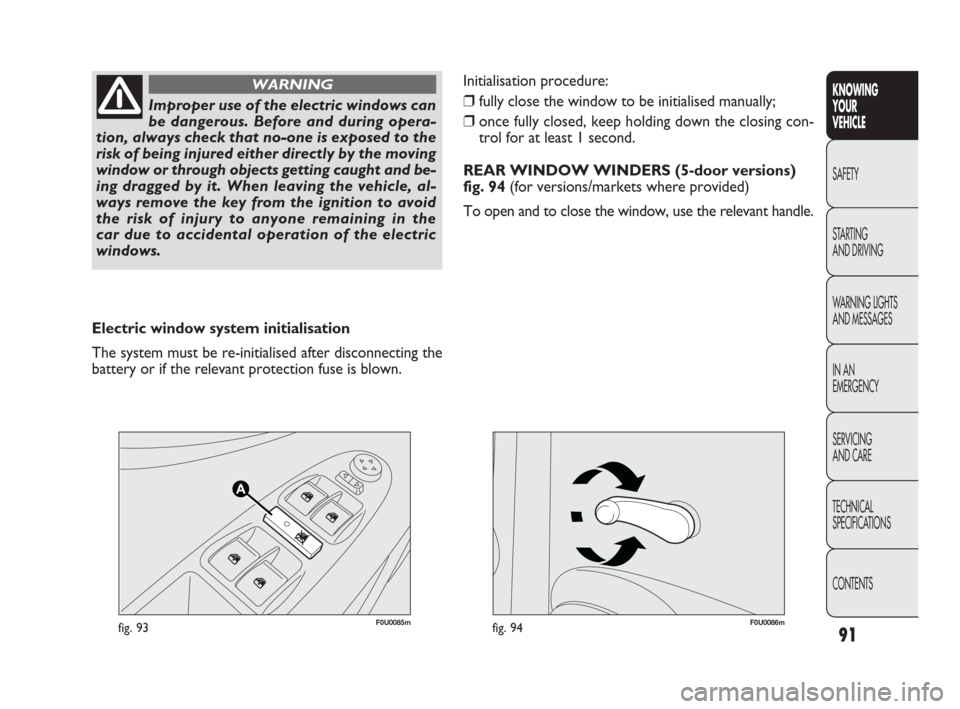

Initialisation procedure:
❒fully close the window to be initialised manually;
❒once fully closed, keep holding down the closing con-
trol for at least 1 second.
REAR WINDOW WINDERS (5-door versions)
fig. 94 (for versions/markets where provided)
To open and to close the window, use the relevant handle.
Electric window system initialisation
The system must be re-initialised after disconnecting the
battery or if the relevant protection fuse is blown.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Improper use of the electric windows can
be dangerous. Before and during opera-
tion, always check that no-one is exposed to the
risk of being injured either directly by the moving
window or through objects getting caught and be-
ing dragged by it. When leaving the vehicle, al-
ways remove the key from the ignition to avoid
the risk of injury to anyone remaining in the
car due to accidental operation of the electric
windows.
WARNING
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 91
Page 95 of 270
94
F0U0091mfig. 100

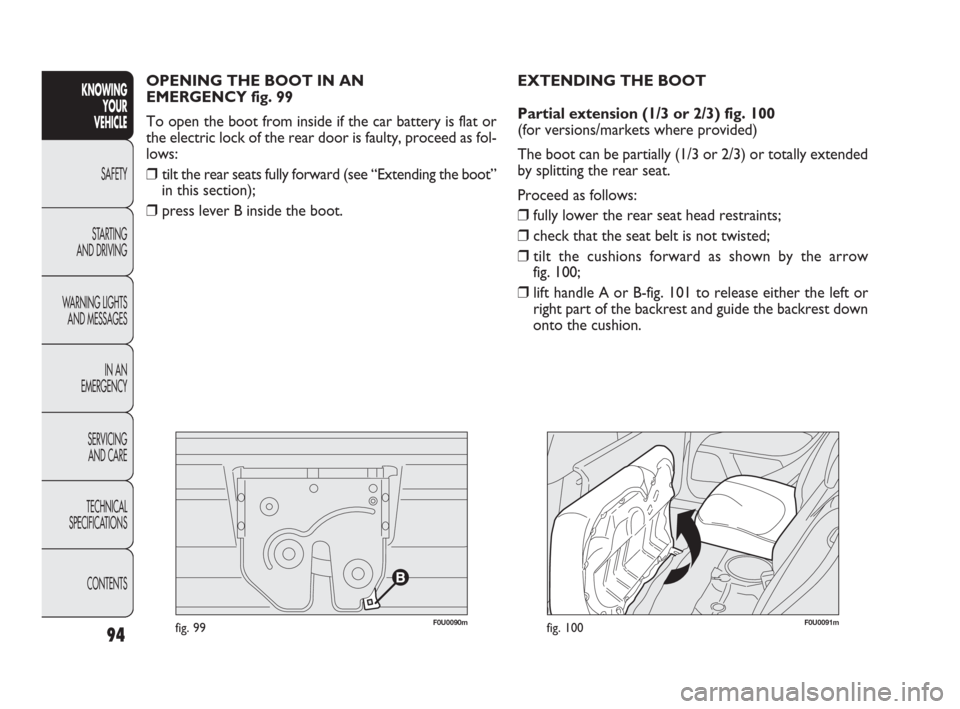

OPENING THE BOOT IN AN
EMERGENCY fig. 99
To open the boot from inside if the car battery is flat or
the electric lock of the rear door is faulty, proceed as fol-
lows:
❒tilt the rear seats fully forward (see “Extending the boot”
in this section);
❒press lever B inside the boot.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U0090mfig. 99
EXTENDING THE BOOT
Partial extension (1/3 or 2/3) fig. 100
(for versions/markets where provided)
The boot can be partially (1/3 or 2/3) or totally extended
by splitting the rear seat.
Proceed as follows:
❒fully lower the rear seat head restraints;
❒check that the seat belt is not twisted;
❒tilt the cushions forward as shown by the arrow
fig. 100;
❒lift handle A or B-fig. 101 to release either the left or
right part of the backrest and guide the backrest down
onto the cushion.
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 94
Page 117 of 270
116
F0U0202mfig. 120
NO ENGINE CUT-OUT
CONDITIONS
With the device activated, for reasons of comfort, limiting
emissions and safety, the engine does not stop in certain
conditions, including:
❒ engine still cold;
❒particularly cold external temperatures, where the ap-
propriate indication is provided;
❒ battery not sufficiently charged;
❒ heated rear windscreen activated;
❒ windscreen wipers working at maximum speed;
❒diesel particulate filter (DPF) regeneration ongoing (for
versions/markets where provided);
❒ driver’s door not shut;
❒ driver’s seat belt not fastened;
❒ reverse gear engaged (for example, during parking ma-
noeuvres);
❒automatic climate control, if a comfortable temperature
has not yet been reached or MAX – DEF function en-
abled;
❒during the first period of use, to initialize the system.
In the above cases, an information message appears on the
display and (for versions/markets where provided) the warn-
ing light fig. 118 will flash on the instrument panel. With Dualogic gearbox
(for versions/markets where
provided)
If the gear lever is in position N, place it in any other gear,
otherwise release the brake pedal or move the gear lever
to (+), (–) or R .
MANUAL ACTIVATION AND
DEACTIVATION
You can activate/deactivate the device by pressing the but-
ton on the dashboard fig. 120. When the system is
switched off, “Start&Stop OFF” appears on the dashboard
fig. 119.
In addition, (for versions/markets where provided) addi-
tional indications concerning the deactivation or activation
of Start&Stop is given through a message on the
display.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
082-128 PUNTO FL EN 4ed 20-01-2010 15:06 Pagina 116
