technical data FIAT QUBO 2017 1.G Owners Manual

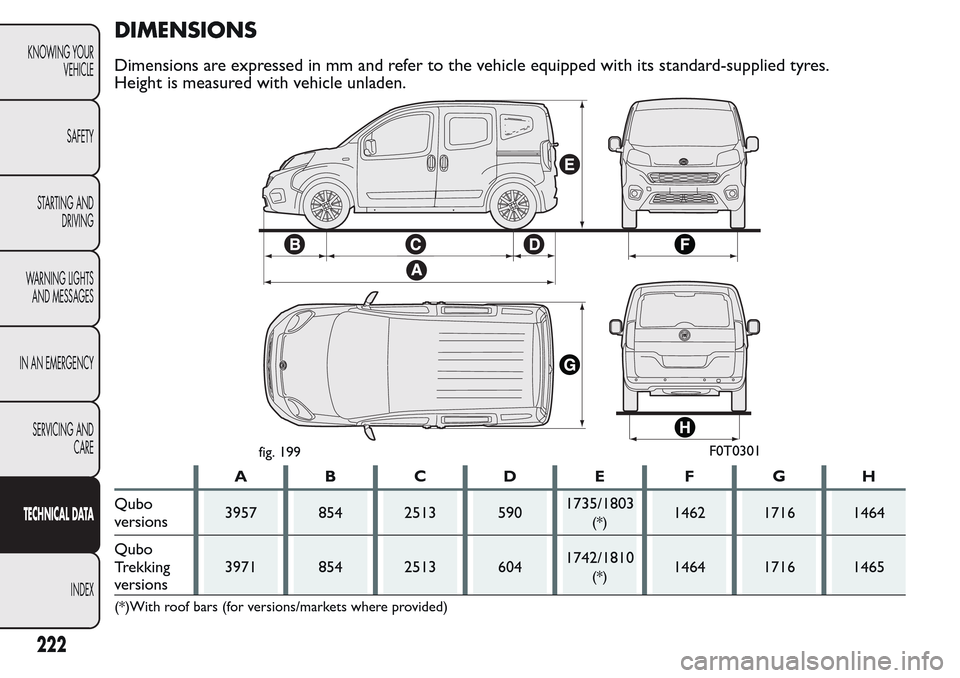

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres.
Height is measured with vehicle unladen.
ABCDE FGH
Qubo
versions3957 854 2513 5901735/1803
(*)1462 1716 1464
Qubo
Trekking
versions3971 854 2513 6041742/1810
(*)1464 1716 1465
(*)With roof bars (for versions/markets where provided)
fig. 199F0T0301
222
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

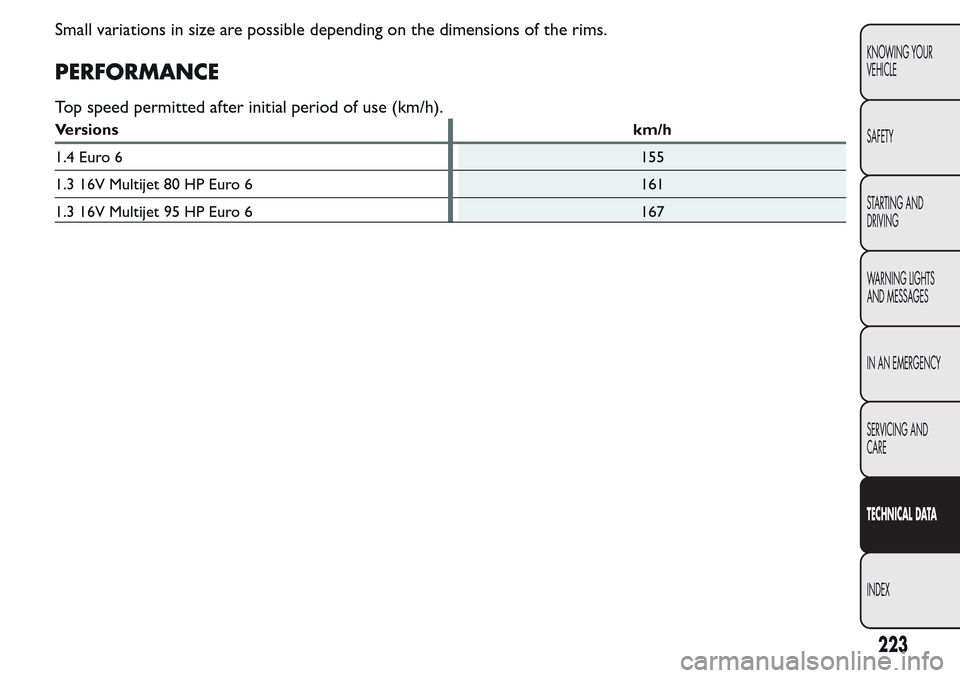

Small variations in size are possible depending on the dimensions of the rims.
PERFORMANCE
Top speed permitted after initial period of use (km/h).
Versions km/h
1.4 Euro 6155
1.3 16V Multijet 80 HP Euro 6 161
1.3 16V Multijet 95 HP Euro 6 167
223
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

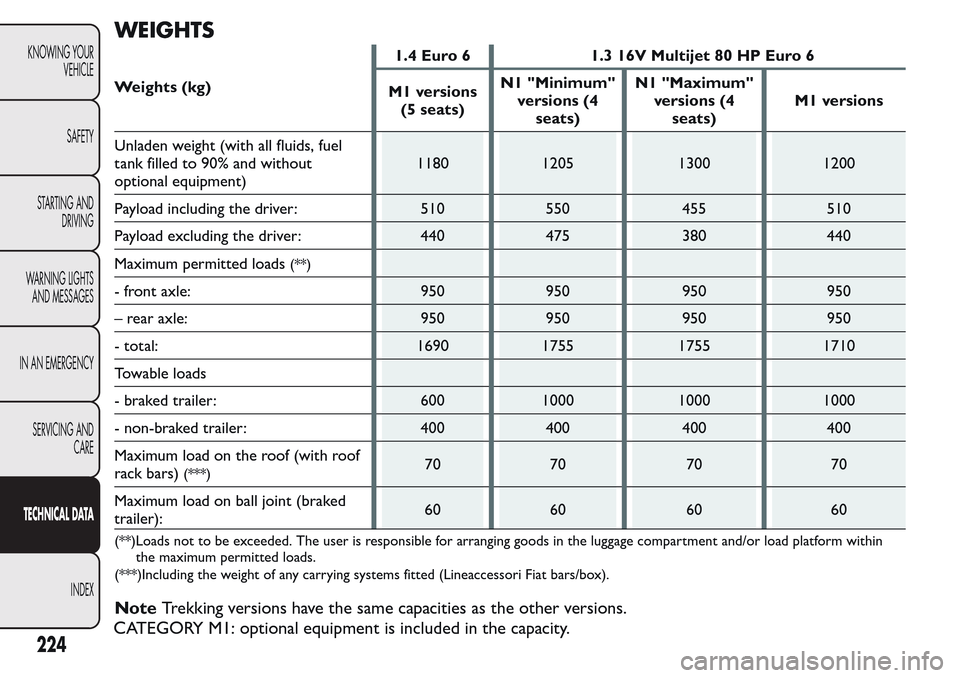

WEIGHTS
Weights (kg)1.4 Euro 6 1.3 16V Multijet 80 HP Euro 6
M1 versions
(5 seats)N1 "Minimum"
versions (4
seats)N1 "Maximum"
versions (4
seats)M1 versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1180 1205 1300 1200
Payload including the driver: 510 550 455 510
Payload excluding the driver: 440 475 380 440
Maximum permitted loads
(**)
- front axle: 950 950 950 950
– rear axle: 950 950 950 950
- total: 1690 1755 1755 1710
Towable loads
- braked trailer: 600 1000 1000 1000
- non-braked trailer: 400 400 400 400
Maximum load on the roof (with roof
rack bars)
(***)70 70 70 70
Maximum load on ball joint (braked
trailer):60 60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NoteTrekking versions have the same capacities as the other versions.
224
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
CATEGORY M1: optional equipment is included in the capacity.

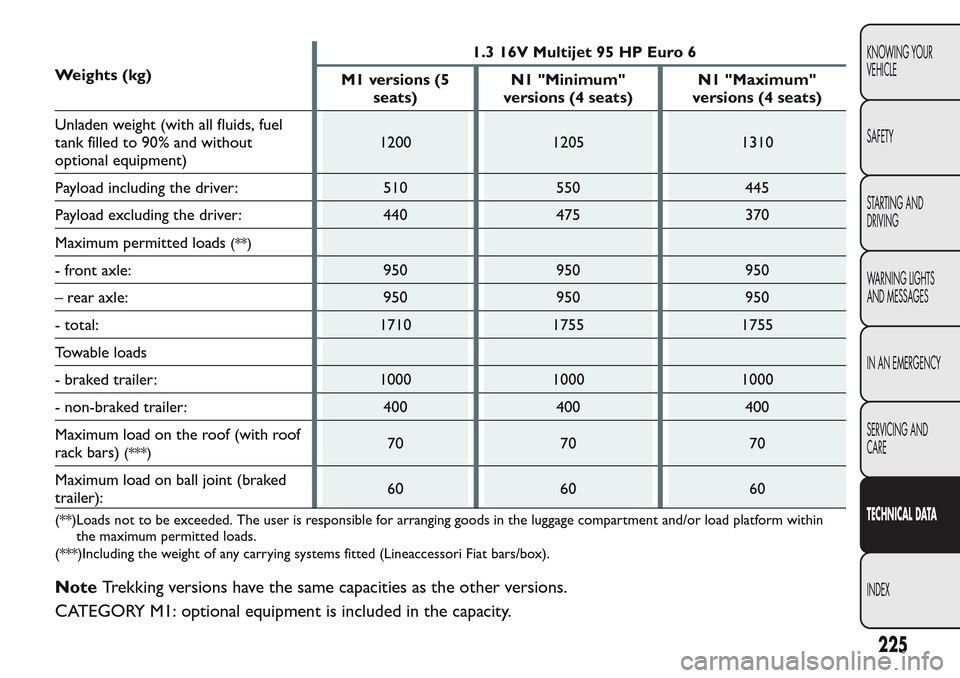

Weights (kg)1.3 16V Multijet 95 HP Euro 6
M1 versions (5
seats)N1 "Minimum"
versions (4 seats)N1 "Maximum"
versions (4 seats)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1200 1205 1310
Payload including the driver: 510 550 445
Payload excluding the driver: 440 475 370
Maximum permitted loads
(**)
- front axle: 950 950 950
– rear axle: 950 950 950
- total: 1710 1755 1755
Towable loads
- braked trailer: 1000 1000 1000
- non-braked trailer: 400 400 400
Maximum load on the roof (with roof
rack bars)
(***)70 70 70
Maximum load on ball joint (braked
trailer):60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NoteTrekking versions have the same capacities as the other versions.
CATEGORY M1: optional equipment is included in the capacity.
225
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

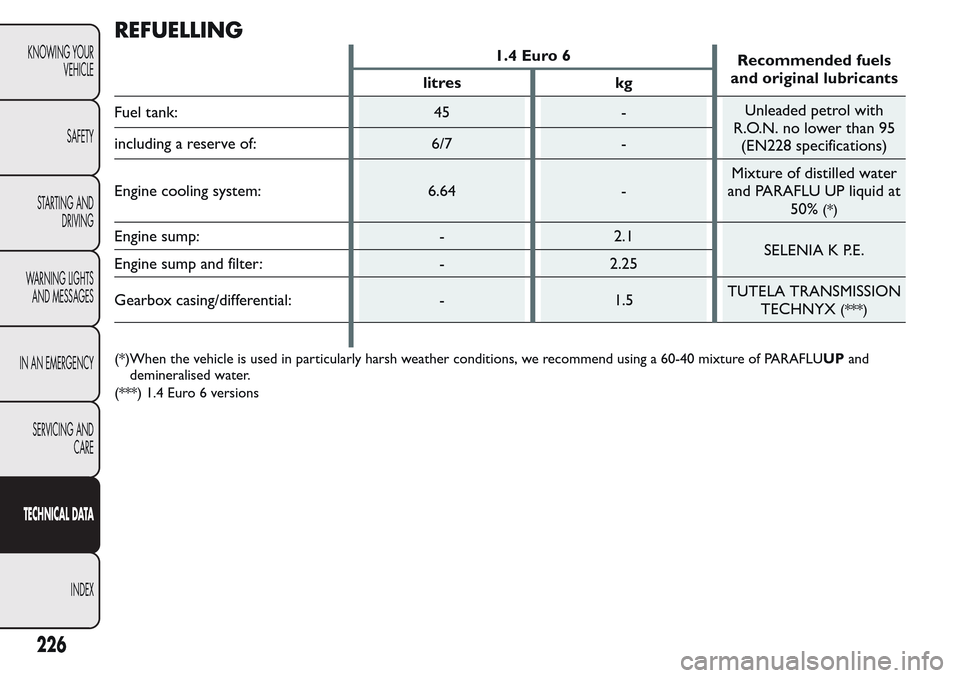

REFUELLING
1.4 Euro 6
Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -Unleaded petrol with
R.O.N. no lower than 95
(EN228 specifications) including a reserve of: 6/7 -
Engine cooling system: 6.64 -Mixture of distilled water
and PARAFLU UP liquid at
50%
(*)
Engine sump: - 2.1
SELENIA K P.E.
Engine sump and filter: - 2.25
Gearbox casing/differential: - 1.5TUTELA TRANSMISSION
TECHNYX
(***)
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
(***) 1.4 Euro 6 versions
226
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

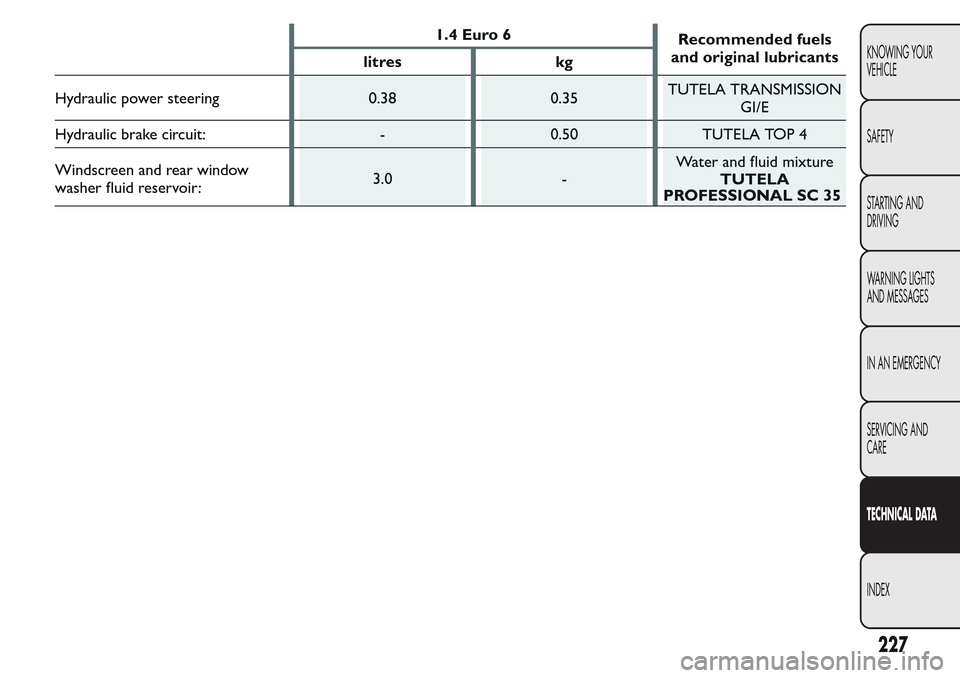

1.4 Euro 6
Recommended fuels
and original lubricants
litres kg
Hydraulic power steering 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.50 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC 35
227
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

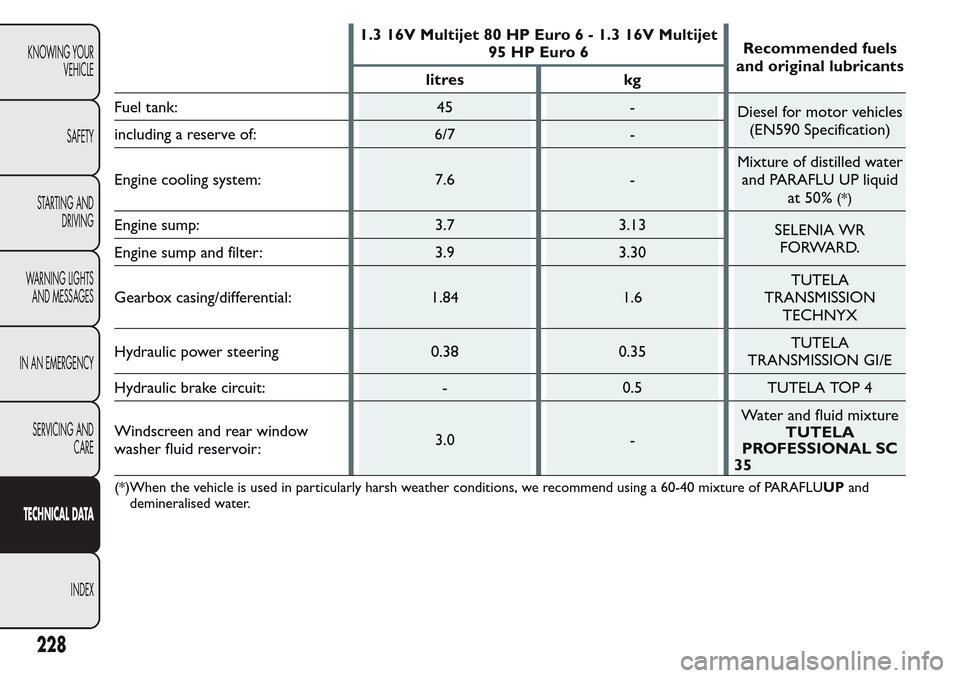

1.3 16V Multijet 80 HP Euro 6 - 1.3 16V Multijet
95 HP Euro 6Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles
(EN590 Specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -Mixture of distilled water
and PARAFLU UP liquid
at 50%
(*)
Engine sump: 3.7 3.13
SELENIA WR
FORWARD.
Engine sump and filter: 3.9 3.30
Gearbox casing/differential: 1.84 1.6TUTELA
TRANSMISSION
TECHNYX
Hydraulic power steering 0.38 0.35TUTELA
TRANSMISSION GI/E
Hydraulic brake circuit: - 0.5 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC
35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
228
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

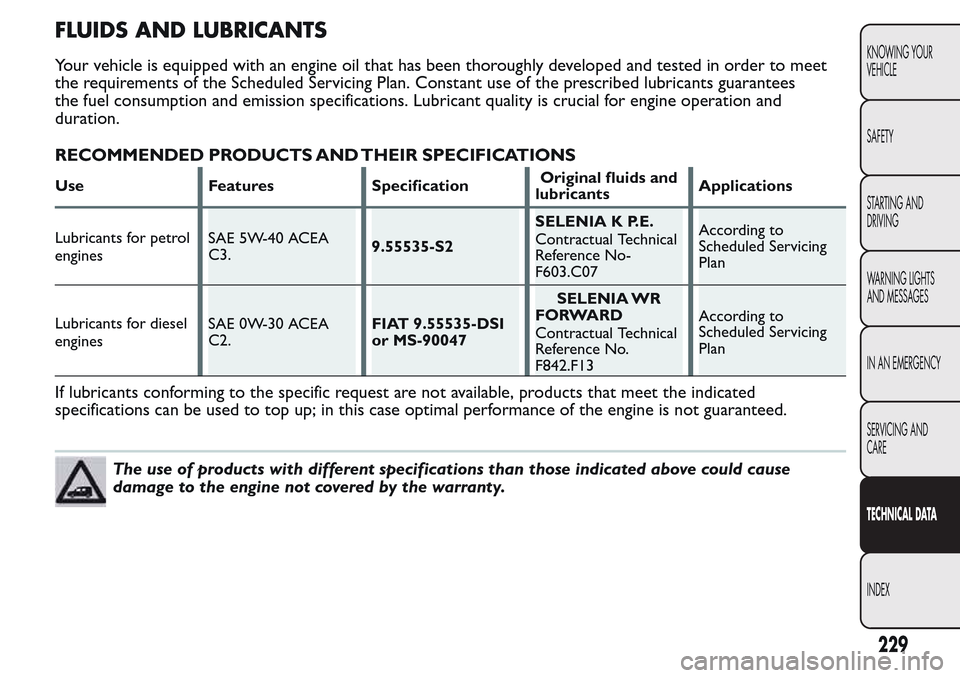

FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet
the requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees
the fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and
duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants for petrol
enginesSAE 5W-40 ACEA
C3.9.55535-S2SELENIA K P.E.
Contractual Technical
Reference No-
F603.C07According to
Scheduled Servicing
Plan
Lubricants for diesel
enginesSAE 0W-30 ACEA
C2.FIAT 9.55535-DSI
or MS-90047SELENIA WR
FORWARD
Contractual Technical
Reference No.
F842.F13According to
Scheduled Servicing
Plan
If lubricants conforming to the specific request are not available, products that meet the indicated
specifications can be used to top up; in this case optimal performance of the engine is not guaranteed.
The use of products with different specifications than those indicated above could cause
damage to the engine not covered by the warranty.
229
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

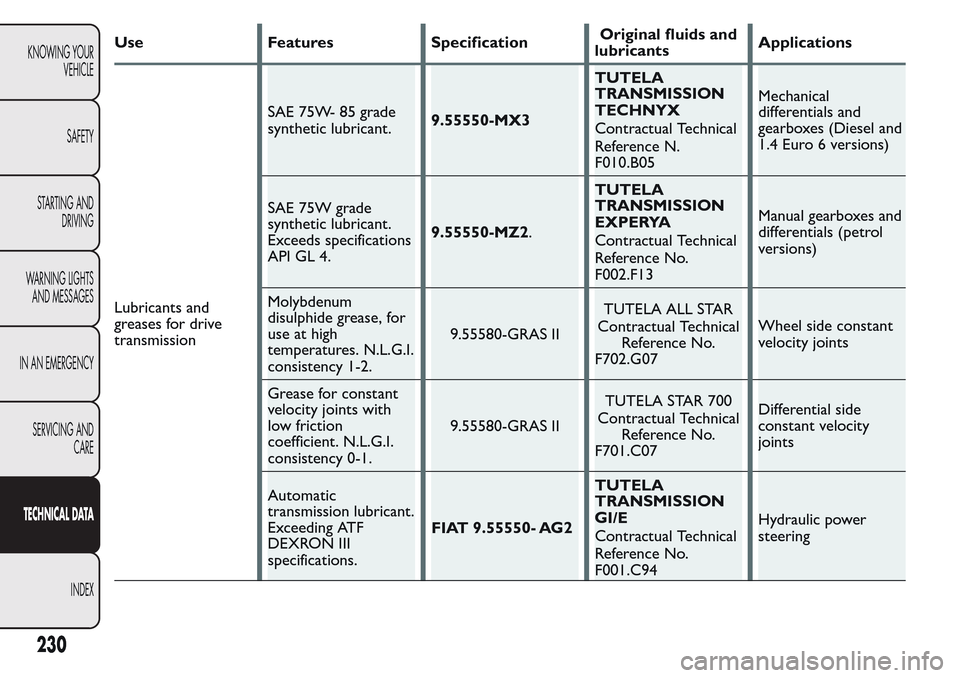

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and
greases for drive
transmissionSAE 75W- 85 grade
synthetic lubricant.9.55550-MX3TUTELA
TRANSMISSION
TECHNYX
Contractual Technical
Reference N.
F010.B05Mechanical
differentials and
gearboxes (Diesel and
1.4 Euro 6 versions)
SAE 75W grade
synthetic lubricant.
Exceeds specifications
API GL 4.9.55550-MZ2.TUTELA
TRANSMISSION
EXPERYA
Contractual Technical
Reference No.
F002.F13Manual gearboxes and
differentials (petrol
versions)
Molybdenum
disulphide grease, for
use at high
temperatures. N.L.G.I.
consistency 1-2.9.55580-GRAS IITUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant
velocity joints with
low friction
coefficient. N.L.G.I.
consistency 0-1.9.55580-GRAS IITUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential side
constant velocity
joints
Automatic
transmission lubricant.
Exceeding ATF
DEXRON III
specifications.FIAT 9.55550- AG2TUTELA
TRANSMISSION
GI/E
Contractual Technical
Reference No.
F001.C94Hydraulic power
steering
230
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

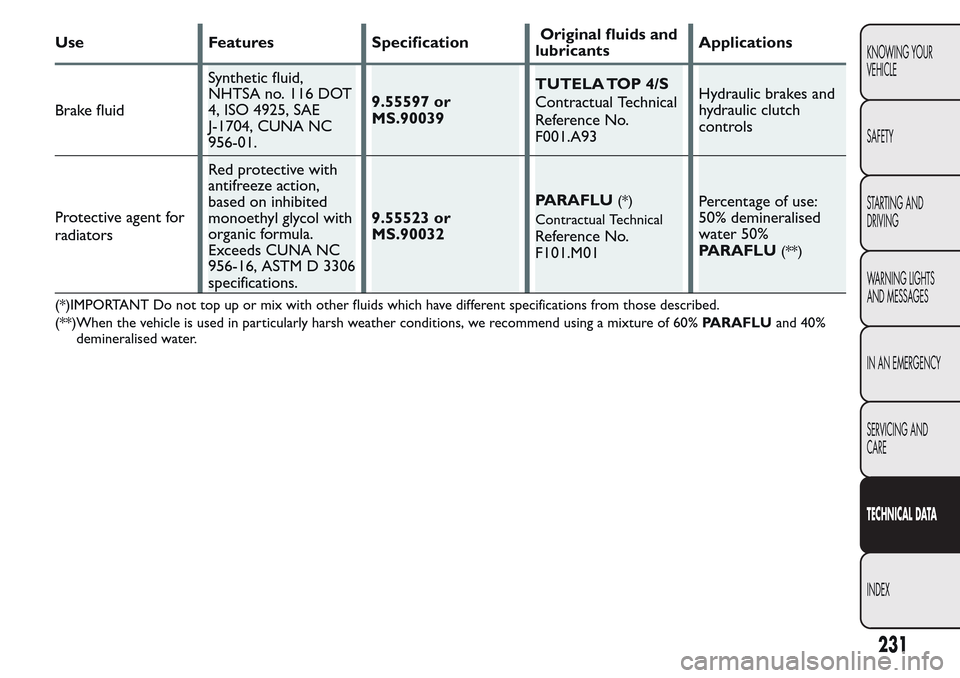

Use Features SpecificationOriginal fluids and
lubricantsApplications
Brake fluidSynthetic fluid,
NHTSA no. 116 DOT
4, ISO 4925, SAE
J-1704, CUNA NC
956-01.9.55597 or
MS.90039TUTELA TOP 4/S
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
hydraulic clutch
controls
Protective agent for
radiatorsRed protective with
antifreeze action,
based on inhibited
monoethyl glycol with
organic formula.
Exceeds CUNA NC
956-16, ASTM D 3306
specifications.9.55523 or
MS.90032PARAFLU
(*)
Contractual Technical
Reference No.
F101.M01Percentage of use:
50% demineralised
water 50%
PARAFLU(**)
(*)IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.
(**)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUand 40%
demineralised water.
