technical data FIAT QUBO 2017 1.G Owners Manual

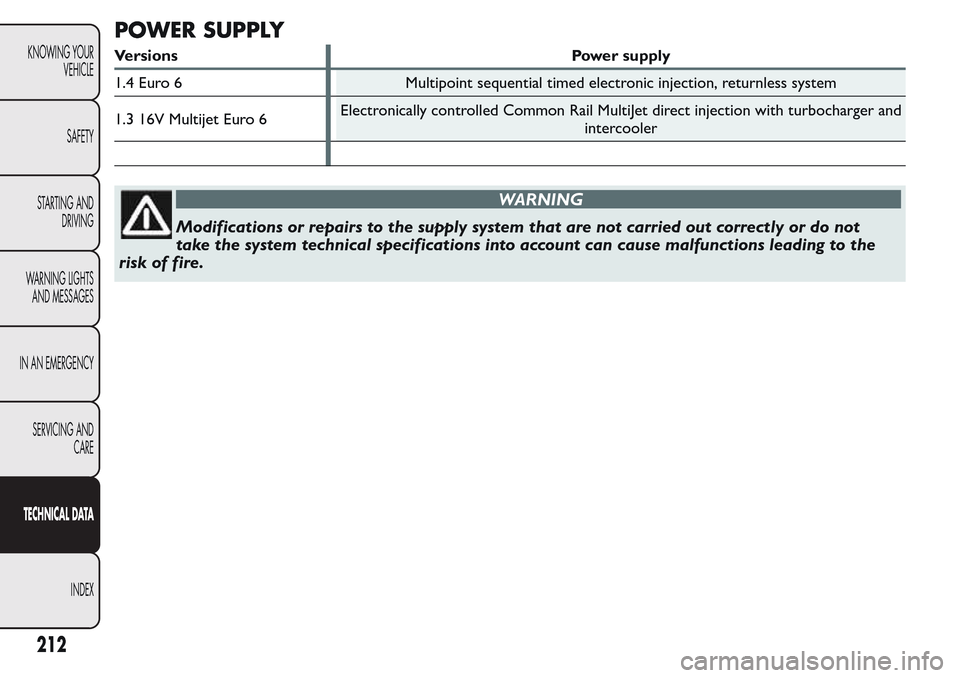

POWER SUPPLY
Versions Power supply
1.4 Euro 6 Multipoint sequential timed electronic injection, returnless system
1.3 16V Multijet Euro 6Electronically controlled Common Rail MultiJet direct injection with turbocharger and
intercooler
WARNING
Modifications or repairs to the supply system that are not carried out correctly or do not
take the system technical specifications into account can cause malfunctions leading to the
risk of fire.
212
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

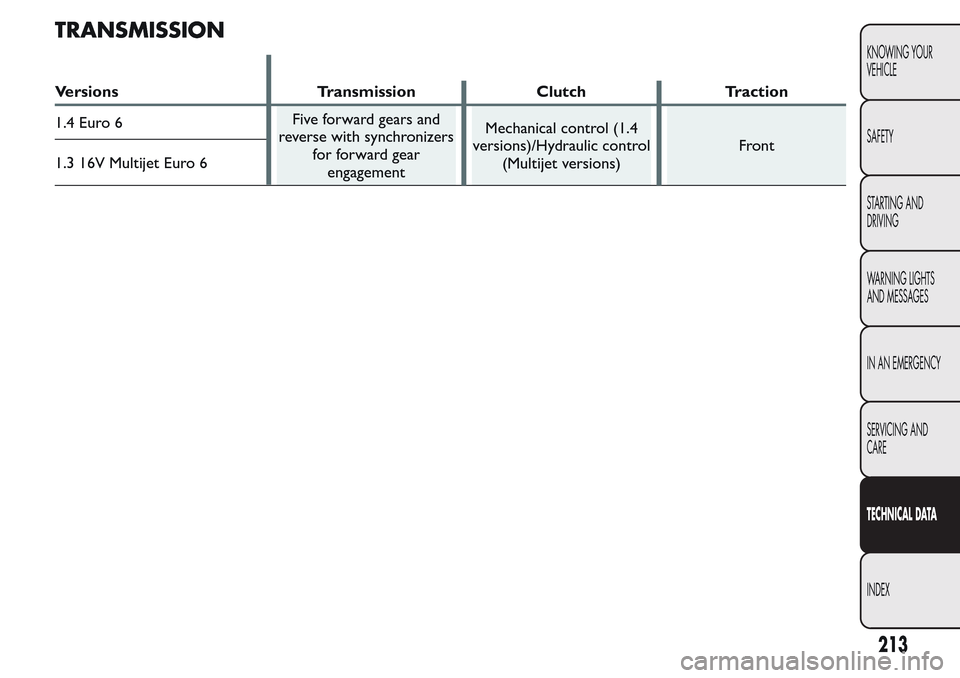

TRANSMISSION
Versions Transmission Clutch Traction
1.4 Euro 6Five forward gears and
reverse with synchronizers
for forward gear
engagementMechanical control (1.4
versions)/Hydraulic control
(Multijet versions)Front
1.3 16V Multijet Euro 6
213
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

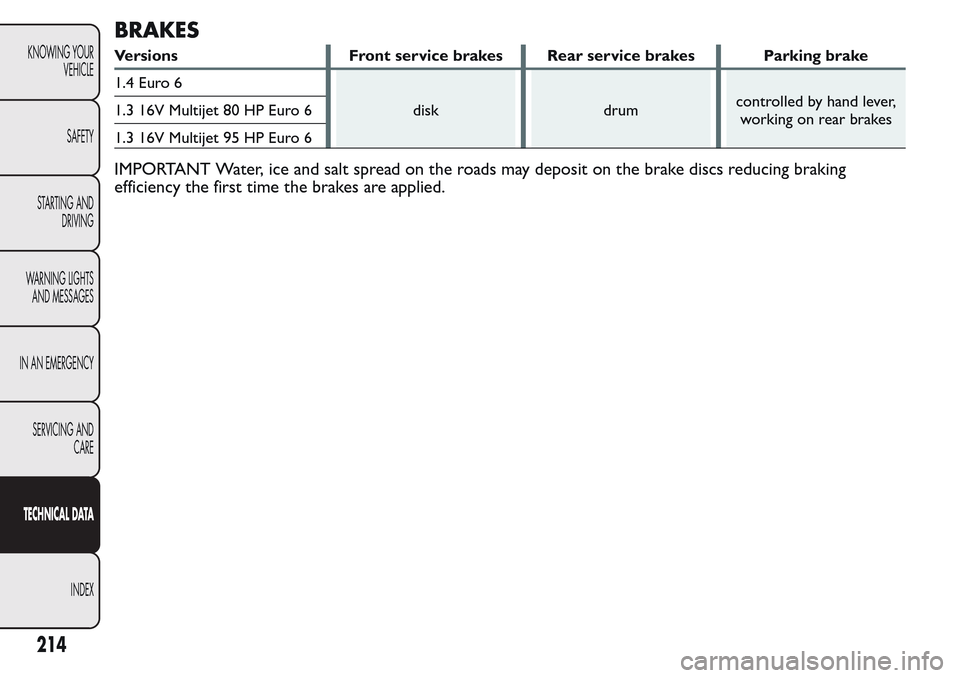

BRAKES
Versions Front service brakes Rear service brakes Parking brake
1.4 Euro 6
disk drumcontrolled by hand lever,
working on rear brakes 1.3 16V Multijet 80 HP Euro 6
1.3 16V Multijet 95 HP Euro 6
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking
efficiency the first time the brakes are applied.
214
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

SUSPENSION
Versions Front Rear
1.4 Euro 6
independent wheel MacPherson type torsion beam 1.3 16V Multijet 80 HP Euro 6
1.3 16V Multijet 95 HP Euro 6
215
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

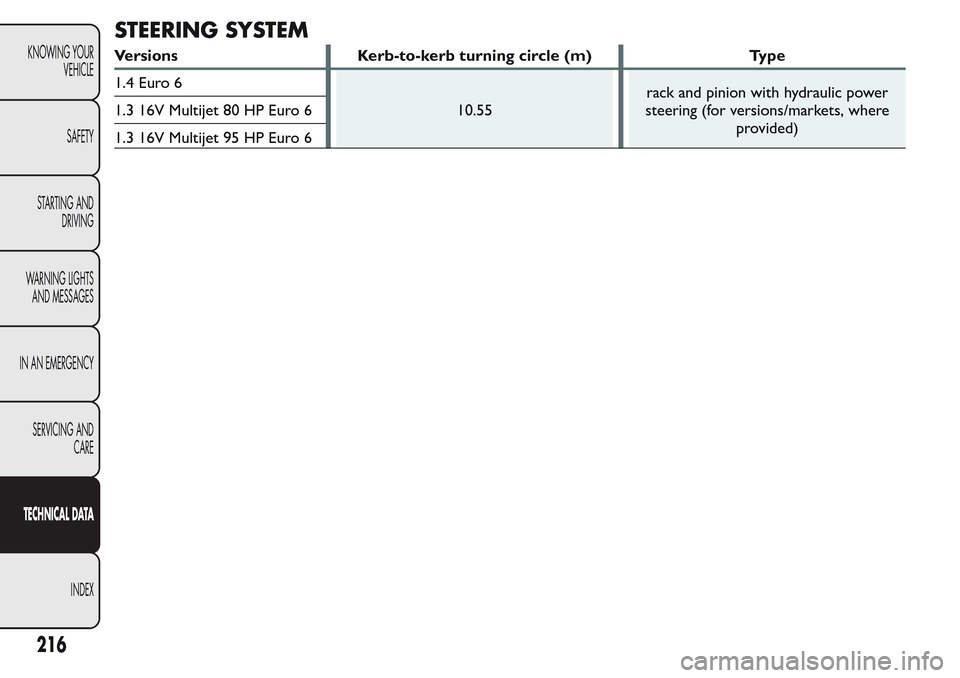

STEERING SYSTEM
Versions Kerb-to-kerb turning circle (m) Type
1.4 Euro 6
10.55rack and pinion with hydraulic power
steering (for versions/markets, where
provided) 1.3 16V Multijet 80 HP Euro 6
1.3 16V Multijet 95 HP Euro 6
216
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

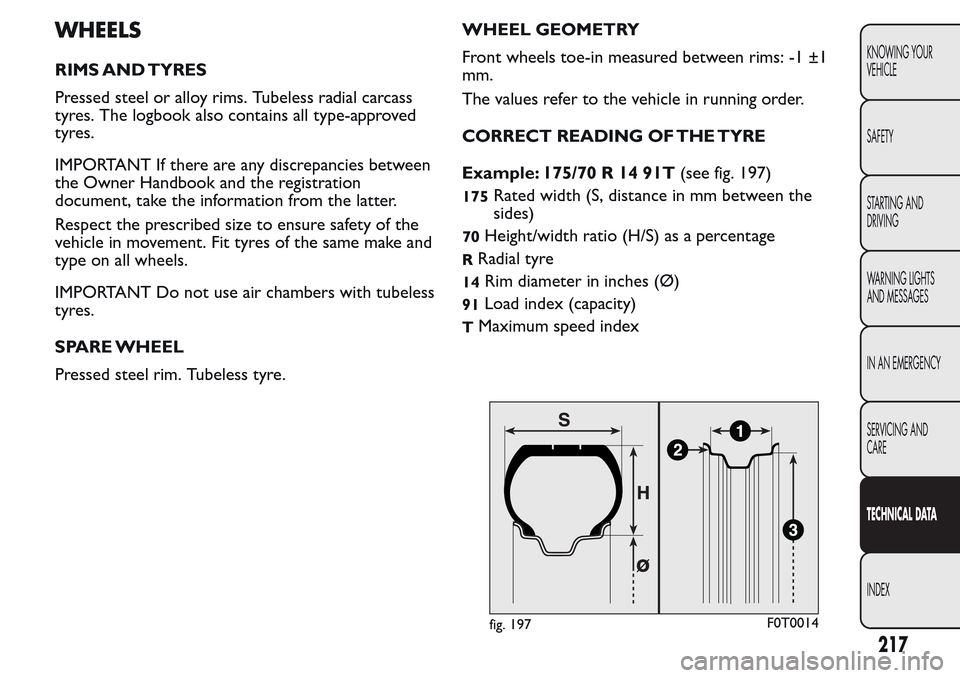

WHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres. The logbook also contains all type-approved
tyres.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter.
Respect the prescribed size to ensure safety of the
vehicle in movement. Fit tyres of the same make and
type on all wheels.
IMPORTANT Do not use air chambers with tubeless
tyres.
SPARE WHEEL
Pressed steel rim. Tubeless tyre.WHEEL GEOMETRY
Front wheels toe-in measured between rims: -1 ±1
mm.
The values refer to the vehicle in running order.
CORRECT READING OF THE TYRE
Example: 175/70 R 14 91T(see fig. 197)
175Rated width (S, distance in mm between the
sides)
70Height/width ratio (H/S) as a percentage
RRadial tyre
14Rim diameter in inches (Ø)
91Load index (capacity)
TMaximum speed index
fig. 197F0T0014
217
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

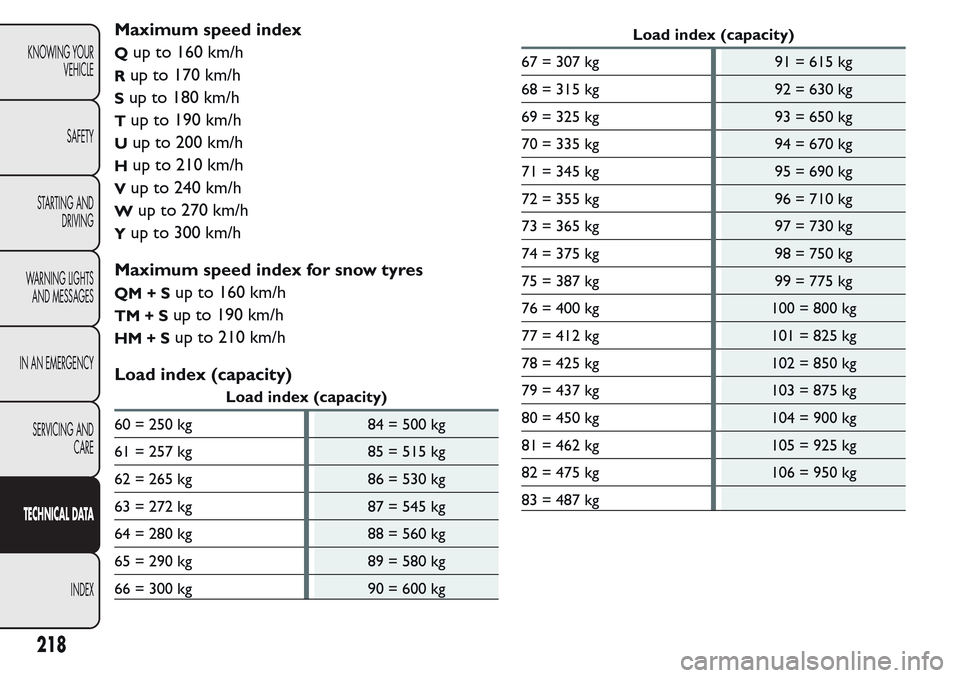

Maximum speed index
Qup to 160 km/h
Rup to 170 km/h
Sup to 180 km/h
Tup to 190 km/h
Uup to 200 km/h
Hup to 210 km/h
Vup to 240 km/h
Wup to 270 km/h
Yup to 300 km/h
Maximum speed index for snow tyres
QM+Sup to 160 km/h
TM+Sup to 190 km/h
HM+Sup to 210 km/h
Load index (capacity)
Load index (capacity)
60 = 250 kg 84 = 500 kg
61 = 257 kg 85 = 515 kg
62 = 265 kg 86 = 530 kg
63 = 272 kg 87 = 545 kg
64 = 280 kg 88 = 560 kg
65 = 290 kg 89 = 580 kg
66 = 300 kg 90 = 600 kg
Load index (capacity)
67 = 307 kg 91 = 615 kg
68 = 315 kg 92 = 630 kg
69 = 325 kg 93 = 650 kg
70 = 335 kg 94 = 670 kg
71 = 345 kg 95 = 690 kg
72 = 355 kg 96 = 710 kg
73 = 365 kg 97 = 730 kg
74 = 375 kg 98 = 750 kg
75 = 387 kg 99 = 775 kg
76 = 400 kg 100 = 800 kg
77 = 412 kg 101 = 825 kg
78 = 425 kg 102 = 850 kg
79 = 437 kg 103 = 875 kg
80 = 450 kg 104 = 900 kg
81 = 462 kg 105 = 925 kg
82 = 475 kg 106 = 950 kg
83 = 487 kg
218
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

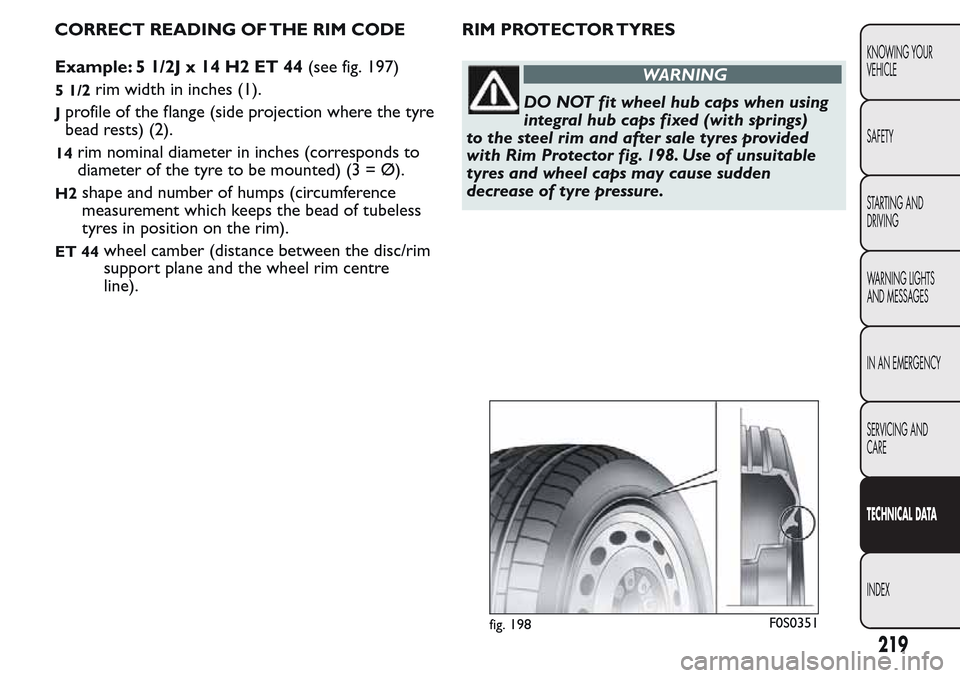

CORRECT READING OF THE RIM CODE
Example: 5 1/2J x 14 H2 ET 44(see fig. 197)
5 1/2rim width in inches (1).
Jprofile of the flange (side projection where the tyre
bead rests) (2).
14rim nominal diameter in inches (corresponds to
diameter of the tyre to be mounted) (3 = Ø).
H2shape and number of humps (circumference
measurement which keeps the bead of tubeless
tyres in position on the rim).
ET 44wheel camber (distance between the disc/rim
support plane and the wheel rim centre
line).RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel hub caps when using
integral hub caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector fig. 198. Use of unsuitable
tyres and wheel caps may cause sudden
decrease of tyre pressure.
fig. 198F0S0351
219
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

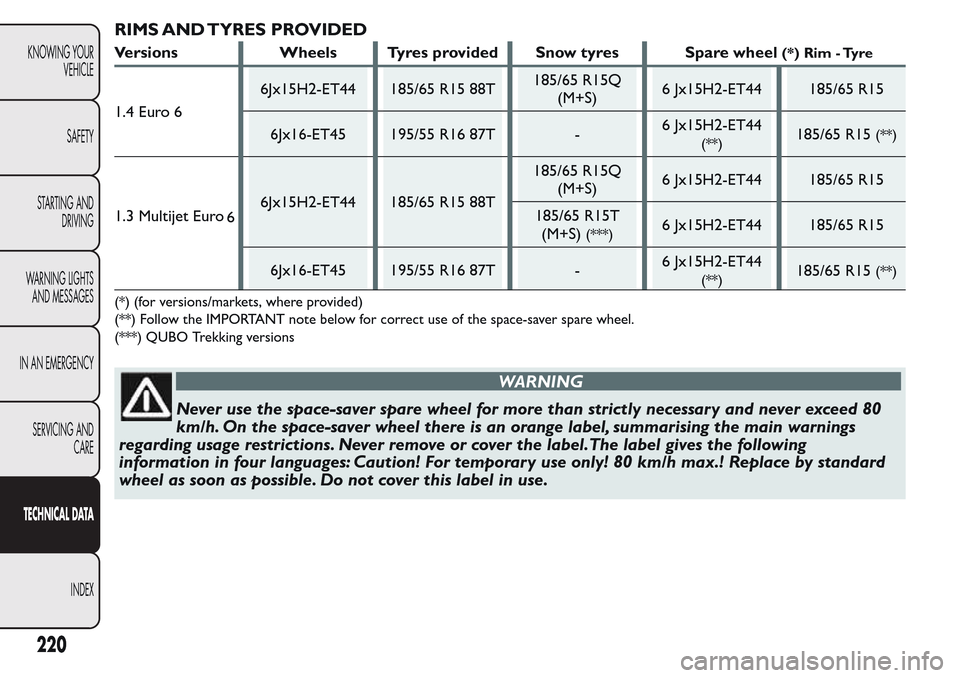

RIMS AND TYRES PROVIDED
Versions Wheels Tyres provided Snow tyres
Spare wheel(*) Rim - Tyre
1.4 Euro 66Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)185/65 R15(**)
1.3 Multijet Euro
66Jx15H2-ET44 185/65 R15 88T185/65 R15Q
(M+S)6 Jx15H2-ET44 185/65 R15
185/65 R15T
(M+S)
(***)6 Jx15H2-ET44 185/65 R15
6Jx16-ET45 195/55 R16 87T -6 Jx15H2-ET44
(**)185/65 R15(**)
(*) (for versions/markets, where provided)
(**) Follow the IMPORTANT note below for correct use of the space-saver spare wheel.
(***) QUBO Trekking versions
WARNING
Never use the space-saver spare wheel for more than strictly necessar y and never exceed 80
km/h. On the space-saver wheel there is an orange label, summarising the main warnings
regarding usage restrictions. Never remove or cover the label.The label gives the following
information in four languages: Caution! For temporary use only! 80 km/h max.! Replace by standard
wheel as soon as possible. Do not cover this label in use.
220
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

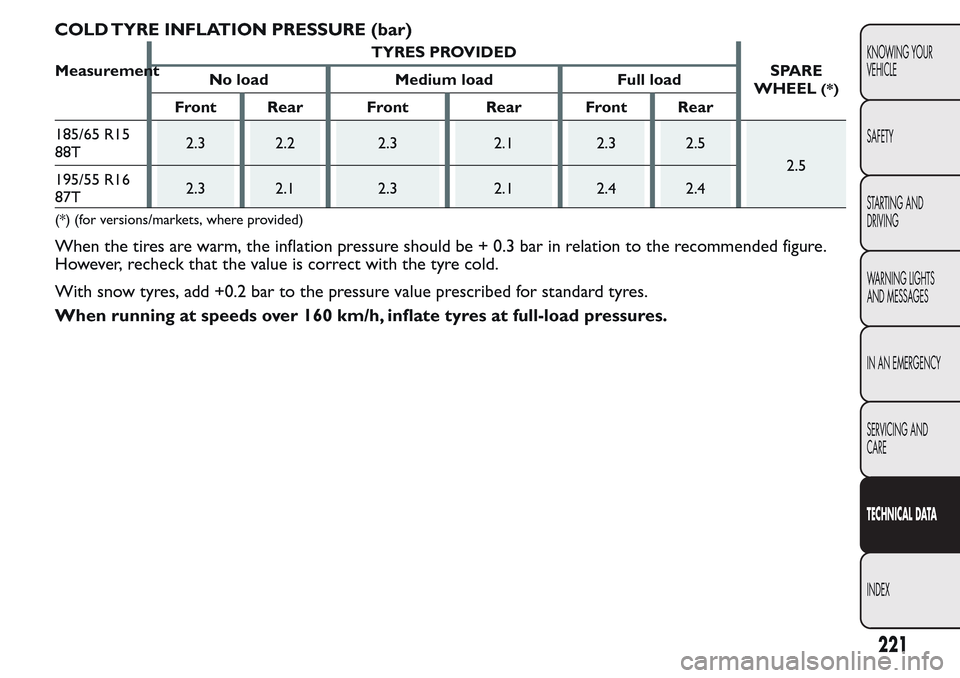

COLD TYRE INFLATION PRESSURE (bar)
MeasurementTYRES PROVIDED
SPARE
WHEEL
(*)No load Medium load Full load
Front Rear Front Rear Front Rear
185/65 R15
88T2.3 2.2 2.3 2.1 2.3 2.5
2.5
195/55 R16
87T2.3 2.1 2.3 2.1 2.4 2.4
(*) (for versions/markets, where provided)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure.
However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
When running at speeds over 160 km/h, inflate tyres at full-load pressures.
