stop start FIAT QUBO 2017 1.G Workshop Manual

WARNING
Before towing, turn the ignition key to
MAR and then to STOP without
extracting it .The steering column will
automatically lock when the key is removed and
the wheels cannot be steered.
WARNING
Before tightening the hook clean the
threaded housing thoroughly. Before
towing the vehicle, make sure that the tow ring
is fully tightened in its appropriate housing.
WARNING
Do not start the engine whilst the
vehicle is being towed.
WARNING
Remember that the brake booster will
not work while the vehicle is being
towed and that more pressure must be applied
to the pedal. Do not use bendy cables for
towing and avoid jerking. During towing
operations, make sure that the fastened joint
does not damage adjoining components.When
towing the vehicle, comply with the specific
rules of the highway code regarding the towing
device and road conduct . Do not start the
engine whilst the vehicle is being towed.
fig. 179F0T0086
181
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

ENGINE OIL
Engine oil level check
Check the oil level a few minutes (about 5) after the
engine has stopped, with the vehicle parked on
level ground.
Take out the dipstick A fig. 182 - fig. 183, clean it and
then fully reinsert it; take it out and check that the
level is between the MIN and MAX marks on the
dipstick. The interval between MIN and MAX marks
corresponds to about 1 litre of oil.
Topping up the engine oil
If the level of the oil is close to or below the MIN
mark, add oil via filler B fig. 183 until the MAX mark
is reached.
The oil level must never exceed the MAX. mark.IMPORTANT If the engine oil level after the check is
over the MAX level, go to a Fiat Dealership to
have the correct level restored.
IMPORTANT After adding or changing the oil, let the
engine turn over for a few seconds and wait a few
minutes after turning it off before you check the
level.
Engine oil consumption
The maximum engine oil consumption is usually 400
grams every 1000 km.
When the vehicle is new, the engine needs to be run
in, therefore the engine oil consumption can only
be considered stabilised after the first 5,000–6,000
km.
IMPORTANT The oil consumption depends on
driving style and the conditions under which the
vehicle is used.
fig. 182 - 1.4 Euro 6 versionsF0T0513
AB
fig. 183 - 1.3 Multijet Euro 6 versionsF0T0437
192
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

IMPORTANT
As far as possible, avoid sharp braking, screech
starts and violent shocks against pavements,
potholes or other hard obstacles. Driving for long
stretches over uneven roads can damage the
tyres;
periodically check that the tyres have no cuts in
the side wall, abnormal swelling or irregular tread
wear. Contact a Fiat Dealership if required;
avoid overloading the car when travelling: this may
cause serious damage to the wheels and tyres;
if a tyre is punctured, stop immediately and
replace it to avoid damage to the tyre, the rim,
suspension and steering system;
tyres age even if they are not used much. Cracks
in the tread and on the side walls are a sign of
ageing. In any event, have the tyres checked by
specialised personnel if they have been fitted for
longer than 6 years. Remember to check the spare
wheel very carefully;
in the case of replacement, always fit new tyres,
avoiding those of dubious origin;
if a tyre is replaced, also replace the inflation valve;
to allow even wear between the front and rear
tyres, it is advisable to change them over every
10–15 thousand kilometres, keeping them on the
same side of the vehicle so as not to reverse
the direction of rotation.
WARNING
Remember that the road holding
qualities of your vehicle also depend on
the correct inflation pressure of the tyres.
WARNING
If tyre pressure is too low, the tyre may
overheat and be severely damaged as
a result .
WARNING
Do not switch tyres from the right­hand
side of the vehicle to the left­hand
side, and vice versa.
WARNING
Do not repaint alloy wheel rims at
temperatures higher than 150°C.The
mechanical characteristics of the wheels might
be compromised.
200
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

rinse thoroughly to avoid soap marks staying on
the bodywork or less visible parts.
Some car washes with old-style blades
and/or in a poor state of repair can
damage the paintwork, facilitating the
formation of lines that give the paint a dull/misty
appearance, especially on dark colours. If this
happens, lightly polish the paintwork with
appropriate products.
Dry the less visible parts particularly carefully, such
as the door frames, bonnet and the headlight frames,
where water may stagnate more easily. It is a good
idea to leave the vehicle outdoors for a while after
washing it to give water time to evaporate.
Do not wash the vehicle after it has been left in the
sun or with the bonnet hot: this may alter the shine
of the paintwork.
Exterior plastic parts should be cleaned in the same
way as the rest of the vehicle. Where possible, do
not park the vehicle under trees; the resinous
substances released by many species give the paint a
dull appearance and increase the possibility of rust.
IMPORTANT Bird droppings should be washed
off immediately and thoroughly as the acid
they contain is particularly aggressive.
Detergents cause water pollution.The
vehicle should be washed in areas
equipped for collecting and purifying the
liquid used in the washing process.
Windows
Use specific detergents to clean the windows. Also
use clean cloths to avoid scratching the glass or
altering the transparency.
IMPORTANT Wipe the rear window gently with a
cloth in the direction of the filaments to avoid
damaging the heating device.
Engine compartment
At the end of each winter, thoroughly wash the
engine compartment, taking care to avoid spraying
the water jet directly onto the electronic control
units and the relay/fuse box on the left side of the
engine compartment (as you look from behind
the wheel). Have this operation performed at a
specialist garage.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP
position. After the wash, make sure that the various
protective devices (e.g. rubber caps and guards)
have not been removed or damaged.
205
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

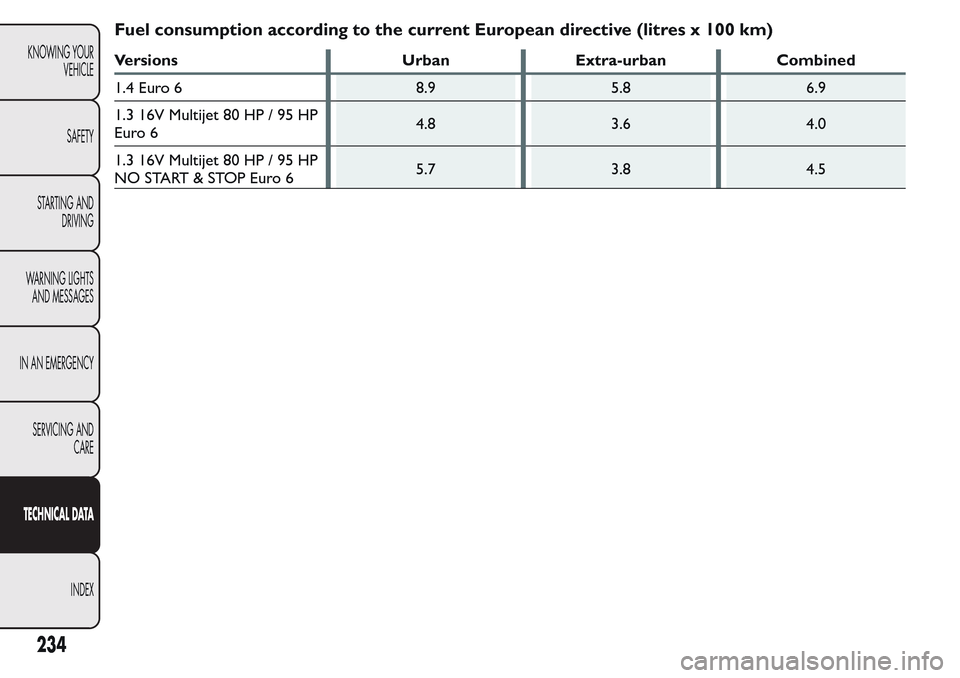

Fuel consumption according to the current European directive (litres x 100 km)
Versions Urban Extra-urban Combined
1.4 Euro 6 8.9 5.8 6.9
1.3 16V Multijet 80 HP / 95 HP
Euro 64.8 3.6 4.0
1.3 16V Multijet 80 HP / 95 HP
NO START & STOP Euro 65.7 3.8 4.5
234
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

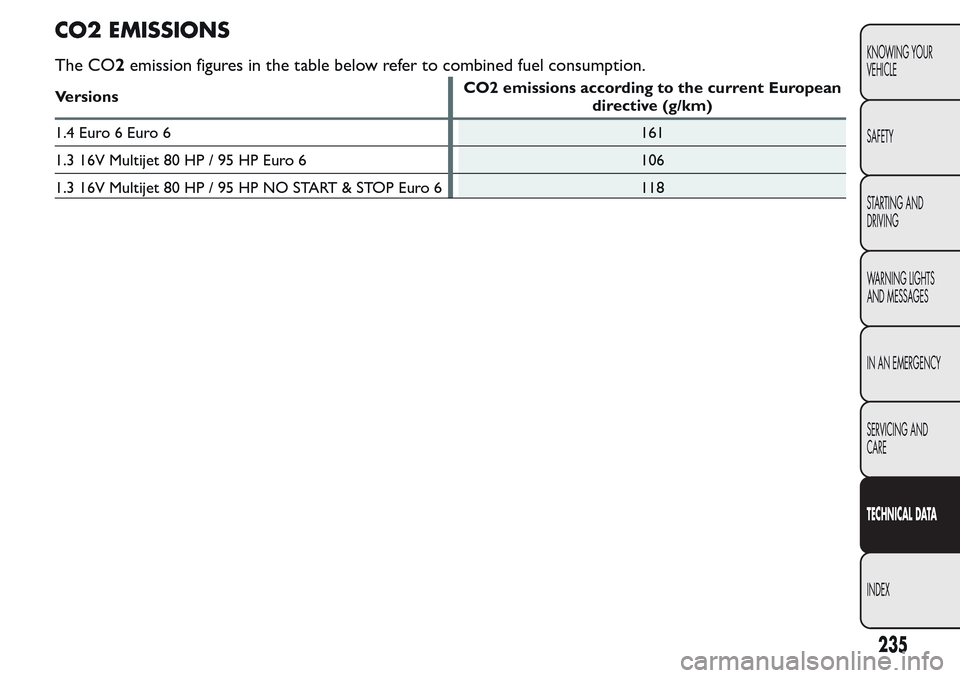

CO2 EMISSIONS
The CO2emission figures in the table below refer to combined fuel consumption.
VersionsCO2 emissions according to the current European
directive (g/km)
1.4 Euro 6 Euro 6 161
1.3 16V Multijet 80 HP / 95 HP Euro 6 106
1.3 16V Multijet 80 HP / 95 HP NO START & STOP Euro 6 118
235
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
