key FIAT SCUDO 2009 2.G Workshop Manual

129
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGESSTOP (red)
It turns on simultaneously
with any warning light. ABS SYSTEM FAILURE
(amber)
Turning the ignition key to M
the warning light turns on, but it should
go off after few seconds.
The warning light turns on when the sys-
tem is inefficient or unavailable. In this
case the braking system keeps its effec-
tiveness unchanged, but without the
potential offered by the ABS system.
Caution is advisable and it is necessary
to contact Fiat Dealership.
>“
FRONT PASSENGER’S
AIR BAG
DEACTIVATED (amber)
Warning light
“comes on when front
passenger’s air bag is deactivated.
With front passenger’s air bag on, turn-
ing the ignition key to M, warning light
“comes on steadily for about 4 seconds, it
flashes for other 4 seconds and then it
shall go off.Warning light
“indicates
also warning light ¬fail-
ures. This is indicated by intermittent
flashing, over 4 seconds, of warning
light
“. In this event warning light ¬indicates that there could be a failure
in safety systems. Contact Fiat Deal-
ership immediately to have the sys-
tem checked.
WARNING
STOP
If the warning light lights up:
stop, park the car, take out
the starting key and seek advice from
the Fiat Dealership.
WARNING

130
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
K
FUEL RESERVE
(amber)
Turning the ignition key to M
the warning light turns on, but it should
go off after few seconds.
When the warning light lights up, go to a
service station to refuel.
IMPORTANT The warning light flashes
to indicate a failure, contact Fiat
Dealership as soon as possible to have
the system checked.
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are turned on.
4
GENERIC FAILURE
INDICATION
(amber)
This warning light starts flashing to indi-
cate a non-serious failure. It turns on
glowing steadily to indicate a serious fail-
ure. In any case the relevant message will
be displayed.
Contact Fiat Dealership according to the
seriousness of the indication.
If the level of the diesel additive to the
anti-particulate filter (DPF version) is at
the minimum level: the warning light
switches on together with an acoustic
warning and a message on the display.
Contact Fiat Dealership.
è
ESP SYSTEM FAILURE
(amber)
Turning the ignition key to M
the warning light turns on, but it should
go off after few seconds.
If the warning light flashes, it signals an
avoided slipping of the wheels. In this
case the system optimises the drive and
it allows the improvement of the direc-
tional stability of the vehicle. If the warn-
ing light remains lit (led on the ESP
OFFbutton – switched off) it signals a
system dysfunction. In this case check
the tyre pressure and/or seek advice
from the Fiat Dealership. If the warning
light remains lit (led on the ESP OFF
button switched on) it signals the deacti-
vation of the system.
Notethe flashing of the warning light
during transit indicates the operation of
the ESP system.
™

132
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
INDICATIONS AND WARNING LIGHTS ON DISPLAY
Indication
CRUISE
CONTROL
SPEED
RESTRICTOR
GLOW PLUG
WARMING
WATER IN
DIESEL FUEL
FILTER
SCHEDULED
SERVICINGWarning
light
By turning the key to the Mposition, the warning light lights up, but it must switch itself off af-
ter a few seconds. The warning light lights up when the Cruise Control is activated.
The warning light lights up when the speed restrictor is activated.
Turning the ignition key to Mthe warning light turns on and it will turn off when glow plugs
reach the preset temperature. Start the engine immediately after warning light switching off.
IMPORTANT With hot ambient temperature, warning light stays on for very short time.
Turning the ignition key to Mthe warning light turns on, but it should go off after few sec-
onds. The warning light turns on when there is water in the diesel fuel filter.
m
The presence of water in the fuel circuit may cause serious damage to the
entire injection system and cause irregular engine operation. If the warning
light turns on, contact Fiat Dealership as soon as possible to have the sys-
tem relieved. If the above indications come on immediately after refuelling,
water has probably been poured into the tank: turn the engine off immediately and
contact Fiat Dealership.
Turning the ignition key to M, the warning light turns on, but it should go off after few sec-
onds. The warning light turns on when a scheduled servicing operation is to be carried out.
Ü
ƒ
≈
∆

146
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

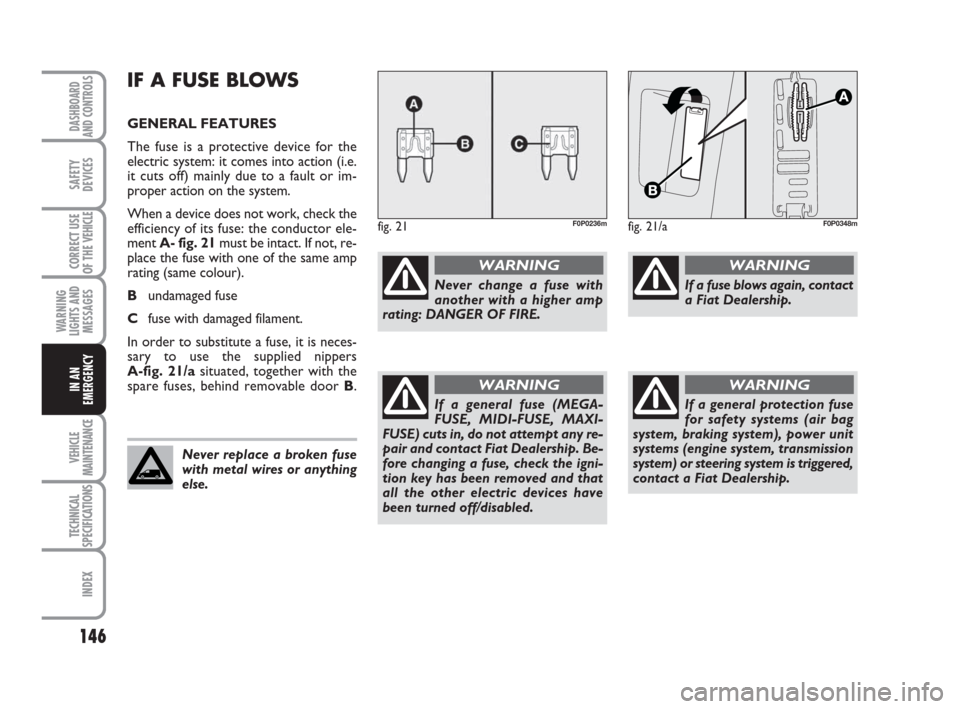

IF A FUSE BLOWS
GENERAL FEATURES
The fuse is a protective device for the
electric system: it comes into action (i.e.
it cuts off) mainly due to a fault or im-
proper action on the system.
When a device does not work, check the
efficiency of its fuse: the conductor ele-
ment A- fig. 21must be intact. If not, re-
place the fuse with one of the same amp
rating (same colour).
Bundamaged fuse
Cfuse with damaged filament.
In order to substitute a fuse, it is neces-
sary to use the supplied nippers
A-fig. 21/asituated, together with the
spare fuses, behind removable door B.
fig. 21F0P0236m
Never change a fuse with
another with a higher amp
rating: DANGER OF FIRE.
WARNING
Never replace a broken fuse
with metal wires or anything
else.
If a general fuse (MEGA-
FUSE, MIDI-FUSE, MAXI-
FUSE) cuts in, do not attempt any re-
pair and contact Fiat Dealership. Be-
fore changing a fuse, check the igni-
tion key has been removed and that
all the other electric devices have
been turned off/disabled.
WARNING
If a general protection fuse
for safety systems (air bag
system, braking system), power unit
systems (engine system, transmission
system) or steering system is triggered,
contact a Fiat Dealership.
WARNING
If a fuse blows again, contact
a Fiat Dealership.
WARNING
fig. 21/aF0P0348m
133-152 Nuovo ScudoG9 GB:133-152 Nuovo ScudoG9 GB 16-11-2009 12:01 Pagina 146

151
WARNING
LIGHTS AND
MESSAGES
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY

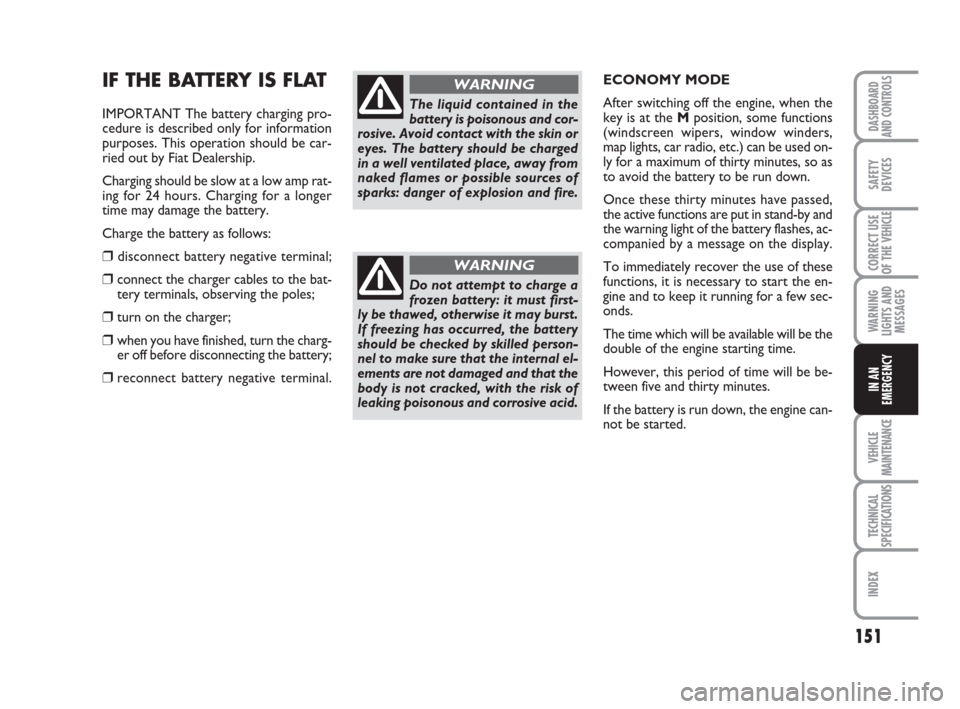

IF THE BATTERY IS FLAT
IMPORTANT The battery charging pro-
cedure is described only for information
purposes. This operation should be car-
ried out by Fiat Dealership.
Charging should be slow at a low amp rat-
ing for 24 hours. Charging for a longer
time may damage the battery.
Charge the battery as follows:
❒disconnect battery negative terminal;
❒connect the charger cables to the bat-
tery terminals, observing the poles;
❒turn on the charger;
❒when you have finished, turn the charg-
er off before disconnecting the battery;
❒reconnect battery negative terminal.
The liquid contained in the
battery is poisonous and cor-
rosive. Avoid contact with the skin or
eyes. The battery should be charged
in a well ventilated place, away from
naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING
Do not attempt to charge a
frozen battery: it must first-
ly be thawed, otherwise it may burst.
If freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal el-
ements are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
ECONOMY MODE
After switching off the engine, when the
key is at the Mposition, some functions
(windscreen wipers, window winders,
map lights, car radio, etc.) can be used on-
ly for a maximum of thirty minutes, so as
to avoid the battery to be run down.
Once these thirty minutes have passed,
the active functions are put in stand-by and
the warning light of the battery flashes, ac-
companied by a message on the display.
To immediately recover the use of these
functions, it is necessary to start the en-
gine and to keep it running for a few sec-
onds.
The time which will be available will be the
double of the engine starting time.
However, this period of time will be be-
tween five and thirty minutes.
If the battery is run down, the engine can-
not be started.
133-152 Nuovo ScudoG9 GB:133-152 Nuovo ScudoG9 GB 16-11-2009 12:01 Pagina 151

165
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

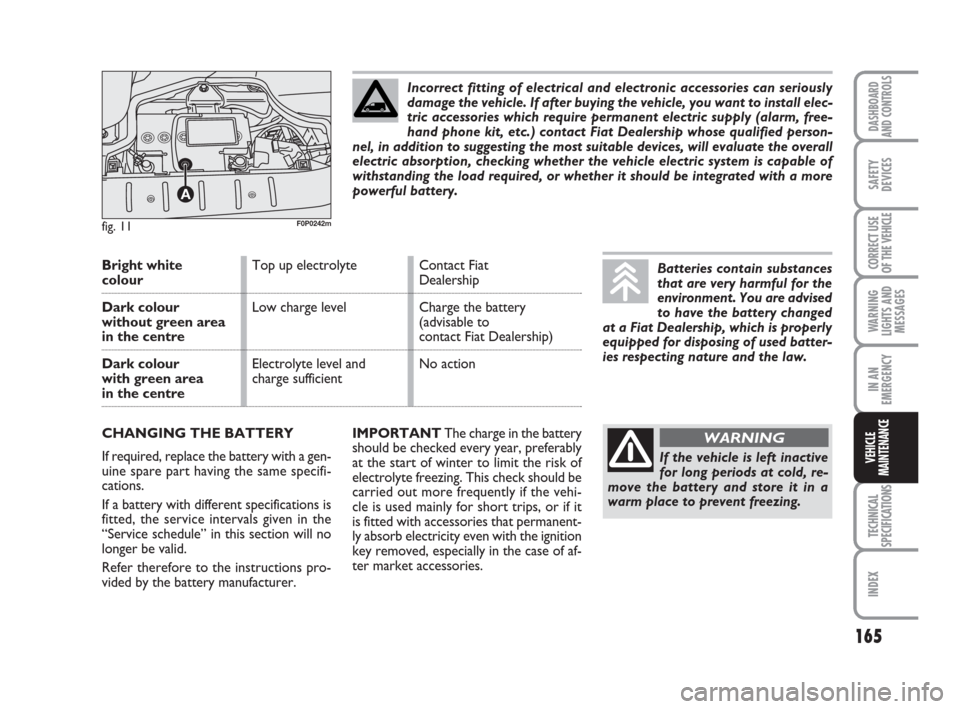

IMPORTANTThe charge in the battery
should be checked every year, preferably
at the start of winter to limit the risk of
electrolyte freezing. This check should be
carried out more frequently if the vehi-
cle is used mainly for short trips, or if it
is fitted with accessories that permanent-
ly absorb electricity even with the ignition
key removed, especially in the case of af-
ter market accessories.
fig. 11
A
F0P0242m
Bright whiteTop up electrolyte Contact Fiat colourDealership
Dark colourLow charge level Charge the battery
without green area (advisable to
in the centrecontact Fiat Dealership)
Dark colour Electrolyte level and No action
with green area charge sufficient
in the centre
CHANGING THE BATTERY
If required, replace the battery with a gen-
uine spare part having the same specifi-
cations.
If a battery with different specifications is
fitted, the service intervals given in the
“Service schedule” in this section will no
longer be valid.
Refer therefore to the instructions pro-
vided by the battery manufacturer.Incorrect fitting of electrical and electronic accessories can seriously
damage the vehicle. If after buying the vehicle, you want to install elec-
tric accessories which require permanent electric supply (alarm, free-
hand phone kit, etc.) contact Fiat Dealership whose qualified person-
nel, in addition to suggesting the most suitable devices, will evaluate the overall
electric absorption, checking whether the vehicle electric system is capable of
withstanding the load required, or whether it should be integrated with a more
powerful battery.
Batteries contain substances
that are very harmful for the
environment. You are advised
to have the battery changed
at a Fiat Dealership, which is properly
equipped for disposing of used batter-
ies respecting nature and the law.
If the vehicle is left inactive
for long periods at cold, re-
move the battery and store it in a
warm place to prevent freezing.
WARNING
153-172 Nuovo ScudoG9 GB:153-172 Nuovo ScudoG9 GB 16-11-2009 12:05 Pagina 165

166
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

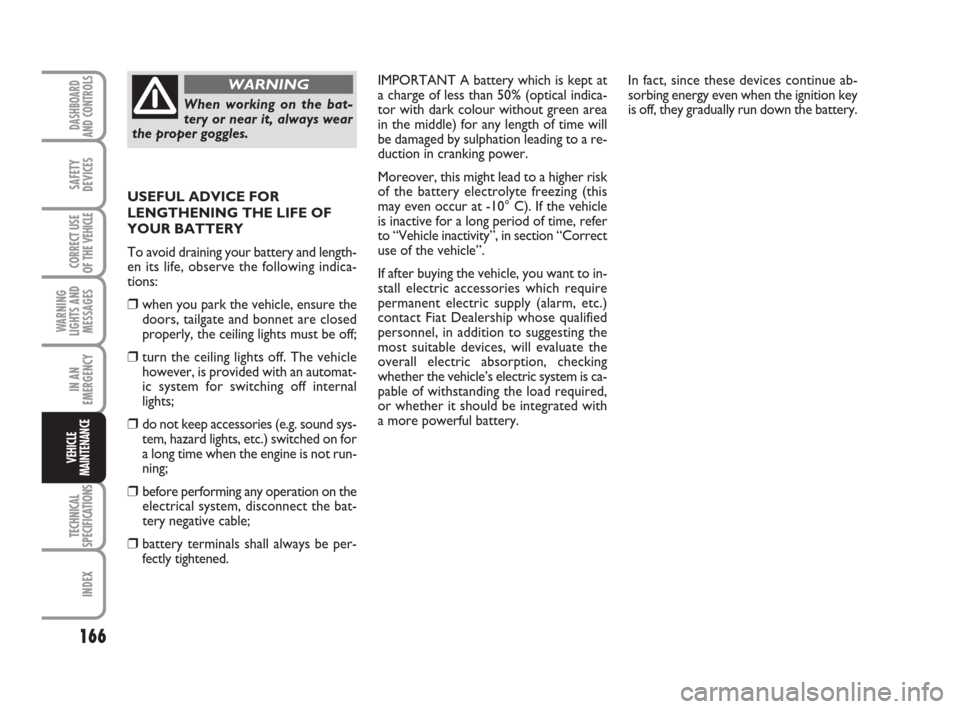

IMPORTANT A battery which is kept at
a charge of less than 50% (optical indica-
tor with dark colour without green area
in the middle) for any length of time will
be damaged by sulphation leading to a re-
duction in cranking power.
Moreover, this might lead to a higher risk
of the battery electrolyte freezing (this
may even occur at -10° C). If the vehicle
is inactive for a long period of time, refer
to “Vehicle inactivity”, in section “Correct
use of the vehicle”.
If after buying the vehicle, you want to in-
stall electric accessories which require
permanent electric supply (alarm, etc.)
contact Fiat Dealership whose qualified
personnel, in addition to suggesting the
most suitable devices, will evaluate the
overall electric absorption, checking
whether the vehicle’s electric system is ca-
pable of withstanding the load required,
or whether it should be integrated with
a more powerful battery. USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and length-
en its life, observe the following indica-
tions:
❒when you park the vehicle, ensure the
doors, tailgate and bonnet are closed
properly, the ceiling lights must be off;
❒turn the ceiling lights off. The vehicle
however, is provided with an automat-
ic system for switching off internal
lights;
❒do not keep accessories (e.g. sound sys-
tem, hazard lights, etc.) switched on for
a long time when the engine is not run-
ning;
❒ before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒battery terminals shall always be per-
fectly tightened.
When working on the bat-
tery or near it, always wear
the proper goggles.
WARNINGIn fact, since these devices continue ab-
sorbing energy even when the ignition key
is off, they gradually run down the battery.
153-172 Nuovo ScudoG9 GB:153-172 Nuovo ScudoG9 GB 16-11-2009 12:05 Pagina 166

169
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

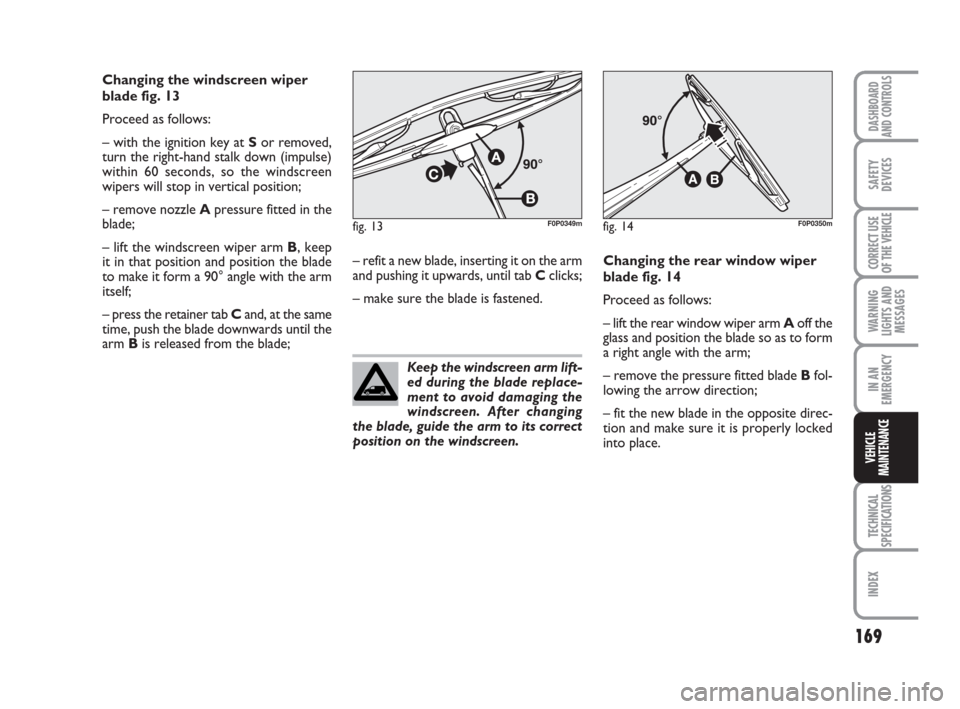

Changing the windscreen wiper
blade fig. 13
Proceed as follows:
– with the ignition key at Sor removed,
turn the right-hand stalk down (impulse)
within 60 seconds, so the windscreen
wipers will stop in vertical position;
– remove nozzle Apressure fitted in the
blade;
– lift the windscreen wiper arm B, keep
it in that position and position the blade
to make it form a 90° angle with the arm
itself;
– press the retainer tab Cand, at the same
time, push the blade downwards until the
arm Bis released from the blade;– refit a new blade, inserting it on the arm
and pushing it upwards, until tab Cclicks;
– make sure the blade is fastened.Changing the rear window wiper
blade fig. 14
Proceed as follows:
– lift the rear window wiper arm Aoff the
glass and position the blade so as to form
a right angle with the arm;
– remove the pressure fitted blade Bfol-
lowing the arrow direction;
– fit the new blade in the opposite direc-
tion and make sure it is properly locked
into place. Keep the windscreen arm lift-
ed during the blade replace-
ment to avoid damaging the
windscreen. After changing
the blade, guide the arm to its correct
position on the windscreen.
fig. 13F0P0349mfig. 14F0P0350m
153-172 Nuovo ScudoG9 GB:153-172 Nuovo ScudoG9 GB 16-11-2009 12:05 Pagina 169

171
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

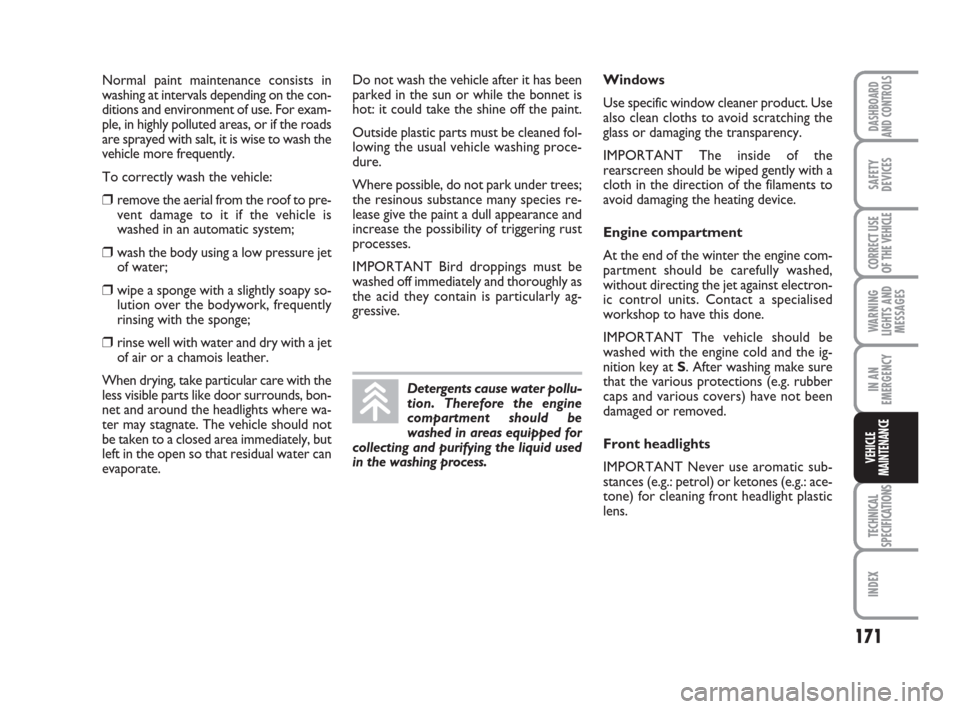

Normal paint maintenance consists in
washing at intervals depending on the con-
ditions and environment of use. For exam-
ple, in highly polluted areas, or if the roads
are sprayed with salt, it is wise to wash the
vehicle more frequently.
To correctly wash the vehicle:
❒ remove the aerial from the roof to pre-
vent damage to it if the vehicle is
washed in an automatic system;
❒ wash the body using a low pressure jet
of water;
❒ wipe a sponge with a slightly soapy so-
lution over the bodywork, frequently
rinsing with the sponge;
❒ rinse well with water and dry with a jet
of air or a chamois leather.
When drying, take particular care with the
less visible parts like door surrounds, bon-
net and around the headlights where wa-
ter may stagnate. The vehicle should not
be taken to a closed area immediately, but
left in the open so that residual water can
evaporate.Do not wash the vehicle after it has been
parked in the sun or while the bonnet is
hot: it could take the shine off the paint.
Outside plastic parts must be cleaned fol-
lowing the usual vehicle washing proce-
dure.
Where possible, do not park under trees;
the resinous substance many species re-
lease give the paint a dull appearance and
increase the possibility of triggering rust
processes.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly ag-
gressive.
Detergents cause water pollu-
tion. Therefore the engine
compartment should be
washed in areas equipped for
collecting and purifying the liquid used
in the washing process.
Windows
Use specific window cleaner product. Use
also clean cloths to avoid scratching the
glass or damaging the transparency.
IMPORTANT The inside of the
rearscreen should be wiped gently with a
cloth in the direction of the filaments to
avoid damaging the heating device.
Engine compartment
At the end of the winter the engine com-
partment should be carefully washed,
without directing the jet against electron-
ic control units. Contact a specialised
workshop to have this done.
IMPORTANT The vehicle should be
washed with the engine cold and the ig-
nition key at S. After washing make sure
that the various protections (e.g. rubber
caps and various covers) have not been
damaged or removed.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g.: petrol) or ketones (e.g.: ace-
tone) for cleaning front headlight plastic
lens.
153-172 Nuovo ScudoG9 GB:153-172 Nuovo ScudoG9 GB 16-11-2009 12:05 Pagina 171

201
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Gearbox
– manual gearbox use ...................... 117
Glovebox/oddment
compartments.................................... 65
Handbrake ........................................... 116
Hazard lights ......................................... 61
Head restraints..................................... 23
Headlight washers............................... 53
Headlights
– adjusting headlight beam .............. 81
Heated rear window................30-35-43
Heating and ventilation ....................... 27
Identification data................................ 174
In an emergency ................................... 133
Instrument panel
brightness adjuster............................ 15
Instrument panel.................................. 13
Instruments........................................... 14
Interiors ................................................ 172
Interior equipment.............................. 65
Jack ......................................................... 136
Keys ....................................................... 77
Load recommendations.................... 79
Lubricants (specifications) ................ 195
Main beam headlights
– bulb replacement ........................... 141
– control ............................................ 47
Manual climate control system ......... 31
Number plate lights ........................... 144
Paint ...................................................... 170
Parking.................................................... 116
Performance ......................................... 198
Pneumatic suspensions ....................... 78
Power steering fluid level................... 163
Power windows/window winders .... 74
Pretensioners........................................ 96
Quick tyre repair kit ........................ 138
Rearview mirrors
– driving mirror................................. 25
– door mirrors .................................. 25
Rev counter ......................................... 14
Reversing lights..................................... 143
Roof rack/ski rack (presetting) ......... 77
Routine maintenance.......................... 157
Engine
– code.................................................. 177
– fuel feed ........................................... 180
– lubrication....................................... 195
– specifications................................... 173
Engine compartment........................... 158
Engine coolant level............................. 161
Engine oil
– checking the level .......................... 160
– consumption ................................ 160
– specifications................................... 195
EOBD system....................................... 87
Fiat CODE .......................................... 6
Fix & Go................................................ 138
Fluid levels (checks)............................. 158
Front fog lights/rear fog lights
– bulb replacement ....................142-143
– control ............................................ 47
Fuel
– filler cap ......................................... 91
– fuel cut-off switch.......................... 64
– fuel gauge......................................... 14
Fuel consumption................................ 197
Fuel cut-off switch............................... 64
Fuel level gauge.................................... 14
Fuses....................................................... 146
200-208 Nuovo ScudoG9 GB.qxd:200-208 Nuovo ScudoG9 ING 10-12-09 16:26 Page 201
