IDENTIFICATION DATA
You are advised to note the identification codes. The identification data are given on dedicated plates, their position is
shown in fig. 1:
1- Model plate;
2- Chassis marking;
3- Bodywork paint identification plate;
fig. 1F0P0609m
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 174

175
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

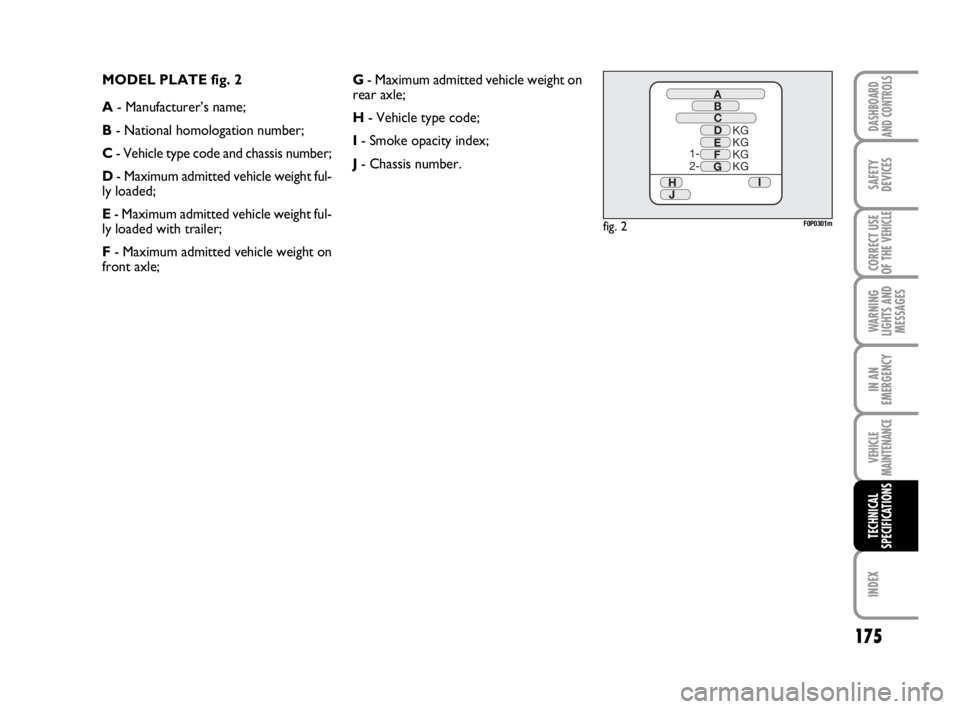

MODEL PLATE fig. 2
A- Manufacturer’s name;
B- National homologation number;
C- Vehicle type code and chassis number;
D- Maximum admitted vehicle weight ful-
ly loaded;
E- Maximum admitted vehicle weight ful-
ly loaded with trailer;
F- Maximum admitted vehicle weight on
front axle;G- Maximum admitted vehicle weight on
rear axle;
H- Vehicle type code;
I- Smoke opacity index;
J- Chassis number.
fig. 2
A
B
C
D
E
F
G
H
JI 1-
2-KG
KG
KG
KG
F0P0301m
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 175

IDENTIFICATION PLATE
BODYWORK PAINT AND
TYRES fig. 4
The label attached to the upright, driver’s
side, indicates:
– The size of the wheel rims and the tyres;
– The brand of the tyres certified by the
manufacturer;
– The inflating pressure (the control of the
inflating pressure must be carried out
when stationary and at least once a
month):
– Paint colour code.
176
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
fig. 4
Bar Bar
PRESSIONS CONTROLLER PNEUS FROIDS (
0,05 bar)
A
B
C
D
E
F
G
H
I
F0P0304m

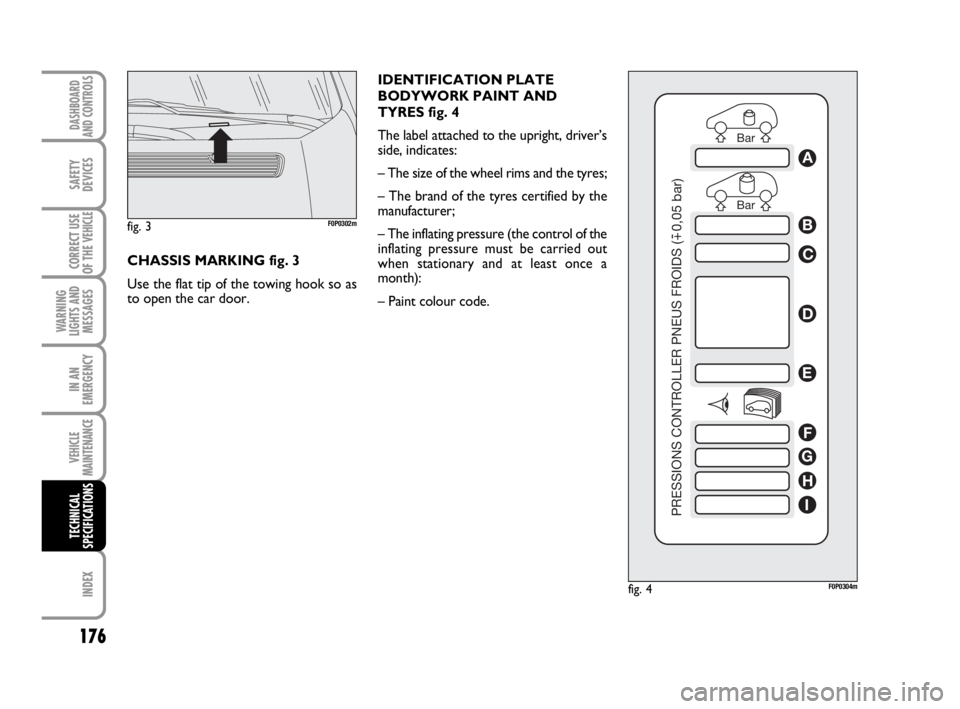

CHASSIS MARKING fig. 3
Use the flat tip of the towing hook so as
to open the car door.
fig. 3F0P0302m
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 176

177
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE CODES - BODYWORK VERSIONS
Engine code
9HU
RHKDescription
Combi - Short wheelbase
Combi - Short wheelbase
Combi - Long wheelbase
Combi - Long wheelbase
Combi - Long wheelbase - Improved capacity
Van - Short wheelbase - Low roof - 10 Q
Van - Short wheelbase - Low roof - 12 Q
Van - Long wheelbase - Low roof - 12 Q
Van - Long wheelbase - High roof - 12 Q
Flatbed - Long wheelbase - 12 Q
Combi - Short wheelbase - Cat. N1
Combi - Long wheelbase - Cat. N1
Combi - Short wheelbase
Combi - Short wheelbase
Combi - Long wheelbase
Combi - Long wheelbase
Combi - Long wheelbase - Improved capacity
Van - Short wheelbase - Low roof - 10 Q
Van - Short wheelbase - Low roof - 12 Q
Van - Long wheelbase - Low roof - 12 Q
Van - Long wheelbase - High roof - 12 Q
Flatbed - Long wheelbase - 12 Q
Combi - Short wheelbase - Cat. N1
Combi - Long wheelbase - Cat. N1
Van - Short wheelbase - 10 Q
Van - Short wheelbase - 12 Q
Van - Long wheelbase - 12 Q
Van - Long wheelbase - High roof 12 QBody version
270XXA1A AA
270XX1A AA2 (*)
270XXA1A AB
270XXA1A AB1 (*)
270XXA1A AAL
270XXA1A ABL
270KXA1A ABL
270ZXA1A ZA
270ZXA1A WA
270ZXA1A WAL
270ZXA1A ZA
270ZXA1A ZA
270ZXA1A ZA
270ZXA1A ZA
270XXC1B AA
270XXC1B AA2 (*)
270XXC1B AB
270XXC1B AB1 (*)
270XXC1B AAL
270XXC1B AAL2 (*)
270XXC1B ABL
270XXC1B ABL3 (*)
270KXC1B ABL
270KXC1B ABL4 (*)
270ZXC1B ZA
270ZXC1B WA
270ZXC1B WAL
270ZXC1B WBL
270YXA1A ZAL
270ZXA1A ZC
270ZXA1A ZCL
270ZXF1B ZA (*)
270ZXF1B WA (*)
270ZXF1B WAL (*)
270ZXF1B WBL (*)
Seats
5 / 6
8 / 9
5 / 6
8 / 9
8 / 9
2 / 3
2 / 3
2 / 3
2 / 3
2 / 3
5 / 6
5 / 6
5 / 6
8 / 9
5 / 6
8 / 9
8 / 9
2 / 3
2 / 3
2 / 3
2 / 3
2 / 3
5 / 6
5 / 6
2 / 3
2 / 3
2 / 3
2 / 3
Engine
90 Multijet
120 Multijet
(*) Versions with DPF
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 177

178
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Engine
120 Multijet
140 Multijet
(*) Versions with DPF
Seats
2 / 3
5 / 6
5 / 6
8 / 9
8 / 9
5 / 6
5 / 6
5 / 6
8 / 9
5 / 6
8 / 9
8 / 9
2 / 3
2 / 3
2 / 3
2 / 3
2 / 3
5 / 6
5 / 6 Engine code
RHK
RHRDescription
Flatbed - Long wheelbase - 12 Q
Combi - Short wheelbase - 10 Q
Combi - Long wheelbase - 10 Q
Combi - Short wheelbase - 10 Q
Combi - Long wheelbase - 10 Q
Combi - Short wheelbase - 10 Q - Cat. N1
Combi - Long wheelbase - 10 Q - Cat. N1
Combi - Short wheelbase
Combi - Short wheelbase
Combi - Long wheelbase
Combi - Long wheelbase
Combi - Long wheelbase - Improved capacity
Van - Short wheelbase - Low roof - 10 Q
Van - Short wheelbase - Low roof - 12 Q
Van - Long wheelbase - Low roof - 12 Q
Van - Long wheelbase - High roof - 12 Q
Flatbed - Long wheelbase - 12 Q
Combi - Short wheelbase - Cat. N1
Combi - Long wheelbase - Cat. N1
Body version
270YXF1B WAL (*)
270XXF1B AA1 (*)
270XXF1B AAL1 (*)
270KXF1B AB1 (*)
270KXF1B AB2 (*)
270ZXF1B ZC (*)
270ZXF1B ZCL (*)
270XXD1B AA
270XXD1B AA2 (*)
270XXD1B AB
270XXD1B AB1 (*)
270XXD1B AAL
270XXD1B AAL2 (*)
270XXD1B ABL1
270KXD1B ABL1
270KXD1B ABL4 (*)
270KXD1B ABL5 (*)
270ZXD1B ZA
270ZXD1B WA
270ZXD1B WAL
270ZXD1B WBL
270YXD1B ZAL
270ZXD1B ZC
270ZXD1B ZCL
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 178

179
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
ENGINE
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Diameter x stroke mm
Total displacement cm3
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
corresponding ratio rpm
Fuel
90 Multijett
9HU
Diesel
4 in line
75 x 88.3
1560
18.0:1
66
90
4000
180
1750
Diesel fuel for motor vehicles
(Specification EN590)
120 Multijet
RHK
Diesel
4 in line
85 x 88
1997
17.5:1
88
120
4000
300
2000
Diesel fuel for motor vehicles
(Specification EN590)
140 Multijet
RHR
Diesel
4 in line
85 x 88
1997
17.5:1
100
136
4000
320
2000
Diesel fuel for motor vehicles
(Specification EN590)
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 179

180
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
FUEL FEED/IGNITION
90 Multijet - 120 Multijet - 140 Multijet
Fuel feed Multijet direct injection “Common Rail”
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
Five forward gears and reverse with
synchromesh for forward gear engagement
Self-adjusting pedal without idle stroke
FrontSix forward gears and reverse with
synchromesh for forward gear engagement
Self-adjusting pedal without idle stroke
Front
TRANSMISSION
90 Multijet 120 Multijet - 140 Multijet
Gearbox
Clutch
Drive
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 180

181
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
SUSPENSIONS
90 Multijet - 120 Multijet - 140 Multijet
Front
Rear
BRAKES
90 Multijet - 120 Multijet - 140 Multijet
Service brakes:
– front
– rear
Parking brake
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency
at first braking.
STEERING
90 Multijet - 120 Multijet - 140 Multijet
Type
Minimum steering
cycle m
(
) Short wheelbase version () Long wheelbase versionMc Pherson independent wheels
twisting axle with spiral spring/pneumatic suspensions (for versions/markets, where provided)
rack and pinion electrohydraulic (hydraulic on 90 Multijet version)
12.18 (
) / 12.59 () controlled by hand lever, it works on rear brakes disc or drum (for versions/markets, where provided) disc (self-ventilating for versions for versions/markets, where provided)
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 181

182
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
RIM PROTECTOR TYRES fig. 5bWHEELS
RIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the vehicle in movement, it must
be fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.
fig. 5aF0P0309m
SPARE WHEEL
Pressed steel rim. Tubeless tyre.

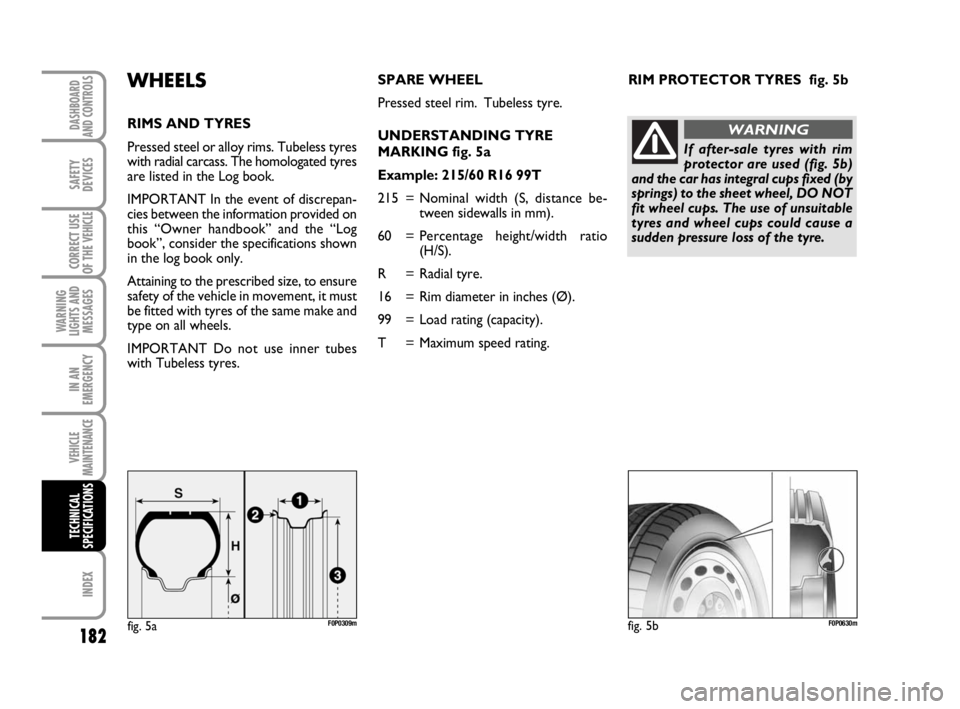

UNDERSTANDING TYRE
MARKING fig. 5a
Example: 215/60 R16 99T
215 = Nominal width (S, distance be-
tween sidewalls in mm).
60 = Percentage height/width ratio
(H/S).
R = Radial tyre.
16 = Rim diameter in inches (Ø).
99 = Load rating (capacity).
T = Maximum speed rating.
fig. 5bF0P0630m
If after-sale tyres with rim
protector are used (fig. 5b)
and the car has integral cups fixed (by
springs) to the sheet wheel, DO NOT
fit wheel cups. The use of unsuitable
tyres and wheel cups could cause a
sudden pressure loss of the tyre.
WARNING
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 182

183
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
UNDERSTANDING RIM
MARKING
Example: 7J x 16 ET39
7 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET39 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S = up to 210 km/h.
173-199 Nuovo ScudoG9 GB.qxd:173-199 Nuovo ScudoG9 GB 10-12-09 16:17 Page 183
