headlamp FIAT SCUDO 2011 Owner handbook (in English)

123
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS .................................................... 124
LOW BRAKE FLUID .......................................................... 124
HANDBRAKE ON .............................................................. 124
AIR BAG FAILURE .............................................................. 125
ENGINE COOLANT
HIGH TEMPERATURE ....................................................... 125
LOW BATTERY CHARGE ............................................... 126
LOW PRESSURE/HIGH TEMPERATURE OF
ENGINE OIL ......................................................................... 126
ELECTRIC POWER STEERING FAILURE .................... 127
INCOMPLETE DOOR LOCKING .................................. 127
SEAT BELTS NOT FASTENED ........................................ 128
EBD SYSTEM FAILURE ...................................................... 128
INJECTION SYSTEM FAILURE ........................................ 128
FRONT PASSENGER AIR BAG DEACTIVATED ....... 129
ABS SYSTEM FAILURE ....................................................... 129
STOP ........................................................................................ 129
FUEL RESERVE ..................................................................... 130
REAR FOGLIGHTS ............................................................. 130
GENERIC FAILURE ............................................................. 130ESP SYSTEM FAILURE ........................................................ 130
BRAKE PAD WEAR ........................................................... 131
FRONT FOG LIGHTS ........................................................ 131
DIPPED HEADLAMPS ........................................................ 131
REAR PNEUMATIC SUSPENSIONS ................................ 131
LEFT-HAND DIRECTION INDICATOR ...................... 131
RIGHT-HAND DIRECTION INDICATOR .................. 131
MAIN BEAM HEADLIGHTS ............................................. 131
CRUISE CONTROL ........................................................... 132
SPEED RESTRICTOR ........................................................... 132
GLOW PLUG WARMING................................................. 132
WATER IN DIESEL FUEL FILTER .................................... 132
SCHEDULED SERVICING.................................................. 132
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S

131
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

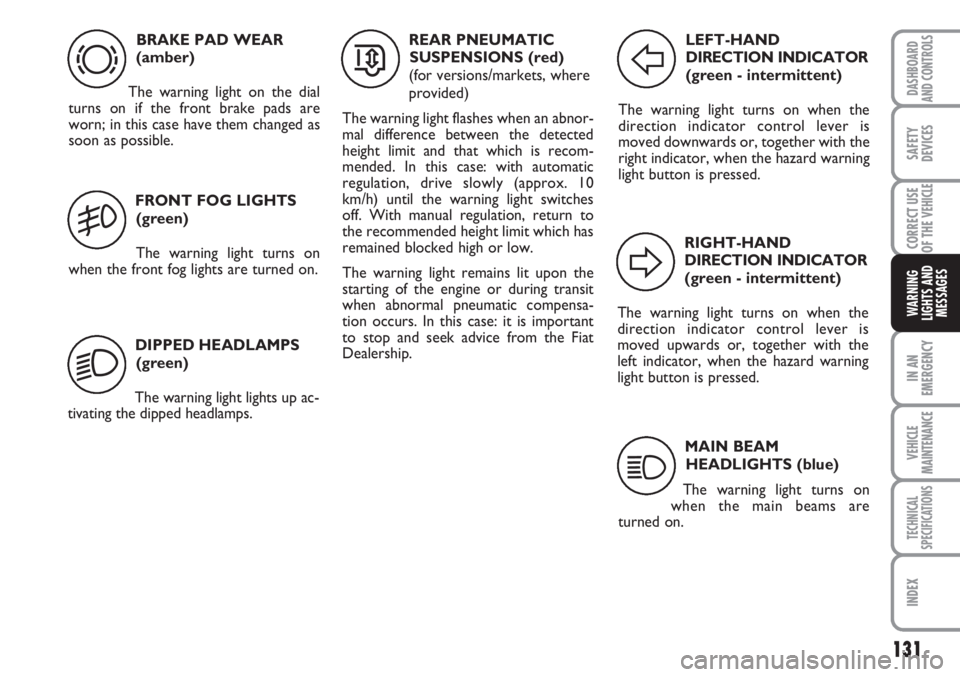

BRAKE PAD WEAR
(amber)
The warning light on the dial
turns on if the front brake pads are
worn; in this case have them changed as
soon as possible.
d
REAR PNEUMATIC
SUSPENSIONS (red)
(for versions/markets, where
provided)
The warning light flashes when an abnor-
mal difference between the detected
height limit and that which is recom-
mended. In this case: with automatic
regulation, drive slowly (approx. 10
km/h) until the warning light switches
off. With manual regulation, return to
the recommended height limit which has
remained blocked high or low.
The warning light remains lit upon the
starting of the engine or during transit
when abnormal pneumatic compensa-
tion occurs. In this case: it is important
to stop and seek advice from the Fiat
Dealership.
…
FRONT FOG LIGHTS
(green)
The warning light turns on
when the front fog lights are turned on.
5
MAIN BEAM
HEADLIGHTS (blue)
The warning light turns on
when the main beams are
turned on.
1
LEFT-HAND
DIRECTION INDICATOR
(green - intermittent)
The warning light turns on when the
direction indicator control lever is
moved downwards or, together with the
right indicator, when the hazard warning
light button is pressed.
F
RIGHT-HAND
DIRECTION INDICATOR
(green - intermittent)
The warning light turns on when the
direction indicator control lever is
moved upwards or, together with the
left indicator, when the hazard warning
light button is pressed.
D
DIPPED HEADLAMPS
(green)
The warning light lights up ac-
tivating the dipped headlamps.
2

158
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

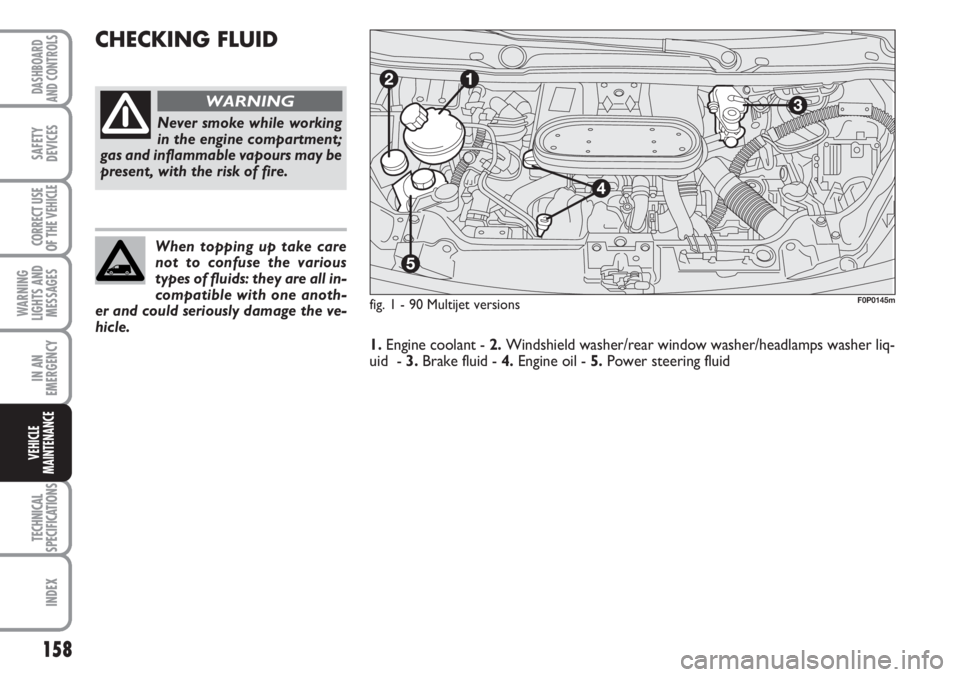

CHECKING FLUID
fig. 1 - 90 Multijet versions
Never smoke while working
in the engine compartment;
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
When topping up take care
not to confuse the various
types of fluids: they are all in-
compatible with one anoth-
er and could seriously damage the ve-
hicle.
F0P0145m
1.Engine coolant - 2.Windshield washer/rear window washer/headlamps washer liq-
uid - 3.Brake fluid - 4.Engine oil - 5.Power steering fluid

159
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE

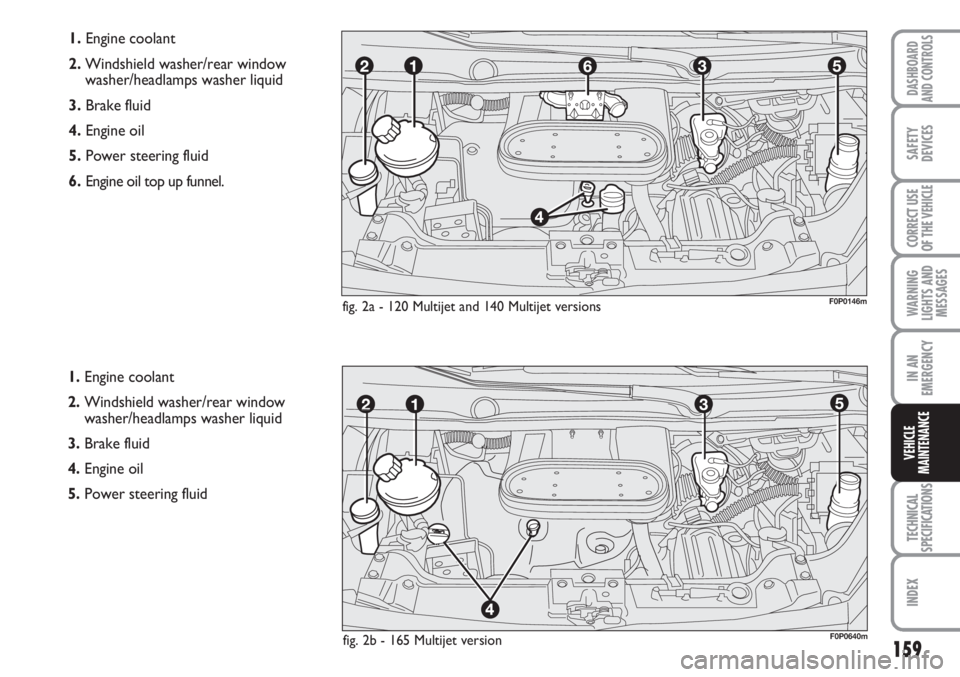

1.Engine coolant
2.Windshield washer/rear window
washer/headlamps washer liquid
3.Brake fluid
4.Engine oil
5.Power steering fluid
6.Engine oil top up funnel.
1.Engine coolant
2.Windshield washer/rear window
washer/headlamps washer liquid
3.Brake fluid
4.Engine oil
5.Power steering fluid
F0P0146mfig. 2a - 120 Multijet and 140 Multijet versions
F0P0640mfig. 2b - 165 Multijet version
