technical specifications FIAT SCUDO 2012 Owner handbook (in English)

204
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

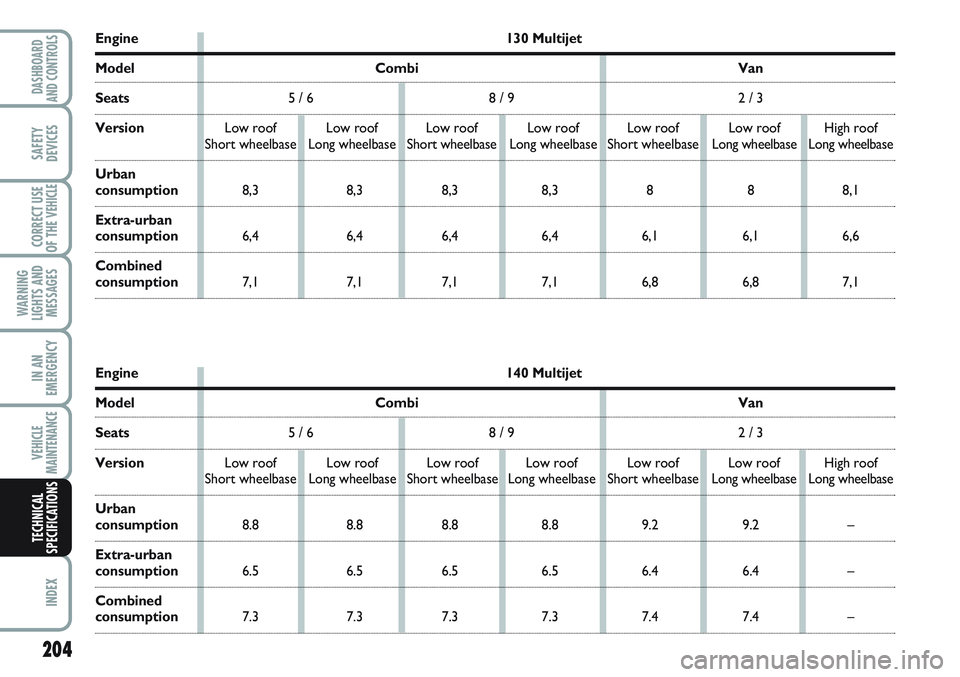

Engine 130 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8,3 8,3 8,3 8,3 8 8 8,1
Extra-urban
consumption6,4 6,4 6,4 6,4 6,1 6,1 6,6
Combined
consumption7,1 7,1 7,1 7,1 6,8 6,8 7,1
Engine 140 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.8 8.8 8.8 8.8 9.2 9.2 –
Extra-urban
consumption6.5 6.5 6.5 6.5 6.4 6.4 –
Combined
consumption7.3 7.3 7.3 7.3 7.4 7.4 –

VEHICLE
MAINTENANCE
IN AN
EMERGENCY
CORRECT USE
OF THE
VEHICLE
SAFETY
DEVICES
DASHBOARD
AND CONTROLS
INDEX
WARNING
LIGHTS AND
MESSAGES
205
Engine 165 Multijet
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8,3 8,3 8,3 8,3 8,1 8,1 8,1
Extra-urban
consumption6,4 6,4 6,4 6,4 6,2 6,2 6,6
Combined
consumption7,1 7,1 7,1 7,1 6,9 6,9 7,1
TECHNICAL
SPECIFICATIONS

206
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Model Combi Van
Seats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
90 Multijet
191 194 194 194 191 191 198
(Euro 4)
90 Multijet
182 182 – – 182 182
(Euro 5)
120 Multijet 194 194 194 194 194 196 200
130 Multijet 185 185 185 185 179 179 186
140 Multijet194 194 194 194 196 196 –
165 Multijet185 185 185 185 181 181 186

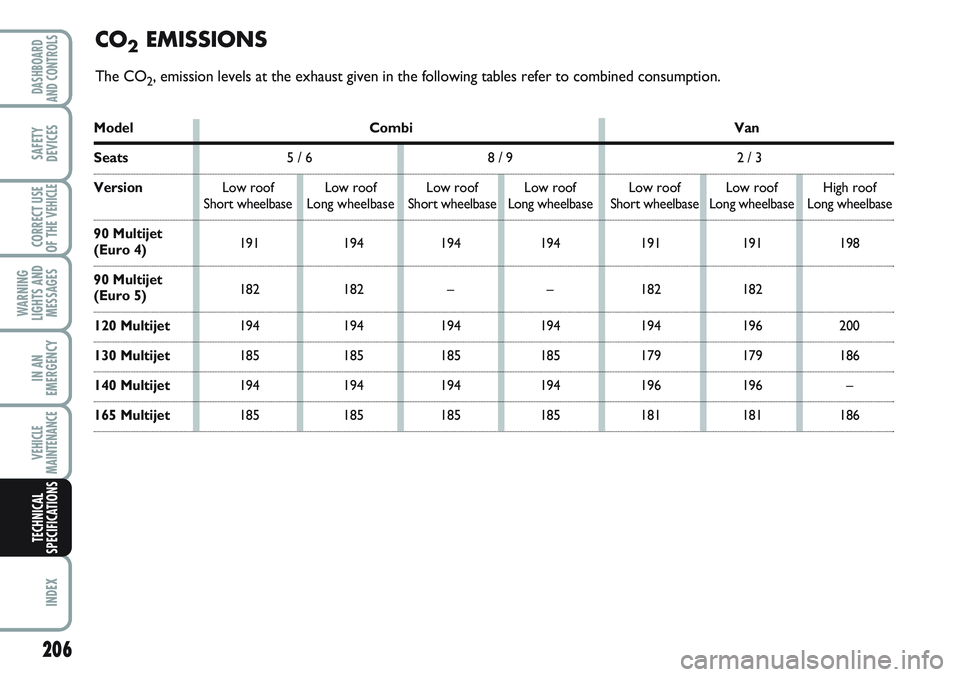

CO2EMISSIONS
The CO2, emission levels at the exhaust given in the following tables refer to combined consumption.

207
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

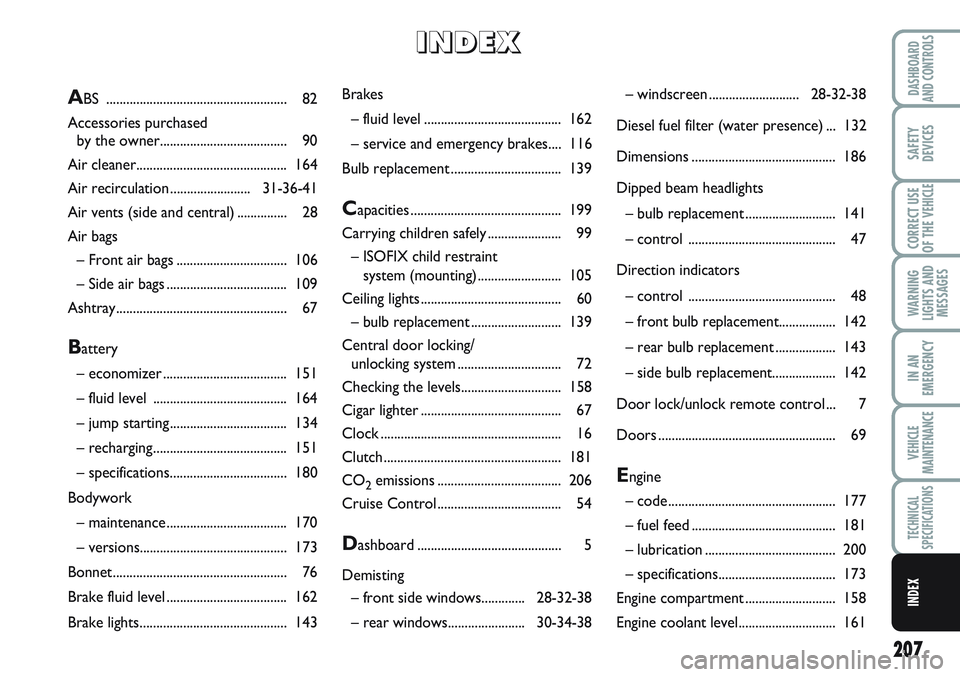

Brakes
– fluid level ......................................... 162
– service and emergency brakes.... 116
Bulb replacement................................. 139
Capacities ............................................. 199
Carrying children safely...................... 99
– ISOFIX child restraint
system (mounting)......................... 105
Ceiling lights.......................................... 60
– bulb replacement ........................... 139
Central door locking/
unlocking system............................... 72
Checking the levels.............................. 158
Cigar lighter .......................................... 67
Clock ...................................................... 16
Clutch..................................................... 181
CO
2emissions ..................................... 206
Cruise Control ..................................... 54
Dashboard ........................................... 5
Demisting
– front side windows.............28-32-38
– rear windows.......................30-34-38– windscreen...........................28-32-38
Diesel fuel filter (water presence) ... 132
Dimensions........................................... 186
Dipped beam headlights
– bulb replacement ........................... 141
– control ............................................ 47
Direction indicators
– control ............................................ 48
– front bulb replacement................. 142
– rear bulb replacement.................. 143
– side bulb replacement................... 142
Door lock/unlock remote control ... 7
Doors ..................................................... 69
Engine
– code.................................................. 177
– fuel feed ........................................... 181
– lubrication....................................... 200
– specifications................................... 173
Engine compartment........................... 158
Engine coolant level............................. 161
ABS ...................................................... 82
Accessories purchased
by the owner...................................... 90
Air cleaner............................................. 164
Air recirculation........................31-36-41
Air vents (side and central) ............... 28
Air bags
– Front air bags................................. 106
– Side air bags .................................... 109
Ashtray................................................... 67
Battery
– economizer..................................... 151
– fluid level ........................................ 164
– jump starting ................................... 134
– recharging........................................ 151
– specifications................................... 180
Bodywork
– maintenance.................................... 170
– versions............................................ 173
Bonnet.................................................... 76
Brake fluid level .................................... 162
Brake lights............................................ 143
I I
N N
D D
E E
X X

208
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

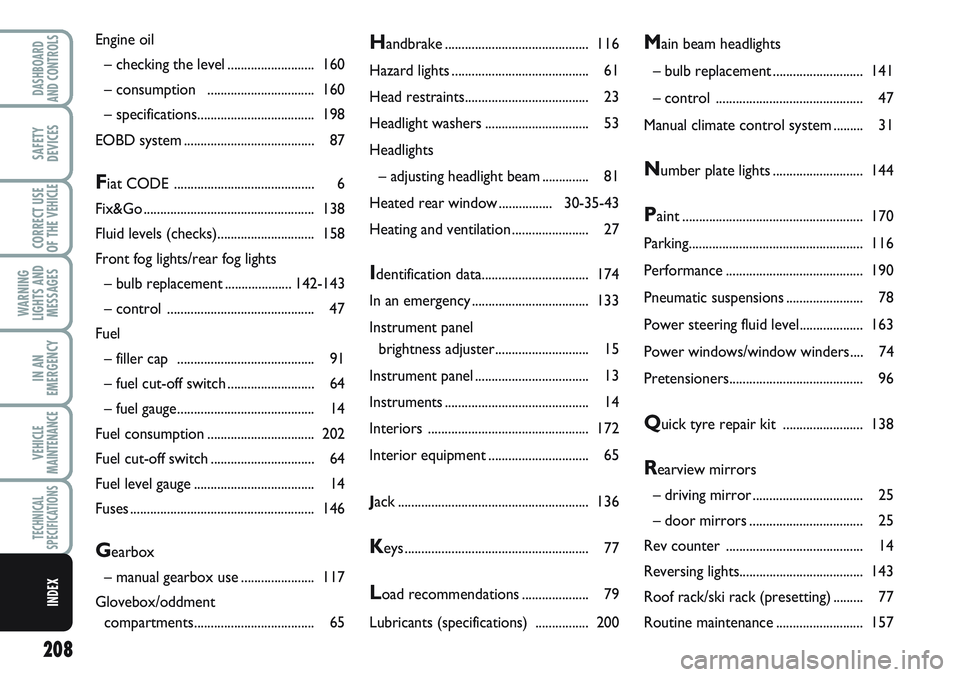

Handbrake ........................................... 116
Hazard lights ......................................... 61
Head restraints..................................... 23
Headlight washers............................... 53
Headlights
– adjusting headlight beam .............. 81
Heated rear window................30-35-43
Heating and ventilation ....................... 27
Identification data................................ 174
In an emergency ................................... 133
Instrument panel
brightness adjuster............................ 15
Instrument panel.................................. 13
Instruments........................................... 14
Interiors ................................................ 172
Interior equipment.............................. 65
Jack ......................................................... 136
Keys ....................................................... 77
Load recommendations.................... 79
Lubricants (specifications) ................ 200
Main beam headlights
– bulb replacement ........................... 141
– control ............................................ 47
Manual climate control system ......... 31
Number plate lights ........................... 144
Paint ...................................................... 170
Parking.................................................... 116
Performance ......................................... 190
Pneumatic suspensions ....................... 78
Power steering fluid level................... 163
Power windows/window winders .... 74
Pretensioners........................................ 96
Quick tyre repair kit ........................ 138
Rearview mirrors
– driving mirror................................. 25
– door mirrors .................................. 25
Rev counter ......................................... 14
Reversing lights..................................... 143
Roof rack/ski rack (presetting) ......... 77
Routine maintenance.......................... 157 Engine oil
– checking the level .......................... 160
– consumption ................................ 160
– specifications................................... 198
EOBD system....................................... 87
Fiat CODE .......................................... 6
Fix&Go................................................... 138
Fluid levels (checks)............................. 158
Front fog lights/rear fog lights
– bulb replacement ....................142-143
– control ............................................ 47
Fuel
– filler cap ......................................... 91
– fuel cut-off switch.......................... 64
– fuel gauge......................................... 14
Fuel consumption................................ 202
Fuel cut-off switch............................... 64
Fuel level gauge.................................... 14
Fuses....................................................... 146
Gearbox
– manual gearbox use ...................... 117
Glovebox/oddment
compartments.................................... 65

209
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

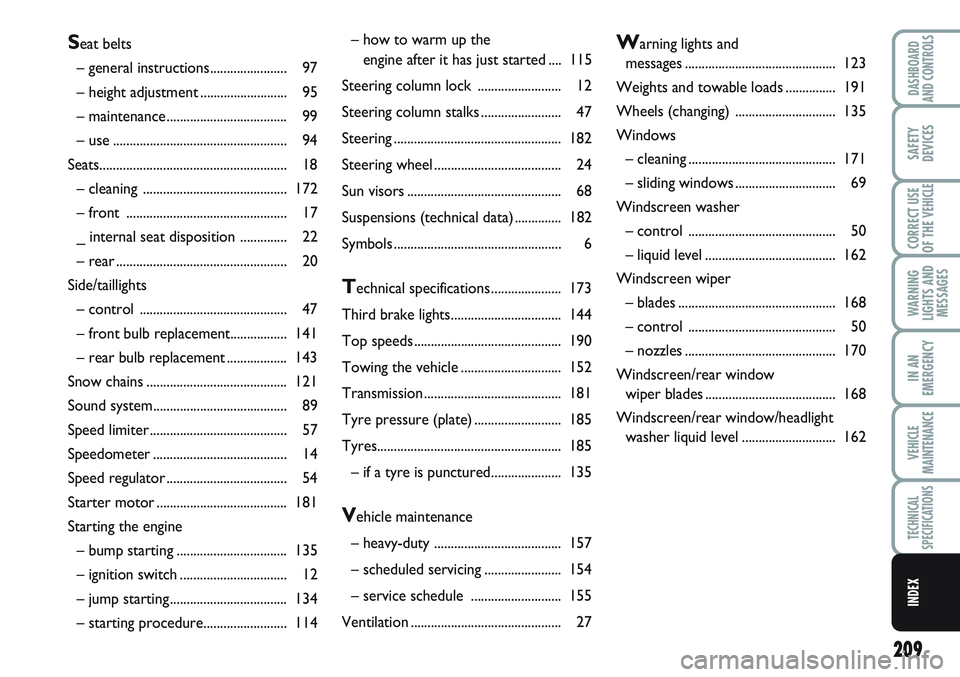

– how to warm up the
engine after it has just started .... 115
Steering column lock ......................... 12
Steering column stalks........................ 47
Steering.................................................. 182
Steering wheel...................................... 24
Sun visors .............................................. 68
Suspensions (technical data) .............. 182
Symbols.................................................. 6
Technical specifications..................... 173
Third brake lights................................. 144
Top speeds............................................ 190
Towing the vehicle.............................. 152
Transmission......................................... 181
Tyre pressure (plate).......................... 185
Tyres....................................................... 185
– if a tyre is punctured..................... 135
Vehicle maintenance
– heavy-duty ...................................... 157
– scheduled servicing....................... 154
– service schedule ........................... 155
Ventilation ............................................. 27
Warning lights and
messages............................................. 123
Weights and towable loads ............... 191
Wheels (changing) .............................. 135
Windows
– cleaning............................................ 171
– sliding windows.............................. 69
Windscreen washer
– control ............................................ 50
– liquid level ....................................... 162
Windscreen wiper
– blades............................................... 168
– control ............................................ 50
– nozzles............................................. 170
Windscreen/rear window
wiper blades....................................... 168
Windscreen/rear window/headlight
washer liquid level............................ 162Seat belts
– general instructions....................... 97
– height adjustment .......................... 95
– maintenance.................................... 99
– use .................................................... 94
Seats........................................................ 18
– cleaning ........................................... 172
– front ................................................ 17
_ internal seat disposition .............. 22
– rear................................................... 20
Side/taillights
– control ............................................ 47
– front bulb replacement................. 141
– rear bulb replacement.................. 143
Snow chains .......................................... 121
Sound system........................................ 89
Speed limiter......................................... 57
Speedometer........................................ 14
Speed regulator.................................... 54
Starter motor....................................... 181
Starting the engine
– bump starting ................................. 135
– ignition switch................................ 12
– jump starting ................................... 134
– starting procedure......................... 114

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allowSelenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:
SELENIA K PURE ENERGY
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.

Fiat Group Automobiles S.p.A. - Parts&Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Torino (Italia)
Print N. 603.99.040 - 07/2011 - 1 Edition
ENGINE OIL REPLACEMENT
FUEL CAPACITY (litres) COLD TYRE INFLATION PRESSURE
The inflation pressure value for the tires when cold depends on the vehicle version and outfitting. The values are indicated on the
plate on the front left door (see the “Wheels” section in the “Technical specifications" Chapter).
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
90 Multijet (*) - 120 Multijet - 130 Multijet - 140 Multijet - 165 Multijet
Tank capacity: 80
Riserve: 8
(*) Euro 4 - Euro 5
Only refuel cars with diesel engines with diesel fuel for motor vehicles conforming to the EN590 European Specification
90 Multijet (*) 120 Multijet 130 Multijet 140 Multijet 165 Multijet
litres kg litres kg litres kg litres kg litres kg
Sump and filter: 6.2 – 5.25 – 5.25 – 5.25 – 5.25 –
(*) Euro 4 - Euro 5
