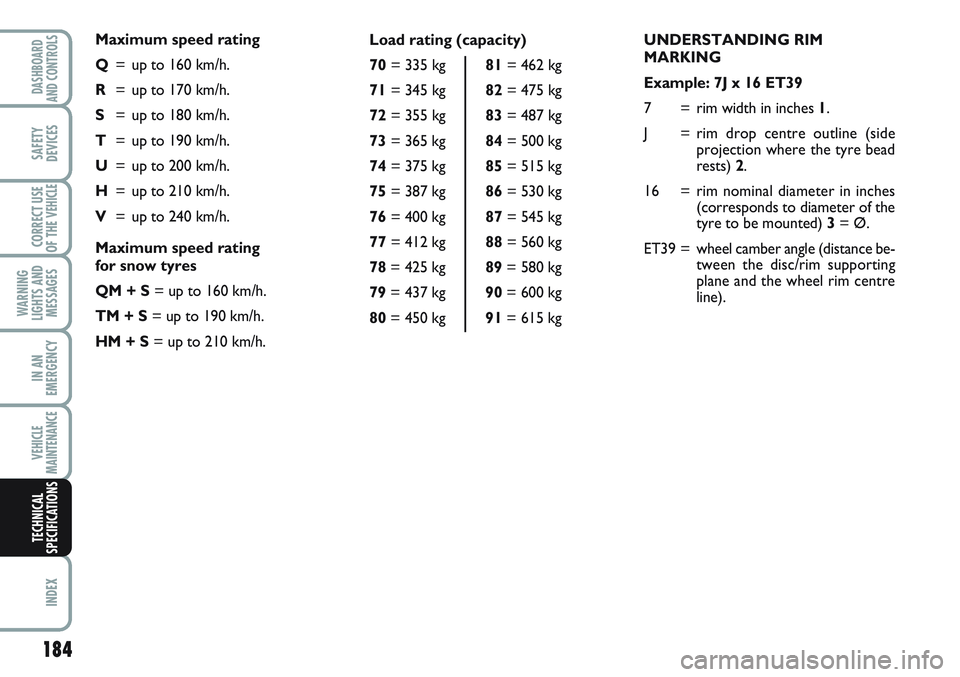

UNDERSTANDING RIM
MARKING
Example: 7J x 16 ET39
7 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET39 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S = up to 210 km/h.
VEHICLE
MAINTENANCE
IN AN
EMERGENCY
CORRECT USE
OF THE
VEHICLE
SAFETY
DEVICES
DASHBOARD
AND CONTROLS
INDEX
WARNING
LIGHTS AND
MESSAGES
184
TECHNICAL
SPECIFICATIONS

Bar Bar
PRESSIONS CONTROLLER PNEUS FROIDS (
0,05 bar)
A
B
C
D
E
F
G
H
I
fig. 6
F0B0264b

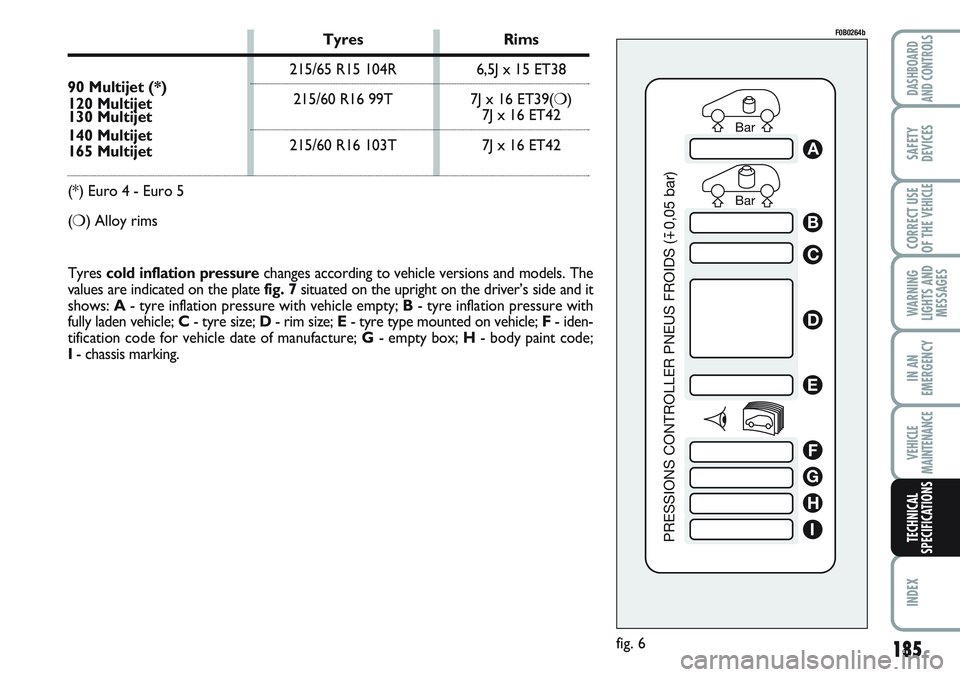

Tyres cold inflation pressurechanges according to vehicle versions and models. The
values are indicated on the plate fig. 7situated on the upright on the driver’s side and it
shows:A- tyre inflation pressure with vehicle empty; B- tyre inflation pressure with
fully laden vehicle; C- tyre size; D- rim size; E - tyre type mounted on vehicle; F - iden-
tification code for vehicle date of manufacture; G - empty box; H- body paint code;
I - chassis marking.
Tyres Rims
90 Multijet (*)215/65 R15 104R 6,5J x 15 ET38
120 Multijet215/60 R16 99T 7J x 16 ET39(❍)
130 Multijet7J x 16 ET42
140 Multijet
215/60 R16 103T 7J x 16 ET42
165 Multijet
(*) Euro 4 - Euro 5
(❍) Alloy rims
VEHICLE
MAINTENANCE
IN AN
EMERGENCY
CORRECT USE
OF THE
VEHICLE
SAFETY
DEVICES
DASHBOARD
AND CONTROLS
INDEX
WARNING
LIGHTS AND
MESSAGES
185
TECHNICAL
SPECIFICATIONS

186
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

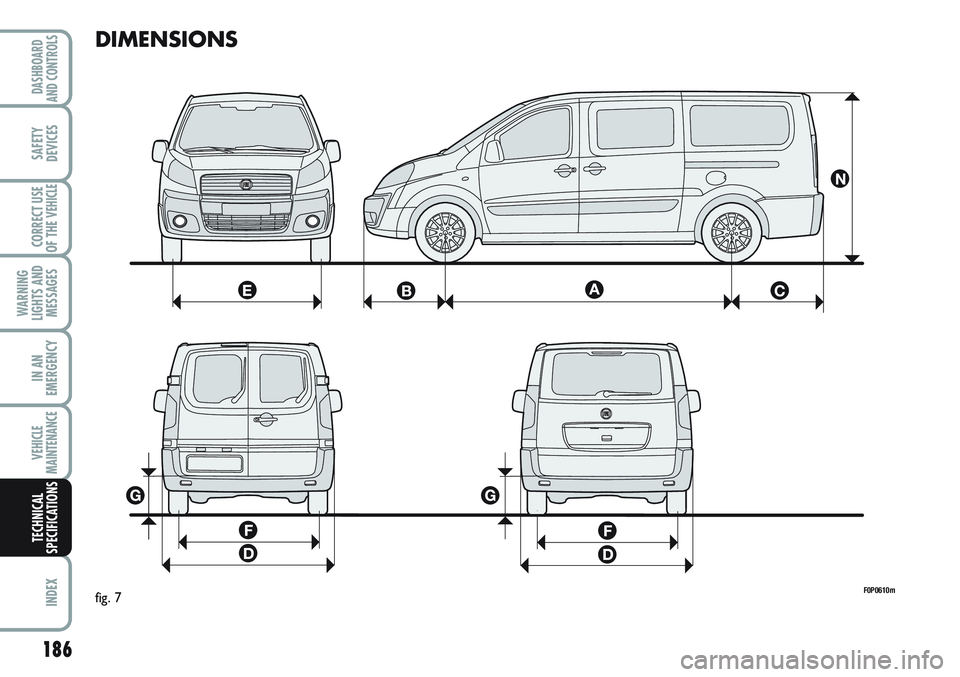

DIMENSIONS
F0P0610mfig. 7

187
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

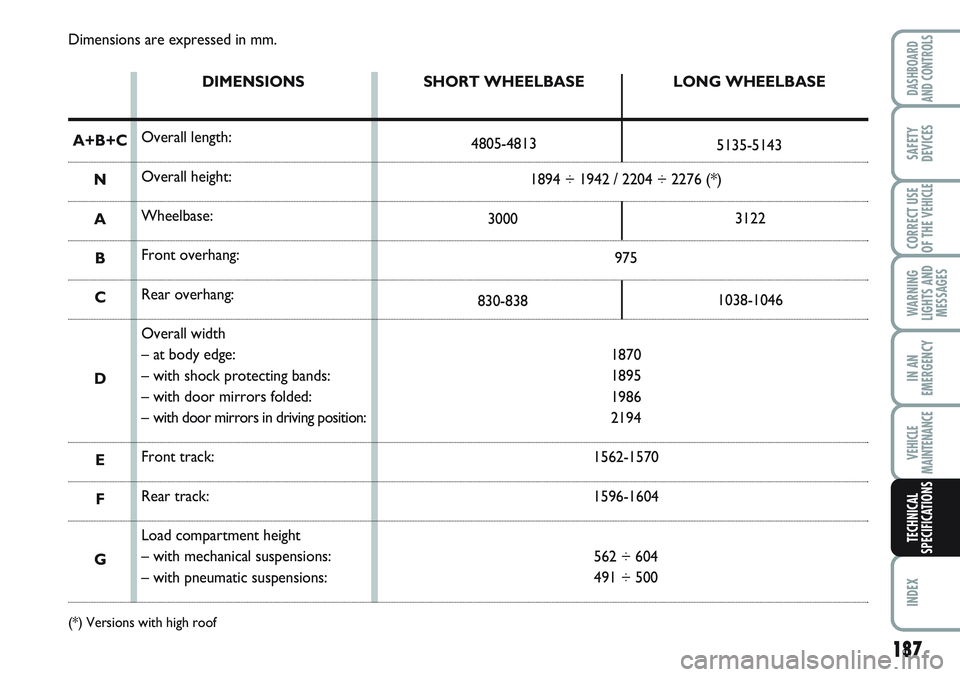

Dimensions are expressed in mm.
SHORT WHEELBASE
4805-4813LONG WHEELBASE
5135-5143
1894 ÷ 1942 / 2204 ÷ 2276 (*)
30003122
975
830-8381038-1046
1870
1895
1986
2194
1562-1570
1596-1604
562 ÷ 604
491 ÷ 500
(*) Versions with high roof
DIMENSIONS
Overall length:
Overall height:
Wheelbase:
Front overhang:
Rear overhang:
Overall width
– at body edge:
– with shock protecting bands:
– with door mirrors folded:
– with door mirrors in driving position:
Front track:
Rear track:
Load compartment height
– with mechanical suspensions:
– with pneumatic suspensions: A+B+C
N
A
B
C
D
E
F
G

F0P0611mfig. 8
Dimensions are expressed in mm.
DIMENSIONS
Rear double doors usable length:
Usable width
– rear double doors:
– tailgate (for versions/markets, where provided):REAR DOORS
1272÷1630 (*)
1237
1237
N
O
(*) Hight roof version
VEHICLE
MAINTENANCE
IN AN
EMERGENCY
CORRECT USE
OF THE
VEHICLE
SAFETY
DEVICES
DASHBOARD
AND CONTROLS
INDEX
WARNING
LIGHTS AND
MESSAGES
188
TECHNICAL
SPECIFICATIONS

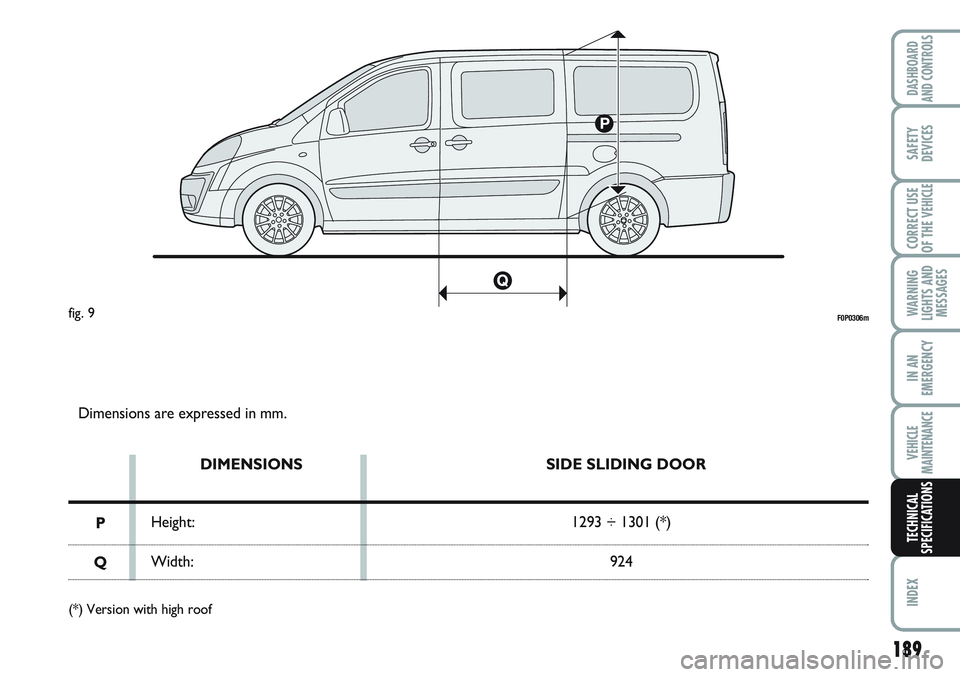

Dimensions are expressed in mm.
DIMENSIONS
Height:
Width:SIDE SLIDING DOOR
1293 ÷ 1301 (*)
924
P
Q
(*) Version with high roof
F0P0306mfig. 9
VEHICLE
MAINTENANCE
IN AN
EMERGENCY
CORRECT USE
OF THE
VEHICLE
SAFETY
DEVICES
DASHBOARD
AND CONTROLS
INDEX
WARNING
LIGHTS AND
MESSAGES
189
TECHNICAL
SPECIFICATIONS

190
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
PERFORMANCE
Top admitted speed after initial vehicle use in km/h.
90 Multijet (*) 120 Multijet 130 Multijet 140 Multijet 165 Multijet
145 160 170 170 170
(*) Euro 4 - Euro 5

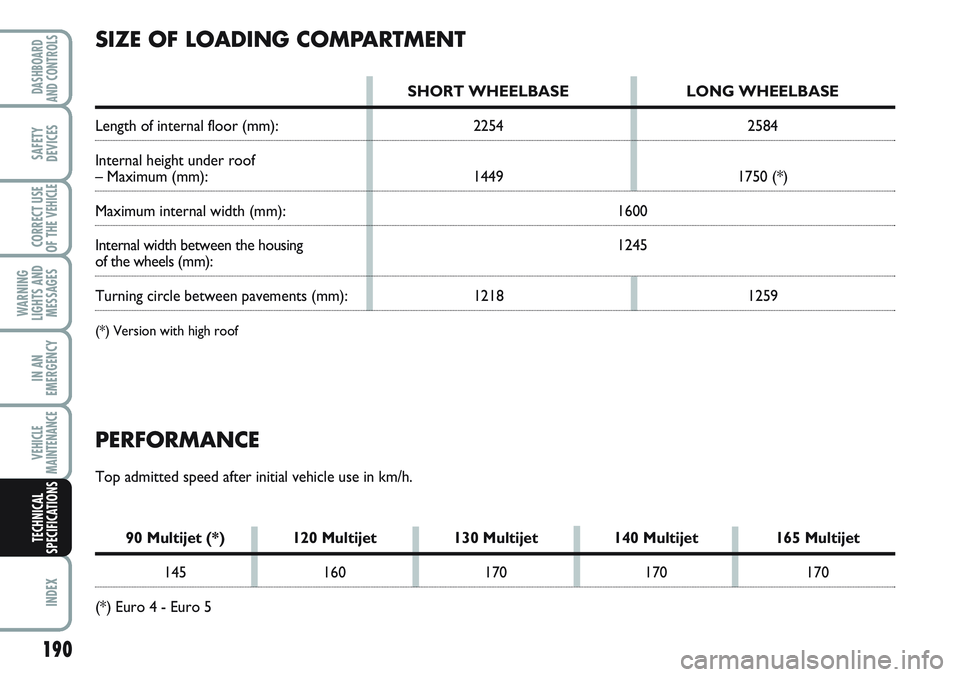

SIZE OF LOADING COMPARTMENT
SHORT WHEELBASE LONG WHEELBASE
Length of internal floor (mm): 2254 2584
Internal height under roof
– Maximum (mm): 1449 1750 (*)
Maximum internal width (mm): 1600
Internal width between the housing 1245
of the wheels (mm):
Turning circle between pavements (mm): 1218 1259
(*) Version with high roof

191
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS

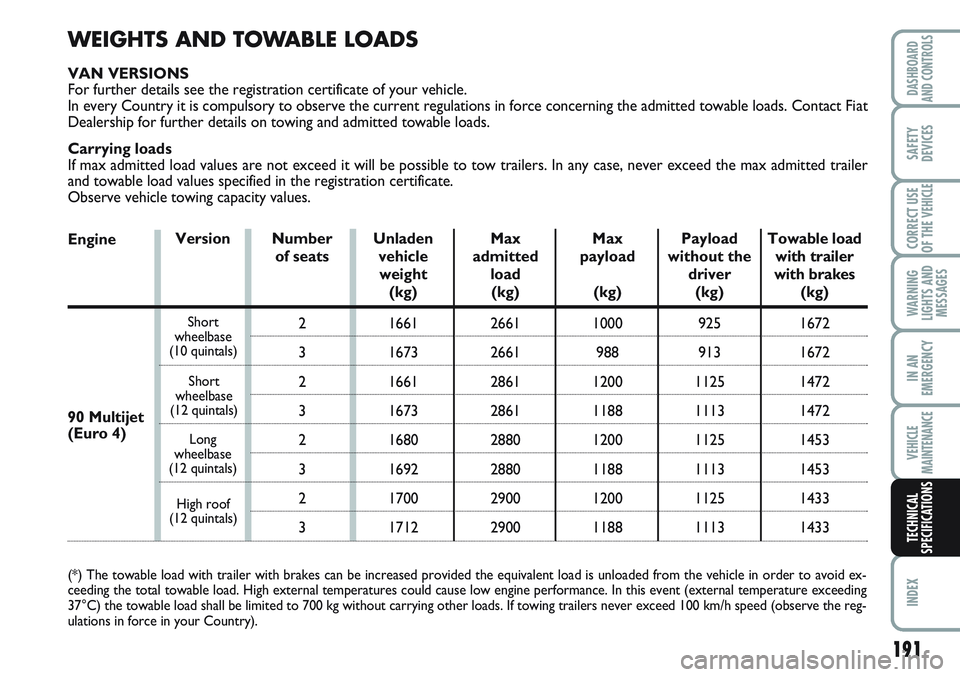

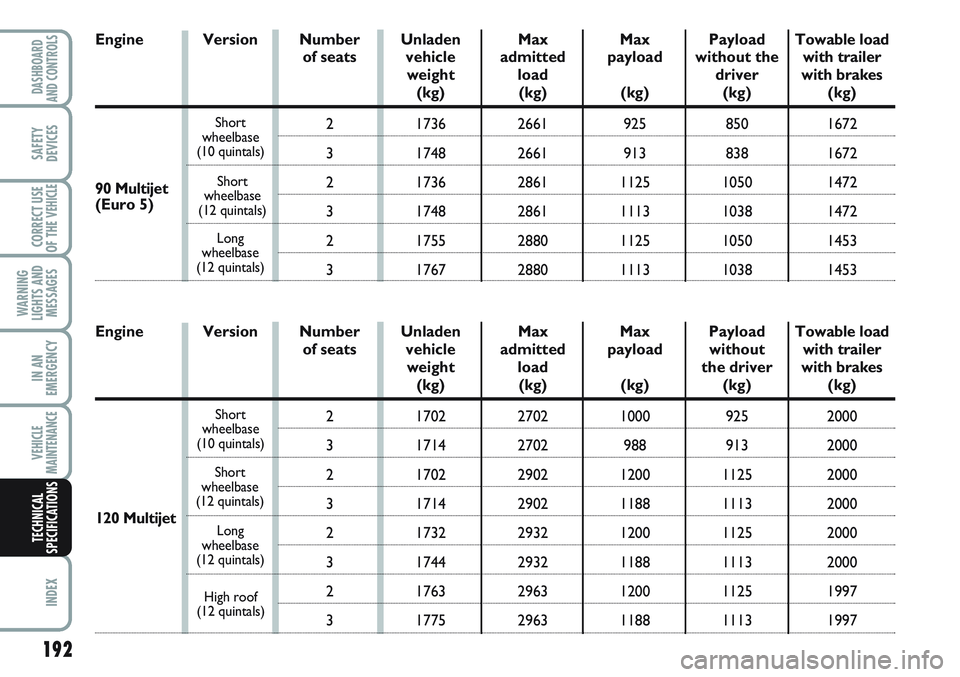

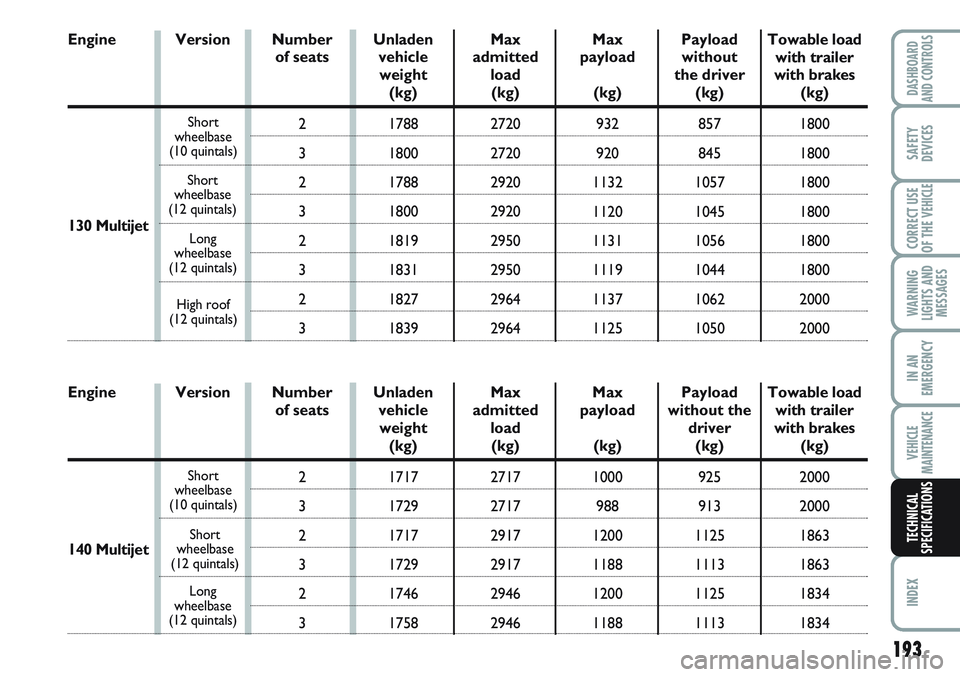

WEIGHTS AND TOWABLE LOADS
