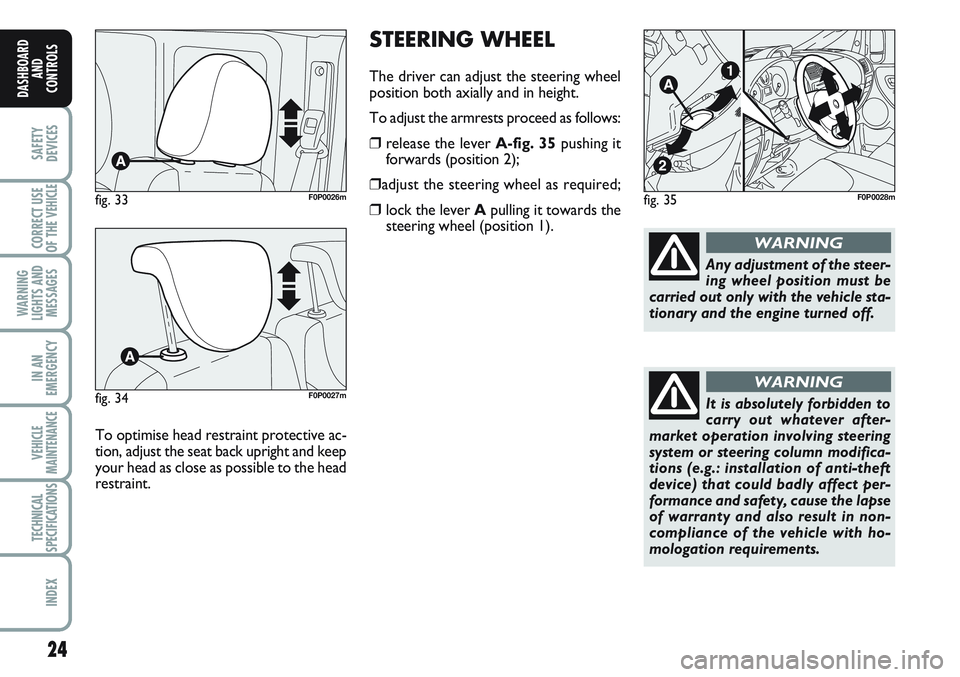

STEERING WHEEL
The driver can adjust the steering wheel
position both axially and in height.
To adjust the armrests proceed as follows:
❒release the lever A-fig. 35pushing it
forwards (position 2);
❒adjust the steering wheel as required;
❒lock the lever Apulling it towards the
steering wheel (position 1).fig. 35F0P0028m
Any adjustment of the steer-
ing wheel position must be
carried out only with the vehicle sta-
tionary and the engine turned off.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the vehicle with ho-
mologation requirements.
WARNING
24
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
fig. 33F0P0026m
fig. 34F0P0027m
To optimise head restraint protective ac-
tion, adjust the seat back upright and keep
your head as close as possible to the head
restraint.

25
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

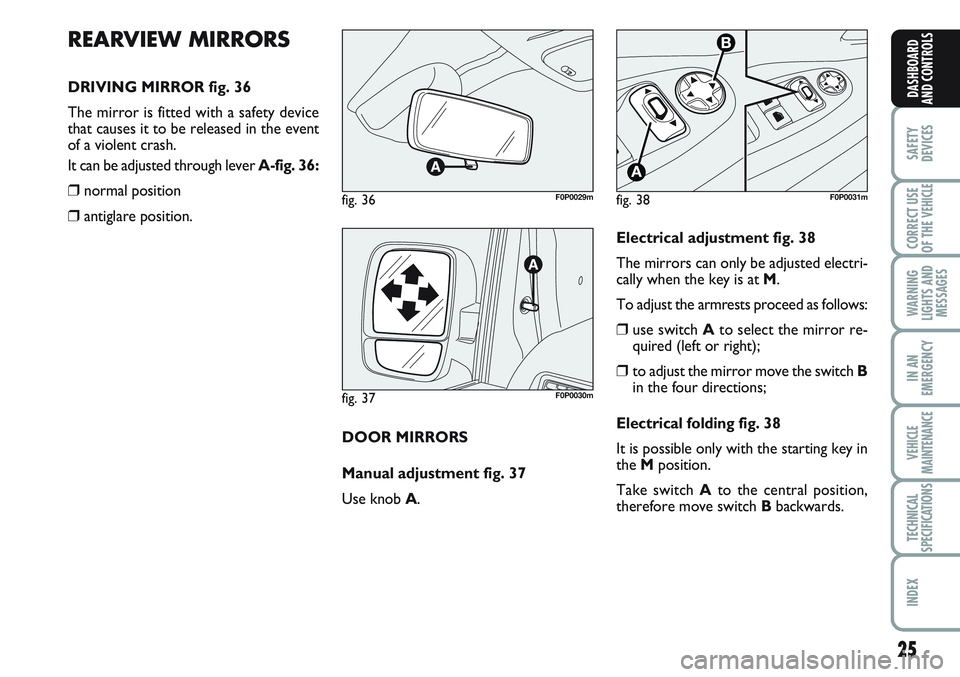

REARVIEW MIRRORS
DRIVING MIRROR fig. 36
The mirror is fitted with a safety device
that causes it to be released in the event
of a violent crash.
It can be adjusted through lever A-fig. 36:
❒normal position
❒antiglare position.
fig. 36F0P0029m
fig. 37F0P0030m
DOOR MIRRORS
Manual adjustment fig. 37
Use knob A.
fig. 38F0P0031m
Electrical adjustment fig. 38
The mirrors can only be adjusted electri-
cally when the key is at M.
To adjust the armrests proceed as follows:
❒use switch Ato select the mirror re-
quired (left or right);
❒to adjust the mirror move the switch B
in the four directions;
Electrical folding fig. 38
It is possible only with the starting key in
the Mposition.
Take switch Ato the central position,
therefore move switch Bbackwards.

26
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

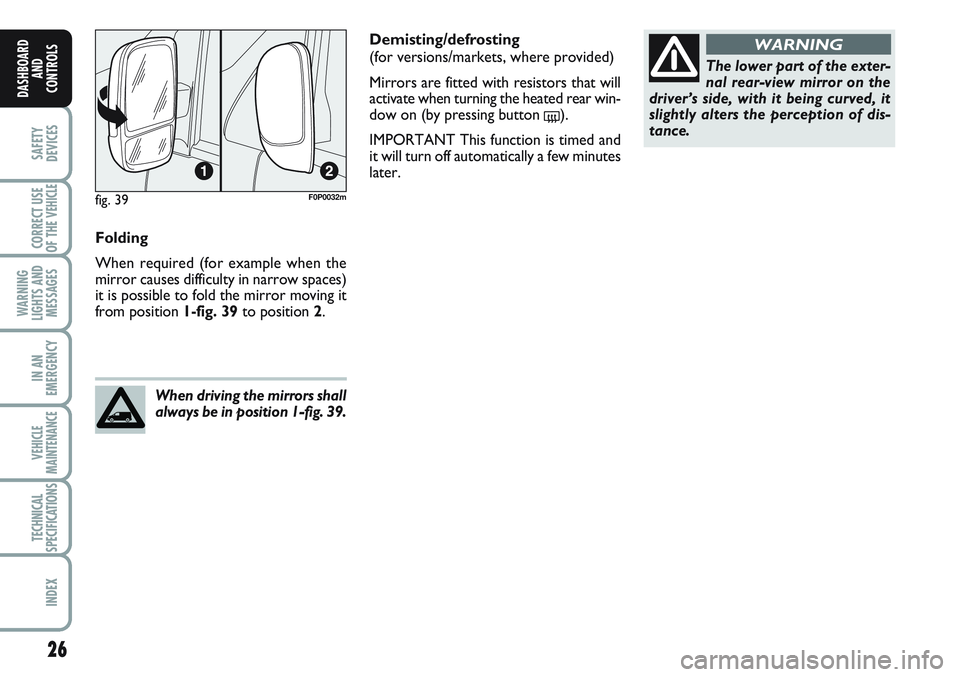

Folding
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirror moving it
from position 1-fig. 39to position 2.
When driving the mirrors shall
always be in position 1-fig. 39.
The lower part of the exter-
nal rear-view mirror on the
driver’s side, with it being curved, it
slightly alters the perception of dis-
tance.
WARNINGDemisting/defrosting
(for versions/markets, where provided)
Mirrors are fitted with resistors that will
activate when turning the heated rear win-
dow on (by pressing button
().
IMPORTANT This function is timed and
it will turn off automatically a few minutes
later.
fig. 39F0P0032m

27
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

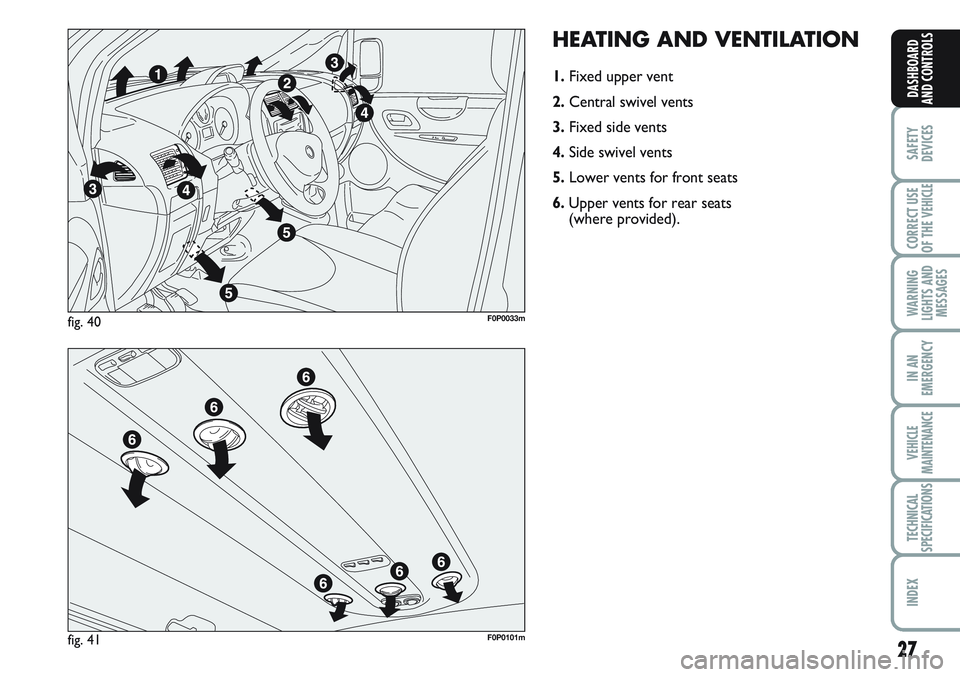

HEATING AND VENTILATION
1.Fixed upper vent
2.Central swivel vents
3.Fixed side vents
4.Side swivel vents
5. Lower vents for front seats
6.Upper vents for rear seats
(where provided).
fig. 40F0P0033m
fig. 41F0P0101m

28
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

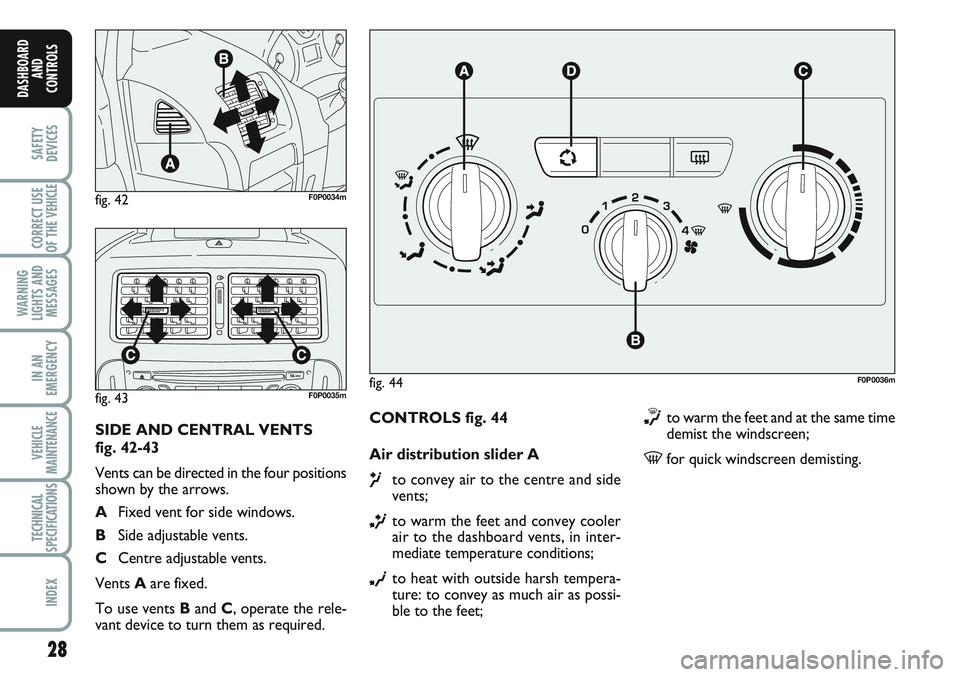

CONTROLS fig. 44
Air distribution slider A
μto convey air to the centre and side
vents;
∑to warm the feet and convey cooler
air to the dashboard vents, in inter-
mediate temperature conditions;
∂to heat with outside harsh tempera-
ture: to convey as much air as possi-
ble to the feet;
∏to warm the feet and at the same time
demist the windscreen;
-for quick windscreen demisting.
fig. 44F0P0036m
fig. 42F0P0034m
fig. 43F0P0035m
SIDE AND CENTRAL VENTS
fig. 42-43
Vents can be directed in the four positions
shown by the arrows.
AFixed vent for side windows.
BSide adjustable vents.
CCentre adjustable vents.
Vents Aare fixed.
To use vents Band C, operate the rele-
vant device to turn them as required.

29
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

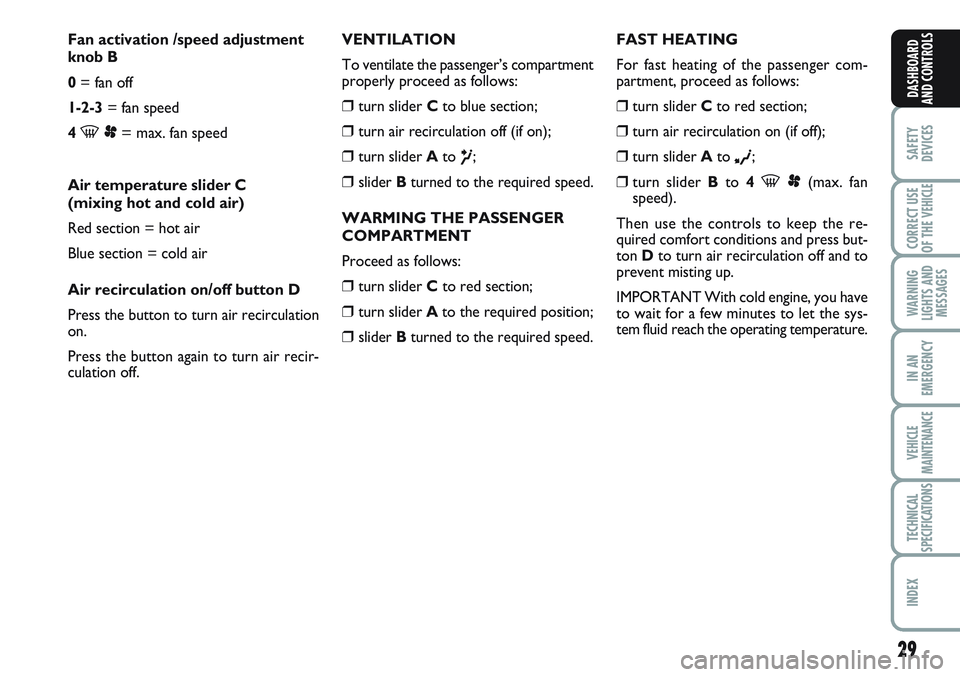

Fan activation /speed adjustment
knob B
0= fan off
1-2-3= fan speed
4
-p= max. fan speed
Air temperature slider C
(mixing hot and cold air)
Red section = hot air
Blue section = cold air
Air recirculation on/off button D
Press the button to turn air recirculation
on.
Press the button again to turn air recir-
culation off.FAST HEATING
For fast heating of the passenger com-
partment, proceed as follows:
❒turn slider Cto red section;
❒turn air recirculation on (if off);
❒turn slider Ato ∂;
❒turn slider Bto 4 -p(max. fan
speed).
Then use the controls to keep the re-
quired comfort conditions and press but-
ton Dto turn air recirculation off and to
prevent misting up.
IMPORTANT With cold engine, you have
to wait for a few minutes to let the sys-
tem fluid reach the operating temperature. VENTILATION
To ventilate the passenger’s compartment
properly proceed as follows:
❒turn slider Cto blue section;
❒turn air recirculation off (if on);
❒turn slider Ato μ;
❒slider Bturned to the required speed.
WARMING THE PASSENGER
COMPARTMENT
Proceed as follows:
❒turn slider Cto red section;
❒turn slider Ato the required position;
❒slider Bturned to the required speed.

30
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

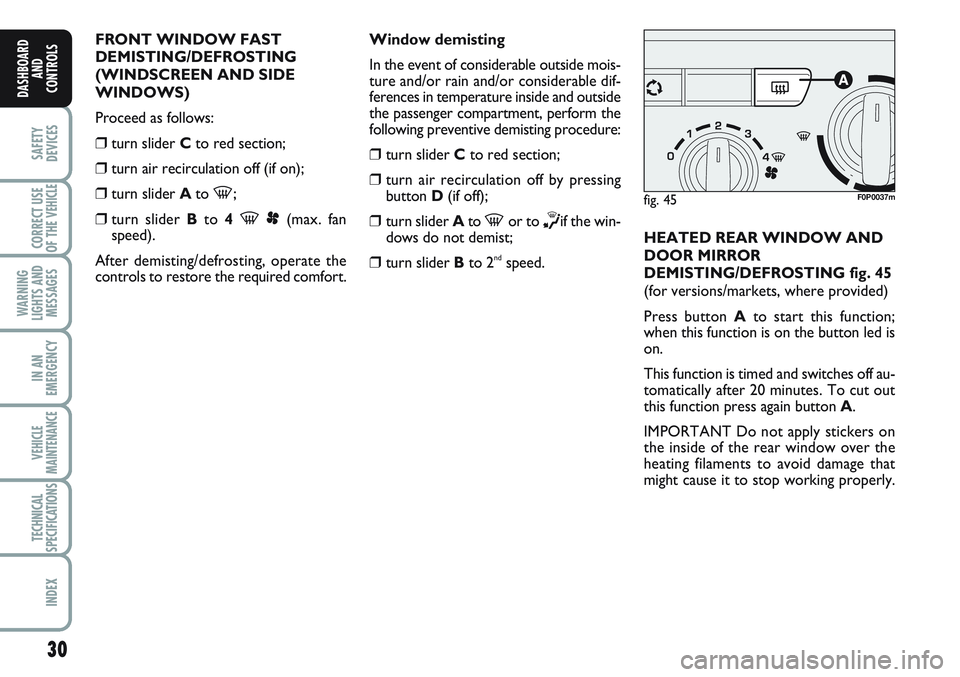

FRONT WINDOW FAST
DEMISTING/DEFROSTING
(WINDSCREEN AND SIDE
WINDOWS)
Proceed as follows:
❒turn slider Cto red section;
❒turn air recirculation off (if on);
❒turn slider Ato -;
❒
turn slider Bto 4 -p(max. fan
speed).
After demisting/defrosting, operate the
controls to restore the required comfort.Window demisting
In the event of considerable outside mois-
ture and/or rain and/or considerable dif-
ferences in temperature inside and outside
the passenger compartment, perform the
following preventive demisting procedure:
❒turn slider Cto red section;
❒turn air recirculation off by pressing
button D(if off);
❒turn slider Ato -or to ∏if the win-
dows do not demist;
❒turn slider Bto 2ndspeed.HEATED REAR WINDOW AND
DOOR MIRROR
DEMISTING/DEFROSTING fig. 45
(for versions/markets, where provided)
Press button Ato start this function;
when this function is on the button led is
on.
This function is timed and switches off au-
tomatically after 20 minutes. To cut out
this function press again button A.
IMPORTANT Do not apply stickers on
the inside of the rear window over the
heating filaments to avoid damage that
might cause it to stop working properly.
fig. 45F0P0037m

31
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

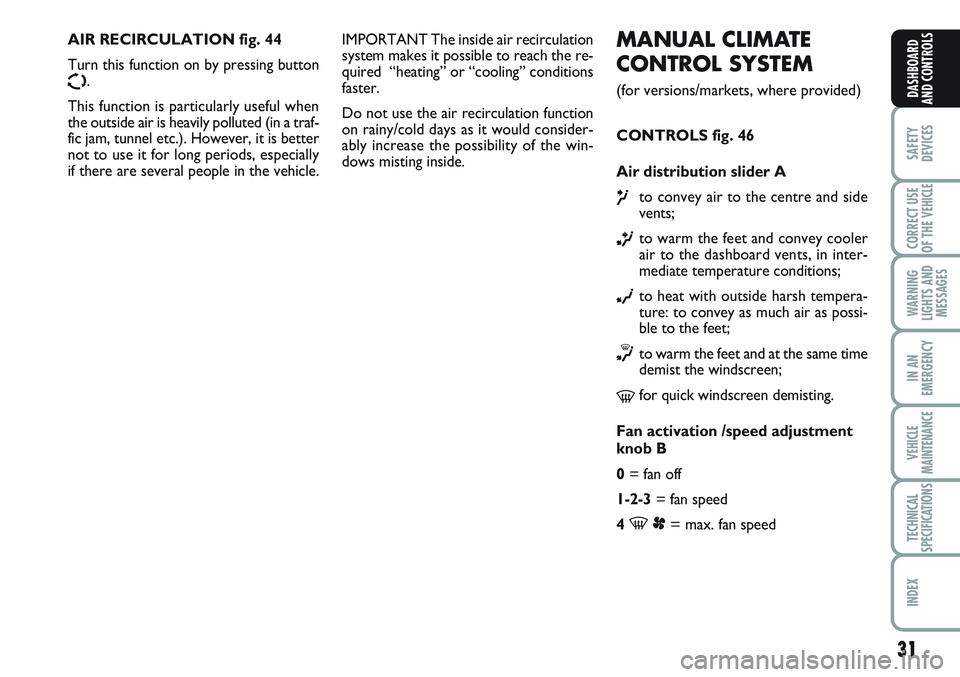

MANUAL CLIMATE
CONTROL SYSTEM
(for versions/markets, where provided)
CONTROLS fig. 46
Air distribution slider A
μto convey air to the centre and side
vents;
∑to warm the feet and convey cooler
air to the dashboard vents, in inter-
mediate temperature conditions;
∂to heat with outside harsh tempera-
ture: to convey as much air as possi-
ble to the feet;
∏to warm the feet and at the same time
demist the windscreen;
-for quick windscreen demisting.
Fan activation /speed adjustment
knob B
0= fan off
1-2-3= fan speed
4
-p= max. fan speed AIR RECIRCULATION fig. 44
Turn this function on by pressing button
Ω.
This function is particularly useful when
the outside air is heavily polluted (in a traf-
fic jam, tunnel etc.). However, it is better
not to use it for long periods, especially
if there are several people in the vehicle.IMPORTANT The inside air recirculation
system makes it possible to reach the re-
quired “heating” or “cooling” conditions
faster.
Do not use the air recirculation function
on rainy/cold days as it would consider-
ably increase the possibility of the win-
dows misting inside.

32
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS

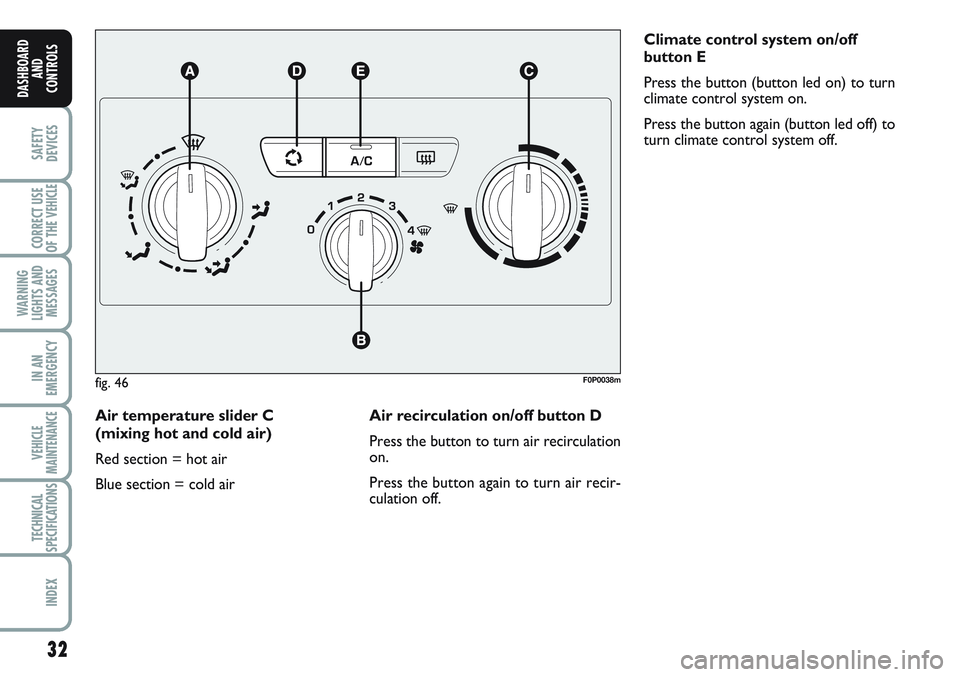

Air temperature slider C
(mixing hot and cold air)
Red section = hot air
Blue section = cold airClimate control system on/off
button E
Press the button (button led on) to turn
climate control system on.
Press the button again (button led off) to
turn climate control system off.
fig. 46F0P0038m
Air recirculation on/off button D
Press the button to turn air recirculation
on.
Press the button again to turn air recir-
culation off.

33
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

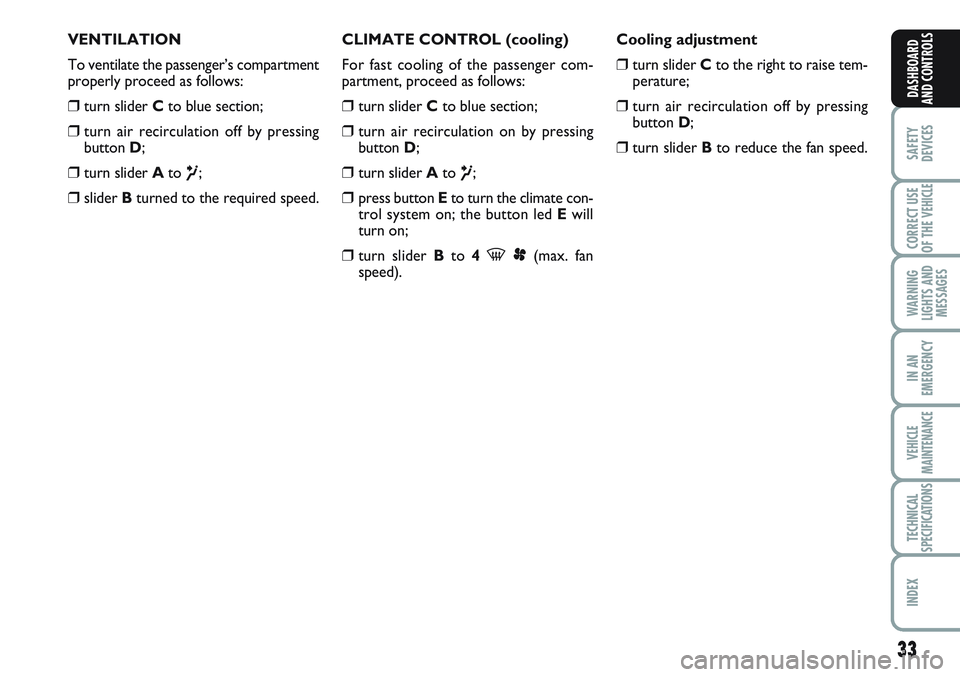

VENTILATION
To ventilate the passenger’s compartment
properly proceed as follows:
❒turn slider Cto blue section;
❒turn air recirculation off by pressing
button D;
❒turn slider Ato μ;
❒slider Bturned to the required speed.CLIMATE CONTROL (cooling)
For fast cooling of the passenger com-
partment, proceed as follows:
❒turn slider Cto blue section;
❒turn air recirculation on by pressing
button D;
❒turn slider Ato μ;
❒press button Eto turn the climate con-
trol system on; the button led Ewill
turn on;
❒turn slider Bto 4-p(max. fan
speed).Cooling adjustment
❒turn slider Cto the right to raise tem-
perature;
❒turn air recirculation off by pressing
button D;
❒turn slider Bto reduce the fan speed.
