check engine FIAT SCUDO 2014 Owner handbook (in English)

172WARNING
LIGHTS AND
MESSAGESTECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCE

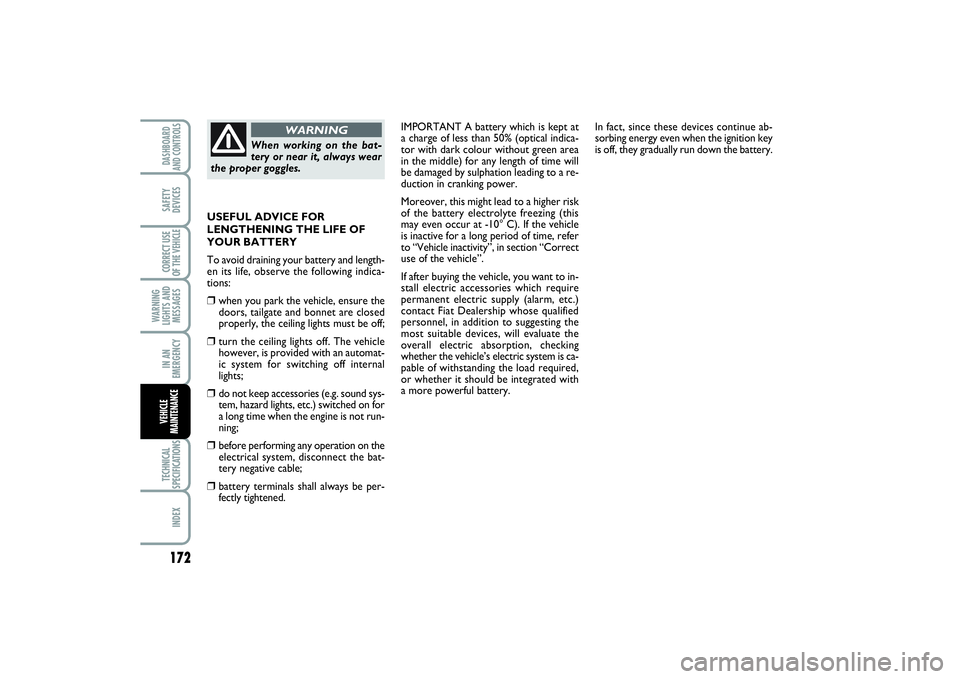

IMPORTANT A battery which is kept at
a charge of less than 50% (optical indica-
tor with dark colour without green area
in the middle) for any length of time will
be damaged by sulphation leading to a re-
duction in cranking power.
Moreover, this might lead to a higher risk
of the battery electrolyte freezing (this
may even occur at -10° C). If the vehicle
is inactive for a long period of time, refer
to “Vehicle inactivity”, in section “Correct
use of the vehicle”.
If after buying the vehicle, you want to in-
stall electric accessories which require
permanent electric supply (alarm, etc.)
contact Fiat Dealership whose qualified
personnel, in addition to suggesting the
most suitable devices, will evaluate the
overall electric absorption, checking
whether the vehicle’s electric system is ca-
pable of withstanding the load required,
or whether it should be integrated with
a more powerful battery. USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and length-
en its life, observe the following indica-
tions:
❒
when you park the vehicle, ensure the
doors, tailgate and bonnet are closed
properly, the ceiling lights must be off;
❒
turn the ceiling lights off. The vehicle
however, is provided with an automat-
ic system for switching off internal
lights;
❒
do not keep accessories (e.g. sound sys-
tem, hazard lights, etc.) switched on for
a long time when the engine is not run-
ning;
❒
before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒
battery terminals shall always be per-
fectly tightened.
When working on the bat-
tery or near it, always wear
the proper goggles.
WARNING
In fact, since these devices continue ab-
sorbing energy even when the ignition key
is off, they gradually run down the battery.
159-178 SCUDO LUM GB 12/12/13 10.02 Pagina 172

176WARNING
LIGHTS AND
MESSAGESTECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCE
❒

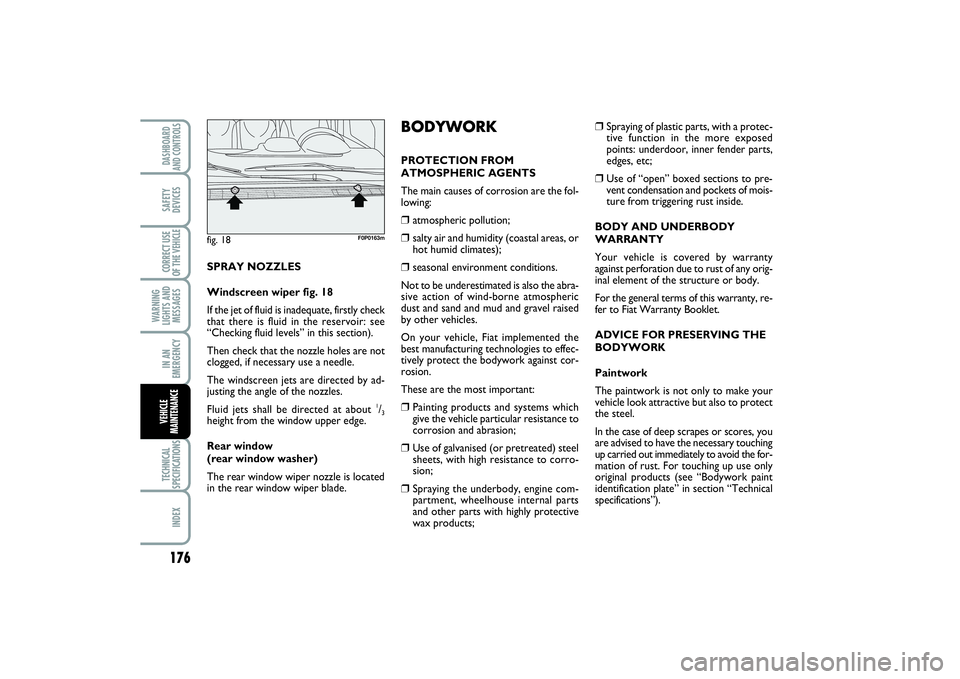

Spraying of plastic parts, with a protec-
tive function in the more exposed
points: underdoor, inner fender parts,
edges, etc;
❒
Use of “open” boxed sections to pre-
vent condensation and pockets of mois-
ture from triggering rust inside.
BODY AND UNDERBODY
WARRANTY
Your vehicle is covered by warranty
against perforation due to rust of any orig-
inal element of the structure or body.
For the general terms of this warranty, re-
fer to Fiat Warranty Booklet.
ADVICE FOR PRESERVING THE
BODYWORK
Paintwork
The paintwork is not only to make your
vehicle look attractive but also to protect
the steel.
In the case of deep scrapes or scores, you
are advised to have the necessary touching
up carried out immediately to avoid the for-
mation of rust. For touching up use only
original products (see “Bodywork paint
identification plate” in section “Technical
specifications”).
BODYWORKPROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:❒
atmospheric pollution;
❒
salty air and humidity (coastal areas, or
hot humid climates);
❒
seasonal environment conditions.
Not to be underestimated is also the abra-
sive action of wind-borne atmospheric
dust and sand and mud and gravel raised
by other vehicles.
On your vehicle, Fiat implemented the
best manufacturing technologies to effec-
tively protect the bodywork against cor-
rosion.
These are the most important:
❒
Painting products and systems which
give the vehicle particular resistance to
corrosion and abrasion;
❒
Use of galvanised (or pretreated) steel
sheets, with high resistance to corro-
sion;
❒
Spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective
wax products; SPRAY NOZZLES
Windscreen wiper fig. 18
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
The windscreen jets are directed by ad-
justing the angle of the nozzles.
Fluid jets shall be directed at about
1/3
height from the window upper edge.
Rear window
(rear window washer)
The rear window wiper nozzle is located
in the rear window wiper blade.fig. 18
F0P0163m
159-178 SCUDO LUM GB 12/12/13 10.02 Pagina 176

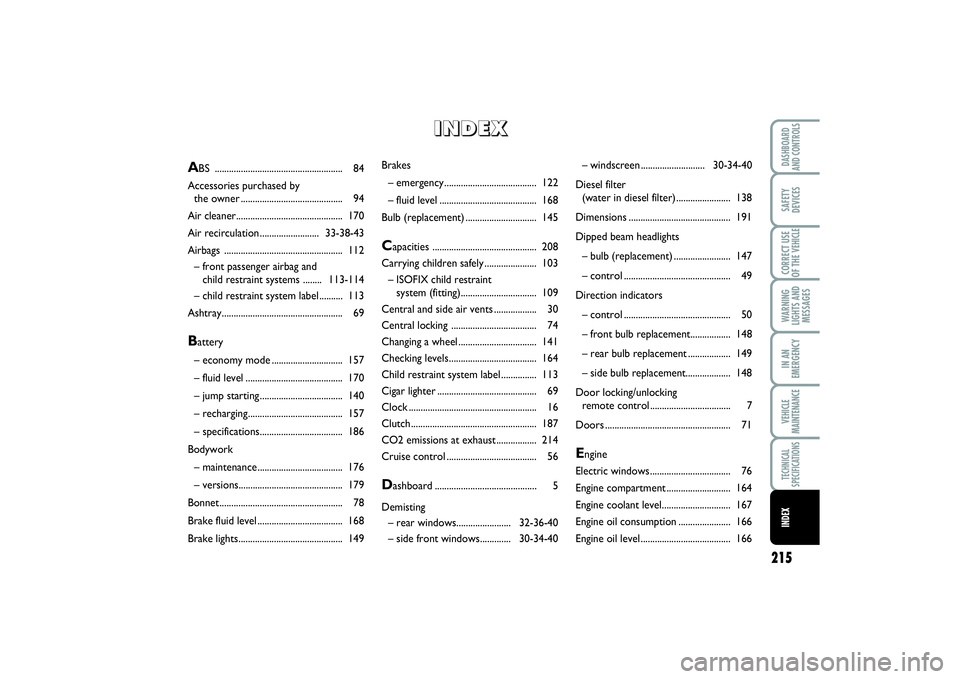

215
WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Brakes
– emergency....................................... 122
– fluid level ......................................... 168
Bulb (replacement).............................. 145Capacities ............................................ 208
Carrying children safely...................... 103
– ISOFIX child restraint
system (fitting)................................ 109
Central and side air vents .................. 30
Central locking .................................... 74
Changing a wheel................................. 141
Checking levels..................................... 164
Child restraint system label ............... 113
Cigar lighter .......................................... 69
Clock ...................................................... 16
Clutch..................................................... 187
CO2 emissions at exhaust ................. 214
Cruise control ...................................... 56Dashboard ........................................... 5
Demisting
– rear windows.......................32-36-40
– side front windows.............30-34-40– windscreen...........................30-34-40
Diesel filter
(water in diesel filter) ....................... 138
Dimensions........................................... 191
Dipped beam headlights
– bulb (replacement) ........................ 147
– control ............................................. 49
Direction indicators
– control ............................................. 50
– front bulb replacement................. 148
– rear bulb replacement.................. 149
– side bulb replacement................... 148
Door locking/unlocking
remote control.................................. 7
Doors ..................................................... 71
Engine
Electric windows.................................. 76
Engine compartment........................... 164
Engine coolant level............................. 167
Engine oil consumption ...................... 166
Engine oil level ...................................... 166
ABS ...................................................... 84
Accessories purchased by
the owner ........................................... 94
Air cleaner............................................. 170
Air recirculation.........................33-38-43
Airbags .................................................. 112
– front passenger airbag and
child restraint systems ........ 113-114
– child restraint system label .......... 113
Ashtray................................................... 69Battery
– economy mode .............................. 157
– fluid level ......................................... 170
– jump starting ................................... 140
– recharging........................................ 157
– specifications................................... 186
Bodywork
– maintenance.................................... 176
– versions............................................ 179
Bonnet.................................................... 78
Brake fluid level .................................... 168
Brake lights............................................ 149
I I
N N
D D
E E
X X
215-222 SCUDO LUM GB 07/03/14 08.48 Pagina 215

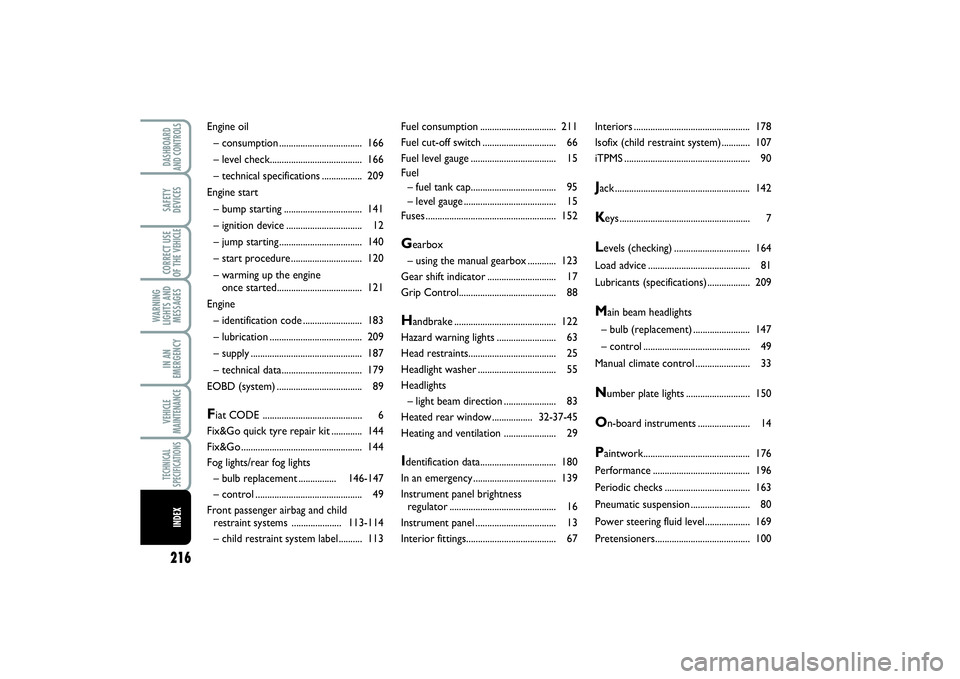

216WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Fuel consumption................................ 211
Fuel cut-off switch............................... 66
Fuel level gauge.................................... 15
Fuel
– fuel tank cap.................................... 95
– level gauge ....................................... 15
Fuses....................................................... 152Gearbox
– using the manual gearbox ............ 123
Gear shift indicator............................. 17
Grip Control......................................... 88H
andbrake ........................................... 122
Hazard warning lights......................... 63
Head restraints..................................... 25
Headlight washer................................. 55
Headlights
– light beam direction ...................... 83
Heated rear window.................32-37-45
Heating and ventilation ...................... 29
Identification data................................ 180
In an emergency ................................... 139
Instrument panel brightness
regulator............................................. 16
Instrument panel.................................. 13
Interior fittings...................................... 67Interiors ................................................. 178
Isofix (child restraint system) ............ 107
iTPMS..................................................... 90
Jack ......................................................... 142Keys ....................................................... 7Levels (checking)................................ 164
Load advice........................................... 81
Lubricants (specifications).................. 209M
ain beam headlights
– bulb (replacement) ........................ 147
– control ............................................. 49
Manual climate control....................... 33
N
umber plate lights........................... 150
O
n-board instruments...................... 14
Paintwork............................................. 176
Performance ......................................... 196
Periodic checks .................................... 163
Pneumatic suspension ......................... 80
Power steering fluid level................... 169
Pretensioners........................................ 100 Engine oil
– consumption................................... 166
– level check....................................... 166
– technical specifications ................. 209
Engine start
– bump starting ................................. 141
– ignition device................................ 12
– jump starting ................................... 140
– start procedure.............................. 120
– warming up the engine
once started.................................... 121
Engine
– identification code ......................... 183
– lubrication....................................... 209
– supply............................................... 187
– technical data.................................. 179
EOBD (system).................................... 89
Fiat CODE .......................................... 6
Fix&Go quick tyre repair kit ............. 144
Fix&Go................................................... 144
Fog lights/rear fog lights
– bulb replacement ................146-147
– control ............................................. 49
Front passenger airbag and child
restraint systems .....................113-114
– child restraint system label .......... 113
215-222 SCUDO LUM GB 07/03/14 08.48 Pagina 216

Fiat Group Automobiles S.p.A. - Parts & Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Torino (Italia)
Print N. 603.99.462 - 03/2014 - 2 Edition

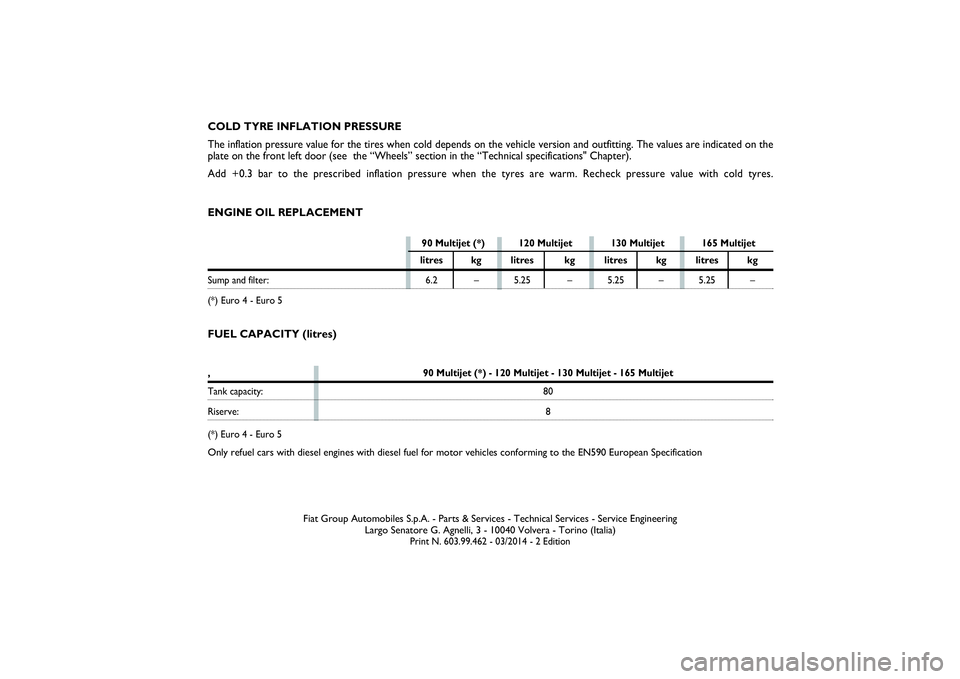

ENGINE OIL REPLACEMENT
FUEL CAPACITY (litres) COLD TYRE INFLATION PRESSURE
The inflation pressure value for the tires when cold depends on the vehicle version and outfitting. The values are indicated on the
plate on the front left door (see the “Wheels” section in the “Technical specifications" Chapter).
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres., 90 Multijet (*) - 120 Multijet - 130 Multijet - 165 MultijetTank capacity: 80Riserve: 8
(*) Euro 4 - Euro 5Only refuel cars with diesel engines with diesel fuel for motor vehicles conforming to the EN590 European Specification
90 Multijet (*) 120 Multijet 130 Multijet 165 Multijetlitres kg litres kg litres kg litres kg
Sump and filter: 6.2 – 5.25 – 5.25 – 5.25 –
(*) Euro 4 - Euro 5
215-222 SCUDO LUM GB 07/03/14 08.48 Pagina 222
