DASHBOARD
AND
CONTROLS

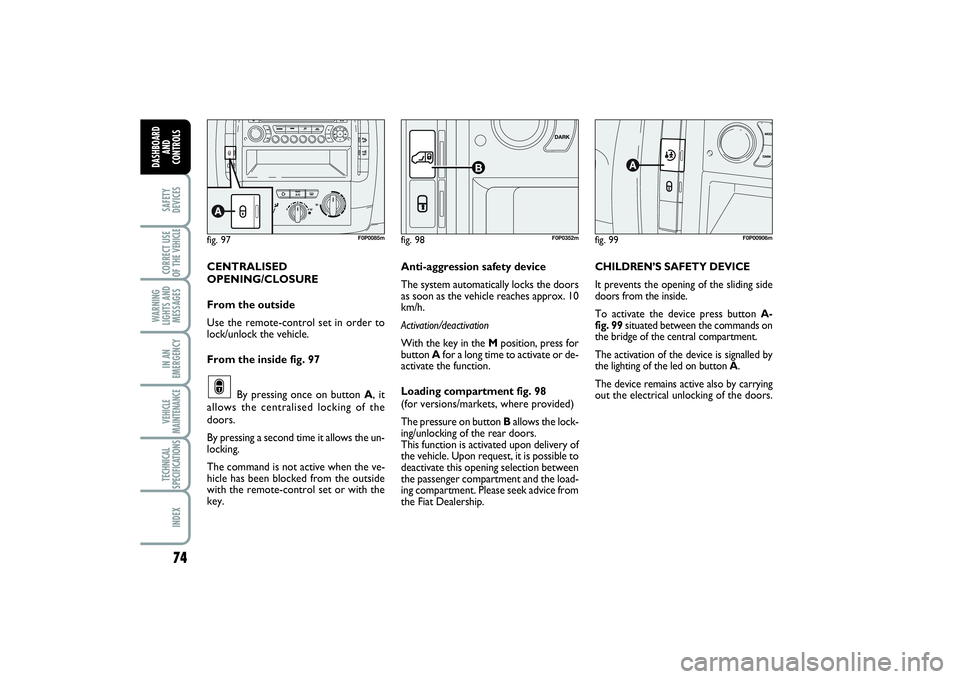

CENTRALISED
OPENING/CLOSURE
From the outside
Use the remote-control set in order to
lock/unlock the vehicle.
From the inside fig. 97
By pressing once on button A, it
allows the centralised locking of the
doors.
By pressing a second time it allows the un-
locking.
The command is not active when the ve-
hicle has been blocked from the outside
with the remote-control set or with the
key.∫
Anti-aggression safety device
The system automatically locks the doors
as soon as the vehicle reaches approx. 10
km/h.
Activation/deactivation
With the key in the Mposition, press for
button Afor a long time to activate or de-
activate the function.
Loading compartment fig. 98
(for versions/markets, where provided)
The pressure on button Ballows the lock-
ing/unlocking of the rear doors.
This function is activated upon delivery of
the vehicle. Upon request, it is possible to
deactivate this opening selection between
the passenger compartment and the load-
ing compartment. Please seek advice from
the Fiat Dealership.
CHILDREN’S SAFETY DEVICE
It prevents the opening of the sliding side
doors from the inside.
To activate the device press button A-
fig. 99situated between the commands on
the bridge of the central compartment.
The activation of the device is signalled by
the lighting of the led on button A.
The device remains active also by carrying
out the electrical unlocking of the doors.fig. 99
F0P00906m
fig. 97
F0P0085m
fig. 98
B
F0P0352m
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 74

76SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS

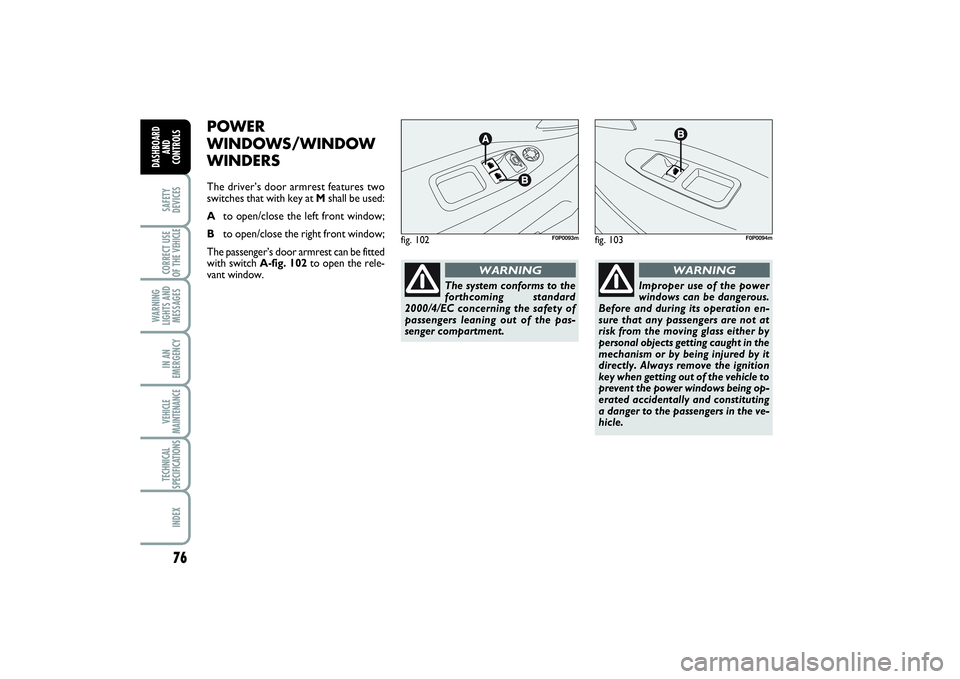

POWER
WINDOWS/WINDOW
WINDERSThe driver’s door armrest features two
switches that with key at Mshall be used:
Ato open/close the left front window;
Bto open/close the right front window;
The passenger’s door armrest can be fitted
with switch A-fig. 102to open the rele-
vant window.
fig. 102
F0P0093m
fig. 103
F0P0094m
Improper use of the power
windows can be dangerous.
Before and during its operation en-
sure that any passengers are not at
risk from the moving glass either by
personal objects getting caught in the
mechanism or by being injured by it
directly. Always remove the ignition
key when getting out of the vehicle to
prevent the power windows being op-
erated accidentally and constituting
a danger to the passengers in the ve-
hicle.
WARNING
The system conforms to the
forthcoming standard
2000/4/EC concerning the safety of
passengers leaning out of the pas-
senger compartment.
WARNING
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 76

77
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

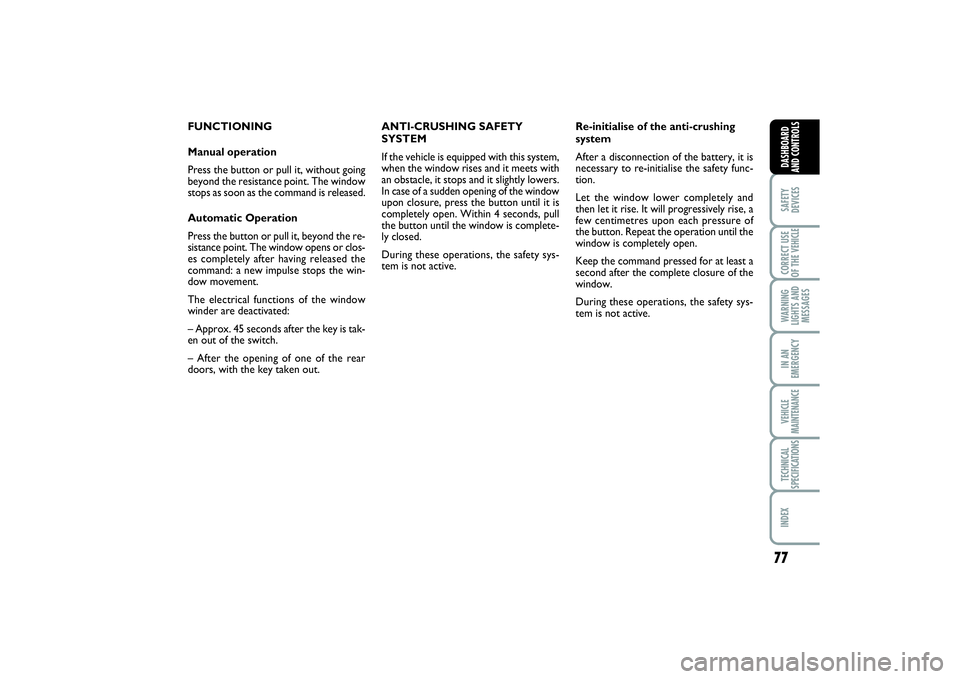

FUNCTIONING
Manual operation
Press the button or pull it, without going
beyond the resistance point. The window
stops as soon as the command is released.
Automatic Operation
Press the button or pull it, beyond the re-
sistance point. The window opens or clos-
es completely after having released the
command: a new impulse stops the win-
dow movement.
The electrical functions of the window
winder are deactivated:
– Approx. 45 seconds after the key is tak-
en out of the switch.
– After the opening of one of the rear
doors, with the key taken out.ANTI-CRUSHING SAFETY
SYSTEM
If the vehicle is equipped with this system,
when the window rises and it meets with
an obstacle, it stops and it slightly lowers.
In case of a sudden opening of the window
upon closure, press the button until it is
completely open. Within 4 seconds, pull
the button until the window is complete-
ly closed.
During these operations, the safety sys-
tem is not active.Re-initialise of the anti-crushing
system
After a disconnection of the battery, it is
necessary to re-initialise the safety func-
tion.
Let the window lower completely and
then let it rise. It will progressively rise, a
few centimetres upon each pressure of
the button. Repeat the operation until the
window is completely open.
Keep the command pressed for at least a
second after the complete closure of the
window.
During these operations, the safety sys-
tem is not active.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 77

80SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS
PNEUMATIC
SUSPENSIONSIn some versions the tires rear suspen-
sions self-leveling may be included as an
optional.
According to versions suspensions can be
adjusted manually or automatically.
MANUAL ADJUSTMENT
The controls fig.109are located in the
rear right of the vehicle.
Height adjustment
The height adjustment varies from a max-
imum alignmentto an intermediate
alignmentto a minimum alignment.
The reaching of the two stabilities, maxi-
mum or minimum is signalled by 3 “beeps”.
By pressing down twice on one of the A
buttons (starting from the minimum align-
ment position) or one of the Bbuttons
(starting from the maximum alignment po-
sition), the system will automatically ad-
just the setting to the intermediate align-
ment.
fig. 109
F0P0102m
Before starting the manual
adjustment procedure with
doors open, make sure there
is enough space around the
vehicle.
First-time use
To initialize the system, keep pushbutton
C-fig.109pressed for 2 seconds
Operating faults
If, when acting on the controls, the sus-
pensions do not adjust, 3 acoustic warn-
ings indicate a system malfunction.
This malfunction could be due to one of
these causes:❒
the brake pedal is pressed and the ig-
nition key is in Mposition
❒
excessive use of the system manual ad-
justment;
❒
the battery is low (or completely dis-
charged);
❒
a tire suspension system error.
If the acoustic warning persists, contact
the Fiat Dealership. The required height level should be set
with vehicle at a standstill and engine run-
ning or off.
With engine off, manual adjustment is on-
ly possible for a restricted number of
times.
IMPORTANT Only make adjustments
with vehicle stationary and:
❒
front and side doors closed;
❒
handbrake engaged;
❒
without pressing the brake pedal.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 80

83
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS

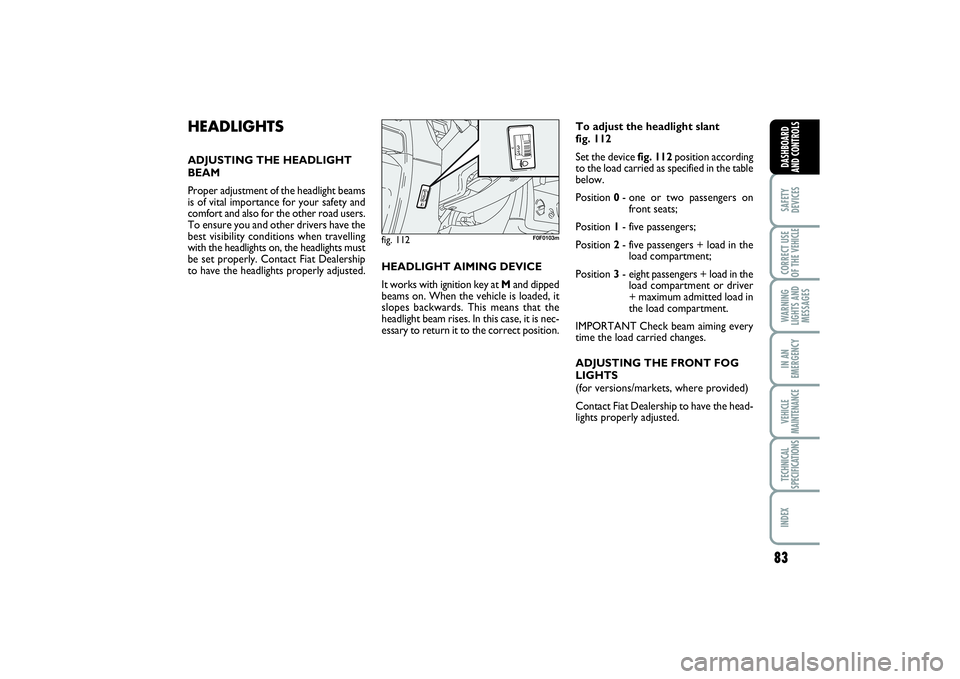

HEADLIGHTSADJUSTING THE HEADLIGHT
BEAM
Proper adjustment of the headlight beams
is of vital importance for your safety and
comfort and also for the other road users.
To ensure you and other drivers have the
best visibility conditions when travelling
with the headlights on, the headlights must
be set properly. Contact Fiat Dealership
to have the headlights properly adjusted.HEADLIGHT AIMING DEVICE
It works with ignition key at Mand dipped
beams on. When the vehicle is loaded, it
slopes backwards. This means that the
headlight beam rises. In this case, it is nec-
essary to return it to the correct position.To adjust the headlight slant
fig. 112
Set the device fig. 112position according
to the load carried as specified in the table
below.
Position 0- one or two passengers on
front seats;
Position 1- five passengers;
Position 2- five passengers + load in the
load compartment;
Position 3- eight passengers + load in the
load compartment or driver
+ maximum admitted load in
the load compartment.
IMPORTANT Check beam aiming every
time the load carried changes.
ADJUSTING THE FRONT FOG
LIGHTS
(for versions/markets, where provided)
Contact Fiat Dealership to have the head-
lights properly adjusted.
fig. 112
F0F0103m
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 83

89
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
EOBD SYSTEMThe EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
the components of the vehicle correlat-
ed with emissions.
It also alerts the driver, by turning on the
warning light
U
on the instrument panel
(see section “Warning lights and mes-
sages”), when these conditions are no
longer in peak conditions.
The objective is:
❒to keep the system efficiency under con-
trol;❒ warn when a fault causes emissions lev-
els to increase;❒warn of the need to replace deteriorat-
ed components.The system also has a diagnostic connec-
tor that can be interfaced with appropri-
ate tools, which makes it possible to read
the error codes stored in the control unit,
together with a series of specific parame-
ters for engine operation and diagnosis.
This check can also be carried out by the
traffic police.
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.If when turning the ignition
key to M, the warning light
Udoes not turn on or if,
while travelling it turns on
glowing steadily or flashing, contact
Fiat Dealership as soon as possible.
Warning light Uoperation can be
checked by means of special equip-
ment by traffic agents. Always comply
with the traffic regulations in force in
the country where you are travelling.
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 89

95
SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
Refuelling
To guarantee full tank filling, carry out two
refuelling operations after the first click of
the fuel delivery gun. Avoid further top-
ping up operations that could cause dam-
ages to the fuel system.
FUEL FILLER CAP fig. 116
To carry out fuelling, open lid A, fit the ig-
nition key into the cap lock and turn it
counterclockwise, then loosen cap B.
The sealing of the tank may cause light
pressurising in the tank. A little breathing
off, while slackening the cap, is absolutely
normal.
When refuelling, secure the cap to the de-
vice Cinside the lid.
fig. 116
F0F0107m
AT THE FILLING
STATIONOperation at cold temperatures
If the outside temperature is very low, the
diesel thickens due to the formation of
paraffins and could clog the diesel fuel fil-
ter.
In order to avoid these problems, differ-
ent types of diesel are distributed ac-
cording to the season: summer type, win-
ter type and arctic type (cold, mountain
areas). If refuelling with diesel fuel not suit-
able for the current temperature, mix
diesel fuel with TUTELA DIESEL ART ad-
ditive in the proportions stated on the can,
putting first the antifreeze in the tank and
then the diesel fuel.
Refuel with local diesel fuel if the vehicle
is used/parked in the mountains or in cold
areas for a long period.
In this event you are recommended to
keep an amount of fuel higher than 50% in
the tank.The vehicle must only be filled
with diesel fuel for motor ve-
hicles, in compliance with Eu-
ropean Standard EN590. The
use of other products or mixtures may
irreparably damage the engine with in-
validation of the warranty due to the
damage caused. In the event of acci-
dentally filling with another type of fu-
el, do not start the engine and empty
the tank. If the engine has been run
even for only a very short time, in ad-
dition to the tank, it is also necessary
to drain out the whole fuel circuit.
Keep naked flames or light-
ed cigarettes away from the
fuel filler hole as there is a danger of
fire. Do not bend too close to the hole
either so as not to breathe in harmful
vapours.
WARNING
During refuelling, do not open
the left sliding door due to the
fact that the open fuel door.
083-096 SCUDO LUM GB 19/11/13 13.07 Pagina 95

106CORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSIINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES

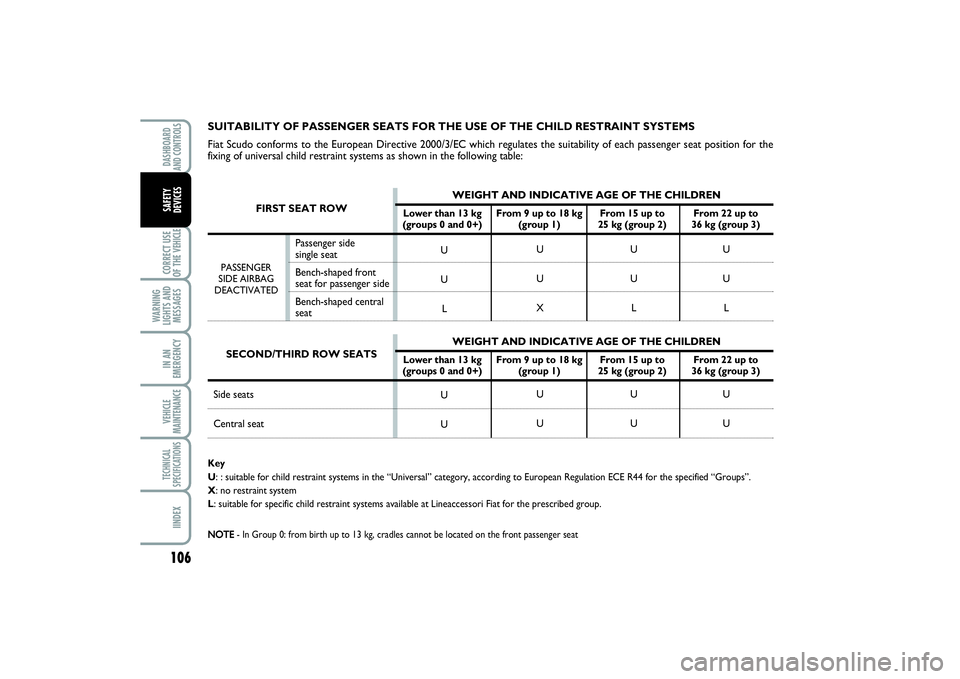

SUITABILITY OF PASSENGER SEATS FOR THE USE OF THE CHILD RESTRAINT SYSTEMS
Fiat Scudo conforms to the European Directive 2000/3/EC which regulates the suitability of each passenger seat position for the
fixing of universal child restraint systems as shown in the following table:Key
U: : suitable for child restraint systems in the “Universal” category, according to European Regulation ECE R44 for the specified “Groups”.
X: no restraint system
L: suitable for specific child restraint systems available at Lineaccessori Fiat for the prescribed group. NOTE
- In Group 0: from birth up to 13 kg, cradles cannot be located on the front passenger seat
U
U
L
U
UU
U
X
U
UU
U
L
U
UU
U
L
U
U
FIRST SEAT ROW
Side seats
Central seat
WEIGHT AND INDICATIVE AGE OF THE CHILDREN
Lower than 13 kg From 9 up to 18 kg From 15 up to From 22 up to (groups 0 and 0+) (group 1) 25 kg (group 2) 36 kg (group 3)
WEIGHT AND INDICATIVE AGE OF THE CHILDREN
Lower than 13 kg From 9 up to 18 kg From 15 up to From 22 up to (groups 0 and 0+) (group 1) 25 kg (group 2) 36 kg (group 3)
Passenger side
single seat
Bench-shaped front
seat for passenger side
Bench-shaped central
seat
SECOND/THIRD ROW SEATSPASSENGER
SIDE AIRBAG
DEACTIVATED
097-118 SCUDO LUM GB 18/11/13 14.26 Pagina 106

115
CORRECT USE
OF THE VEHICLEWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES
MANUAL DEACTIVATION OF
THE PASSENGER AIRBAGS
(for versions/markets where provided)
If a child must absolutely be carried on one
of the front seats, deactivate the front pas-
senger airbag and side bag for pelvis, chest
and shoulder protection (for versions/
markets, where provided).
The deactivation device fig. 14is located
on the edge of the glove compartment; to
access it open its flap. fig. 14
F0P0115m
Use the ignition key to turn the pawl of
the deactivation device to O
OFF
to deacti-
vate the airbag or to O
ON
to activate it.
Warning light
“
on the instrument pan-
el stays on constantly until the front pas-
senger airbags and side bag for chest pro-
tection (side bag) (for versions/markets
where provided) are reactivated.
SIDE BAGSThe car is equipped with front side airbags
for driver and passenger (for
versions/markets, where provided) pelvis,
chest and shoulder protection (front side
bags), airbags for protecting the heads of
front and rear occupants (window bags)
(for versions/markets where provided).
The front side airbags (for versions/mar-
kets, where provided) protect the occu-
pants during impacts of medium-high
severity, by placing the bag between the
occupant and the internal parts of the side
structure of the vehicle. Therefore non-
deployment of the side bags in other types
of impacts (front, rear, roll-overs, etc.)
does not indicate a system malfunction.
Side airbags (for versions/markets where
provided) are not a replacement for, but
are complementary to, the seat belts,
which you are recommended to always
wear, as specified by law in Europe and
most non-European countries.
An electronic control unit will inflate the
bags, when necessary, in the event of a
side impact. The bags will inflate instanta-
neously placing themselves between the
occupant bodies and the structures which
could cause injuries;
097-118 SCUDO LUM GB 18/11/13 14.26 Pagina 115

117
CORRECT USE
OF THE VEHICLEWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES
GENERAL INSTRUCTIONS
If, when the key is turned to
M, the
¬warning light does
not switch on or stays on whilst dri-
ving, a fault may have occurred in the
restraint systems. In this case the
airbags or pretensioners may not be
deployed in an impact or, in a lower
number of cases, they may be de-
ployed accidentally. Before continu-
ing, contact a Fiat Dealership imme-
diately to have the system checked.
WARNING
For versions/markets where
provided, if warning lights
¬
and
“
stay on constantly contact a
Fiat Dealership for immediate check
of the system.
WARNING
IMPORTANT Do not wash the seats with
water or pressurised steam (by hand or at
automatic seat washing stations).
IMPORTANT The front airbags and/or
side bags may be deployed if the car is sub-
ject to violent impacts involving the un-
derbody area (e.g. violent impacts against
steps or kerbs, big holes or dips in the
road, etc.).
IMPORTANT When the airbag deploys it
emits a small amount of dust. The dust is
not harmful and does not indicate the be-
ginning of a fire. Furthermore, the surface
of the deployed bag and the interior of the
vehicle may be covered with a dusty
residue: this may irritate your skin and
eyes. Wash with mild soap and water in
the event of exposure.
IMPORTANT Airbag checking, repair and
replacement must be carried out at a Fi-
at Dealership.
IMPORTANT If the vehicle is scrapped,
have the airbag system deactivated at a Fi-
at Dealership.IMPORTANT Pretensioners, front airbags
and front side bags are deployed in differ-
ent ways, according to the type of impact.
Failure to deploy of one or more of the
devices does not indicate a system mal-
function.
Warning light
¬flashes to in-
dicate a failure of the
“
warning light: in this case, the py-
rotechnic charges of the passenger
airbag are deactivated (for versions/
markets, where provided). Contact a
Fiat Dealership immediately to have
the system checked.
WARNING
When the ignition key is
turned to M-ON, the warn-
ing light “
(with front passenger
airbag active) switches on and flashes
for a few seconds to remind you that
the passenger airbag will be deployed
in an impact, after which it should
switch off.WARNING
Do not cover the backrest of
the front seats with covers or
upholstery that are not suitable for use
with side bags.
WARNING
097-118 SCUDO LUM GB 18/11/13 14.26 Pagina 117
