turn the button rightwards to select the
required mode;
❒
turn the button leftwards to stop clock
setting.
If no other setting is made, after about 30
seconds the display will show the time ac-
cording to the selected settings.
Setting the clock through the
display on the central console
Certain versions are fitted with a central
console with a display showing the time.
To set the clock consult the trip comput-
er under option “Set clock and date”.
GEAR SHIFT
INDICATORThe “GSI” (Gear Shift Indicator) system
advises the driver to change gear through
a special indication on the display fig. 15/a.
Through the GSI, the driver is notified that
the gear change will allow a reduction in
fuel consumption.
When the ▲(SHIFT UP) icon is shown on
the display, the GSI is advising the driver
to engage a higher gear, while the ▼
(SHIFT DOWN) icon advises the driver
to engage a lower gear.NBThe indication on the instrument pan-
el remains on until the driver changes gear
or until the driving conditions return to
a situation where a gear change is not re-
quired to reduce consumption.
fig. 15/a
F0P0291m
fig. 15
1/2
F0P0292m
001-019 SCUDO LUM GB 19/11/13 08.26 Pagina 17

132IN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGES
LOW PRESSURE/HIGH
TEMPERATURE OF
ENGINE OIL (red)
Low engine oil pressure
Turning the ignition key to Mthe warn-
ing light turns on, but it should go out as
soon as the engine is started.
v
If the warning light
v
turns on when travelling stop
the engine immediately and contact
a Fiat Dealership.
WARNING
❒Vehicle heavy duty(e.g.: towing
trailer uphill of fully laden vehicle):
decrease speed, if the warning light
stays on, stop the vehicle. Wait for 2
or 3 minutes leaving the engine on
and slightly accelerated to further
activate the circulation of the
coolant fluid, then switch the engine
off. Check proper coolant level as
described previously.
IMPORTANT Under severe use of the
vehicle, keep the engine on and slightly
accelerated for few minutes before
switching it off.LOW BATTERY
CHARGE (red)
Turning the ignition key to M
the warning light turns on, but it should
go out as soon as the engine is started
(with the engine running at idle speed a
brief delay in going out is allowed).
If the warning light remains lit constant-
ly seek immediate advice from the Fiat
Dealership.
If the warning light flashes: it signals that
the vehicle is in the “economy mode”
and has deactivated some unnecessary
functions.
w
129-138 SCUDO LUM GB 18/11/13 14.25 Pagina 132

157
WARNING
LIGHTS AND
MESSAGESVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCY
IF THE BATTERY IS FLATIMPORTANT The battery charging pro-
cedure is described only for information
purposes. This operation should be car-
ried out by Fiat Dealership.
Charging should be slow at a low amp rat-
ing for 24 hours. Charging for a longer
time may damage the battery.
Charge the battery as follows:❒
disconnect battery negative terminal;
❒
connect the charger cables to the bat-
tery terminals, observing the poles;
❒
turn on the charger;
❒
when you have finished, turn the charg-
er off before disconnecting the battery;
❒
reconnect battery negative terminal.
The liquid contained in the
battery is poisonous and cor-
rosive. Avoid contact with the skin or
eyes. The battery should be charged
in a well ventilated place, away from
naked flames or possible sources of
sparks: danger of explosion and fire.
WARNING
Do not attempt to charge a
frozen battery: it must first-
ly be thawed, otherwise it may burst.
If freezing has occurred, the battery
should be checked by skilled person-
nel to make sure that the internal el-
ements are not damaged and that the
body is not cracked, with the risk of
leaking poisonous and corrosive acid.
WARNING
ECONOMY MODE
After switching off the engine, when the
key is at the Mposition, some functions
(windscreen wipers, window winders,
map lights, car radio, etc.) can be used on-
ly for a maximum of thirty minutes, so as
to avoid the battery to be run down.
Once these thirty minutes have passed,
the active functions are put in stand-by and
the warning light of the battery flashes, ac-
companied by a message on the display.
To immediately recover the use of these
functions, it is necessary to start the en-
gine and to keep it running for a few sec-
onds.
The time which will be available will be the
double of the engine starting time.
However, this period of time will be be-
tween five and thirty minutes.
If the battery is run down, the engine can-
not be started.
139-158 SCUDO LUM GB 07/03/14 08.47 Pagina 157

215
WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Brakes
– emergency....................................... 122
– fluid level ......................................... 168
Bulb (replacement).............................. 145Capacities ............................................ 208
Carrying children safely...................... 103
– ISOFIX child restraint
system (fitting)................................ 109
Central and side air vents .................. 30
Central locking .................................... 74
Changing a wheel................................. 141
Checking levels..................................... 164
Child restraint system label ............... 113
Cigar lighter .......................................... 69
Clock ...................................................... 16
Clutch..................................................... 187
CO2 emissions at exhaust ................. 214
Cruise control ...................................... 56Dashboard ........................................... 5
Demisting
– rear windows.......................32-36-40
– side front windows.............30-34-40– windscreen...........................30-34-40
Diesel filter
(water in diesel filter) ....................... 138
Dimensions........................................... 191
Dipped beam headlights
– bulb (replacement) ........................ 147
– control ............................................. 49
Direction indicators
– control ............................................. 50
– front bulb replacement................. 148
– rear bulb replacement.................. 149
– side bulb replacement................... 148
Door locking/unlocking
remote control.................................. 7
Doors ..................................................... 71
Engine
Electric windows.................................. 76
Engine compartment........................... 164
Engine coolant level............................. 167
Engine oil consumption ...................... 166
Engine oil level ...................................... 166
ABS ...................................................... 84
Accessories purchased by
the owner ........................................... 94
Air cleaner............................................. 170
Air recirculation.........................33-38-43
Airbags .................................................. 112
– front passenger airbag and
child restraint systems ........ 113-114
– child restraint system label .......... 113
Ashtray................................................... 69Battery
– economy mode .............................. 157
– fluid level ......................................... 170
– jump starting ................................... 140
– recharging........................................ 157
– specifications................................... 186
Bodywork
– maintenance.................................... 176
– versions............................................ 179
Bonnet.................................................... 78
Brake fluid level .................................... 168
Brake lights............................................ 149
I I
N N
D D
E E
X X
215-222 SCUDO LUM GB 07/03/14 08.48 Pagina 215

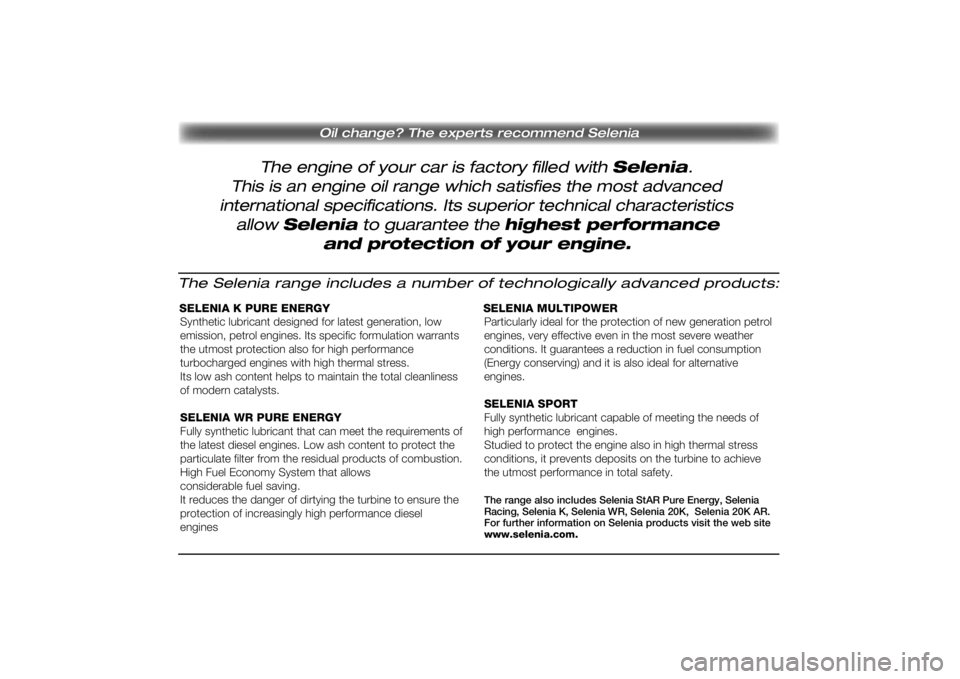

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allow Selenia to guarantee the
highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:SELENIA K PURE ENERGY
Pagine_ITA.indd4
18-05-200511:54:19
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.
