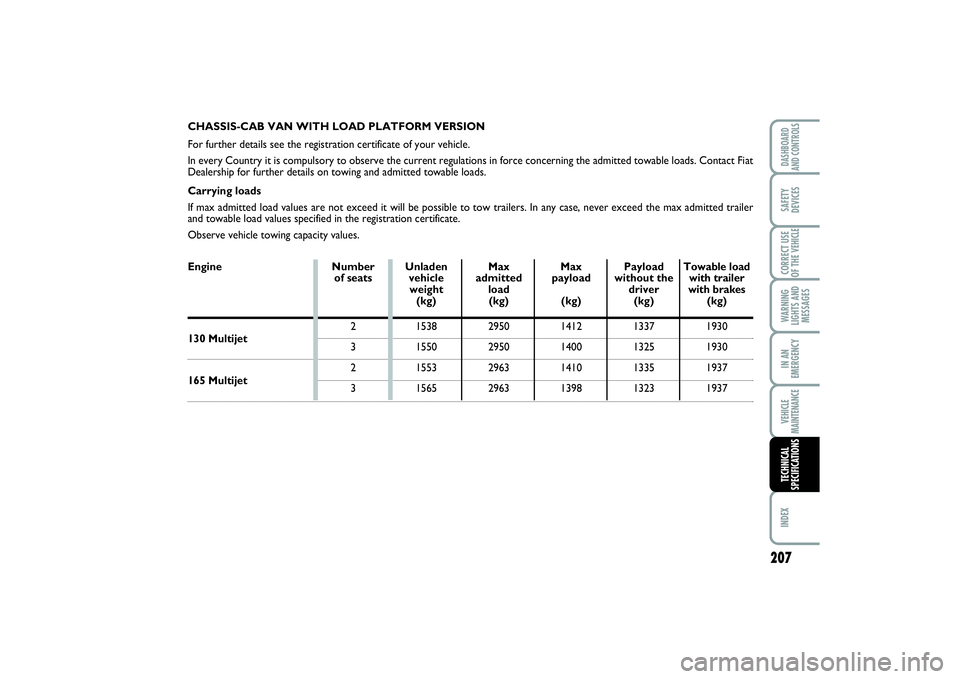

EngineCHASSIS-CAB VAN WITH LOAD PLATFORM VERSION
For further details see the registration certificate of your vehicle.
In every Country it is compulsory to observe the current regulations in force concerning the admitted towable loads. Contact Fiat
Dealership for further details on towing and admitted towable loads.
Carrying loads
If max admitted load values are not exceed it will be possible to tow trailers. In any case, never exceed the max admitted trailer
and towable load values specified in the registration certificate.
Observe vehicle towing capacity values.
Number
of seats
2
3
2
3Unladen
vehicle
weight
(kg)
1538
1550
1553
1565Payload
without the
driver
(kg)
1337
1325
1335
1323Towable load
with trailer
with brakes
(kg)
1930
1930
1937
1937130 MultijetMax
payload
(kg)
1412
1400
1410
1398 Max
admitted
load
(kg)
2950
2950
2963
2963 165 Multijet
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 207

VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX
WARNING
LIGHTS AND
MESSAGES208TECHNICAL
SPECIFICATIONS
120
Multijet
80
8
9
5.25
1.9
0.519
7.5 90
Multijet ()
80
8
8
6.2
1.7
0.519
7.5

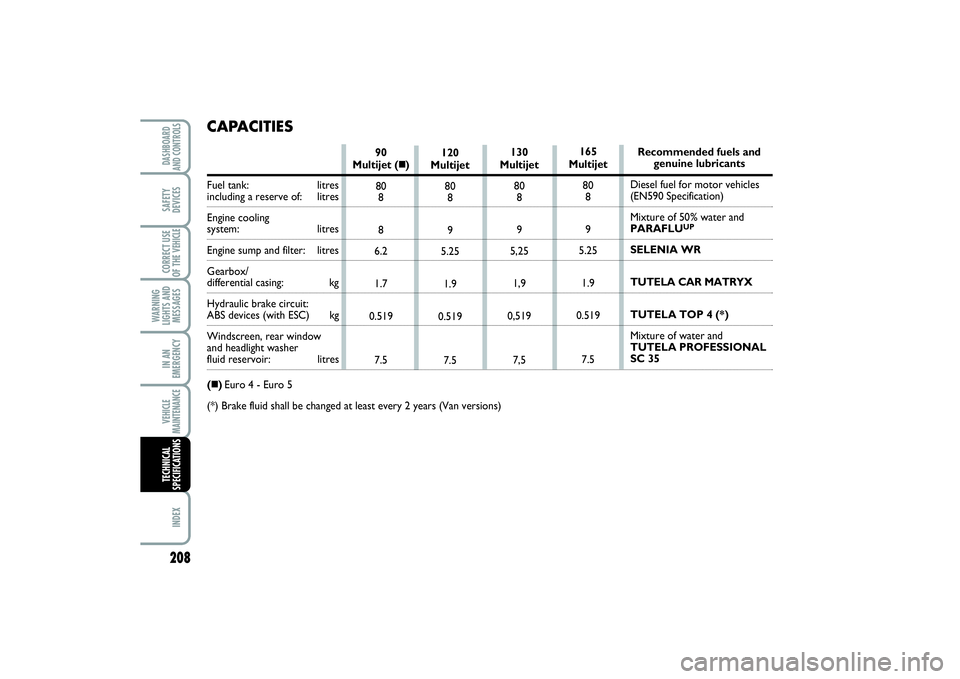

CAPACITIESFuel tank: litresincluding a reserve of: litres
Engine cooling system: litresEngine sump and filter: litres
Gearbox/differential casing: kg
Hydraulic brake circuit:ABS devices (with ESC) kg
Windscreen, rear window
and headlight washer fluid reservoir: litres
() Euro 4 - Euro 5
(*) Brake fluid shall be changed at least every 2 years (Van versions)Recommended fuels and
genuine lubricants
Diesel fuel for motor vehicles
(EN590 Specification)
Mixture of 50% water and
PARAFLU
UP
SELENIA WR
TUTELA CAR MATRYX
TUTELA TOP 4 (*)
Mixture of water and
TUTELA PROFESSIONAL
SC 35 165
Multijet
80
8
9
5.25
1.9
0.519
7.5 130
Multijet
80
8
9
5,25
1,9
0,519
7,5
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 208

As per Service
Schedule Synthetic-based engine oils, grade SAE 5W- 40,
FIAT 9.55535-N2 qualification

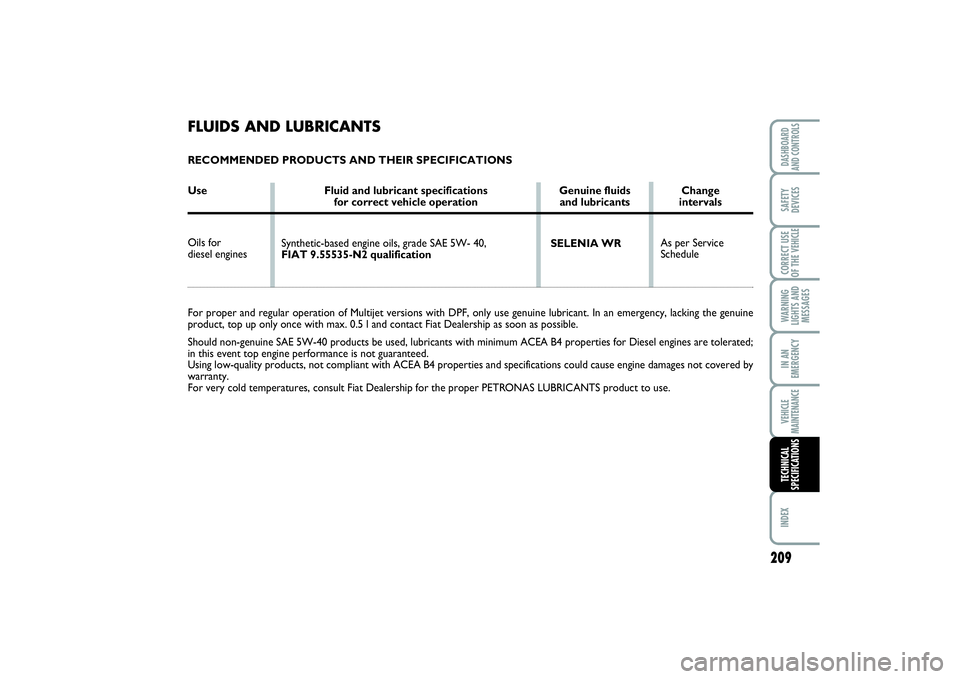

FLUIDS AND LUBRICANTSRECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Fluid and lubricant specifications Genuine fluids Change
for correct vehicle operation and lubricants intervals
Oils for
diesel engines
For proper and regular operation of Multijet versions with DPF, only use genuine lubricant. In an emergency, lacking the genuine
product, top up only once with max. 0.5 l and contact Fiat Dealership as soon as possible.
Should non-genuine SAE 5W-40 products be used, lubricants with minimum ACEA B4 properties for Diesel engines are tolerated;
in this event top engine performance is not guaranteed.
Using low-quality products, not compliant with ACEA B4 properties and specifications could cause engine damages not covered by
warranty.
For very cold temperatures, consult Fiat Dealership for the proper PETRONAS LUBRICANTSproduct to use. SELENIA WR
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX WARNING
LIGHTS AND
MESSAGES
209
TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 209

VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX
WARNING
LIGHTS AND
MESSAGES210TECHNICAL
SPECIFICATIONS

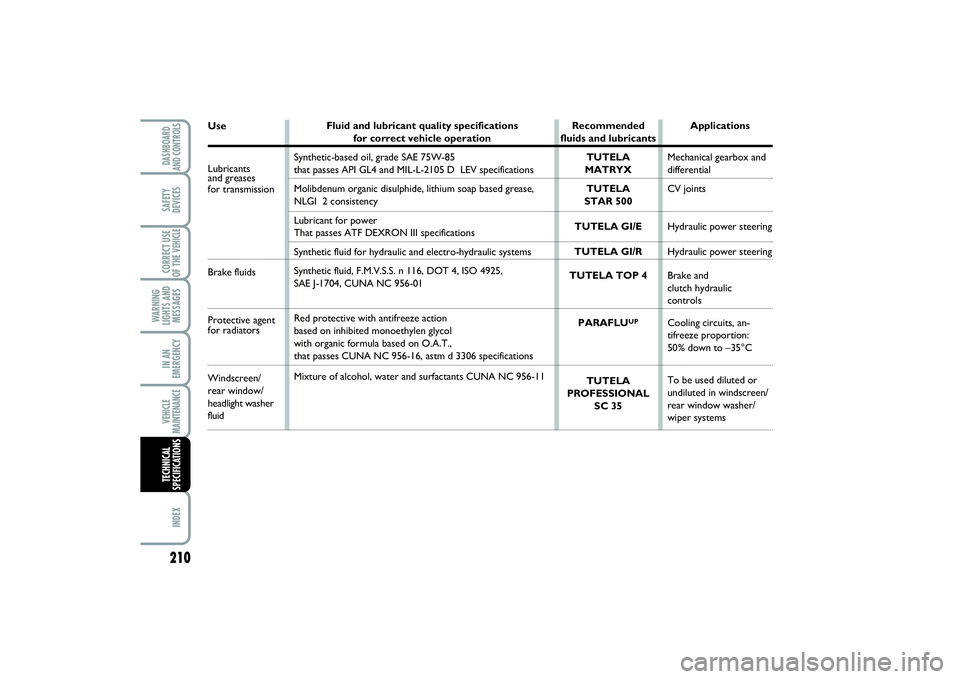

Fluid and lubricant quality specifications
for correct vehicle operation
Synthetic-based oil, grade SAE 75W-85
that passes API GL4 and MIL-L-2105 D LEV specifications
Molibdenum organic disulphide, lithium soap based grease,
NLGI 2 consistency
Lubricant for power
That passes ATF DEXRON III specifications
Synthetic fluid for hydraulic and electro-hydraulic systems
Synthetic fluid, F.M.V.S.S. n 116, DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01
Red protective with antifreeze action
based on inhibited monoethylen glycol
with organic formula based on O.A.T.,
that passes CUNA NC 956-16, astm d 3306 specifications
Mixture of alcohol, water and surfactants CUNA NC 956-11
Applications
Mechanical gearbox and
differential
CV joints
Hydraulic power steering
Hydraulic power steering
Brake and
clutch hydraulic
controls
Cooling circuits, an-
tifreeze proportion:
50% down to –35°C
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems Use
Lubricantsand greases
for transmissionBrake fluidsProtective agent
for radiatorsWindscreen/
rear window/
headlight washer fluid Recommended
fluids and lubricants
TUTELA
MATRYX
TUTELA
STAR 500
TUTELA GI/E
TUTELA GI/R
TUTELA TOP 4
PARAFLU
UP
TUTELA
PROFESSIONAL
SC 35
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 210

211
WARNING
LIGHTS AND
MESSAGESINDEX DASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS
❒
extra-urban cycle: frequent accelerat-
ing in all gears, simulating extraurban
use of the vehicle: speed varies between
0 and 120 km/h;
❒
combined consumption: is calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extraurban
consumption.

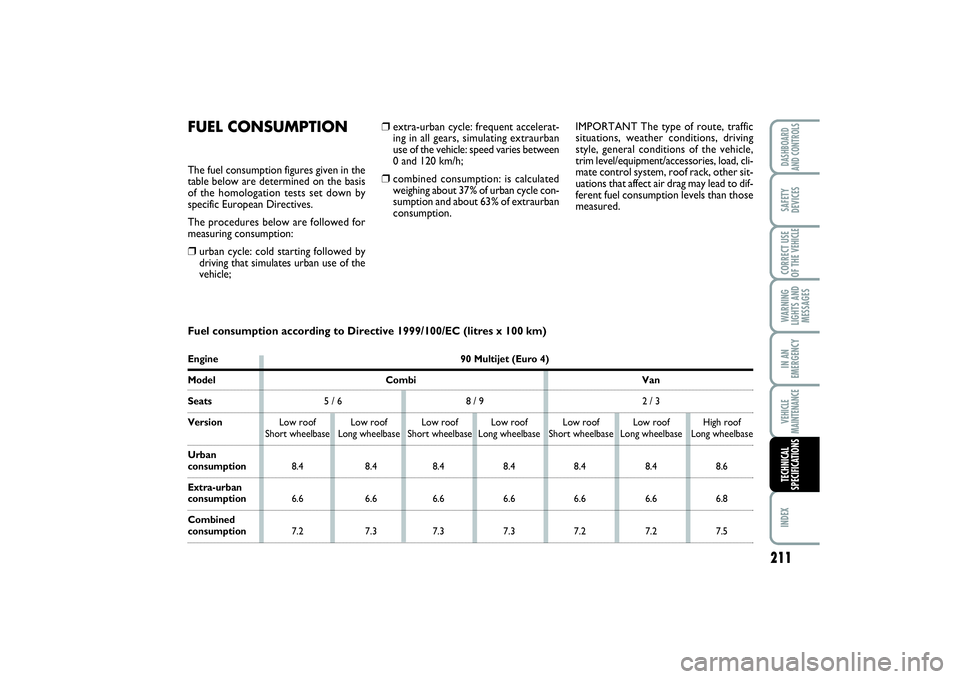

FUEL CONSUMPTION The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:❒
urban cycle: cold starting followed by
driving that simulates urban use of the
vehicle;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the vehicle,
trim level/equipment/accessories, load, cli-
mate control system, roof rack, other sit-
uations that affect air drag may lead to dif-
ferent fuel consumption levels than those
measured.
Fuel consumption according to Directive 1999/100/EC (litres x 100 km)Engine 90 Multijet (Euro 4)Model Combi VanSeats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.4 8.4 8.4 8.4 8.4 8.4 8.6
Extra-urbanconsumption6.6 6.6 6.6 6.6 6.6 6.6 6.8
Combined consumption7.2 7.3 7.3 7.3 7.2 7.2 7.5
179-214 SCUDO LUM GB 18/11/13 14.23 Pagina 211

212WARNING
LIGHTS AND
MESSAGES
INDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS

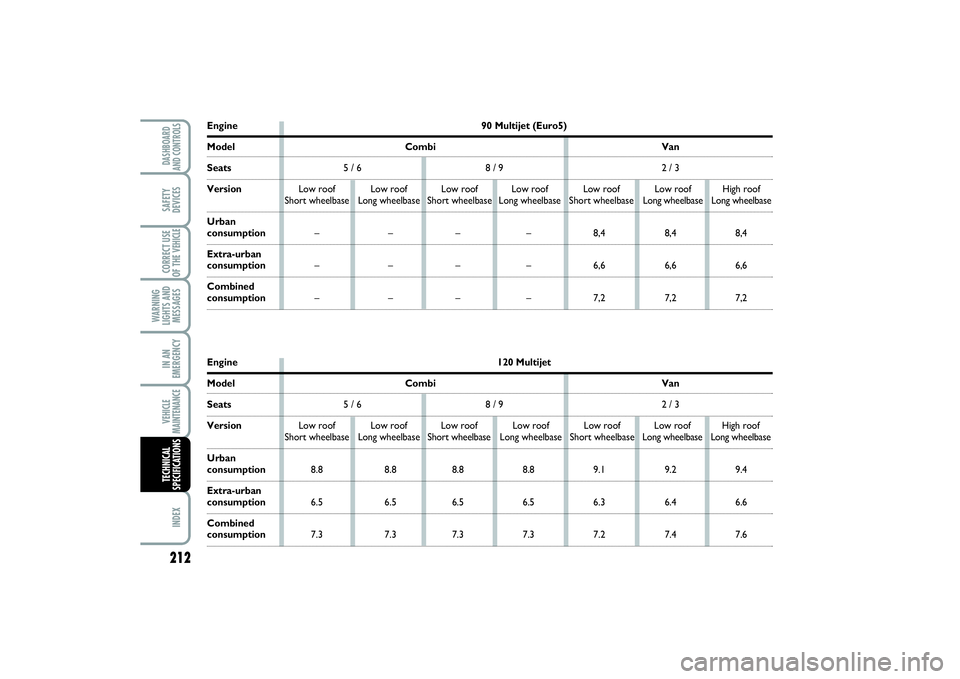

Engine 120 MultijetModel Combi VanSeats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.8 8.8 8.8 8.8 9.1 9.2 9.4
Extra-urbanconsumption6.5 6.5 6.5 6.5 6.3 6.4 6.6
Combined consumption7.3 7.3 7.3 7.3 7.2 7.4 7.6Engine 90 Multijet (Euro5)Model Combi VanSeats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption– – – – 8,4 8,4 8,4
Extra-urbanconsumption– – – – 6,6 6,6 6,6
Combined consumption– – – – 7,2 7,2 7,2
179-214 SCUDO LUM GB 18/11/13 14.23 Pagina 212

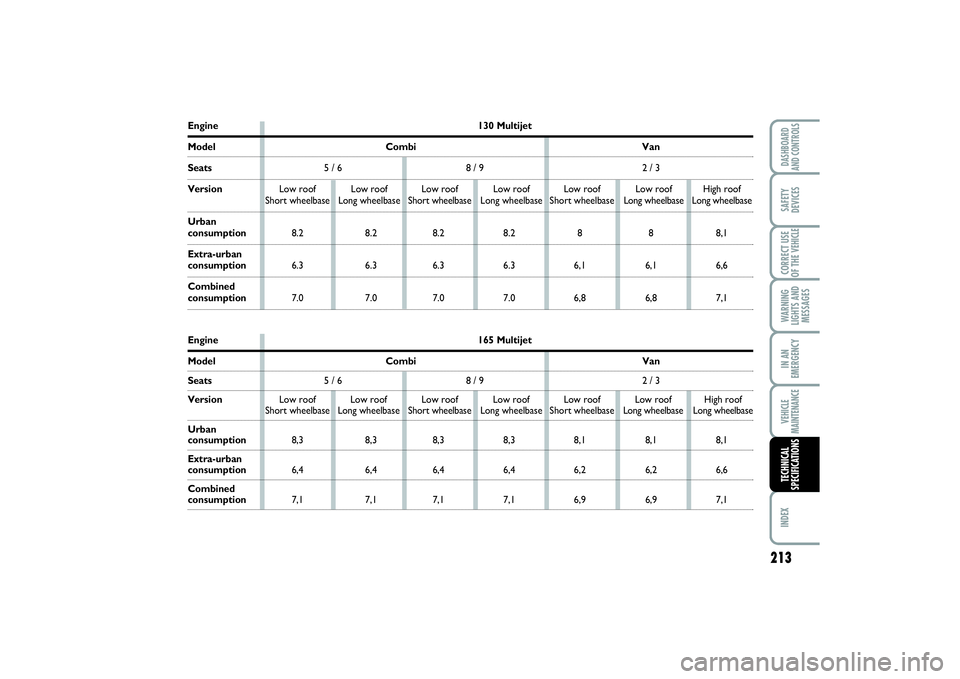

Engine 130 MultijetModel Combi VanSeats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8.2 8.2 8.2 8.2 8 8 8,1
Extra-urbanconsumption6.3 6.3 6.3 6.3 6,1 6,1 6,6
Combinedconsumption7.0 7.0 7.0 7.0 6,8 6,8 7,1
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX WARNING
LIGHTS AND
MESSAGES
213
Engine 165 MultijetModel Combi VanSeats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
Urban
consumption8,3 8,3 8,3 8,3 8,1 8,1 8,1
Extra-urbanconsumption6,4 6,4 6,4 6,4 6,2 6,2 6,6
Combined consumption7,1 7,1 7,1 7,1 6,9 6,9 7,1
TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.23 Pagina 213

214WARNING
LIGHTS AND
MESSAGES
INDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS
Model Combi VanSeats5 / 6 8 / 9 2 / 3
VersionLow roof Low roof Low roof Low roof Low roof Low roof High roof
Short wheelbase Long wheelbase Short wheelbase Long wheelbase Short wheelbase Long wheelbase Long wheelbase
90 Multijet
191 194 194 194 191 191 198
(Euro 4)
90 Multijet
– – – – 190 190 –(Euro 5)120 Multijet 194 194 194 194 194 196 200130 Multijet 183 183 183 183 179 179 186165 Multijet185 185 185 185 181 181 186CO

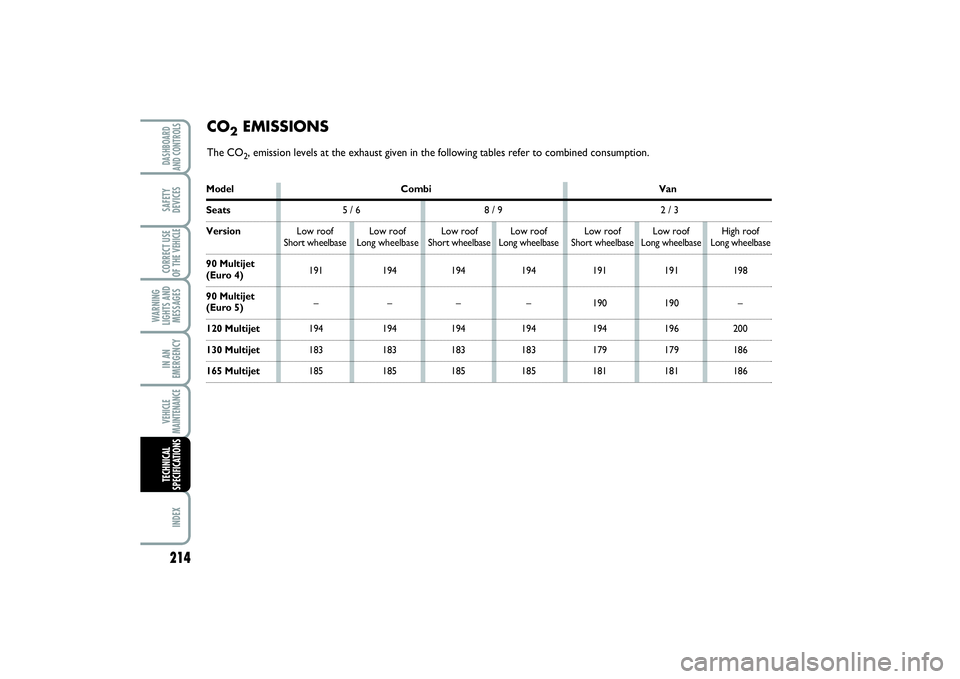

2
EMISSIONS
The CO
2, emission levels at the exhaust given in the following tables refer to combined consumption.
179-214 SCUDO LUM GB 18/11/13 14.23 Pagina 214

215
WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Brakes
– emergency....................................... 122
– fluid level ......................................... 168
Bulb (replacement).............................. 145Capacities ............................................ 208
Carrying children safely...................... 103
– ISOFIX child restraint
system (fitting)................................ 109
Central and side air vents .................. 30
Central locking .................................... 74
Changing a wheel................................. 141
Checking levels..................................... 164
Child restraint system label ............... 113
Cigar lighter .......................................... 69
Clock ...................................................... 16
Clutch..................................................... 187
CO2 emissions at exhaust ................. 214
Cruise control ...................................... 56Dashboard ........................................... 5
Demisting
– rear windows.......................32-36-40
– side front windows.............30-34-40– windscreen...........................30-34-40
Diesel filter
(water in diesel filter) ....................... 138
Dimensions........................................... 191
Dipped beam headlights
– bulb (replacement) ........................ 147
– control ............................................. 49
Direction indicators
– control ............................................. 50
– front bulb replacement................. 148
– rear bulb replacement.................. 149
– side bulb replacement................... 148
Door locking/unlocking
remote control.................................. 7
Doors ..................................................... 71
Engine
Electric windows.................................. 76
Engine compartment........................... 164
Engine coolant level............................. 167
Engine oil consumption ...................... 166
Engine oil level ...................................... 166
ABS ...................................................... 84
Accessories purchased by
the owner ........................................... 94
Air cleaner............................................. 170
Air recirculation.........................33-38-43
Airbags .................................................. 112
– front passenger airbag and
child restraint systems ........ 113-114
– child restraint system label .......... 113
Ashtray................................................... 69Battery
– economy mode .............................. 157
– fluid level ......................................... 170
– jump starting ................................... 140
– recharging........................................ 157
– specifications................................... 186
Bodywork
– maintenance.................................... 176
– versions............................................ 179
Bonnet.................................................... 78
Brake fluid level .................................... 168
Brake lights............................................ 149
I I
N N
D D
E E
X X
215-222 SCUDO LUM GB 08/04/14 14:22 Pagina 215

216WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Fuel consumption................................ 211
Fuel cut-off switch............................... 66
Fuel level gauge.................................... 15
Fuel
– fuel tank cap.................................... 95
– level gauge ....................................... 15
Fuses....................................................... 152Gearbox
– using the manual gearbox ............ 123
Gear shift indicator............................. 17
Grip Control......................................... 88H
andbrake ........................................... 122
Hazard warning lights......................... 63
Head restraints..................................... 25
Headlight washer................................. 55
Headlights
– light beam direction ...................... 83
Heated rear window.................32-37-45
Heating and ventilation ...................... 29
Identification data................................ 180
In an emergency ................................... 139
Instrument panel brightness
regulator............................................. 16
Instrument panel.................................. 13
Interior fittings...................................... 67Interiors ................................................. 178
Isofix (child restraint system) ............ 107
iTPMS..................................................... 90
Jack ......................................................... 142Keys ....................................................... 7Levels (checking)................................ 164
Load advice........................................... 81
Lubricants (specifications).................. 209M
ain beam headlights
– bulb (replacement) ........................ 147
– control ............................................. 49
Manual climate control....................... 33
N
umber plate lights........................... 150
O
n-board instruments...................... 14
Paintwork............................................. 176
Performance ......................................... 196
Periodic checks .................................... 163
Pneumatic suspension ......................... 80
Power steering fluid level................... 169
Pretensioners........................................ 100 Engine oil
– consumption................................... 166
– level check....................................... 166
– technical specifications ................. 209
Engine start
– bump starting ................................. 141
– ignition device................................ 12
– jump starting ................................... 140
– start procedure.............................. 120
– warming up the engine
once started.................................... 121
Engine
– identification code ......................... 183
– lubrication....................................... 209
– supply............................................... 187
– technical data.................................. 179
EOBD (system).................................... 89
Fiat CODE .......................................... 6
Fix&Go quick tyre repair kit ............. 144
Fix&Go................................................... 144
Fog lights/rear fog lights
– bulb replacement ................146-147
– control ............................................. 49
Front passenger airbag and child
restraint systems .....................113-114
– child restraint system label .......... 113
215-222 SCUDO LUM GB 08/04/14 14:22 Pagina 216
