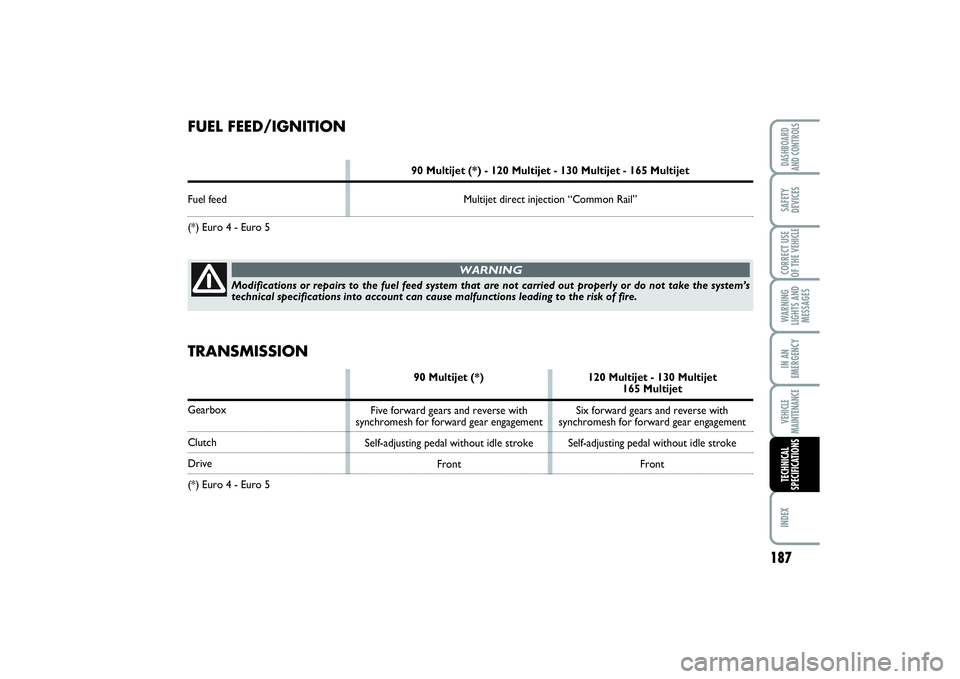

FUEL FEED/IGNITION
90 Multijet (*) - 120 Multijet - 130 Multijet - 165 Multijet
Fuel feed Multijet direct injection “Common Rail”
(*) Euro 4 - Euro 5
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
Five forward gears and reverse with
synchromesh for forward gear engagement
Self-adjusting pedal without idle stroke
FrontSix forward gears and reverse with
synchromesh for forward gear engagement
Self-adjusting pedal without idle stroke
Front
TRANSMISSION
90 Multijet (*) 120 Multijet - 130 Multijet
165 Multijet
Gearbox
ClutchDrive
(*) Euro 4 - Euro 5
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 187

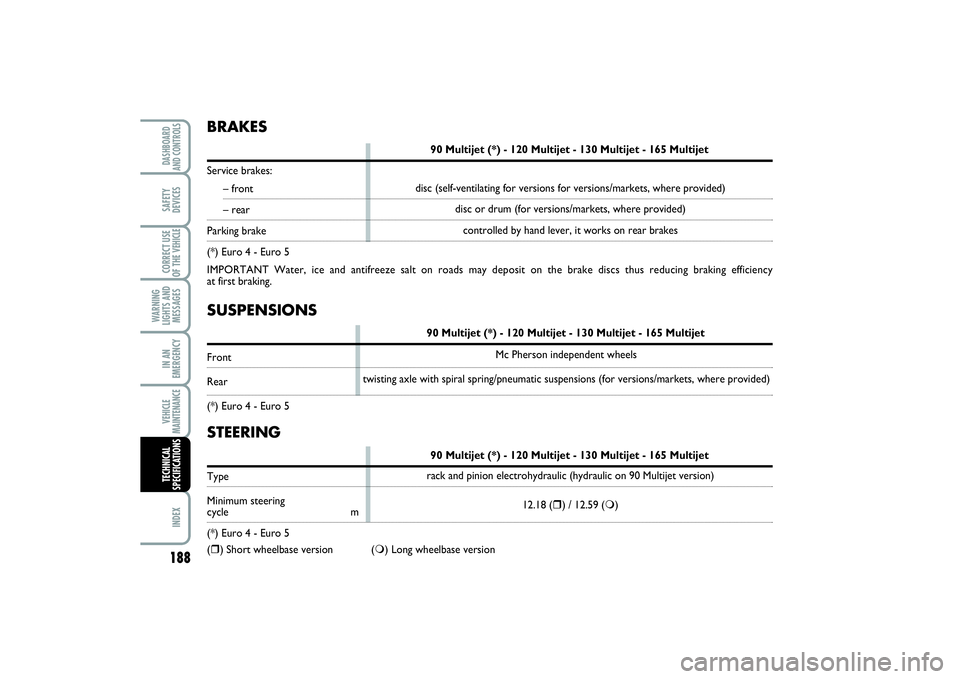

SUSPENSIONS
90 Multijet (*) - 120 Multijet - 130 Multijet - 165 Multijet
FrontRear
(*) Euro 4 - Euro 5BRAKES
90 Multijet (*) - 120 Multijet - 130 Multijet - 165 Multijet
Service brakes:
– front– rear
Parking brake
(*) Euro 4 - Euro 5
IMPORTANT Water, ice and antifreeze salt on roads may deposit on the brake discs thus reducing braking efficiency
at first braking.STEERING
90 Multijet (*) - 120 Multijet - 130 Multijet - 165 Multijet
Type
Minimum steeringcycle m
(*) Euro 4 - Euro 5
() Short wheelbase version () Long wheelbase versionMc Pherson independent wheels
twisting axle with spiral spring/pneumatic suspensions (for versions/markets, where provided)
rack and pinion electrohydraulic (hydraulic on 90 Multijet version)
12.18 () / 12.59 () controlled by hand lever, it works on rear brakes disc or drum (for versions/markets, where provided) disc (self-ventilating for versions for versions/markets, where provided)
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX
WARNING
LIGHTS AND
MESSAGES188TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 188

RIM PROTECTOR TYRES fig. 5b

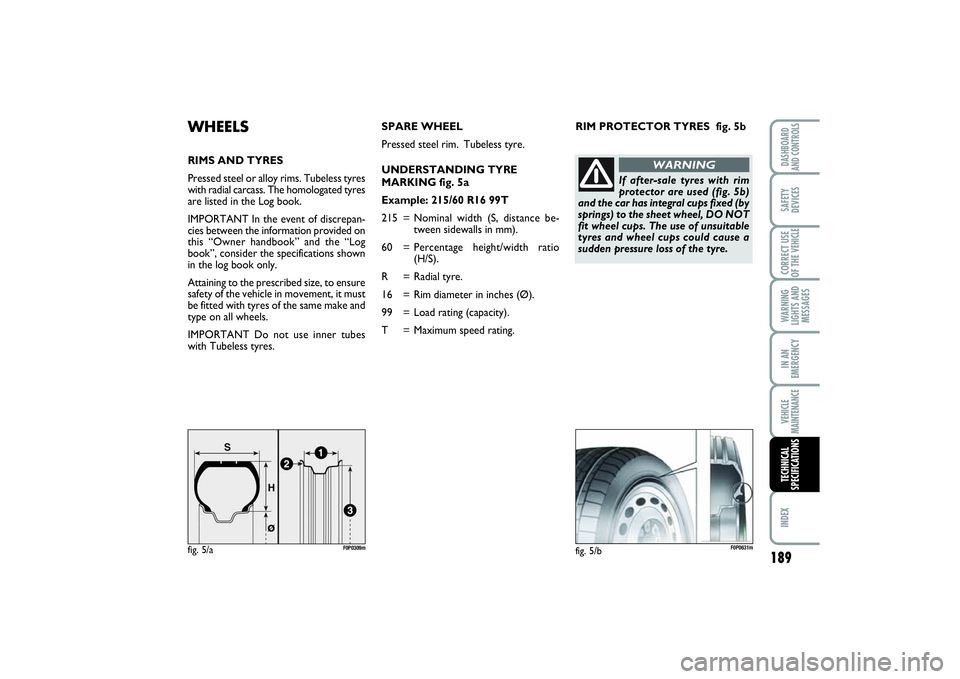

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless tyres
with radial carcass. The homologated tyres
are listed in the Log book.
IMPORTANT In the event of discrepan-
cies between the information provided on
this “Owner handbook” and the “Log
book”, consider the specifications shown
in the log book only.
Attaining to the prescribed size, to ensure
safety of the vehicle in movement, it must
be fitted with tyres of the same make and
type on all wheels.
IMPORTANT Do not use inner tubes
with Tubeless tyres.fig. 5/a
F0P0309m
SPARE WHEEL
Pressed steel rim. Tubeless tyre.
UNDERSTANDING TYRE
MARKING fig. 5a
Example: 215/60 R16 99T
215 = Nominal width (S, distance be-
tween sidewalls in mm).
60 = Percentage height/width ratio
(H/S).
R = Radial tyre.
16 = Rim diameter in inches (Ø).
99 = Load rating (capacity).
T = Maximum speed rating.
fig. 5/b
F0P0631m
If after-sale tyres with rim
protector are used (fig. 5b)
and the car has integral cups fixed (by
springs) to the sheet wheel, DO NOT
fit wheel cups. The use of unsuitable
tyres and wheel cups could cause a
sudden pressure loss of the tyre.
WARNING
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX WARNING
LIGHTS AND
MESSAGES
189
TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 189

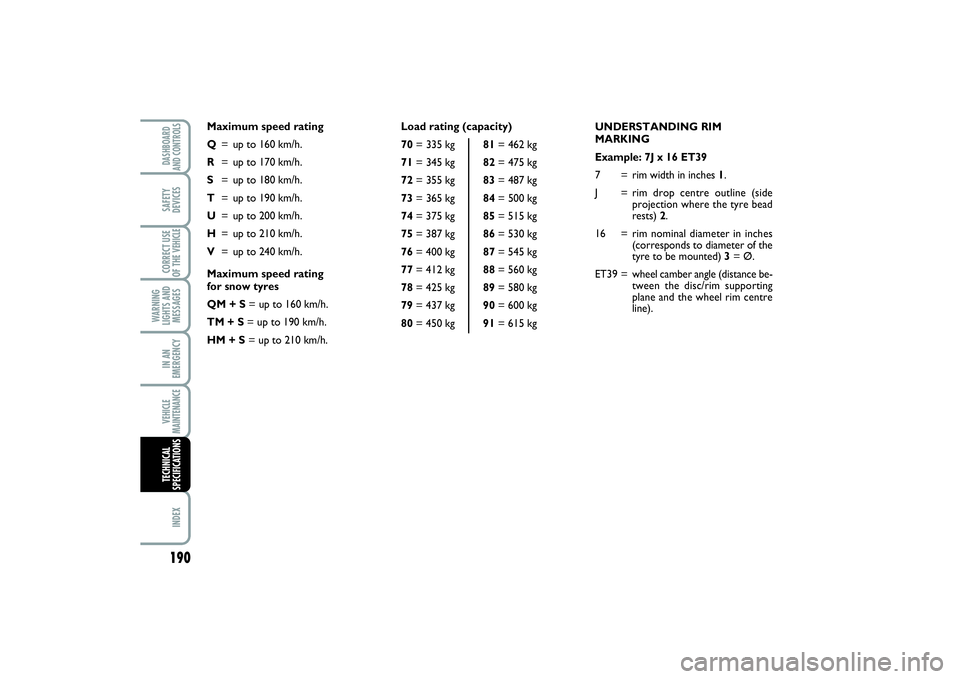

UNDERSTANDING RIM
MARKING
Example: 7J x 16 ET39
7 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
16 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be mounted) 3= Ø.
ET39 = wheel camber angle (distance be-
tween the disc/rim supporting
plane and the wheel rim centre
line). Load rating (capacity)
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed rating
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S = up to 210 km/h.
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX
WARNING
LIGHTS AND
MESSAGES190TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 190

Bar Bar
PRESSIONS CONTROLLER PNEUS FROIDS (0,05 bar)
ABCDEFGHI
fig. 6
F0B0264b

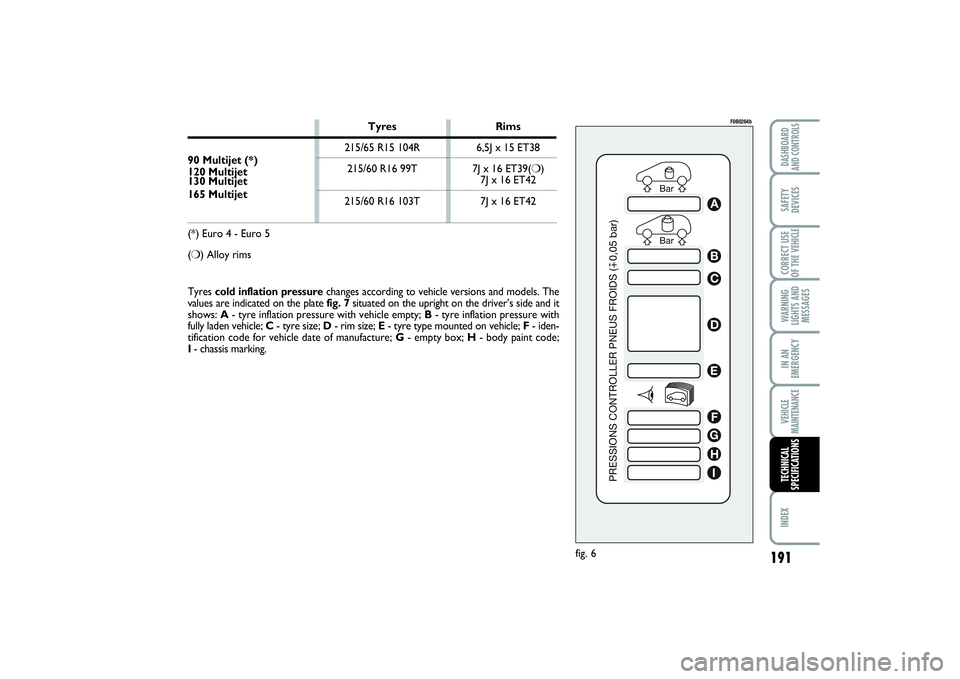

Tyres cold inflation pressurechanges according to vehicle versions and models. The
values are indicated on the plate fig. 7situated on the upright on the driver’s side and it
shows:A- tyre inflation pressure with vehicle empty; B- tyre inflation pressure with
fully laden vehicle; C- tyre size; D- rim size; E - tyre type mounted on vehicle; F - iden-
tification code for vehicle date of manufacture; G - empty box; H- body paint code;
I - chassis marking.
Tyres Rims
90 Multijet (*)215/65 R15 104R 6,5J x 15 ET38
120 Multijet215/60 R16 99T 7J x 16 ET39(❍)130 Multijet7J x 16 ET42
165 Multijet
215/60 R16 103T 7J x 16 ET42(*) Euro 4 - Euro 5
(❍) Alloy rims
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX WARNING
LIGHTS AND
MESSAGES
191
TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 191

192WARNING
LIGHTS AND
MESSAGES
INDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS

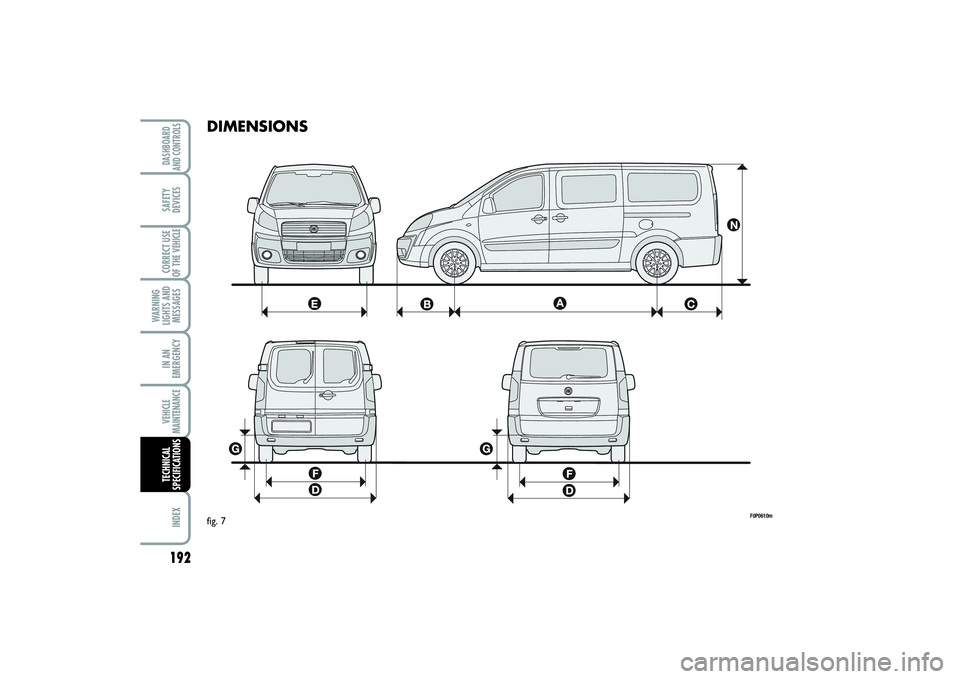

DIMENSIONS
F0P0610m
fig. 7
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 192

193
WARNING
LIGHTS AND
MESSAGESINDEX DASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS

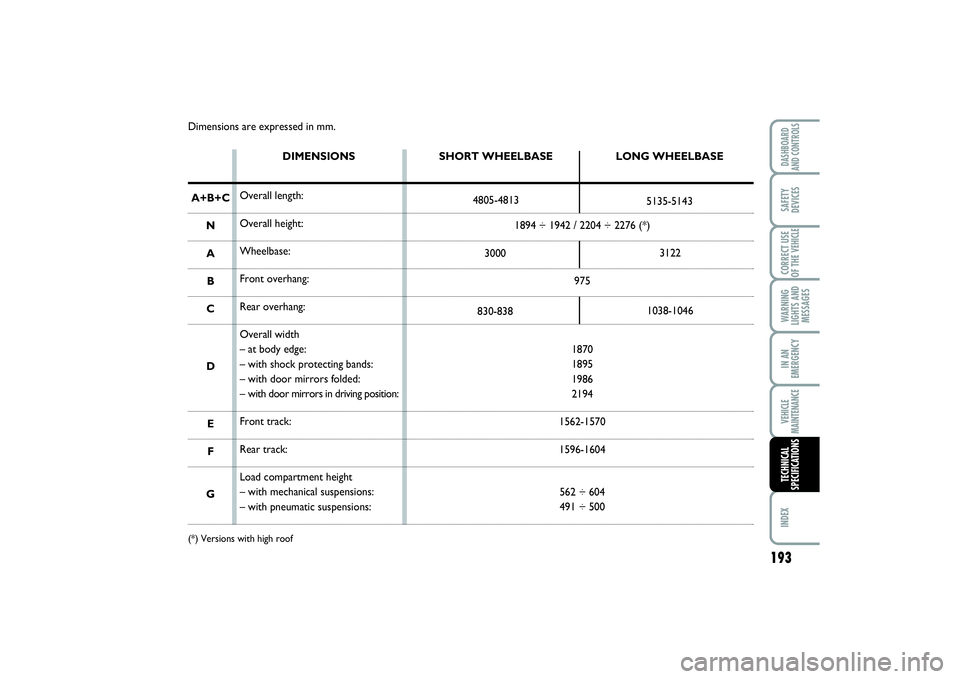

Dimensions are expressed in mm.
SHORT WHEELBASE
4805-4813LONG WHEELBASE
5135-5143
1894 ÷ 1942 / 2204 ÷ 2276 (*)
30003122
975
830-8381038-1046
1870
1895
1986
2194
1562-1570
1596-1604
562 ÷ 604
491 ÷ 500(*) Versions with high roof
DIMENSIONS
Overall length:
Overall height:
Wheelbase:
Front overhang:
Rear overhang:
Overall width
– at body edge:
– with shock protecting bands:
– with door mirrors folded:
– with door mirrors in driving position:
Front track:
Rear track:
Load compartment height
– with mechanical suspensions:
– with pneumatic suspensions: A+B+C
N
A
B
C
D
E
F
G
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 193

F0P0611m
fig. 8Dimensions are expressed in mm.
DIMENSIONS

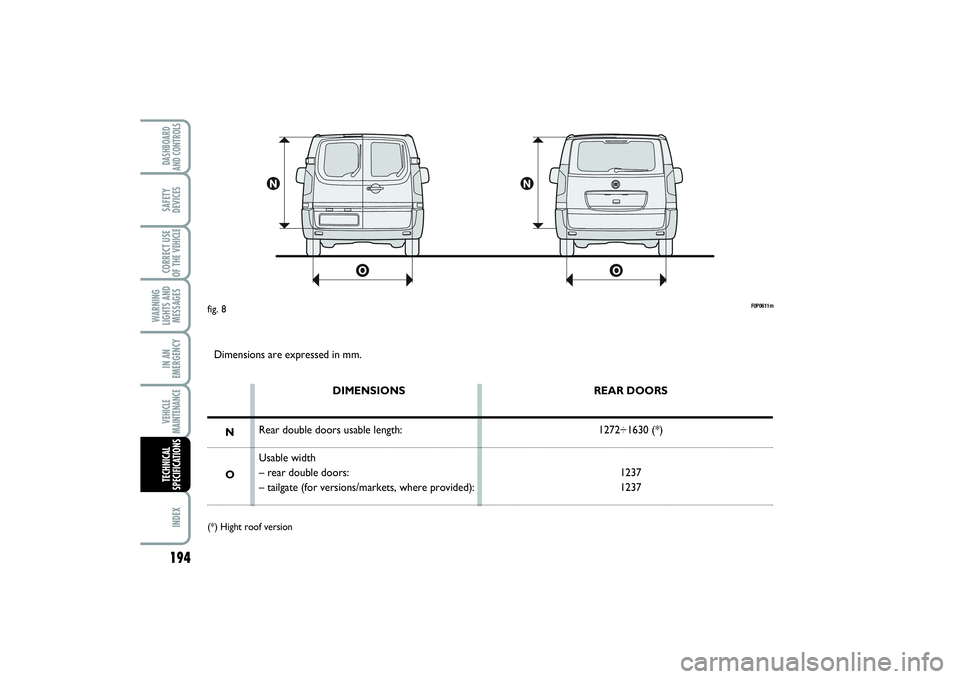

Rear double doors usable length:
Usable width
– rear double doors:
– tailgate (for versions/markets, where provided):REAR DOORS
1272÷1630 (*)
1237
1237N
O
(*) Hight roof version
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX
WARNING
LIGHTS AND
MESSAGES194TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 194

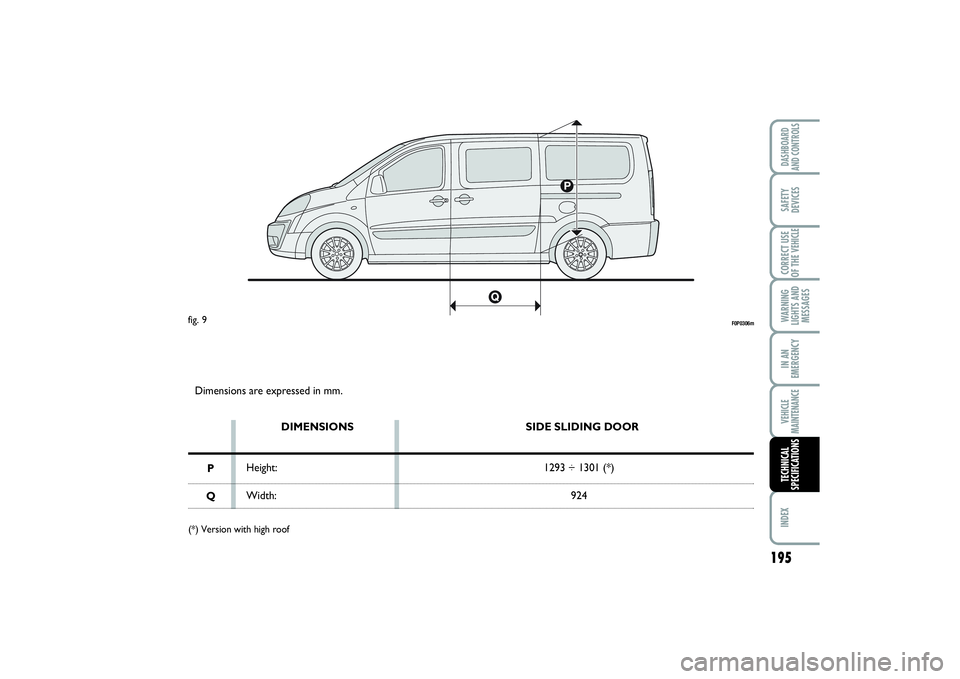

Dimensions are expressed in mm.
DIMENSIONS
Height:
Width:SIDE SLIDING DOOR
1293 ÷ 1301 (*)
924
P
Q
(*) Version with high roof
F0P0306m
fig. 9
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX WARNING
LIGHTS AND
MESSAGES
195
TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 195

196WARNING
LIGHTS AND
MESSAGES
INDEXDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONS
PERFORMANCETop admitted speed after initial vehicle use in km/h.
90 Multijet (*) 120 Multijet 130 Multijet 165 Multijet
145 160 170 170
(*) Euro 4 - Euro 5

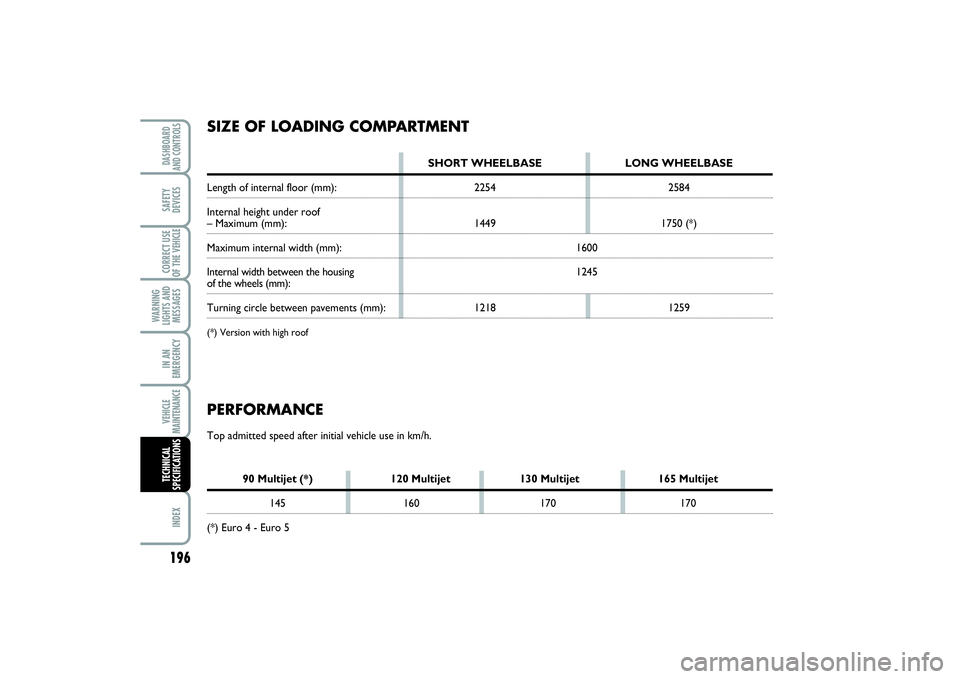

SIZE OF LOADING COMPARTMENT
SHORT WHEELBASE LONG WHEELBASE
Length of internal floor (mm): 2254 2584
Internal height under roof– Maximum (mm): 1449 1750 (*)Maximum internal width (mm): 1600
Internal width between the housing 1245of the wheels (mm):Turning circle between pavements (mm): 1218 1259(*) Version with high roof
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 196
