technical data FIAT SCUDO 2016 Owner handbook (in English)

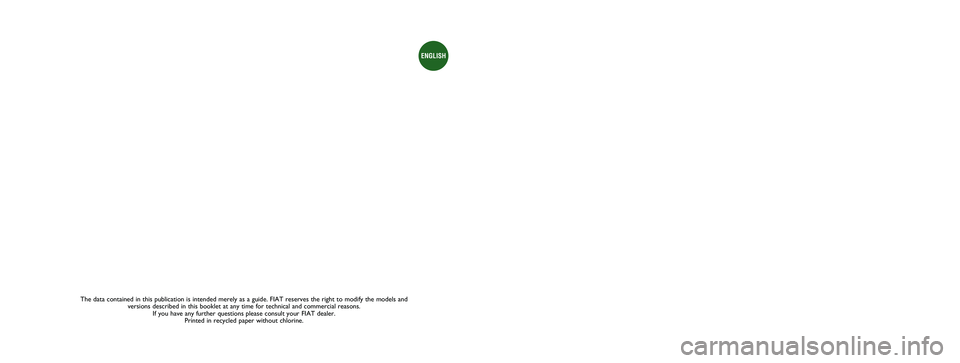

The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
FIATSCUDO
ENGLISH
SCUDO UM GB 19-06-2007 8:26 Pagina 1

40SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
DASHBOARD
AND
CONTROLS
CONTROLS fig. 48
Aclimate control compressor on/off
button;
B AUTO(automatic operation) func-
tion on button;
C
function on button
(front window fast
defrosting/demisting);
Dair distribution button;
Eair recirculation on/off button;USING THE CLIMATE
CONTROL SYSTEM
The system can be started in different
ways, but it is advisable to press one of the
AUTObuttons and then to turn the
knobs to set the temperatures required
on the display.
It is possible to personalise required tem-
peratures (driver and passenger) with a
maximum difference of 7 °C.
This way the system will start working
completely automatically to reach the
comfort temperatures as quickly as pos-
sible. The system will set air temperature,
quantity and distribution and it will con-
trol the air recirculation function and the
activation of conditioner compressor.
fig. 48
F0P0040m
Frear window heating on/off button;
Gfan speed decrease button;
Hfan speed increase button;
Islider for adjusting temperature on
passenger side;
Ldisplay showing climate control system
data;
Mslider for adjusting temperature on
driver side.
020-082 SCUDO LUM GB 19/11/13 09.54 Pagina 40

96SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

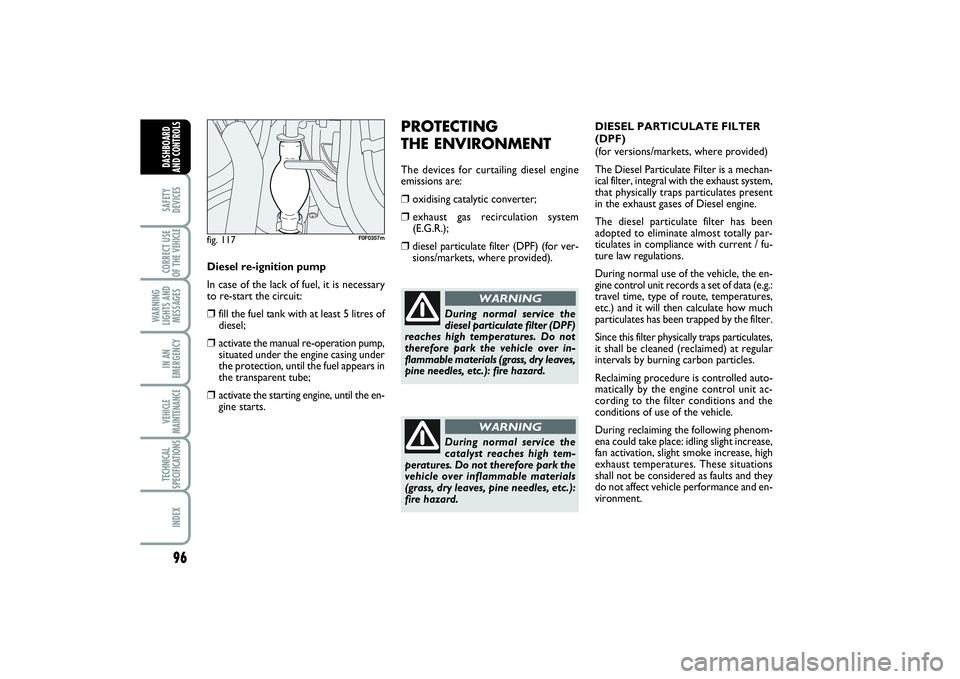

DIESEL PARTICULATE FILTER
(DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechan-
ical filter, integral with the exhaust system,
that physically traps particulates present
in the exhaust gases of Diesel engine.
The diesel particulate filter has been
adopted to eliminate almost totally par-
ticulates in compliance with current / fu-
ture law regulations.
During normal use of the vehicle, the en-
gine control unit records a set of data (e.g.:
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulates has been trapped by the filter.
Since this filter physically traps particulates,
it shall be cleaned (reclaimed) at regular
intervals by burning carbon particles.
Reclaiming procedure is controlled auto-
matically by the engine control unit ac-
cording to the filter conditions and the
conditions of use of the vehicle.
During reclaiming the following phenom-
ena could take place: idling slight increase,
fan activation, slight smoke increase, high
exhaust temperatures. These situations
shall not be considered as faults and they
do not affect vehicle performance and en-
vironment.
During normal service the
diesel particulate filter (DPF)
reaches high temperatures. Do not
therefore park the vehicle over in-
flammable materials (grass, dry leaves,
pine needles, etc.): fire hazard.
WARNING
During normal service the
catalyst reaches high tem-
peratures. Do not therefore park the
vehicle over inflammable materials
(grass, dry leaves, pine needles, etc.):
fire hazard.
WARNING
PROTECTING
THE ENVIRONMENTThe devices for curtailing diesel engine
emissions are:❒
oxidising catalytic converter;
❒
exhaust gas recirculation system
(E.G.R.);
❒
diesel particulate filter (DPF) (for ver-
sions/markets, where provided).
Diesel re-ignition pump
In case of the lack of fuel, it is necessary
to re-start the circuit:
❒
fill the fuel tank with at least 5 litres of
diesel;
❒
activate the manual re-operation pump,
situated under the engine casing under
the protection, until the fuel appears in
the transparent tube;
❒
activate the starting engine, until the en-
gine starts.
fig. 117
F0F0357m
083-096 SCUDO LUM GB 27/03/14 10:22 Pagina 96

103
CORRECT USE
OF THE VEHICLEWARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLSSAFETY
DEVICES

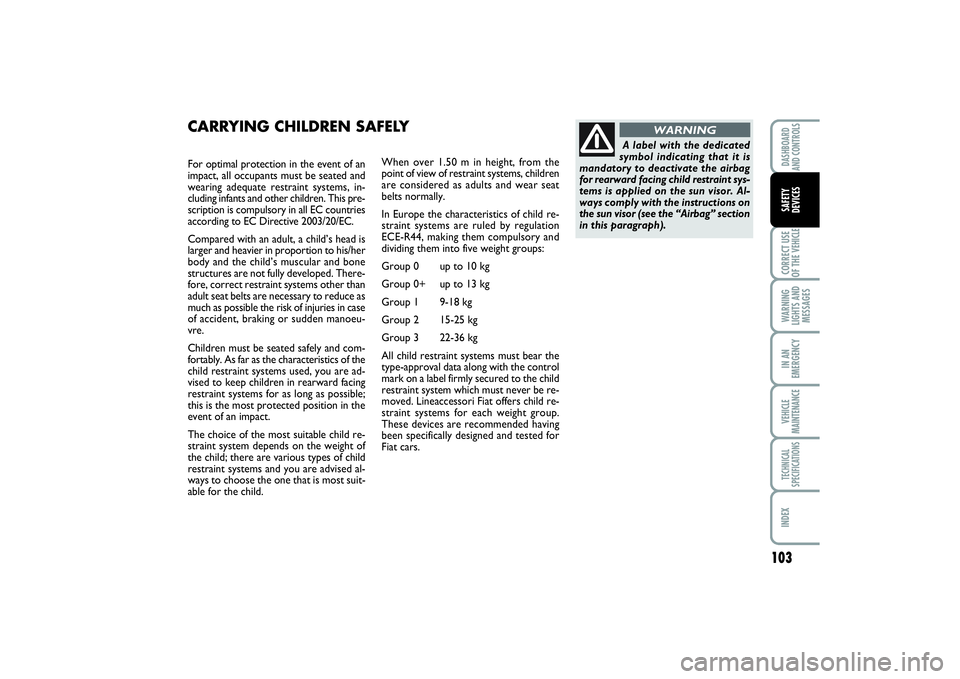

For optimal protection in the event of an
impact, all occupants must be seated and
wearing adequate restraint systems, in-
cluding infants and other children. This pre-
scription is compulsory in all EC countries
according to EC Directive 2003/20/EC.
Compared with an adult, a child’s head is
larger and heavier in proportion to his/her
body and the child’s muscular and bone
structures are not fully developed. There-
fore, correct restraint systems other than
adult seat belts are necessary to reduce as
much as possible the risk of injuries in case
of accident, braking or sudden manoeu-
vre.
Children must be seated safely and com-
fortably. As far as the characteristics of the
child restraint systems used, you are ad-
vised to keep children in rearward facing
restraint systems for as long as possible;
this is the most protected position in the
event of an impact.
The choice of the most suitable child re-
straint system depends on the weight of
the child; there are various types of child
restraint systems and you are advised al-
ways to choose the one that is most suit-
able for the child. When over 1.50 m in height, from the
point of view of restraint systems, children
are considered as adults and wear seat
belts normally.
In Europe the characteristics of child re-
straint systems are ruled by regulation
ECE-R44, making them compulsory and
dividing them into five weight groups:
Group 0 up to 10 kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
All child restraint systems must bear the
type-approval data along with the control
mark on a label firmly secured to the child
restraint system which must never be re-
moved. Lineaccessori Fiat offers child re-
straint systems for each weight group.
These devices are recommended having
been specifically designed and tested for
Fiat cars.CARRYING CHILDREN SAFELY
A label with the dedicated
symbol indicating that it is
mandatory to deactivate the airbag
for rearward facing child restraint sys-
tems is applied on the sun visor. Al-
ways comply with the instructions on
the sun visor (see the “Airbag” section
in this paragraph).
WARNING
097-118 SCUDO LUM GB 02/04/14 10:40 Pagina 103

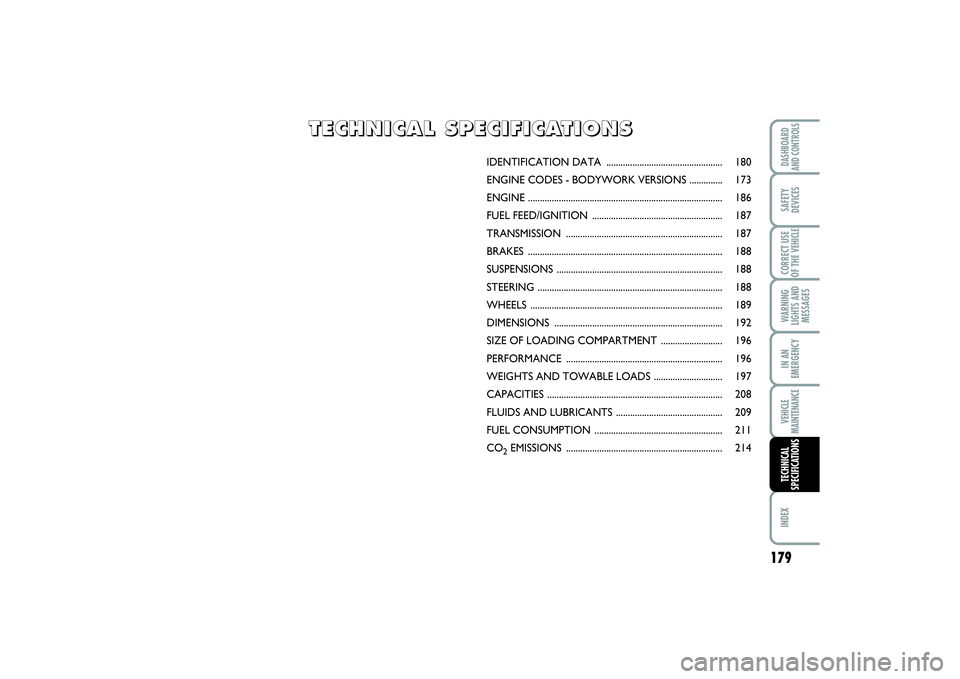

IDENTIFICATION DATA ................................................. 180
ENGINE CODES - BODYWORK VERSIONS .............. 173
ENGINE .................................................................................. 186
FUEL FEED/IGNITION ....................................................... 187
TRANSMISSION .................................................................. 187
BRAKES .................................................................................. 188
SUSPENSIONS ...................................................................... 188
STEERING .............................................................................. 188
WHEELS ................................................................................. 189
DIMENSIONS ....................................................................... 192
SIZE OF LOADING COMPARTMENT .......................... 196
PERFORMANCE .................................................................. 196
WEIGHTS AND TOWABLE LOADS ............................. 197
CAPACITIES .......................................................................... 208
FLUIDS AND LUBRICANTS ............................................. 209
FUEL CONSUMPTION ...................................................... 211
CO
2EMISSIONS .................................................................. 214
T T
E E
C C
H H
N N
I I
C C
A A
L L

S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX WARNING
LIGHTS AND
MESSAGES
179
TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 179

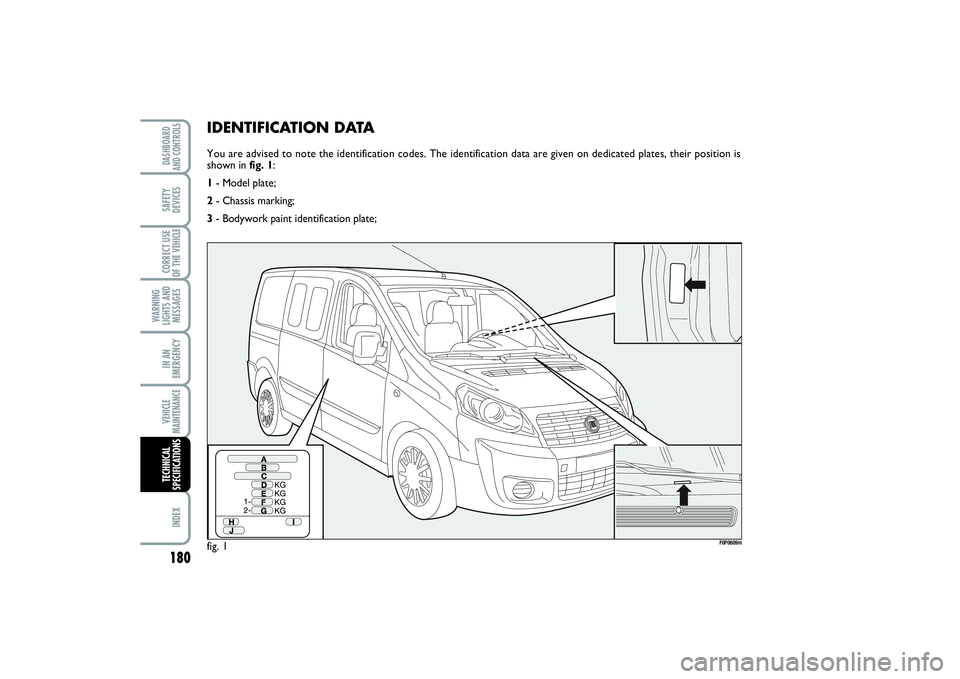

IDENTIFICATION DATAYou are advised to note the identification codes. The identification data are given on dedicated plates, their position is
shown in fig. 1:
1- Model plate;
2- Chassis marking;
3- Bodywork paint identification plate;fig. 1
F0P0609m
VEHICLE
MAINTENANCEIN AN
EMERGENCYCORRECT USE
OF THE VEHICLESAFETY
DEVICESDASHBOARD
AND CONTROLSINDEX
WARNING
LIGHTS AND
MESSAGES180TECHNICAL
SPECIFICATIONS
179-214 SCUDO LUM GB 18/11/13 14.22 Pagina 180

216WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

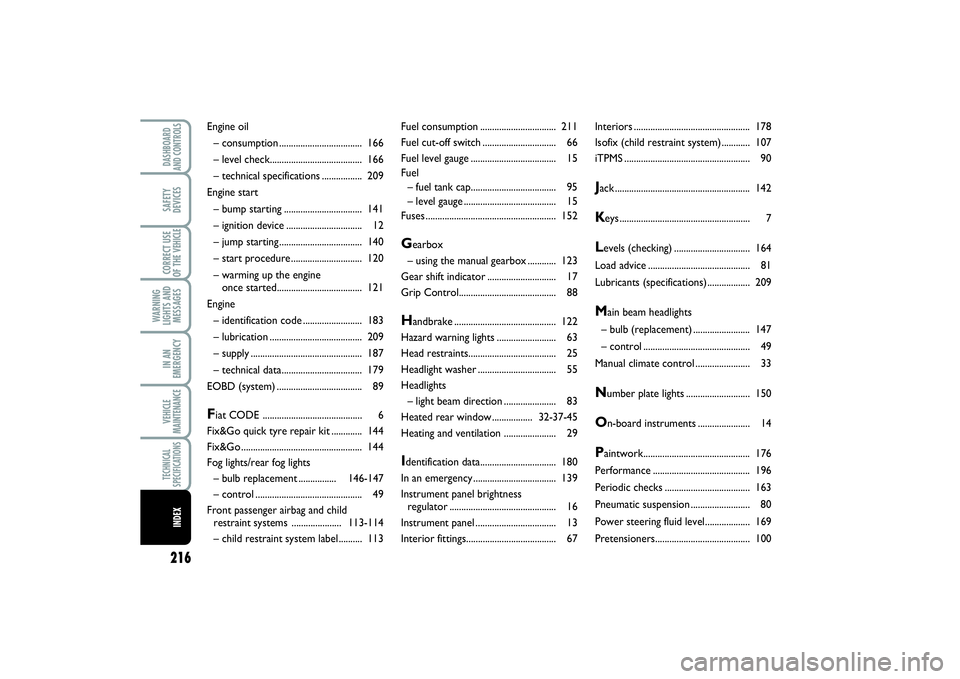

Fuel consumption................................ 211
Fuel cut-off switch............................... 66
Fuel level gauge.................................... 15
Fuel
– fuel tank cap.................................... 95
– level gauge ....................................... 15
Fuses....................................................... 152Gearbox
– using the manual gearbox ............ 123
Gear shift indicator............................. 17
Grip Control......................................... 88H
andbrake ........................................... 122
Hazard warning lights......................... 63
Head restraints..................................... 25
Headlight washer................................. 55
Headlights
– light beam direction ...................... 83
Heated rear window.................32-37-45
Heating and ventilation ...................... 29
Identification data................................ 180
In an emergency ................................... 139
Instrument panel brightness
regulator............................................. 16
Instrument panel.................................. 13
Interior fittings...................................... 67Interiors ................................................. 178
Isofix (child restraint system) ............ 107
iTPMS..................................................... 90
Jack ......................................................... 142Keys ....................................................... 7Levels (checking)................................ 164
Load advice........................................... 81
Lubricants (specifications).................. 209M
ain beam headlights
– bulb (replacement) ........................ 147
– control ............................................. 49
Manual climate control....................... 33
N
umber plate lights........................... 150
O
n-board instruments...................... 14
Paintwork............................................. 176
Performance ......................................... 196
Periodic checks .................................... 163
Pneumatic suspension ......................... 80
Power steering fluid level................... 169
Pretensioners........................................ 100 Engine oil
– consumption................................... 166
– level check....................................... 166
– technical specifications ................. 209
Engine start
– bump starting ................................. 141
– ignition device................................ 12
– jump starting ................................... 140
– start procedure.............................. 120
– warming up the engine
once started.................................... 121
Engine
– identification code ......................... 183
– lubrication....................................... 209
– supply............................................... 187
– technical data.................................. 179
EOBD (system).................................... 89
Fiat CODE .......................................... 6
Fix&Go quick tyre repair kit ............. 144
Fix&Go................................................... 144
Fog lights/rear fog lights
– bulb replacement ................146-147
– control ............................................. 49
Front passenger airbag and child
restraint systems .....................113-114
– child restraint system label .......... 113
215-222 SCUDO LUM GB 08/04/14 14:22 Pagina 216

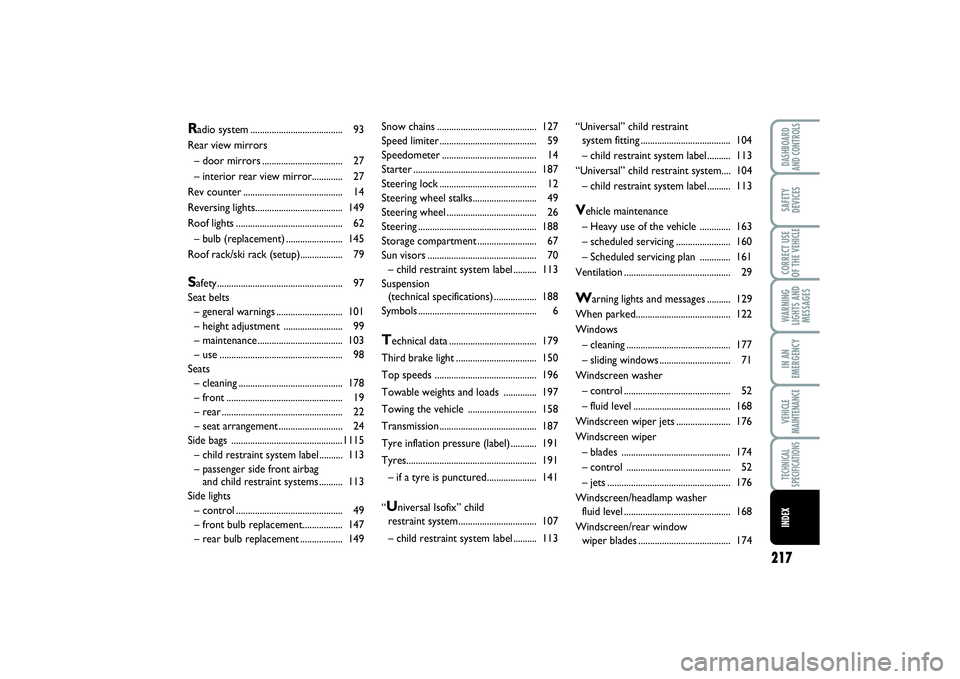

217
WARNING
LIGHTS AND
MESSAGESDASHBOARD
AND CONTROLSSAFETY
DEVICESCORRECT USE
OF THE VEHICLEIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Snow chains .......................................... 127
Speed limiter......................................... 59
Speedometer........................................ 14
Starter.................................................... 187
Steering lock......................................... 12
Steering wheel stalks........................... 49
Steering wheel...................................... 26
Steering.................................................. 188
Storage compartment......................... 67
Sun visors .............................................. 70
– child restraint system label .......... 113
Suspension
(technical specifications) .................. 188
Symbols.................................................. 6Technical data..................................... 179
Third brake light.................................. 150
Top speeds ........................................... 196
Towable weights and loads .............. 197
Towing the vehicle ............................. 158
Transmission......................................... 187
Tyre inflation pressure (label) ........... 191
Tyres....................................................... 191
– if a tyre is punctured..................... 141
“U
niversal Isofix” child
restraint system................................. 107
– child restraint system label .......... 113“Universal” child restraint
system fitting ...................................... 104
– child restraint system label .......... 113
“Universal” child restraint system.... 104
– child restraint system label .......... 113
Vehicle maintenance
– Heavy use of the vehicle ............. 163
– scheduled servicing....................... 160
– Scheduled servicing plan ............. 161
Ventilation ............................................. 29W
arning lights and messages .......... 129
When parked........................................ 122
Windows
– cleaning............................................ 177
– sliding windows.............................. 71
Windscreen washer
– control ............................................. 52
– fluid level ......................................... 168
Windscreen wiper jets ....................... 176
Windscreen wiper
– blades .............................................. 174
– control ............................................ 52
– jets.................................................... 176
Windscreen/headlamp washer
fluid level............................................. 168
Windscreen/rear window
wiper blades....................................... 174
Radio system....................................... 93
Rear view mirrors
– door mirrors .................................. 27
– interior rear view mirror............. 27
Rev counter .......................................... 14
Reversing lights..................................... 149
Roof lights............................................. 62
– bulb (replacement) ........................ 145
Roof rack/ski rack (setup).................. 79Safety..................................................... 97
Seat belts
– general warnings............................ 101
– height adjustment ......................... 99
– maintenance.................................... 103
– use .................................................... 98
Seats
– cleaning............................................ 178
– front................................................. 19
– rear................................................... 22
– seat arrangement........................... 24
Side bags ...............................................1115
– child restraint system label .......... 113
– passenger side front airbag
and child restraint systems .......... 113
Side lights
– control ............................................. 49
– front bulb replacement................. 147
– rear bulb replacement.................. 149
215-222 SCUDO LUM GB 08/04/14 14:22 Pagina 217

The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
FIATSCUDO
ENGLISH
SCUDO UM GB 19-06-2007 8:26 Pagina 1
