FIAT SCUDO 2016 Owner handbook (in English)

The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and
versions described in this booklet at any time for technical and commercial reasons.
If you have any further questions please consult your FIAT dealer.
Printed in recycled paper without chlorine.
OWNER HANDBOOK
FIATSCUDO
ENGLISH
SCUDO UM GB 19-06-2007 8:26 Pagina 1

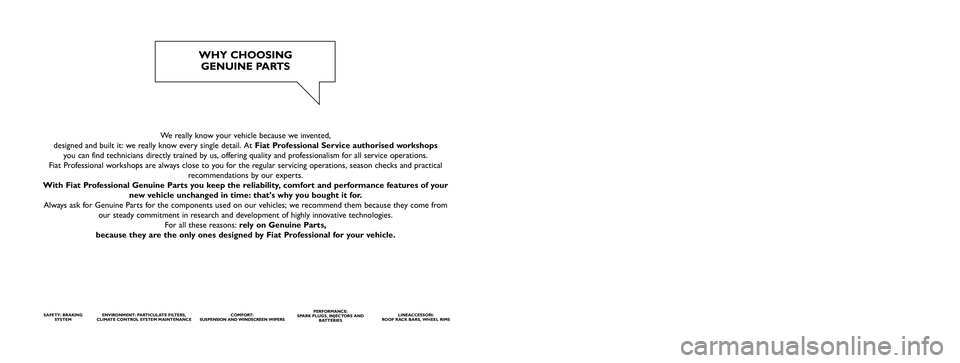

We really know your vehicle because we invented,
designed and built it: we really know every single detail. At Fiat Professional Service authorised workshops
you can find technicians directly trained by us, offering quality and professionalism for all service operations.
Fiat Professional workshops are always close to you for the regular servicing operations, season checks and practical
recommendations by our experts.
With Fiat Professional Genuine Parts you keep the reliability, comfort and performance features of your
new vehicle unchanged in time: that's why you bought it for.
Always ask for Genuine Parts for the components used on our vehicles; we recommend them because they come from
our steady commitment in research and development of highly innovative technologies.
For all these reasons: rely on Genuine Parts,
because they are the only ones designed by Fiat Professional for your vehicle.
SAFETY: BRAKING
SYSTEMENVIRONMENT: PARTICULATE FILTERS,
CLIMATE CONTROL SYSTEM MAINTENANCECOMFORT:
SUSPENSION AND WINDSCREEN WIPERSPERFORMANCE:
SPARK PLUGS, INJECTORS AND
BATTERIESLINEACCESSORI:
ROOF RACK BARS, WHEEL RIMS
WHY CHOOSING
GENUINE PARTS
SCUDO UM GB:SCUDO UM GB 30-05-2011 13:44 Pagina 2

CHOOSING GENUINE PARTS
IS THE MOST NATURAL CHOICE
PERFORMANCEGENUINE PARTS
COMFORTGENUINE PARTS
SAFETYGENUINE PARTS
AMBIENTGENUINE PARTS
VALUESGENUINE PARTS
ACCESSORIESGENUINE PARTS
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina A

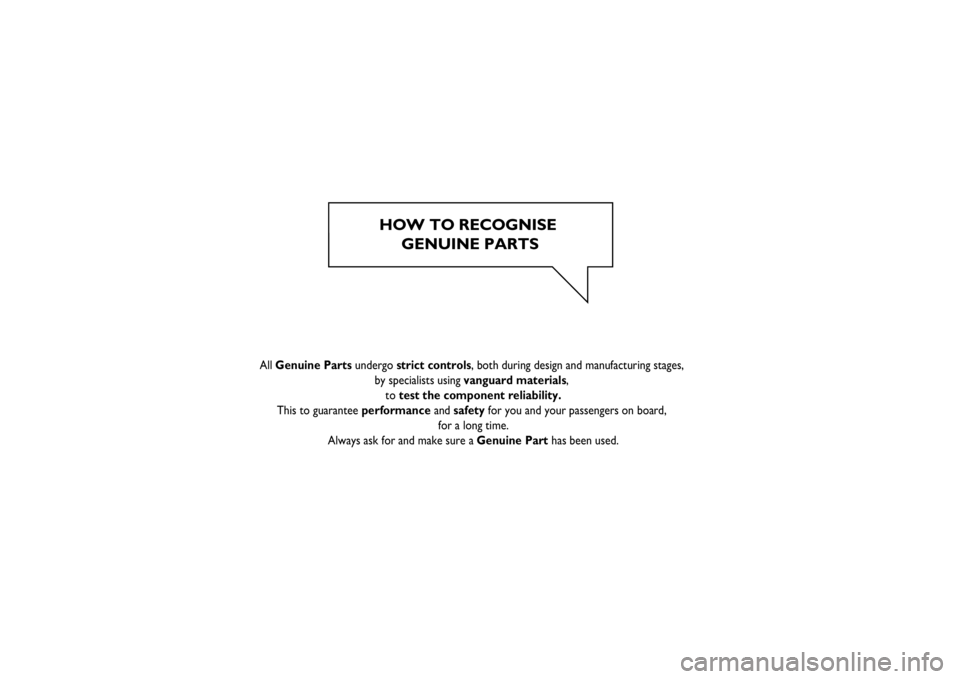

HOW TO RECOGNISE
GENUINE PARTS



All Genuine Parts undergo strict controls, both during design and manufacturing stages,
by specialists using vanguard materials,
to test the component reliability.
This to guarantee performance and safety for you and your passengers on board,
for a long time.
Always ask for and make sure a Genuine Part has been used.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina B

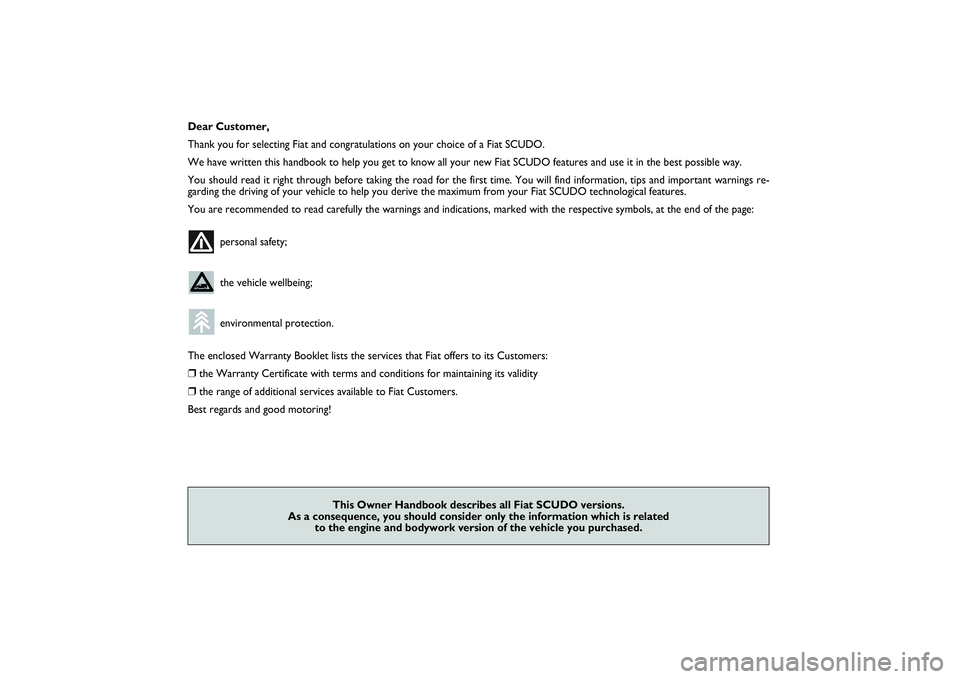

Dear Customer,
Thank you for selecting Fiat and congratulations on your choice of a Fiat SCUDO.
We have written this handbook to help you get to know all your new Fiat SCUDO features and use it in the best possible way.
You should read it right through before taking the road for the first time. You will find information, tips and important warnings re-
garding the driving of your vehicle to help you derive the maximum from your Fiat SCUDO technological features.
You are recommended to read carefully the warnings and indications, marked with the respective symbols, at the end of the page:
personal safety;
the vehicle wellbeing;
environmental protection.
The enclosed Warranty Booklet lists the services that Fiat offers to its Customers:❒
the Warranty Certificate with terms and conditions for maintaining its validity
❒
the range of additional services available to Fiat Customers.
Best regards and good motoring!
This Owner Handbook describes all Fiat SCUDO versions.
As a consequence, you should consider only the information which is related
to the engine and bodywork version of the vehicle you purchased.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 1

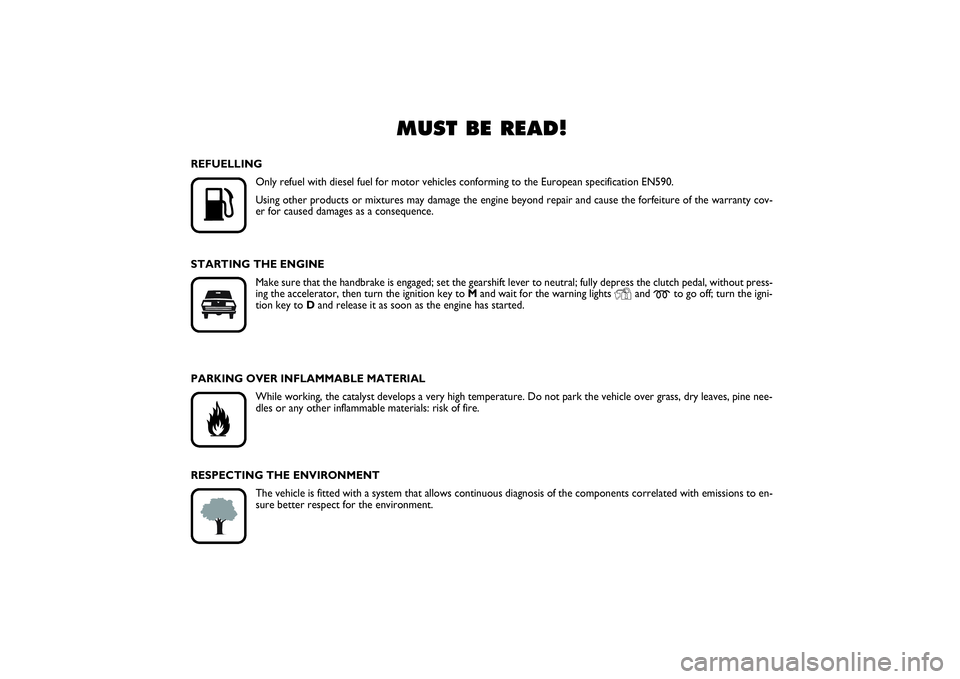

MUST BE READ!
K
REFUELLING
Only refuel with diesel fuel for motor vehicles conforming to the European specification EN590.
Using other products or mixtures may damage the engine beyond repair and cause the forfeiture of the warranty cov-
er for caused damages as a consequence.
STARTING THE ENGINE
Make sure that the handbrake is engaged; set the gearshift lever to neutral; fully depress the clutch pedal, without press-
ing the accelerator, then turn the ignition key to Mand wait for the warning lights
Y
and
m
to go off; turn the igni-
tion key to Dand release it as soon as the engine has started.
PARKING OVER INFLAMMABLE MATERIAL
While working, the catalyst develops a very high temperature. Do not park the vehicle over grass, dry leaves, pine nee-
dles or any other inflammable materials: risk of fire.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the components correlated with emissions to en-
sure better respect for the environment.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 2

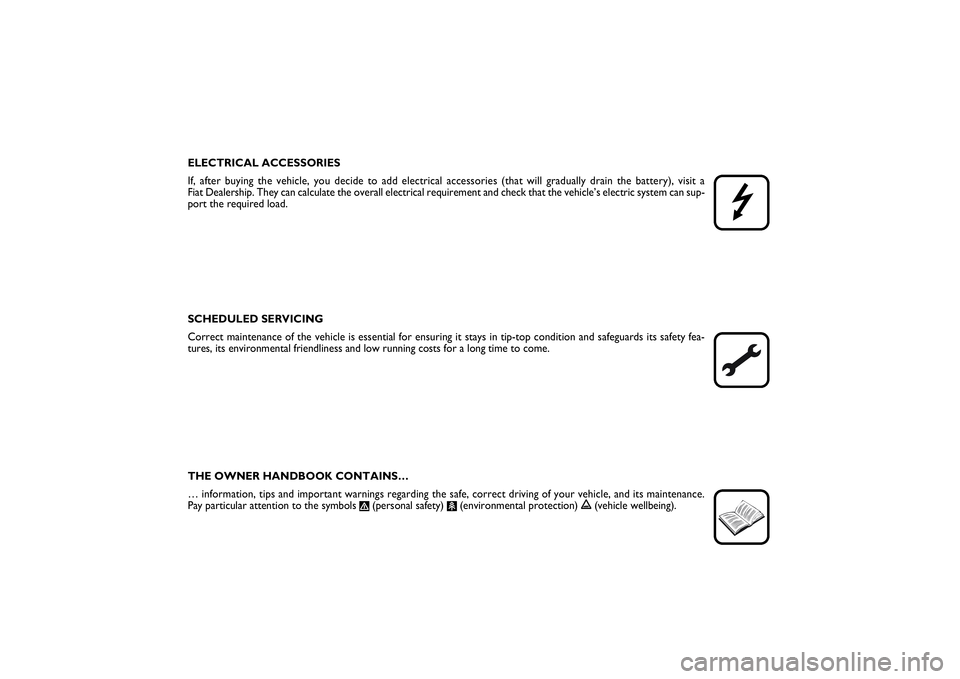

ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (that will gradually drain the battery), visit a
Fiat Dealership. They can calculate the overall electrical requirement and check that the vehicle’s electric system can sup-
port the required load.
SCHEDULED SERVICING
Correct maintenance of the vehicle is essential for ensuring it stays in tip-top condition and safeguards its safety fea-
tures, its environmental friendliness and low running costs for a long time to come.
THE OWNER HANDBOOK CONTAINS…
… information, tips and important warnings regarding the safe, correct driving of your vehicle, and its maintenance.
Pay particular attention to the symbols
"
(personal safety)
#
(environmental protection)
!
(vehicle wellbeing).

001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 3

4SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

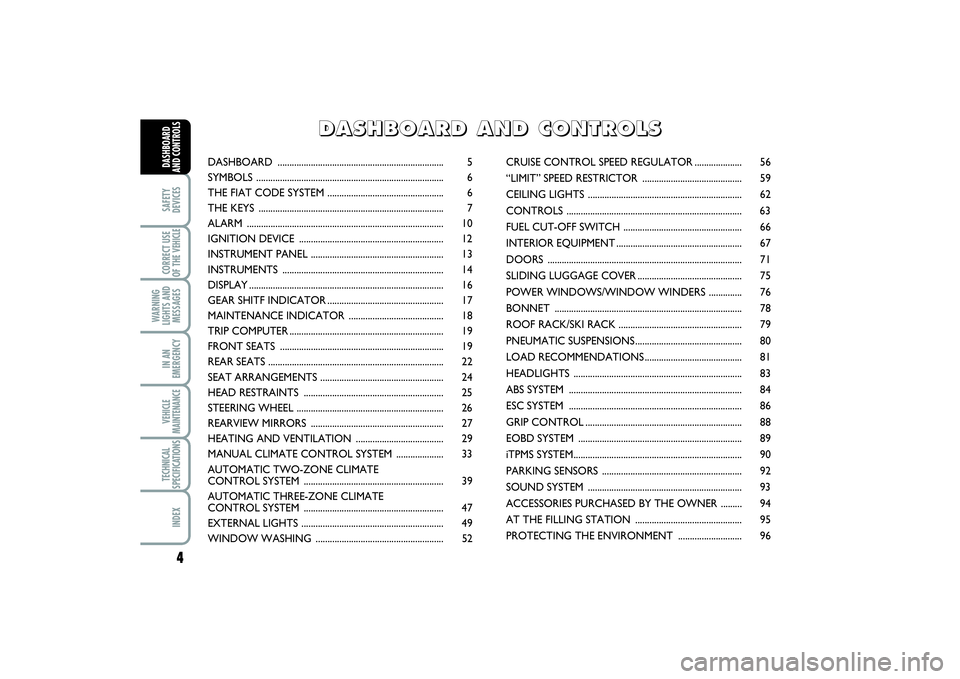

DASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM ................................................. 6
THE KEYS .............................................................................. 7
ALARM ................................................................................... 10
IGNITION DEVICE ............................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DISPLAY.................................................................................. 16
GEAR SHITF INDICATOR................................................. 17
MAINTENANCE INDICATOR ........................................ 18
TRIP COMPUTER................................................................. 19
FRONT SEATS ..................................................................... 19
REAR SEATS .......................................................................... 22
SEAT ARRANGEMENTS .................................................... 24
HEAD RESTRAINTS ........................................................... 25
STEERING WHEEL .............................................................. 26
REARVIEW MIRRORS ........................................................ 27
HEATING AND VENTILATION ..................................... 29
MANUAL CLIMATE CONTROL SYSTEM .................... 33
AUTOMATIC TWO-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 39
AUTOMATIC THREE-ZONE CLIMATE
CONTROL SYSTEM ........................................................... 47
EXTERNAL LIGHTS ............................................................ 49
WINDOW WASHING ...................................................... 52CRUISE CONTROL SPEED REGULATOR.................... 56
“LIMIT” SPEED RESTRICTOR .......................................... 59
CEILING LIGHTS ................................................................. 62
CONTROLS .......................................................................... 63
FUEL CUT-OFF SWITCH .................................................. 66
INTERIOR EQUIPMENT..................................................... 67
DOORS .................................................................................. 71
SLIDING LUGGAGE COVER............................................ 75
POWER WINDOWS/WINDOW WINDERS .............. 76
BONNET ............................................................................... 78
ROOF RACK/SKI RACK .................................................... 79
PNEUMATIC SUSPENSIONS............................................. 80
LOAD RECOMMENDATIONS......................................... 81
HEADLIGHTS ....................................................................... 83
ABS SYSTEM ......................................................................... 84
ESC SYSTEM ......................................................................... 86
GRIP CONTROL.................................................................. 88
EOBD SYSTEM ..................................................................... 89
iTPMS SYSTEM....................................................................... 90
PARKING SENSORS ........................................................... 92
SOUND SYSTEM ................................................................. 93
ACCESSORIES PURCHASED BY THE OWNER ......... 94
AT THE FILLING STATION ............................................. 95
PROTECTING THE ENVIRONMENT ........................... 96
D D
A A
S S
H H
B B
O O
A A
R R
D D

A A
N N
D D

C C
O O
N N
T T
R R
O O
L L
S S
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 4

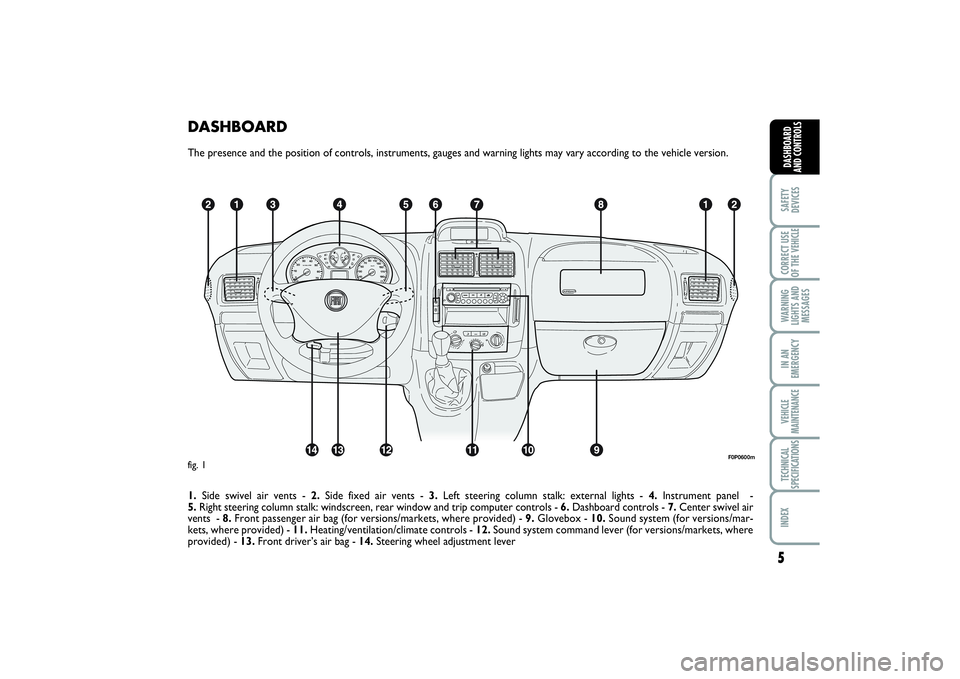

DASHBOARDThe presence and the position of controls, instruments, gauges and warning lights may vary according to the vehicle version.
1.Side swivel air vents - 2.Side fixed air vents - 3.Left steering column stalk: external lights - 4.Instrument panel -
5.Right steering column stalk: windscreen, rear window and trip computer controls - 6.Dashboard controls - 7.Center swivel air
vents - 8.Front passenger air bag (for versions/markets, where provided) - 9.Glovebox - 10.Sound system (for versions/mar-
kets, where provided) - 11.Heating/ventilation/climate controls - 12.Sound system command lever (for versions/markets, where
provided) - 13.Front driver’s air bag - 14. Steering wheel adjustment lever
5SAFETY
DEVICESCORRECT USE
OF THE VEHICLE WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX DASHBOARD
AND CONTROLS
F0P0600m
fig. 1
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 5

6SAFETY
DEVICESCORRECT USE
OF THE VEHICLE
WARNING
LIGHTS AND
MESSAGESIN AN
EMERGENCYVEHICLE
MAINTENANCETECHNICAL
SPECIFICATIONSINDEXDASHBOARD
AND CONTROLS

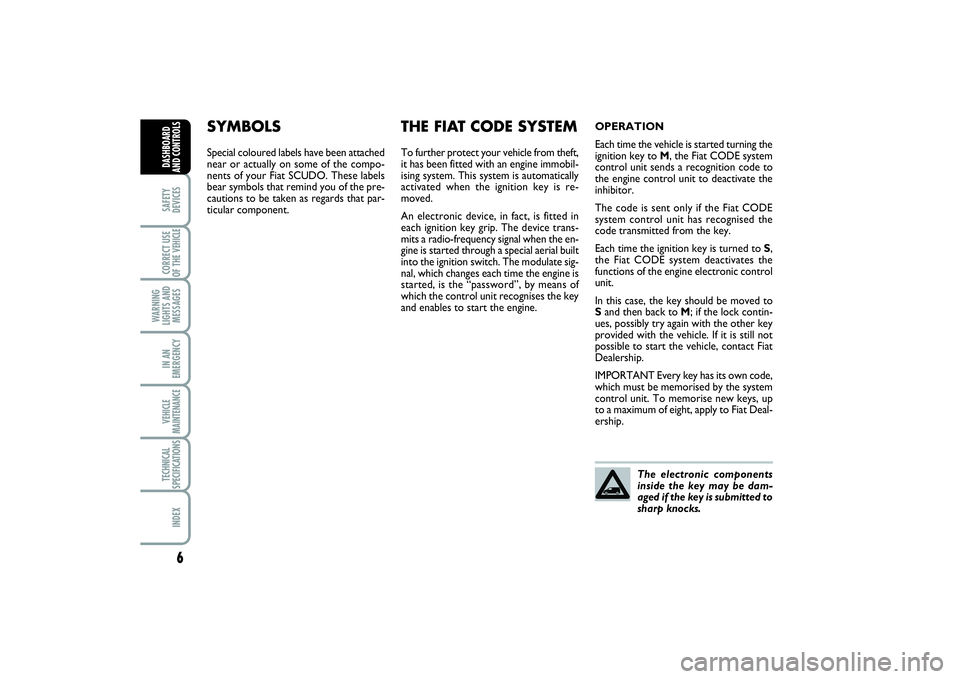

SYMBOLSSpecial coloured labels have been attached
near or actually on some of the compo-
nents of your Fiat SCUDO. These labels
bear symbols that remind you of the pre-
cautions to be taken as regards that par-
ticular component.
THE FIAT CODE SYSTEMTo further protect your vehicle from theft,
it has been fitted with an engine immobil-
ising system. This system is automatically
activated when the ignition key is re-
moved.
An electronic device, in fact, is fitted in
each ignition key grip. The device trans-
mits a radio-frequency signal when the en-
gine is started through a special aerial built
into the ignition switch. The modulate sig-
nal, which changes each time the engine is
started, is the “password”, by means of
which the control unit recognises the key
and enables to start the engine.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
OPERATION
Each time the vehicle is started turning the
ignition key to M, the Fiat CODE system
control unit sends a recognition code to
the engine control unit to deactivate the
inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to S,
the Fiat CODE system deactivates the
functions of the engine electronic control
unit.
In this case, the key should be moved to
Sand then back to M; if the lock contin-
ues, possibly try again with the other key
provided with the vehicle. If it is still not
possible to start the vehicle, contact Fiat
Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply to Fiat Deal-
ership.
001-019 SCUDO LUM GB 27/03/14 10:10 Pagina 6
