FIAT SEDICI 2007 2.G Owners Manual

240
1.Petrol engine
2.Diesel engine

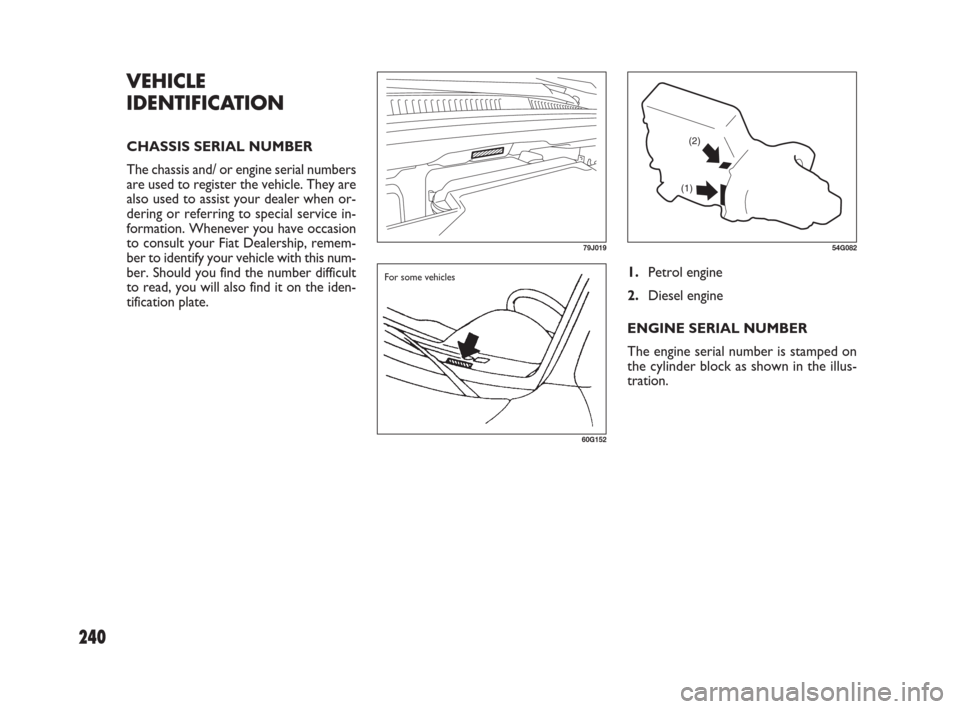

ENGINE SERIAL NUMBER
The engine serial number is stamped on
the cylinder block as shown in the illus-
tration.
VEHICLE
IDENTIFICATION
CHASSIS SERIAL NUMBER
The chassis and/ or engine serial numbers
are used to register the vehicle. They are
also used to assist your dealer when or-
dering or referring to special service in-
formation. Whenever you have occasion
to consult your Fiat Dealership, remem-
ber to identify your vehicle with this num-
ber. Should you find the number difficult
to read, you will also find it on the iden-
tification plate.
79J019
60G152
For some vehicles
(2)
(1)
54G082
239-242 Fiat16 New GB 27-11-2007 11:54 Pagina 240

241

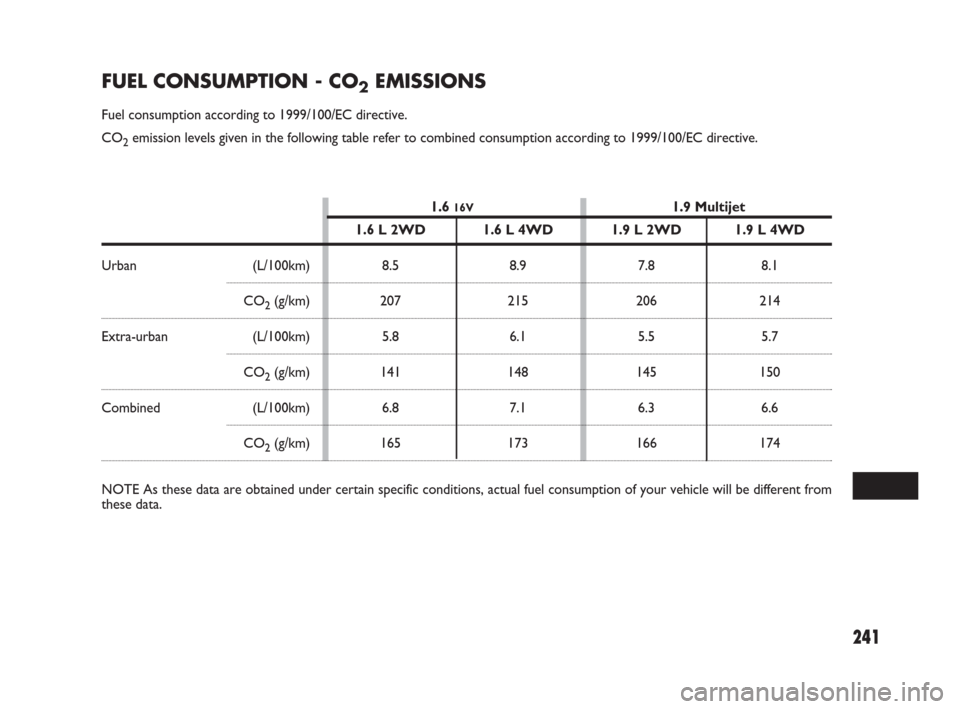

FUEL CONSUMPTION - CO2EMISSIONS
Fuel consumption according to 1999/100/EC directive.
CO
2emission levels given in the following table refer to combined consumption according to 1999/100/EC directive.
1.6 16V1.9 Multijet
1.6 L 2WD 1.6 L 4WD 1.9 L 2WD 1.9 L 4WD
Urban (L/100km) 8.5 8.9 7.8 8.1
CO2(g/km) 207 215 206 214
Extra-urban (L/100km) 5.8 6.1 5.5 5.7
CO2(g/km) 141 148 145 150
Combined (L/100km) 6.8 7.1 6.3 6.6
CO2(g/km) 165 173 166 174
NOTE As these data are obtained under certain specific conditions, actual fuel consumption of your vehicle will be different from
these data.
239-242 Fiat16 New GB 27-11-2007 11:54 Pagina 241

242

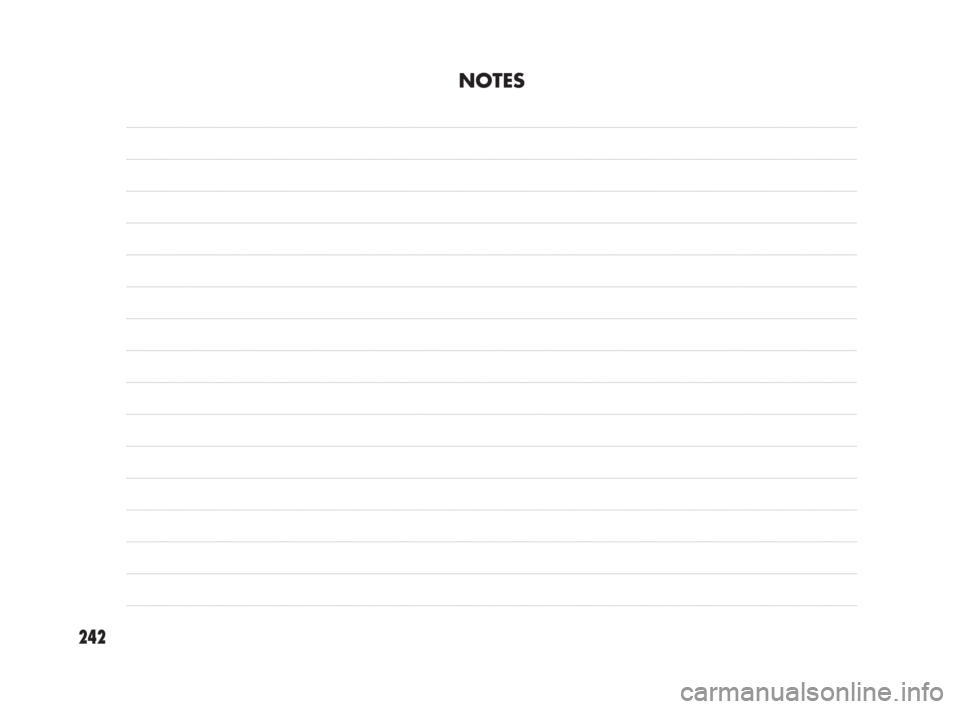

NOTES
239-242 Fiat16 New GB 27-11-2007 11:54 Pagina 242

243
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S

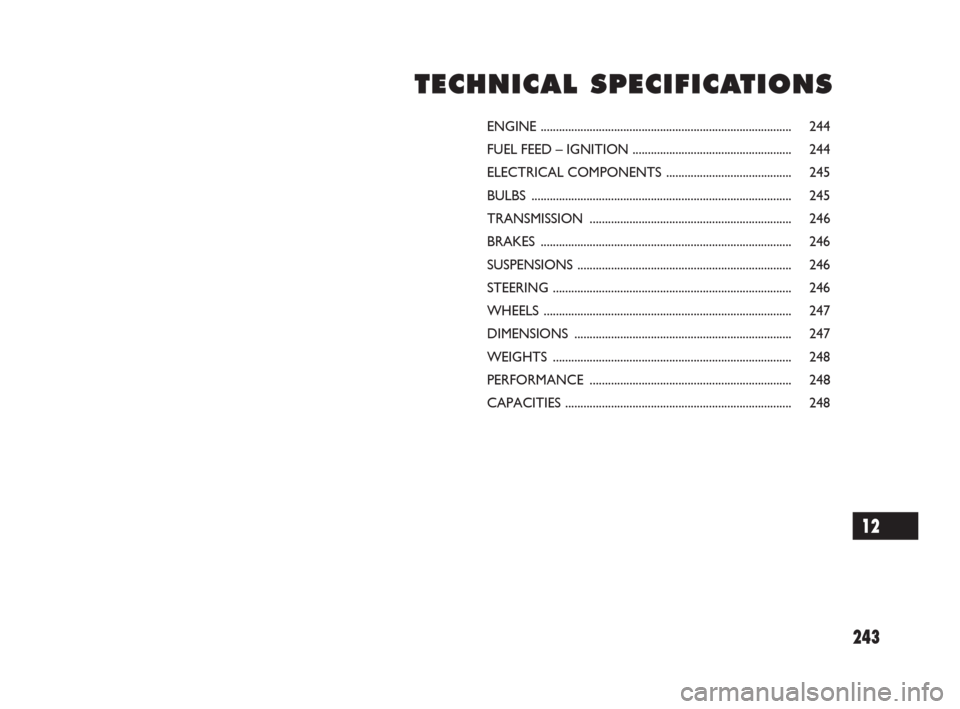

ENGINE .................................................................................. 244
FUEL FEED – IGNITION .................................................... 244
ELECTRICAL COMPONENTS ......................................... 245
BULBS ..................................................................................... 245
TRANSMISSION .................................................................. 246
BRAKES .................................................................................. 246
SUSPENSIONS ...................................................................... 246
STEERING .............................................................................. 246
WHEELS ................................................................................. 247
DIMENSIONS ....................................................................... 247
WEIGHTS .............................................................................. 248
PERFORMANCE .................................................................. 248
CAPACITIES .......................................................................... 248
12
243-248 Fiat16 New GB 27-11-2007 11:54 Pagina 243

244

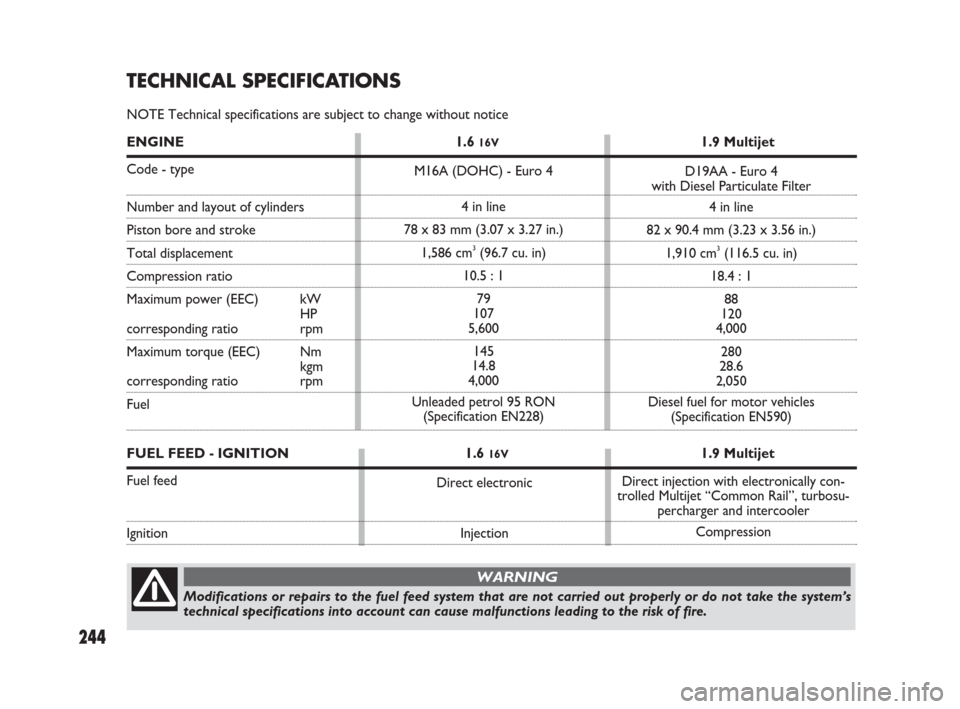

TECHNICAL SPECIFICATIONS
NOTE Technical specifications are subject to change without notice
M16A (DOHC) - Euro 4
4 in line
78 x 83 mm (3.07 x 3.27 in.)
1,586 cm
3(96.7 cu. in)
10.5 : 1
79
107
5,600
145
14.8
4,000
Unleaded petrol 95 RON
(Specification EN228)D19AA - Euro 4
with Diesel Particulate Filter
4 in line
82 x 90.4 mm (3.23 x 3.56 in.)
1,910 cm3(116.5 cu. in)
18.4 : 1
88
120
4,000
280
28.6
2,050
Diesel fuel for motor vehicles
(Specification EN590)
ENGINE 1.6 16V1.9 Multijet
Code - type
Number and layout of cylinders
Piston bore and stroke
Total displacement
Compression ratio
Maximum power (EEC) kW
HP
corresponding ratio rpm
Maximum torque (EEC) Nm
kgm
corresponding ratio rpm
Fuel
Direct electronic
InjectionDirect injection with electronically con-
trolled Multijet “Common Rail”, turbosu-
percharger and intercooler
Compression
FUEL FEED - IGNITION 1.6 16V1.9 Multijet
Fuel feed
Ignition
Modifications or repairs to the fuel feed system that are not carried out properly or do not take the system’s
technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING
243-248 Fiat16 New GB 27-11-2007 11:54 Pagina 244

245
12V – 60/55W
12V – 55W
12V – 21W
12V – 21W
12V – 5W
12V – 21/5W
12V – 5W
12V – 21W
12V – 10W
12V – 5W
12V – 21W
12V – 8W
12V – 5WH4
H11
PY21W
P21W
W5W
P21/5W
W5W
P21W
–
–
P21W
W5W (8W)
W5W
BULBS Power Type
Main beam/ dipped beam headlights
Front fog lights
Front direction indicators
Rear direction indicators
Parking lights
Brake lights / taillights
License plate lights
Reversing lights
Passenger compartment light
Luggage compartment light
Rear fog lights
Spot lights
Third brake light (additional brake light)
12V 36Ah/20HR, CCA 180A (DIN) or
12V 44Ah/ 20HR, CCA 210A (DIN)
NGK IFR6J11
DENSO K20PR-U11, NGK BKR6E-1112V 70Ah/20HR, CCA 450A (DIN)
–
–
See “INSPECTION AND MAINTENANCE” section
ELECTRICAL COMPONENTS 1.6 16V1.9 Multijet
Battery
Spark plugs Iridium
Nickel
Fuses
243-248 Fiat16 New GB 27-11-2007 11:54 Pagina 245

246

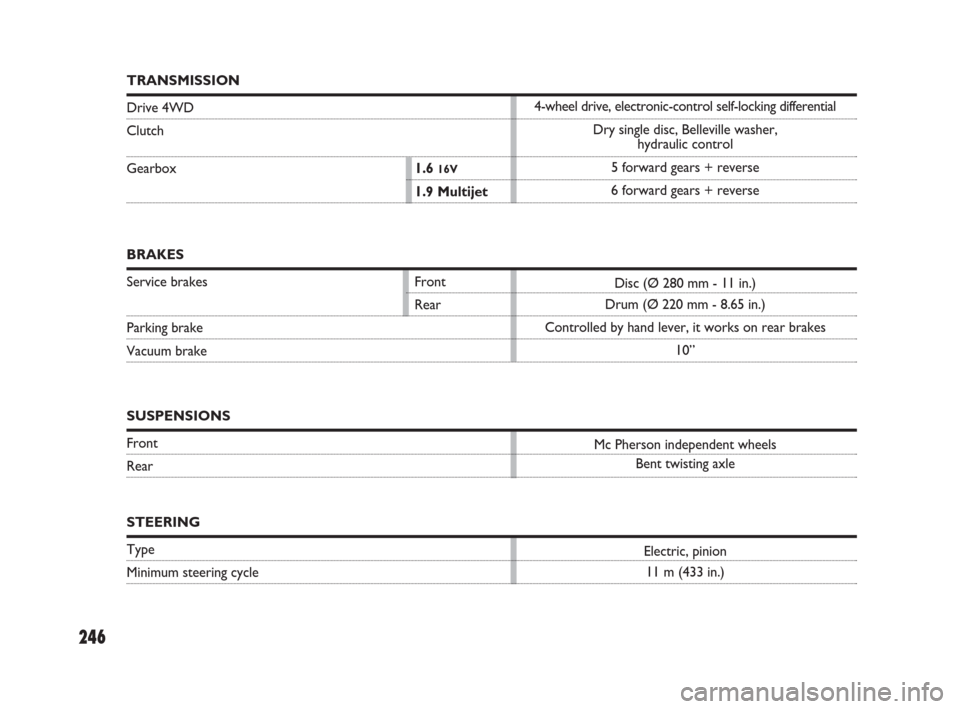

BRAKES
Service brakes Front
Rear
Parking brake
Vacuum brake
SUSPENSIONS
Front
Rear
STEERING
Type
Minimum steering cycleDisc (Ø 280 mm - 11 in.)
Drum (Ø 220 mm - 8.65 in.)
Controlled by hand lever, it works on rear brakes
10”
Mc Pherson independent wheels
Bent twisting axle
Electric, pinion
11 m (433 in.)
TRANSMISSION
Drive 4WD
Clutch
Gearbox1.6 16V
1.9 Multijet4-wheel drive, electronic-control self-locking differential
Dry single disc, Belleville washer,
hydraulic control
5 forward gears + reverse
6 forward gears + reverse
243-248 Fiat16 New GB 27-11-2007 11:54 Pagina 246

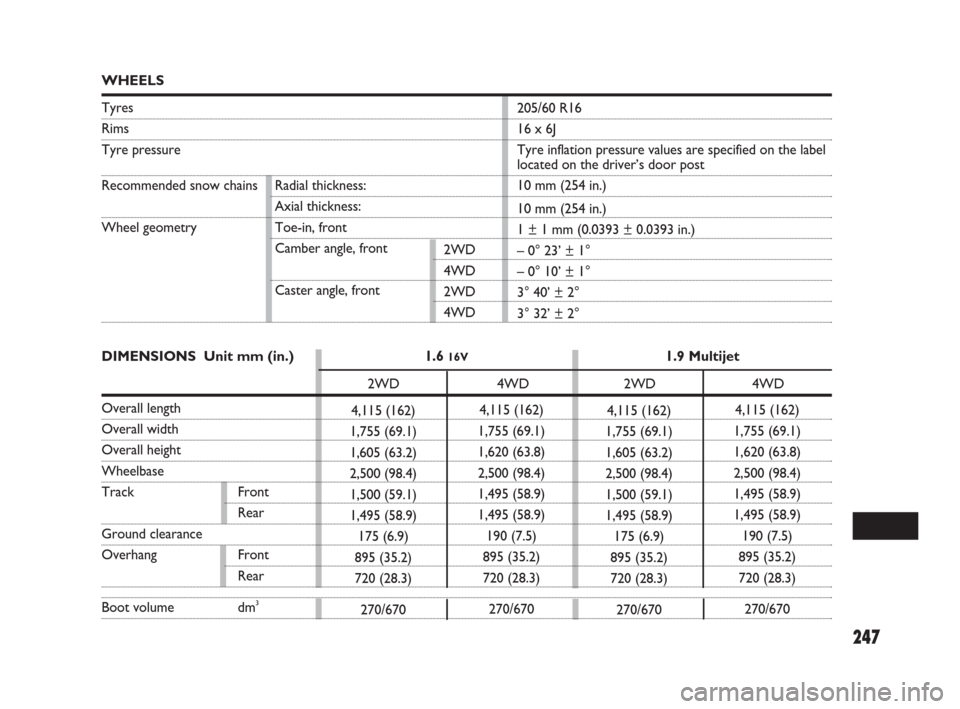

247
205/60 R16
16 x 6J
Tyre inflation pressure values are specified on the label
located on the driver’s door post
10 mm (254 in.)
10 mm (254 in.)
1 ± 1 mm (0.0393 ± 0.0393 in.)
– 0° 23’ ± 1°
– 0° 10’ ± 1°
3° 40’ ± 2°
3° 32’ ± 2°
WHEELS
Tyres
Rims
Tyre pressure
Recommended snow chains Radial thickness:
Axial thickness:
Wheel geometry Toe-in, front
Camber angle, front
2WD
4WD
Caster angle, front
2WD
4WD
4,115 (162)
1,755 (69.1)
1,605 (63.2)
2,500 (98.4)
1,500 (59.1)
1,495 (58.9)
175 (6.9)
895 (35.2)
720 (28.3)
270/6704,115 (162)
1,755 (69.1)
1,620 (63.8)
2,500 (98.4)
1,495 (58.9)
1,495 (58.9)
190 (7.5)
895 (35.2)
720 (28.3)
270/6704,115 (162)
1,755 (69.1)
1,605 (63.2)
2,500 (98.4)
1,500 (59.1)
1,495 (58.9)
175 (6.9)
895 (35.2)
720 (28.3)
270/6704,115 (162)
1,755 (69.1)
1,620 (63.8)
2,500 (98.4)
1,495 (58.9)
1,495 (58.9)
190 (7.5)
895 (35.2)
720 (28.3)
270/670
DIMENSIONS Unit mm (in.) 1.6 16V1.9 Multijet
2WD 4WD 2WD 4WD
Overall length
Overall width
Overall height
Wheelbase
Track Front
Rear
Ground clearance
Overhang Front
Rear
Boot volume dm3
243-248 Fiat16 New GB 27-11-2007 11:54 Pagina 247

248
2WD
4WD
2WD
4WD
2WD
4WD
2WD
4WD1,135 – 1,185 (2,502 – 2,612)
1,195 – 1,245 (2,634 – 2,745)
1,650 (3,638)
1,670 (3,682)
865 (1,907)
870 (1,918)
850 (1,874)
870 (1,918)1,270 – 1,320 (2,800 – 2,910)
1,330 – 1,380 (2,932 – 3,042)
1,790 (3,946)
1,790 (3,946)
980 (2,160)
980 (2,160)
860 (1,896)
860 (1,896)
WEIGHTS kg (lbs) 1.6 16V1.9 Multijet
Kerb weight (including fuel, spare wheel,
tools and accessories)
Gross vehicle weight (GVWR)
Gross front axle weight (GAWR)
Gross rear axle weight (GAWR)
PERFORMANCE 1.6 16V1.9 Multijet
Top admitted speed after initial vehicle use
Pick-up angle
Racing angle
Rise angle170 km/h
20.3°
31.1°
18.1°180 km/h
20.3°
31.1°
18.1°
2WD
4WD
4WD
4WD7.7 litres (13.6 Imp pt)
50 litres (11.0 Imp gal)
3.9 litres (6.9 Imp pt)
(replacement with oil filter)
2.5 litres (4.4 Imp pt)
2.5 litres (4.4 Imp pt)
0.6 litres (1.1 Imp pt)
0.8 litres (1.4 Imp pt)6.5 litres (11.4 Imp pt)
50 litres (11.0 Imp gal)
4.5 litres (7.9 Imp pt)
(replacement with oil filter)
2.5 litres (4.4 Imp pt)
2.5 litres (4.4 Imp pt)
0.6 litres (1.1 Imp pt)
0.8 litres (1.4 Imp pt)
CAPACITIES (indicative values) 1.6 16V1.9 Multijet
Engine cooling system
(including reservoir tank)
Fuel tank
Engine oil
Gearbox oil
Transfer oil
Rear differential oil
243-248 Fiat16 New GB 27-11-2007 11:54 Pagina 248

249
S S
U U
P P
P P
L L
E E
M M
E E
N N
T T
DECLARATION OF CONFORMITY ............................. 252
13
