FIAT SEICENTO 2007 1.G Owners Manual

140TECHNICAL SPECIFICATIONS
LUBRICANT AND FLUID SPECIFICATIONS
PRODUCTS WHICH MAY BE USED AND THEIR CHARACTERISTICS
Use
(*) For use with very cold temperatures, we recommend using SELENIA PERFORMER MULTIPOWER
Recommendedlubricants and fluids
SELENIA 20K
SELENIA
PERFORMER
MULTIPOWER
TUTELA CAR
ZC 75 SYNTH
TUTELA
MRM2 Drive train lubricants
and grease Petrol engine
lubricants (*)Specifications of the lubricants and fluids to use for best car operation
SAE 10W-40 grade synthetic-based oil exceeding
ACEA A3 and API SL specifications
Synthetic-based engine oil grade SAE 5W-30 that
passes ACEA A1-A5 - API SL and
FIAT 9.55535.M1 specifications.
SAE 75W-80 EP oil.
Meeting API GL5 and MIL - L - 2105D LEV specifications
Molybdenum sulphide, lithium base grease,
water-resistant N.L.G.I. consistency = 2Applications
Manual gearbox
and differential
CV joints
40°
30°
20°
10°
0°
-10°
-20°
-30°
°C
SAE 10W-40
SAE 5W-30

141TECHNICAL SPECIFICATIONS
Use
Steering unit lubricant
Hydraulic brake fluid
Radiator antifreeze
Windscreen/rear
window
washers liquidRecommended
lubricants and fluids
K854
TUTELA
TOP 4
PARAFLU UP (
)
TUTELA
PROFESSIONAL
SC35 Specifications of the lubricants and fluids
to use for best car operation
Lithium soap based grease, N.L.G.I. 000 consistency,
containing molybendum sulphide
Synthetic fluids, F.M.V.S.S. 116 DOT 4 ISO 4925,
CUNA NC 956 - 01
Protective, red colour, with antifreeze action, ethylene
glycol and organic inhibitor based
Mixture of alcohol, water and surface active agents
CUNA NC 956 - 11Applications
Hydraulic brake and
clutch controls
Proportions: 50%
water and 50%
PARAFLU UP
To be used diluted
or neat
() ImportantDo not top up or mix with other fluids with specifications different from the prescribed ones.

142TECHNICAL SPECIFICATIONS
CO2EMISSIONS
The fuel consumption values shown
in the table below were defined ac-
cording to the type-approval specifi-
cations in European Directives.
Consumption values are defined by
means of the following procedures:
– an urban cycle: consisting of a
cold start and a simulated drive in city
streets;
– an extra-urban cycle: consisting
in frequent accelerations, in all gears,
simulating normal conditions of use.
Speed ranges from 0 to 120 km/h;
– average combined cyclecon-
sisting of 37% urban cycle and 63% ex-
tra-urban cycle.
FUEL CONSUMPTION
IMPORTANT Road and traffic
conditions, weather, general con-
ditions of the car, driving style,
fittings and accessories, use of
the climate control system, load,
roof racks and other situations
penalising aerodynamic penetra-
tion and effecting rolling resis-
tance will influence fuel con-
sumption rates which can be dif-
ferent from the values shown in
the table (see
CHEAP RUNNING
THAT RESPECTS THE ENVIRONMENT
in DRIVING YOUR CARchapter).
The maximum CO2emission values
shown in the following table refer to
the average combined cycle.
Consumption in accordance with Directive 1999/100/EC (litres x 100 km)
S - Active
Urban8.3
Extra-urban4.7
Combined6.0
CO2emission in
Versionsaccordance with
Directive 1999/100/EC
(g/km)
S - Active143

143TECHNICAL SPECIFICATIONS
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL HOMOLOGATIONS
The homologation number is printed directly on the key grip for the markets where this is required. International
code
A
B
CH
D
DK
E
F
GB
GR
H
I
IRL
NL
P
PLHomologation number
CEPT L PD F
RTT/D/X 1238
BAKOM 96.0331 K.P.
G129383H - G127064H
9747
E01960332
960186 PPL 0
11699
Y∏ME/∆TEE/EK411/23/10/96 - Y∏ME/∆TEE/EK399/11/10/96
EB - 28295/97
DGPGF/SEGR/2/03/336420/FO/000894/31/05/96
DGPGF/SEGR/2/03/337911/FO/001694/04/09/96
TRA 24/5/207/7 - TRA 24/5/207/5
NL 96040274
ICP - 016 TC - 96
011/98 Country
Austria
Belgium
Switzerland
Germany
Denmark
Spain
France
Great Britain
Greece
Hungary
Italy
Ireland
Holland
Portugal
Poland

144TECHNICAL SPECIFICATIONS
B
Z
TG129
383H
B
Z
TG127
064H
ministerie van verkeer en waterstaat
NL 96040274
ED.G.Tel.E01960332E01960332
960186 PPL 0
17/04/96
TRW

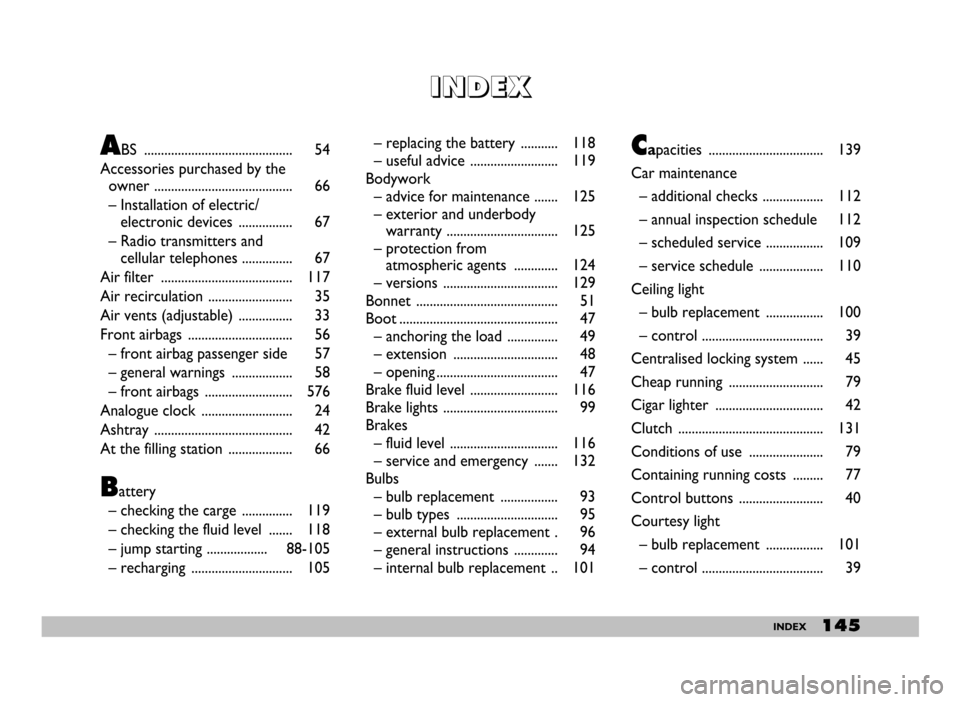

145INDEX
I I I I
N N N N
D D D D
E E E E
X X X X
ABS ............................................ 54
Accessories purchased by the
owner ......................................... 66
– Installation of electric/
electronic devices ................ 67
– Radio transmitters and
cellular telephones ............... 67
Air filter ....................................... 117
Air recirculation ......................... 35
Air vents (adjustable) ................ 33
Front airbags ............................... 56
– front airbag passenger side 57
– general warnings .................. 58
– front airbags .......................... 576
Analogue clock ........................... 24
Ashtray ......................................... 42
At the filling station ................... 66
Battery
– checking the carge ............... 119
– checking the fluid level ....... 118
– jump starting .................. 88-105
– recharging .............................. 105– replacing the battery ........... 118
– useful advice .......................... 119
Bodywork
– advice for maintenance ....... 125
– exterior and underbody
warranty ................................. 125
– protection from
atmospheric agents ............. 124
– versions .................................. 129
Bonnet .......................................... 51
Boot ............................................... 47
– anchoring the load ............... 49
– extension ............................... 48
– opening .................................... 47
Brake fluid level .......................... 116
Brake lights .................................. 99
Brakes
– fluid level ................................ 116
– service and emergency ....... 132
Bulbs
– bulb replacement ................. 93
– bulb types .............................. 95
– external bulb replacement . 96
– general instructions ............. 94
– internal bulb replacement .. 101
Capacities .................................. 139
Car maintenance
– additional checks .................. 112
– annual inspection schedule 112
– scheduled service ................. 109
– service schedule ................... 110
Ceiling light
– bulb replacement ................. 100
– control .................................... 39
Centralised locking system ...... 45
Cheap running ............................ 79
Cigar lighter ................................ 42
Clutch ........................................... 131
Conditions of use ...................... 79
Containing running costs ......... 77
Control buttons ......................... 40
Courtesy light
– bulb replacement ................. 101
– control .................................... 39

146INDEX
Dashboard ................................. 20
Demisting
– front side windows .............. 34
– rear window ......................... 34
– windscreen ............................ 34
Dimensions ................................. 137
Dipped beam headlights
– bulb replacement ................. 96
– control .................................... 37
Direction indicators
– control .................................... 38
– front bulb replacement ....... 97
– rear bulb replacement ........ 99
– side bulb replacement ......... 98
Doors ........................................... 45
Driving style ................................ 78
Driving your car ......................... 70
Electric windows ..................... 46
Electrical power steering
system ........................................ 61
Electronic control units ............ 120
Engine
– cooling .................................... 116
– identification code ............... 129
– ignition/fuel feed ................... 131
– oil level ................................... 114
– specifications ......................... 130
Engine compartment
(washing) ................................... 126Engine coolant level ................... 116
Engine oil
– checking the level ................ 115
– consumption ......................... 115
– specifications ......................... 140
Engine oil consumption ............ 115
Engine oil level ............................ 115
EOBD system ............................. 60
Fiat CODE system .................. 6
Foglights
– bulb replacement ................. 98
– direction ................................. 54
– on/off button ......................... 40
Fuel
– consumption ......................... 142
– fuel cut-off switch ................ 41
– gauge ....................................... 23
Fuel consumption -
CO
2emissions .......................... 142
Fuel cut-off switch ..................... 25-41
Fuel filler cap ............................... 68
Fuel gauge .................................... 23
Fuses ............................................. 104
Gearbox
– gearbox use ........................... 72
– type ......................................... 131
Getting to know your car ......... 6
Handbrake ......................... 72-132
Hazard lights
– control .................................... 40
Headlights
– beam direction ..................... 53
– slant compensation .............. 53
Head restraints ........................... 30
Heated rear window ................. 40
Heater controls .......................... 33
Heating ......................................... 33
Heating ......................................... 33
Horn ............................................. 41
Identification data .................... 128
Ignition switch ............................ 22
In an emergency ......................... 86
Individual settings ....................... 29
Instrument panel ........................ 22
Instruments ................................. 23
Jack
– use .................................... 90-106
– warnings ................................. 89
Jacking the car ............................ 106
Keys ........................................... 6
– duplicate copies .................... 7

147INDEX
Lubricant specifications .......... 140
Main beam headlights
– bulb replacement ................. 96
– control .................................... 37
– flashing .................................... 38
Manual climate control system
– controls .................................. 35
– cooling .................................... 36
– maintenance .......................... 36
Number plate lights ................ 99
Paint ........................................... 125
Parking .......................................... 71
Performance ............................... 137
Pretensioner ............................... 12
Protecting emission control
devices ....................................... 80
Radio-frequency remote control
– homologation numbers ...... 9-143
– operation ............................... 9
– replacing the batteries ........ 9
Rear foglights
– bulb replacement ................. 99
– on/off button ......................... 40Rear window washer
– control .................................... 39
– fluid level ................................ 116
Rear window wiper
– blades ...................................... 122
– control .................................... 39
– nozzles .................................... 124
Rearview mirrors
– exterior .................................. 31
– interior ................................... 31
Refuelling ..................................... 68
Rev counter ................................ 24
Reversing lights ........................... 99
Roof rack/ski rack ...................... 52
Rubber tubing ............................. 122
Safe driving
– before getting behind
the wheel ............................... 73
– driving at night ...................... 75
– driving in the fog .................. 75
– driving in the mountains ..... 76
– driving in the rain ................. 75
– driving on snow and ice ..... 76
– driving with ABS .................. 77– when travelling ..................... 74
Safe driving in harmony
with nature ............................... 4
Seat belts
– general warnings .................. 13
– height adjustment ................ 11
– maintenance .......................... 14
– pretensioners ........................ 12
– rear side seat belt use ........ 11
– transporting children
in safety .................................. 15
– use ........................................... 10
Seats
– accessing the rear seats ...... 31
– children .................................. 15
– cleaning ................................... 127
– fore/aft settings .................... 29
– seat back settings ................. 30
Side/taillights
– control .................................... 37
– front bulb replacement ....... 97
– rear bulb replacement ........ 99
Signs to help you drive
correctly .................................... 5
Snow chains ................................ 85

148INDEX
Sound system
– aerial ....................................... 64
– installation wiring diagram . 65
– setup system ......................... 66
– speakers ................................. 66
– standard setup ...................... 64
Spark plugs ........................... 130-131
Speedometer .............................. 23
Starting the engine
– emergency startup ............... 71-87
– ignition switch ....................... 22
– jump starting .................. 87-105
– procedure .............................. 70
– stopping the engine ............. 71
– warming up the engine ....... 70
Steering column lock ................ 22
Steering column stalks
– left-hand stalk ....................... 37
– right-hand stalk ..................... 38
Steering ................................. 61-133
Storing the car ............................ 86
Sun visors .................................... 43
Sunroof
– electrical ................................. 43Suspensions ................................. 132
Symbols ........................................ 6
Technical specifications .......... 128
Third brake lights ....................... 100
Tools ............................................. 90
Top speeds .................................. 137
Towing a trailer
– assembly diagram ................. 82
– tow hitch installation .......... 81
– warnings ................................. 81
Towing the car ........................... 107
Transmission ............................... 131
Transporting children
in safety ...................................... 15
Tyre pressure ............................. 136
Tyres
– inflation pressure ................. 136
– maintenance .......................... 120
– replacing a wheel ................. 89
– types ....................................... 135
– winter tyres ........................... 83
Van ............................................. 62
Ventilation ................................... 35
Warning lights ........................ 25
Weights ........................................ 138
Wheel
– maintenance .......................... 120
– replacement .......................... 89
– spare wheel ........................... 134
– types ....................................... 135
Wheel geometry ........................ 134
Windows (cleaning) .................. 126
Windscreen and rear window
wiper blades ............................. 122
Windscreen washer
– control .................................... 38
– fluid level ................................ 116
Windscreen wipers
– blades ...................................... 122
– control .................................... 38
– nozzles .................................... 124
Windscreen/rear window
washer fluid level ..................... 116

PROVISIONS FOR THE PROCESSING OF A VEHICLE
AT THE END OF ITS LIFE-CYCLE
For years now Fiat has been developing its global commitment towards the safeguarding and protection of the Environment through the
continuous improvement of its production processes and the making of increasingly more “eco friendly” products. With a view to guar-
anteeing the best possible service to clients in full observance of environmental standards and in response to the obligations imposed by
European Directive 2000/53/EC on end-of-life vehicles, Fiat offers its clients the possibility to hand in their vehicle* at the end of its life
span without additional costs.
The European Directive, in fact, provides for the take-back of the vehicle without the last holder or owner of the same incurring
expenses due to the fact that the market value of the vehicle is zero or negative. In particular, in almost all of the countries of the
European Union, up until 1st January 2007, take-back of the vehicle free of charge only applies to vehicles registered from 1 July 2002
on, while, from 2007 on, take-back will be carried out free of charge, independently of the year of registration, provided that the vehicle
still contains all its essential component parts (especially engine and body) and is free from additional waste materials.
Our contracted network of authorised treatment facilities has been carefully selected in order to provide a quality service to our cus-
tomers by de-polluting and recycling “End of Life Vehicles” to approved environmental standards. To find out the location of your near-
est authorised treatment facility, offering free of charge take-back, simply contact one of our dealers or refer to the Fiat web site or call
the toll free number 00800 3428 0000.
*
Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t
