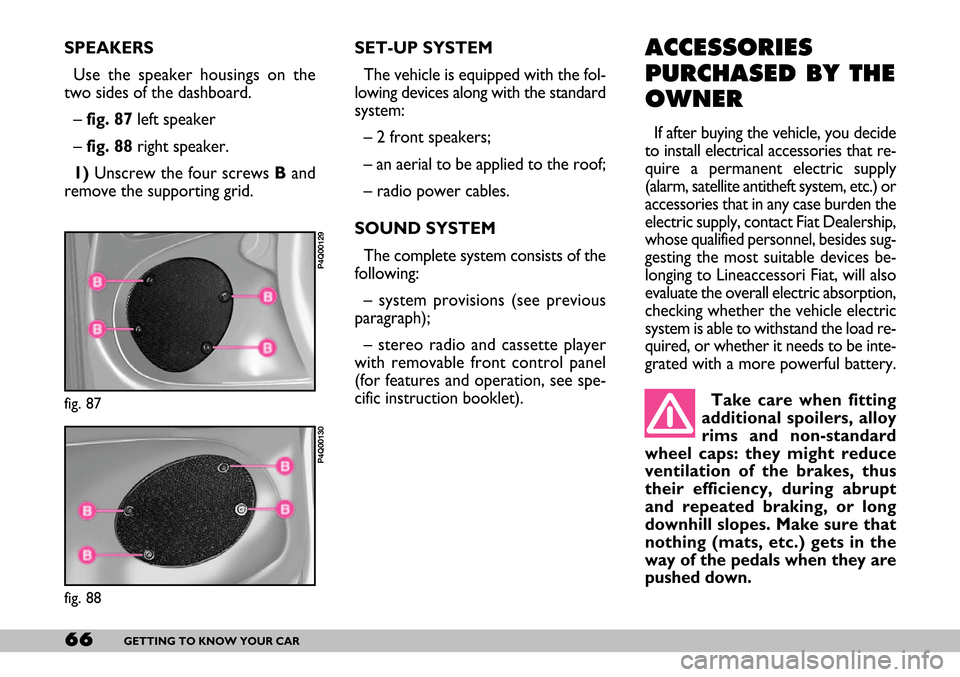

66GETTING TO KNOW YOUR CAR
SPEAKERS
Use the speaker housings on the
two sides of the dashboard.
– fig. 87 left speaker
– fig. 88 right speaker.
1)Unscrew the four screws Band
remove the supporting grid. SET-UP SYSTEM
The vehicle is equipped with the fol-
lowing devices along with the standard
system:
– 2 front speakers;
– an aerial to be applied to the roof;
– radio power cables.
SOUND SYSTEM
The complete system consists of the
following:
– system provisions (see previous
paragraph);
– stereo radio and cassette player
with removable front control panel
(for features and operation, see spe-
cific instruction booklet).
fig. 88
P4Q00130
fig. 87
P4Q00129
ACCESSORIES
PURCHASED BY THE
OWNER
If after buying the vehicle, you decide
to install electrical accessories that re-
quire a permanent electric supply
(alarm, satellite antitheft system, etc.) or
accessories that in any case burden the
electric supply, contact Fiat Dealership,
whose qualified personnel, besides sug-
gesting the most suitable devices be-
longing to Lineaccessori Fiat, will also
evaluate the overall electric absorption,
checking whether the vehicle electric
system is able to withstand the load re-
quired, or whether it needs to be inte-
grated with a more powerful battery.
Take care when fitting
additional spoilers, alloy
rims and non-standard
wheel caps: they might reduce
ventilation of the brakes, thus
their efficiency, during abrupt
and repeated braking, or long
downhill slopes. Make sure that
nothing (mats, etc.) gets in the
way of the pedals when they are
pushed down.

105IN AN EMERGENCY
JUMP STARTING
See
JUMP STARTINGin this chapter.
IF THE BATTERY
IS FLAT
First of all, read the CAR MAINTE-
NANCEchapter for the steps to be
taken to avoid the battery running
down and to ensure it has a long life.
RECHARGING THE BATTERY
You are advised to recharge the bat-
tery slowly for a period of approxi-
mately 24 hours at a low amperage.
Charging for too long could damage
the battery.
Proceed as follows:
1)Disconnect the electric system
from the battery terminals.
IMPORTANTWhere relevant,
switch the electronic car alarm off
with the remote control.3)Turn on the charger.
4)When you have finished, turn the
charger off before disconnecting the
battery.
5)Reconnect the cables to the bat-
tery terminals. Make sure the polarity
is correct.
The liquid in the battery
is poisonous and corro-
sive. Do not let it touch
the skin or eyes. Recharging the
battery should be done in a well-
ventilated area away from naked
flames or possible sources of
sparks: explosion and fire risk. Do not attempt to
recharge a frozen bat-
tery. Thaw is first other-
wise it could explode. If the bat-
tery froze, make sure the inter-
nal elements are not broken
(short-circuit risk) and that the
casing is not cracked (risk of
spilling the poisonous and corro-
sive liquid).
Under no circumstances
should a battery charger
be used to start the en-
gine: it could damage the elec-
tronic systems and in particular
the ignition and injection control
units.

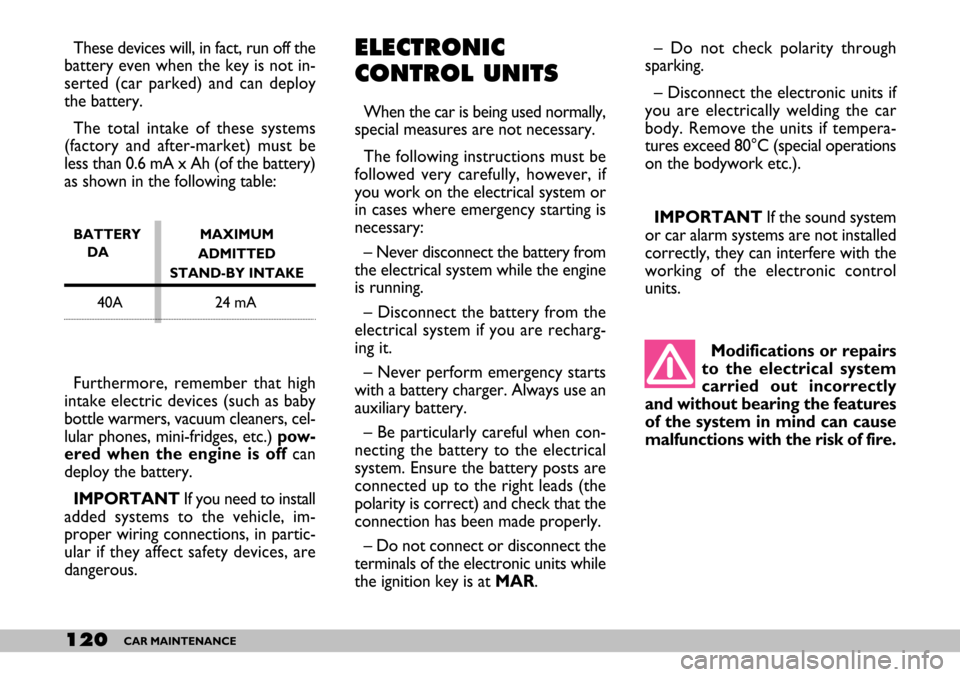

120CAR MAINTENANCE
– Do not check polarity through
sparking.
– Disconnect the electronic units if
you are electrically welding the car
body. Remove the units if tempera-
tures exceed 80°C (special operations
on the bodywork etc.).
IMPORTANTIf the sound system
or car alarm systems are not installed
correctly, they can interfere with the
working of the electronic control
units. ELECTRONIC
CONTROL UNITS
When the car is being used normally,
special measures are not necessary.
The following instructions must be
followed very carefully, however, if
you work on the electrical system or
in cases where emergency starting is
necessary:
– Never disconnect the battery from
the electrical system while the engine
is running.
– Disconnect the battery from the
electrical system if you are recharg-
ing it.
– Never perform emergency starts
with a battery charger. Always use an
auxiliary battery.
– Be particularly careful when con-
necting the battery to the electrical
system. Ensure the battery posts are
connected up to the right leads (the
polarity is correct) and check that the
connection has been made properly.
– Do not connect or disconnect the
terminals of the electronic units while
the ignition key is at MAR. Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.
Furthermore, remember that high
intake electric devices (such as baby
bottle warmers, vacuum cleaners, cel-
lular phones, mini-fridges, etc.) pow-
ered when the engine is offcan
deploy the battery.
IMPORTANTIf you need to install
added systems to the vehicle, im-
proper wiring connections, in partic-
ular if they affect safety devices, are
dangerous.
BATTERY
DA
40A 24 mA
MAXIMUM
ADMITTED
STAND-BY INTAKE
These devices will, in fact, run off the
battery even when the key is not in-
serted (car parked) and can deploy
the battery.
The total intake of these systems
(factory and after-market) must be
less than 0.6 mA x Ah (of the battery)
as shown in the following table:
