7GETTING TO KNOW YOUR CAR
A- The key with a blue grip is used
for:
– starting
– unlocking and locking the doors
– boot tailgate (VAN versions only)
– unlocking and locking the fuel tank
cap
– deactivating the passenger side
airbag.
B - – Remote control for electrical
door locking system.
The CODE card fig. 2 is also sup-
plied with the keys and bears the fol-
lowing:– front side:
A - the electronic code to be used
for emergency starting;
B - the mechanical key code;
– reverse side:
C - the spaces for any remote
control stickers.
Keep the CODE card in a safe place.
Make sure you have the CODE card
with you at all times as it is essential if
you have to perform an emergency
start-up.
U.K. Vehicle onlyAt the behest of
the motor Insurance Companies the
CODE card for the emergency start-
ing and replacement of keys are not
provided. If you need assistance please
contact your nearest Fiat Dealer-
ship,or telephone Free Phone
0800717000.DUPLICATING KEYS
When you ask for extra keys, re-
member that all the keys, both the
new ones and those you already pos-
sess, must be stored in the memory
(up to a maximum of 7). Go to your
Fiat Dealership, taking all the keys
in your possession and the CODE
card with you.
The Fiat Dealershipmay ask you
to demonstrate that you own the car.
The codes of any keys that are not
available when the new storage proce-
dure is carried out will be deleted from
the memory to prevent any lost or
stolen keys being used to start the car.
fig. 2
P4Q00028

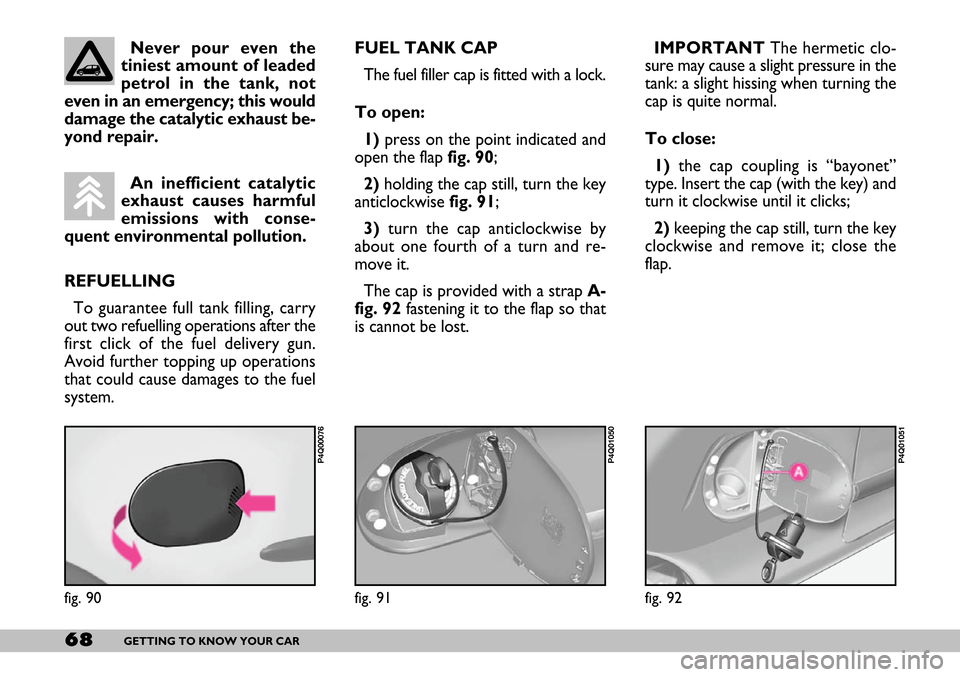

68GETTING TO KNOW YOUR CAR
IMPORTANTThe hermetic clo-
sure may cause a slight pressure in the
tank: a slight hissing when turning the
cap is quite normal.
To close:
1)the cap coupling is “bayonet”
type. Insert the cap (with the key) and
turn it clockwise until it clicks;
2)keeping the cap still, turn the key
clockwise and remove it; close the
flap.
fig. 92
P4Q01051
Never pour even the
tiniest amount of leaded
petrol in the tank, not
even in an emergency; this would
damage the catalytic exhaust be-
yond repair. FUEL TANK CAP
The fuel filler cap is fitted with a lock.
To open:
1)press on the point indicated and
open the flap fig. 90;
2) holding the cap still, turn the key
anticlockwise fig. 91;
3) turn the cap anticlockwise by
about one fourth of a turn and re-
move it.
The cap is provided with a strap A-
fig. 92fastening it to the flap so that
is cannot be lost.
fig. 90
P4Q00076
fig. 91
P4Q01050
An inefficient catalytic
exhaust causes harmful
emissions with conse-
quent environmental pollution.
REFUELLING
To guarantee full tank filling, carry
out two refuelling operations after the
first click of the fuel delivery gun.
Avoid further topping up operations
that could cause damages to the fuel
system.

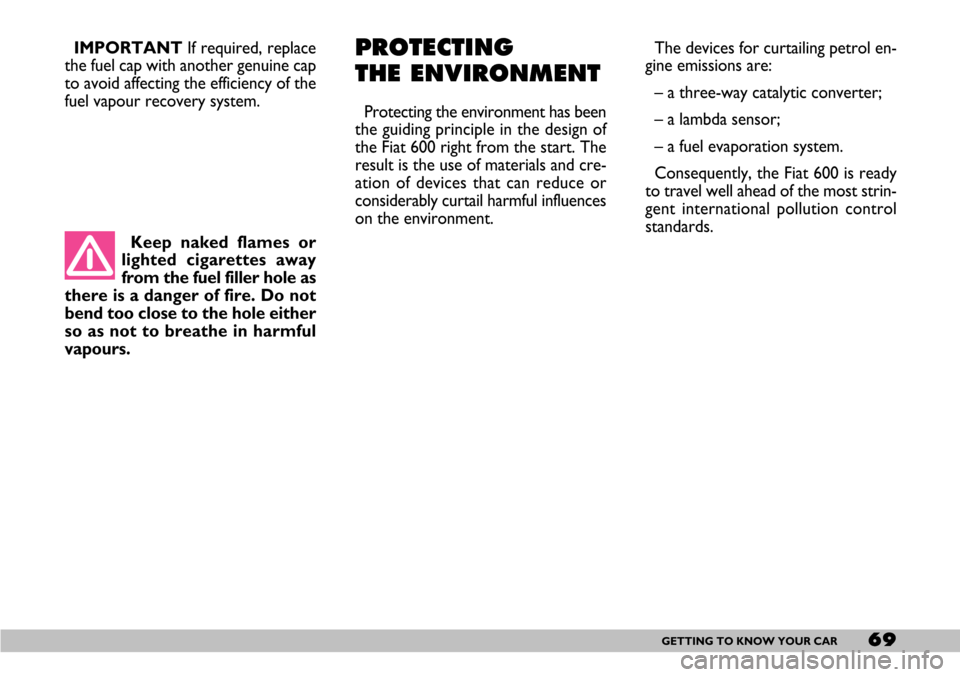

69GETTING TO KNOW YOUR CAR
IMPORTANTIf required, replace
the fuel cap with another genuine cap
to avoid affecting the efficiency of the
fuel vapour recovery system. PROTECTING
THE ENVIRONMENT
Protecting the environment has been
the guiding principle in the design of
the Fiat 600 right from the start. The
result is the use of materials and cre-
ation of devices that can reduce or
considerably curtail harmful influences
on the environment.
Keep naked flames or
lighted cigarettes away
from the fuel filler hole as
there is a danger of fire. Do not
bend too close to the hole either
so as not to breathe in harmful
vapours.
The devices for curtailing petrol en-
gine emissions are:
– a three-way catalytic converter;
– a lambda sensor;
– a fuel evaporation system.
Consequently, the Fiat 600 is ready
to travel well ahead of the most strin-
gent international pollution control
standards.

112CAR MAINTENANCE
ANNUAL INSPECTION SCHEDULE
– Inspect conditions of. engine, gear-
box, transmission, piping (exhaust -
fuel feed - brakes), rubber parts
(boots - sleeves - bushings - etc.),
brake and fuel line hoses.
– Check for bonnet and boot lock
cleanness, lever cleanness and lubri-
cation.
– Check battery charge status.
– Check conditions of various con-
trol belts.
– Check and top up fluid levels (en-
gine coolant, brakes, windscreen
washer, battery, etc.).
– Change engine oil.
– Replace engine oil filter.
– Replace pollen filter (where fitted). The following annual inspection
schedule is recommended for
cars travelling less than
20,000 km a year (e.g. approxi-
mately 10,000 km). The schedule
includes the following operations:
– Check tyre condition and wear
and adjust pressure, if required (in-
cluding spare wheel).
– Check operation of lights (head-
lights, direction indicators, hazard
lights, boot light, passenger compart-
ment ceiling light, glove compartment
light, instrument panel lights, etc.).
– Check windscreen wiper/washer
and adjust nozzles.
– Check position wear of wind-
screen/rear window wiper blades.
– Check front brake pad conditions
and wear.
ADDITIONAL
CHECKS
Every 1,000 kmor before long
trips, check and top up as necessary:
– engine coolant level, brake fluid
level, windscreen washer liquid level,
tyre pressure and conditions.
Every 3,000 kmcheck and top up
as necessary: engine oil level.
We recommend using FL Selenia
products which were specifically de-
signed and made for use in Fiat vehi-
cles (see
CAPACITIEStable in TECHNICAL
SPECIFICATIONS
).

130TECHNICAL SPECIFICATIONS
ENGINE
GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Diameter x stroke mm
Total capacity cm3
Compression ratio
Max power (EEC): kW
HP
corresponding ratio rpm
Max torque (EEC): Nm
kgm
corresponding ratio rpm
Spark plugs
Fuel
187A1.000
Otto
4 in line
70 x 72
1108
9.6
40
54
5000
88
9.0
2750
NGK DCPR7E-N-10
BOSCH YR7DEU
Unleaded petrol
95 RON

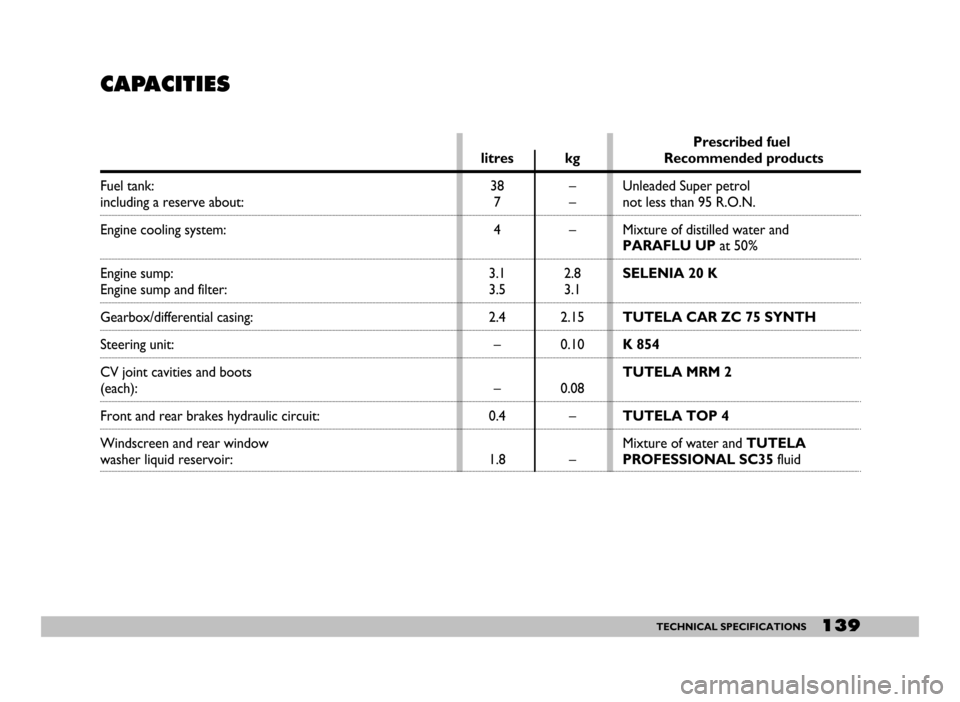

139TECHNICAL SPECIFICATIONS
CAPACITIES
Fuel tank:
including a reserve about:
Engine cooling system:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Steering unit:
CV joint cavities and boots
(each):
Front and rear brakes hydraulic circuit:
Windscreen and rear window
washer liquid reservoir: Prescribed fuel
Recommended products
Unleaded Super petrol
not less than 95 R.O.N.
Mixture of distilled water and
PARAFLU UPat 50%
SELENIA 20 K
TUTELA CAR ZC 75 SYNTH
K 854
TUTELA MRM 2
TUTELA TOP 4
Mixture of water and TUTELA
PROFESSIONAL SC35fluid litres kg
38–
7–
4–
3.1 2.8
3.5 3.1
2.4 2.15
– 0.10
– 0.08
0.4 –
1.8–

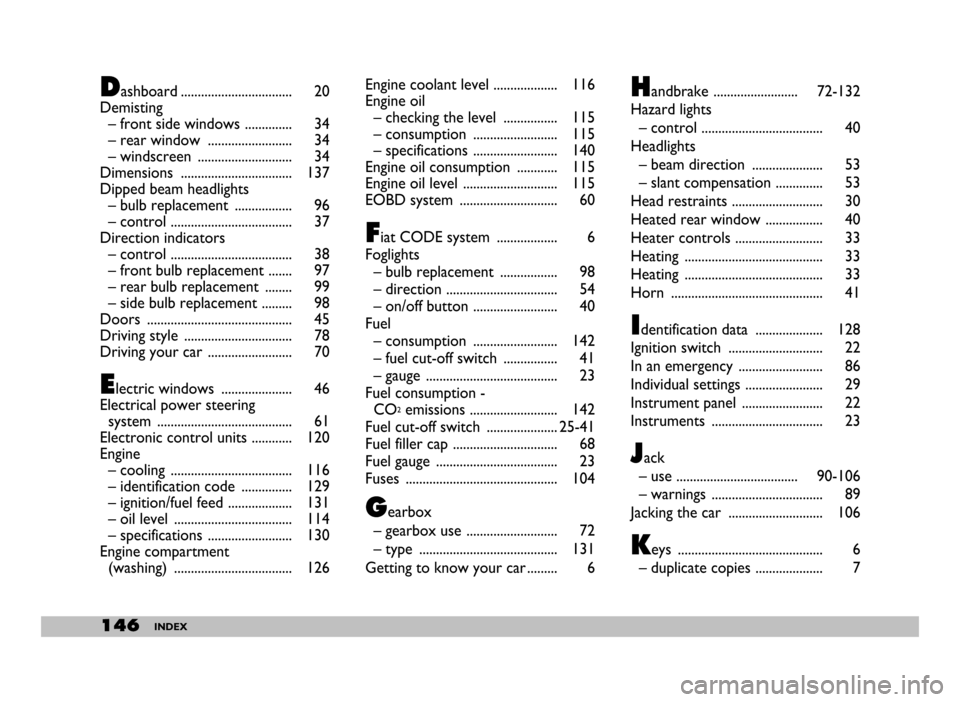

146INDEX
Dashboard ................................. 20
Demisting
– front side windows .............. 34
– rear window ......................... 34
– windscreen ............................ 34
Dimensions ................................. 137
Dipped beam headlights
– bulb replacement ................. 96
– control .................................... 37
Direction indicators
– control .................................... 38
– front bulb replacement ....... 97
– rear bulb replacement ........ 99
– side bulb replacement ......... 98
Doors ........................................... 45
Driving style ................................ 78
Driving your car ......................... 70
Electric windows ..................... 46
Electrical power steering
system ........................................ 61
Electronic control units ............ 120
Engine
– cooling .................................... 116
– identification code ............... 129
– ignition/fuel feed ................... 131
– oil level ................................... 114
– specifications ......................... 130
Engine compartment
(washing) ................................... 126Engine coolant level ................... 116
Engine oil
– checking the level ................ 115
– consumption ......................... 115
– specifications ......................... 140
Engine oil consumption ............ 115
Engine oil level ............................ 115
EOBD system ............................. 60
Fiat CODE system .................. 6
Foglights
– bulb replacement ................. 98
– direction ................................. 54
– on/off button ......................... 40
Fuel
– consumption ......................... 142
– fuel cut-off switch ................ 41
– gauge ....................................... 23
Fuel consumption -
CO
2emissions .......................... 142
Fuel cut-off switch ..................... 25-41
Fuel filler cap ............................... 68
Fuel gauge .................................... 23
Fuses ............................................. 104
Gearbox
– gearbox use ........................... 72
– type ......................................... 131
Getting to know your car ......... 6
Handbrake ......................... 72-132
Hazard lights
– control .................................... 40
Headlights
– beam direction ..................... 53
– slant compensation .............. 53
Head restraints ........................... 30
Heated rear window ................. 40
Heater controls .......................... 33
Heating ......................................... 33
Heating ......................................... 33
Horn ............................................. 41
Identification data .................... 128
Ignition switch ............................ 22
In an emergency ......................... 86
Individual settings ....................... 29
Instrument panel ........................ 22
Instruments ................................. 23
Jack
– use .................................... 90-106
– warnings ................................. 89
Jacking the car ............................ 106
Keys ........................................... 6
– duplicate copies .................... 7

COLD TYRE INFLATION PRESSURE (bar)
ENGINE OIL REPLACEMENT
litres kg
Sump3.1 2.8
Sump and filter3.5 3.1
Dispose of waste oil properly.
FUEL CAPACITY
litres
Tank capacity38
Reserveabout 7
Refuel petrol engine vehicles with unleaded petrol, octane rating (RON) no lower than 95.
Fiat Auto S.p.A - Quality - Assistenza Tecnica -
Ingegneria Assistenziale Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print no. 603.45.942 - 01/2007 - 2
ndedition
Versions Tyre Medium load Full load Space-saver
Front Rear Front Rear spare
S - Active155/65 R13 – 73T
2.1 2.0 2.3 2.3 2.5 155/70 R13 – 75T
165/55 R13 – 70H
145/70 R13 – 71Q M+S
Van155/65 R13 – 73T 2.0 2.0 2.2 2.2
Standard
145/70 R13 – 71Q M+S 2.1 2.0 2.3 2.3size spare
wheel
0.3 bar should be added to the values given if the pressure is measured while the tyre is hot.
Check again the correct pressure when the tyres are cold.
