8GETTING TO KNOW YOUR CAR
OPERATION
Each time the ignition key is turned
to STOP, or PARK, the protection
system will automatically immobilise
the engine.
When the key is turned to MARto
start the engine:
1) if the code is recognised the ¢
warning light on the instrument panel
will flash briefly; this means the pro-
tection system has recognised the key
code and deactivates the immobiliser,
turn the key to AVV, and the engine
will start;
2) if the ¢warning light stays on,
the code has not been recognised. In
this case, turn the key to STOP po-
sition and then turn it back to MAR;
if the engine remains immobilised, try
with the other keys provided.If you are still unable to start the en-
gine, use the emergency starting pro-
cedure (see
IN AN EMERGENCY) and
take your car to the nearest Fiat
Dealershipas soon as possible.
When the car is travelling and the
key is at MAR:
1) if the ¢warning light comes on
while the car is moving, this means
that the system is running a self-test
(e.g. due to a voltage drop);
2) if the warning light ¢flashes
when the key is in MAR the car is not
protected by the Immobiliser. Contact
your Fiat Dealershipand get them
to store the codes of all the keys in
the memory.
IMPORTANT The electronic
components inside the key may be
damaged if the key is subjected to
sharp knocks.IMPORTANTEach key provided
with the car has its own code, differ-
ent from all the others, which must be
stored in the memory of the system
control unit.
All the keys (originals and
duplicates) and the
CODE card must be
handed over to the new owner
when selling the car.

If the belt has been sub-
jected to heavy stress, for
example after an acci-
dent, it should be changed com-
pletely together with the an-
chors, anchor fastening screws
and the pretensioners. In fact,
even if the belt has no visible de-
fects, it could have lost its re-
silience.
13GETTING TO KNOW YOUR CAR
fig. 8
P4Q00038
For maximum safety,
keep the back of your
seat upright, lean back
into it and make sure the seat
belt fits closely across your chest
and hips.
Make sure that the seat belts of
the front and rear passengers are
fastened at all times! You in-
crease the risk of serious injury
or death in a collision if you
travel with the belts unfastened.
The belt should not be
twisted, make sure that it
is taut and adheres to the
passenger’s body. The upper part
should pass over the shoulder
and cross the chest diagonally.
The lower part should adhere to
the pelvis and to the abdomen of
the passenger, to prevent the
risk of slipping forwards, fig. 8.
Do not use any objects (pegs,
stoppers, etc.) to keep the belts
away from the body.Under no circumstances
should the components
of the pretensioner be
tampered with or removed. Any
operation should be carried out
by qualified and authorised per-
sonnel. Always contact a Fiat
Dealership.GENERAL INSTRUCTIONS
FOR USING THE SEAT BELTS
The driver must comply with (and
have the vehicle occupants follow) all
the local legal regulations concerning
the use of seat belts.
Always fasten the seat belts before
starting driving.

20GETTING TO KNOW YOUR CAR
IGNITION SWITCH
The key can be turned to four dif-
ferent positions fig. 16.
– STOP: engine off, key can be re-
moved and the steering column is
locked mechanically. Some electrical
devices can be used (e.g. sound sys-
tem).
– MAR: drive position. All electrical
devices can be used.
– AVV: engine ignition.
– PARK: engine off, parking lights
on, steering column locked. Press but-
ton Aand turn the key to PARK.
STEERING COLUMN LOCK
To engage the lock: remove the
ignition key at STOPor PARKand
turn the steering wheel until it locks. If the ignition switch has
been tampered with (e.g.
someone has tried to
steal your car), get a Fiat Deal-
ership to make sure it is still func-
tioning properly before you start
driving again.
Always remove the igni-
tion key when you get
out of the car. This will
prevent anyone from acciden-
tally working the controls. Re-
member to apply the handbrake
and, if the car is faced down on a
steep slope engage the first gear.
If it is facing up, engage the re-
verse gear.
Never remove the igni-
tion key while the car is
moving. The steering
wheel would automatically lock
as soon as you try to turn it. This
also applies when the car is being
towed.
fig. 16
P4Q00004
To release the lock: rock the
steering wheel slightly as you turn the
ignition key to MAR.
It is absolutely forbidden
to carry out whatever af-
ter-market operation in-
volving steering system or steer-
ing column modifications (e.g.: in-
stallation of anti-theft Device)
that could badly affect perfor-
mance and safety, cause the lapse
of warranty and also result in
non-compliance of the car with
homologation requirements.

26GETTING TO KNOW YOUR CAR
The car is fitted with an
electronic braking device
(EBD). The >and x
warning light will come on at the
same time when the engine is
running to indicate that there is
an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the car extremely
carefully to the nearest Fiat Deal-
ership to have the system
checked. Warning light >alone,
with the engine running,
normally indicates a fault
in the ABS system only. In this
case, the braking system is still
efficient, though without the
anti-locking device. Under these
conditions, performance of the
EBD system may be reduced.
Also in this case, you are advised
to go immediately to the nearest
Fiat Dealership, driving in such a
way to avoid sharp braking to
have the system checked.
FUEL RESERVE
(amber)
When there are about 7
litres of fuel left in the tank.
K
PASSENGER SIDE
AIRBAG OFF
(amber)
The warning light will come on when
the passenger side airbag is switched
off.
The light will flash when the engine
is started: this signals the airbag is be-
ing activated and not a fault.
F
Warning light Findi-
cates also warning light
¬failure. This is indi-
cated by intermittent flashing,
over 4 seconds, of warning light
F. In this event, warning light
¬could be not up to indicate re-
straint system failures, if any.
Stop the car and contact Fiat
Dealership to have the system
checked.

27GETTING TO KNOW YOUR CAR
ENGINE CONTROL
SYSTEM FAILURE
(EOBD) (amber)
In normal conditions, the warning
light will come on when the ignition
key is turned to MARand should go
out as soon as the engine is started.
The initial lighting up shows that the
warning light is working properly.
If the warning light either stays on or
comes on while travelling:
1. Fixed light- warning of a fuel
feed/ignition system failure which may
increase emissions in exhaust or cause
possible drops in performance, poor
handling and high consumption.
In such conditions, you can continue
driving but you should not tax the en-
gine and you should moderate the
speed. Prolonged use with the warn-
ing light on can cause damage. Con-
tact a Fiat Dealershipas soon as
possible.
The warning light will go out when
the failure disappears. In any case, the
system will store the error.
U
2. Flashing- warning that the catal-
yser can be damaged (see
EOBD SYSTEM
in this chapter).
If the warning light starts flashing, re-
lease the accelerator pedal and slow
the engine until the warning light stops
flashing. Continue driving at moderate
speed, preventing the warning light
from coming on again. Contact a Fiat
Dealershipas soon as possible.
Contact a Fiat Dealer-
ship as soon as possible if
the
Uwarning light ei-
ther does not come on when the
key is turned to MAR or comes
on, with fixed or flashing light,
when travelling.
FIAT CODE
(amber)
The warning light will
come on the three cases when the
key is at MAR:
1.Single flash - indicates that the
key code has been recognised. The
engine can be started.
2.Fixed light - the key code has not
been recognised. Follow the emer-
gency procedure to start the engine
(see
IN AN EMERGENCY).
3.Flashing light - indicates that the
car is not protected by the immo-
biliser system. The engine can how-
ever be started.
¢

28GETTING TO KNOW YOUR CAR
If the ¬warning light
does not turn on when
turning the ignition key
to MAR or if it stays on when
travelling, this could indicate a
failure in safety retaining sys-
tems; under this condition air
bags or pretensioners could not
trigger in the event of collision
or, in a restricted number of
cases, they could trigger acci-
dentally. Stop the car and con-
tact Fiat Dealership to have the
system checked immediately.ELECTRICAL
POWER STEERING
FAILURE (red)
In the following two cases:
1- When the power steering elec-
trical motor is overheated by repeat-
ed, complete steering. In this case,
hold the steering wheel still and wait
for the light to go out.
2- When there is an electrical
power steering system failure.
When the key is turned to MARthe
warning light should come on for ap-
proximately four seconds only. If the
warning lights stays on, the power
steering system will not be working.
The effort on the steering wheel will
increase without compromising steer-
ability. Contact a Fiat Dealership.
g
HANDBRAKE
ENGAGED / LOW
BRAKE FLUID
LEVEL (red)
In three cases:
1.When the handbrake is engaged.
2.When the brake fluid level falls
below the minimum
3. With the
>warning light to in-
dicate an EBDelectronic brake force
corrector failure.
x
If the xwarning light
comes on when travel-
ling, check whether the
handbrake is engaged. If the
warning light stays on and the
handbrake is not engaged, stop
immediately and contact a Fiat
Dealership.
AIRBAG FAILURE
(red)
This warning light is
found in cars fitting two airbags (dri-
ver’s side and passenger’s side) and in
cars fitting an electronic driver’s side
û
BATTERY NOT
RECHARGING
PROPERLY (red)
When there is a fault in the current
generating system.
When the key is turned to MAR the
light comes on but should go out the
moment the engine is started.
w
airbag system. The warning light will
come on to indicate a system failure.

29GETTING TO KNOW YOUR CAR
ENGINE COOLANT
TOO HOT
(Red)
Turning the ignition key to MARthe
warning light turns on, but it should
go off after four seconds.
If it turns on when travelling, stop
the car, leaving the engine on and
slightly accelerated to further activate
the circulation of the coolant fluid.
If the warning light does not go off
within the next 2 or 3 minutes, stop
the engine and contact Fiat Deal-
ership.
u
ENGINE OIL
PRESSURE TOO
LOW (red)
When the engine oil pressure drops
under the normal value.
When the key is turned to MAR,
the warning light should come on but
should go out as soon as the engine is
started.
A delay in the light going out is ac-
ceptable only when the engine is
idling.
If the engine has been taxed heavily,
the light might flash when idling but
should go out on accelerating slightly.
If the warning light
comes on while the car is
moving, stop the engine
and contact a Fiat Dealership.
v
INDIVIDUAL
SETTINGS
FRONT SEATS
All adjustments must be
made when the car is sta-
tionary.
Moving the seat backwards
or forwards
Lift the lever A-fig. 25and push the
seat forwards or backwards. You are
in the correct position for driving
when your hands are resting on the
steering wheel rim and your arms are
slightly bent.
fig. 25
P4Q00005

40GETTING TO KNOW YOUR CAR
The use of the hazard
lights is governed by the
traffic regulations of the
country the car is driven in.
These laws should be complied
with.
SWITCHES AND CONTROL
BUTTONS fig. 47
The buttons are located under the
central air vents.
The controls can only be operated
when the ignition key is at MAR.
The LED in the button will light up
when the respective function is on.CONTROLS
HAZARD LIGHTS
These come on when switch A-
fig. 46, is pressed regardless of the
position of the ignition key.
When these lights are on, the sym-
bol on the switch flashes.
Press the switch again to switch the
lights off.
fig. 46
P4Q00013
A - Front foglight on/off button. The
external lights must be on to switch
the front foglights on.
B- Rear foglight on/off button. The
external lights or the front foglights
must be on to switch the rear fog-
lights on. The rear foglights will be
switched off when the ignition key is
turned to STOP. If required, switch
the rear foglights back on when you
start the engine again.
C- Heated rear window on/off but-
ton.
D- Climate control system on/off
button.
fig. 47
P4Q00205

63GETTING TO KNOW YOUR CAR

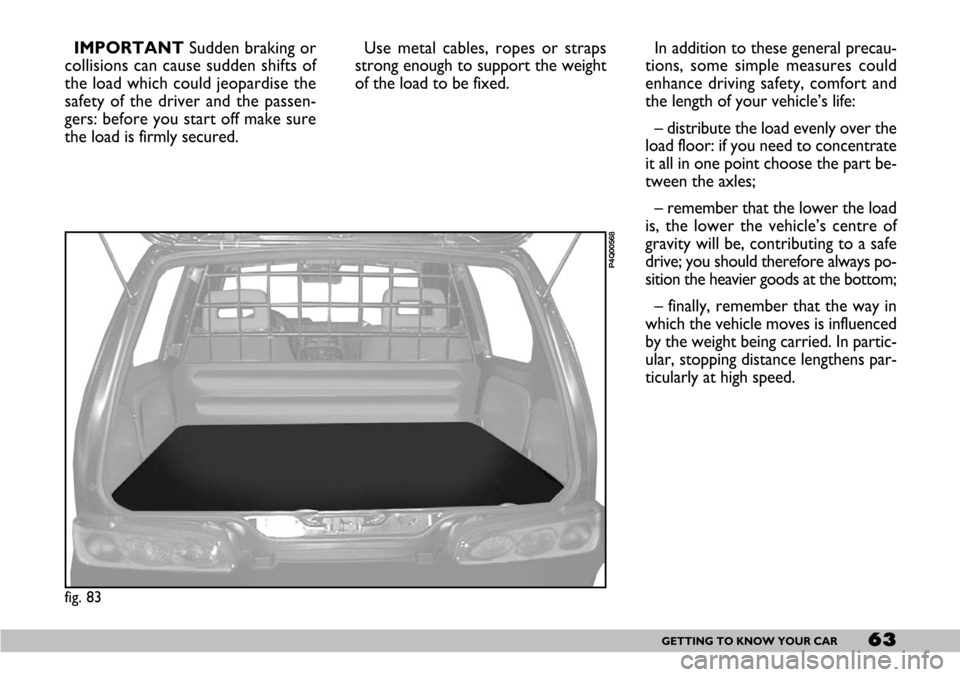

IMPORTANT Sudden braking or
collisions can cause sudden shifts of
the load which could jeopardise the
safety of the driver and the passen-
gers: before you start off make sure
the load is firmly secured.Use metal cables, ropes or straps
strong enough to support the weight
of the load to be fixed.In addition to these general precau-
tions, some simple measures could
enhance driving safety, comfort and
the length of your vehicle’s life:
– distribute the load evenly over the
load floor: if you need to concentrate
it all in one point choose the part be-
tween the axles;
– remember that the lower the load
is, the lower the vehicle’s centre of
gravity will be, contributing to a safe
drive; you should therefore always po-
sition the heavier goods at the bottom;
– finally, remember that the way in
which the vehicle moves is influenced
by the weight being carried. In partic-
ular, stopping distance lengthens par-
ticularly at high speed.
P4Q00568
fig. 83

70DRIVING YOUR CAR
STARTING
THE ENGINE1)Ensure that the handbrake is up.
2)Put the gear lever into neutral.
3)Press the clutch pedal fully down,
without pressing the accelerator.
4) Turn the ignition key to AVV and
let it go the moment the engine starts.
If warning lights ¢stay on when the
key is turned to MARturn the key to
STOPand then back to MAR. If the
light does not go off, try with the
other keys.If you are still unable to start the en-
gine, perform the emergency start-up
procedure (see
INANEMERGENCY) and
call your Fiat Dealership.
IMPORTANTDo not leave the ig-
nition key at MARwhen the engine is
off.
HOW TO WARM UP
THE ENGINE AFTER IT
HAS JUST STARTED
– Begin to move forward slowly let-
ting the engine turn at medium revs.
Do not accelerate abruptly.
– Do not push the engine to its limit
for the first few kilometres.
D D D D
R R R R
I I I I
V V V V
I I I I
N N N N
G G G G

Y Y Y Y
O O O O
U U U U
R R R R

C C C C
A A A A
R R R R
It is dangerous to let the
engine run in a garage or
other closed area. The
engine consumes oxygen and
gives off carbon dioxide, carbon
monoxide and other poisonous
fumes.
Do not touch the high
voltage cables (spark plug
leads) when the engine is
running.
IMPORTANT Do not press down
the accelerator before starting the en-
gine.
