72 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH COMPACT DISC PLAYER
72

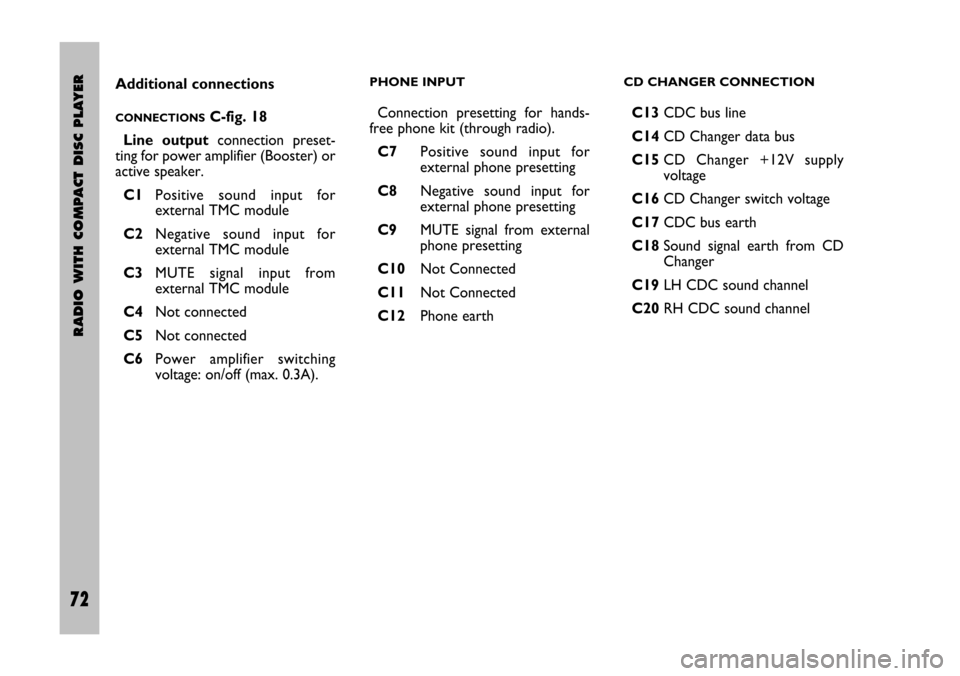

Additional connections
CONNECTIONSC-fig. 18
Line outputconnection preset-
ting for power amplifier (Booster) or
active speaker.
C1Positive sound input for
external TMC module
C2Negative sound input for
external TMC module
C3MUTE signal input from
external TMC module
C4Not connected
C5Not connected
C6Power amplifier switching
voltage: on/off (max. 0.3A).
PHONE INPUT
Connection presetting for hands-
free phone kit (through radio).
C7Positive sound input for
external phone presetting
C8Negative sound input for
external phone presetting
C9MUTE signal from external
phone presetting
C10Not Connected
C11Not Connected
C12Phone earth
CD CHANGER CONNECTION
C13CDC bus line
C14CD Changer data bus
C15CD Changer +12V supply
voltage
C16CD Changer switch voltage
C17CDC bus earth
C18Sound signal earth from CD
Changer
C19LH CDC sound channel
C20RH CDC sound channel
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 72

74 Nero Testo 603.46.306 Radio Stilo gb

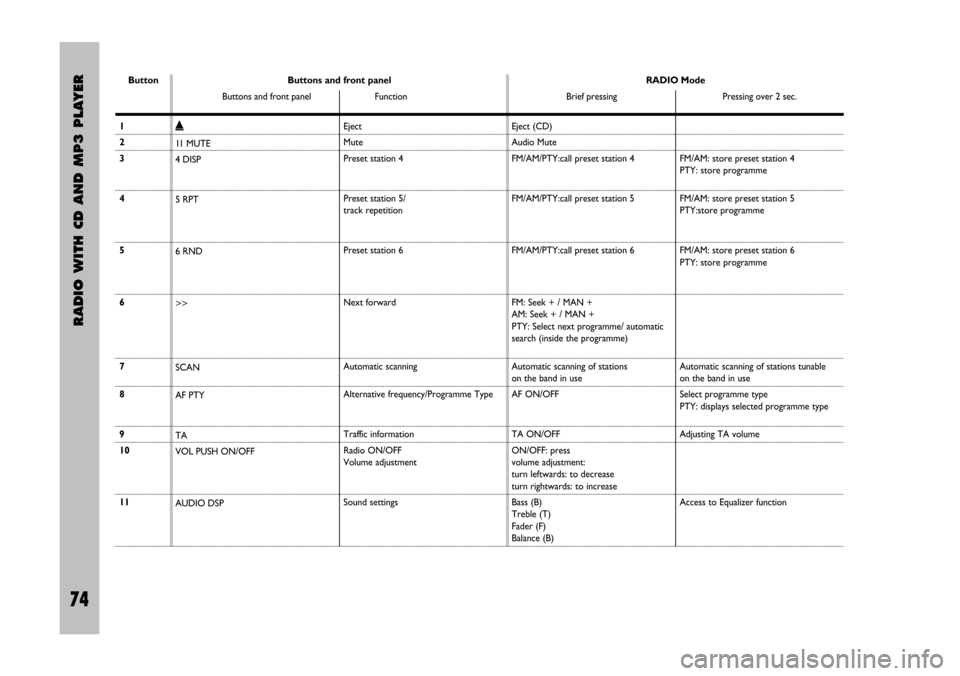

RADIO WITH CD AND MP3 PLAYER
74
Button RADIO Mode
Brief pressing Pressing over 2 sec. Buttons and front panel
Buttons and front panel Function
1
2
3
4
5
6
7
8
9
10
11FM/AM: store preset station 4
PTY: store programme
FM/AM: store preset station 5
PTY:store programme
FM/AM: store preset station 6
PTY: store programme
Automatic scanning of stations tunable
on the band in use
Select programme type
PTY: displays selected programme type
Adjusting TA volume
Access to Equalizer function
˚
11 MUTE
4 DISP
5 RPT
6 RND
>>
SCAN
AF PTY
TA
VOL PUSH ON/OFF
AUDIO DSPEject
Mute
Preset station 4
Preset station 5/
track repetition
Preset station 6
Next forward
Automatic scanning
Alternative frequency/Programme Type
Traffic information
Radio ON/OFF
Volume adjustment
Sound settingsEject (CD)
Audio Mute
FM/AM/PTY:call preset station 4
FM/AM/PTY:call preset station 5
FM/AM/PTY:call preset station 6
FM: Seek + / MAN +
AM: Seek + / MAN +
PTY: Select next programme/ automatic
search (inside the programme)
Automatic scanning of stations
on the band in use
AF ON/OFF
TA ON/OFF
ON/OFF: press
volume adjustment:
turn leftwards: to decrease
turn rightwards: to increase
Bass (B)
Treble (T)
Fader (F)
Balance (B)
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 74

76 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CD AND MP3 PLAYER
76
RADIO Mode
Brief pressing Pressing over 2 sec.Button Buttons and front panel
Letters or symbol Function
12
13
14
15
16
17
18RDS Clock display
Audio Clip Detect ON/OFF
Automatic search ON/OFF
Phone volume adjustment ON/OFF
Max. radio volume at switching on
Store automatically in preset station
group.
Exit on FMAST.P1 or AMAST.P1
FM/AM: store preset station 1
PTY: store programme
FM/AM: store preset station 2
PTY: store programme
FM/AM: store preset station 3
PTY: store programme MENU RD
BAND AS
SRC
<<
1 CD / *+
2 CD / *–
3 F-TRKMenu function
Select frequency band
Select source
Previous backward
Preset station 1
Preset station 2
Preset station 3Manual station tuning ON/OFF
NEWS ON/OFF
Function confirmation beep ON/OFF
(BEEP)
SENS DX/LO
SVC (Speed Volume)
Loudness ON/OFF
EON TA ON
CD Compression
TPM (Track Program Memory)
CD Naming
FM1,FM2,FM3,FMAST, LW,MW,AMAST
TAPE (Cassette), RADIO, CD Changer
(if connected)
FM: Seek – / MAN –
AM: Seek – / MAN –
PTY: Select next programme / automatic
search (inside the programme)
FM/AM/PTY:call preset station 1
FM/AM/PTY: call preset station 2
FM/AM/PTY: call preset station 3
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 76
