FIAT STRADA 2011 Owner handbook (in English)

139
The vehicle must not be
raised from the rear
(lower part of bodywork or
suspension components) nor
must it be raised from the front
(gearbox casing).
WARNINGWITH WORKSHOP LIFT
Laterally
The vehicle must be raised with the
arm of the hydraulic lift positioned
as illustrated in fig. 146 and 147.
fig. 146
F0X0129m
fig. 147
F0X0130m
fig. 148
F0X0131m
WITH LIFT ARMS
The vehicle must be raised with the
ends of the arms in the lower points
in the bodywork as indicated in
fig. 148.
Make sure that the arms
of the lift do not put a
strain on the bodywork
or the side trim. Adjust the arms
of the lift correctly, and apply a
wooden or rubber block if
necessary.

140
Before towing, turn the
ignition key to MAR
and then to STOP without
extracting it. If the key is
removed, the steering lock will
activate automatically and it
will be impossible to steer the
wheels.
WARNING
The tow hook must be
used exclusively for
roadside assistance operations.
You are allowed to tow the
vehicle for short distances using
an appropriate device in
accordance with the highway
code (rigid bar), to move the
vehicle on the road in readiness
for towing or transport via a
breakdown vehicle. The tow
hook MUST NOT be used to
tow vehicles off the road or
where there are obstacles
and/or for towing operations
using cables or other non-rigid
devices. In compliance with the
above conditions, towing must
take place with the two
vehicles (one towing, the other
towed) aligned as much as
possible along the same centre
line.
WARNING
fig. 149
F0X0132m

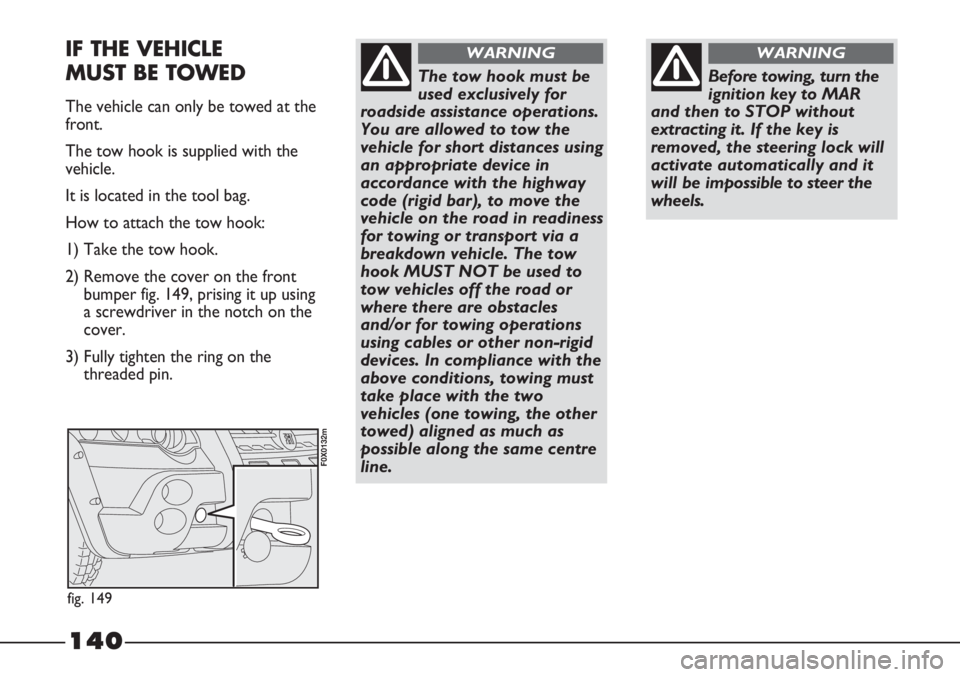

IF THE VEHICLE
MUST BE TOWED
The vehicle can only be towed at the
front.
The tow hook is supplied with the
vehicle.
It is located in the tool bag.
How to attach the tow hook:
1) Take the tow hook.
2) Remove the cover on the front
bumper fig. 149, prising it up using
a screwdriver in the notch on the
cover.
3) Fully tighten the ring on the
threaded pin.

141

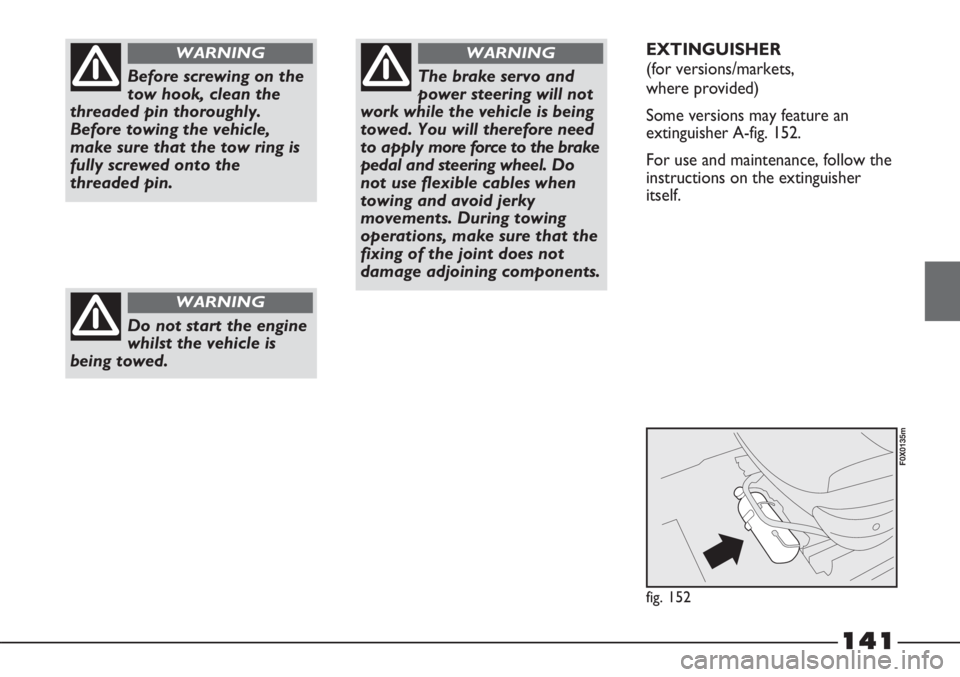

Before screwing on the
tow hook, clean the
threaded pin thoroughly.
Before towing the vehicle,
make sure that the tow ring is
fully screwed onto the
threaded pin.
WARNING
Do not start the engine
whilst the vehicle is
being towed.
WARNING
The brake servo and
power steering will not
work while the vehicle is being
towed. You will therefore need
to apply more force to the brake
pedal and steering wheel. Do
not use flexible cables when
towing and avoid jerky
movements. During towing
operations, make sure that the
fixing of the joint does not
damage adjoining components.
WARNINGEXTINGUISHER
(for versions/markets,
where provided)
Some versions may feature an
extinguisher A-fig. 152.
For use and maintenance, follow the
instructions on the extinguisher
itself.
fig. 152
F0X0135m

page intentionally left blank

143
VEHICLE MAINTENANCE
SCHEDULED SERVICING
Correct servicing is essential for
ensuring long vehicle life under the
best conditions.
This is why Fiat has planned a series
of checks and services every 35,000
km.
It is, however, important to
remember that scheduled servicing
does not completely cover all the
requirements of the vehicle: even in
the initial period before 35,000 km,
and then subsequently, between one
service and another, ordinary care is
always required such as routine
checks involving topping up fluid
levels, checking tyre pressures etc.IMPORTANT Scheduled Servicing
coupons are required by the
Manufacturer.
Failure to comply with the schedule
may invalidate the warranty.
Scheduled Servicing can be carried
out by any Fiat Dealership, at pre-
established times.If during each operation, in addition
to those scheduled, the need arises
for further replacements or repairs,
these may only be carried out with
the explicit agreement of the
Customer. IMPORTANT You are
advised to contact a Fiat Dealership
in the event of any minor operating
faults, without waiting for the next
service coupon.
If the vehicle is used frequently for
towing, the interval between
scheduled servicing must be
reduced.

21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●●●●
●●
144
SCHEDULED SERVICING PLAN
Service coupons must be performed every 35,000 km.
Thousands of miles
Thousands of kilometres
Months
Check battery charge status and recharge if necessary
Check tyre conditions/wear and adjust pressure, if required
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, passenger compartment, glove compartment,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust jets
if necessary
Check windscreen wiper blade position/wear
Check cleanliness of bonnet and boot locks, as well as
cleanliness and lubrication of linkages
Visually inspect condition of: exterior bodywork, underbody protection,
pipes and hoses (exhaust, fuel system, brakes), rubber
elements (boots, sleeves, bushes, etc.)
Check condition and wear of front disc brake pads
and operation of pad wear indicator
Check rear drum brake lining condition and wear

145
Thousands of miles
Thousands of kilometres
Months
Check and, if necessary, top up fluid levels (engine coolant,
hydraulic clutch/brakes, windscreen washer, battery, etc.)
Visual check of accessory drive belt(s) conditions
(versions without automatic tensioner)
Check tension of accessory drive belt
(versions without automatic tensioner)
Check handbrake lever travel and adjust, if required
Check exhaust emissions/smokiness
Check operation of engine management systems
(using diagnosis socket)
Check manual gearbox oil level
Replace fuel filter cartridge (diesel versions)
Replace accessory drive belt(s)
Replace air cleaner cartridge
21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●●●●●
●
●●
●●●●●
●●●●●
●●●●●
●●●●●
●●
●
●●●●●

146

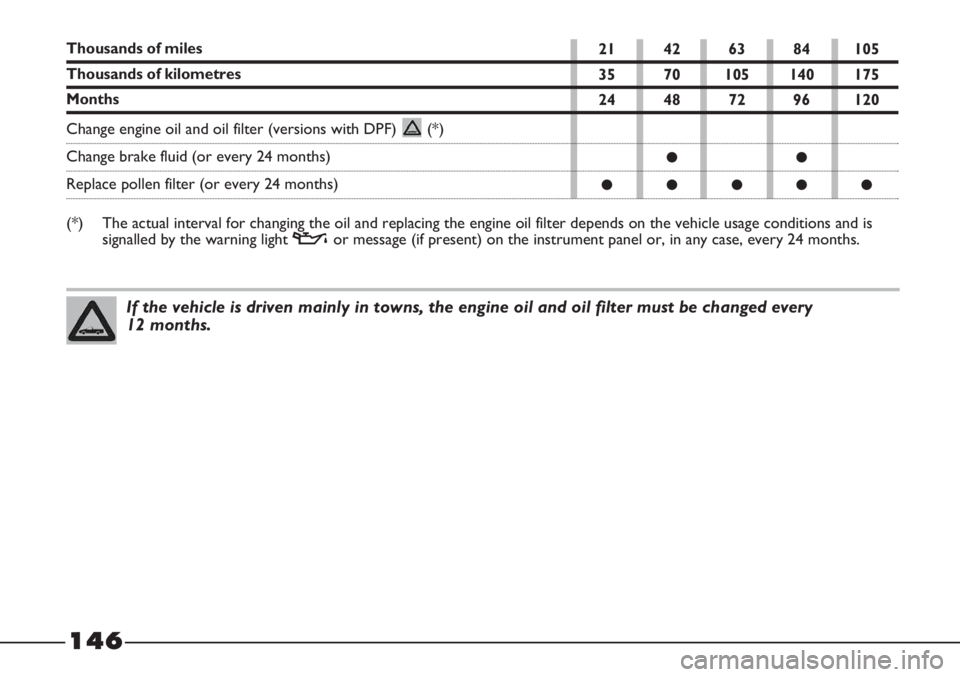

If the vehicle is driven mainly in towns, the engine oil and oil filter must be changed every
12 months.
21 42 63 84 105
35 70 105 140 175
24 48 72 96 120
●●
●●●●●
Thousands of miles
Thousands of kilometres
Months
Change engine oil and oil filter (versions with DPF) (*)
Change brake fluid (or every 24 months)
Replace pollen filter (or every 24 months)
(*) The actual interval for changing the oil and replacing the engine oil filter depends on the vehicle usage conditions and is
signalled by the warning light vor message (if present) on the instrument panel or, in any case, every 24 months.

147
PERIODIC CHECKS
Every 1,000 km or before long
journeys, check and, if necessary, top
up the following:
– engine coolant level;
– brake fluid level;
– windscreen washer fluid level;
– tyre pressure and conditions;
– operation of lighting system
(headlights, direction indicators,
hazard warning lights, etc.);
– operation of windscreen
washer/wiper system and
position/wear of windscreen/rear
window wiper blades;
Every 3,000 km check and top up if
required: engine oil level.
You are advised to use PETRONAS
LUBRICANTS products, which have
been designed and produced
specifically for Fiat vehicles (see table
“Capacities” in the “Technical
specifications” section).
DEMANDING
VEHICLE USE
If the vehicle is mostly used in one of
the following conditions:
– towing a trailer or caravan;
– dusty roads;
– short, repeated journeys (less
than 7-8 km) at sub-zero
temperatures;
– engine often idling or driving long
distances at low speeds or long
periods of inactivity;
the following checks must be carried
out more frequently than indicated
in the Scheduled Servicing Plan:
– check front disc brake pad
conditions and wear;
– check cleanliness of bonnet and
boot locks, and cleanliness and
lubrication of linkages;– visually inspect the conditions of:
engine, gearbox, transmission,
pipes and hoses
(exhaust/fuel/brakes), rubber parts
(boots/sleeves/bushes, etc.);
– check battery charge and fluid
level (electrolyte);
– visually inspect the condition of
the accessory drive belts;
– check and, if necessary, change
engine oil and replace oil filter;
– check pollen filter and replace, if
required;
– check air cleaner and replace, if
required.

148
CHECKING LEVELS
Never smoke while
working in the engine
compartment: inflammable
gases and vapours may be
present, constituting a fire risk.
WARNING
When topping up, take
care not to mix up the
various types of fluids:
they are not compatible with
each other and could seriously
damage the vehicle.
fig. 152 - 1.3 Multijet 16Vversion
F0X0136m
1. engine oil - 2. battery - 3. brake fluid - 4. windscreen washer fluid -
5. engine coolant - 6. power steering fluid - 7. diesel filter
