169

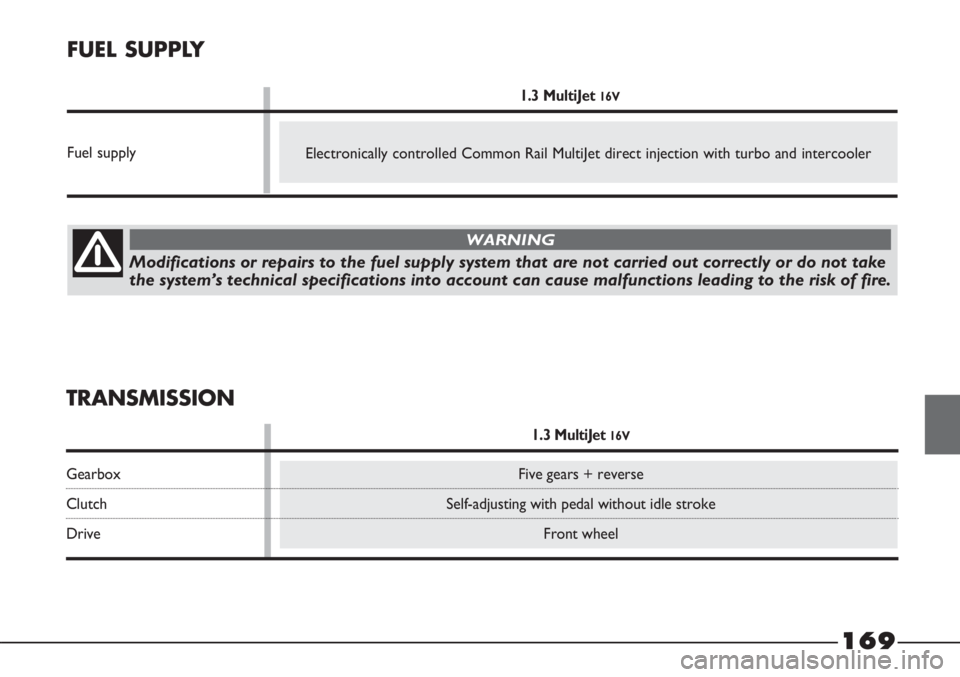

FUEL SUPPLY
1.3 MultiJet 16V
Fuel supply
TRANSMISSION
1.3 MultiJet 16V
Gearbox Five gears + reverse
Clutch Self-adjusting with pedal without idle stroke
Drive Front wheel
Electronically controlled Common Rail MultiJet direct injection with turbo and intercooler
Modifications or repairs to the fuel supply system that are not carried out correctly or do not take
the system’s technical specifications into account can cause malfunctions leading to the risk of fire.
WARNING

SUSPENSION
1.3 MultiJet 16V
Front Independent, MacPherson type with lower wishbones secured to a crossmember.
Offset coil springs and double-acting telescopic hydraulic shock absorbers.
Anti-roll bar.
Rear Rigid axle with longitudinal single-blade parabolic leaf spring.
170
BRAKES
1.3 MultiJet 16V
Service brakes: front self-ventilating disc with floating caliper
rear drum
Parking brake controlled by hand lever, working on rear brakes
IMPORTANT Water, ice and road salt on roads may deposit on the brake discs thus reducing braking efficiency when braking for
the first time.
STEERING SYSTEM
1.3 MultiJet 16V
Type Rack and pinion with hydraulic power steering
Turning circle
(kerb to kerb) mWorking/ Trekking: 10,7Adventure: 11,3

171
WHEELS
RIMS AND TYRES
Pressed steel or alloy
wheels.
Tubeless radial carcass tyres. The
vehicle registration document also
lists all type-approved tyres.
IMPORTANT In the event of
discrepancies between the information
provided in the “Owner Handbook”
and the “Vehicle registration
document”, only the latter is valid.
Fit tyres of the same make and type
on all wheels, to ensure the safety of
the vehicle while driving.
IMPORTANT Do not use inner
tubes in the case of tubeless tyres.
21
3
fig. 167
F0X0151m
SPARE WHEEL
Pressed steel wheel.
Tubeless tyre, same as standard
tyre.
WHEEL GEOMETRY
Front wheel toe in:
-1 ±1 mm.
Rear wheel toe in:
0 ±2 mm.
The values refer to the vehicle in
running order.READING TYRE CODE fig. 167
Example: 175/70 R 14 88T
175 = Rated width (S, distance
between sidewalls in mm).
70 = Height/width ratio (H/S) as a
percentage.
R = Radial tyre.
14 = Rim diameter in inches (Ø).
88 = Load rating (capacity).
T = Maximum speed rating.

172
fig. 168
F0X0152m
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg

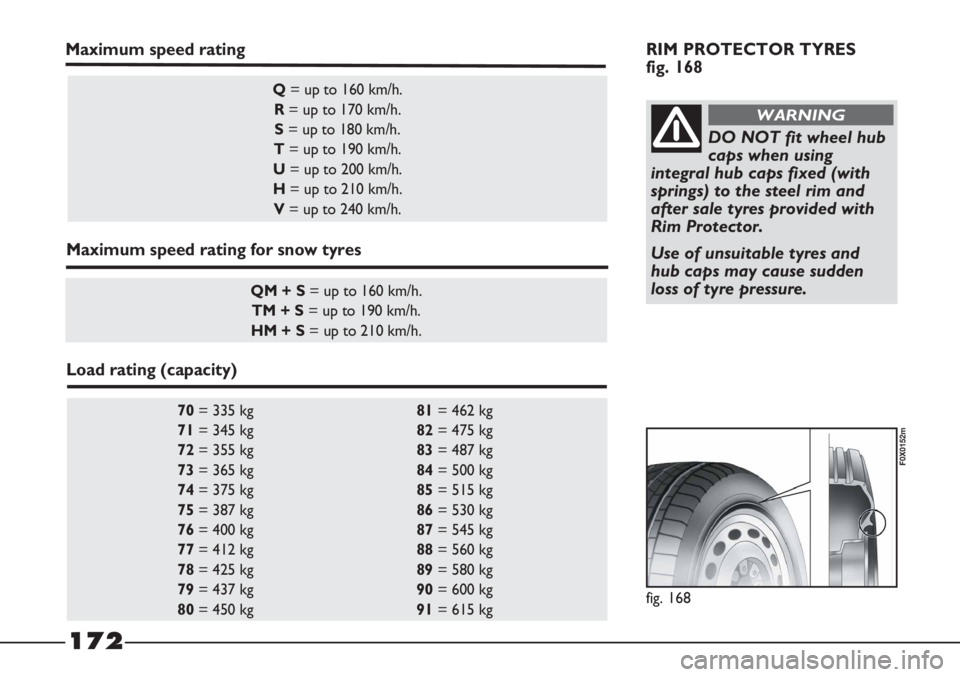

Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
Maximum speed rating
Maximum speed rating for snow tyres
Load rating (capacity)RIM PROTECTOR TYRES
fig. 168
DO NOT fit wheel hub
caps when using
integral hub caps fixed (with
springs) to the steel rim and
after sale tyres provided with
Rim Protector.
Use of unsuitable tyres and
hub caps may cause sudden
loss of tyre pressure.
WARNING

173

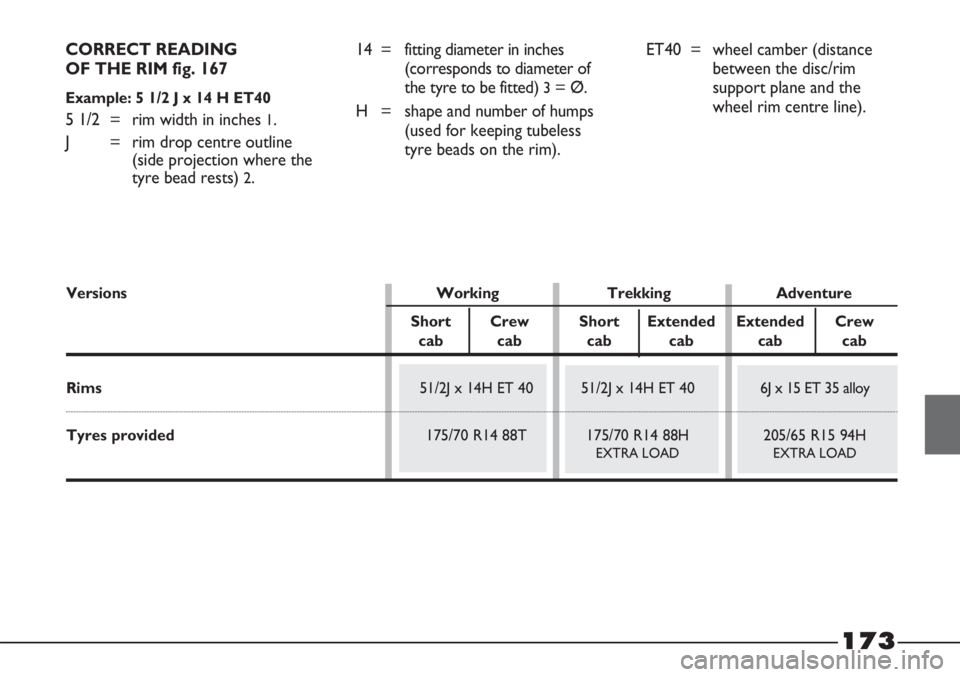

CORRECT READING
OF THE RIM fig. 167
Example: 5 1/2 J x 14 H ET40
5 1/2 = rim width in inches 1.
J = rim drop centre outline
(side projection where the
tyre bead rests)
2.14 = fitting diameter in inches
(corresponds to diameter of
the tyre to be fitted)
3= Ø.
H = shape and number of humps
(used for keeping tubeless
tyre beads on the rim).
Versions Working Trekking Adventure
Short Crew Short Extended Extended Crew
cab cab cab cab cab cab
Rims51/2J x 14H ET 40 51/2J x 14H ET 40 6J x 15 ET 35 alloy
Tyres provided175/70 R14 88T 175/70 R14 88H 205/65 R15 94H
EXTRA LOAD EXTRA LOAD
ET40 = wheel camber (distance
between the disc/rim
support plane and the
wheel rim centre line).

174

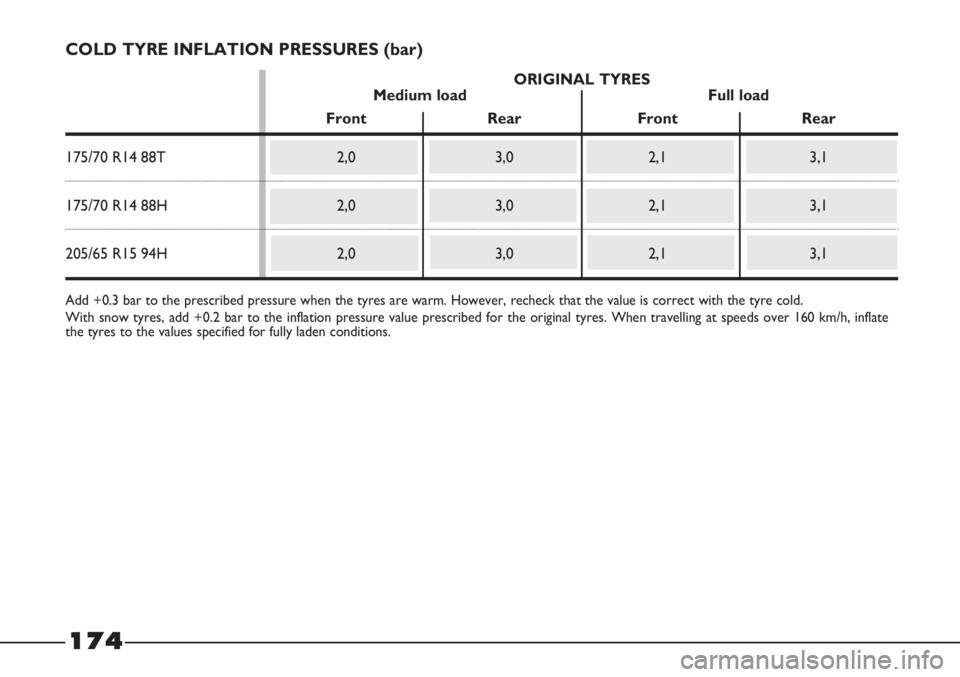

COLD TYRE INFLATION PRESSURES (bar)
Add +0.3 bar to the prescribed pressure when the tyres are warm. However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the inflation pressure value prescribed for the original tyres. When travelling at speeds over 160 km/h, inflate
the tyres to the values specified for fully laden conditions.
ORIGINAL TYRES
Medium load Full load
Front Rear Front Rear
175/70 R14 88T 2,0 3,0 2,1 3,1
175/70 R14 88H 2,0 3,0 2,1 3,1
205/65 R15 94H 2,0 3,0 2,1 3,1

175

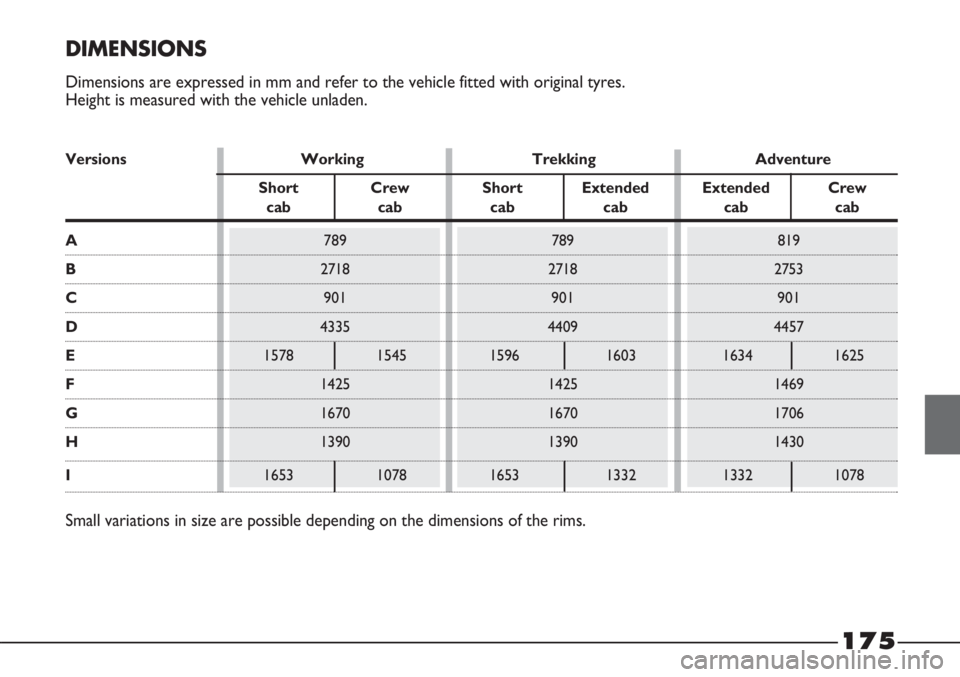

Versions Working Trekking Adventure
Short Crew Short Extended Extended Crew
cab cab cab cab cab cab
A789 789 819
B2718 2718 2753
C901 901 901
D4335 4409 4457
E1578 1545 1596 1603 1634 1625
F1425 1425 1469
G1670 1670 1706
H1390 1390 1430
I1653 1078 1653 1332 1332 1078

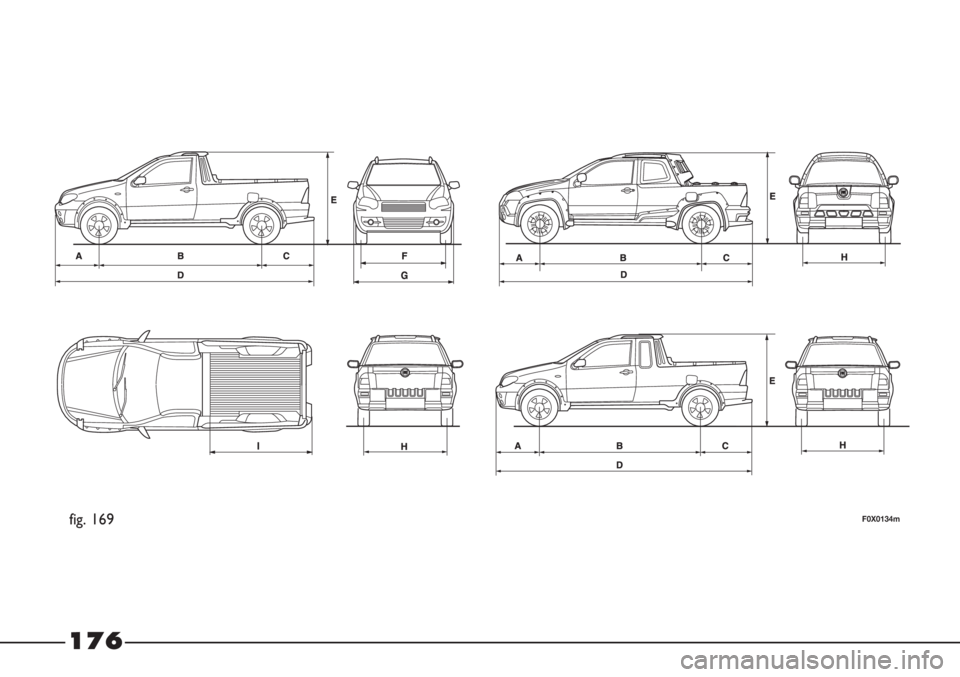

DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle fitted with original tyres.
Height is measured with the vehicle unladen.
Small variations in size are possible depending on the dimensions of the rims.

176
fig. 169F0X0134m

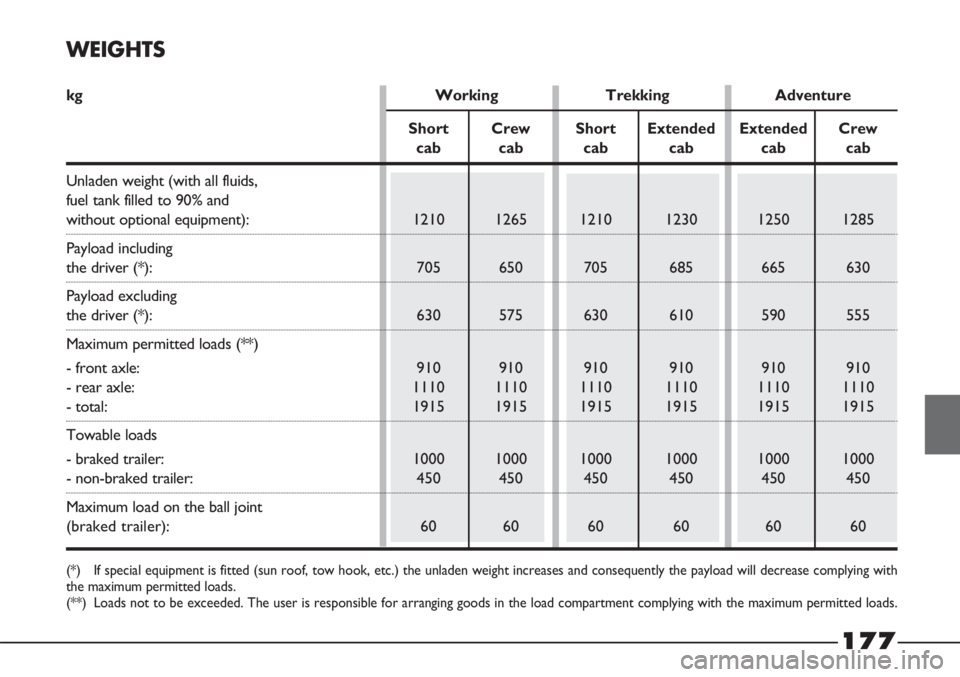

WEIGHTS
kg Working Trekking Adventure
Short Crew Short Extended Extended Crew
cab cab cab cab cab cab
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment):1210 1265 1210 1230 1250 1285
Payload including
the driver (*): 705 650 705 685 665 630
Payload excluding
the driver (*): 630 575 630 610 590 555
Maximum permitted loads (**)
- front axle: 910 910 910 910 910 910
- rear axle: 1110 1110 1110 1110 1110 1110
- total:1915 1915 1915 1915 1915 1915
Towable loads
- braked trailer:1000 1000 1000 1000 1000 1000
- non-braked trailer: 450 450 450 450 450 450
Maximum load on the ball joint
(braked trailer): 60 60 60 60 60 60
(*) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases and consequently the payload will decrease complying with
the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the load compartment complying with the maximum permitted loads.
177

1.3 Multijet 16V
CAPACITIES
Fuel tank:including a reserve of:
Engine cooling system:
Engine sump:
Engine sump and filter:
Differential/gearbox casing:
Hydraulic power steering:
CV joint and gaiter:
Hydraulic brake circuit
with ABS:
Windscreen washer fluid reservoir:
litres
48
5,5 - 7,5
7,6
2,85
3,0
1,98
0,68
–
0,45
2,3Prescribed fuels
Original products
Diesel for motor vehicles (EN590 specification)
Mixture of 50% distilled water and 50% PARAFLU
UP
SELENIA WR P.E.
TUTELA CAR TECHNYX
TUTELA GI/E
TUTELA MRM 2
TUTELA TOP 4
Mixture of water and
TUTELA PROFESSIONAL SC35 kg
–
–
7,86
2,75
2,6
1,8
0,9
0,075
–
–
